Facet Dura-Lift 12V Fuel Pump 40285 — 1/8 NPT, 4–7 psi, 120" Vertical Lift, 33 GPH

Facet Dura-Lift 40285 is a compact 12V electric fuel pump engineered to pull fuel from up to 120 inches below the unit while delivering 4–7 psi and up to 33 GPH free flow.

This Dura-Lift pump is built for installations where the supply tank sits well below the main pump or a high-pressure pump must be fed from a deep sump. The nylon-bodied unit combines high vertical lift capability with an easy-to-service intake screen and a clear sight bowl so you can monitor filter condition and detect sediment. It comes ready with a 2-pin Weather Pack connector and is compatible with gasoline, E85 blends, diesel, biodiesel, and common fuel additives.

How does this pump reach fuel from deep or distant tanks?

The Dura-Lift design prioritizes vertical lift, giving a guaranteed dry-lift capability of 120 inches. Its internal mechanics and intake filter allow the pump to maintain suction where standard pumps would cavitate or fail. That makes it suitable as a pre-feed to higher-pressure pumps or for tanks positioned well below the pump mounting point.

• Minimum dry-lift: 120 inches (10 feet)
• Ideal for tanks located more than 2–3 feet below the pump
• Works as a lift/feed pump ahead of high-pressure systems

What flow and pressure can I expect in typical installations?

Performance depends on whether the pump is free-flowing or under system backpressure. Free-flow capacity reaches up to 33 gallons per hour, while a no-flow static pressure range is 4–7 psi. In many real-world setups you can expect around 20 GPH at roughly 3 psi when supplying downstream components.

• Free-flow: up to 33 GPH
• Typical operating example: ~20 GPH at 3 psi
• No-flow static pressure: 4–7 psi

What features make maintenance and installation straightforward?

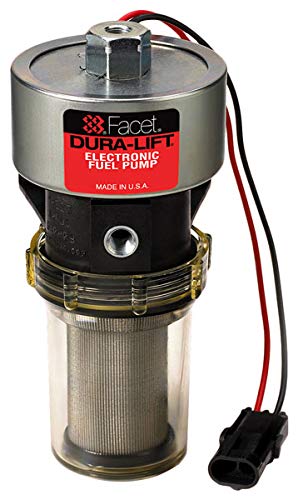

The pump includes practical serviceability and mounting features to simplify installation and upkeep. A large 80‑micron intake screen removes easily for cleaning, and the transparent sight bowl lets you visually inspect for debris or contamination. The molded 2-bolt flange and standard 1/8 NPT ports make mounting and plumbing straightforward.

• Clear sight bowl for quick filter checks and sediment detection
• Removable 80 micron intake screen for easy cleaning
• 2-bolt mounting flange molded into the nylon body, 1/8 NPT inlet/outlet

Which fuels and environments is this pump compatible with?

Facet engineered the Dura-Lift to tolerate a wide range of common automotive and marine fuels and additives. It supports gasoline and alcohol blends up to E85, diesel and biodiesel, plus typical aftermarket fuel additives. Construction and connector choices also aim for durability in demanding installations.

• Compatible: gasoline, E85, diesel, biodiesel, fuel additives
• Electrical: 12 V DC with preinstalled 2-pin Weather Pack connector
• Body: durable black nylon with corrosion-resistant components

Who is this for: The Facet Dura-Lift 40285 is geared toward mechanics, custom installers, and vehicle or marine owners who need reliable suction from a deep or remotely positioned fuel tank. It’s a good choice when you require a compact, serviceable lift pump to feed higher-pressure systems or to maintain fuel supply from low-mounted tanks, while preserving compatibility with modern fuel blends and additives.
