Fill-Rite 12V 15 GPM Fuel Transfer Pump FR1210HA1 — green kit with 12' hose & automatic nozzle, cast iron durability

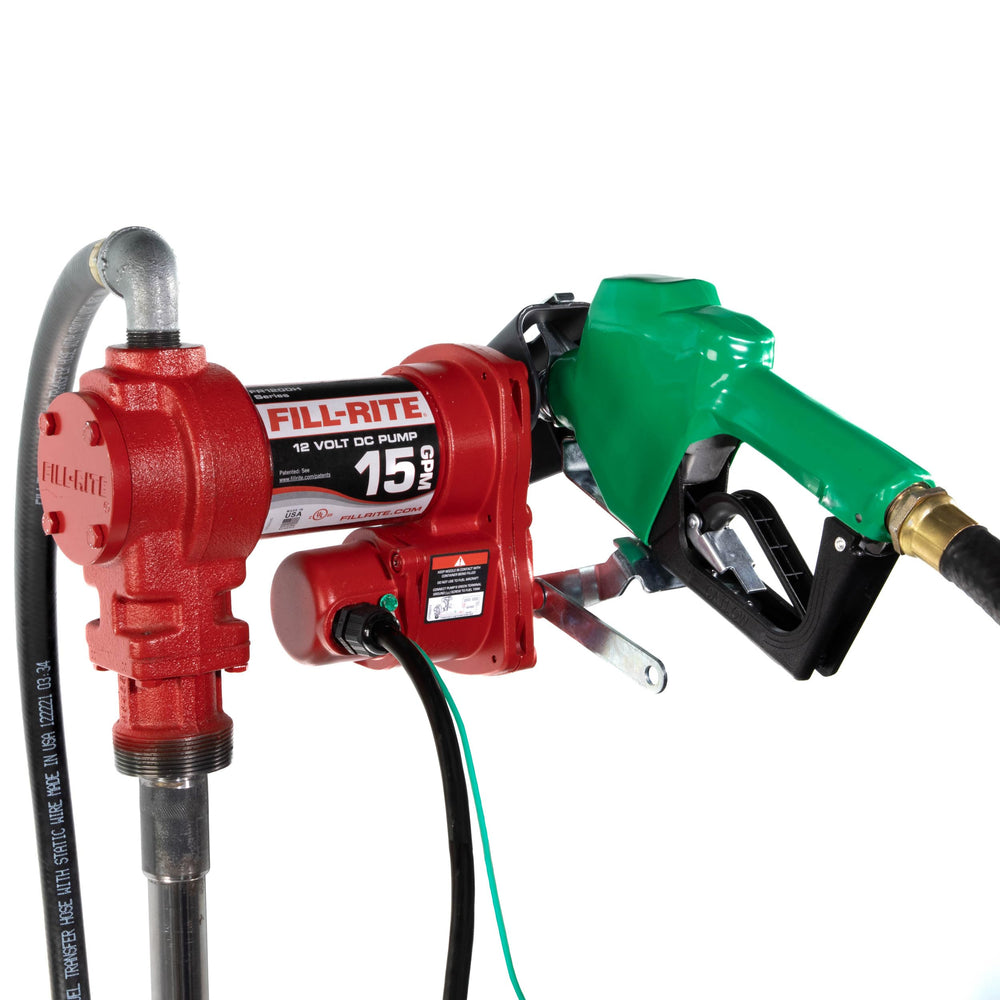

Compact and built for mobile fueling tasks, the FR1210HA1 includes a complete set of installation and operating components: a 3/4" x 12' discharge hose, 3/4" automatic green nozzle, 34" telescoping steel suction pipe, an 18' 12 AWG power cable, and convenient hardware such as a 3/4" street elbow, ground wire, wire nuts, and PTFE tape. Constructed with cast iron components and rotary vane technology, this Fill-Rite pump is intended for dependable transfer from trailers, trucks, and tank systems where 12V power is available.

How quickly and efficiently will this pump move fuel?

The FR1210HA1 is rated at 15 gallons per minute (GPM), providing a fast fill rate for many commercial and fleet needs. Rotary vane design maintains consistent flow as parts experience wear, helping preserve performance over time.

• Rated flow: 15 GPM at nominal operating conditions
• 12V DC operation ideal for battery-powered truck or trailer setups
• Can pull from tank depths up to about 8 ft and discharge up to roughly 37 ft

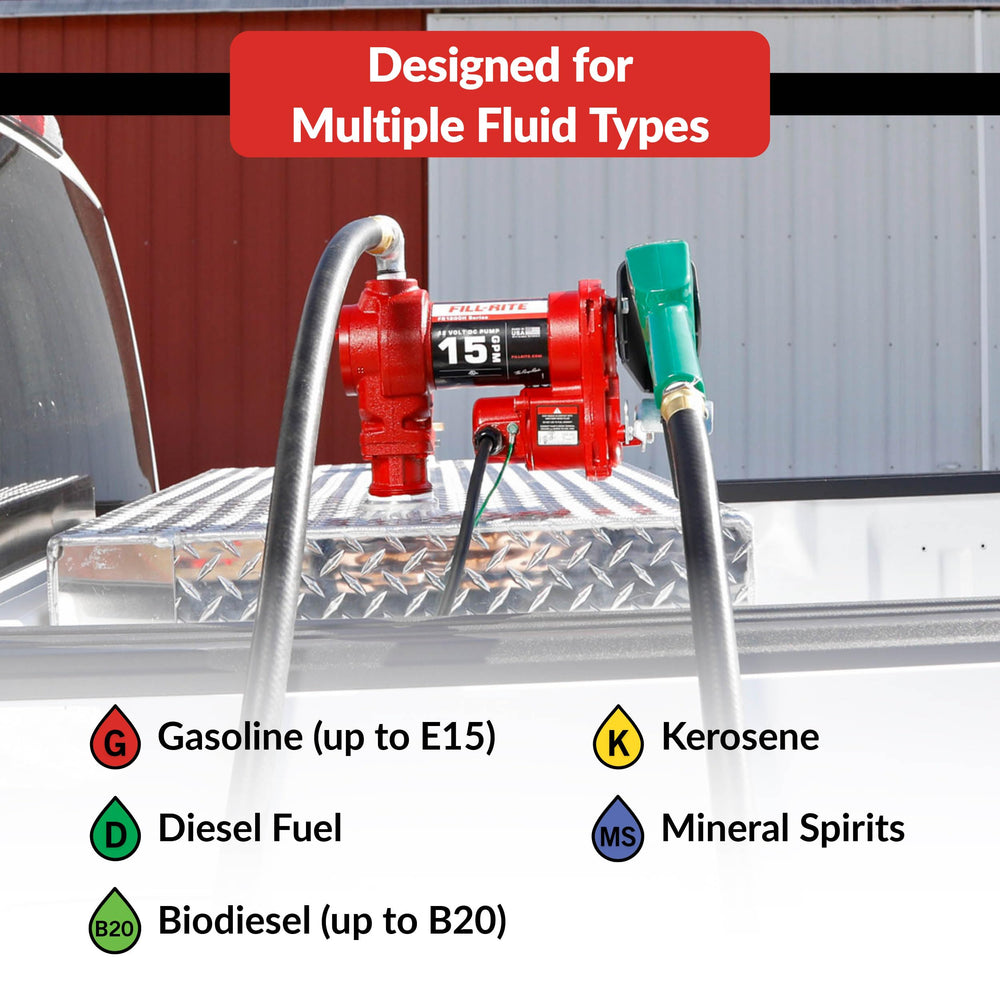

What fuels are compatible and are there any blend limits?

This pump supports gasoline, diesel, kerosene, and common alcohol/biodiesel blends within specified limits to ensure safe operation. Observe the blend restrictions to avoid seal or component damage.

• Gasoline, diesel, kerosene supported
• Ethanol blends up to 15% (E15)
• Methanol blends up to 15% and biodiesel up to B20

Is the FR1210HA1 durable and safe for heavy use?

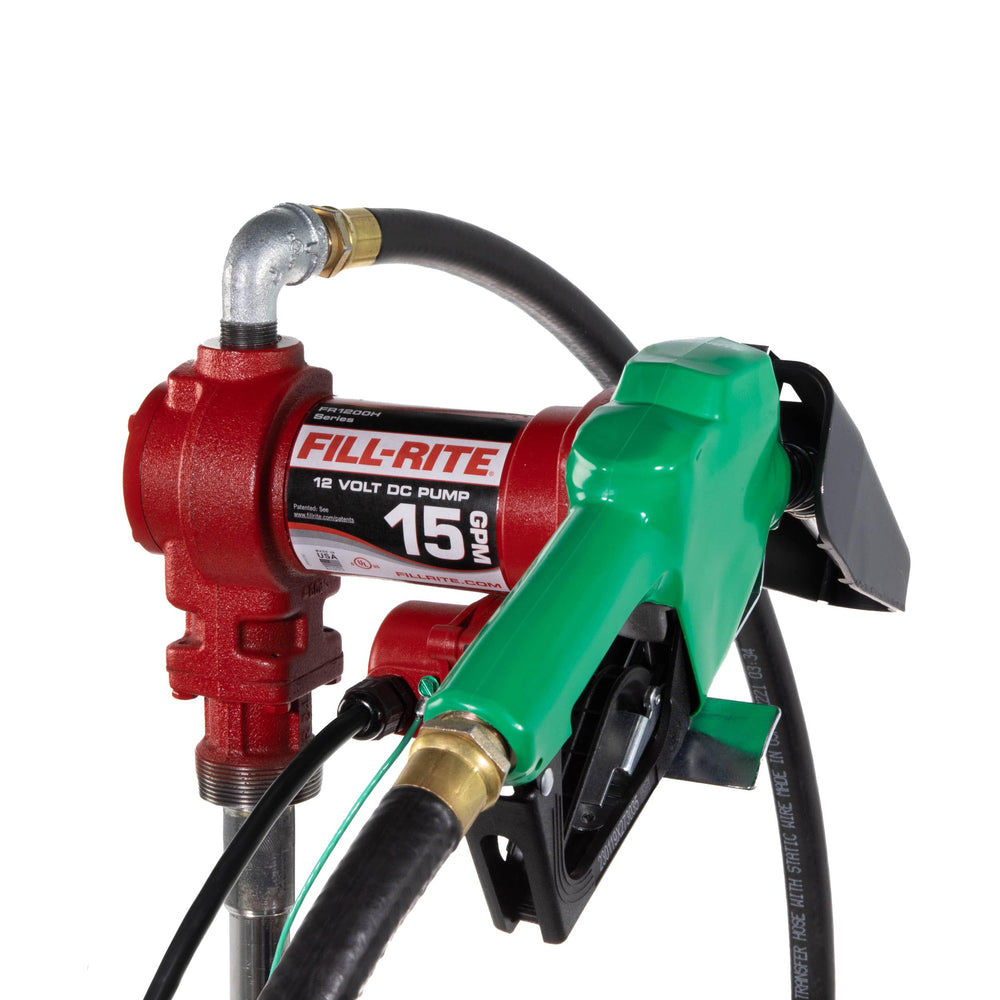

Built with cast iron housing and engineered overload protection, this model is designed for rugged field demands and thermal safety. Fill-Rite’s thermal overload system helps protect the motor during abnormal conditions, and many 1200-series pumps include a limited lifetime warranty.

• Cast iron construction for enhanced durability
• Thermal overload protection to reduce risk of motor overheating
• Rotary vane mechanism for steady performance as parts wear

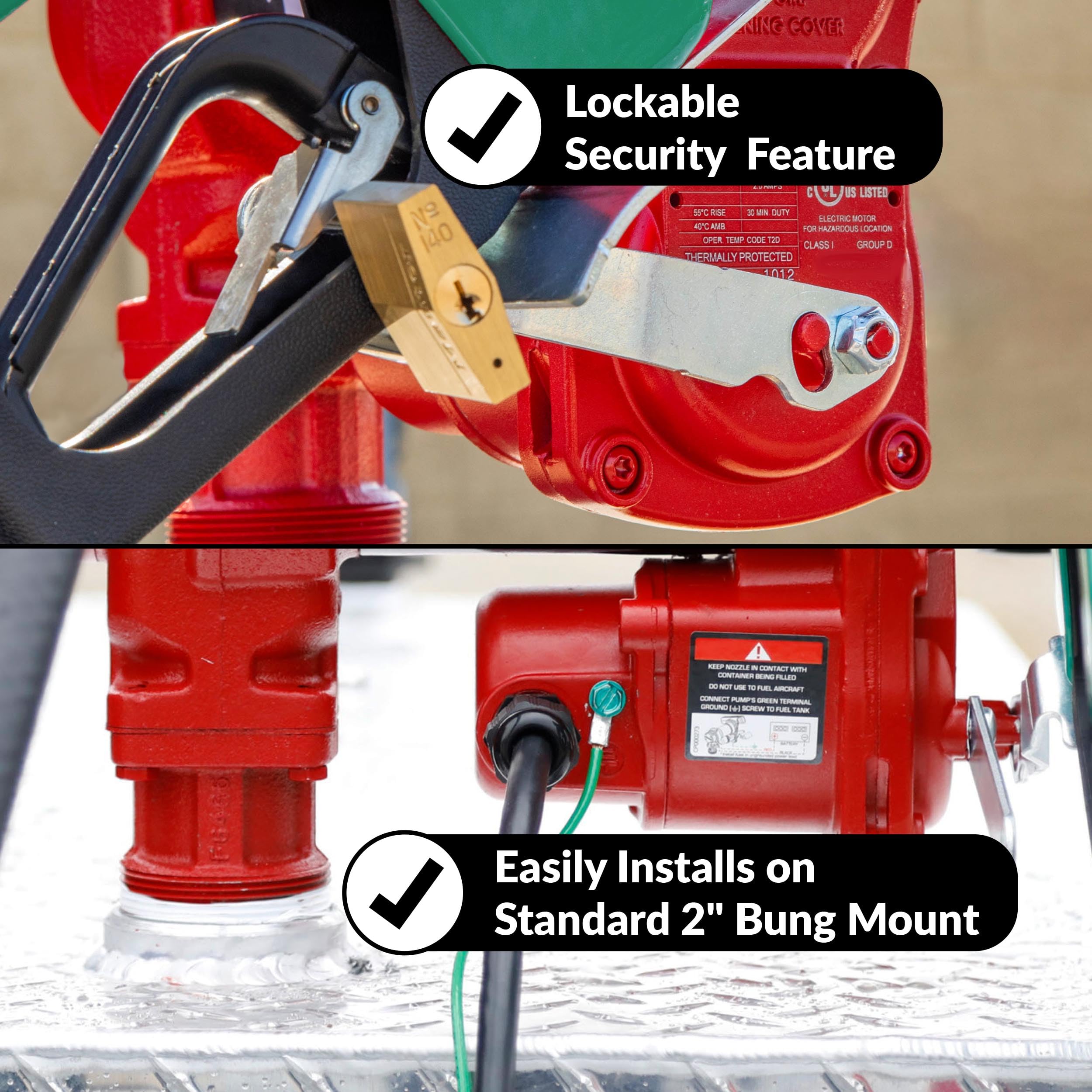

How simple is installation and what comes in the kit?

The pump ships ready with the fittings and hardware needed for a straightforward bung- or tank-mounted installation, plus an 18' power cable for direct 12V hookup. A removable junction box that rotates 180° simplifies wiring in cramped mounting locations.

• Included: 3/4" x 12' discharge hose and 3/4" automatic nozzle (green)
• 34" telescoping steel suction pipe, 3/4" street elbow, ground wire, wire nuts, PTFE tape
• Rotating removable junction box eases electrical connections

Who this is for: the FR1210HA1 suits fleet managers, contractors, agricultural operators, and mobile service providers who need a fast, rugged 12V transfer solution. If you require reliable, repeatable fuel transfer from truck- or trailer-mounted tanks and prefer a complete kit with nozzle and hose included, this Fill-Rite pump provides a practical, American-built option assembled with globally sourced materials.
