Foemint Fuel Pump Alignment Gauge for 2.4L Engines — EN-48896 camshaft base-circle locator

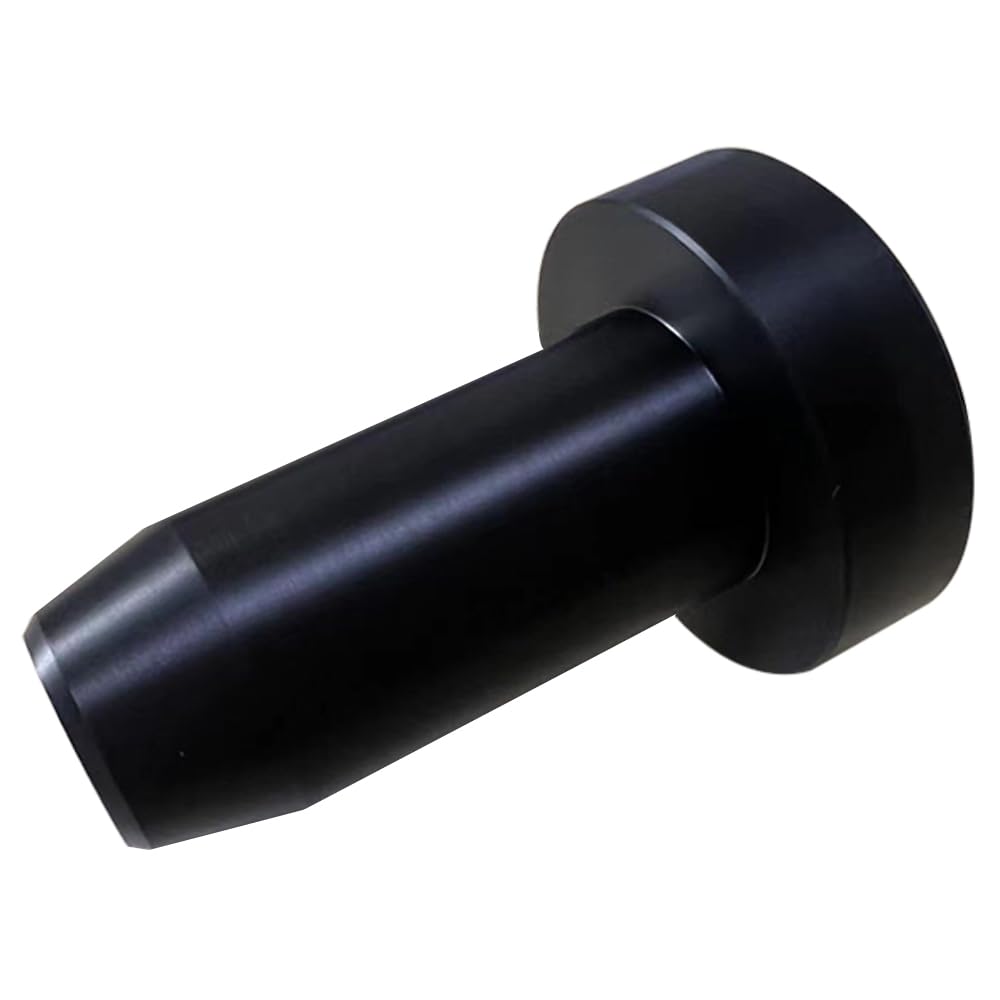

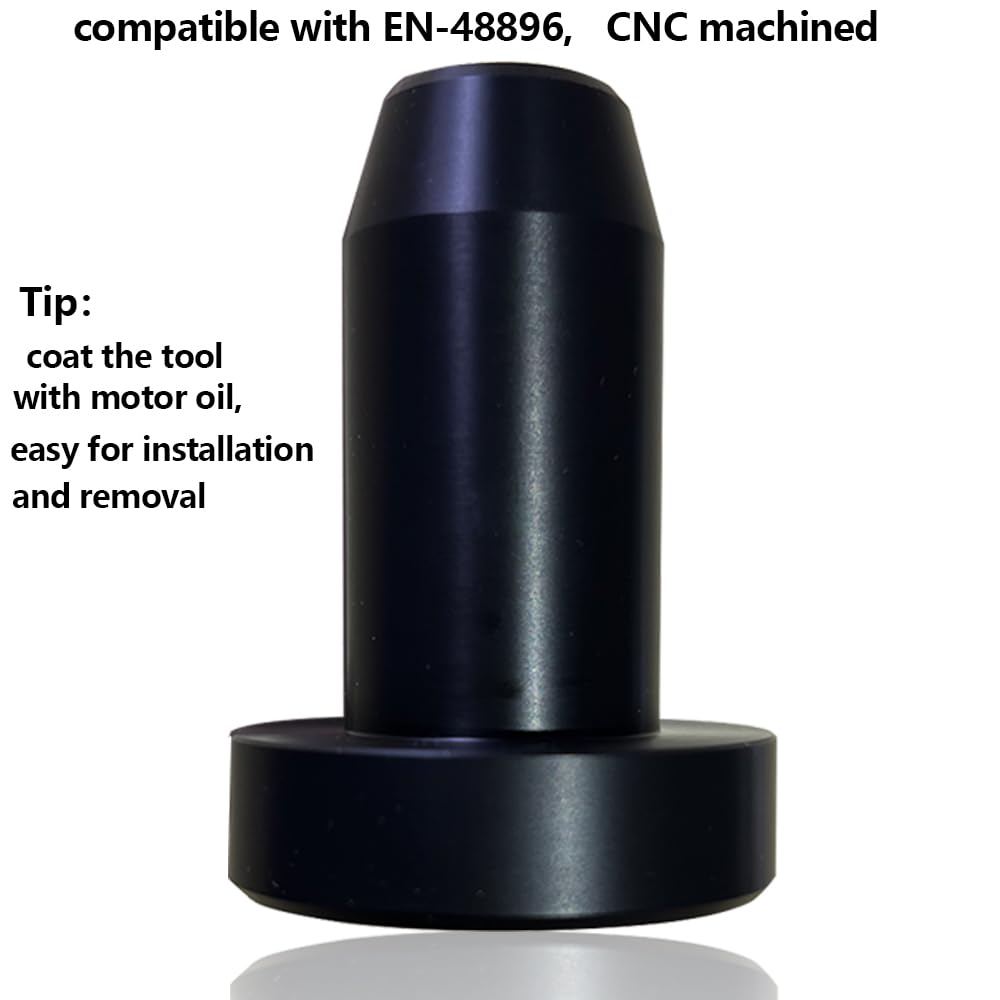

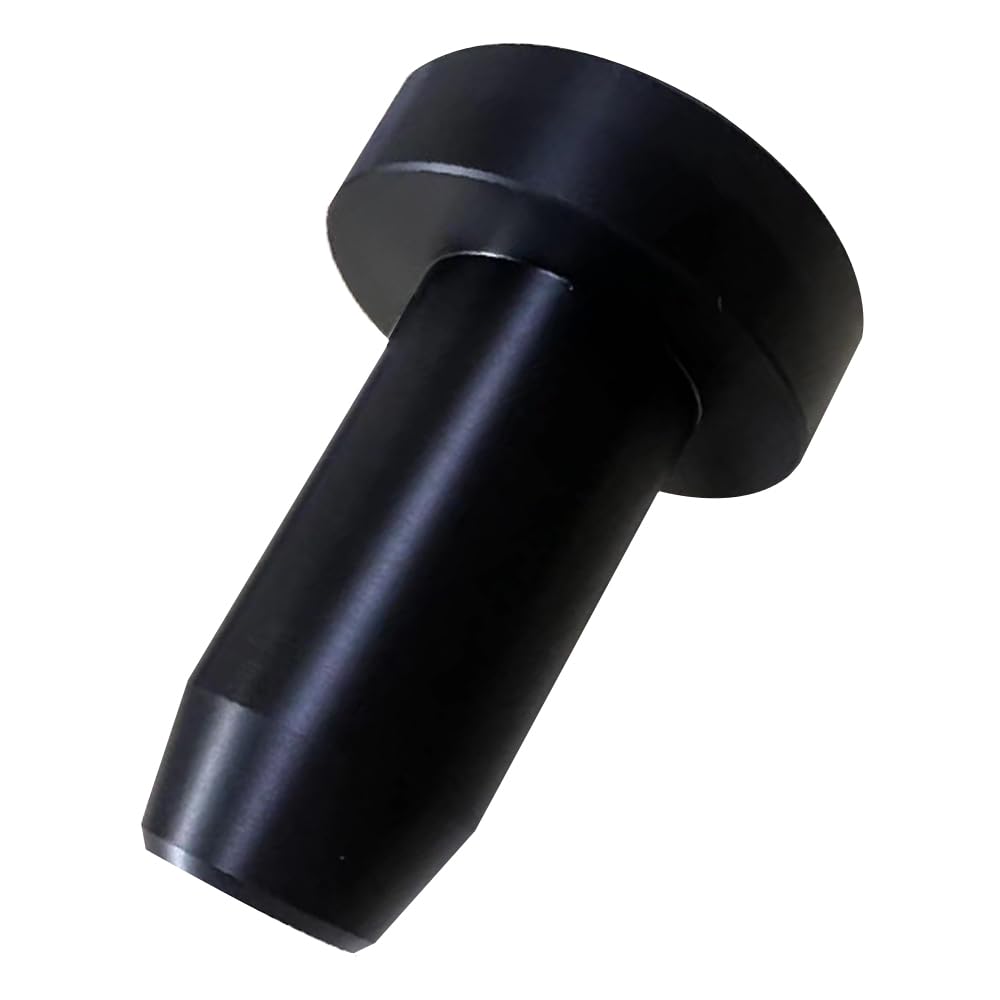

Foemint EN-48896 is a dedicated fuel pump alignment gauge that ensures the camshaft lobe is at the base-circle position before fitting the high-pressure fuel pump on select 2.4L engines.

When replacing or installing a high-pressure fuel pump, accurate timing and alignment of the camshaft lobe are critical to avoid interference and ensure correct pump operation. The Foemint EN-48896 installation gauge is made to confirm that the camshaft fuel pump lobe is positioned on the base circle so technicians can install the fuel pump with confidence. It fits a range of 2.4L engines from Chevrolet, GMC and Buick models across several model years.

How does this tool check fuel pump alignment?

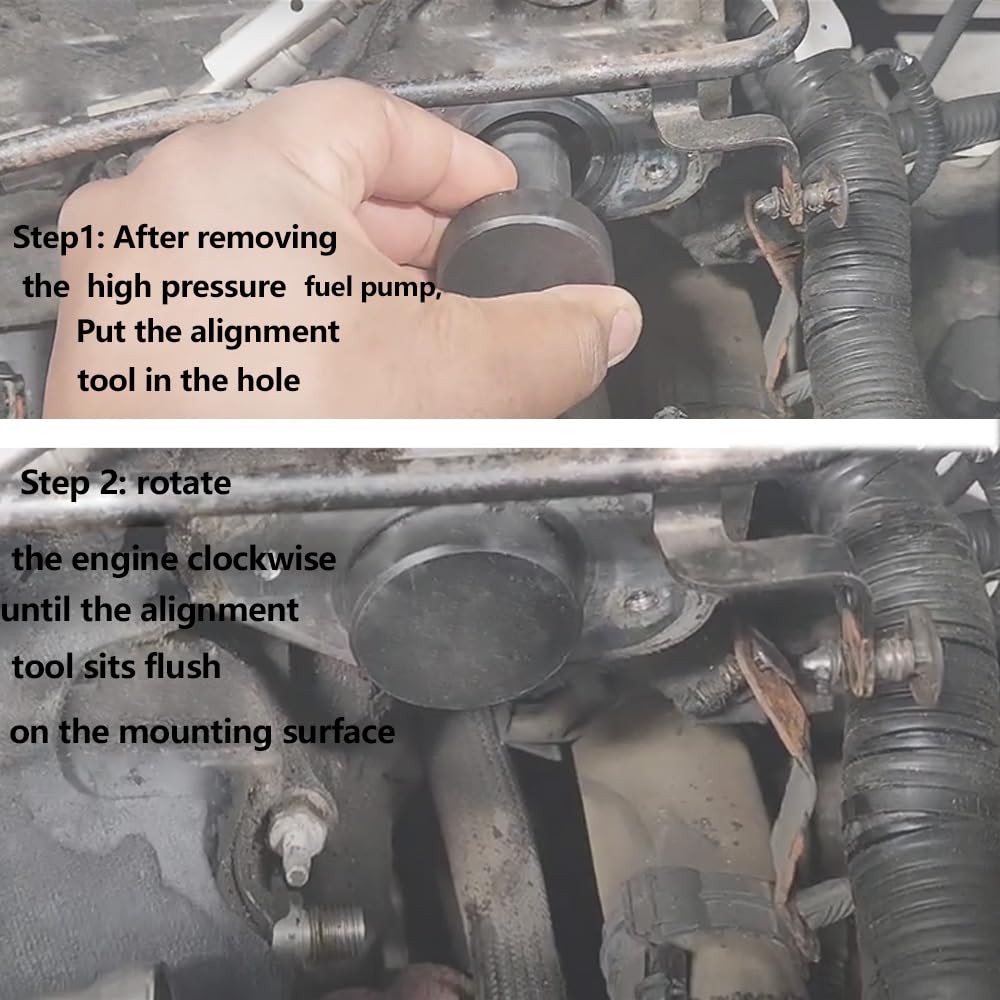

The gauge slips into the camshaft position to show when the fuel pump lobe is on its base circle, the neutral spot for safe installation. By using the gauge you avoid guessing the lobe position and reduce the chance of misaligned pump installation.

• Positive seating on the camshaft locates the pump lobe precisely
• Visual and tactile confirmation of base-circle position
• Designed to match EN-48896 specification for compatible engines

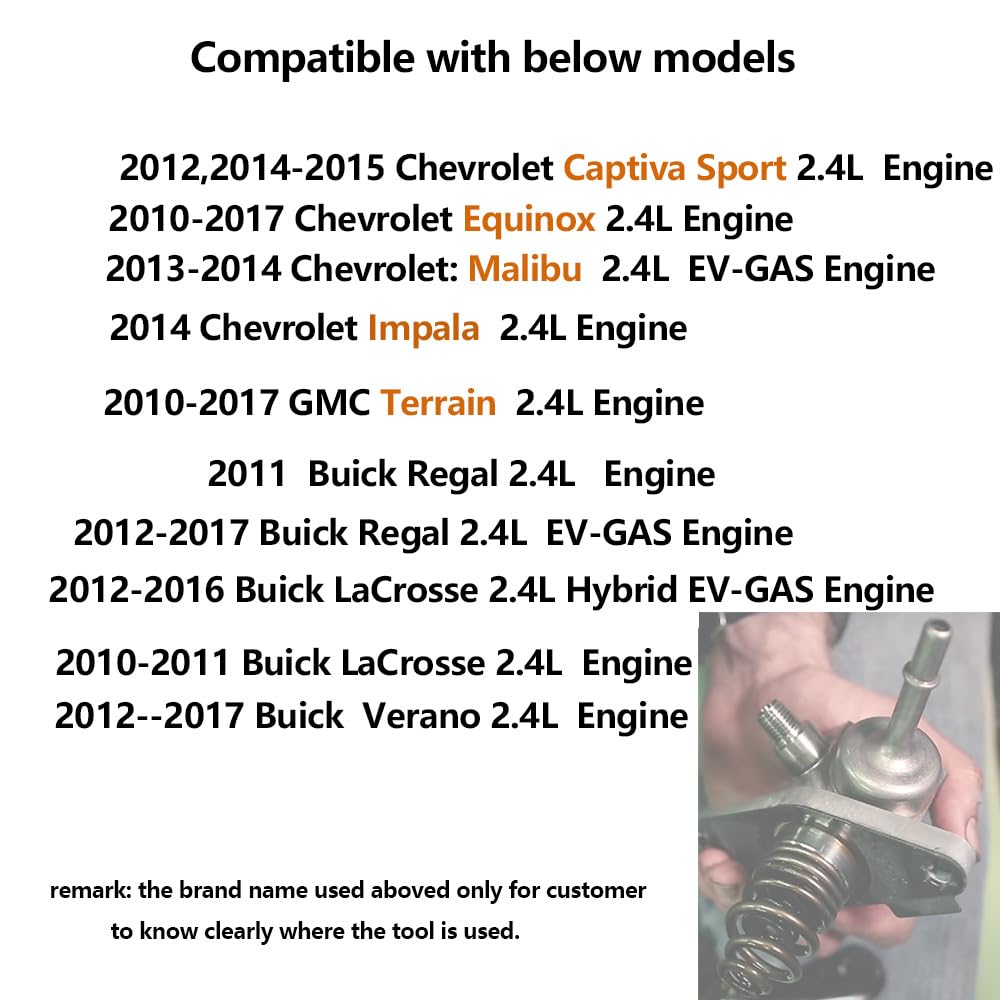

Which vehicles and engines is the EN-48896 compatible with?

This gauge is designed specifically for 2.4L engines used across select Chevrolet, GMC and Buick models from early 2010s to mid-2010s. Check your vehicle’s engine code and model year to confirm fit before purchase.

• Chevrolet Captiva Sport 2.4L (2012, 2014–2015)
• Chevrolet Equinox 2.4L (2010–2017) and Malibu EV-GAS 2.4L (2013–2014)
• Chevrolet Impala 2.4L (2014)
• GMC Terrain 2.4L (2010–2017) and Buick Regal/LaCrosse/Verano 2.4L variants across listed years

What are the practical benefits for a technician or DIYer?

Using the EN-48896 gauge saves time and reduces risk during fuel-pump service by providing an accurate, repeatable reference point. It helps avoid rushed alignment attempts and potential damage to pump components or the camshaft timing surface.

• Speeds up installation checks and reduces rework
• Minimizes risk of pump misalignment or internal interference
• Reusable, durable tool for repetitive shop tasks

Are there limitations or precautions to know?

The gauge is purpose-built for the listed 2.4L engine applications and may not fit other displacements or significantly different engine families. Always follow vehicle manufacturer service procedures and confirm engine specifics before using the tool.

• Not universal — verify vehicle year and engine type first
• Use only on cold or properly supported engines as directed by service manual
• Keep the gauge clean and inspect for wear before each use

Who is this for: The Foemint EN-48896 installation gauge is aimed at professional mechanics, independent shops and knowledgeable DIYers who service Chevrolet, GMC and Buick vehicles with the specified 2.4L engines. If you routinely replace high-pressure fuel pumps or perform camshaft-timing related work on those models, this tool provides a quick, reliable way to confirm cam lobe positioning and reduce installation errors.
