FMCNMech 8 GPM 110V Electric Oil Transfer Pump Kit — Cast-Iron, Drum-Mountable & Portable

FMCNMech 8 GPM 110V Electric Oil Transfer Pump Kit is a portable, drum-mountable 110V pump engineered to move diesel and medium-viscosity oils at up to 8 gallons per minute with a durable cast-iron body.

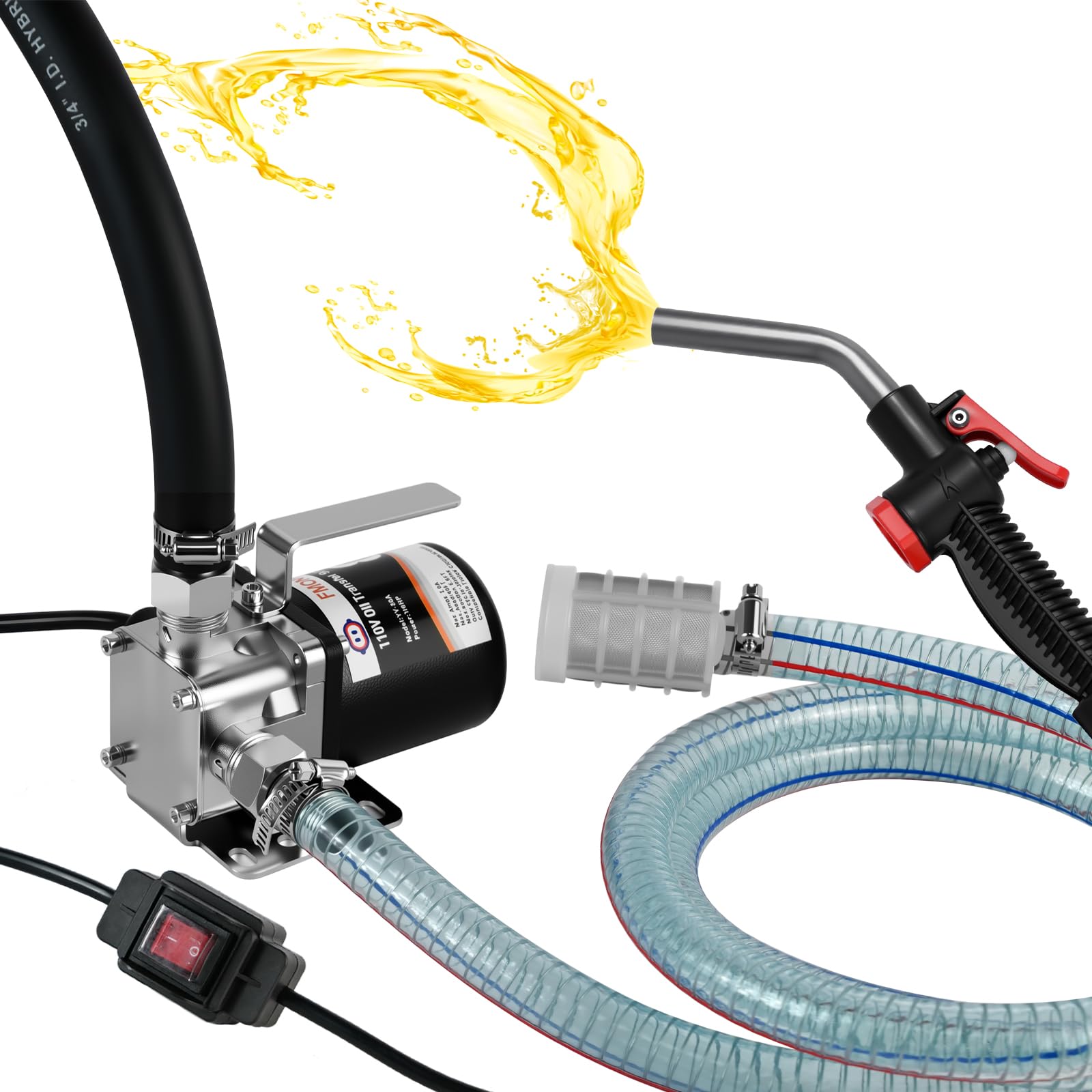

This pump kit combines a 110V AC motor, a cast-iron pump housing, and a drum adapter so you can transfer oil quickly and reliably around the shop, farm, or job site. It’s built for routine maintenance tasks such as refueling equipment, topping off hydraulic reservoirs, or moving stored diesel between containers. The unit is not intended for gasoline, alcohol, or highly volatile fluids—use only approved fluids per the product guidance.

How fast will this pump move fuel and what are the motor specifications?

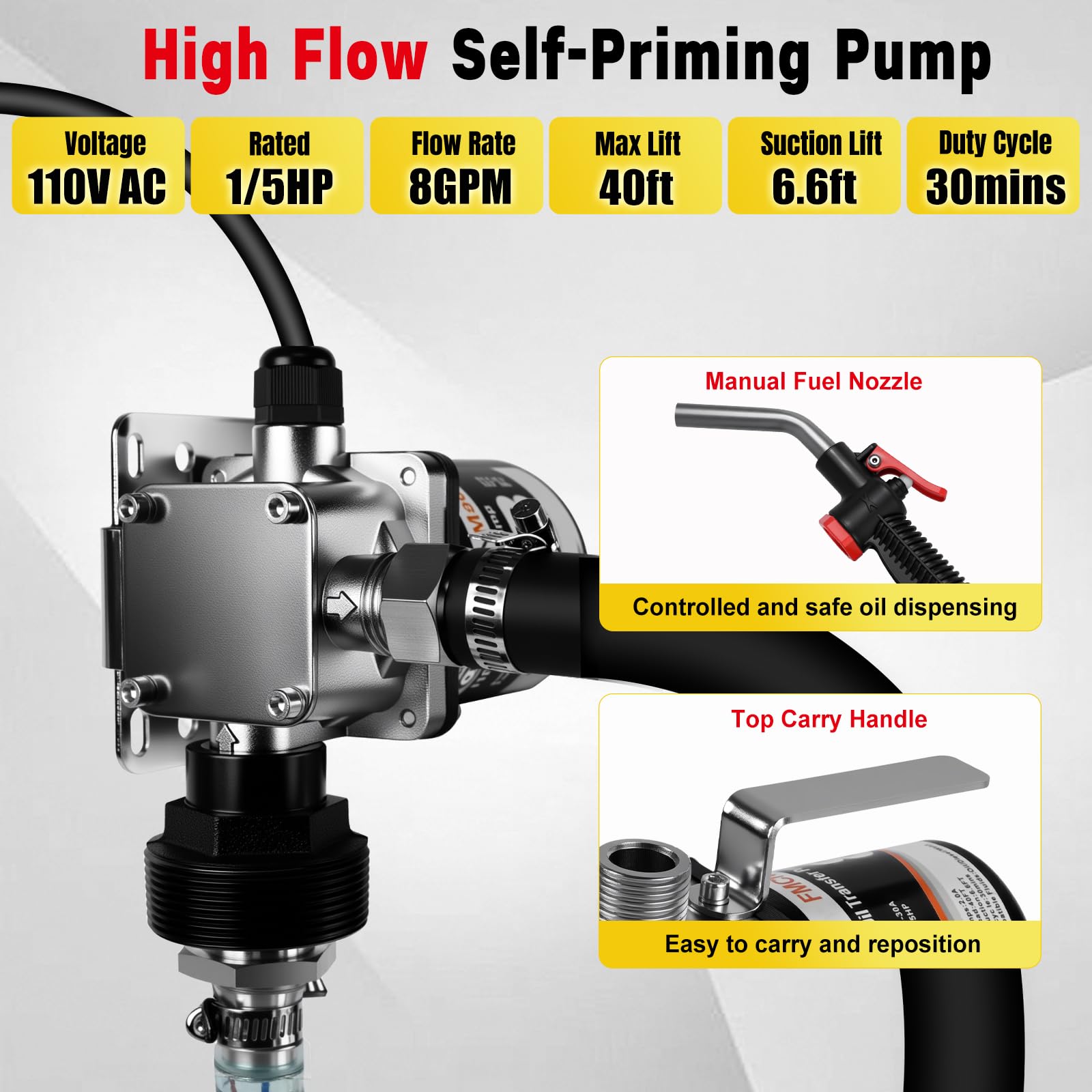

The FMCNMech pump delivers a maximum flow rate of 8 gallons per minute using a 110V AC motor with approximately 1/5 HP output. This provides a balance of speed and electrical efficiency for workshops and mobile service activities. Maximum discharge lift reaches up to 40 ft while suction lift is approximately 6.5 ft, suitable for most transfer setups.

• Flow rate: up to 8 GPM for faster transfers
• Motor: 110V AC, ~1/5 HP for stable operation
• Lift capability: 40 ft discharge, 6.5 ft suction
• On/off switch for simple control during use

Which fluids can it safely handle, and which should be avoided?

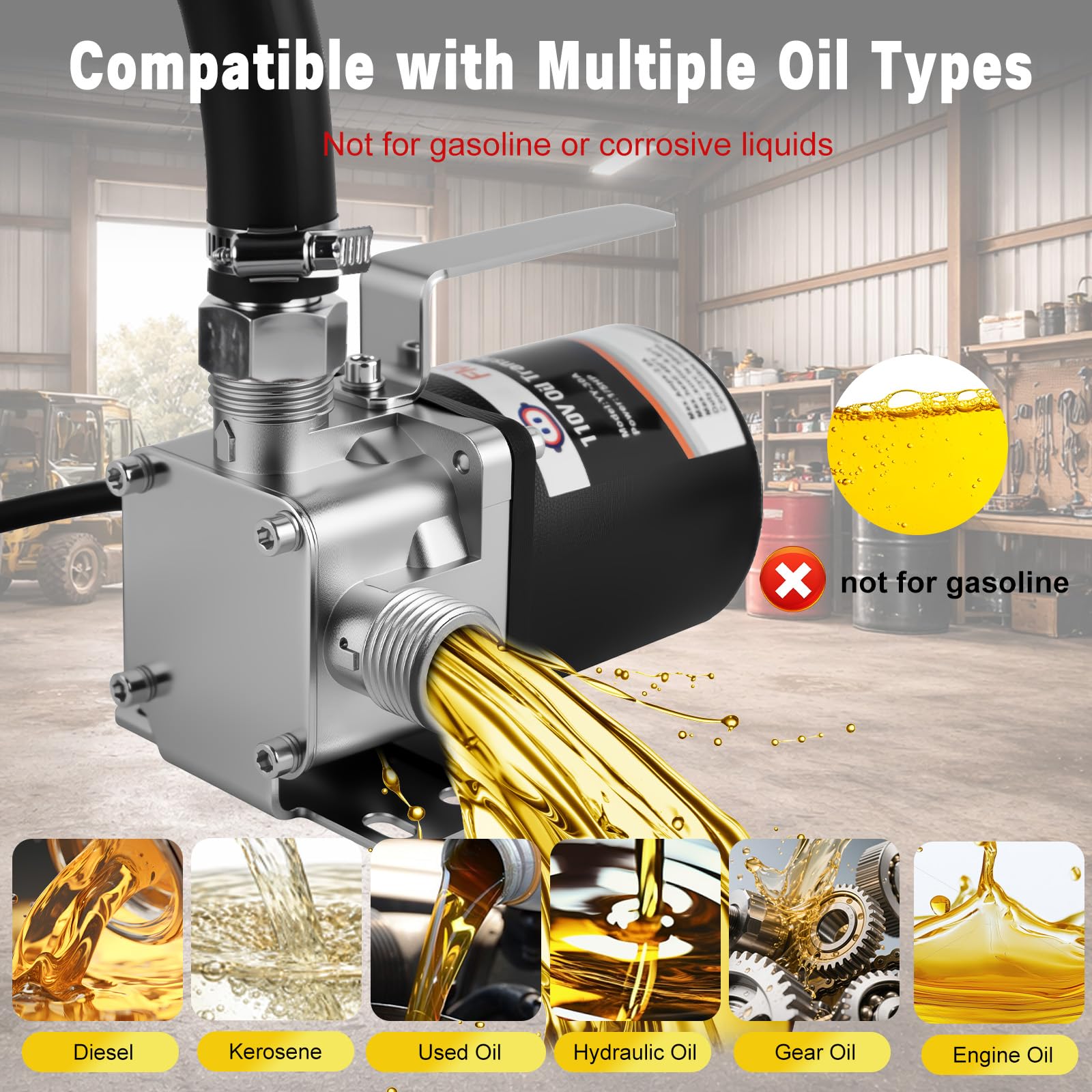

This pump is designed for diesel, kerosene, engine oil, hydraulic oil, and other medium-viscosity oils commonly used in equipment service. It is not rated for gasoline, alcohol, ether, or other highly volatile or flammable solvents—using those can damage the pump and create safety hazards. Always observe local regulations and safety procedures when transferring fuels.

• Suitable: diesel, kerosene, engine oil, hydraulic fluids
• Not suitable: gasoline, alcohol, highly volatile fluids
• Follow safety rules: grounding, ventilation, and compatible hoses

Can I mount this pump to an oil drum or use it as a portable unit?

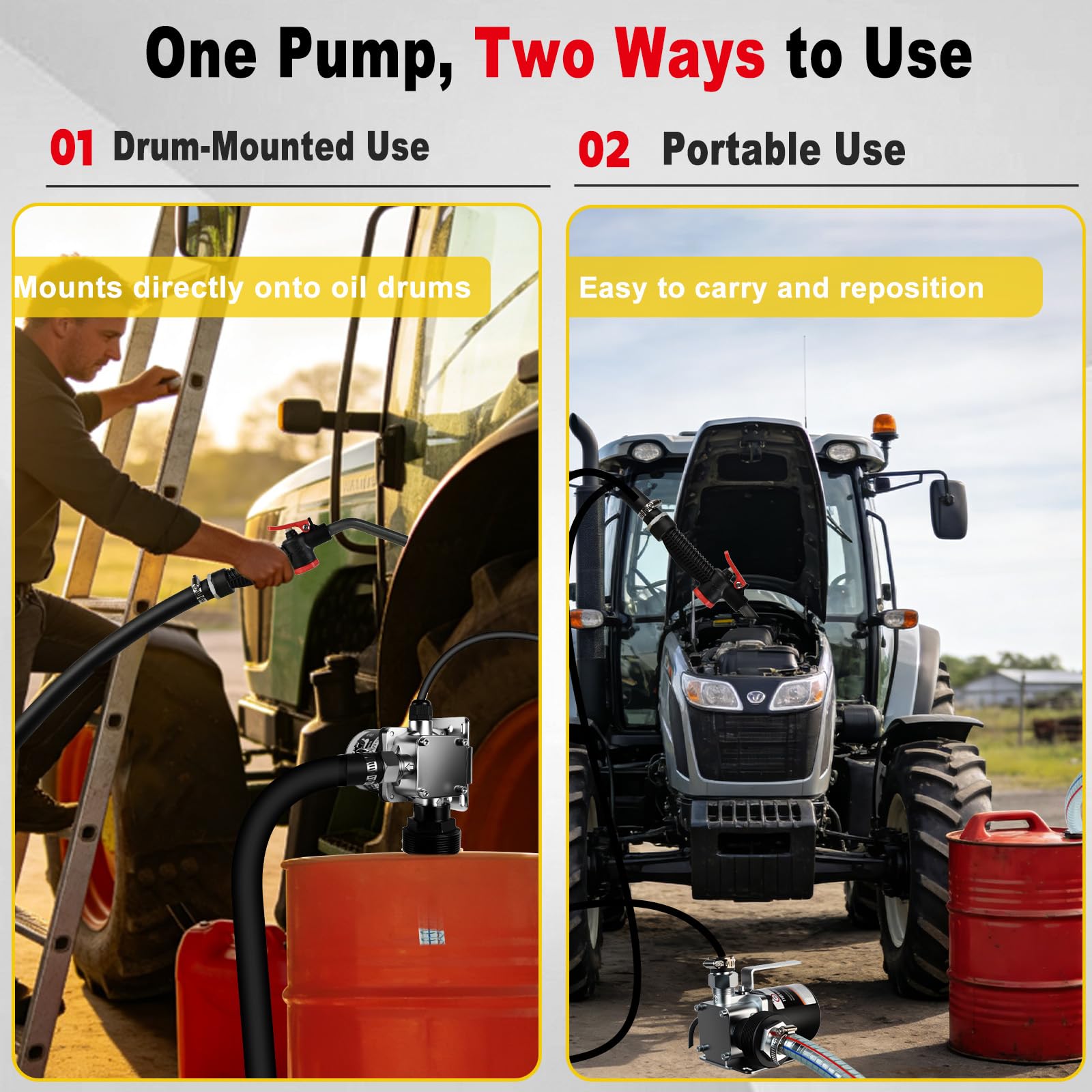

The kit supports dual-mode operation: it works as a handheld portable pump or can be secured to a standard drum using the included adapter for steady, hands-free transfer. Drum mounting reduces spillage and makes longer transfers easier, while portable use keeps the pump flexible for field work. The cast-iron housing provides ruggedness for both modes, extending service life under routine shop conditions.

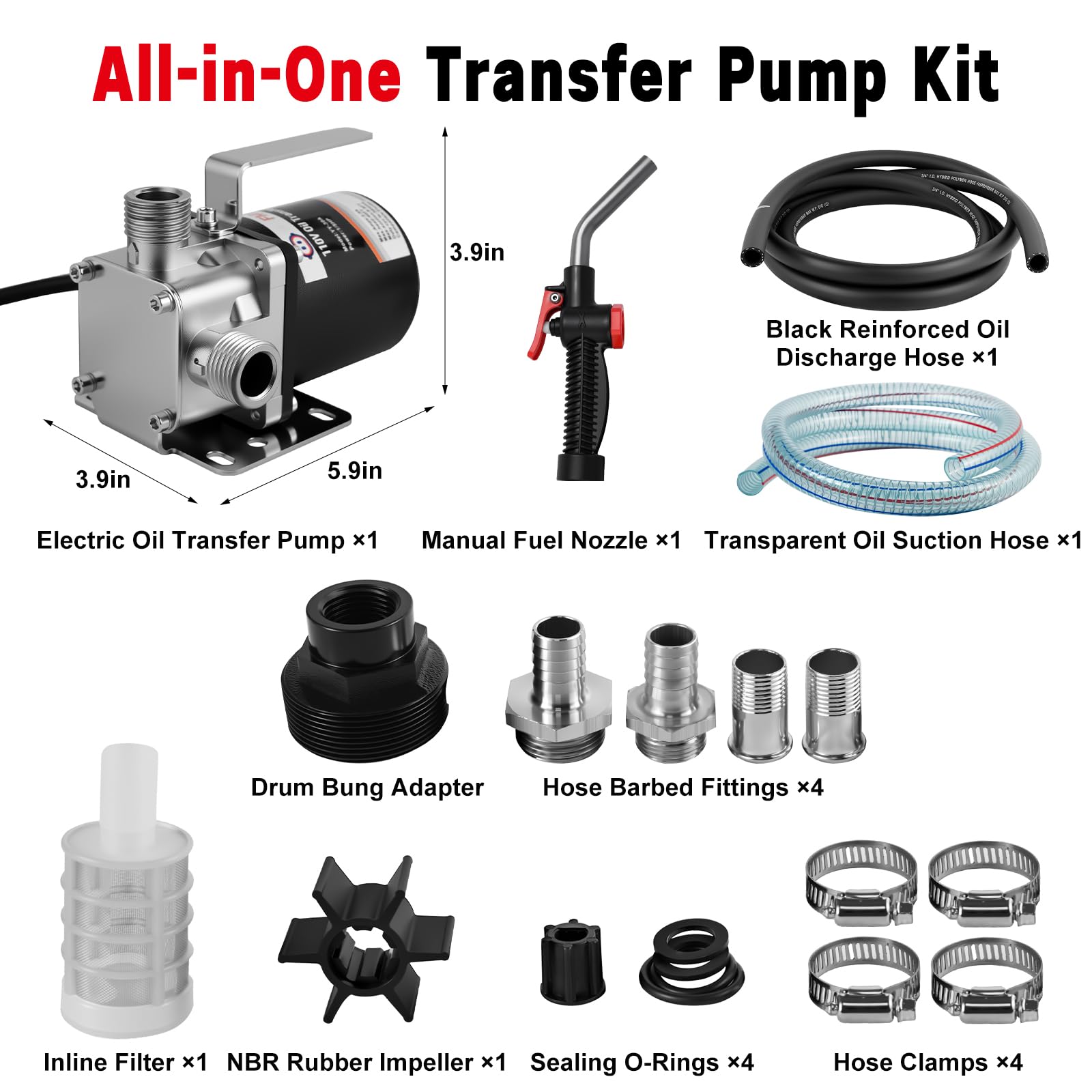

• Includes drum adapter for secure mounting to standard barrels
• Portable for mobile refueling around equipment and vehicles

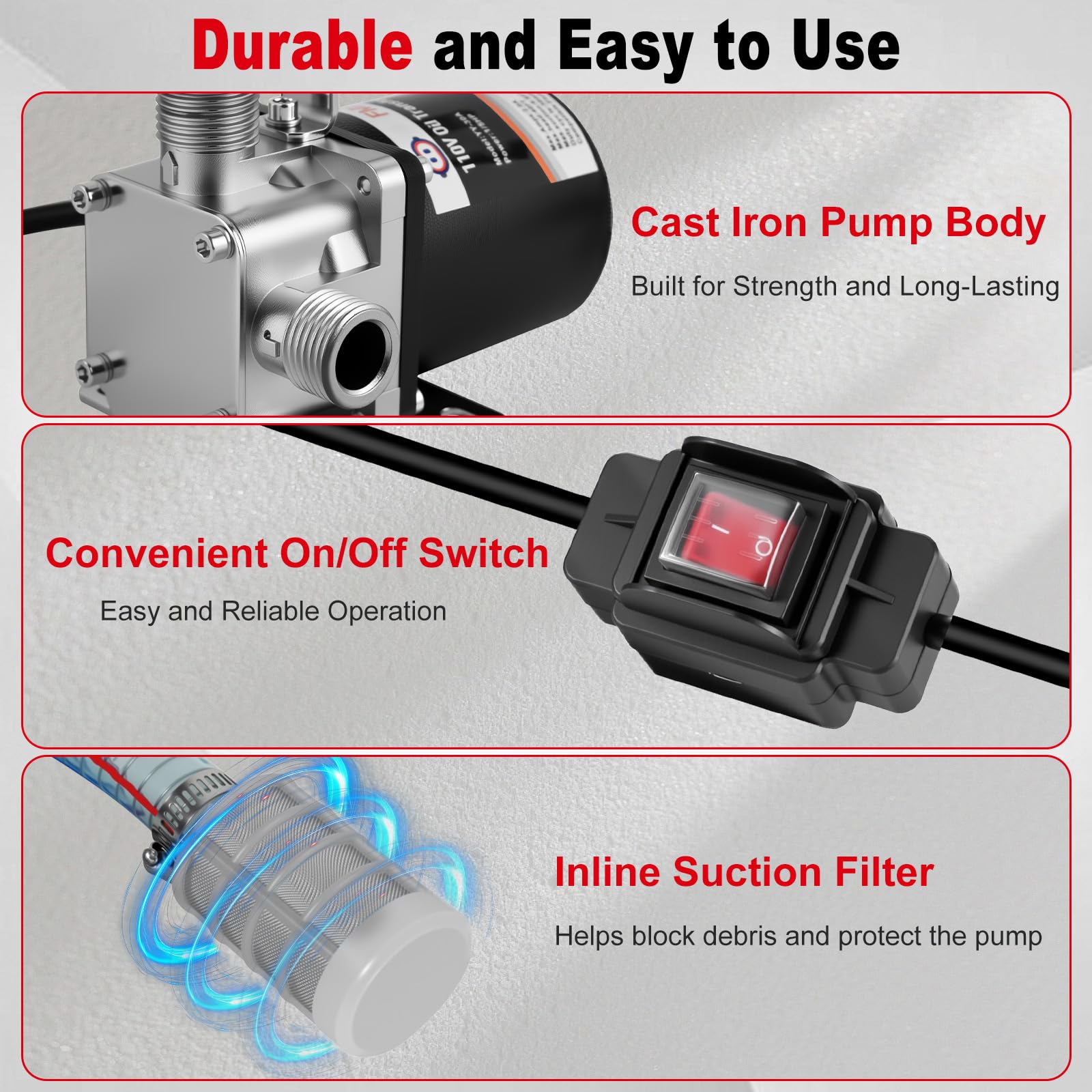

• Cast-iron body resists wear in workshop environments

What maintenance and installation steps should I expect?

Installation is straightforward: clamp or fit the adapter to a drum or insert the suction tube for portable use, connect the discharge hose, and plug into a grounded 110V outlet. Regular maintenance includes checking hoses and fittings for leaks, ensuring the switch and power cord stay dry and intact, and cleaning the suction strainer to prevent debris buildup. Periodic inspection of seals and connections will keep flow consistent and extend pump life.

• Simple set-up: connect hoses, secure adapter, plug into 110V outlet
• Inspect hoses, seals, and electrical cord before each use
• Clean suction strainer and replace worn fittings as needed

Who is this for: the FMCNMech 8 GPM 110V Electric Oil Transfer Pump Kit is aimed at mechanics, farmers, fleet managers, and small-business service technicians who need a rugged, mid-capacity pump for routine diesel and oil transfers. It suits garages, farms, and maintenance departments that value portability, drum-mount convenience, and a robust cast-iron construction for frequent use. If you require gasoline transfer or need explosion-proof certification for hazardous zones, select a pump designed for those specific applications instead.
