Fill-Rite fuel transfer nozzle 1" automatic 5–25 GPM, Green jacket — cast-aluminum, auto-shutoff

The Fill-Rite SDN100GAN is a 1" automatic shutoff fuel transfer nozzle delivering 5–25 GPM for gasoline, diesel, biodiesel up to B20, E15 and kerosene in a green jacket.

Built as a standard-duty option that balances affordability with rugged design, the SDN100GAN offers dependable automatic shutoff and adjustable latching for controlled fueling. Its cast-aluminum body and large 1-1/8" spout make it suitable for common fuel transfer tasks on jobsites, farms, and fleet operations where a reliable, easy-to-use nozzle is needed.

How does the SDN100GAN prevent overfills and spills?

The SDN100GAN uses an integral automatic shutoff mechanism that senses back pressure in the fill point and closes the flow when fuel reaches the spout tip. This mechanical shutoff reduces wasted fuel and cleanup compared with manual-only nozzles.

• Automatic shutoff engages when back pressure is detected
• Cast-aluminum internals resist deformation under repeated use
• Large spout size helps maintain smooth fill rates without vapor lock

Can I adjust the flow for different equipment or tank sizes?

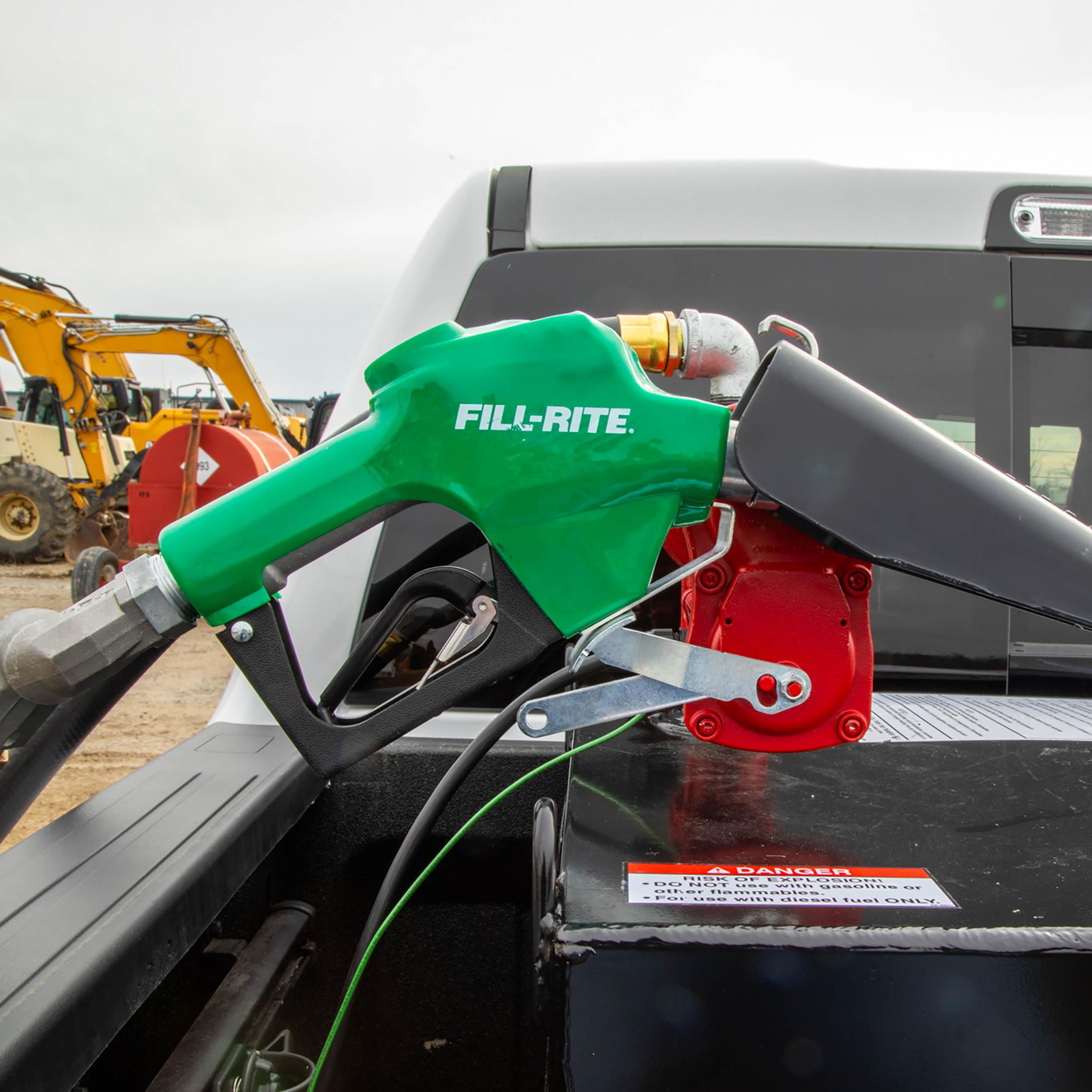

Yes. The nozzle includes a three-position latch that allows you to lock the handle at varying flow rates for more controlled dispensing. This adjustable latching helps when filling smaller tanks or when you want to avoid splashing in tight fill openings.

• Three latch positions for low, medium, and high flow
• Simple mechanical adjustment—no tools required
• Works across the specified 5–25 GPM operating range

What fuels and environments is this nozzle compatible with?

The SDN100GAN is specified for gasoline, diesel, biodiesel blends up to B20, E15 ethanol blends, and kerosene, making it versatile for mixed-fuel fleets. It is built as a standard-duty nozzle intended for everyday transfer tasks rather than extreme industrial or aviation service.

• Compatible: gasoline, diesel, B20 biodiesel, E15 ethanol, kerosene
• Not intended for aviation jet fuels or aggressive chemical service
• Green jacket denotes diesel/gasoline color coding for quick identification

What construction and usability features improve longevity and handling?

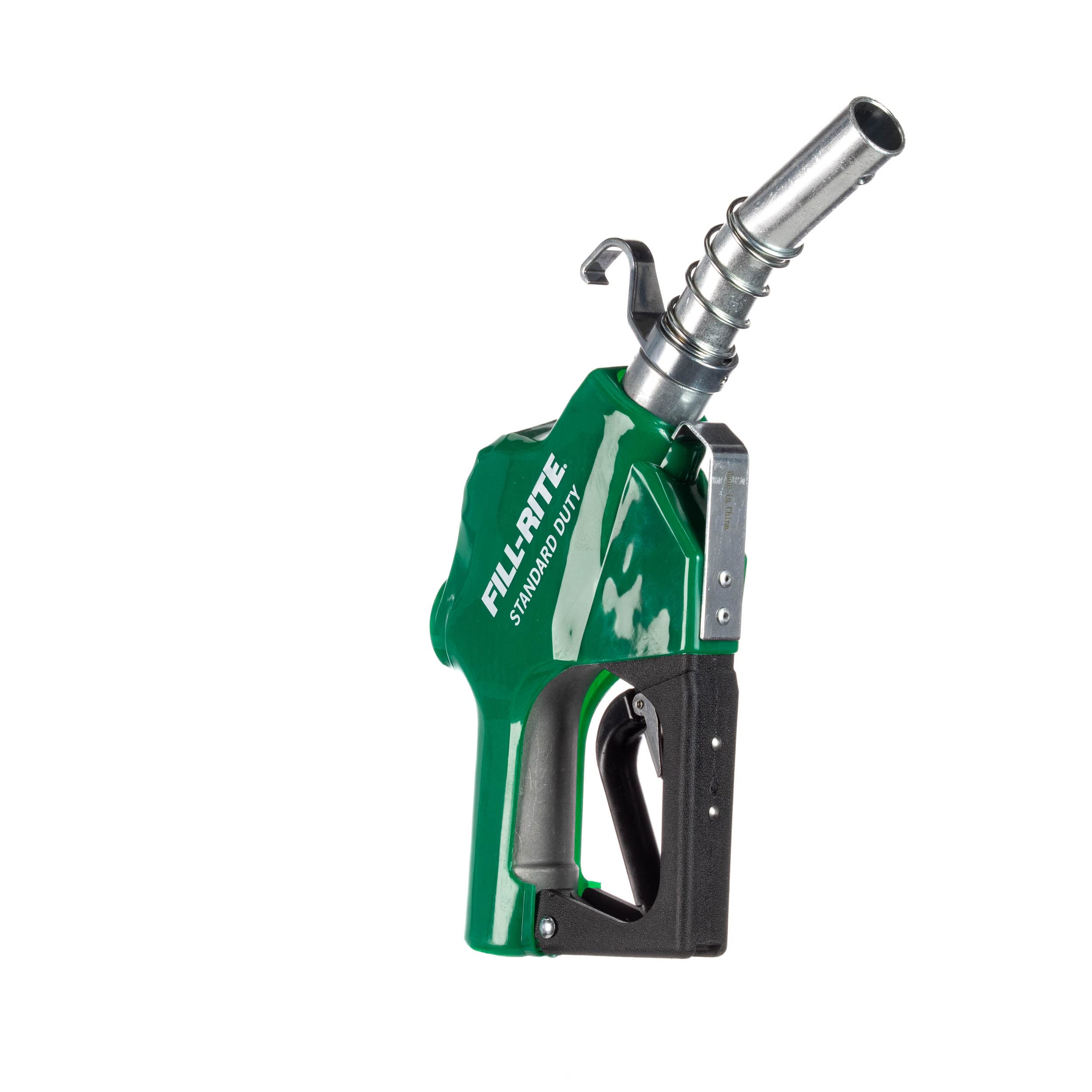

Constructed from cast aluminum, the SDN100GAN resists wear while keeping weight manageable for frequent use. The included spout spring on automatic models protects the spout and ensures consistent placement during fills, reducing accidental damage.

• Rugged cast-aluminum body for durability and reduced weight
• Spout spring stabilizes placement and prevents impact damage

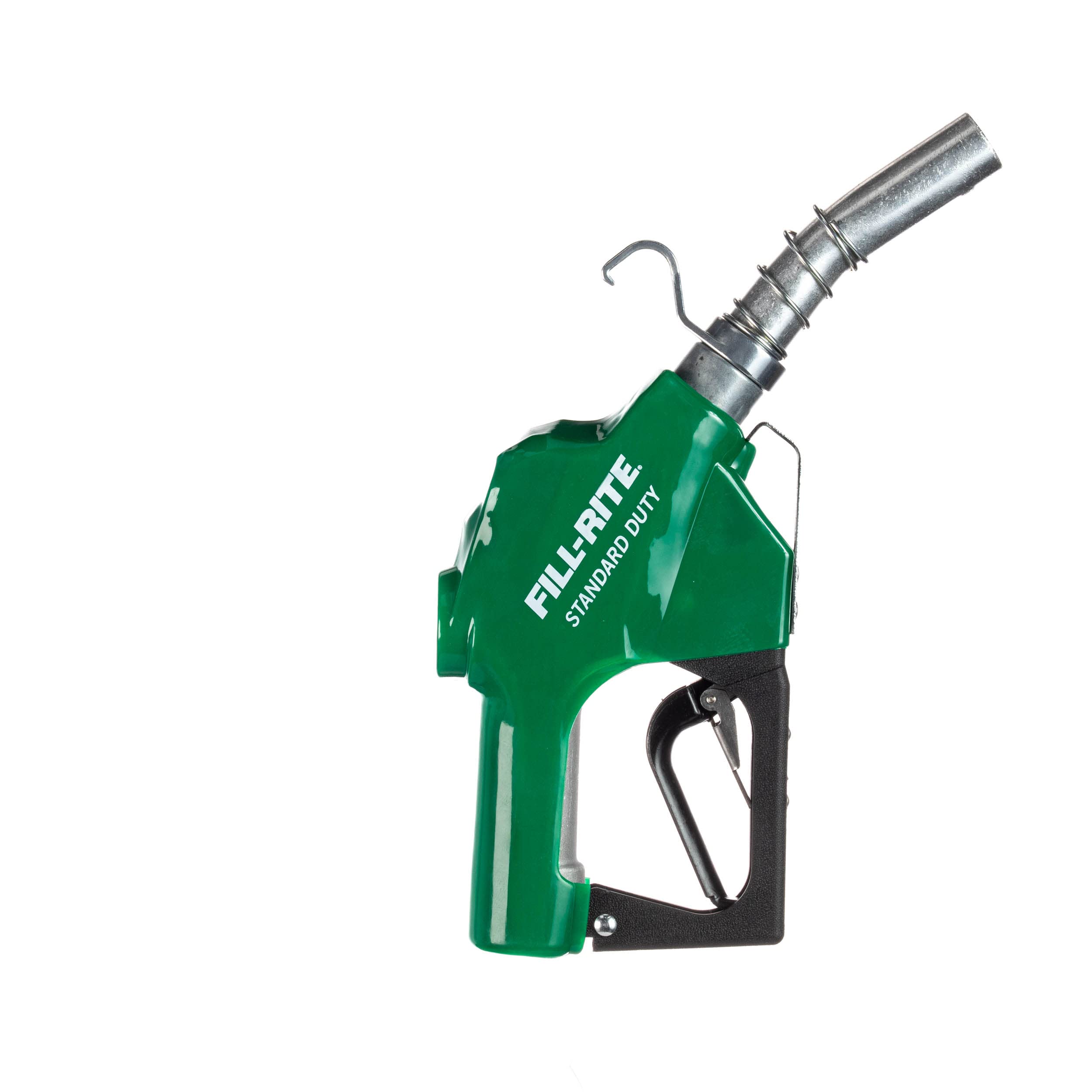

• Large 1-1/8" spout to fit common fill openings and maintain flow

Who this nozzle is for: The Fill-Rite SDN100GAN fits contractors, small fleet operators, farmers, and maintenance crews who need a reliable, cost-conscious automatic fuel nozzle for everyday transfer tasks. Choose this model when you require automatic shutoff, adjustable latching, and compatibility with gasoline, diesel, biodiesel up to B20, E15, and kerosene — without stepping up to heavy-duty, high-cost industrial nozzles.
