Flaming River FR1044 Big Switch XL battery disconnect — 250A continuous, waterproof, lock-out

The Flaming River FR1044 Big Switch XL is a heavy-duty, waterproof battery disconnect designed to safely cut power for 12V/24V systems up to 250 amps continuous and handle 2500 amps for short bursts.

This rugged battery disconnect — often called a Big Switch — combines generous terminal capacity with silver-plated contacts and a sealed housing so it performs reliably in demanding environments. It’s engineered for vehicles, off-grid systems, race cars, and industrial equipment where a robust, lockable means to isolate the battery is required. The FR1044 offers both everyday convenience and emergency power isolation in one compact package.

How does the FR1044 protect my electrical system?

The FR1044 provides a positive, mechanical break of the battery circuit, preventing parasitic drains, accidental starts, or electrical fires when the vehicle or equipment is stored or serviced. Its silver-plated contacts reduce resistance and heat buildup, while the waterproof enclosure guards connections from moisture and dirt.

• 250 amps continuous current rating for normal operation
• 2500 amp surge capability for short, high-current events (5 seconds)
• Silver-plated contacts for lower resistance and longer life
• Fully sealed, waterproof housing to resist corrosion and contaminants

Is installation flexible for different setups and batteries?

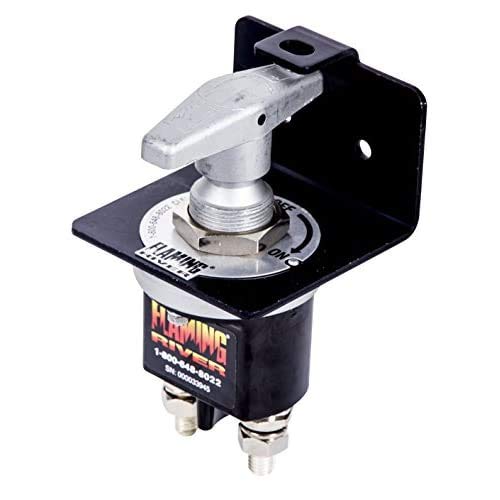

The FR1044 offers increased terminal space to accept larger lugs and multiple cable configurations, making it adaptable for a range of battery and cable sizes. Its compact footprint and standard mounting layout let it be installed in engine bays, battery boxes, or inside equipment cabinets with minimal modification.

• Spacious terminals accommodate larger lugs and parallel connections
• Works with 12V and 24V systems for versatility
• Compact package dimensions: 7.62 cm L x 10.16 cm W x 15.494 cm H
• Mounting-friendly design for engine bays, trailers, and control panels

What safety and convenience features does this switch include?

The FR1044 includes a lock-out feature so the switch can be secured in the off position during transport, maintenance, or storage. The robust mechanical action gives an unmistakable on/off feel, and the sealed construction minimizes the need for frequent maintenance or terminal cleaning.

• Lock-out capability for theft prevention and safe servicing
• Positive mechanical disconnect with clear tactile feedback
• Sealed construction reduces corrosion and maintenance needs
• Lightweight packaging at 0.635 kg simplifies mounting and handling

How durable is the Flaming River Big Switch in harsh conditions?

Built with durability in mind, the FR1044 uses corrosion-resistant materials and a sealed housing to keep internal components protected from water, salt, and grime. The high surge rating means it tolerates transient loads common in starter motors and winch systems without damage.

• Sealed, waterproof enclosure for wet and salty environments
• High surge rating (2500A for 5 seconds) for heavy load tolerance
• Silver-plated contacts to resist oxidation and maintain conductivity
• Manufactured origin: Italy — consistent quality controls and materials

Who is this for: The Flaming River FR1044 Big Switch XL is aimed at vehicle builders, motorsport teams, marine and RV owners, off-grid installers, and industrial maintenance crews who need a reliable, lockable battery disconnect with extra terminal room and robust surge capability. If you require a compact, sealed switch that handles heavy currents and stays serviceable in rough conditions, the FR1044 is a practical choice.
