FOXWELL NT630 Plus OBD2 Scanner — ABS & SRS Diagnostic Tool with Auto-Bleed and Live Data

The FOXWELL NT630 Plus is a dedicated OBD2 diagnostic scanner built to read and clear ABS and SRS faults, perform supported ABS auto-bleed and active tests, and run select maintenance resets without subscriptions.

The NT630 Plus focuses on stopping, isolating and clearing braking and airbag related warnings on compatible 12V vehicles through an intuitive handheld interface. It combines basic engine OBD-II functions with enhanced ABS and SRS coverage, live-data graphing, and a set of maintenance utilities (SAS, EPB, oil reset where supported). Firmware updates are available over Wi‑Fi at no extra charge, and the unit plugs into the vehicle’s standard 16‑pin OBD port for immediate use.

Which diagnostic tasks can the NT630 Plus actually perform?

The NT630 Plus is designed to read and erase ABS and SRS fault codes, perform supported active tests, and present live data for troubleshooting. It handles standard OBD-II engine codes and offers 2-in-1 graphing for sensors like RPM and coolant temperature.

• Read/clear ABS and SRS DTCs and view freeze frame data.
• Execute supported ABS active tests and pump/valve activation for bleeding on compatible models.
• Display live-data PIDs and 2-in-1 graphing for comparative diagnostics.
• Reset oil service lights, calibrate steering angle sensors, and run EPB procedures where vehicle allows.

How does ABS Auto Bleed work and which cars support it?

ABS Auto Bleed attempts to activate ABS pump and valves to help expel trapped air after brake work when the vehicle’s ABS configuration supports it. The availability of automated bleeding depends on make, model, year and ABS system design, so function availability varies by vehicle and should be confirmed before purchase.

• Triggers ABS pump/valve cycles to assist brake-bleeding on supported systems.
• May be limited to certain models or to individual wheels on some Chrysler/Jeep/Dodge vehicles.
• Not available on every car—check Year, Make, Model, VIN, and engine size for compatibility.
• Some older or uncommon vehicles (examples include certain Nissan Rogue, early Toyota RAV4, older Chevrolet, some Subaru models) do not support automated bleed.

Can the NT630 Plus perform full system scans, coding or airbag module resets?

No. The NT630 Plus concentrates on ABS, SRS, and standard OBD-II engine diagnostics with select service functions. It is not a full-system bi-directional scan tool, and it does not support ECU coding, module reprogramming, or crash-data airbag module resets.

• No ECU coding/programming or full body control module access.
• Does not reset crash data or perform airbag module reprogramming.
• Transmission scanning and battery testing are not supported on this unit.
• For broader coverage, consider FOXWELL models like NT301 Plus or NT630Pro.

What makes it easy to use for DIYers and independent shops?

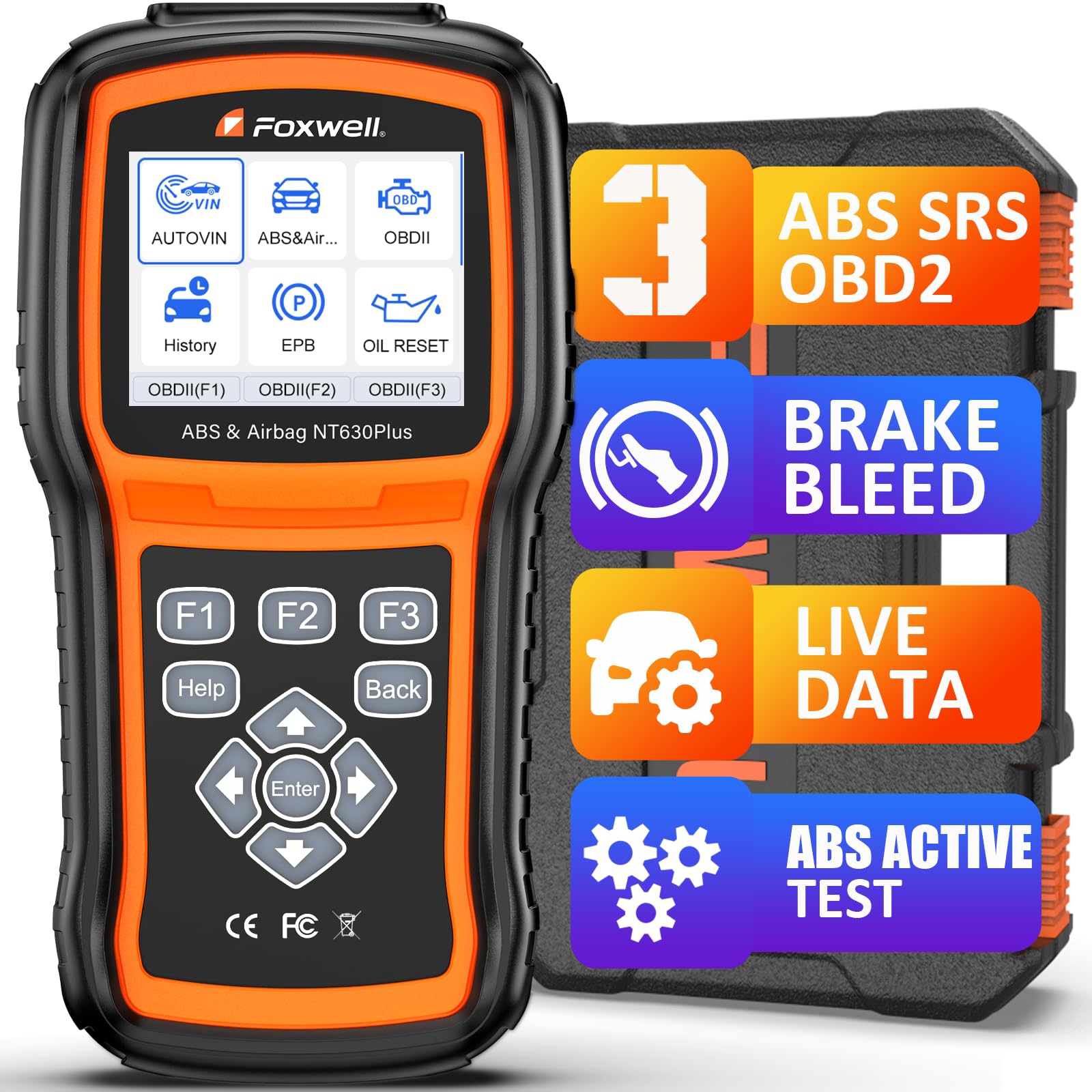

The device has a clear 2.8" LCD, straightforward menu navigation, and step-by-step prompts for supported procedures, making it user-friendly for home mechanics and smaller garages. Wi‑Fi update capability eliminates the need for a PC or subscriptions, and the tool ships with a protective carrying case for portability.

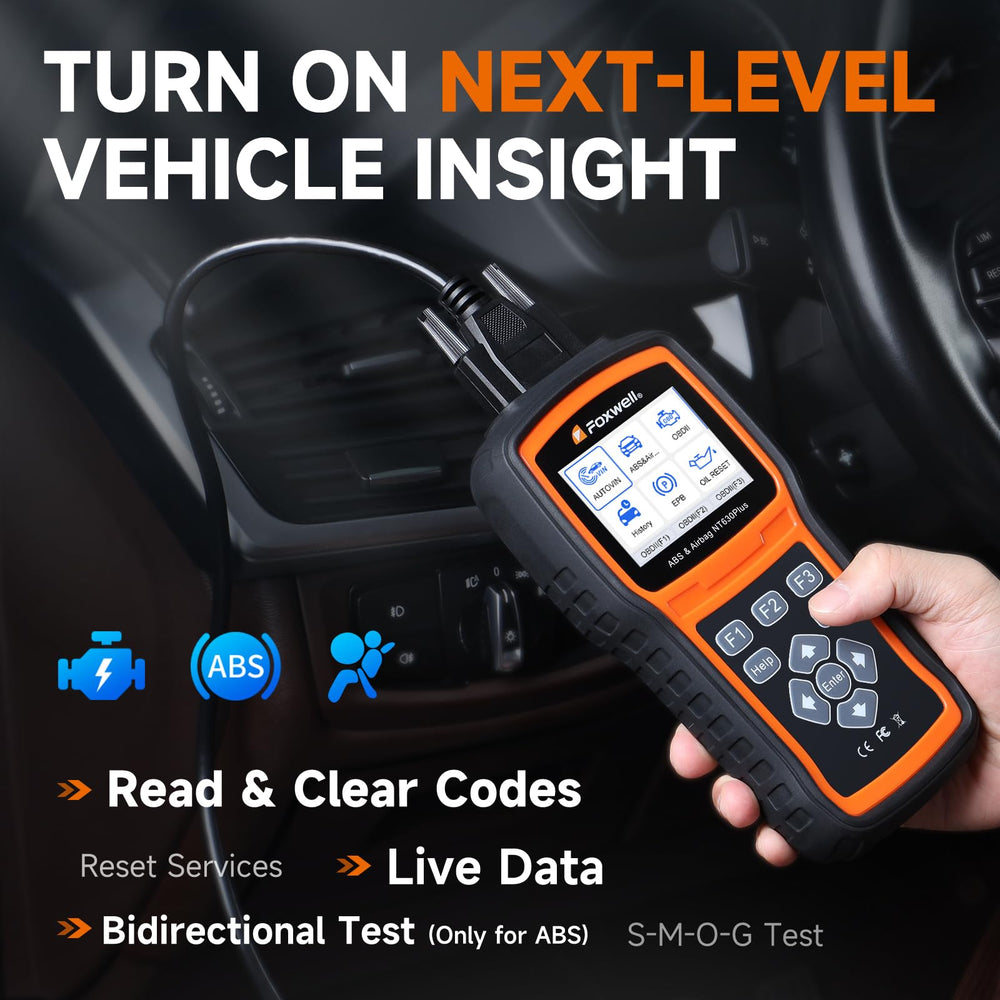

• Plug-and-play connection to the vehicle’s 16-pin OBD-II port—no external power required.
• Free wireless firmware updates—no paid subscription or SD card needed.
• Built-in definitions for many diagnostic trouble codes to speed diagnosis.
• Compact case included for secure storage and transport.

Who is this for: The FOXWELL NT630 Plus is aimed at DIY enthusiasts, mobile mechanics, and independent repair shops that need focused ABS and SRS troubleshooting plus standard OBD-II engine checks. If you require full-system diagnostics, ECU coding, or crash-data airbag resets, a more advanced FOXWELL model is recommended. Always confirm your vehicle’s Year, Make, Model, VIN and engine size to verify the NT630 Plus supports the specific ABS/SRS and service features you need.
