GAsupply 2" ATV Wheel Spacers 4×110 Bolt Pattern 74mm Hub Bore 4-Pack CNC 6061-T6

These GAsupply 2-inch (50mm) wheel spacers adapt 4×110 ATV hubs with a 74mm or smaller center bore to provide extra tire clearance and a wider track.

Engineered for 4-lug ATVs that use a 4×110 bolt pattern and M10×1.25 studs, this 4-pack of wheel spacers is CNC-machined from 6061-T6 aluminum and finished with anodizing for improved corrosion resistance. Each spacer is pre-installed with high-strength Grade 12.9 bolts, giving a reliable connection while keeping weight low. Use them to fit larger tires, improve stability, or achieve a more aggressive stance without changing the original hub spacing.

Will these spacers fit my ATV hub and wheels?

They fit only wheels and hubs that meet three specific dimensions: a 4×110 bolt pattern, a hub bore no larger than 74mm, and wheel studs with M10×1.25 threading. Double-check your hub bore and stud size before ordering.

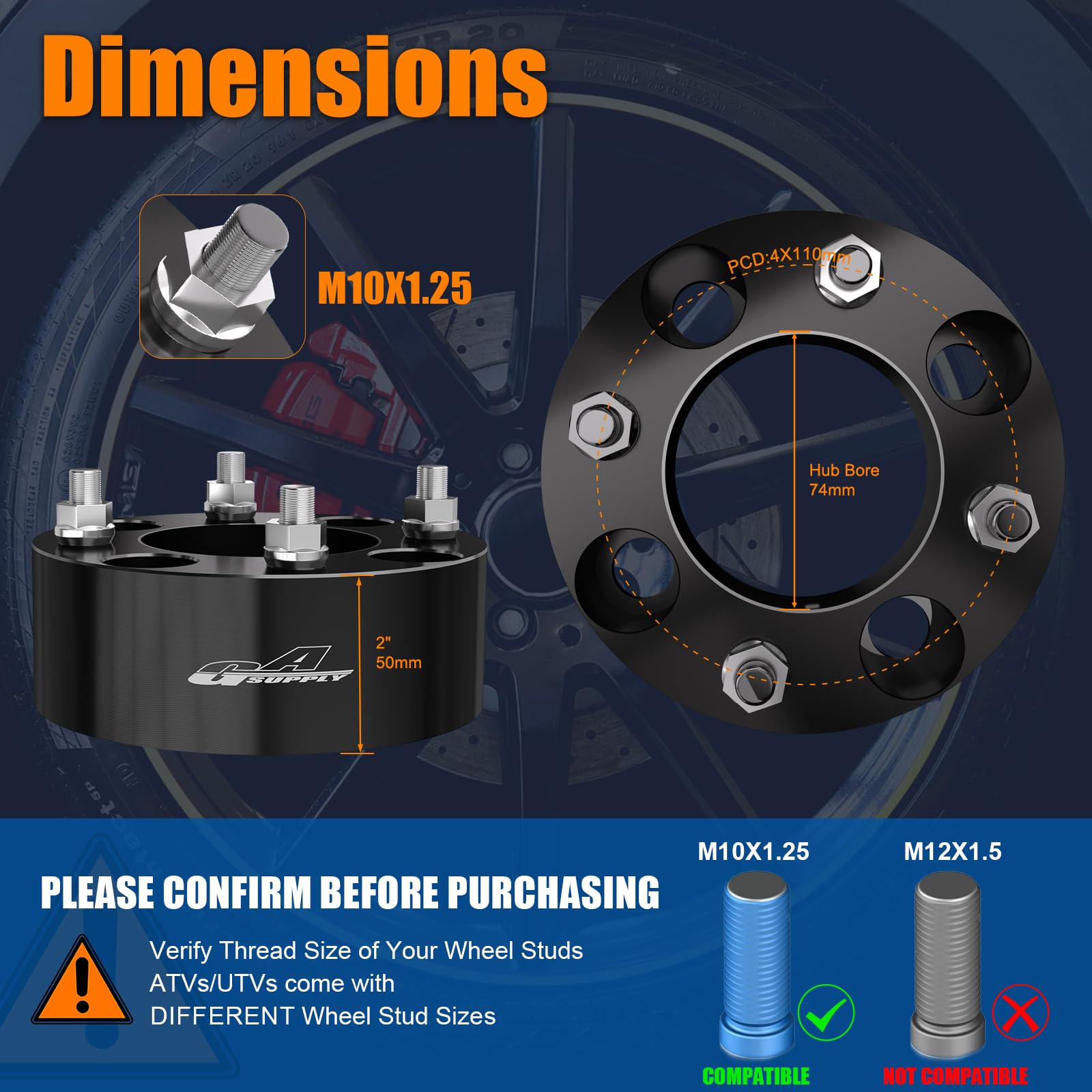

• Bolt pattern: 4×110mm (4x4.3").
• Hub bore: 74mm maximum (2.9").
• Wheel studs/thread pitch: 10×1.25mm only — not compatible with 12×1.25 studs.

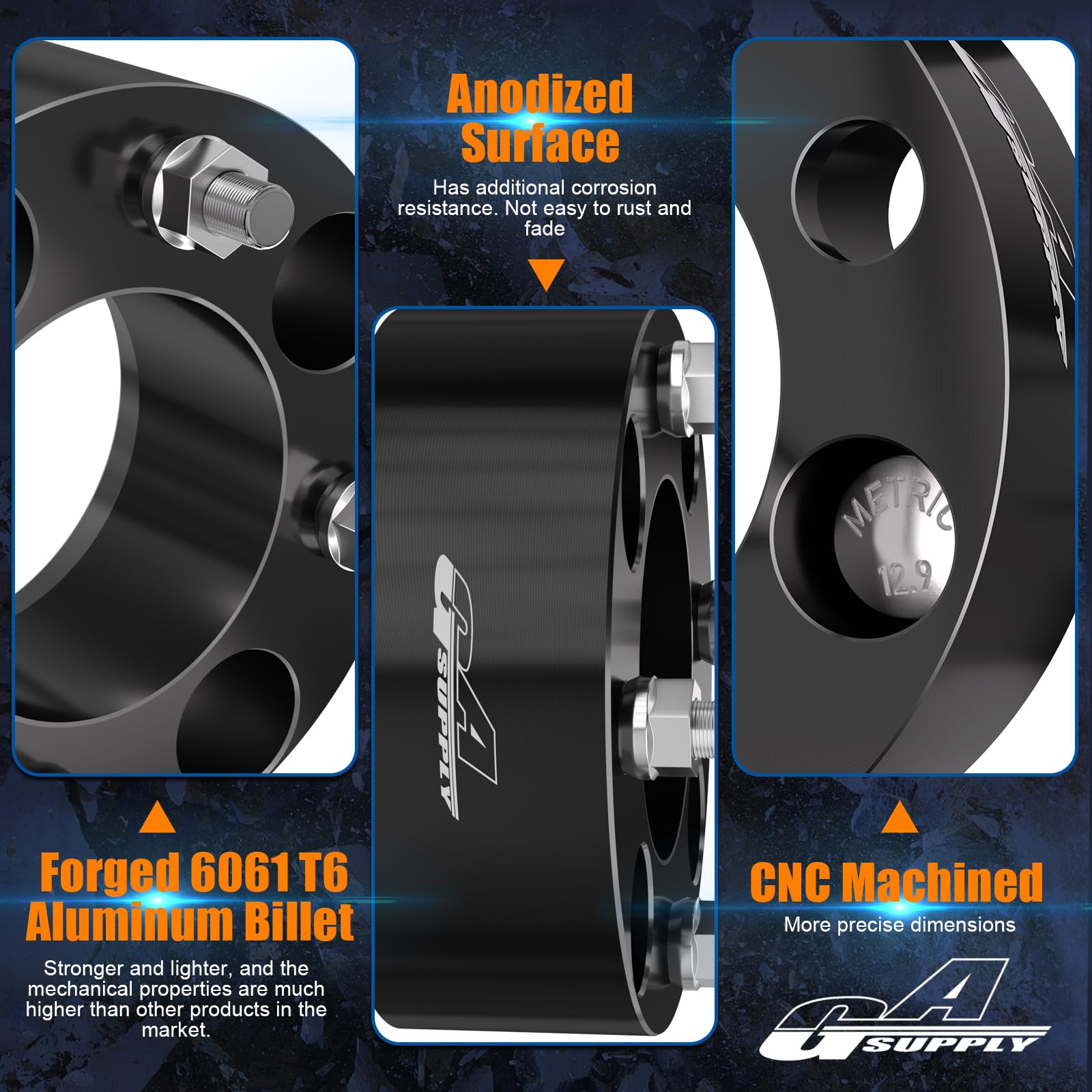

What materials and construction ensure durability?

GAsupply spacers are CNC-machined from 6061-T6 aluminum for a balance of strength and light weight, then anodized to resist corrosion and surface wear. The studs are Grade 12.9 for high tensile strength, reducing the risk of shear or pullout under load.

• Material: 6061-T6 aluminum billet, precision CNC cut.
• Finish: anodized surface for rust and fade resistance.
• Hardware: Grade 12.9 bolts pre-installed for stronger clamping force.

How will these spacers change handling and tire fitment?

The 2-inch thickness moves the wheel outward, increasing track width and allowing room for larger or wider tires. That added clearance can reduce rubbing and give a more planted look, though changes to handling depend on your ATV’s setup and tire choice.

• Thickness: 50mm (2") per spacer to widen stance.
• Allows installation of wider or higher-traction tires with reduced rubbing.
• Can improve lateral stability but may slightly alter steering feel.

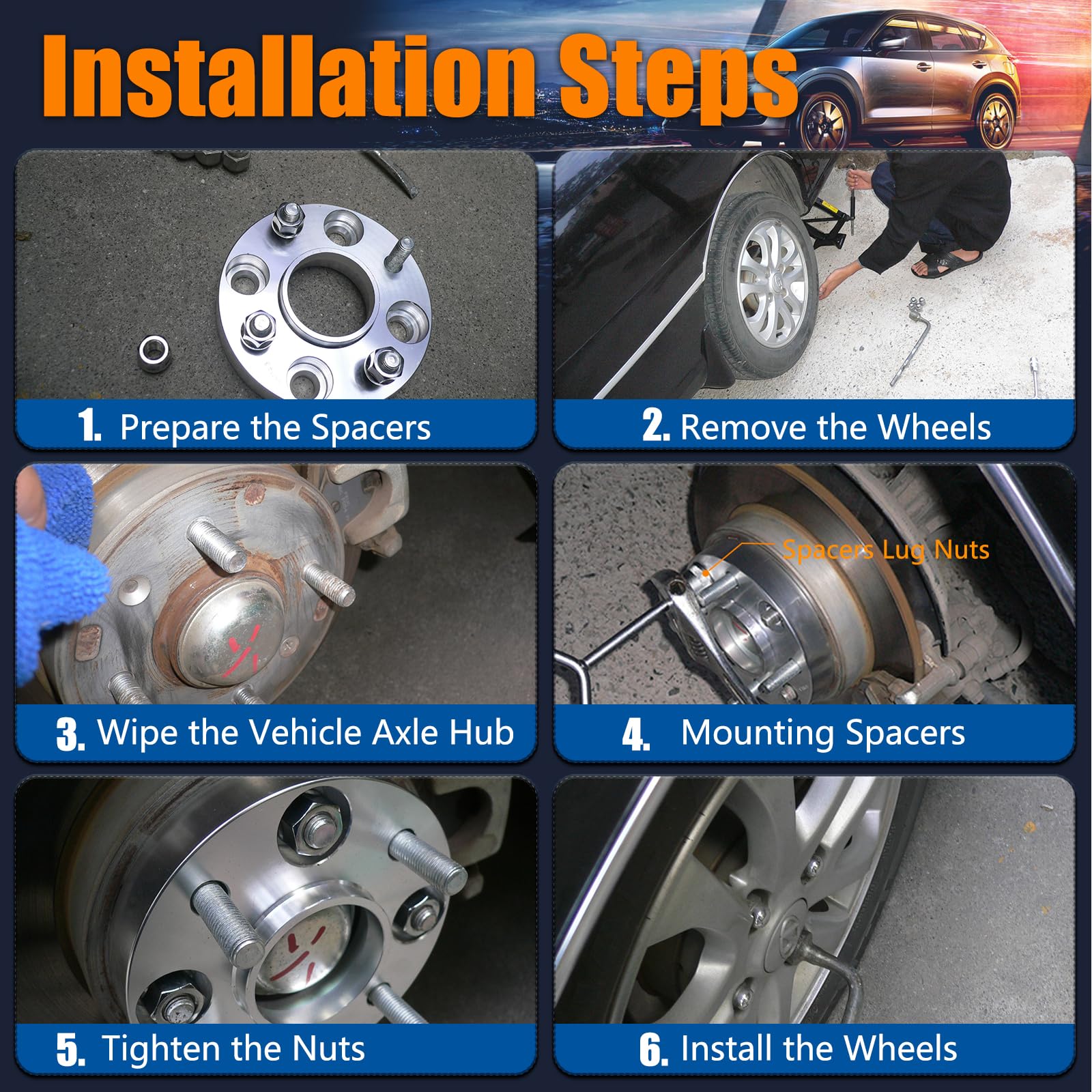

What should I know before installation?

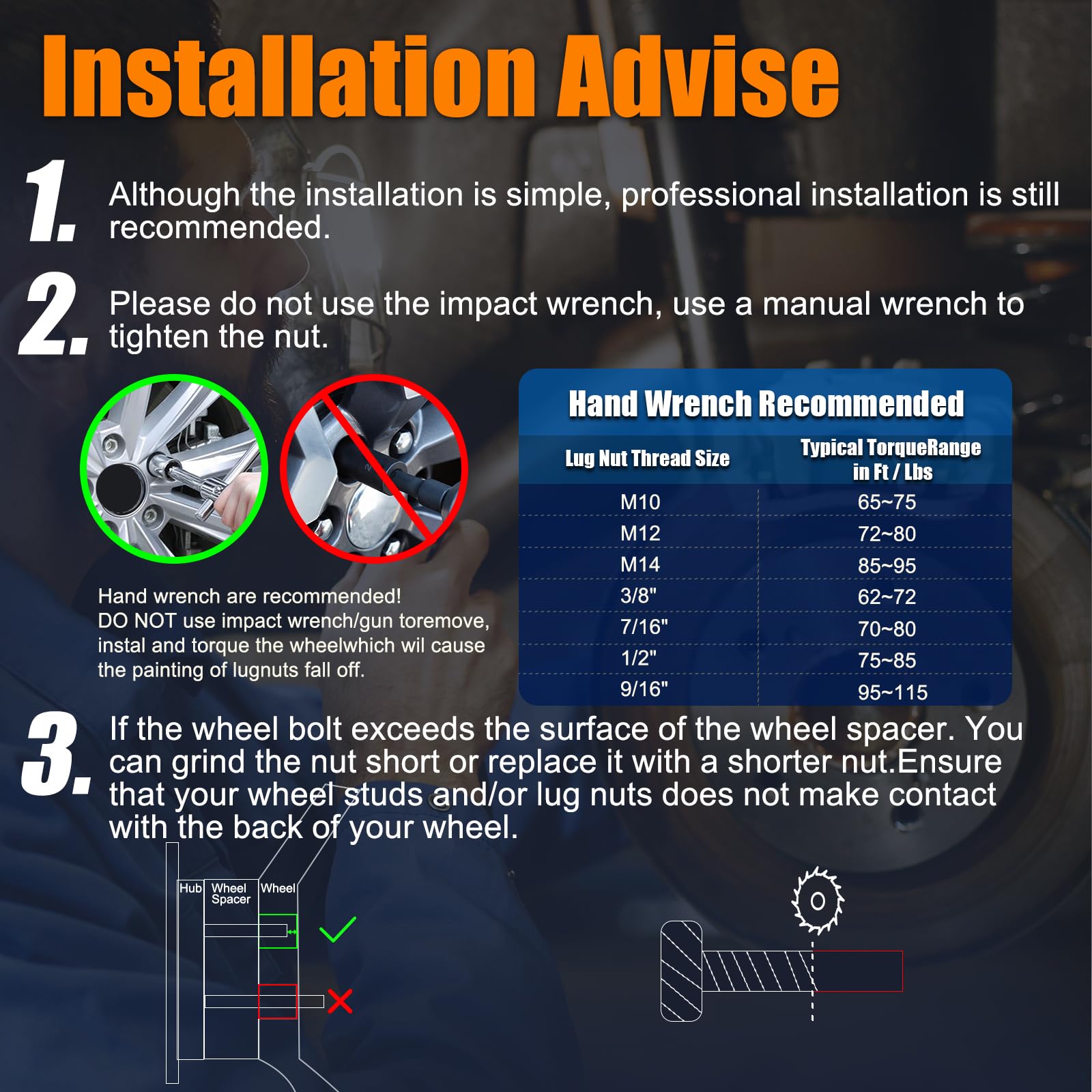

Installation requires matching stud/thread pitch and hub bore; these spacers are sold as a 4-piece set for all four wheels. Always torque to manufacturer specifications and recheck lug torque after initial use to ensure safe operation.

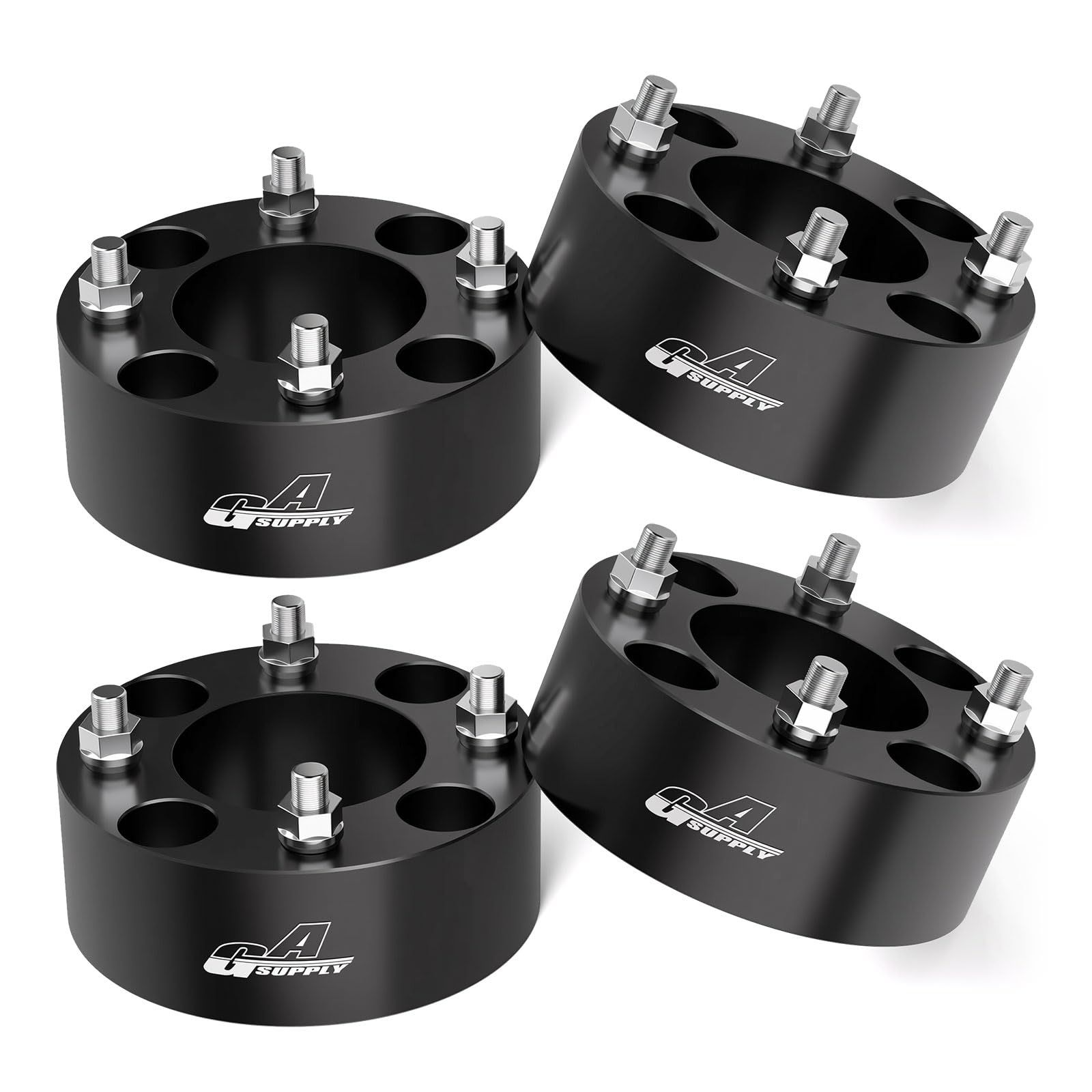

• Sold as a set of 4 spacers for complete wheel fitment.
• Confirm studs are M10×1.25; incompatible with 12×1.25 studs.
• Follow torque specs and retorque after initial riding period.

Who is this for? These GAsupply 2-inch spacers suit ATV owners who need extra wheel clearance, want to run wider tires, or prefer a wider stance for appearance and handling. They are best for those who can confirm the 4×110 bolt pattern, a hub bore ≤74mm, and M10×1.25 studs. Professional installation or proper mechanical knowledge is recommended to ensure safe fitment and torque practices.
