Hantek 1008C 8-Channel Automotive Diagnostic Oscilloscope USB PC with Signal Generator, 12-bit/4K

The Hantek 1008C is a PC-connected, 8-channel automotive diagnostic oscilloscope and programmable signal generator designed to capture and analyze multiple vehicle signals simultaneously.

The Hantek 1008C combines a virtual oscilloscope, extensive automotive diagnostic routines, and a multi-channel signal generator into a USB-powered device for Windows PCs. It integrates 8 analog input channels with high resolution and deep memory to log ignition, sensor, bus, and actuator signals and includes more than 80 built-in automotive test functions to streamline fault-finding. The unit is controlled through PC software, making waveform analysis, measurements, and data storage easier for workshops, technicians, and electronics hobbyists.

How does the Hantek 1008C help when diagnosing vehicle electrical systems?

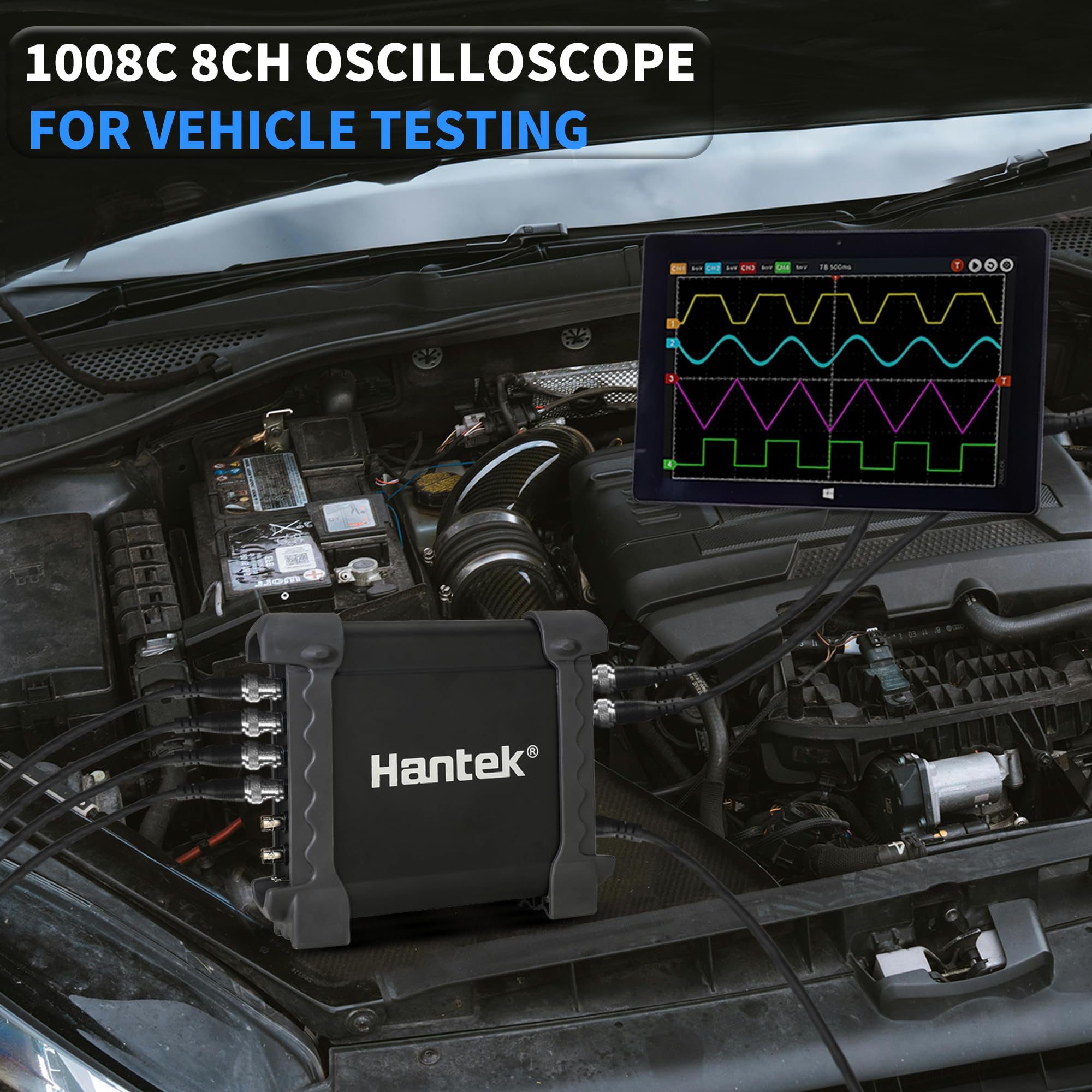

The 1008C lets you monitor up to eight analog channels at once, so you can compare related signals (for example, crankshaft, camshaft, and injector timing) in real time. Its automotive function library guides common checks without setting up complex measurements manually.

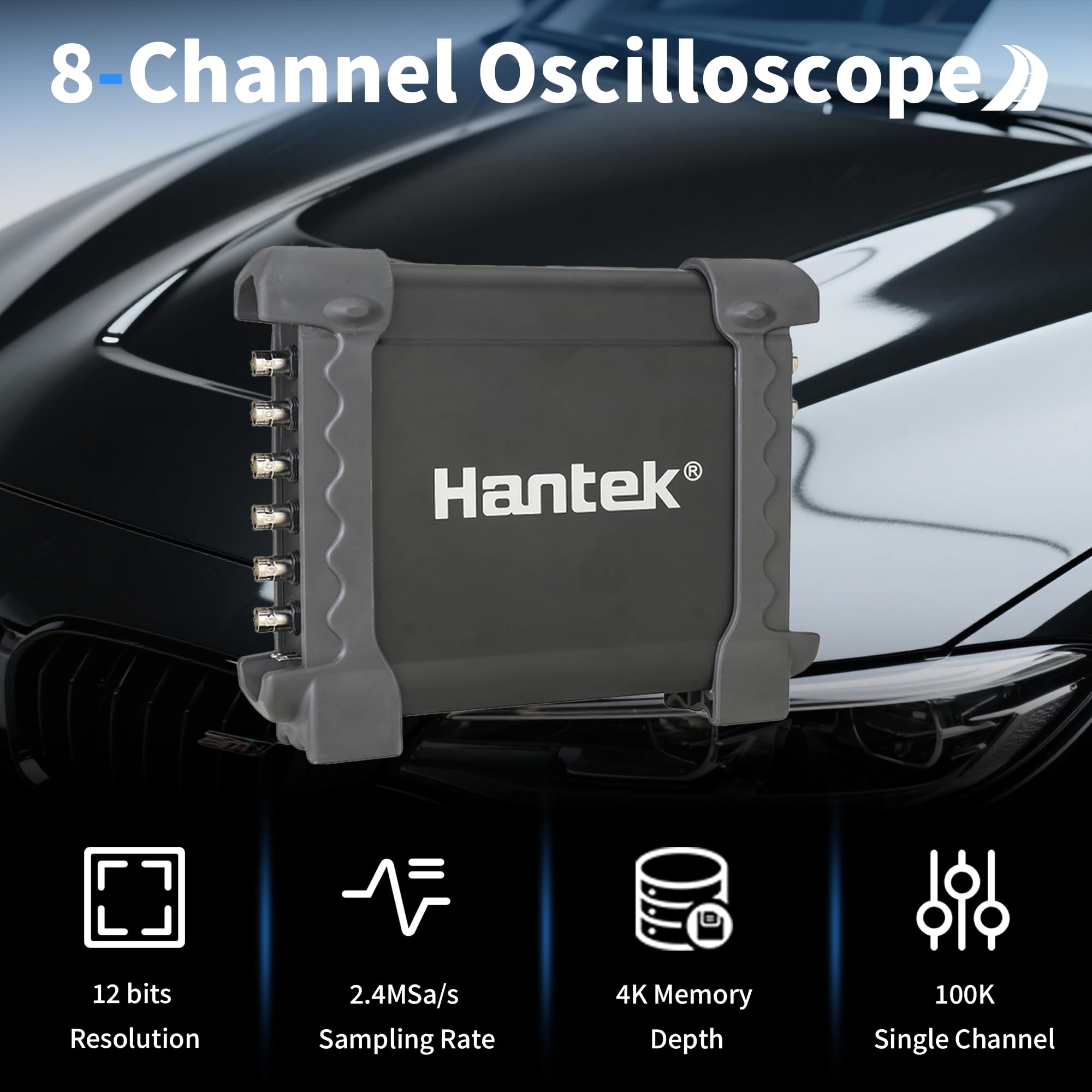

• 8 simultaneous analog channels for multi-signal comparison

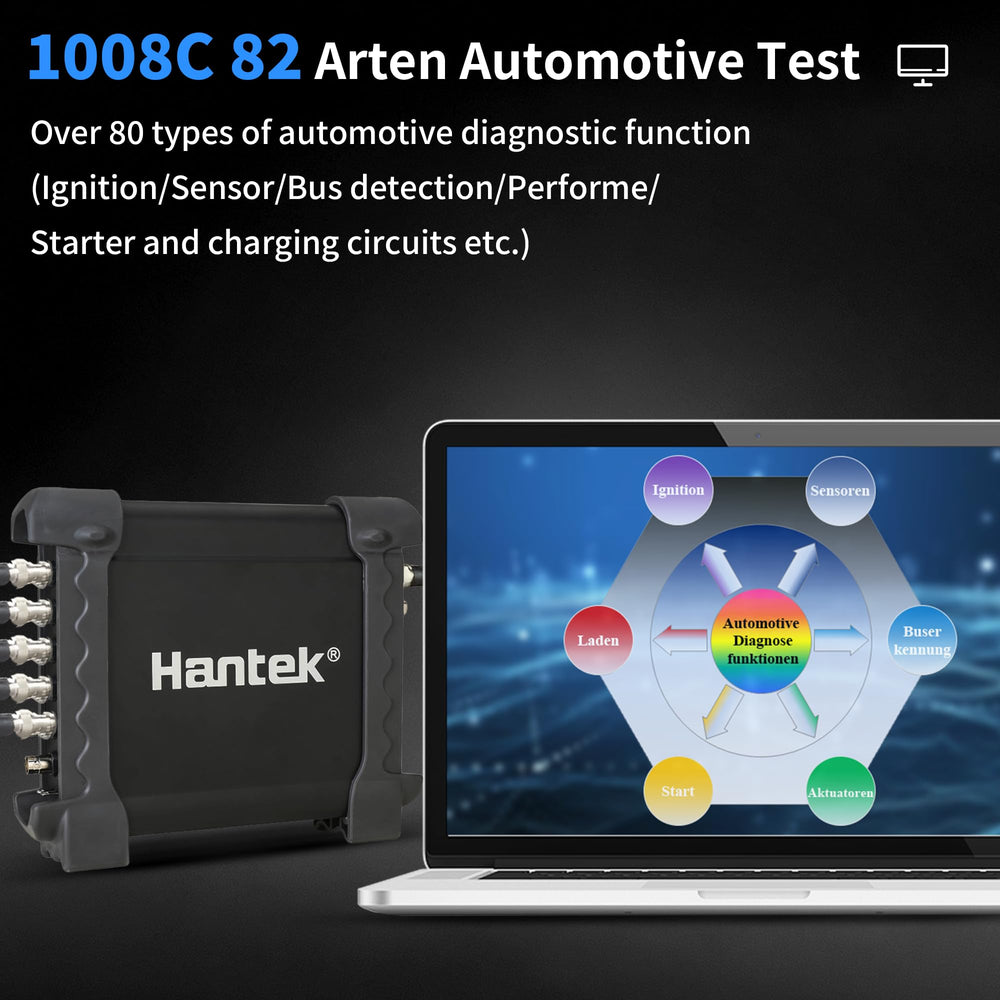

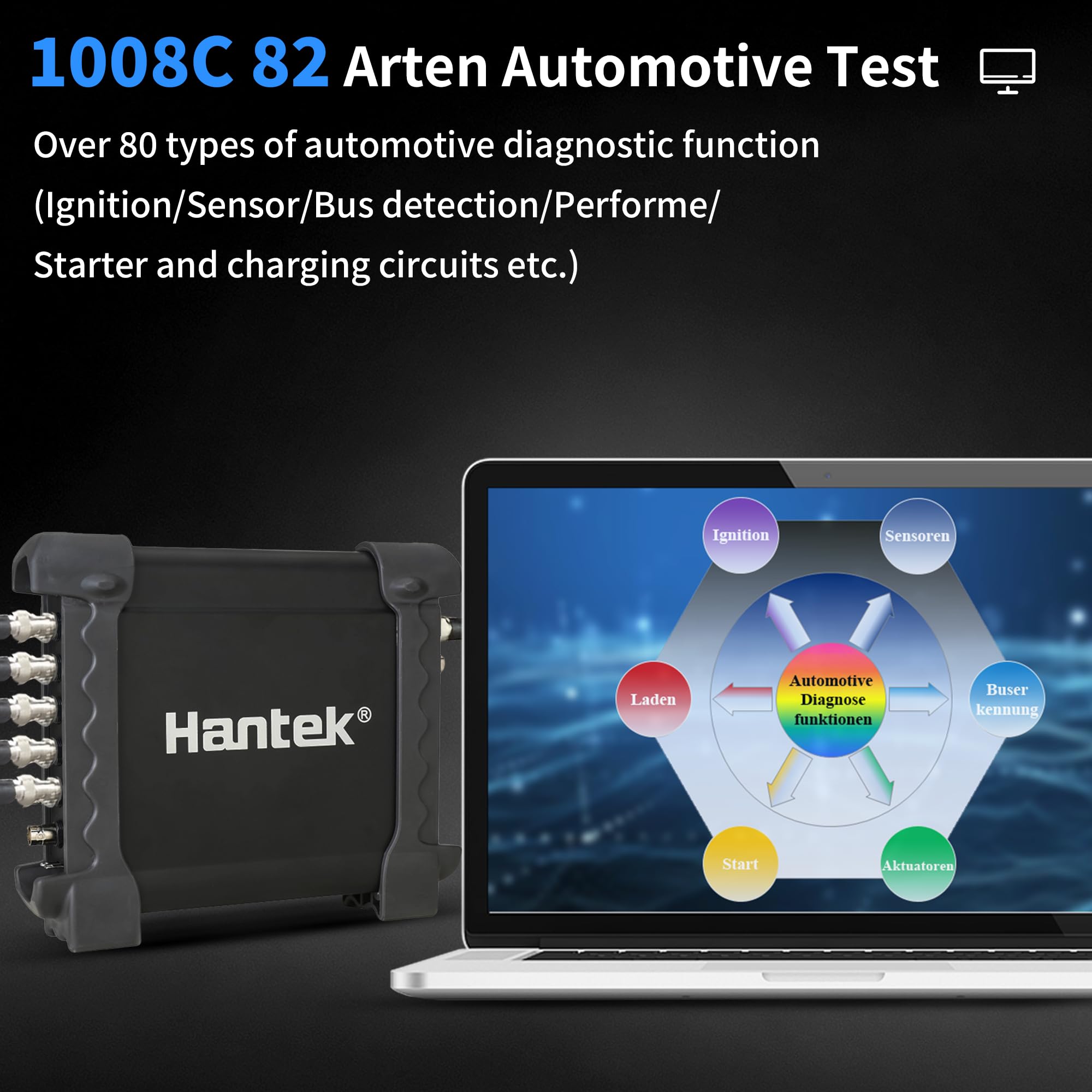

• Over 80 automotive diagnostic routines (ignition, sensors, buses, actuators, charging)
• 12-bit resolution and 4K memory depth for clearer traces
• USB data transfer and PC software for logging and review

What sampling and measurement capabilities does it offer for precise troubleshooting?

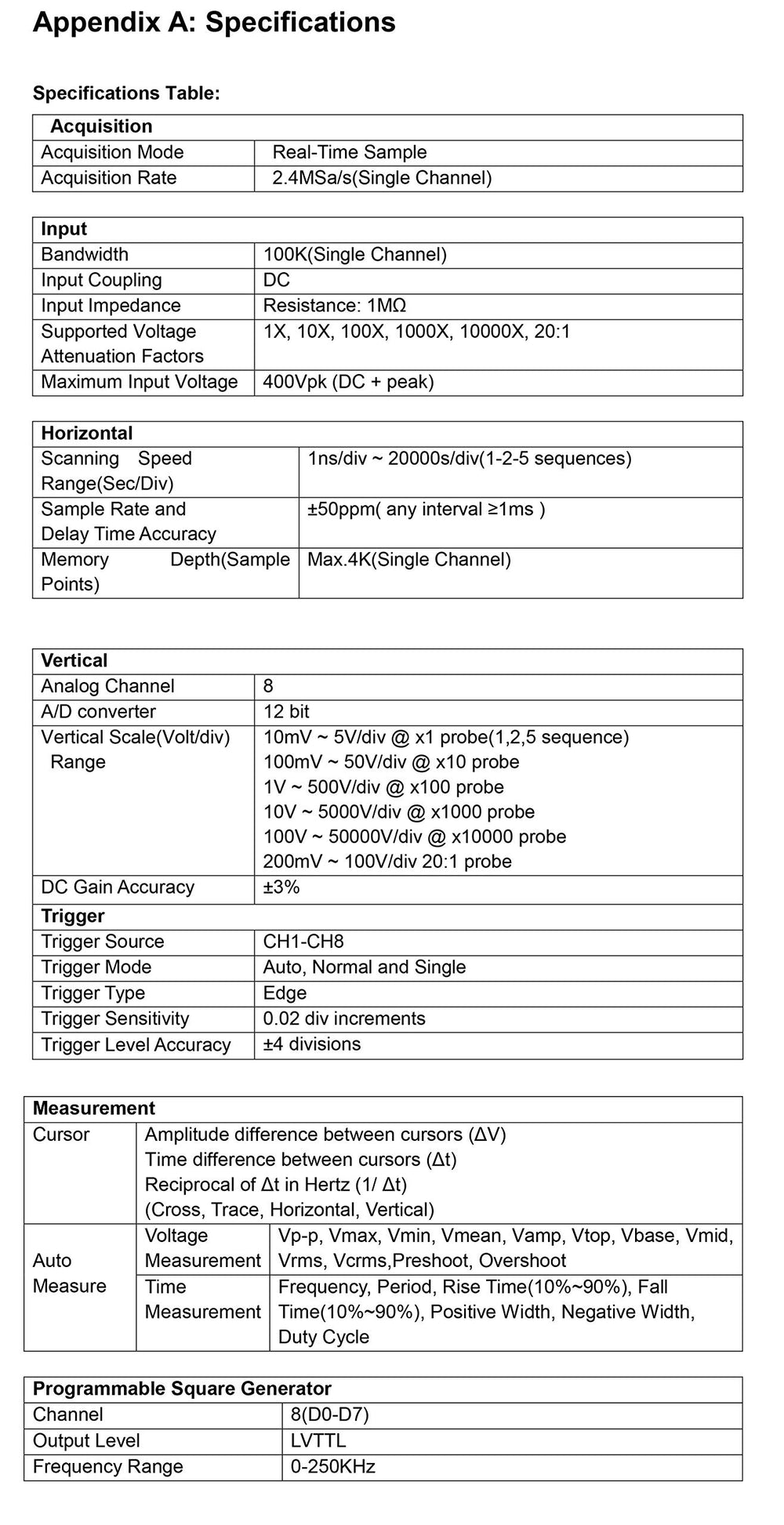

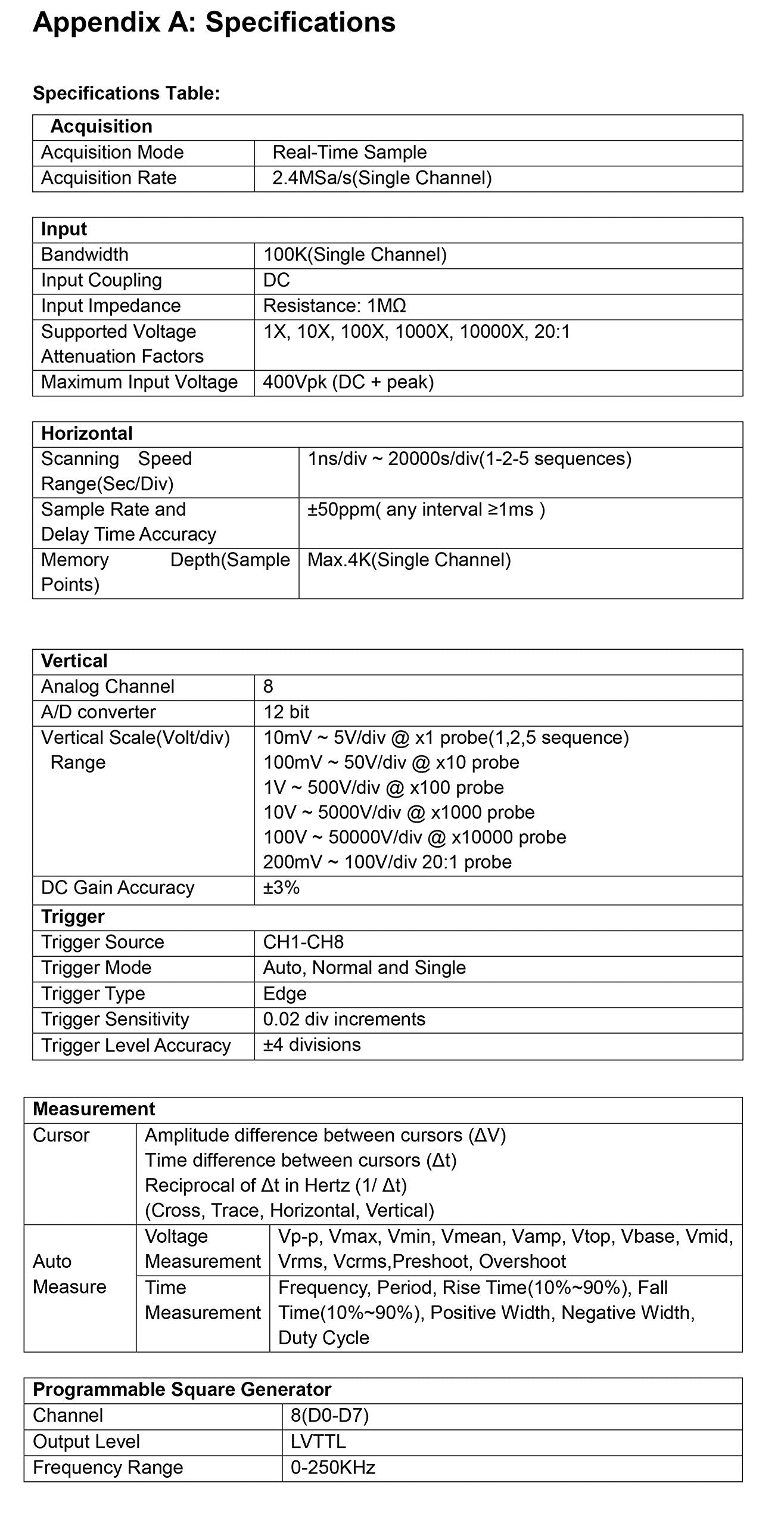

The scope provides a 2.4 MSa/s real-time sampling rate per device, 12-bit resolution, and automatic measurement modes to quickly quantify signal properties. Automatic measurements and one-key toggles make frequent tests faster and reduce setup errors.

• 2.4MSa/s real-time sampling rate to capture transient events
• 12-bit ADC for improved vertical resolution over basic scopes

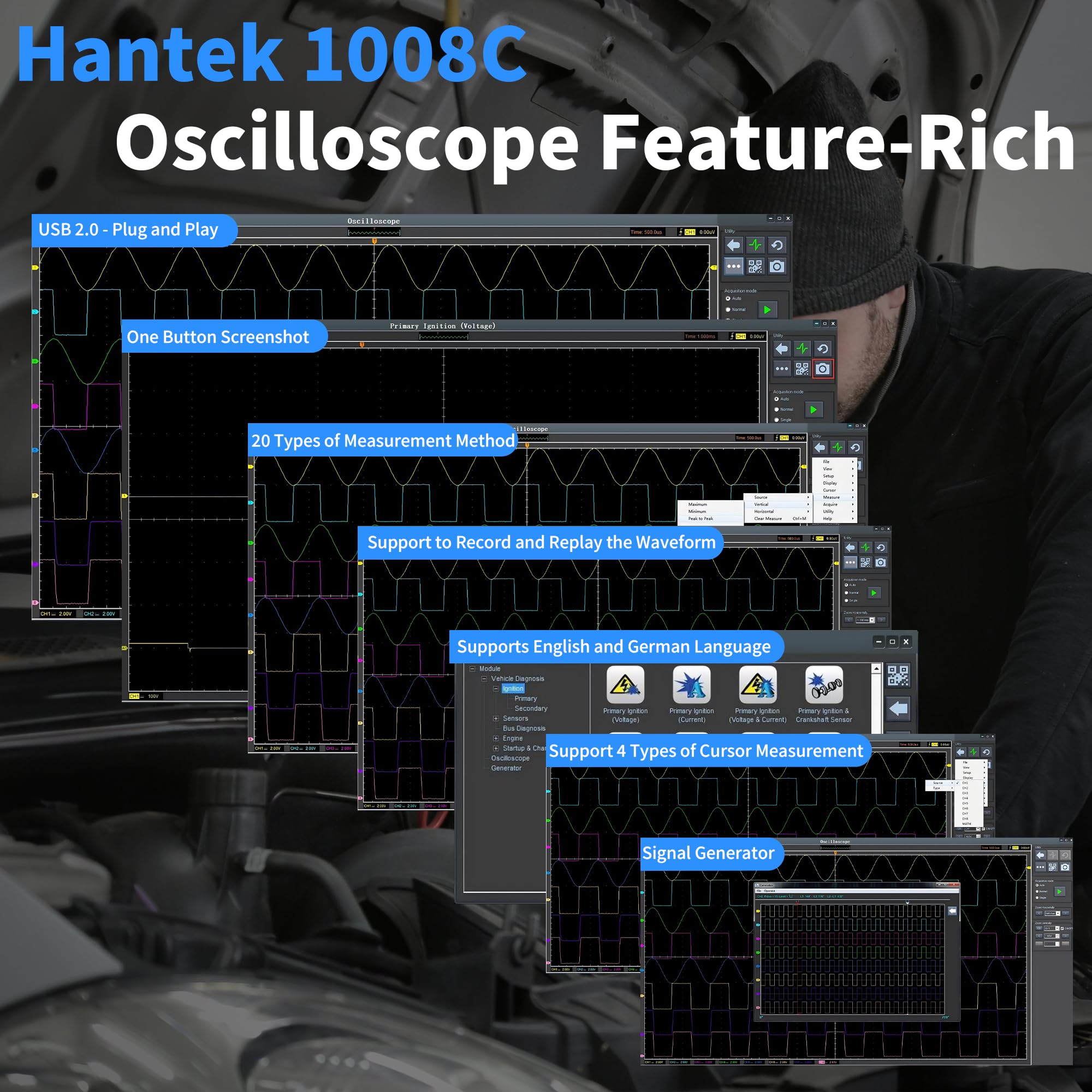

• 20 automatic measurement modes and one-key enable/disable
• 4K memory depth to store longer waveform segments for analysis

Can the Hantek 1008C simulate signals for testing and calibration?

Yes—its integrated programmable signal generator offers LVTTL-level outputs across eight channels and covers 0–250 kHz, suitable for simulating crankshaft/camshaft and other square-wave reference signals. Signals can be stored and reused via USB to replicate fault conditions or validate ECU responses.

• 8-channel programmable signal generator with LVTTL output
• 0–250 kHz frequency range for common automotive reference signals
• USB storage for saving generator presets and waveforms
• Useful for simulating sensors and timing signals during bench tests

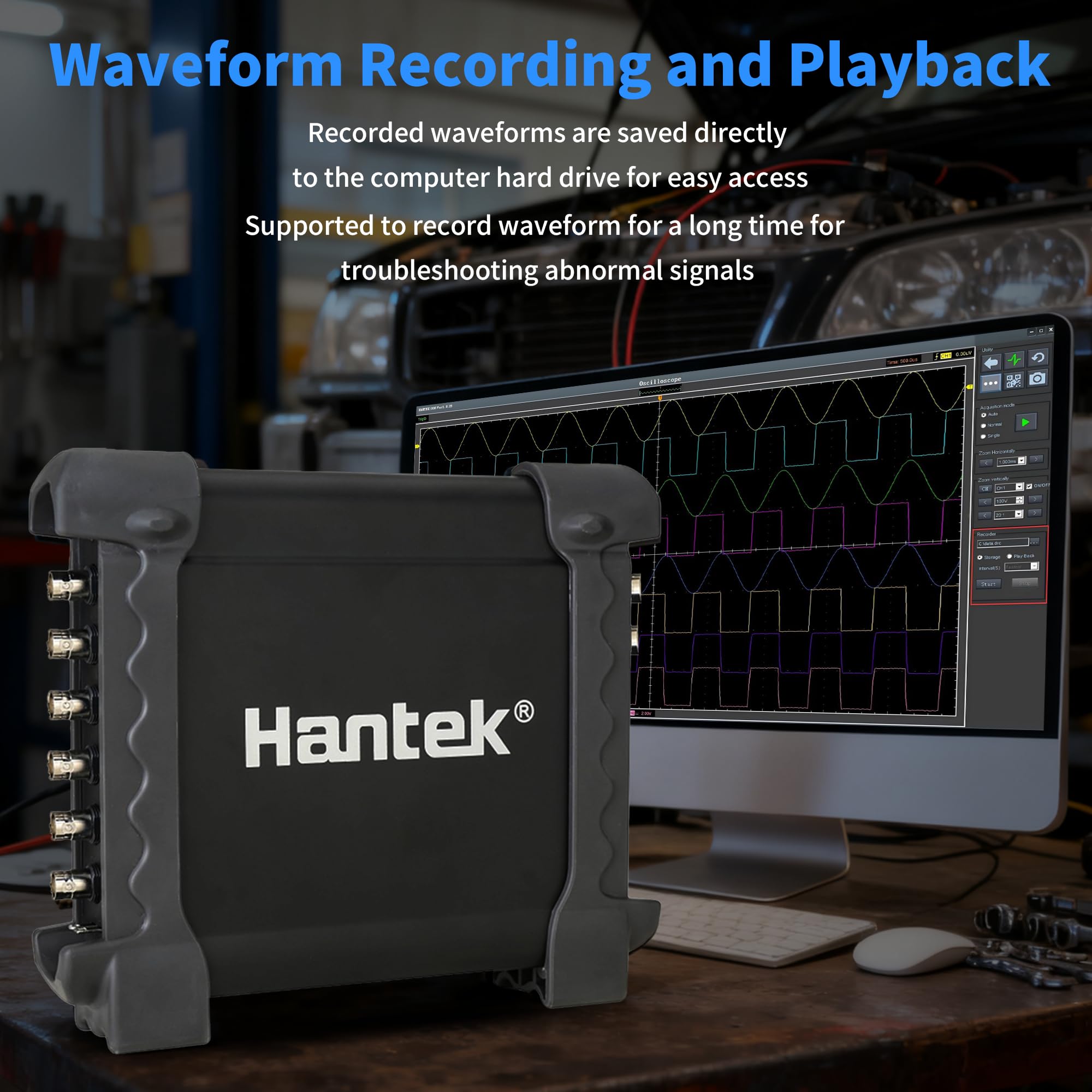

How does this device integrate with a workshop PC and workflow?

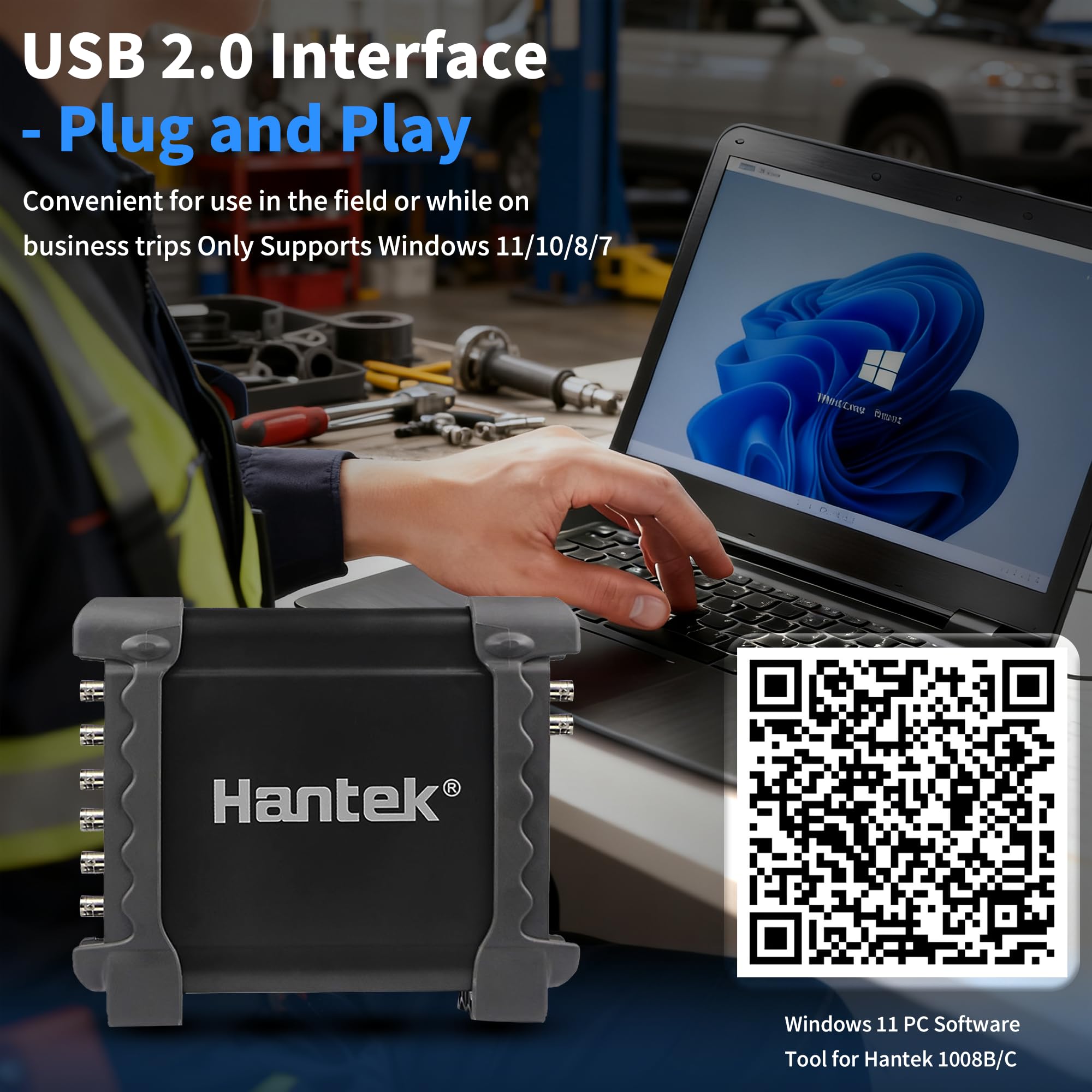

The 1008C connects to Windows PCs via USB 2.0, where Hantek’s software displays waveforms, stores captures, and exports data for reports. This integration supports archiving, side‑by‑side comparisons, and sharing evidence for diagnostics or training.

• USB 2.0 connection for live display and data transfer to Windows PCs
• PC software for waveform capture, measurement, and export
• File storage of captures simplifies record keeping and customer reports
• Suitable for bench testing, vehicle diagnostics, and educational use

Who is this for: The Hantek 1008C suits professional auto electricians, independent mechanics, and advanced hobbyists who need multi-channel waveform visibility and the convenience of PC-based analysis. It is also appropriate for electronics enthusiasts and trainers who require a combined oscilloscope and signal generator for circuit troubleshooting and simulation. Note that the software is Windows-only and the device is intended for diagnostic and educational use rather than medical or safety-critical applications.
