Hantek HT25COP Coil-on-Plug Ignition Waveform Probe — LED Clamp, Noise‑Suppressing for Oscilloscopes

If you troubleshoot automotive ignition systems, the HT25COP provides a simple, non-invasive way to read coil-on-plug waveforms without adding long extension leads. It clamps directly to the COP assembly, incorporates anti-interference circuitry for clearer traces, and includes a bright LED to help position the probe in low-light conditions. The probe is shaped for comfort and can be bent to reach awkward angles, making it practical for tight engine bays.

How does this probe capture ignition waveforms accurately?

The HT25COP uses a dedicated sensing tip and internal suppression to reduce electromagnetic noise common around ignition coils. That design helps deliver stable, repeatable traces suitable for diagnostic comparison and measurement on general-purpose oscilloscopes.

• Built-in anti-interference electronics to minimize electrical noise.
• Direct contact design removes the need for high-impedance extension cables.
• Designed to work with standard oscilloscopes for waveform viewing and analysis.

Will this work with my regular oscilloscope or lab equipment?

Yes — the HT25COP is compatible with commonly used oscilloscopes and can be used as a front-end probe for automotive ignition testing. It is not a specialized OEM tool but a general-purpose probe intended to interface with most bench or handheld scopes.

• Standard connector and signal output matching normal oscilloscope inputs.
• Suitable for bench, portable, and automotive oscilloscope models.
• No extra adapter cables required for typical scope setups.

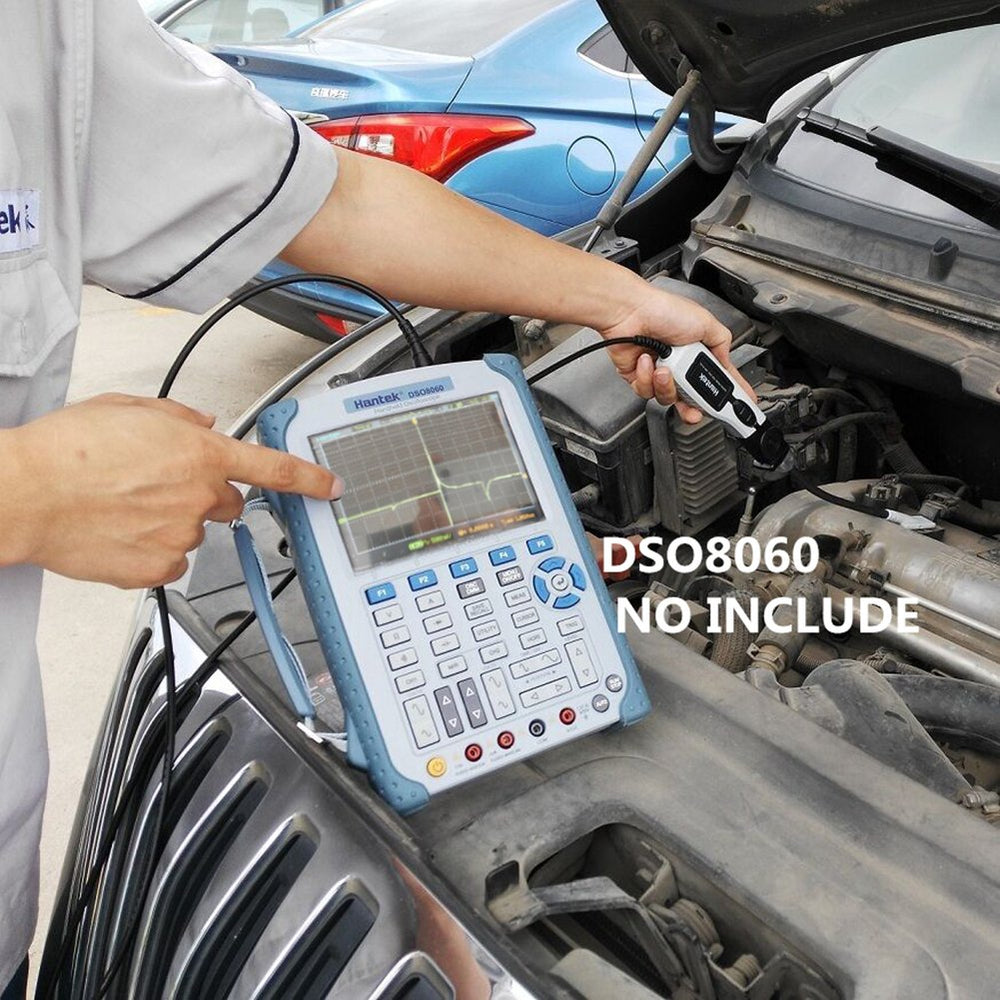

How practical is the probe for real-world garage and roadside use?

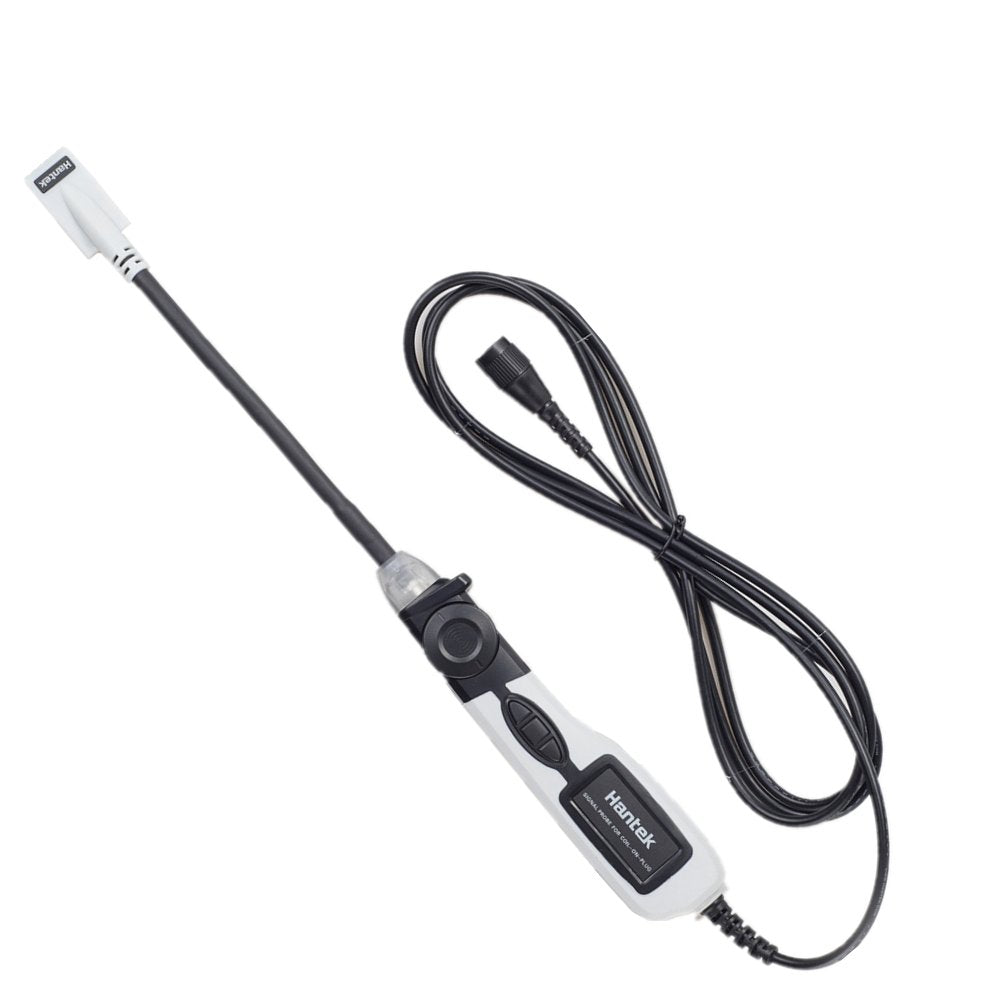

The probe’s ergonomic build and flexible body let you bend and position it around obstructions. A bright LED makes it easy to locate and attach the probe in dim engine compartments, and the direct-attach approach speeds testing by avoiding time-consuming cable routing.

• Ergonomic, bendable housing reaches awkward coil positions.
• Integrated LED illuminates mounting points in low light.
• Quick clamp-on connection reduces setup time during diagnostics.

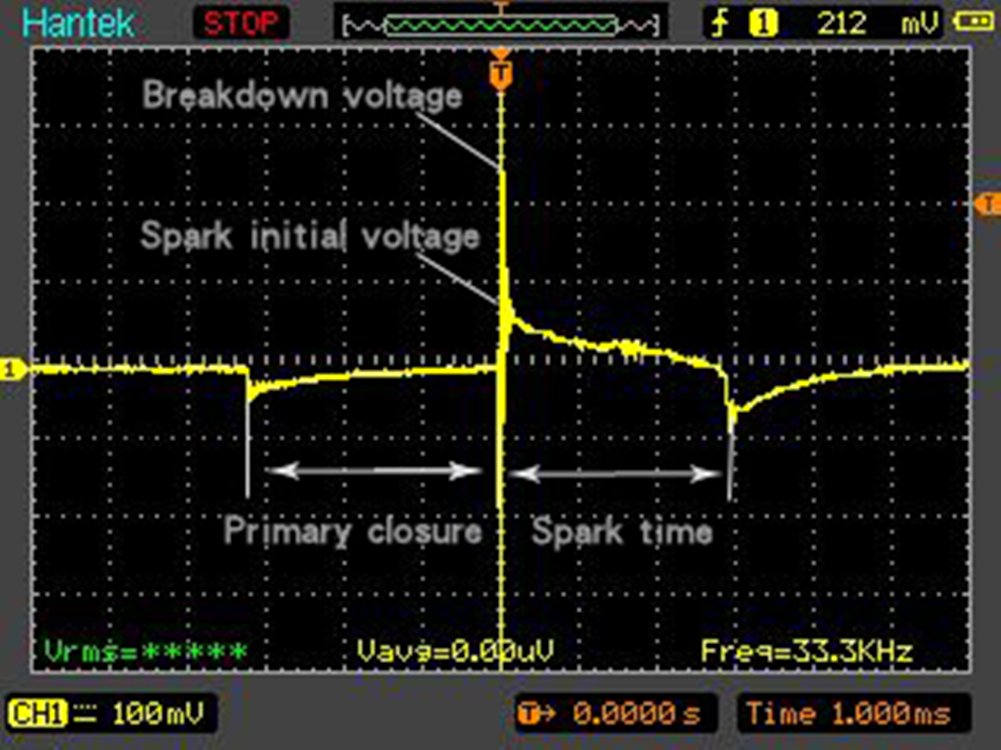

What measurements and features should I expect from the HT25COP?

The probe is optimized to measure ignition coil primary/secondary activity depending on attachment point and scope configuration. Expect clear pulse capture, improved noise suppression, and compatibility with typical oscilloscope measurement tools for timing and amplitude checks.

• Direct measurement of ignition coil signals without extension wires.
• High-accuracy readings aided by anti-interference design.
• Simple LED indicator and rugged mechanical feel for field use.

Who is this for: The Hantek HT25COP is aimed at automotive technicians, mechanics, electrical diagnosticians, and hobbyists who need fast, reliable ignition waveform capture with standard oscilloscopes. It’s especially useful when access is tight or when you want to avoid the signal distortion that can come from long adapter cables. Avoid using this probe beyond its electrical and environmental ratings; it is intended for signal acquisition and diagnostic observation rather than high-voltage isolation or guaranteed repair outcomes.
