HiFind 14 Gauge 30ft 6-Way Trailer Wiring Harness - Bonded Flat 14AWG CCA Stranded

HiFind's 14-gauge, 30-foot bonded 6-way trailer wiring harness provides a ready-to-install flat cable for 12V lighting, electric brakes, and auxiliary power on trailers, RVs, boats, and other tow vehicles.

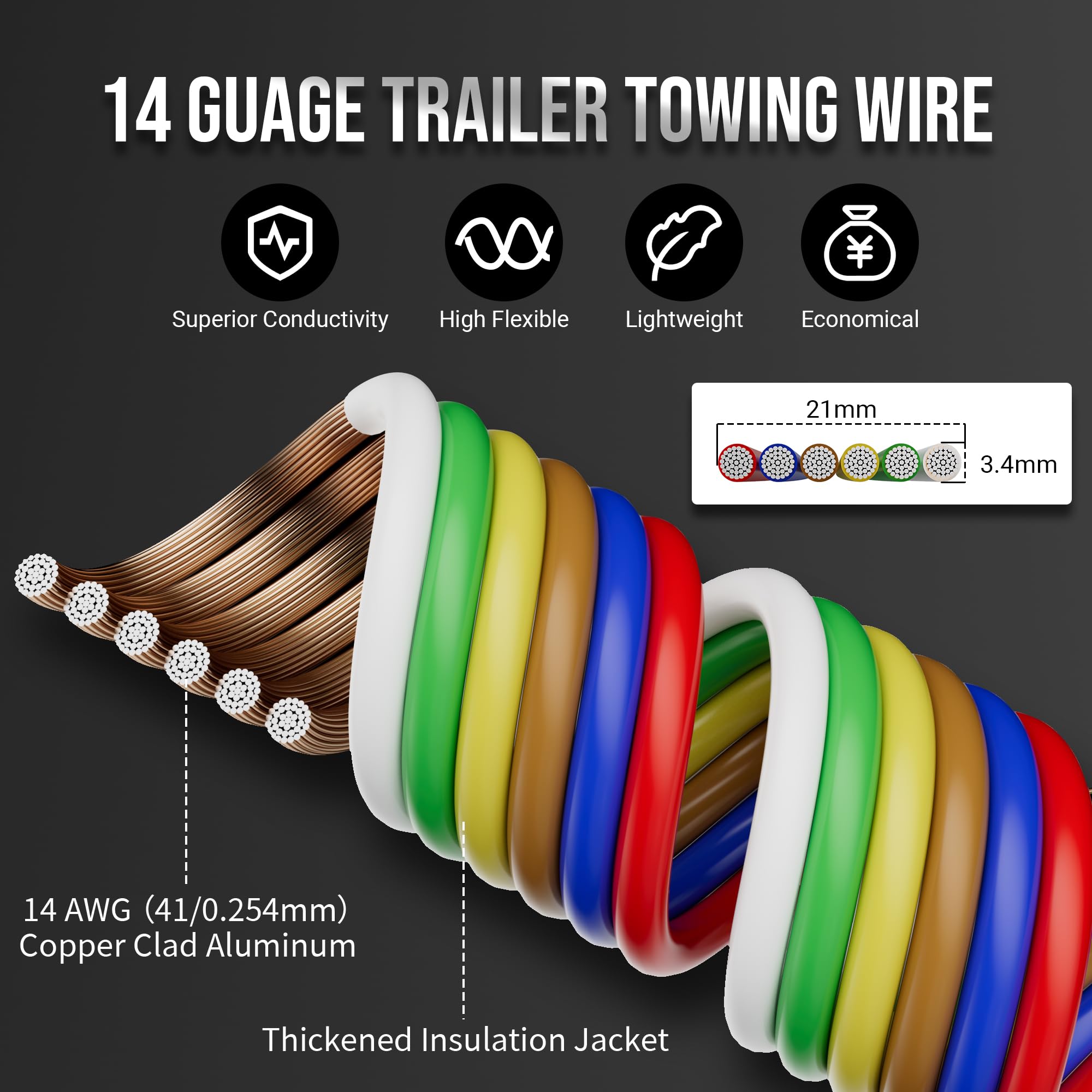

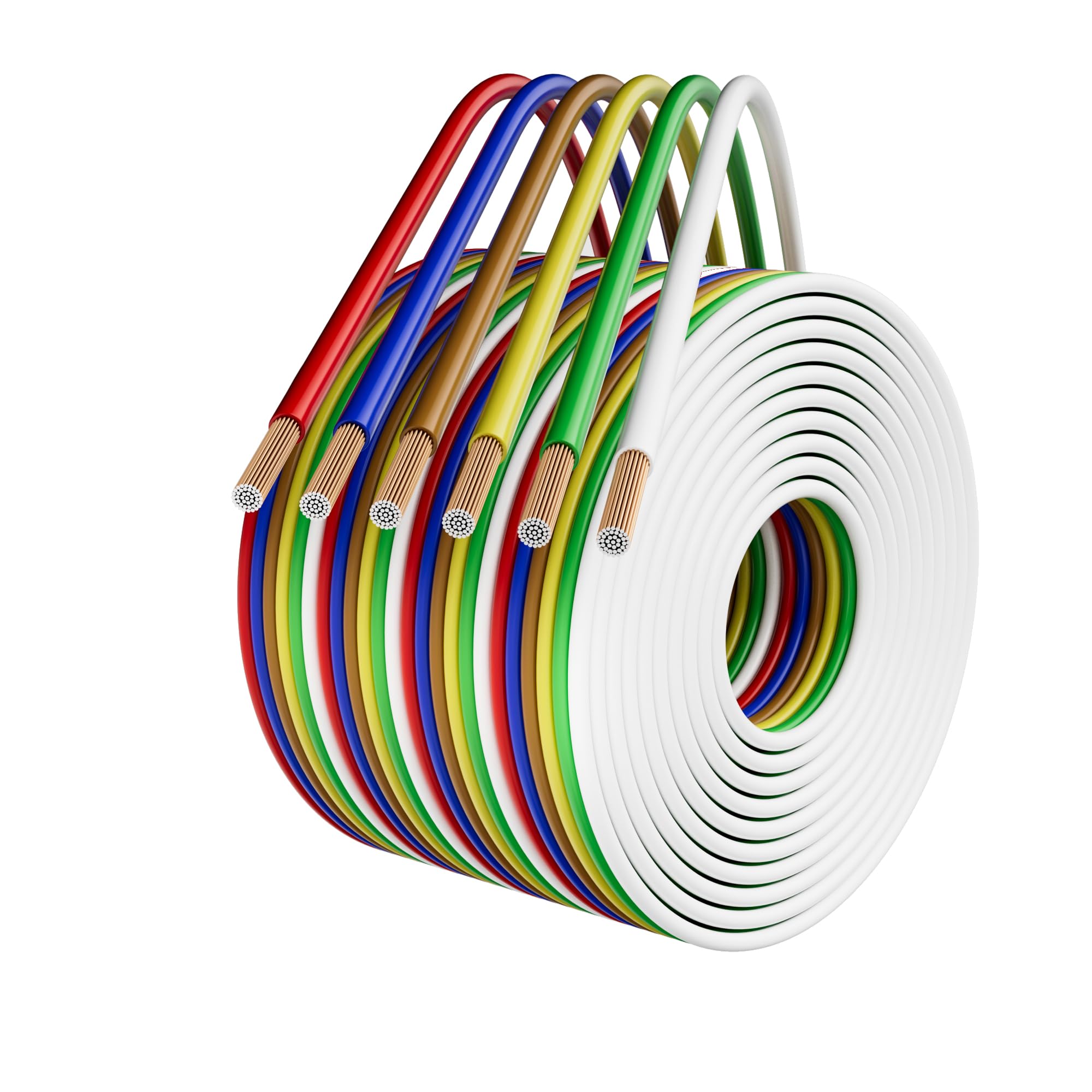

This harness is built as a side-by-side bonded assembly of six stranded CCA (copper-clad aluminum) conductors, each color-coded for quick identification and designed to replace or extend standard trailer wiring without splicing. With thicker 14AWG conductors than typical 16AWG kits, this assembly lowers electrical resistance for more stable power delivery across longer runs and offers a neat, flat profile that threads easily through chassis channels and conduit.

How does this harness improve trailer lighting and brake performance?

The 14AWG stranded conductors carry more current and reduce voltage drop compared with thinner wire, making them better for long-distance runs and for systems that draw higher current such as electric brake controllers. The stranded construction increases flexibility so the cable resists fatigue from movement and vibration.

• 14AWG stranded CCA conductors for lower resistance and higher current capacity
• Flat bonded layout prevents tangles and simplifies routing
• Color-coded wires match standard trailer wiring functions for easy hookup
• Designed to feed both lights and electric brakes with stable voltage

Will this wiring stand up to road, weather, and under-vehicle conditions?

The harness uses a PVC outer jacket formulated to resist UV, oil, grease, and many chemicals, and it tolerates a wide temperature range so it remains flexible and protected in cold and hot climates. It is manufactured to SAE J1128 standards for automotive wiring, which helps ensure consistent electrical performance and material quality.

• PVC insulation rated for -40°C to +105°C for wide environmental tolerance
• Resistance to oil, grease, acid and abrasion for under-chassis use
• Bonded construction reduces chafing and keeps wiring compact
• White ground conductor is full 14AWG to improve grounding reliability

How easy is it to install, identify, and customize this harness?

The wires are color-coded to standard trailer conventions so you can match each conductor to its function quickly and accurately. The bonded flat form factor feeds through tight passages, and the spool can be separated into individual wires if you only need one or two conductors for repairs or custom routing.

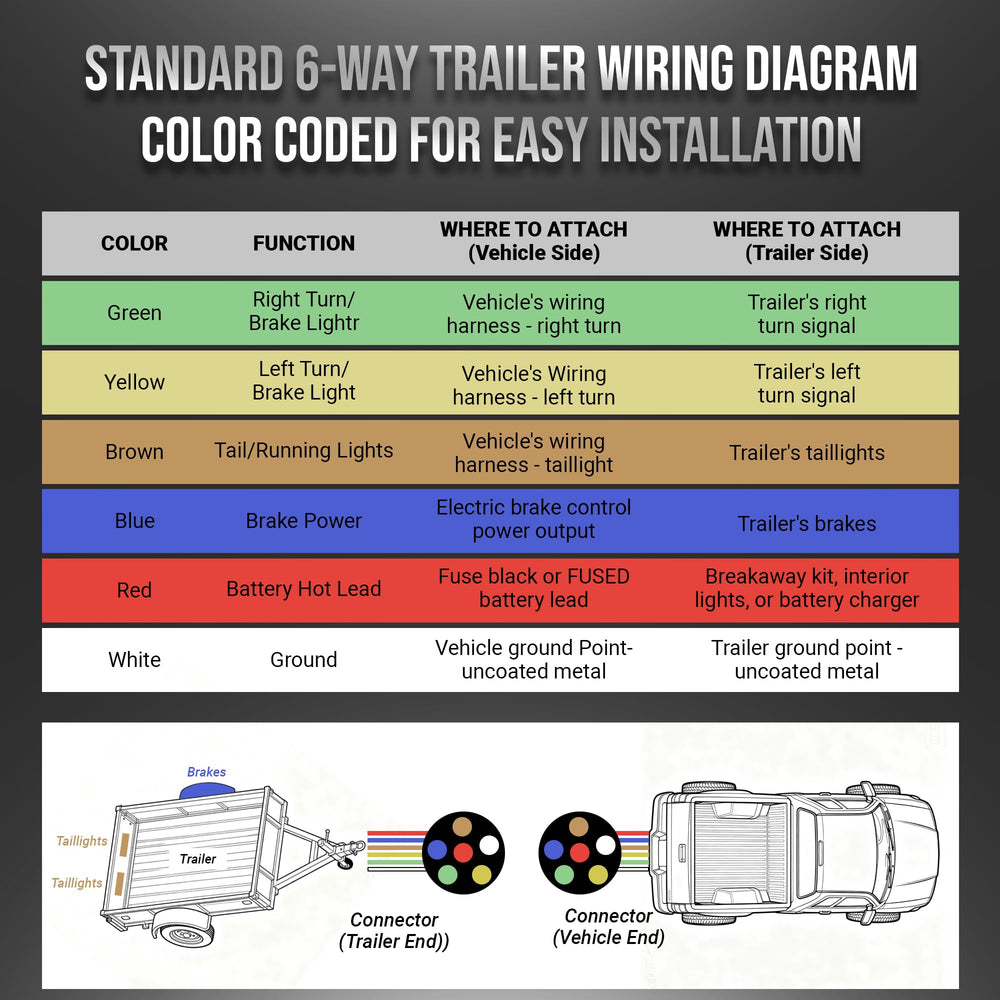

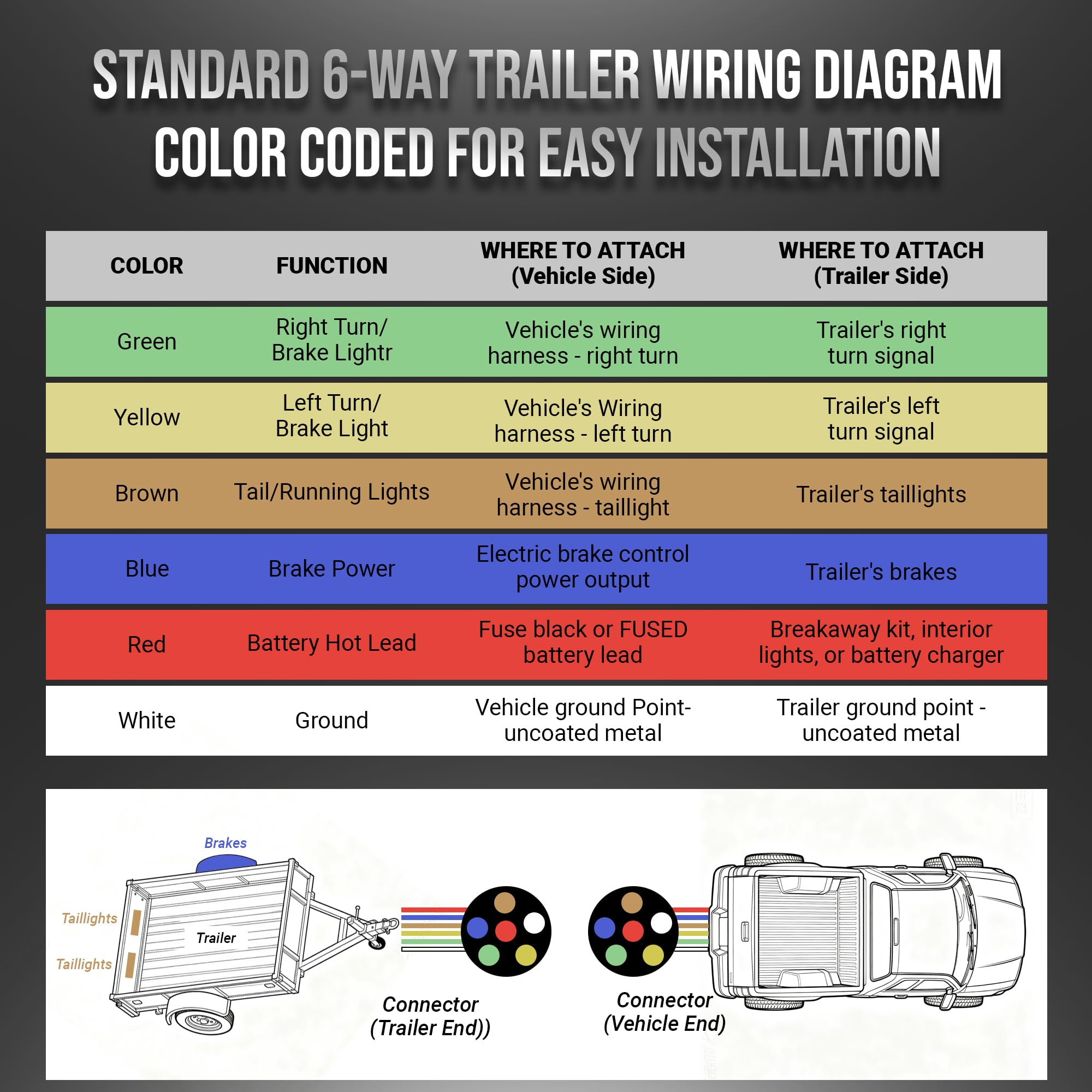

• Color code: White = Ground, Brown = Tail/Running, Yellow = Left turn, Green = Right turn
• Blue = Electric brake controller, Red = 12V auxiliary power
• 30-foot length gives room for routing and trimming to fit many trailer types
• Stranded conductors allow easy bending and termination with standard connectors

What should I expect about compatibility and warranty?

This harness is intended for all common 12V trailer and tow applications, including utility trailers, boat trailers, RVs, campers, cargo trailers, horse trailers, food trucks, motorcycles and ATVs. HiFind backs the product with a two-year warranty against manufacturing defects and offers refund or replacement support through the seller channel.

• Works with standard 12V lighting and electric brake systems
• Suitable for replacement, extension, or new wiring installations
• Two-year warranty for manufacturing defects with customer support
• Lightweight CCA conductors balance cost and conductivity

Who is this for? Installers, DIYers and fleet owners who need a durable, tidy, higher-capacity trailer wiring solution will value this bonded 6-way harness. It’s aimed at anyone replacing worn-out wiring, wiring a new trailer, or upgrading to a thicker conductor for longer runs and electric brake systems. If you want a neat, easy-to-route cable that conforms to standard wiring functions and holds up to road conditions, this HiFind 14AWG 30ft harness is designed to meet those needs.
