JAVIK front wheel bearing and seal kit for Honda Foreman Rubicon Rincon — front axle bearings & dust seals, OEM-fit

JAVIK front wheel bearing and seal kit replaces worn components on Honda Foreman, Rincon and Rubicon ATVs to restore smooth, quiet steering and protect hub internals from water and dirt.

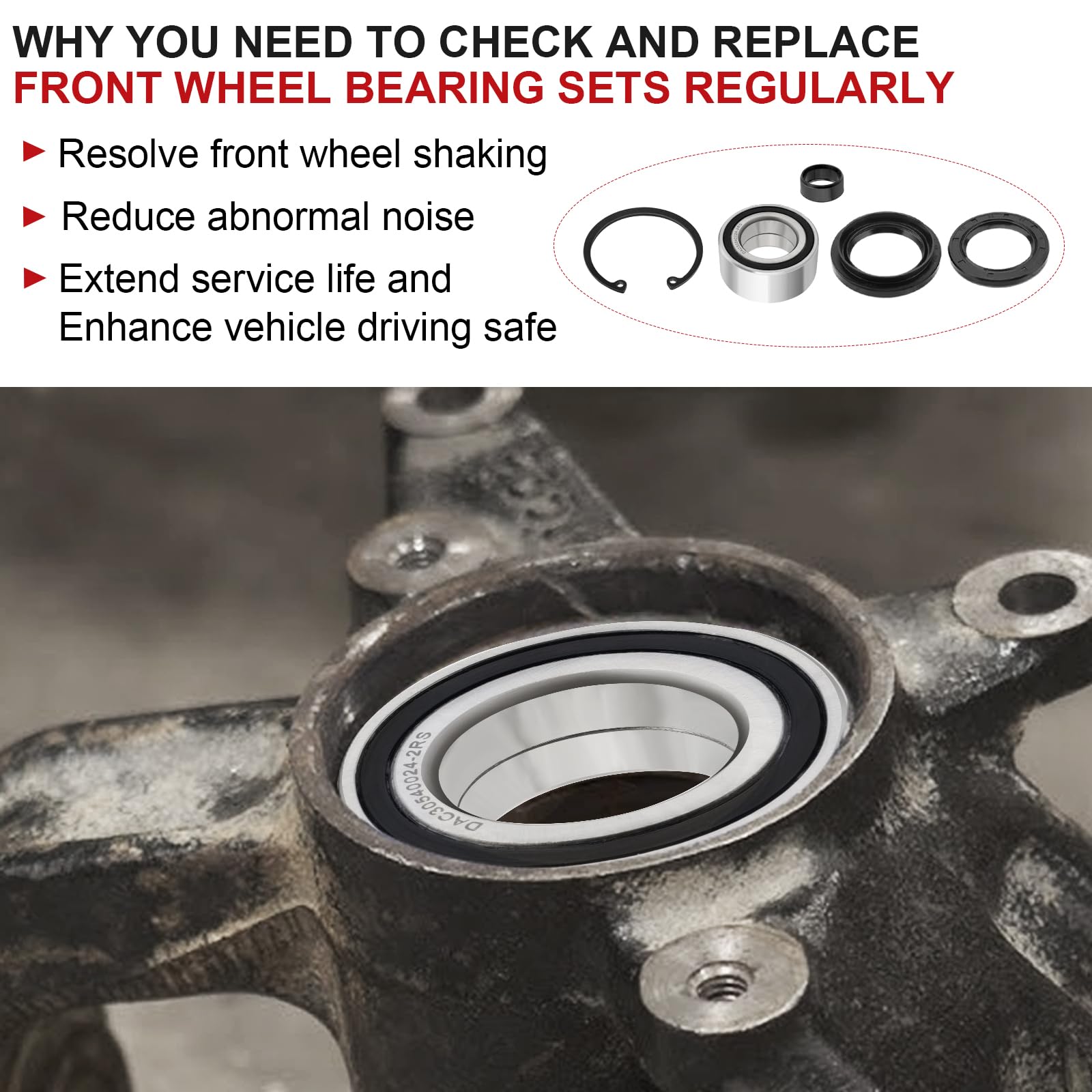

If your Honda ATV shows play in the front wheels, unusual rumbling, or frequent seal leaks, replacing both bearings and seals as a matched set prevents premature wear and keeps the hub assembly sealed. This kit supplies the front angular contact bearings, multiple dust seals and circlips needed to service common Honda models dating from the mid‑1990s through 2023.

Which Honda models and years will this kit fit?

This JAVIK kit is engineered to match OEM dimensions for several Honda ATV front hubs across multiple model families. Fitment covers Foreman, Rubicon and Rincon variants with specific model codes and years listed below to ensure compatibility.

• Foreman 500 TRX500FE/FM/FPE/FPM — 2005–2013
• Rubicon 500 TRX500FA/FGA/FPA — 2001–2014
• Rincon 650 TRX650FA/FGA — 2003–2005
• Foreman 400 4x4 TRX400FW — 1995–2003
• Foreman 450 ES/S TRX450FE/FM — 1998–2004
• Rincon 680 TRX680FA/FGA — 2006–2023

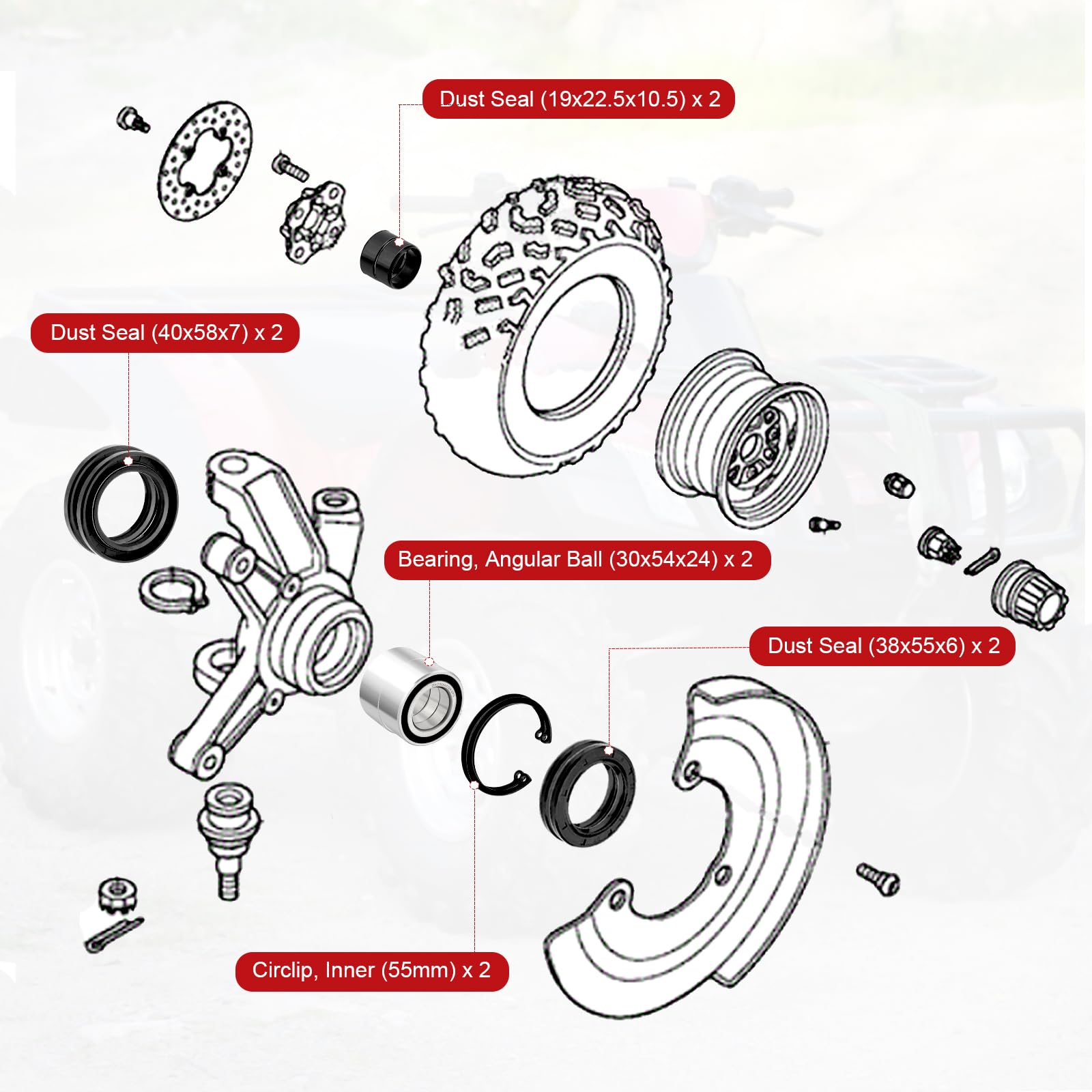

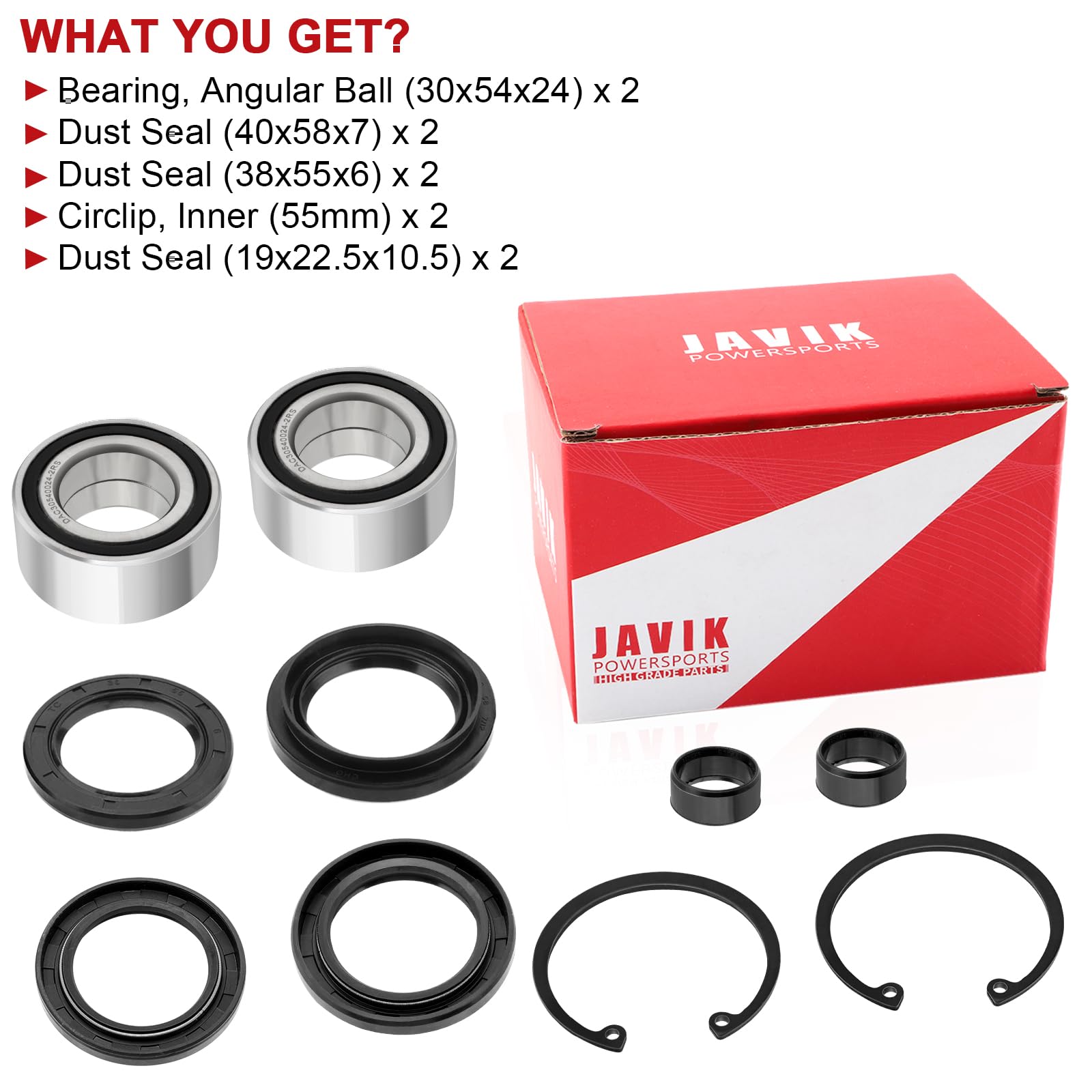

What components are included and what are their sizes?

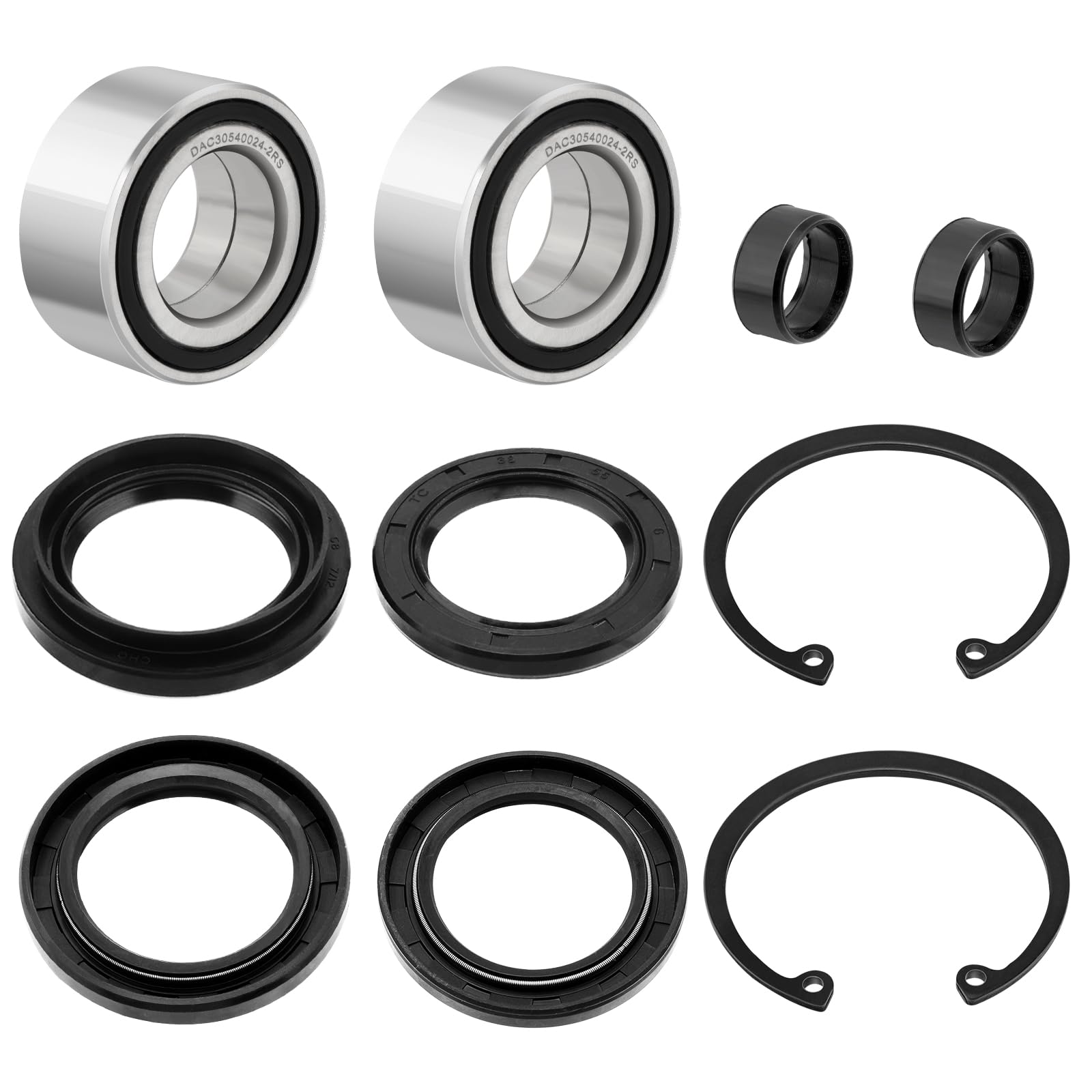

The kit supplies a complete front bearing and seal set so you can replace all wore parts during a single service procedure. Each component matches OEM sizing and includes the circlips required for retaining the bearings inside the hub.

• Bearing / Angular Ball: 30 x 54 x 24 mm — quantity 2
• Dust Seal: 40 x 58 x 7 mm — quantity 2
• Dust Seal: 19 x 22.5 x 10.5 mm — quantity 2
• Dust Seal: 38 x 55 x 6 mm — quantity 2
• Circlip / Inner: 55 mm — quantity 2

How do the materials and design help performance and durability?

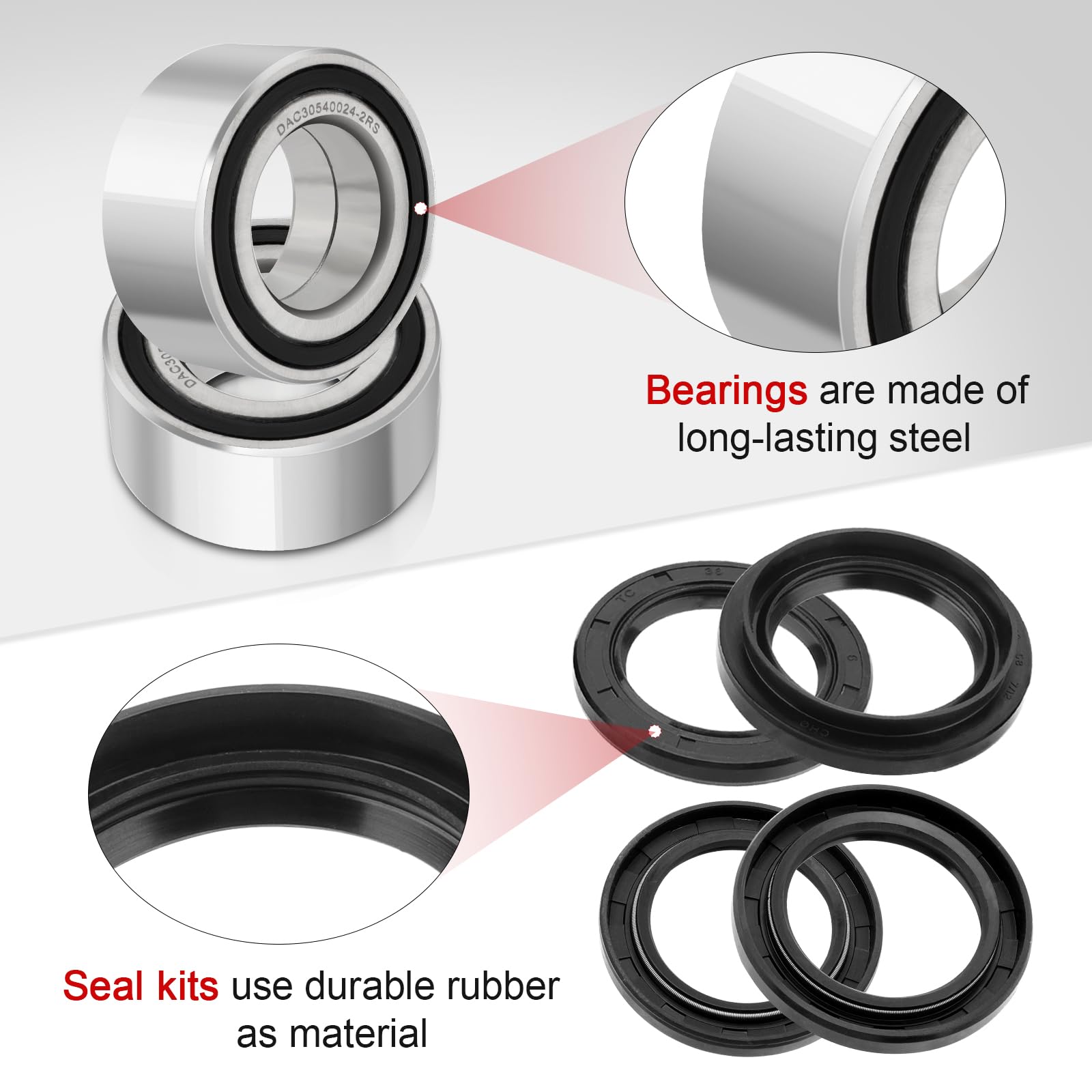

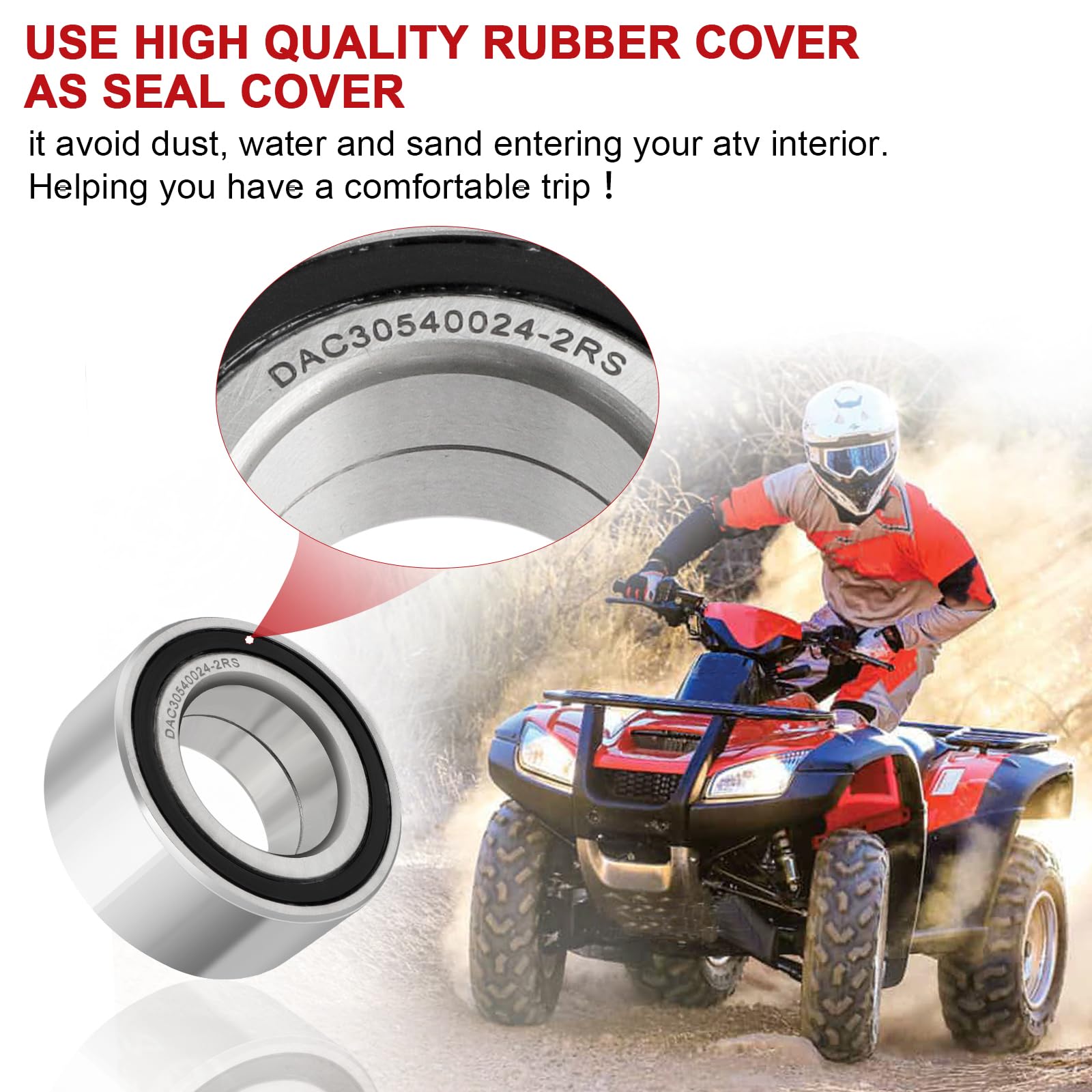

JAVIK bearings use hardened steel raceways designed for long service life and to reduce vibration and noise when installed correctly. The rubber dust seals are formulated to keep water, sand and road debris out of the hub, protecting lubricants and internal components.

• High‑grade steel bearings to minimize wear and noise
• Durable rubber seals for reliable contamination protection
• Matched set reduces mismatched-part failures and uneven loading
• OEM-equivalent dimensions ensure proper fit and preload retention

Which OEM numbers does this kit replace and what service support is offered?

The JAVIK kit is supplied as a direct replacement for multiple Honda part numbers, making it simple to cross-reference with your service manual or parts diagram. JAVIK also provides customer support and a limited warranty to address fitment or quality questions.

• Replaces OEM: 91256-HM7-003, 91051-HA7-651, 91209-HN2-003
• Also compatible with replacement OEM references: 91256-HP0-A01, 94520-55000, 91263-HA7-771
• Includes 24-hour customer service and a 1‑year warranty from JAVIK

Who is this for: this bearing and seal set is intended for DIY mechanics, ATV shops and owners of Honda Foreman, Rubicon and Rincon models who need a reliable front hub service kit. It’s ideal when replacing noisy or loose wheel bearings, repairing contaminated hubs after water exposure, or performing preventive maintenance to extend hub life.
