JAVIK Idle Air Control Valve for Honda ATV/UTV — Direct-Fit IACV for Rancher/Rubicon/Foreman (OEM 16430-HP6-A01)

JAVIK Idle Air Control Valve Set replaces the throttle body IACV to restore smooth idling and consistent engine response on compatible Honda ATVs and UTVs.

This replacement Idle Air Control Valve (IACV) is designed as an OEM-style substitute for Honda models including Rancher, Rubicon, Foreman and Pioneer series. Manufactured from corrosion-resistant materials for long service life, the valve mounts directly on the throttle body and is sized to match the original part numbers 16430-HP6-A01 and 16430-HN8-A61. It ships as a single complete unit and includes JAVIK's customer support and a one-year product service policy.

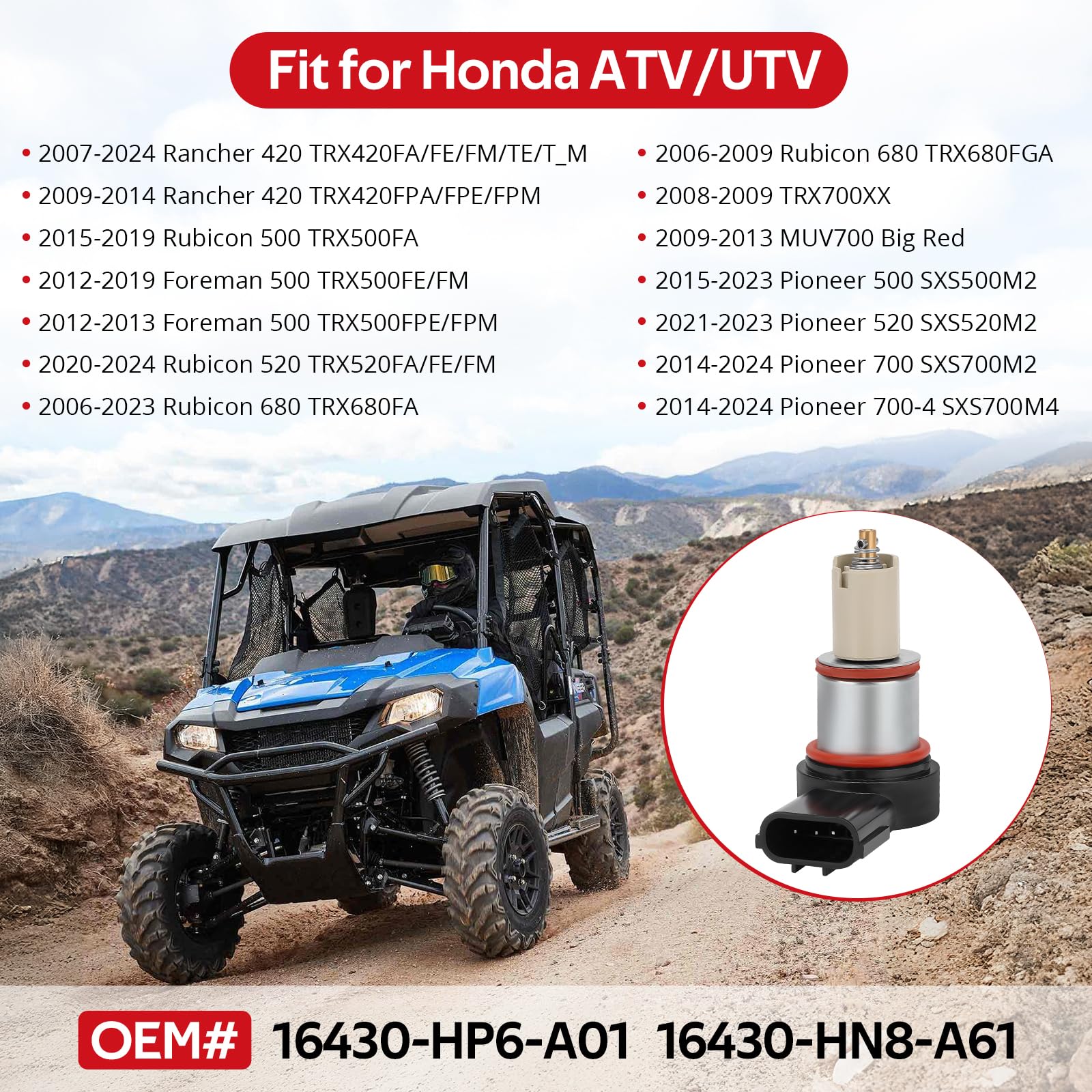

Which Honda vehicles will this IACV fit?

This JAVIK Idle Air Control Valve is built to fit a wide range of Honda ATV and UTV models from mid-2000s through recent years. Confirm fitment by matching your vehicle model and the OEM part numbers listed below before purchase.

• Rancher 420 models (2007–2024 variants TRX420FA/FE/FM/TE/T_M and select 2009–2014 TRX420FPA/FPE/FPM)
• Rubicon 500/520/680 ranges (2015–2019 TRX500FA; 2020–2024 TRX520FA/FE/FM; 2006–2023 TRX680FA/FGA)
• Foreman 500 series (2012–2019 TRX500FE/FM and 2012–2013 FPE/FPM) and TRX700XX (2008–2009)
• Pioneer SXS models (500, 520, 700, 700-4 from 2014–2024 depending on model)
• OEM reference numbers: 16430-HP6-A01 and 16430-HN8-A61

How does this valve improve idle stability and throttle response?

The IACV regulates bypass air around the throttle plate to maintain proper idle speed during varying loads and temperature conditions. Replacing a worn or clogged valve with this JAVIK unit helps reduce stalling, uneven idling and hesitation at low throttle settings without altering engine tuning.

• Restores controlled bypass air flow for consistent idle RPMs
• Replaces faulty OEM valve function to prevent idle surges
• Durable construction resists corrosion and wear under off-road conditions

Is installation straightforward and what should I expect?

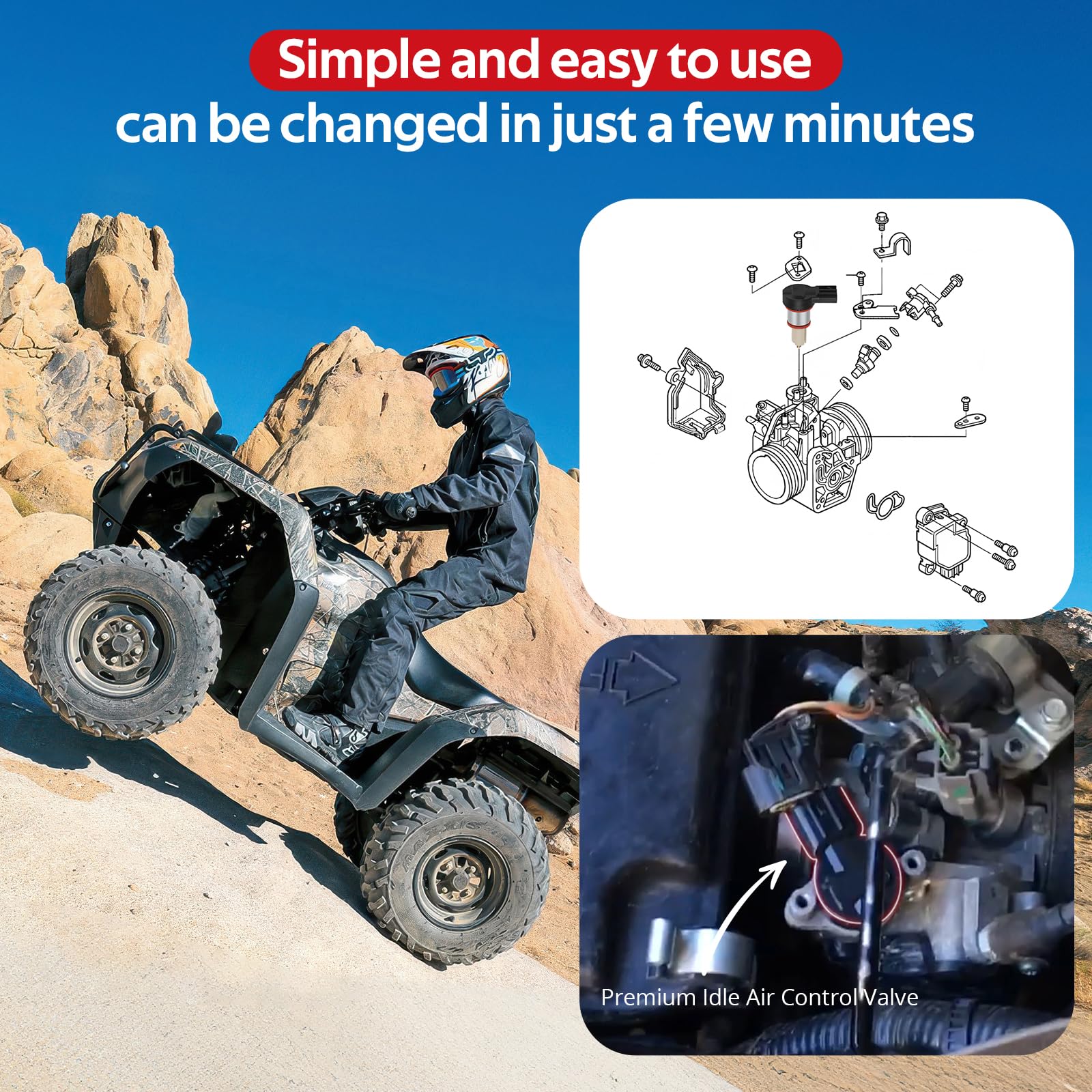

Yes — the JAVAK IACV is an OEM replica designed for direct replacement on the throttle body, so basic mechanical skills and common hand tools are usually sufficient. Follow vehicle service manual steps for throttle-body access, unplug the electrical connector, unbolt the old valve, and mount the new unit in the original location.

• Direct-fit design for throttle body mounting; minimal modification required
• Typical installation time: 20–60 minutes depending on access and experience
• Includes 24-hour customer service and a 1-year product support promise from JAVIK

What should I check after installing the replacement IACV?

After fitting the new valve, verify electrical connection integrity and inspect for vacuum or intake leaks around the throttle-body mounting surface. Start the engine and allow it to reach operating temperature while observing idle quality and throttle response under light load.

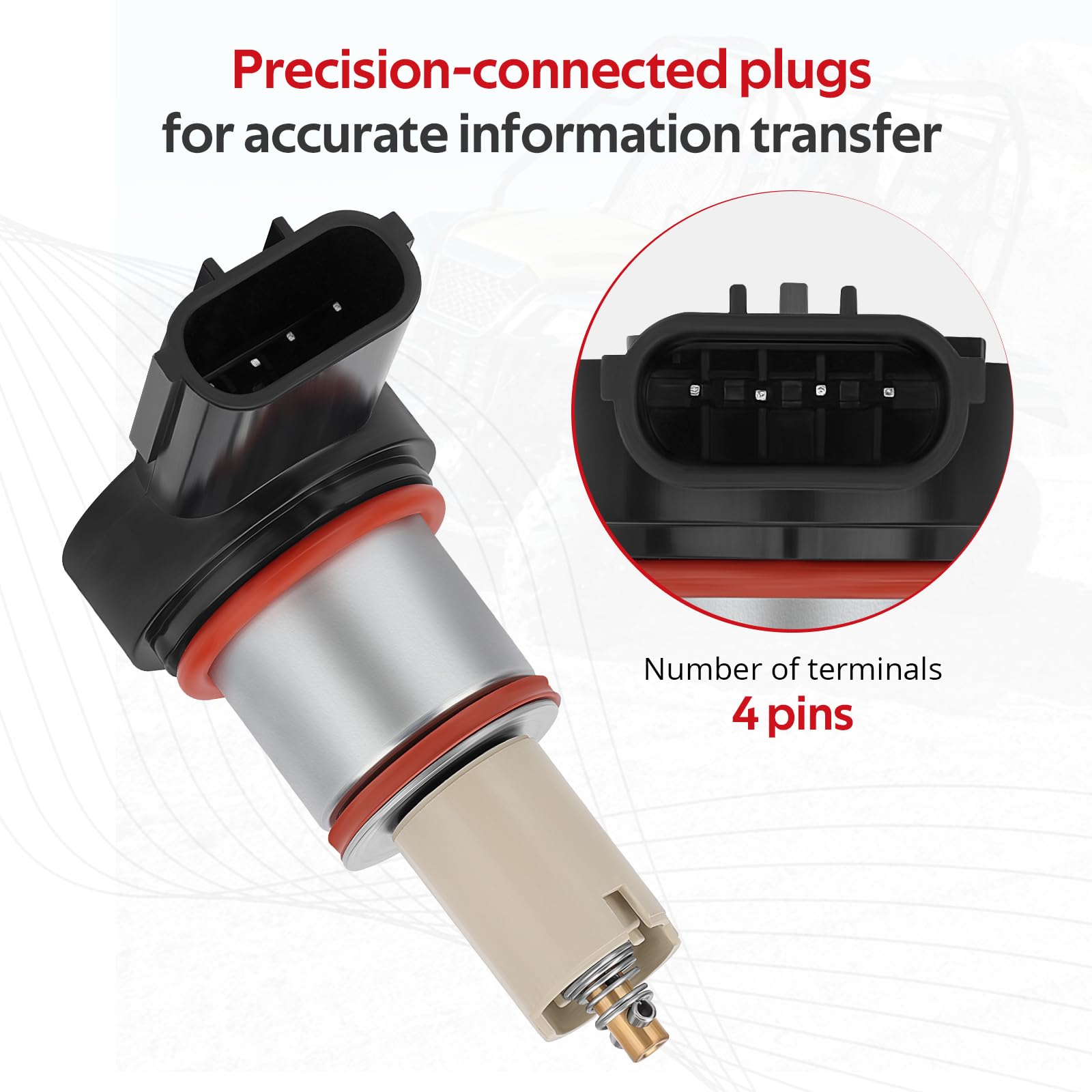

• Confirm secure connector seating and intact wiring harness
• Check for smooth idle and absence of engine warning lights
• If issues persist, re-check gasket seating and consult JAVIK support

Who is this for: This JAVIK Idle Air Control Valve Set is aimed at Honda ATV and UTV owners, mechanics and restoration enthusiasts who need an affordable, OEM-compatible replacement to address idle instability, stalling or throttle hesitation. It's appropriate for owners of Rancher, Rubicon, Foreman and Pioneer models listed in the fitment notes who prefer a direct-fit swap backed by customer service and a one-year parts assurance.
