JDIAG TPMS Relearn Tool U508 2026 Edition — Handheld 315/433MHz Sensor Reset for Cars & SUVs

The JDIAG U508 is a handheld TPMS relearn and reset tool designed to retrain and acknowledge 315MHz or 433MHz tire pressure sensors on many passenger cars, SUVs and light trucks.

If you replace a tire pressure sensor, rotate tires, or clear a TPMS warning light, the U508 provides a quick way to complete the vehicle's relearn procedure without visiting a dealer. This compact, battery-powered tool reads and triggers standard TPMS sensors at the correct frequencies and follows the common factory relearn sequence for compatible makes and model years.

How does the U508 perform a TPMS relearn?

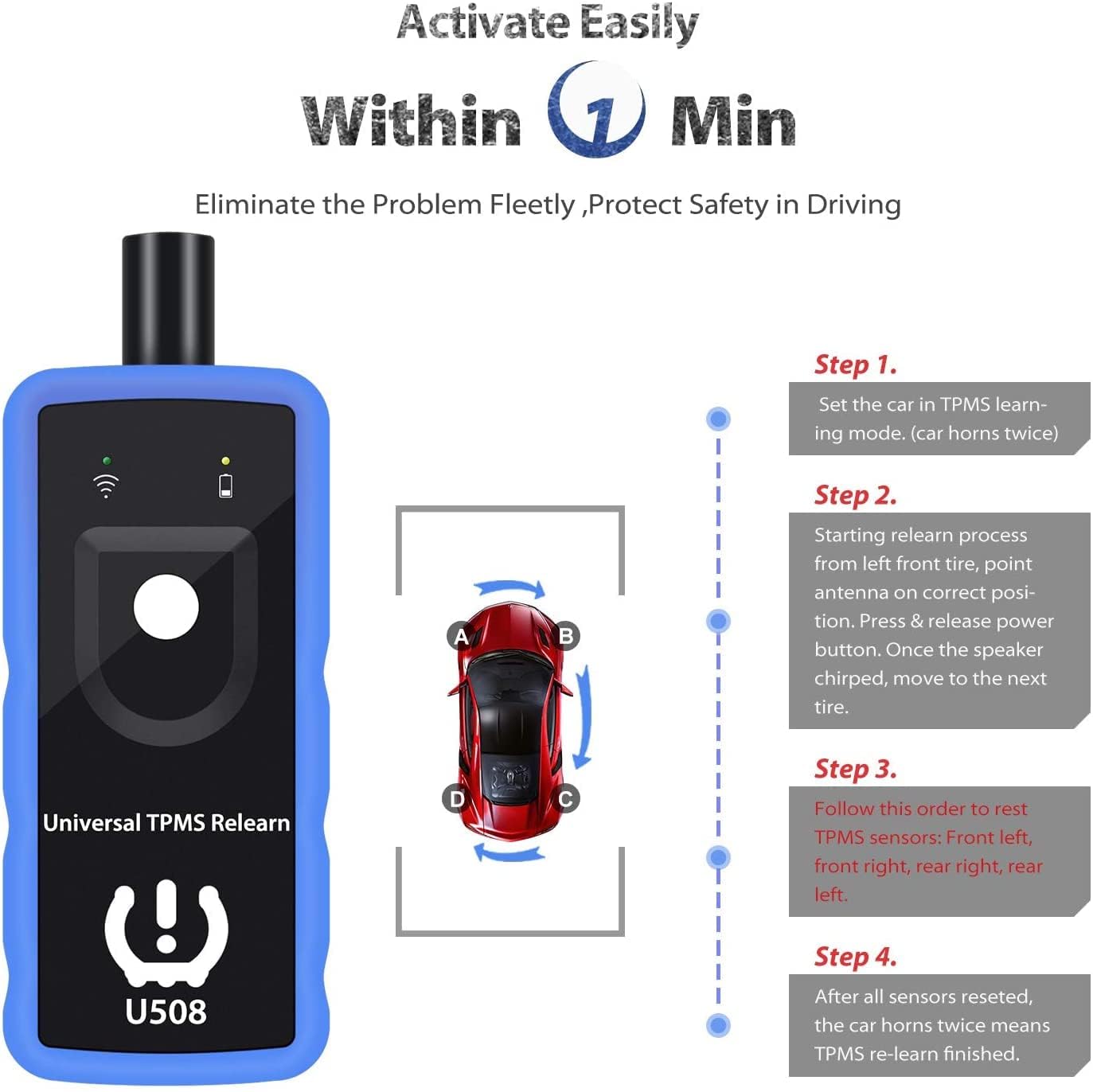

The tool transmits the proper RF signal to activate each sensor in sequence while the vehicle is in relearn mode. You move the device to each tire location and press the power button; the vehicle will confirm each sensor with horn chirps or dashboard responses when successful.

• Supports 315MHz and 433MHz TPMS frequencies used by many OEM sensors.
• Follow vehicle-specific relearn entry (horn or menu) before using the tool.
• Reset order: left front, right front, right rear, left rear in most makes.
• Requires correct antenna placement and straight front wheels for reliable reads.

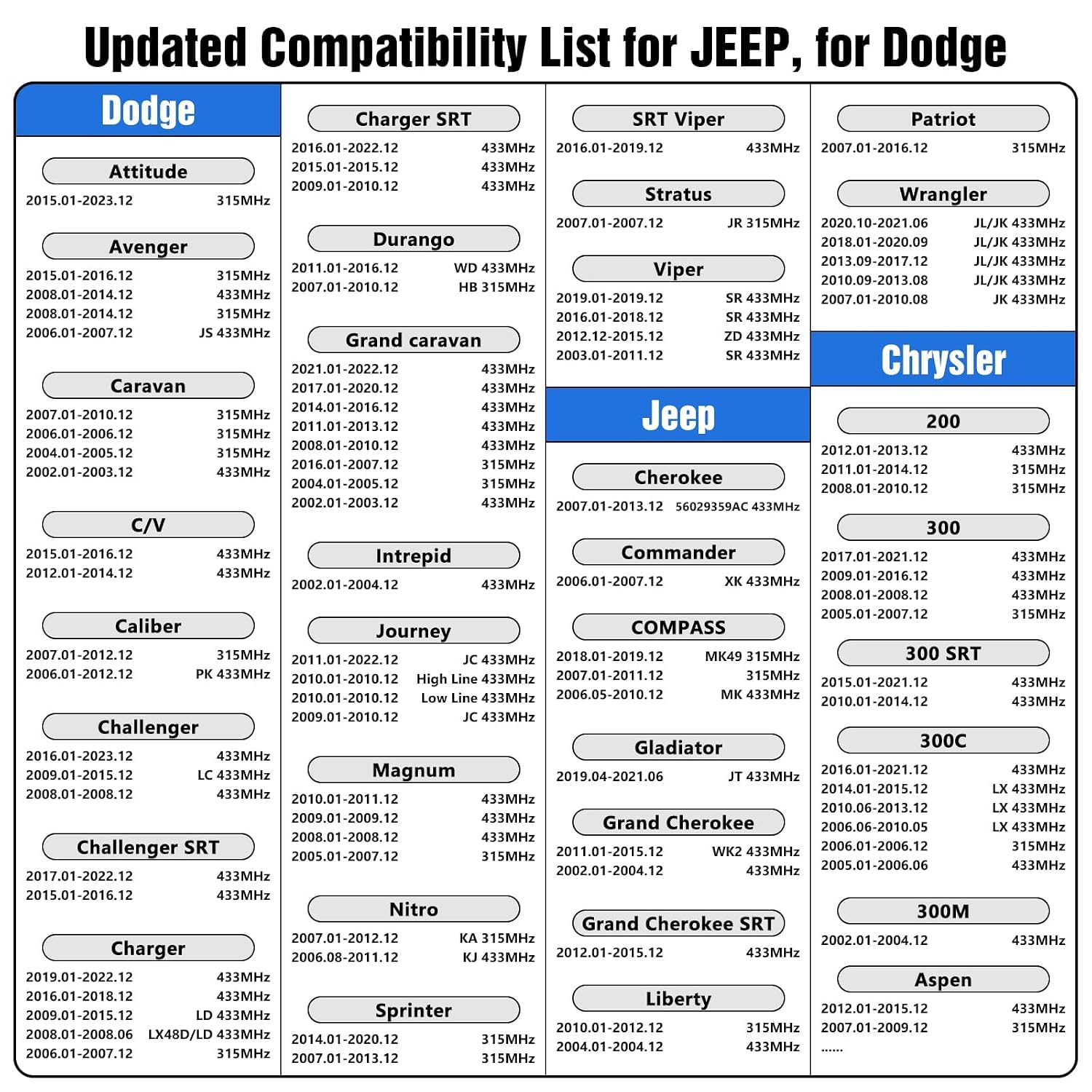

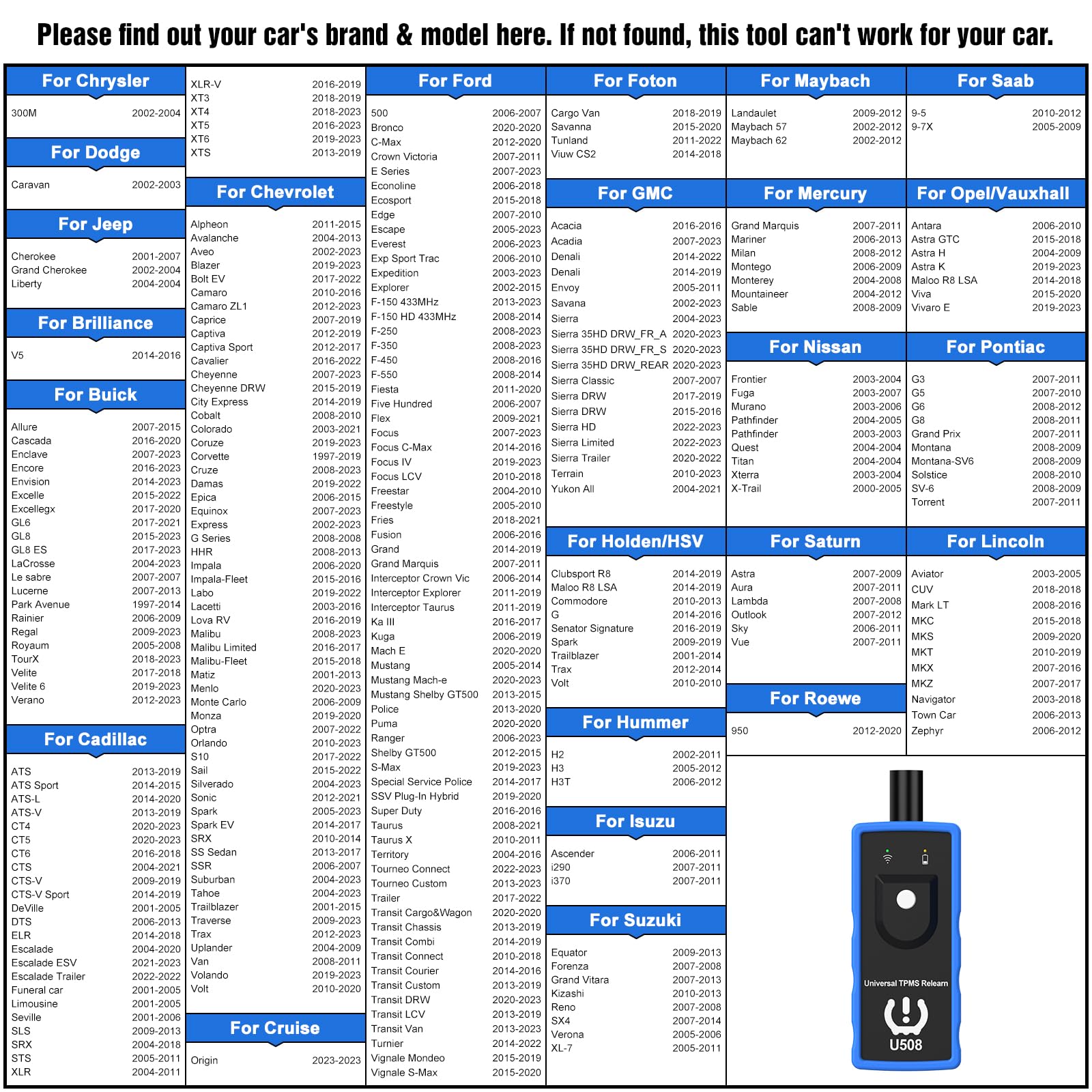

Which vehicles and sensors are compatible with the U508?

The U508 is built for a broad range of passenger vehicles from brands such as Ford, GMC, Chevy, Jeep, Dodge, Cadillac, Lincoln, Nissan, Buick, and Chrysler. It is not universal for every model year—compatibility depends on the sensor frequency and factory relearn method.

• Works with many factory 315MHz and 433MHz TPMS sensors.
• Not intended for heavy-duty trucks with more than four tires or nonstandard TPMS systems.
• Does not program blank or unprovisioned aftermarket sensors—requires pre-programmed sensors.
• If unsure, provide vehicle make, model and year to confirm compatibility (manufacturer updates ongoing).

What do I need to use the U508 correctly?

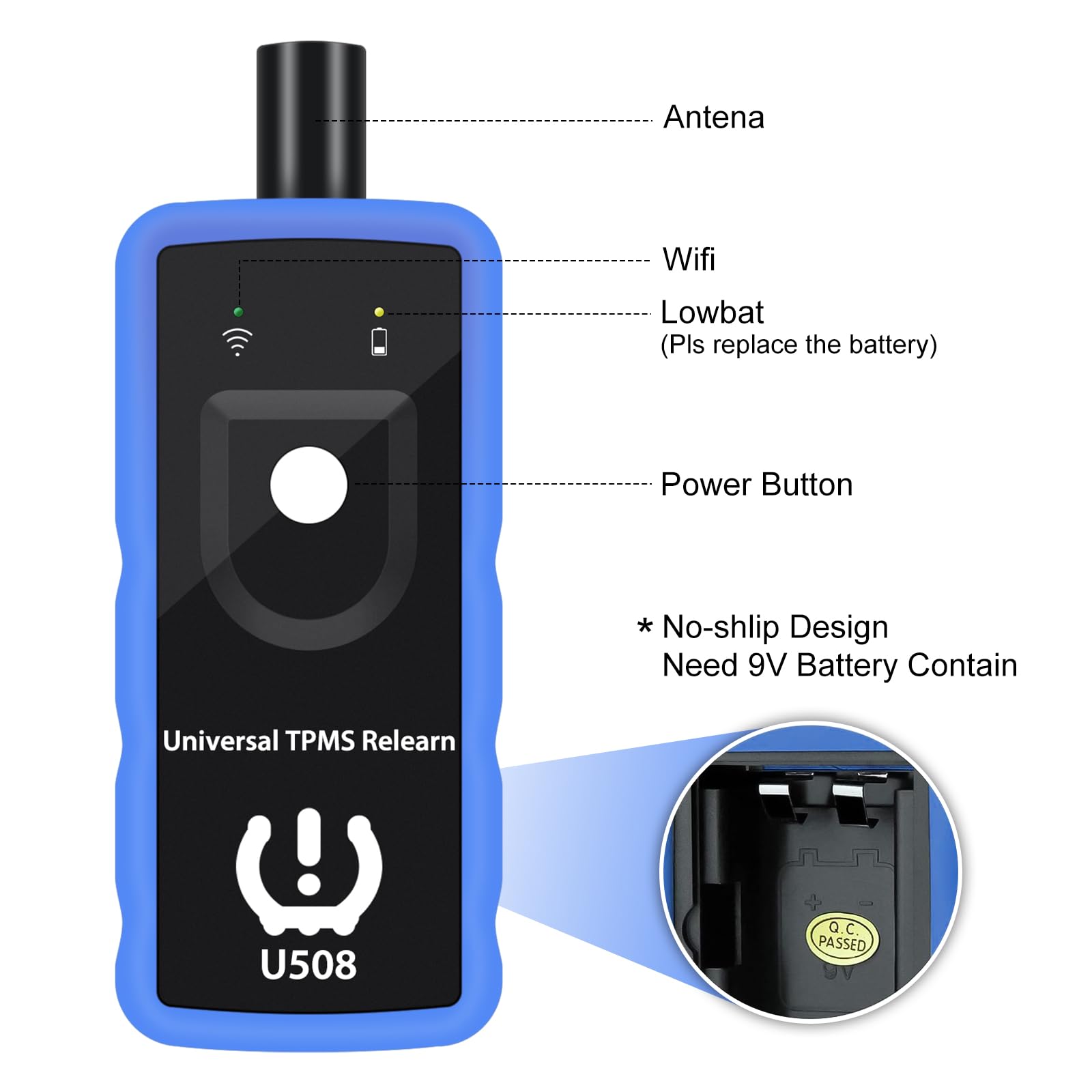

Operation needs a fresh 9V battery and the vehicle placed into its TPMS learning mode. Proper antenna alignment and following the recommended sensor sequence are essential for successful relearn steps.

• Install a brand-new 9V battery (not included) to ensure strong RF output.

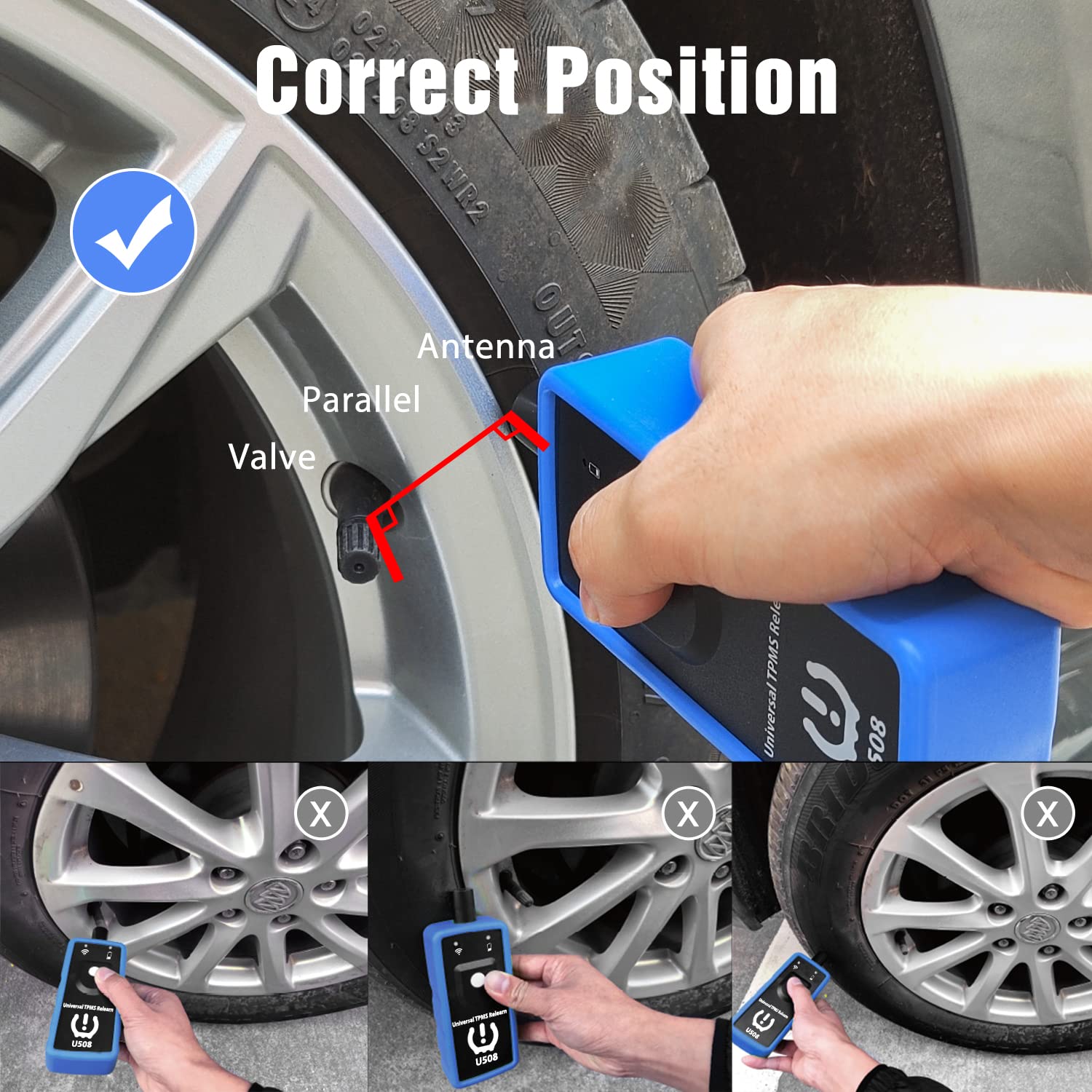

• Place the tool's antenna near the valve area and press the button until the horn or dash confirms each sensor.
• Keep front wheels straight during front sensor programming.
• Refer to the vehicle manual if the car doesn't enter relearn mode; procedures vary by make and year.

What limitations should I be aware of before buying?

The U508 is a relearn/reset tool rather than a full programming device. It cannot write IDs to brand-new blank sensors or change sensor frequency. Using mismatched or unprogrammed aftermarket sensors will prevent successful relearn.

• Does not program uninitialized TPMS sensors—use pre-programmed replacements.
• May not support every model year; compatibility lists are updated periodically.
• Signal strength depends on battery voltage and correct antenna positioning.
• Not appropriate for fleet vehicles with nonstandard or multiplexed TPMS systems.

Who is this for? The JDIAG U508 fits DIY enthusiasts, independent mechanics, and fleet technicians who need a portable, affordable way to complete OEM-style TPMS relearns after sensor replacement, tire rotation, or maintenance. Choose this tool if your vehicle uses 315MHz or 433MHz sensors, you can access the factory relearn mode, and you have pre-programmed replacement sensors. If you manage heavy trucks, custom sensor brands, or require sensor programming rather than a relearn, a dedicated programmer or dealer service may be necessary.
