JDMSPEED 10.5mm Spark Plug Wire Set for HEI SBC/BBC 8-Wire Kit — 90° Boots, High-Temp Silicone

JDMSPEED's 10.5mm spark plug wire set is a full HEI-compatible replacement kit sized for small and big block Chevy engines, offering high-temperature silicone insulation, 90° boots on both ends, and a matched range of wire lengths for direct-fit swaps.

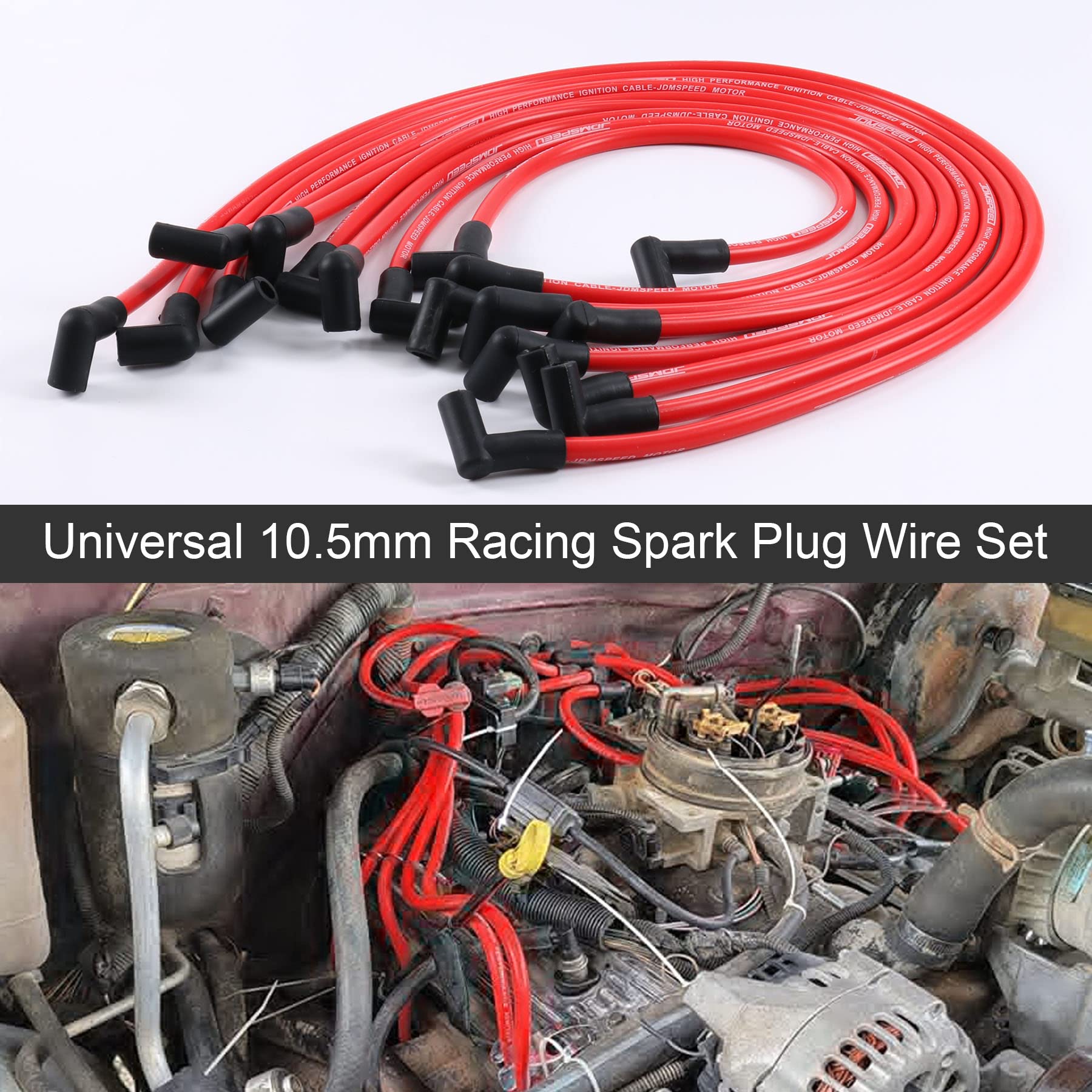

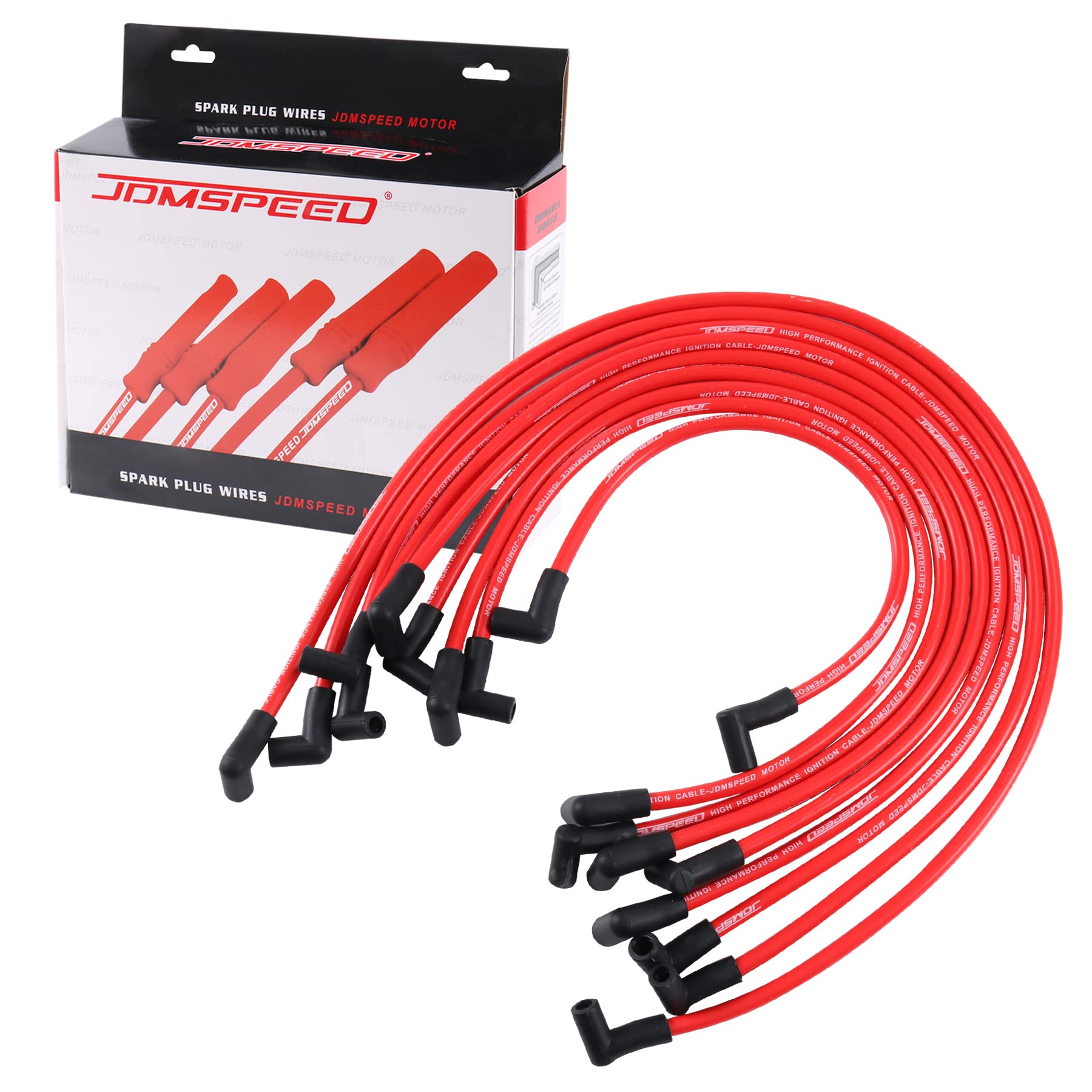

This complete 8-wire harness is engineered for electronic HEI ignition systems used on many Chevrolet small-block (SBC) and big-block (BBC) V8 engines. The set includes one each of varied lengths to map to factory routing, durable 10.5mm high-temp silicone jackets for heat and ozone resistance, and molded 90° boots on every end to ease installation in tight engine bays. It's intended as a universal replacement for common displacements like 302, 305, 307, 327, 350, 396, 400, 427, 454, 502 and similar platforms—provided you verify length and boot angle against your original wires before ordering.

How do these wires match my Chevy engine's routing?

Each wire in the kit is a different length to mimic OEM routing so you can reinstall in stock locations without excess slack or stretching. The assortment reduces the need to cut and crimptype wires while maintaining consistent electrical path lengths for reliable spark delivery.

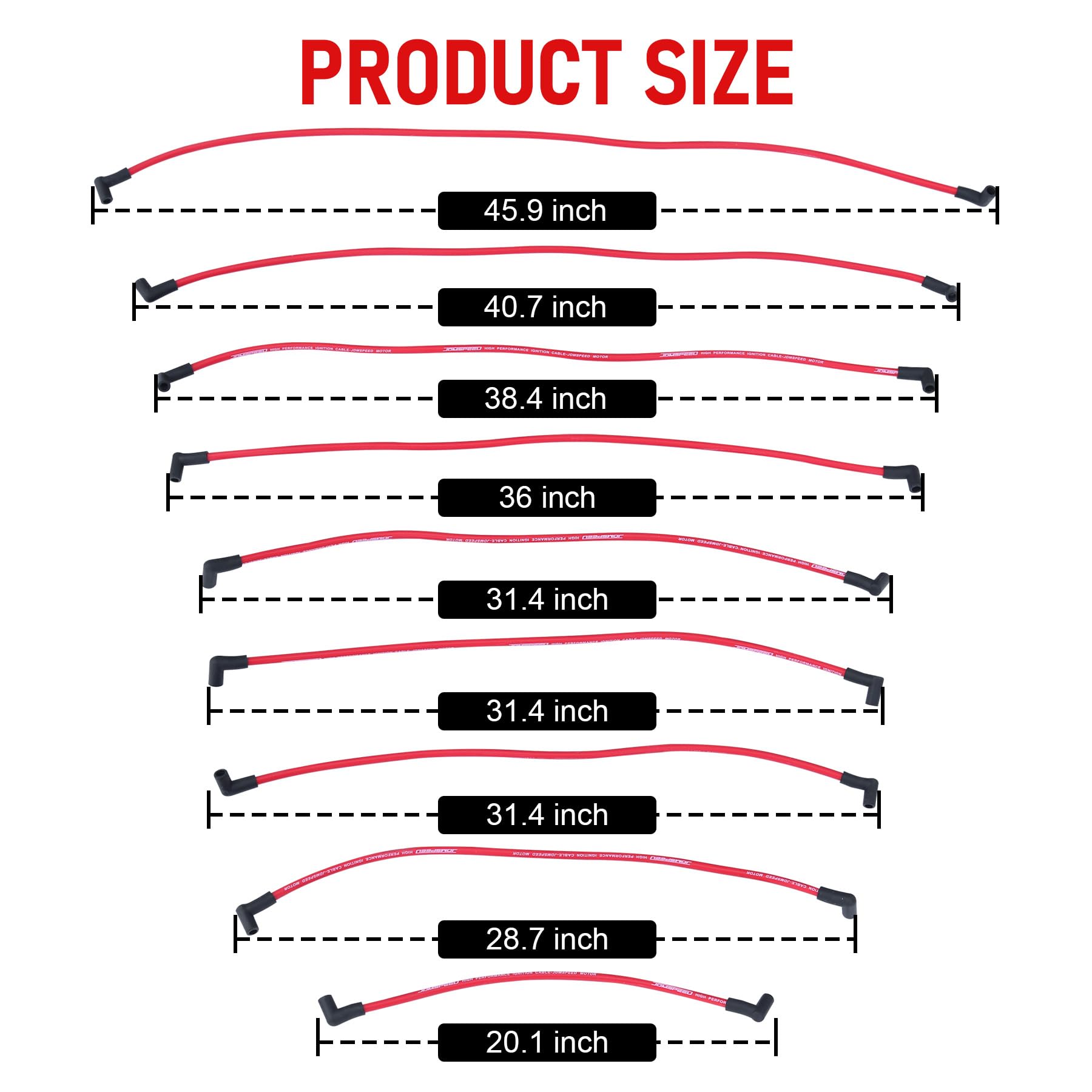

• Included lengths: 45.9", 40.7", 38.4", 36", 31.4" (three wires), 28.7", 20.1"
• Designed for HEI cap and distributor spacing typical of SBC/BBC layouts

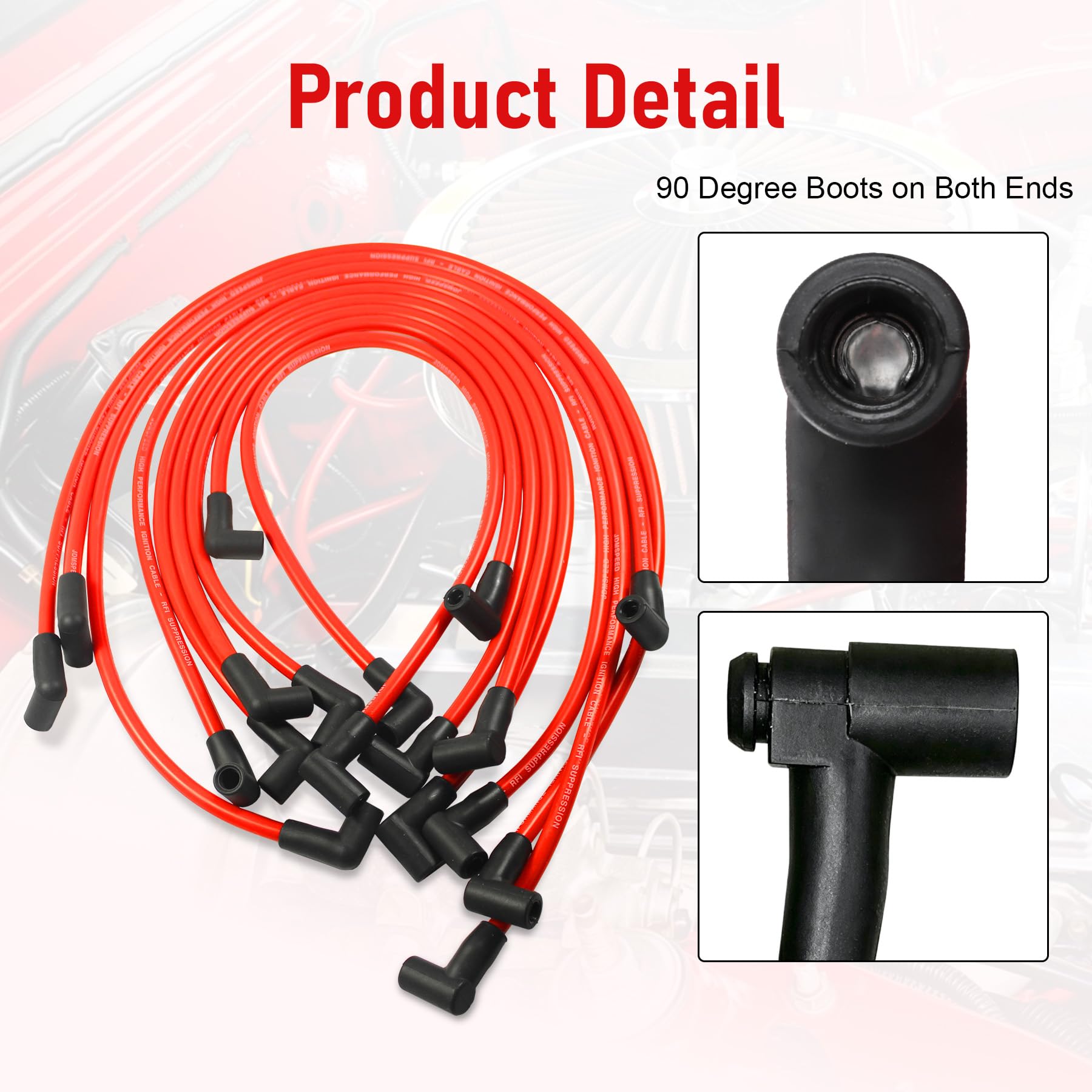

• 90° boots on both ends for clearance near valve covers and coil

What materials and design features improve durability and performance?

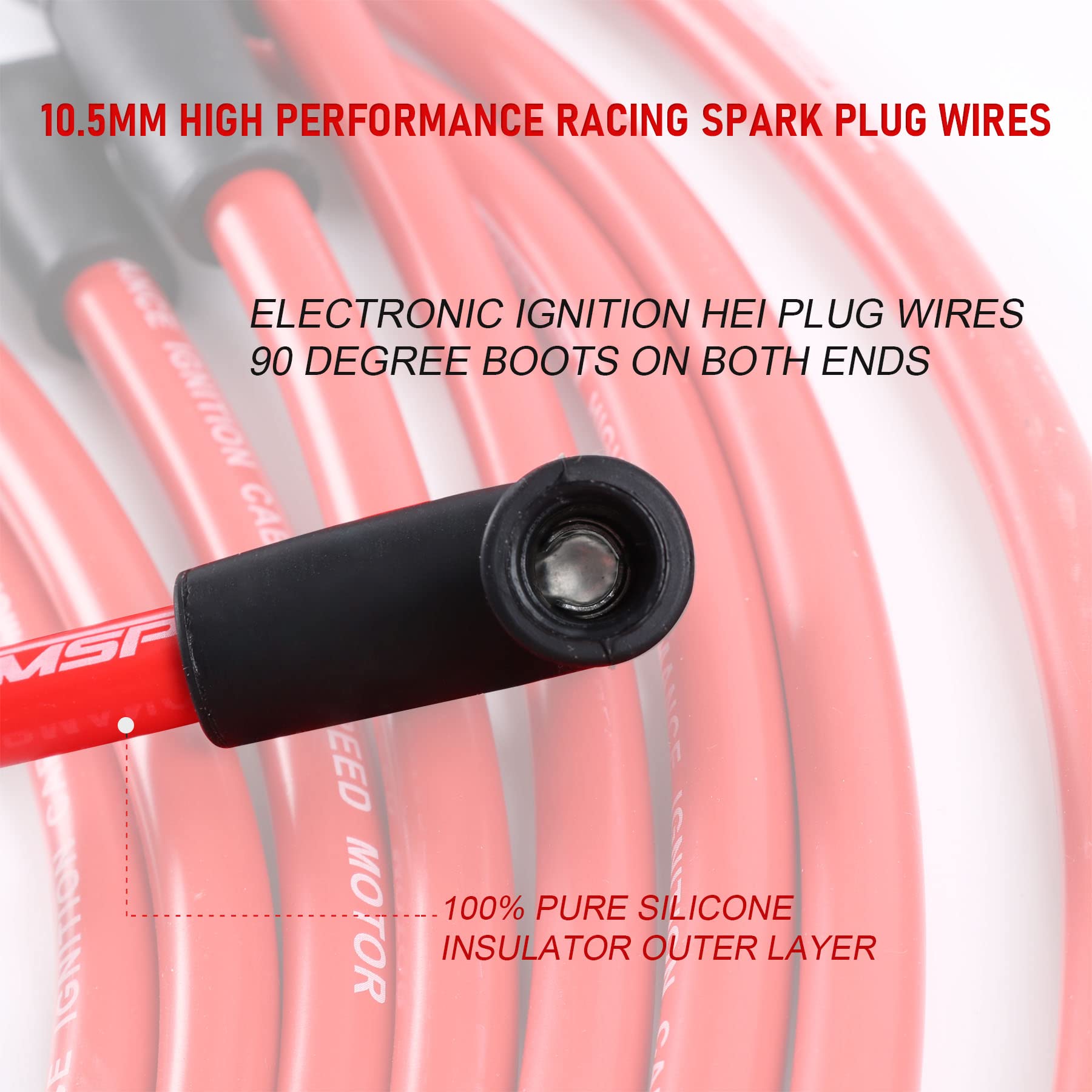

The wires feature a 10.5mm diameter with a 100% pure silicone outer jacket rated for high temperatures and resistant to oil, ozone and engine-bay contaminants. Internal construction provides stable resistance and noise suppression suitable for electronic ignitions, while molded boots protect terminals and ensure secure connections.

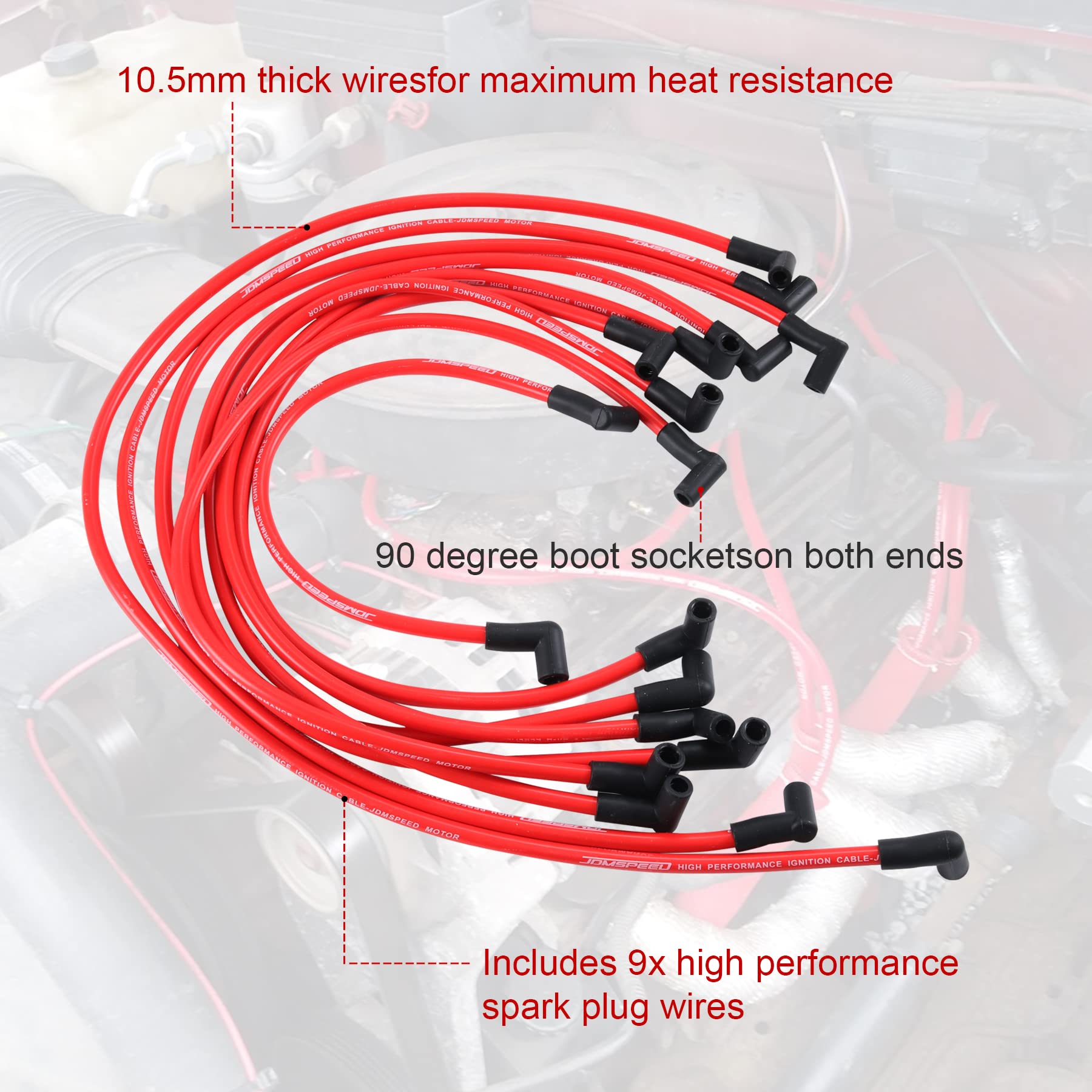

• 10.5mm silicone insulation for heat and chemical resistance
• Molded 90° boots minimize strain and prevent arcing in tight spaces
• Electrically tuned for HEI electronic ignition systems

Will these fit my specific engine model and ignition type?

This set is intended for HEI electronic ignition systems on many Chevrolet small- and big-block V8 engines. Fitment is broadly compatible, but variability in aftermarket heads, coil locations, and custom routing means you should compare the provided wire lengths and boot angles to your current wires before purchasing.

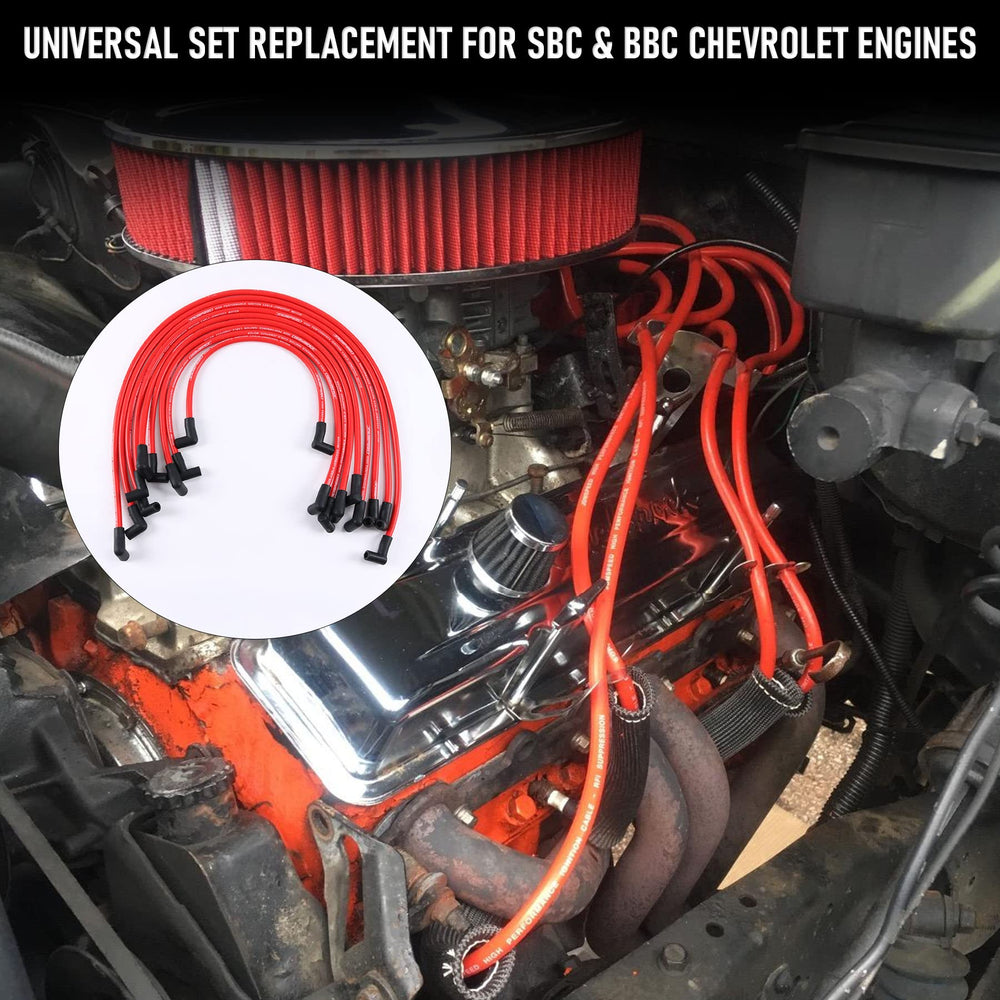

• Compatible with HEI-equipped engines including 302, 305, 307, 327, 350, 396, 400, 427, 454, 502
• Works with most stock distributor and cap arrangements for SBC/BBC platforms
• Verify physical length and 90° boot clearance for custom or modified engine setups

Who is this for: Enthusiasts, mechanics and DIYers replacing worn or damaged plug wire sets on HEI-equipped Chevrolet V8s who want a ready-made, heat-resistant 8-wire harness that fits typical stock routing. Choose this JDMSPEED kit if you need a straightforward swap with durable silicone insulation and 90° boots, and confirm the wire lengths and boot orientation match your engine before ordering to ensure a clean installation.
