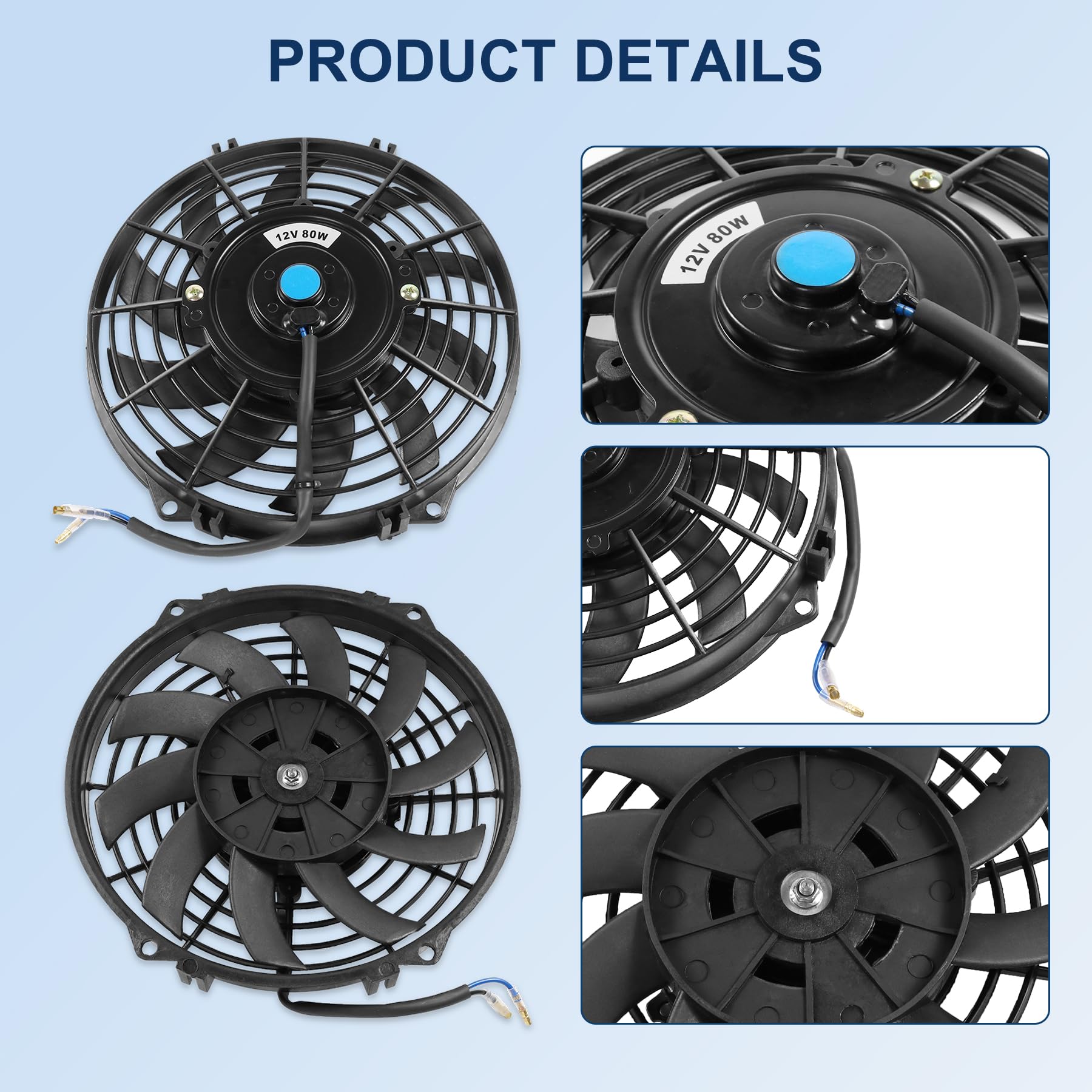

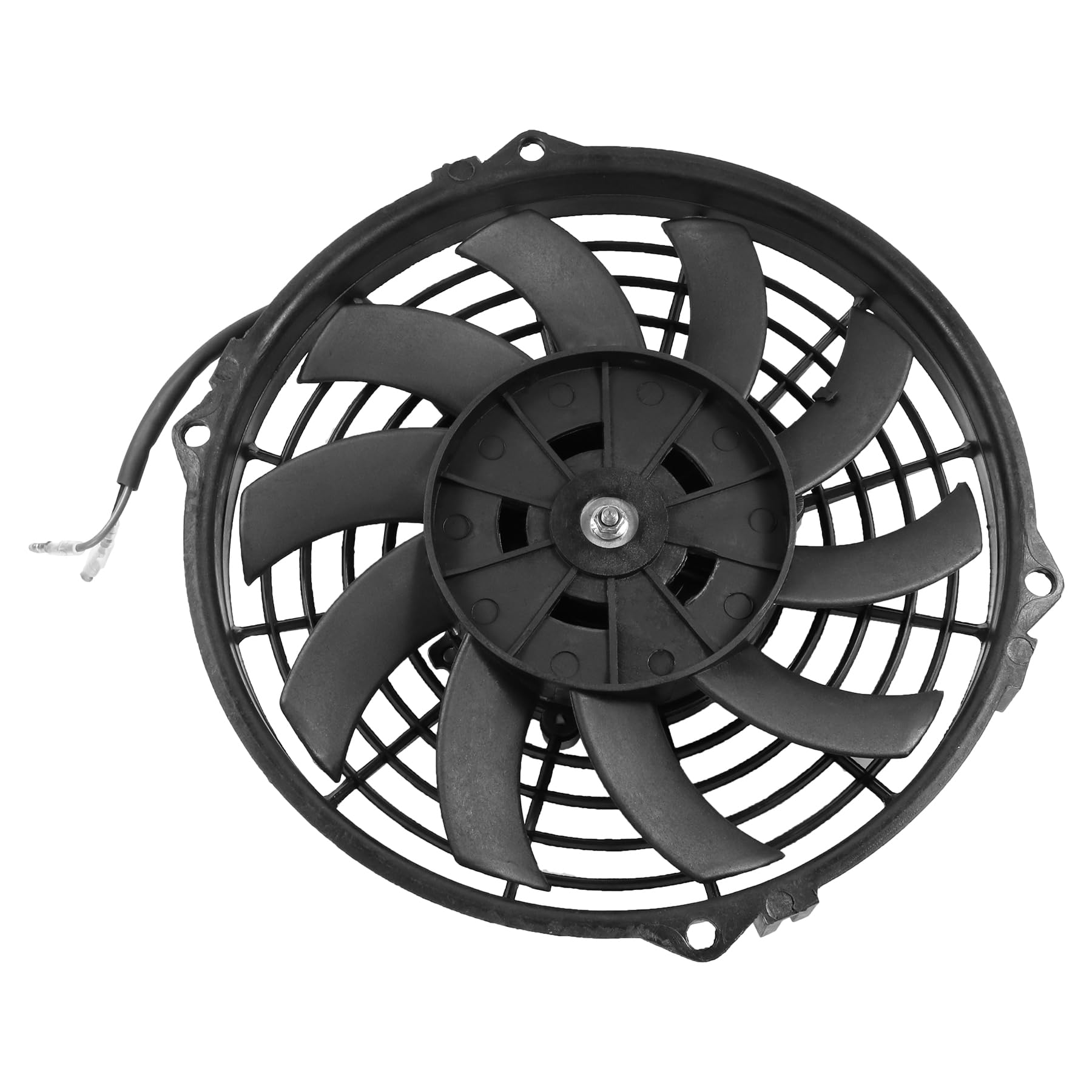

JDMSPEED 9" Slim Universal Electric Radiator Fan Kit 12V 1730 CFM — Push/Pull Low-Profile

JDMSPEED's 9-inch slim 12V electric radiator fan kit is a universal, low-profile push/pull cooling solution that delivers up to 1730 CFM to help reduce under-hood temperatures and improve heat management.

This compact fan assembly is built for easy installation on most radiators, intercoolers, condensers and oil or transmission coolers. The slim profile fits tight engine bays while the included adaptable mounting tabs and zip-tie friendly hardware let you mount the unit as a pusher or puller without cutting or modifying the vehicle. Rated for 12V operation at a maximum 2,250 RPM and drawing up to 12.7 amps, the fan provides a balance of airflow and compact sizing for street and track use.

How will this fan fit my radiator and engine bay?

The JDMSPEED slim fan is designed to be universally compatible with most radiators and cooling cores. It ships with adjustable mounting tabs and a hardware set that accommodates different thicknesses and bracket positions, so you can secure it across a wide range of aftermarket and OEM setups.

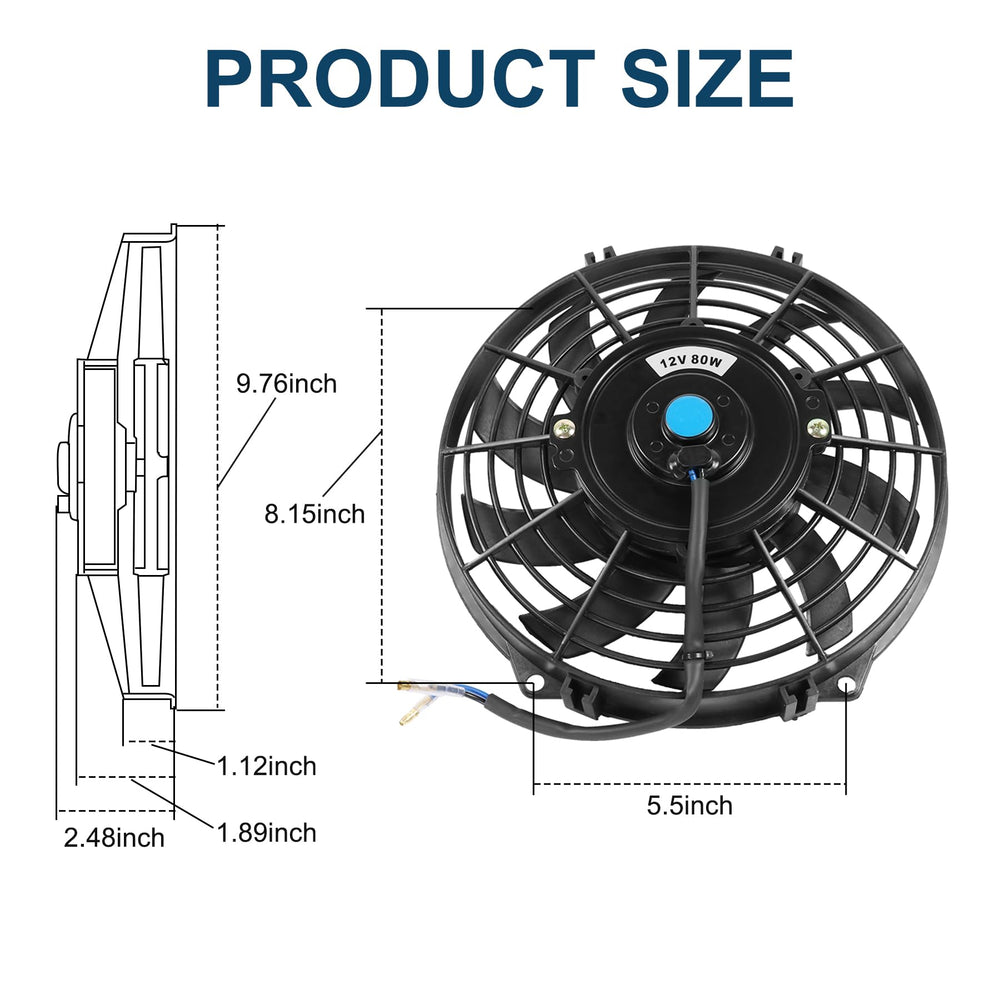

• 9-inch diameter fan blade matched to slim shroud for tight spaces
• Included mounting tabs and zip-tie friendly holes for tool-free attachment

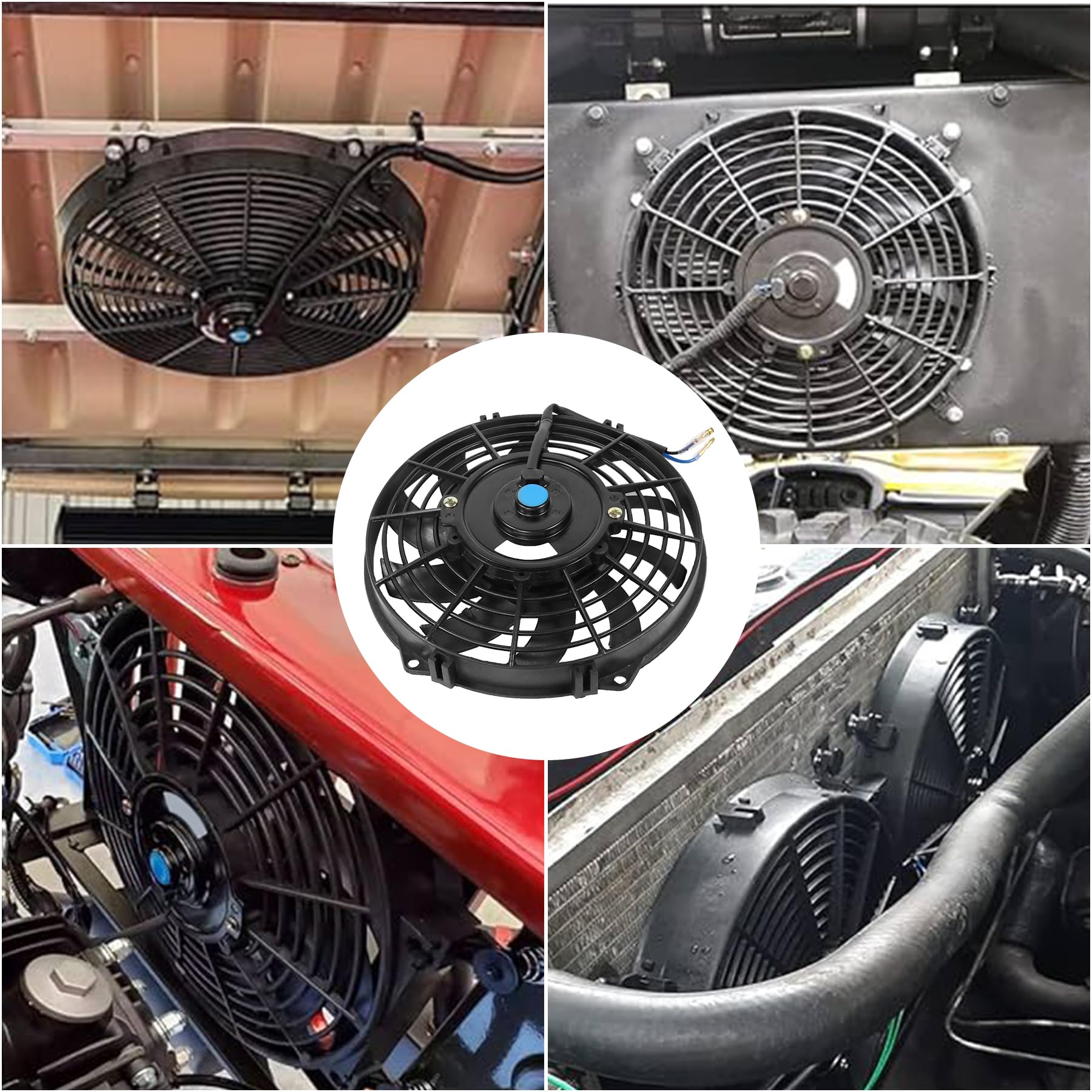

• Works as either a pusher (front) or puller (rear) fan
• Fits radiators, intercoolers, condensers, oil and transmission coolers

What cooling performance and electrical specs should I expect?

This fan delivers a peak airflow rating of 1730 CFM at up to 2,250 RPM, providing strong airflow for its slim form factor. It runs on standard 12V vehicle electrical systems and has a maximum amp draw of 12.70 A, so check your fuse and wiring capacity before installation.

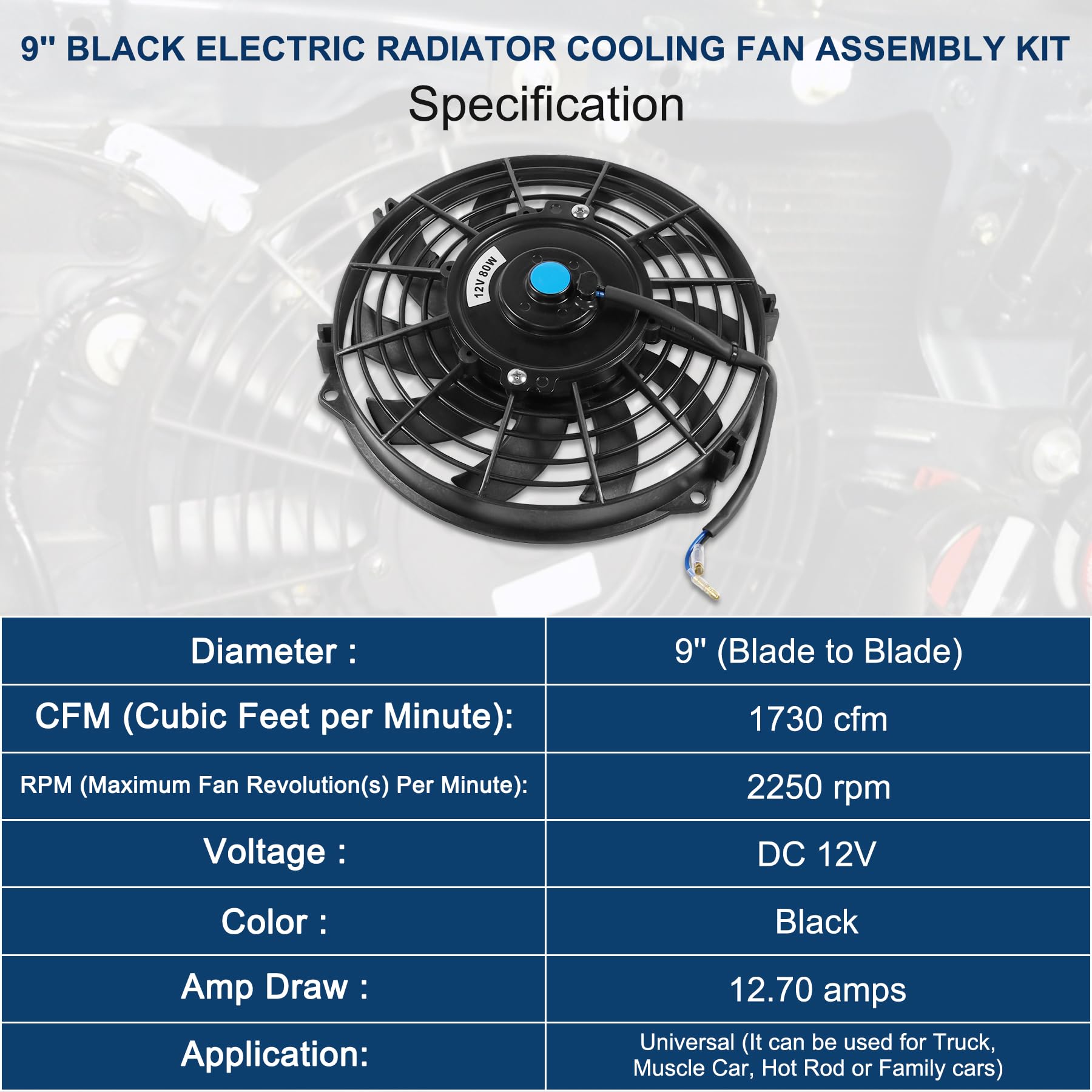

• Airflow: 1730 CFM for high-velocity cooling
• Voltage: DC 12V compatible with most automotive electrical systems
• Max speed: 2,250 RPM for fast airflow when needed
• Current draw: 12.70 amps — ensure adequate wiring and fuse protection

How simple is the installation and what accessories come with the kit?

Installation is straightforward and requires no cutting or permanent modification. The adaptable mounting kit and included tabs let you position the fan as needed; many installations only require zip ties or basic hand tools. The fan can be mounted directly to the radiator support, core, or aftermarket brackets.

• Comes with mounting tabs compatible with clamp or zip-tie attachment
• Can be used as a pusher or puller without relocation of components
• Plug-and-play power lead; professional wiring recommended for relay/thermostat setups

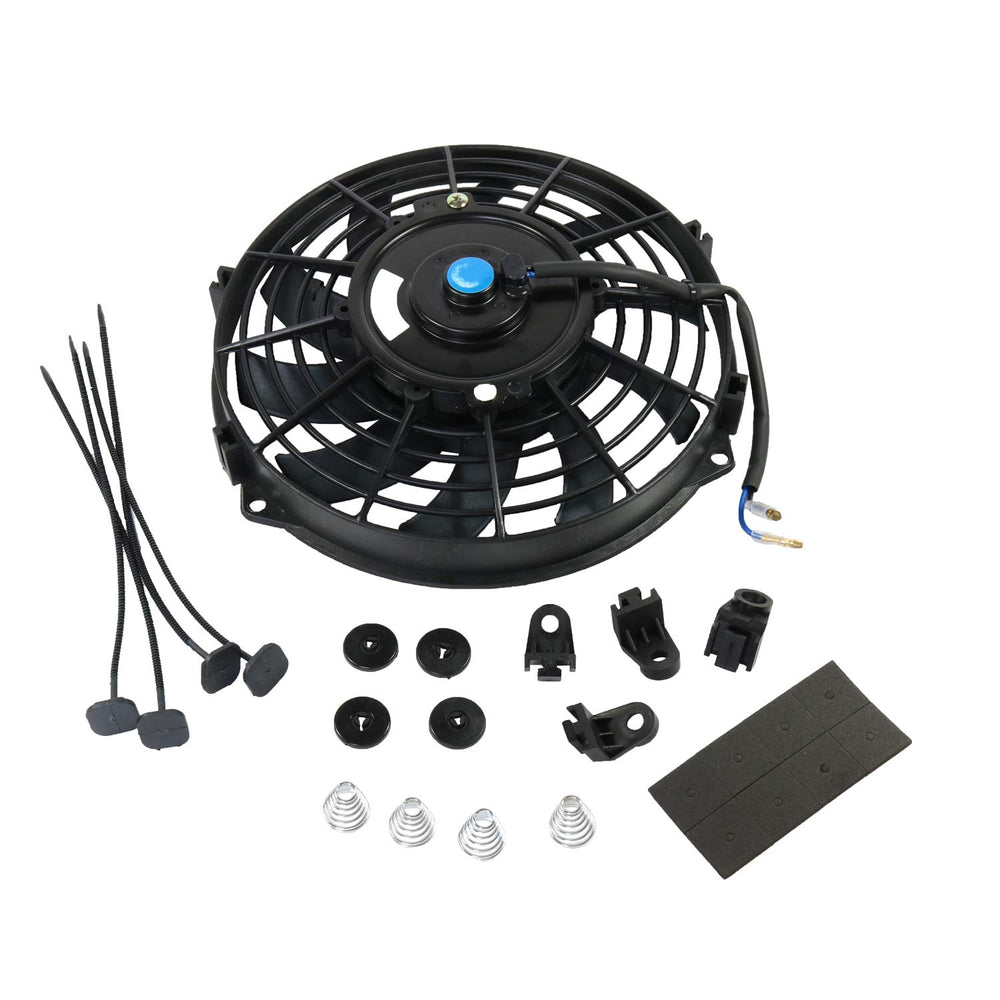

• Package includes one 9-inch universal electric radiator fan

Who is this for? The JDMSPEED 9" slim electric fan kit is ideal for enthusiasts, DIY mechanics and performance tuners who need a compact, high-flow cooling solution for tight engine bays, intercooler setups, or supplemental cooling for oil and transmission coolers. It suits vehicles where space constraints prevent full-size fans but additional airflow is required for aggressive driving, towing, or heat-prone setups. If you plan to run sustained high loads, pairing the fan with a proper relay, thermostat switch or fan controller and checking your vehicle's electrical capacity will yield the best long-term results.
