JRready Deutsch DTM 2-Pin Connector Kit — 8 Sets, Solid Size-20 Contacts, Sealed Waterproof

JRready ST6330-201 is an 8-set Deutsch DTM 2-pin connector kit with solid size-20 contacts, wedgelocks and seal plugs designed for reliable, waterproof electrical connections in vehicles and marine applications.

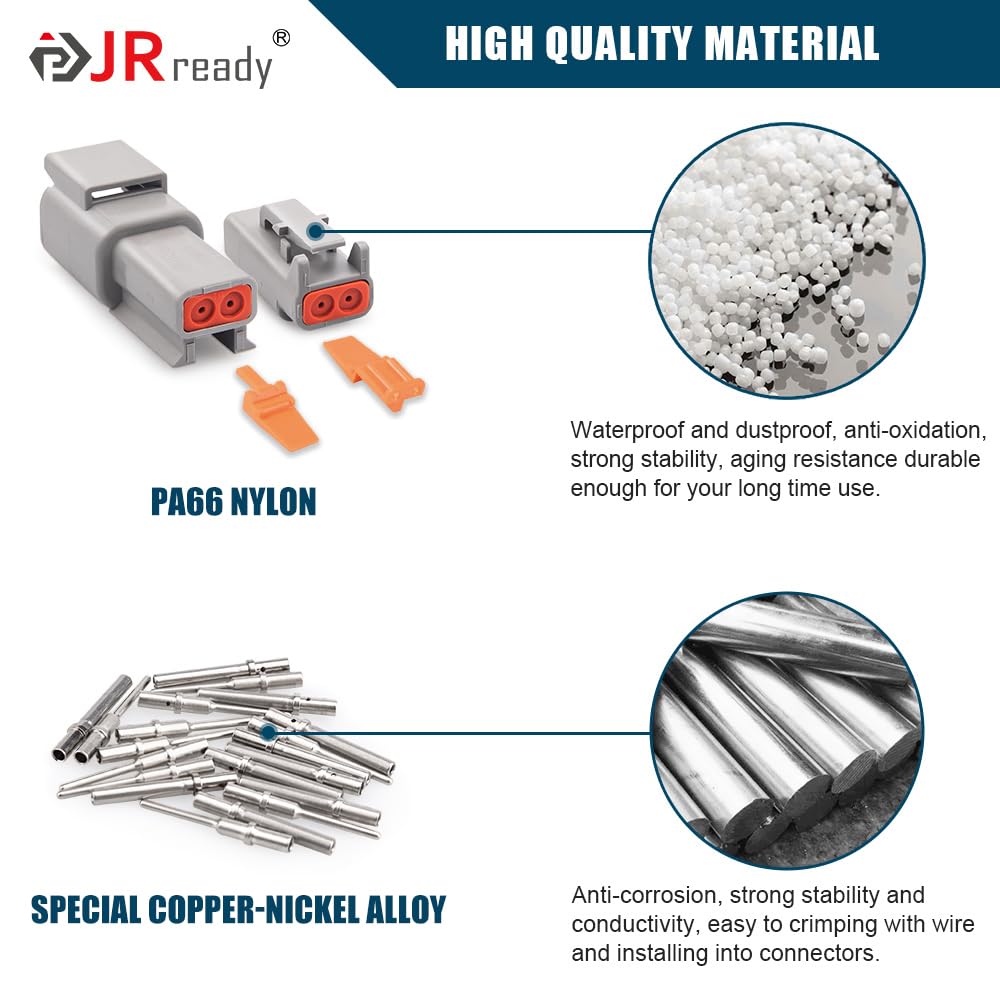

This complete Deutsch-style DTM package supplies everything needed to make durable two-pin plug and receptacle connections where moisture, vibration and heat are concerns. The kit centers on PA66 nylon housings and copper-nickel alloy solid contacts rated for everyday 20–22 AWG wiring, offering a compact, widely used connector format for under-hood, marine and powersports wiring tasks.

How does this kit withstand harsh environments?

The JRready connectors use PA66 nylon housings that resist heat, abrasion and common automotive fluids while the included seal plugs and wedgelocks add mechanical and moisture protection. Contacts are plated and treated to avoid cracking during crimping and maintain conductivity under repeated use.

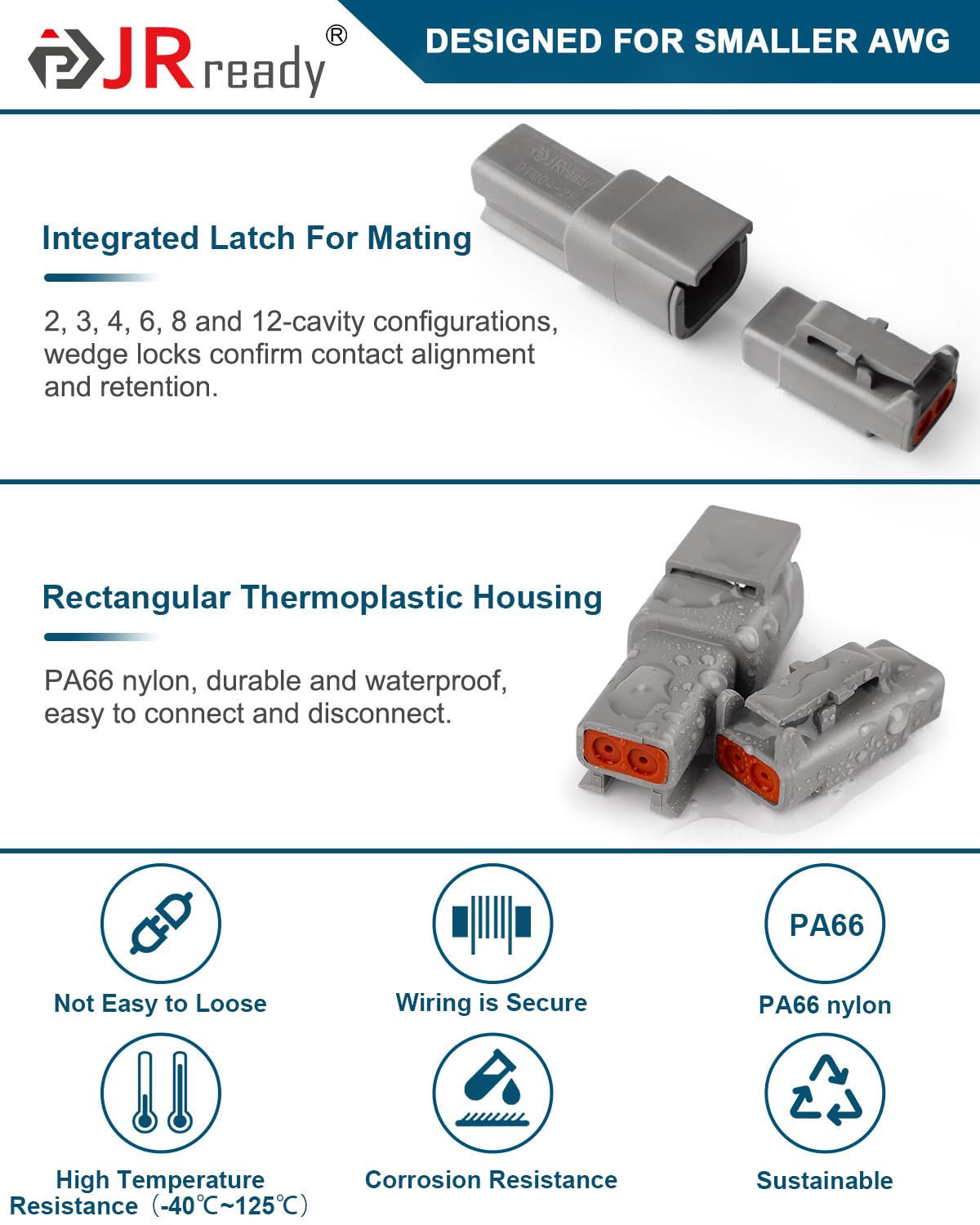

• PA66 nylon housings for chemical and temperature resistance
• Seal plugs to block water and contaminants
• Wedgelocks secure contacts against vibration and pull-out

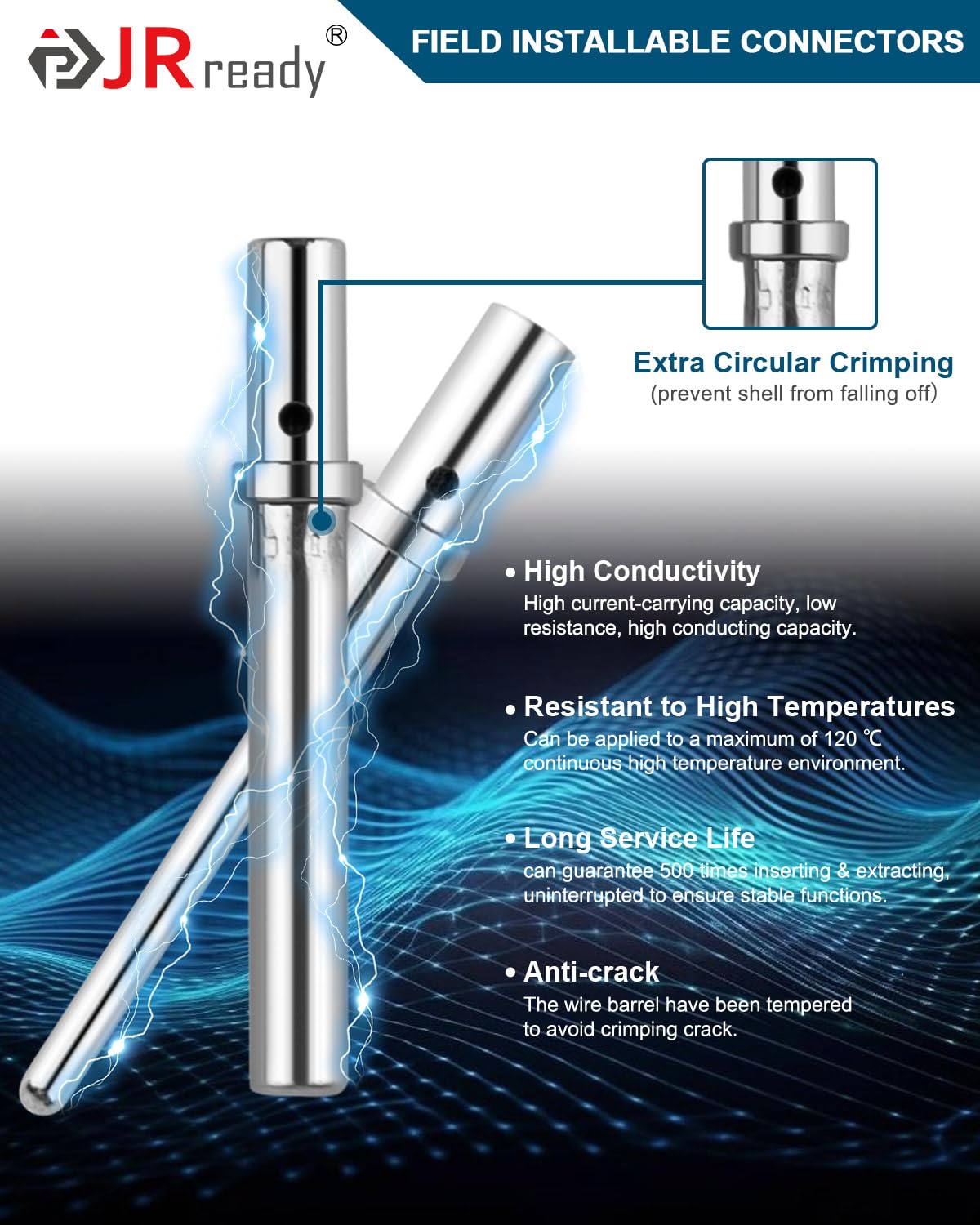

• Surface-treated solid contacts to prevent crimp fractures

What electrical specifications should I expect when wiring?

Each size-20 solid contact is intended for 20–22 AWG wire and supports a continuous current up to about 7.5 amps, making these connectors suitable for sensors, lighting circuits and low-amp accessories. The solid-contact design improves stability and contact reliability compared with thin-walled terminals.

• Wire compatibility: 20–22 AWG
• Continuous current rating: approximately 7.5 A per contact
• Solid copper-nickel alloy contacts for steady conductivity
• Compatible with standard DTM06-2S and DTM04-2P housings

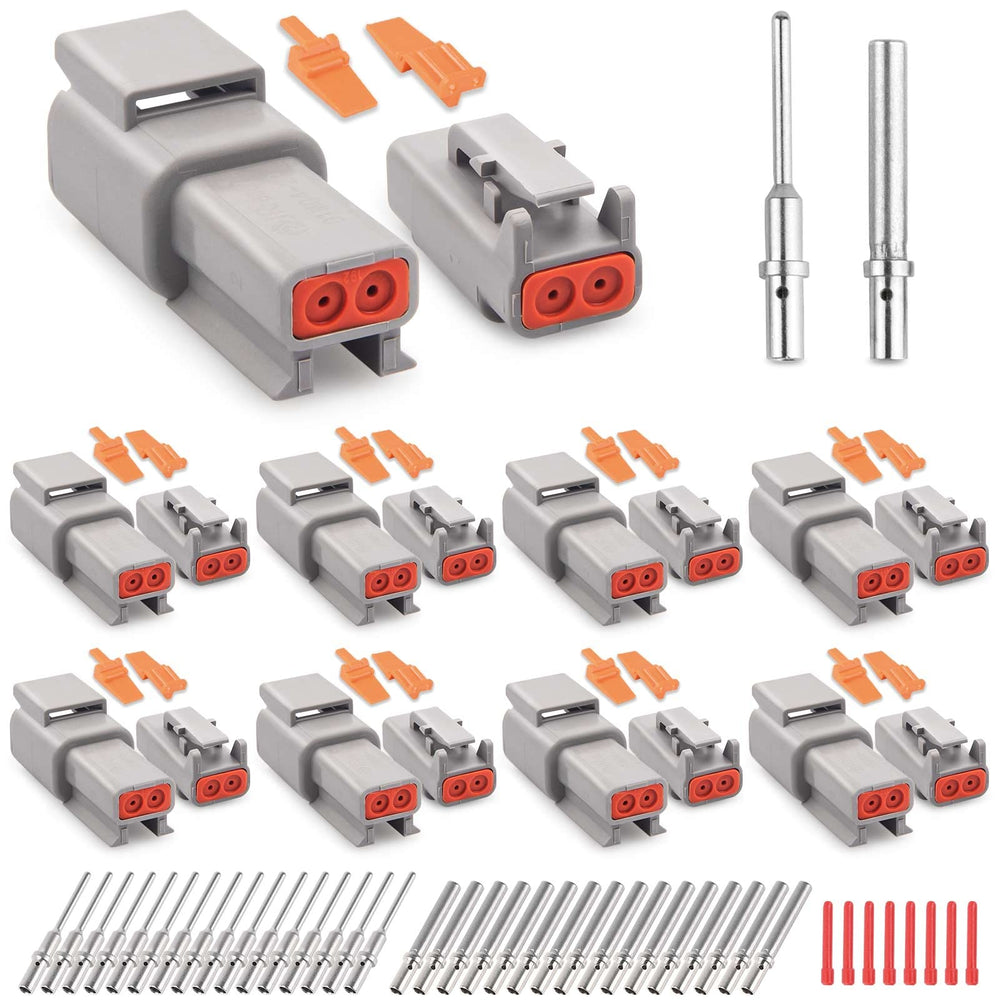

What is included in the JRready ST6330-201 kit?

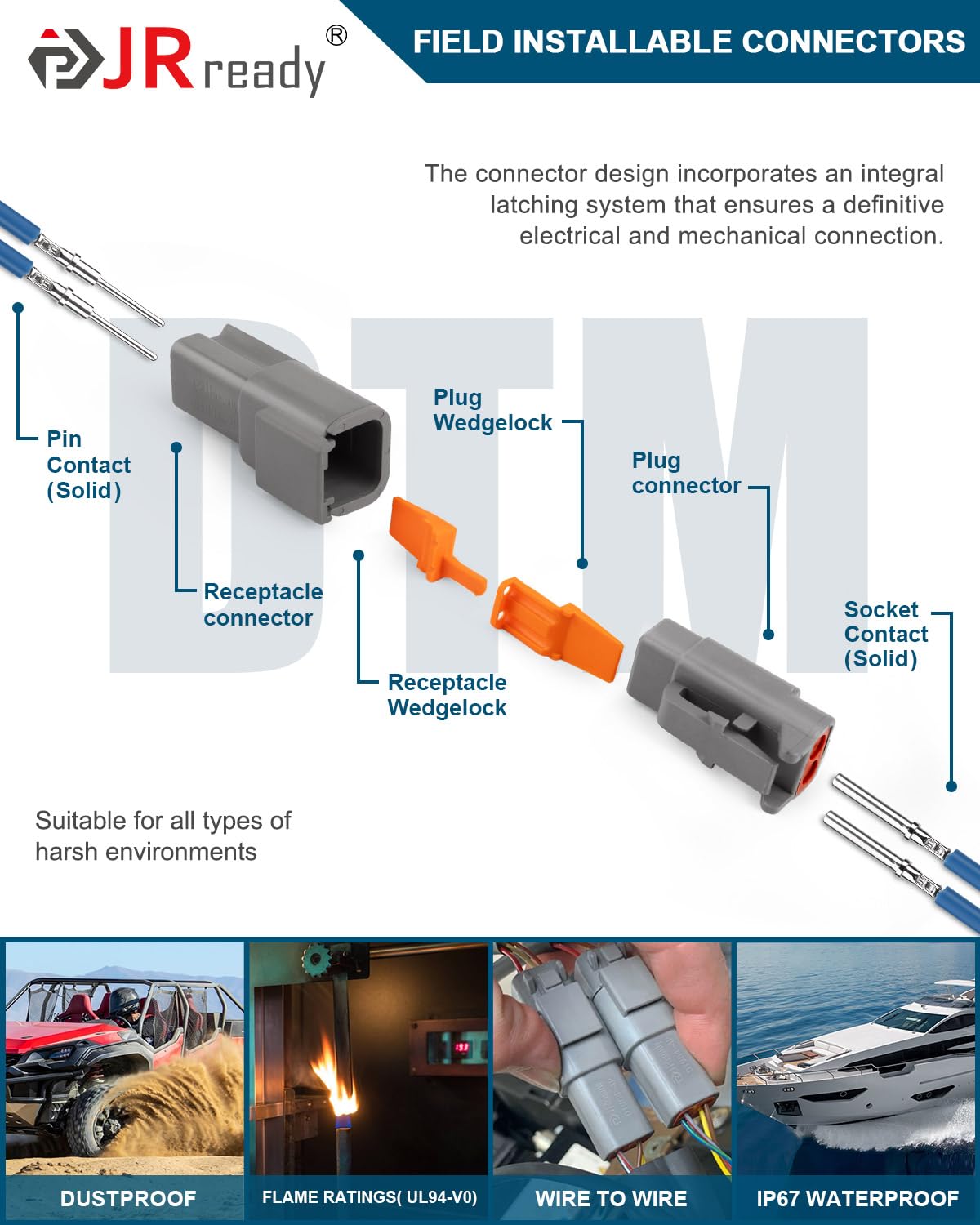

This kit bundles components so you can assemble eight complete two-pin connections: mating plug and receptacle housings, solid contacts for both sides, wedgelocks to lock contacts in place, and seal plugs for unused cavities. It’s ready for DIY wiring, repair or small production tasks without hunting down individual parts.

• 8 pairs DTM 2-pin housings (DTM06-2S / DTM04-2P)
• 16 solid size-20 contacts (0460-202-20141 / 0462-201-20141)
• 8 plug wedgelocks and 8 receptacle wedgelocks
• 8 seal plugs for environmental protection

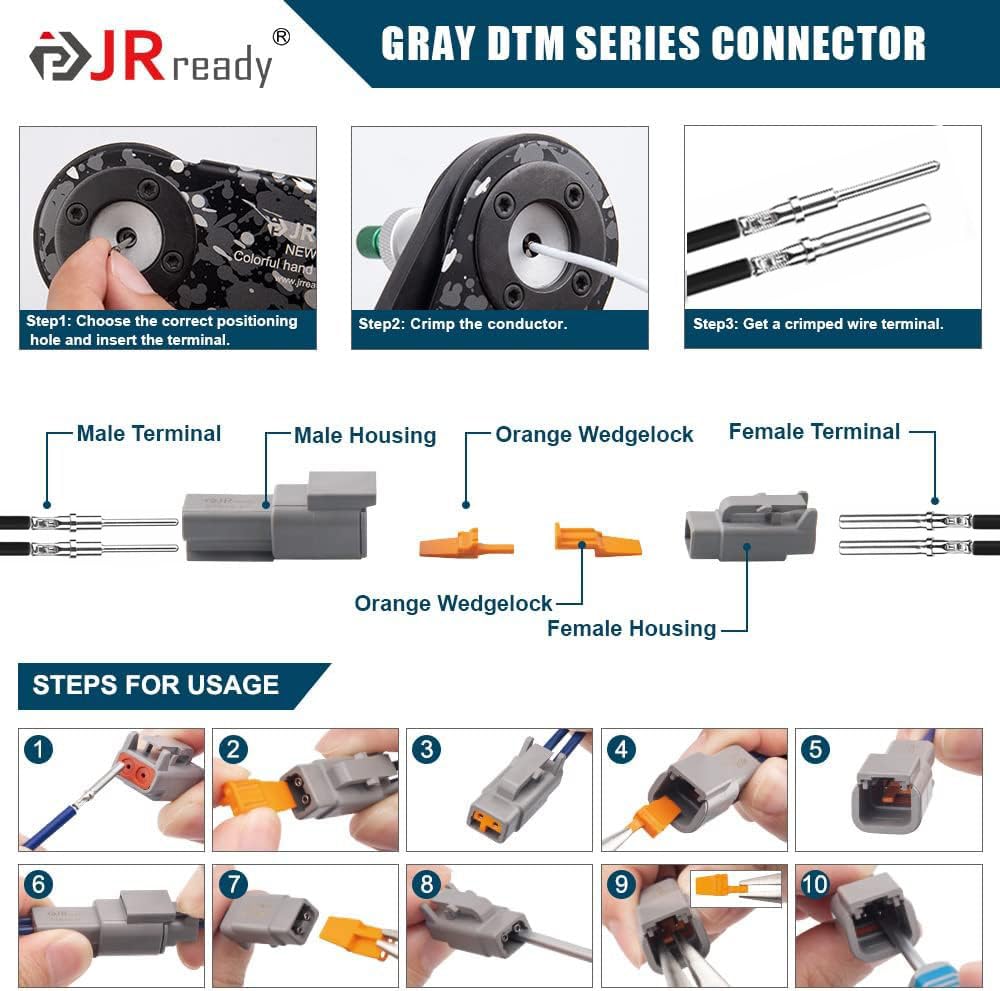

How do I use these connectors in my vehicle or boat?

Strip the correct length of 20–22 AWG wire, crimp each solid terminal using a compatible die, insert the contacts into the housing until the wedgelock clicks, and install seal plugs where needed. These steps yield sealed, vibration-resistant connections suitable for engine bays, trailers, marine panels and powersports wiring harnesses.

• Strip and crimp contacts with proper tooling for solid terminals
• Insert contacts and engage wedgelocks for secure retention
• Add seal plugs to unused cavities to maintain waterproofing
• Use for sensors, lighting, small pumps, and accessory circuits

Who is this for: JRready ST6330-201 is aimed at mechanics, fabricators, hobbyists and small shops that need a compact, waterproof two-pin connector solution for automotive, powersports, ATV, marine and trailer electrical systems. If you require reliable low-amp connections that resist moisture and vibration and prefer a kit that includes both housings and all terminal hardware, this DTM 2-pin set is a practical, ready-to-use option.
