JUNRUO Alternator Pigtail with 96-inch Resistor Wire for LS III 4-Pin, 105A Compatible Plug-and-Play

JUNRUO's ready-to-install 96" resistor wire pigtail converts a 12V feed into the correct alternator "on" signal so LS III generation 4-pin alternators can be controlled when the ECM signal is absent.

If you’re retrofitting, repairing, or replacing an alternator on 1999-and-newer GM LS-series engines that use the 4-terminal flat connector, this pigtail supplies the right voltage to engage the alternator without modifying the vehicle’s wiring harness. The built-in resistor drops incoming 12 volts down to the alternator’s expected control voltage, providing a simple, plug-and-play alternative when the engine control module isn’t providing a field or exciter signal.

How does this pigtail let an alternator work without an ECM signal?

The in-line resistor reduces the raw 12V feed to the lower voltage the alternator’s "on" terminal expects, tricking the alternator into switching on. It is a passive solution that requires no programming and installs directly into the alternator's 4-pin flat connector.

• Built-in resistor creates the correct alternator excitation voltage.
• Direct replacement for LS III Generation 4 4-terminal alternators (1999+ GM LS engines).
• 96" lead length gives flexibility for routing and different engine bay layouts.

What connectors and fitments does this pigtail support?

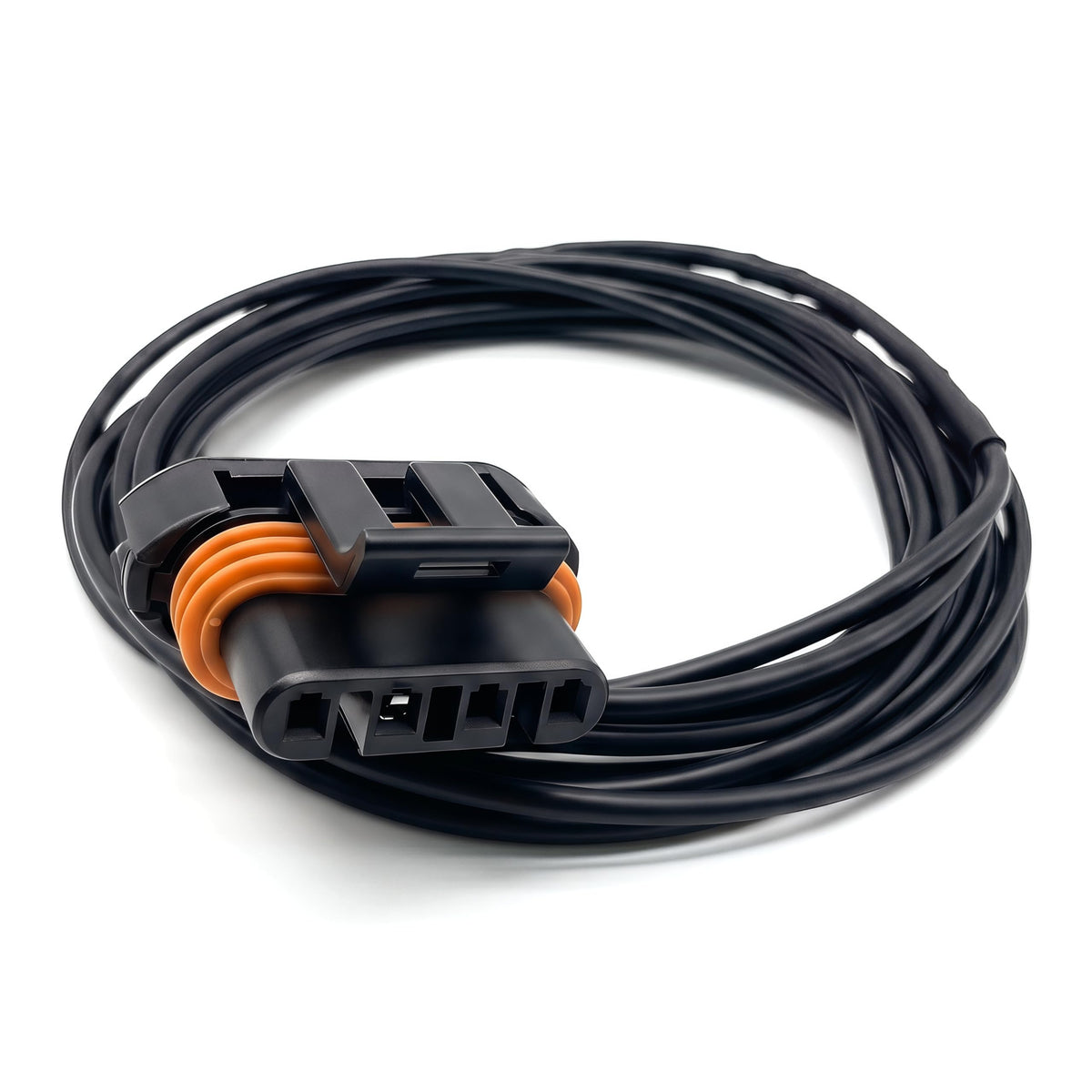

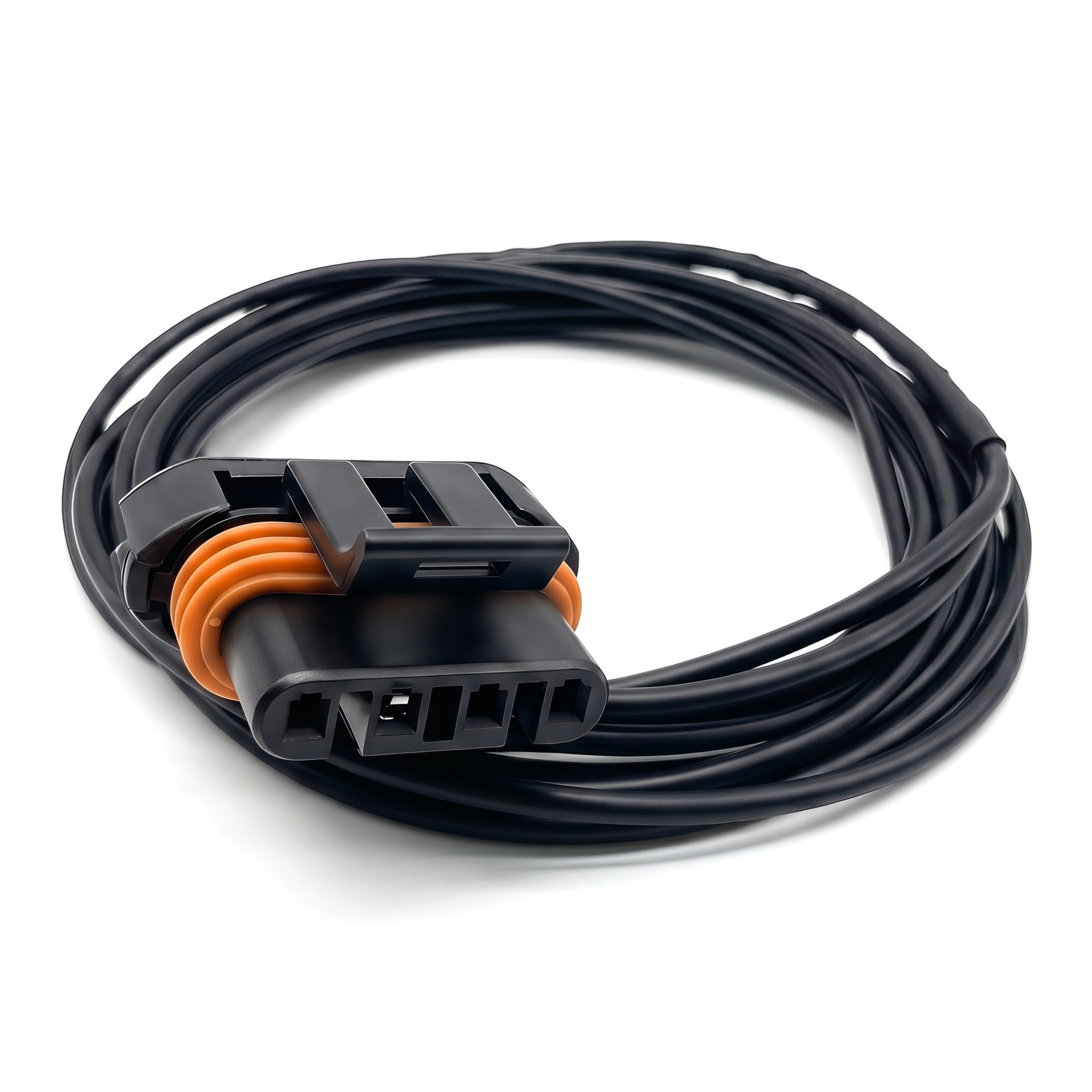

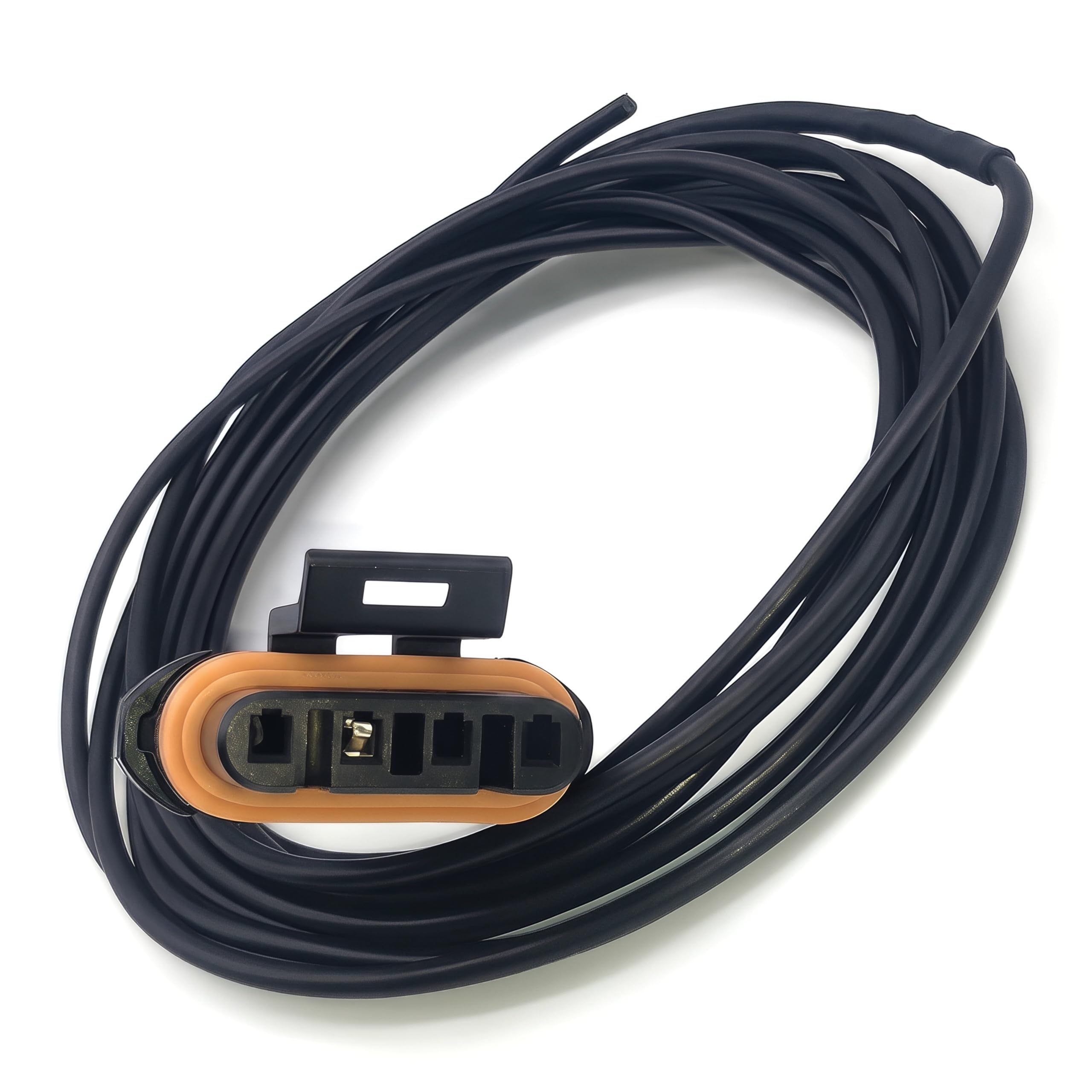

Designed for the flat 4-pin alternator connector used on many LS-series GM alternators, the pigtail matches the standard pinout so it plugs straight in. The product is intended to work with alternators up to the 105A rating for which it was specified (WPALT31 style).

• Fits 4-terminal flat connector style common to LS III Generation alternators.
• Compatible with 1999 and newer GM LS engines using the 4-pin configuration.
• Designed for alternators with output and control characteristics similar to 105A WPALT31 units.

How do I install the 96" resistor wire pigtail and route it safely?

Installation is straightforward: disconnect the battery, unplug the stock alternator connector, and plug the JUNRUO pigtail into the alternator. Route the long 96" lead away from heat and moving parts, secure with zip ties, and reconnect the battery once installed.

• Always disconnect battery negative before beginning the install.
• Route cable clear of exhaust, belts, and steering components.
• Use grommets or zip ties to secure the lead and prevent chafing.

Will this affect charging performance or dashboard warnings?

The pigtail supplies the alternator’s excitation signal but does not alter the alternator’s regulated output. It’s a wiring solution to enable alternator engagement; vehicle diagnostics and regulator behavior remain governed by the alternator and vehicle electrical system.

• Does not modify alternator internal regulation or charging curve.
• May not mimic an ECM’s diagnostic signals; some warning systems could still behave differently.
• Recommended for applications where a functional excitation signal is required but ECM control is not present.

Who this is for: This JUNRUO 96" resistor wire pigtail is intended for mechanics, hot-rodders, and DIY enthusiasts retrofitting alternators on GM LS-series engines, or for repair shops replacing a faulty alternator pigtail when the ECM’s excitation signal is unavailable. It’s ideal when you need a reliable, long lead, plug-and-play solution that restores alternator "on" signaling without rewiring or ECU intervention.
