JUNRUO Fuel Pump Relay Wiring Kit for 2011-2013 Jeep/Dodge/Ram (Durango, Ram 1500, Grand Cherokee) — Plug-and-Play, Heavy-Duty Rel

JUNRUO fuel pump relay wiring kit restores reliable fuel-pump power and protects the vehicle’s electrical system by supplying stable voltage to high-pressure pumps.

Designed as a direct-fit electrical upgrade for select 2011–2013 Mopar vehicles, this wiring kit replaces aging or undersized relay circuitry to ensure the fuel pump receives consistent voltage under heavy demand. The kit functions as a regulator and safety device that reduces strain on the factory wiring and electronic pump, while matching OEM connector layouts for quick installation. It is suitable for owners who want a robust, plug-and-play solution without major cutting or splicing.

Which vehicles does this relay wiring kit fit?

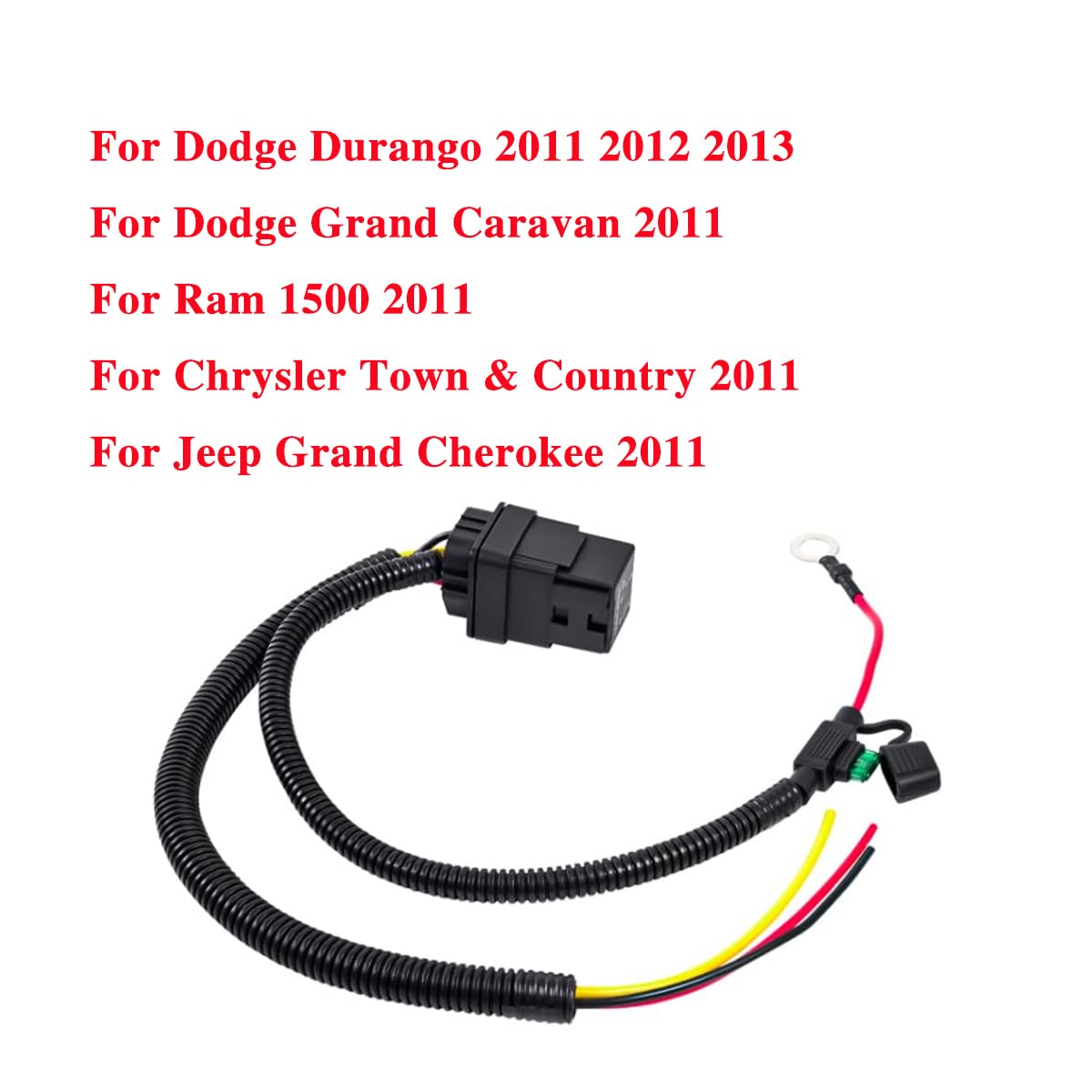

This kit is tailored to specific 2011–2013 Chrysler, Dodge, Jeep and Ram models that use the same fuel pump relay footprint. Confirm fitment by comparing OEM part numbers or the vehicle’s model year and engine wiring harness.

• Dodge Durango 2011, 2012, 2013
• Dodge Grand Caravan 2011
• Ram 1500 2011
• Chrysler Town & Country 2011
• Jeep Grand Cherokee 2011

How does this kit protect the fuel pump and electrical system?

The relay wiring kit routes higher, steadier voltage to the fuel pump through a dedicated relay and wiring harness, reducing voltage drop and heat in existing factory wiring. That reduces electrical load on sensitive modules and minimizes the risk of relay failure from prolonged high-current draw.

• Dedicated relay for cleaner power delivery to the pump
• Wiring sized to reduce voltage drop under heavy load
• Integrated protection features to avoid overloads
• Pre-terminated connectors preserve OEM harness integrity

What parts and part numbers does it replace?

This JUNRUO kit serves as a replacement for several common relay and wiring assemblies used in Mopar vehicles, matching the electrical function and connector types of the originals. Use the listed numbers to verify cross-compatibility with your vehicle’s service manual or parts diagram.

• Replaces part numbers: 68269523AD, 04727370AA, 4727370AA
• Also cross-references: CBWPR091AA, CSZDV621AA, CBP4P541AB
• Engineered to meet the electrical specifications of the original assemblies

Is installation difficult and what tools are required?

The kit is designed for plug-and-play replacement so no major wiring modifications are necessary. Typical installation requires basic hand tools, access to the pump relay area, and a few minutes to seat the connectors and secure the relay mounting point.

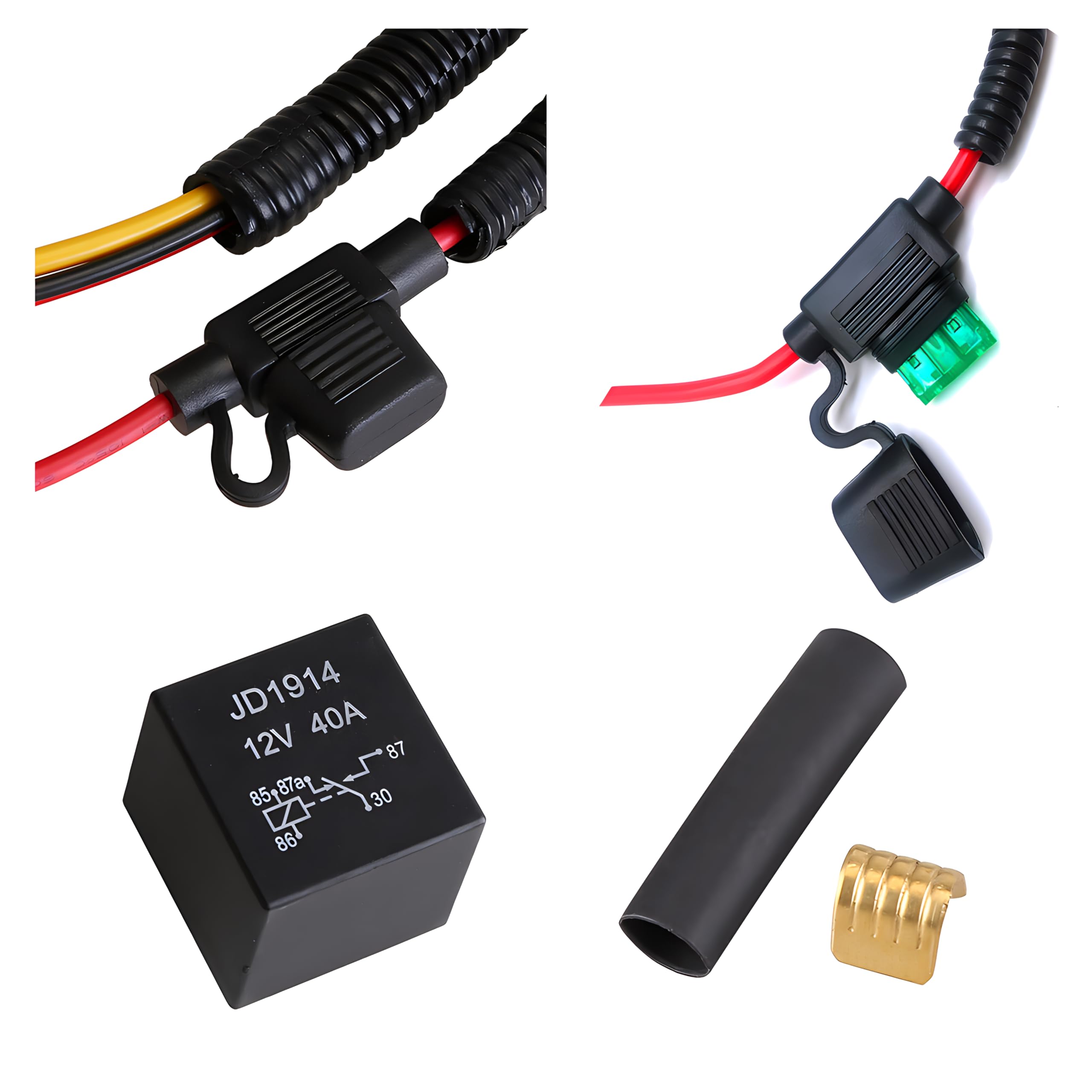

• Plug-and-play connectors match factory harnesses
• Minimal hand tools: socket set and screwdriver
• No cutting or soldering for compatible models
• Installation time typically under an hour for a DIYer

Who is this for: The JUNRUO fuel pump relay wiring kit is aimed at owners of compatible 2011–2013 Jeep, Dodge, Ram and Chrysler vehicles who experience fuel pump voltage issues, intermittent pump operation, or who want to fortify the electrical feed for aftermarket or high-demand fuel systems. It’s also suitable for technicians and fleet managers seeking a reliable, OEM-style replacement relay assembly that reduces electrical stress and restores dependable pump performance.
