JURPLIX Manual Piston Ring Grinder — 120-Grit Carbide Wheel, Hardened Steel Frame for Precision Ring Gap Adjustment

The JURPLIX Manual Piston Ring Grinder is a hand-operated filer with a 120-grit carbide wheel designed to precisely grind and adjust piston ring end gaps for proper cylinder fit.

Whether you rebuild engines in a home garage or run a professional workshop, correct piston ring gap is essential for reliable compression and even cylinder wear. This compact, electricity-free tool provides controlled material removal so you can open or fine-tune ring ends to match manufacturer specifications. Built with a hardened-steel frame and a 120-grit carbide wheel, the unit focuses on repeatable, predictable filing rather than aggressive stock removal.

How does this tool ensure accurate piston ring clearance?

The grinder’s 120-grit carbide wheel delivers a consistent, fine abrasive action that removes metal evenly across the ring end. The manual feed and rigid frame minimize chatter and allow you to stop frequently to measure the gap, preventing over-cutting.

• 120-grit carbide wheel for smooth, controlled material removal

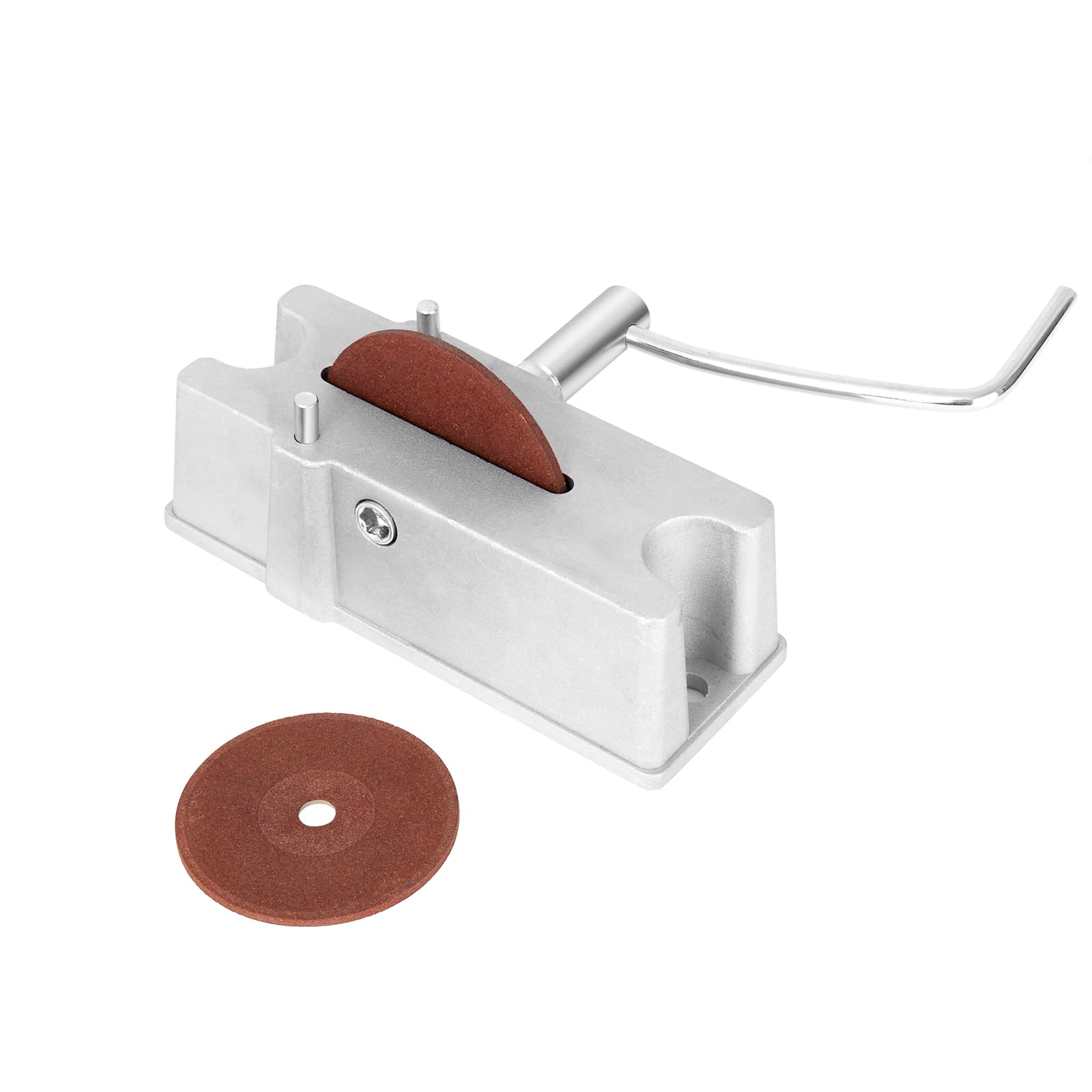

• Hardened steel frame keeps the wheel aligned for straight cuts
• Manual operation gives tactile feedback to avoid over-grinding
• Works with common ring materials: cast, ductile iron, and most steels

How easy is it to set up and use in a small shop?

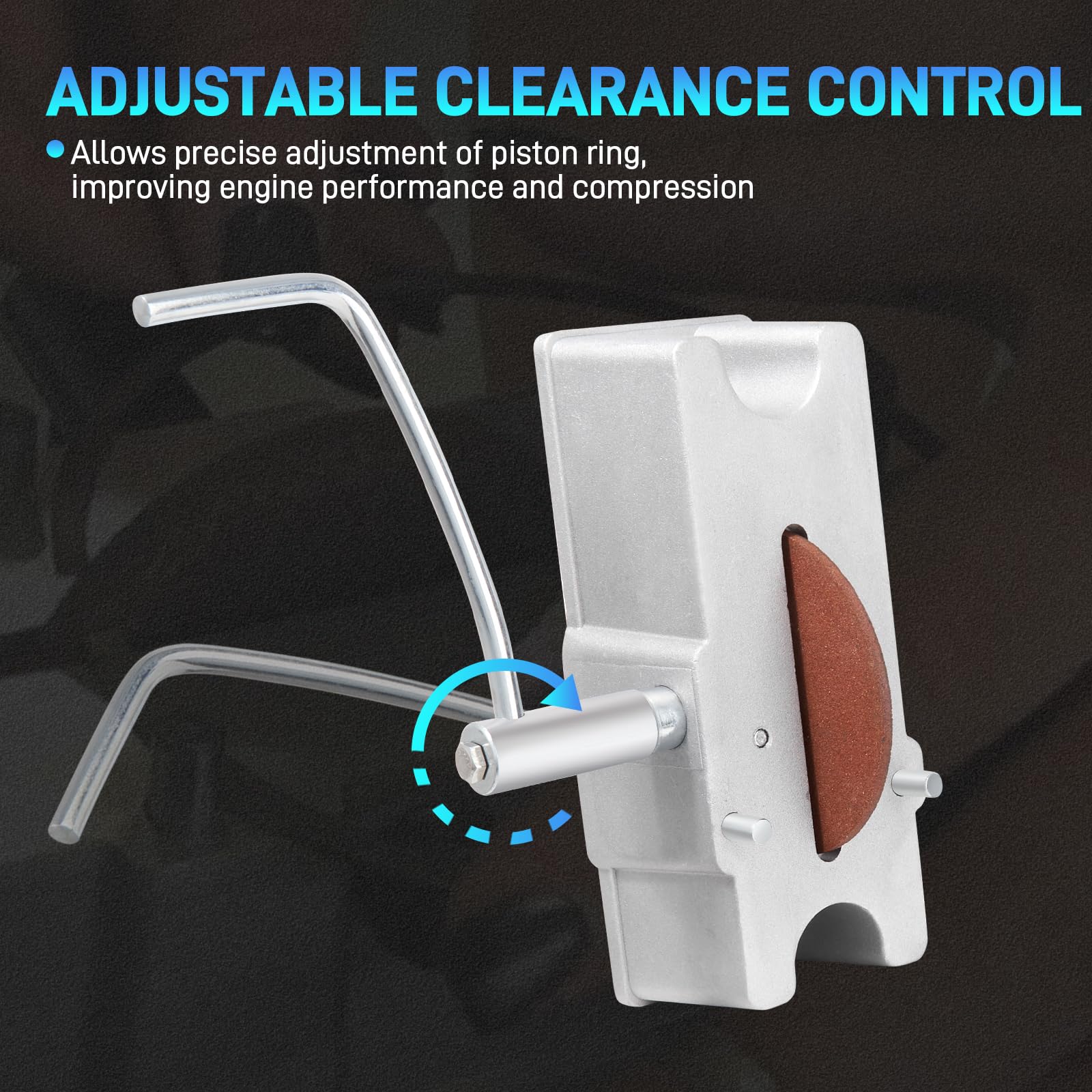

Setup requires no power hookup or complex fixtures: clamp the ring in the tool’s holder, adjust the contact height, and rotate the ring gently against the spinning carbide face. The compact footprint and lightweight construction make it portable and simple to store between jobs.

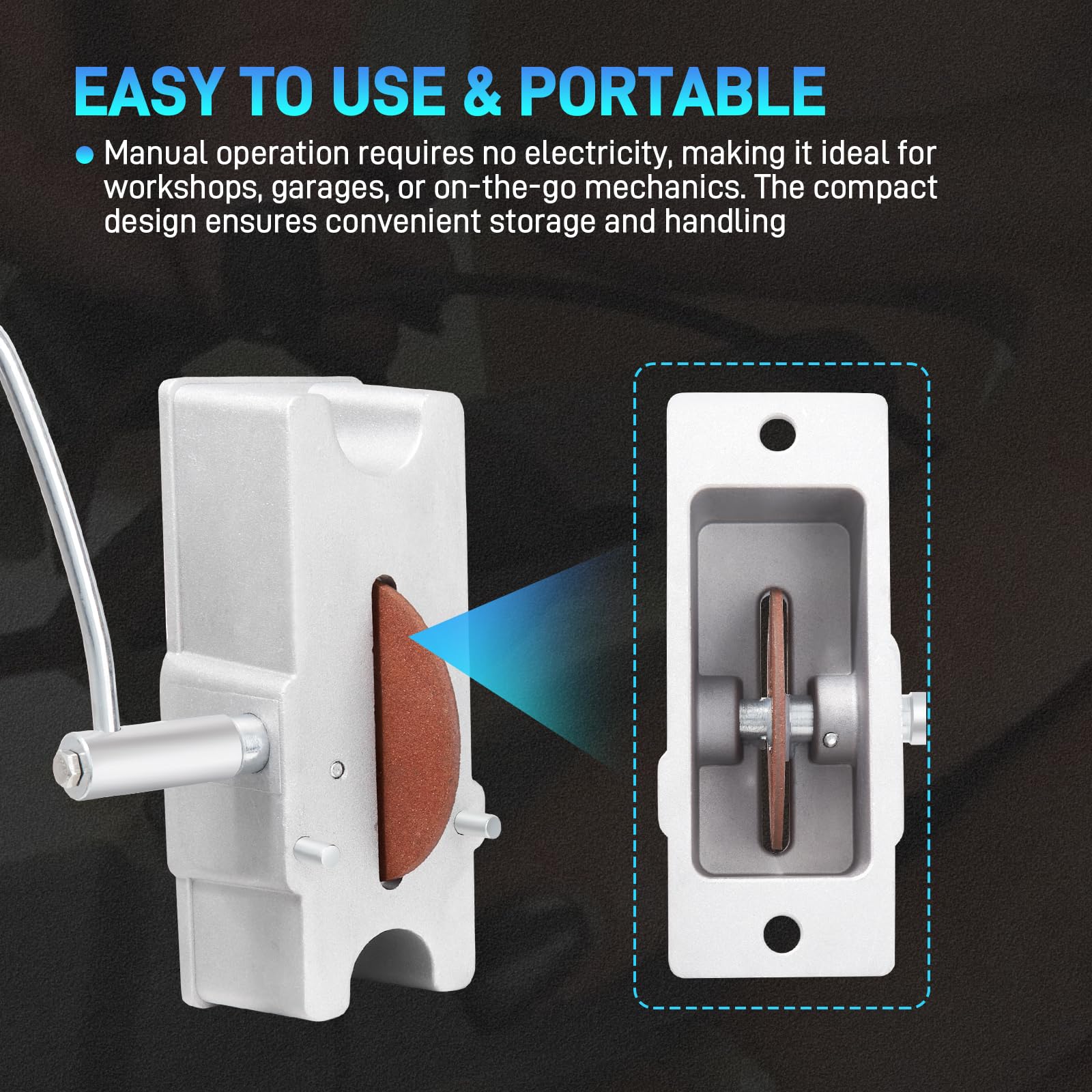

• No electricity needed — ideal for mobile or limited-space use
• Quick mounting and adjustment for single rings or batches
• Tool fits standard piston ring sizes used in most rebuilds

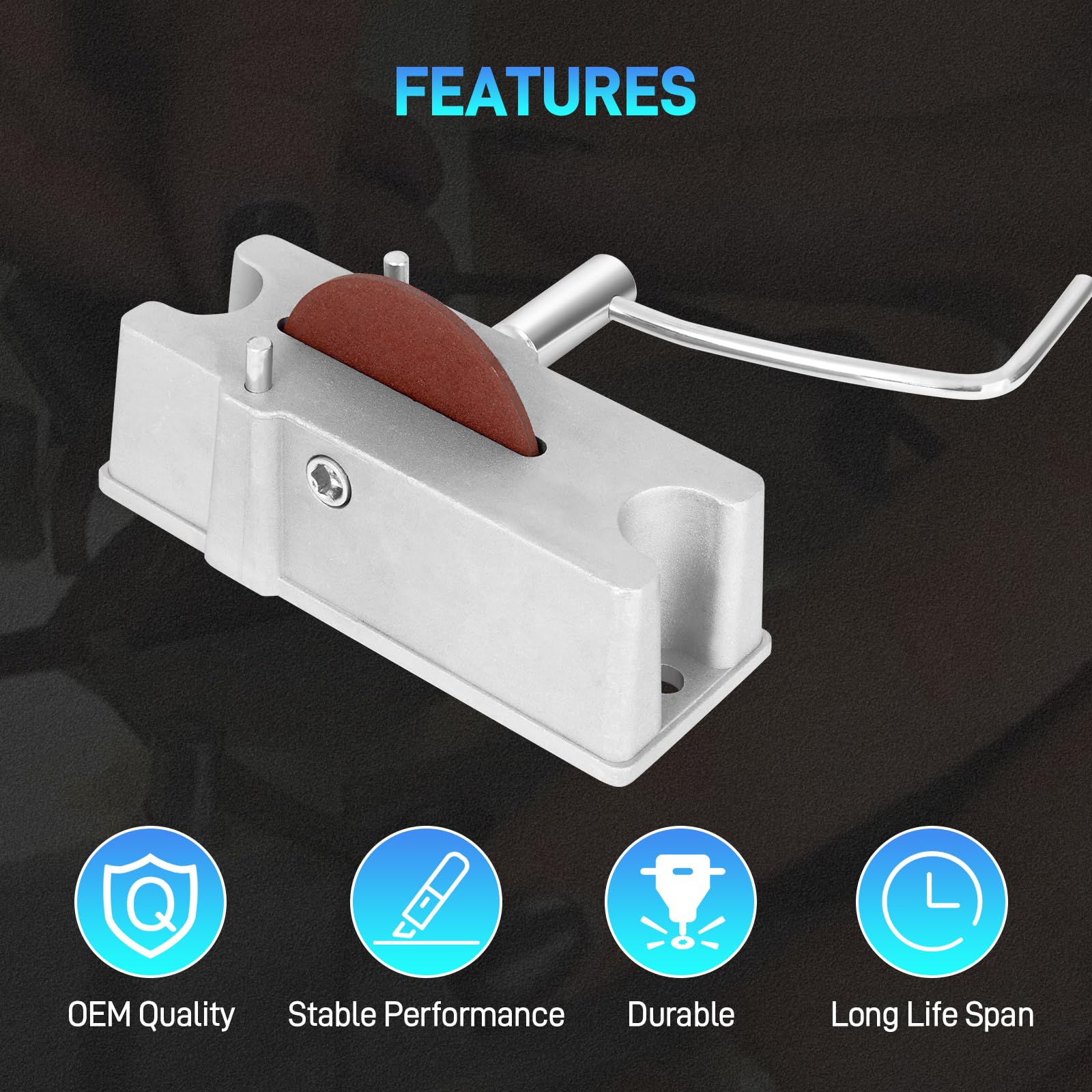

• Replaceable grinding wheel keeps long-term maintenance straightforward

What materials and parts does the filer include, and how durable is it?

The filer combines a hardened-steel frame with a 120-grit carbide grinding wheel to balance durability and precision. The carbide face resists wear and keeps a consistent cut profile over many cycles, while the rugged frame resists flex that would harm accuracy.

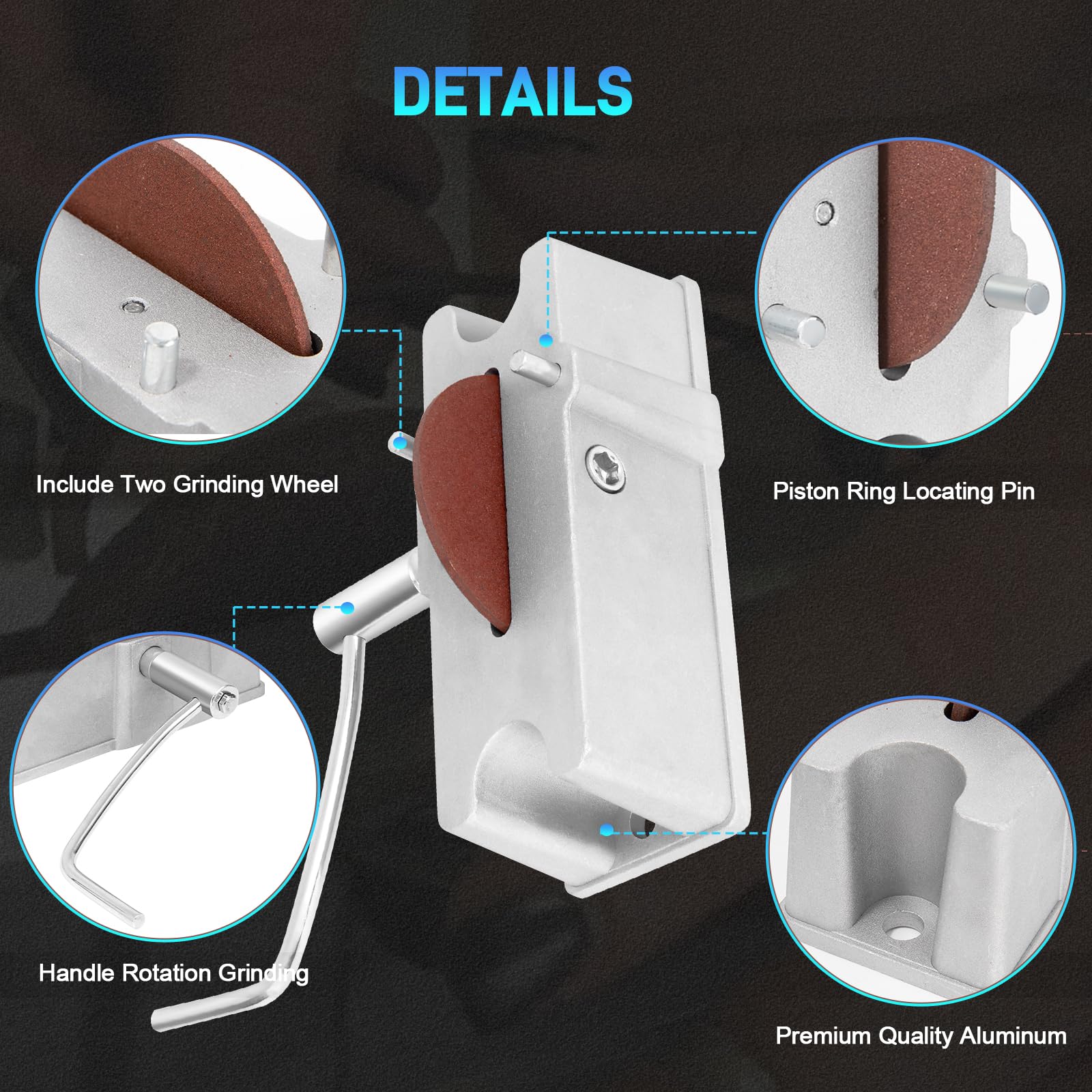

• Hardened steel construction for stiffness and longevity
• 120-grit carbide wheel engineered for fine finishing and long life

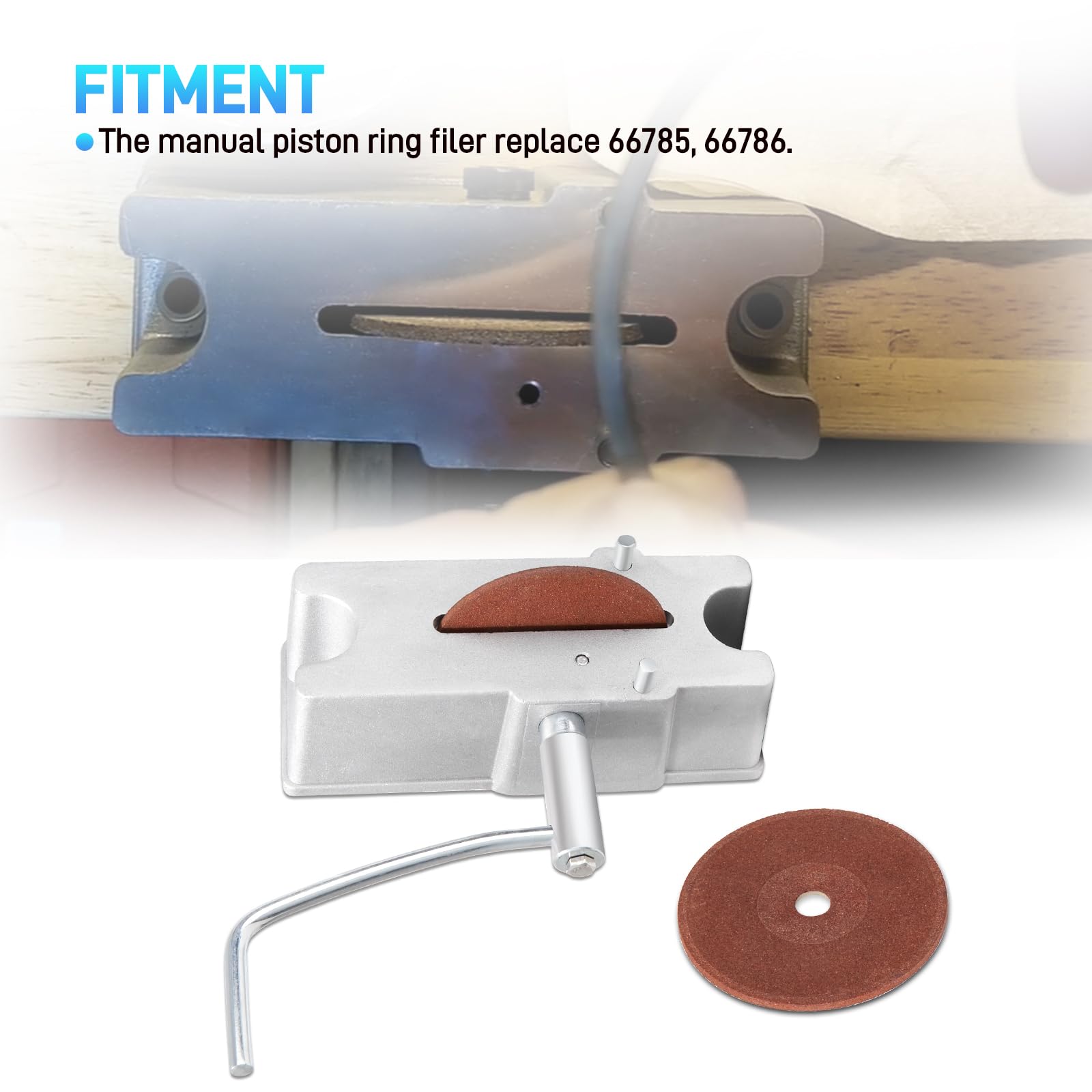

• Replaceable wheel — compatible with replacement part numbers 66785 and 66786
• Simple hardware for easy wheel swaps and maintenance

How do I avoid common mistakes when adjusting ring gaps?

Measure the ring gap inside the actual cylinder bore using a feeler gauge before grinding, and remove only tiny amounts per pass. Regularly re-check the clearance and deburr the inner edges after filing to prevent scoring or stress risers on the ring ends.

• Always measure ring gap in the cylinder bore, not on a flat surface
• Make incremental cuts and re-measure often to prevent over-cutting
• Lightly break sharp edges after grinding to reduce stress concentration
• Keep a log of material removed per pass for repeatable results

Who is this for: The JURPLIX Manual Piston Ring Grinder is aimed at mechanics, engine builders, and DIY enthusiasts who need a precise, low-cost solution for piston ring end-gap adjustment without relying on powered grinders. It suits small shops, hobbyist garages, and mobile technicians who value portability and controlled filing for rebuilds on passenger engines, small industrial engines, and classic motorcycles.
