Lcrslitx 7-Way Trailer Wiring Harness 50FT 14 AWG CCA — DOT-rated, Flexible

Lcrslitx 50FT 14 Gauge 7 Way Trailer Wire is a 50-foot, 7-conductor wiring harness designed to rewire trailers, RVs, and tow vehicles end-to-end with DOT-rated, 600V 14-gauge CCA cable.

This heavy-duty 7-pin cable provides a single continuous run long enough to wire most trailers without splices, using SAE-standard color coding for quick, accurate installation. The conductors use a 30% copper-clad aluminum (CCA) formulation for improved conductivity over typical low-cost CCA wire, while a thick PVC jacket and talc-lubricated stranded core keep the cable flexible and protected from road hazards, salt, oil, and UV exposure. The product is built to commercial towing safety ratings and is suitable for brake, taillight, turn signal, and auxiliary circuits.

How does this 50-foot harness simplify trailer rewiring?

The continuous 50-foot length eliminates mid-run splices, so you can route a single unbroken conductor set from vehicle plug to trailer junctions. That reduces failure points and speeds installation for full trailer rewires, camper conversions, and heavy-duty builds.

• One continuous 50 ft roll covers most trailers and RVs without splicing
• Seven color-coded conductors match SAE wiring standards for fast hookups
• Stranded core stays flexible for routing through tight conduit and frames

Is the cable durable enough for commercial towing and harsh conditions?

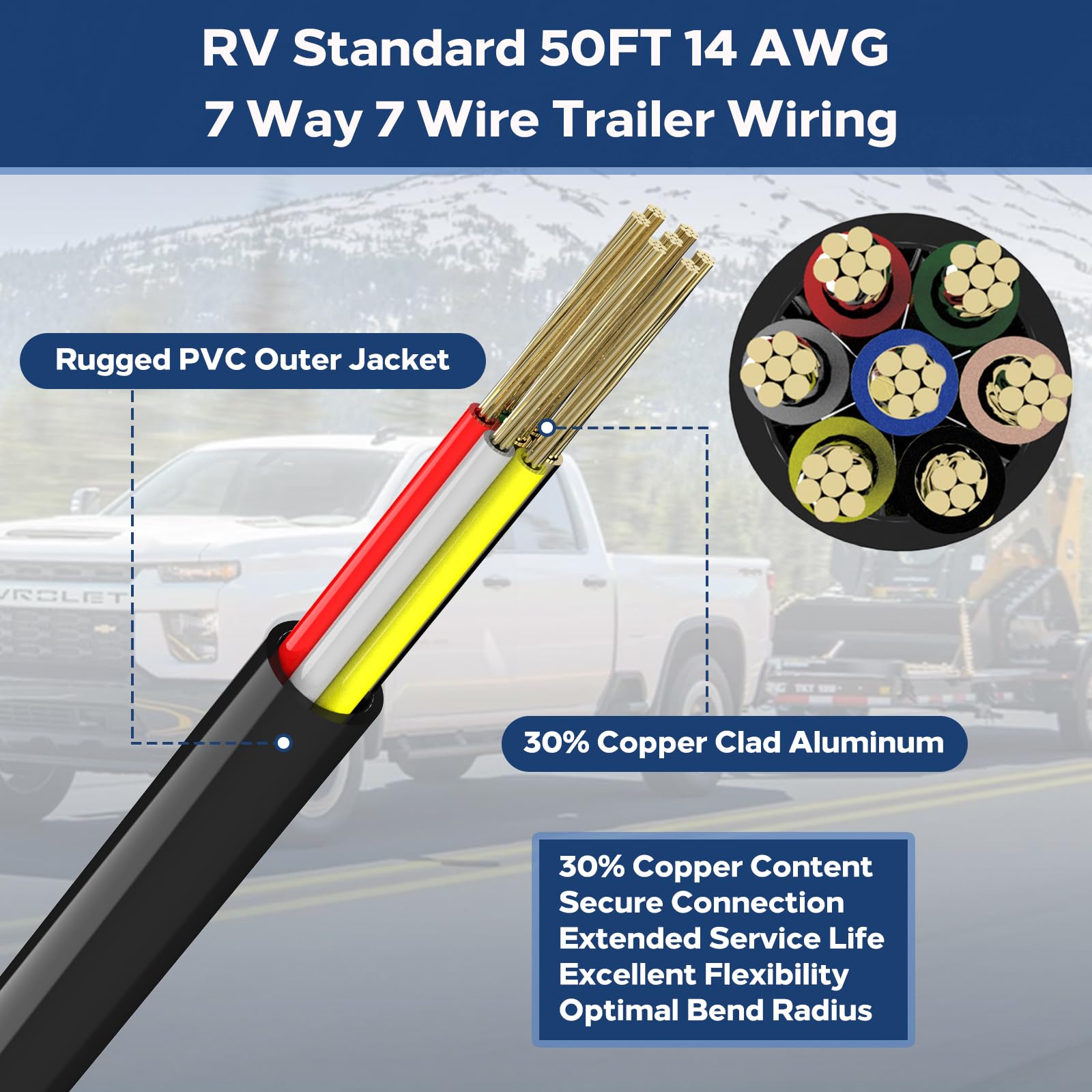

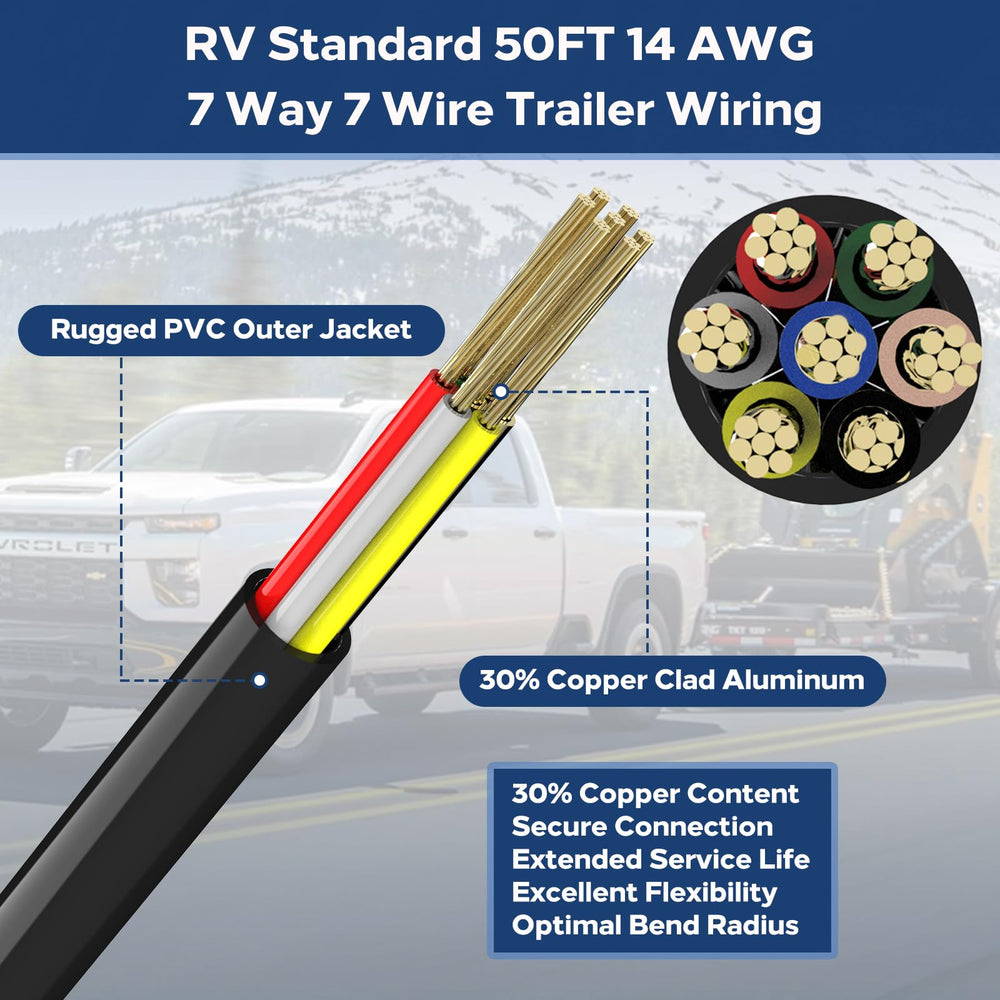

Yes—this harness is DOT certified and 600V safety rated for commercial and recreational towing applications. A robust outer PVC jacket (about 12.45mm diameter) resists abrasion, road salt, oil, and sunlight, while the insulation and construction maintain performance from -15°C to 105°C.

• Heavy-duty PVC jacket protects against abrasion and chemicals
• Operating temperature range suitable for wide climates
• DOT certified and quality-inspected before shipping

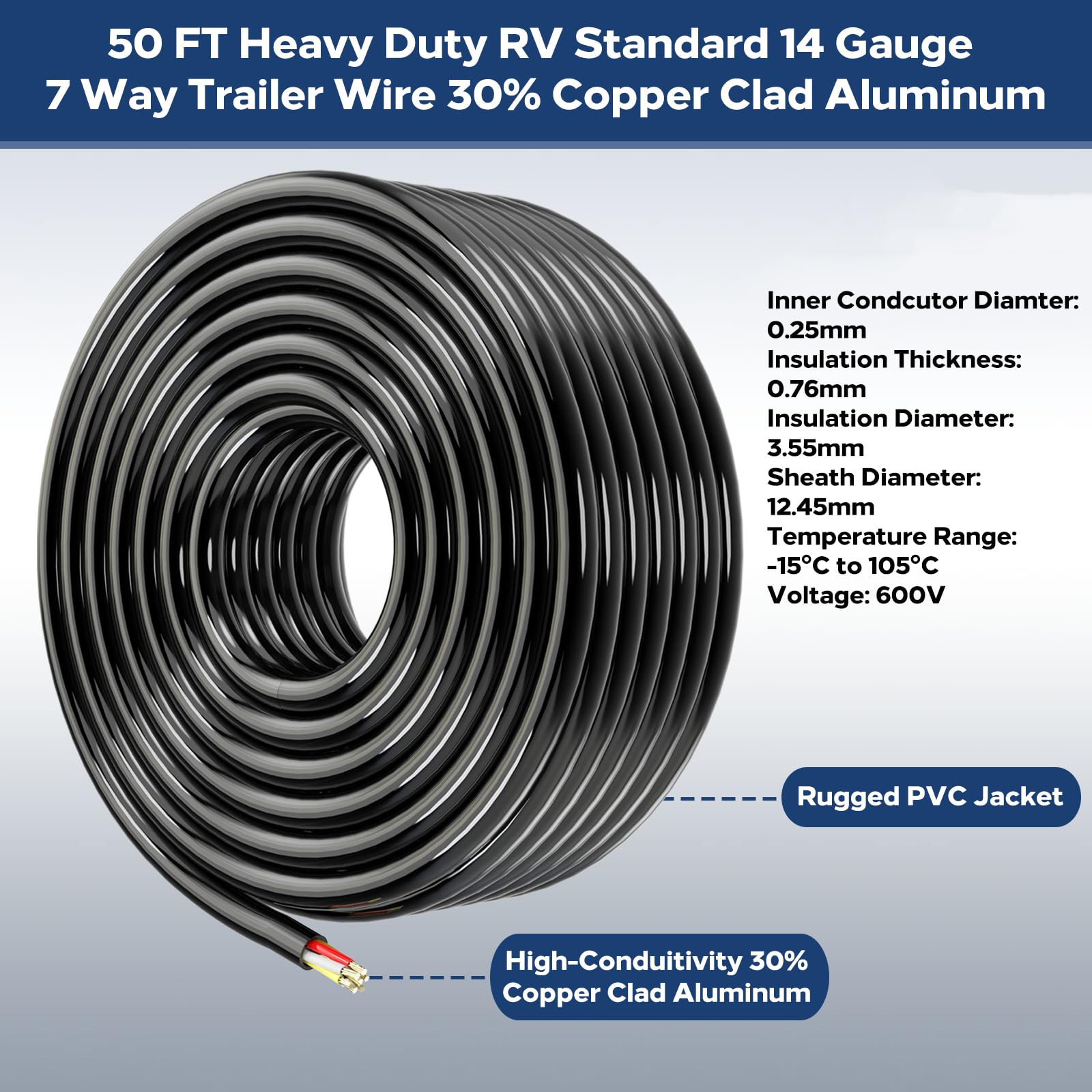

What electrical performance can I expect from the 14 AWG CCA conductors?

The harness uses 14 gauge conductors with 30% copper-clad aluminum, offering better conductivity than typical low-copper CCA wire. That thicker copper layer helps deliver steadier 12V signals for lights and brakes while keeping overall weight and cost lower than pure copper alternatives.

• 30% copper-clad aluminum conductors for improved conductivity
• 14 AWG gauge suited for lighting, brake, and auxiliary circuits
• Rated 600V for safe operation in trailer circuits

What should I know about installation and maintenance?

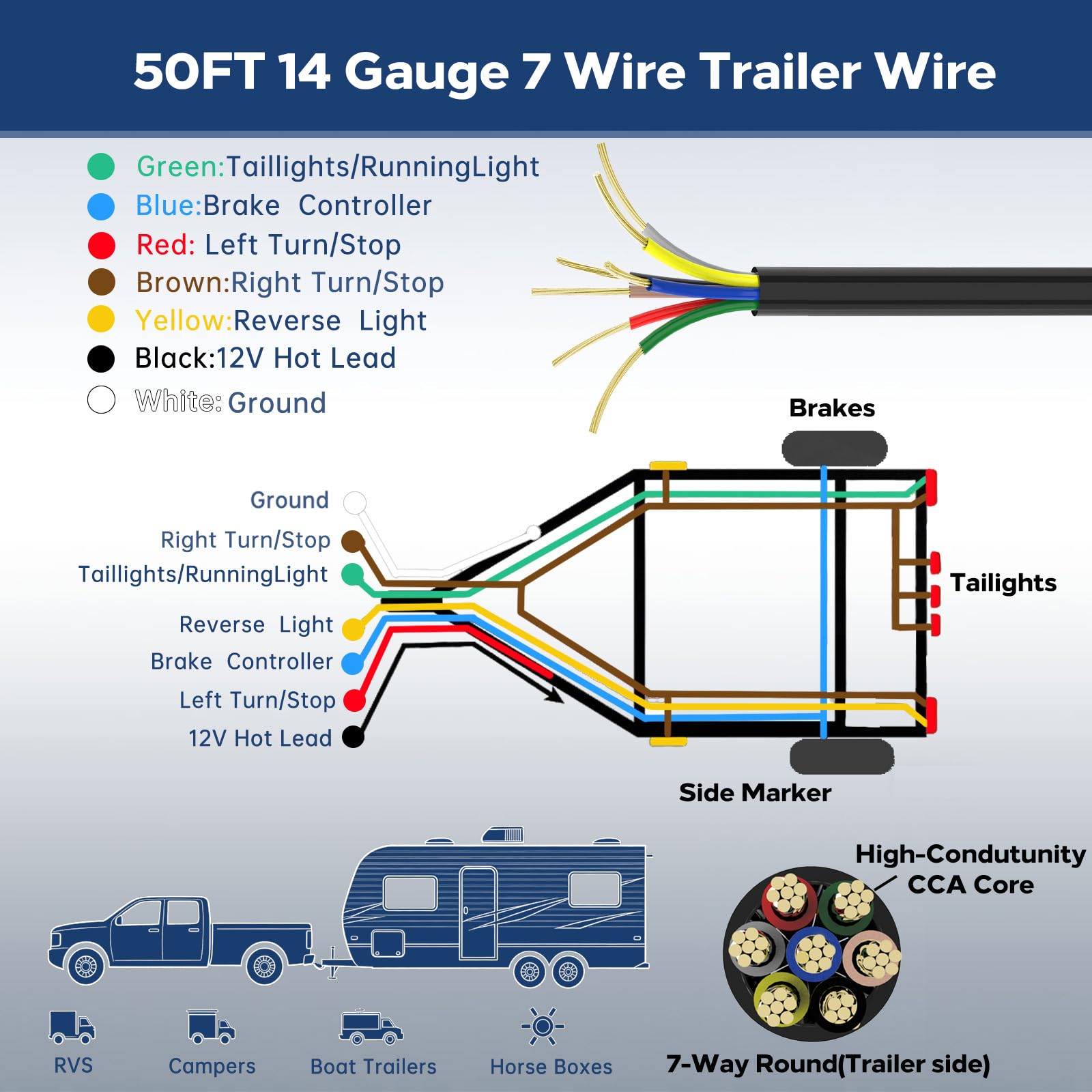

Wiring follows standard seven-conductor color codes, making it straightforward to connect to existing 7-pin blade plugs and trailer fixtures. The stranded core and talc-lubricated interior ease pulling through conduits and around bends; the talc is a standard inert extrusion lubricant and does not affect electrical performance.

• SAE color coding: Green, Yellow, White, Brown, Blue, Black, Red for easy matching
• Talc-lubricated conductors improve pull-through without affecting conductivity
• Flexible at low temperatures for simple routing and secure terminations

Who is this for? Lcrslitx 50FT 14 Gauge 7 Way Trailer Wire is aimed at DIY mechanics, RV owners, trailer builders, and fleet technicians who need a long, single-run 7-pin harness that balances conductivity, flexibility, and durability. It’s a practical choice for full trailer rewires, camper van builds, boat trailers, food truck electrical projects, and commercial towing setups where reliability and fewer splices are priorities.
