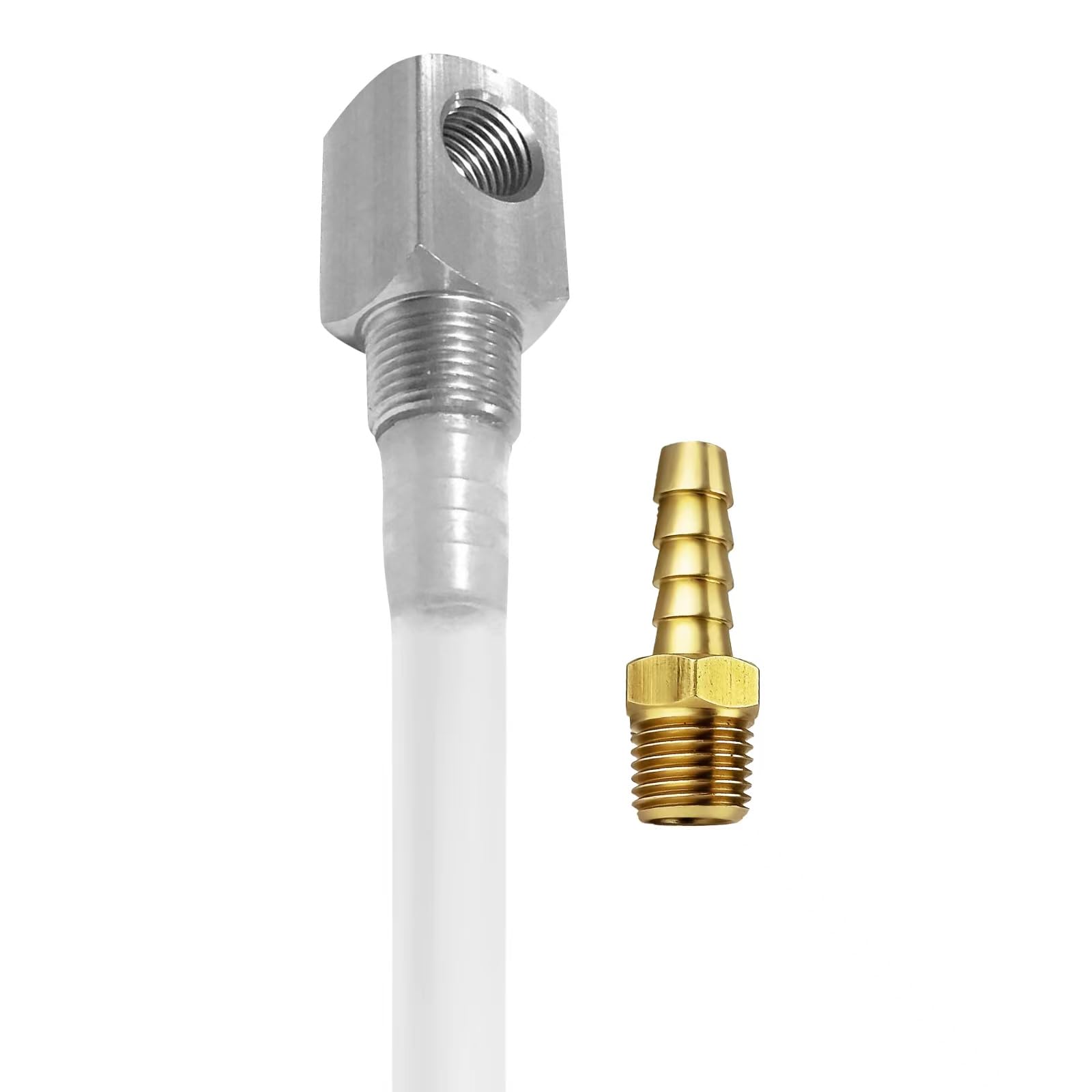

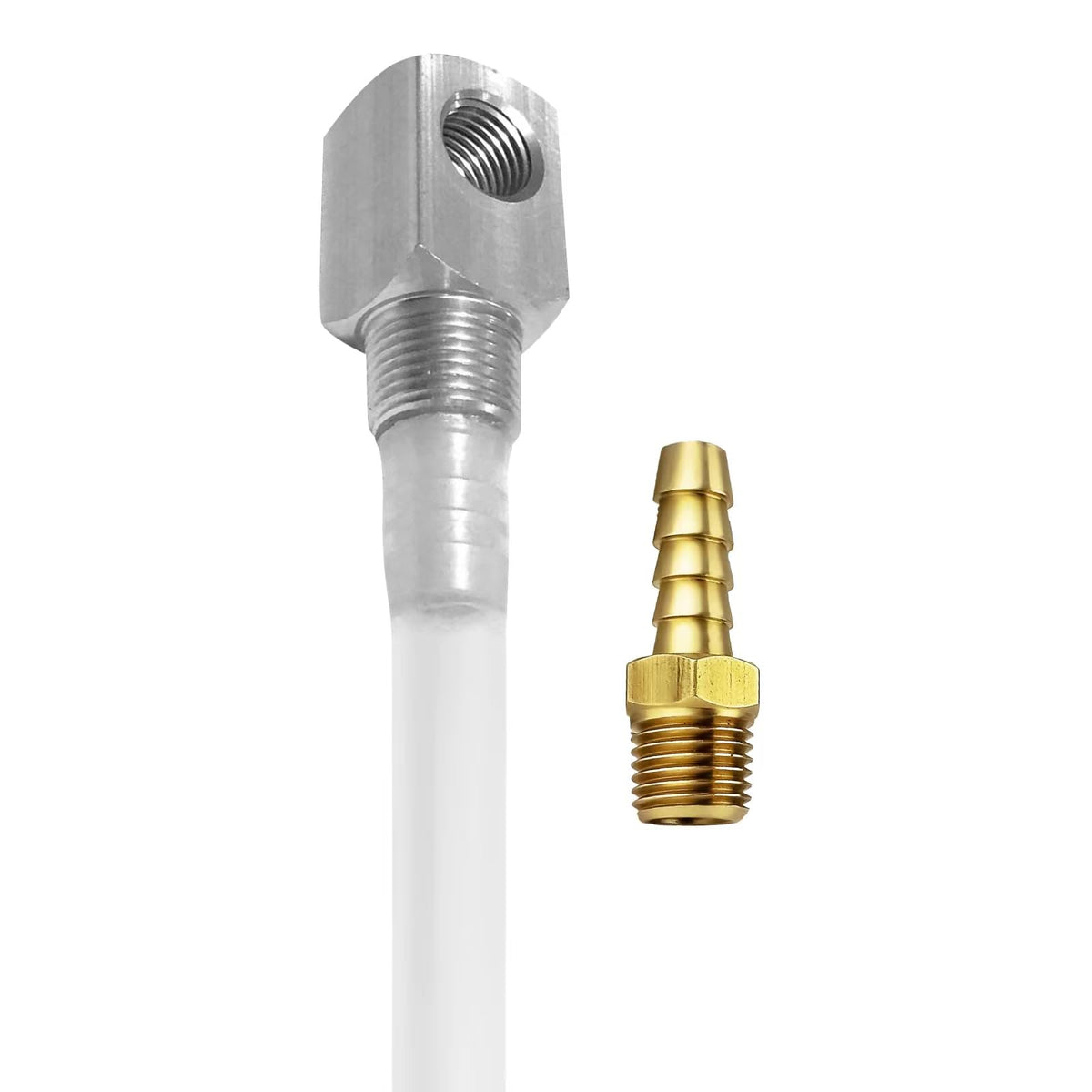

REPLACEMENTKITS.COM 24-inch Marine Fuel Tank Pickup Tube — 24in HDPE with brass barb, 3/8/1/4 NPT

Durable 24-inch universal marine fuel tank pickup tube made from high-density polyethylene with multiple NPT thread options and a brass barb adapter for reliable fuel delivery.

This replacement pickup tube from REPLACEMENTKITS.COM is built to fit a wide range of small boat fuel tanks and to tolerate modern ethanol blends like E10 and E85. Designed as a direct aftermarket substitute for part number 7-0948, the tube combines corrosion-resistant polyethylene construction with threaded connections that simplify installation and provide a dependable feed for outboards, inboards, and utility engines.

What connections does this pickup tube include and how will it fit my tank?

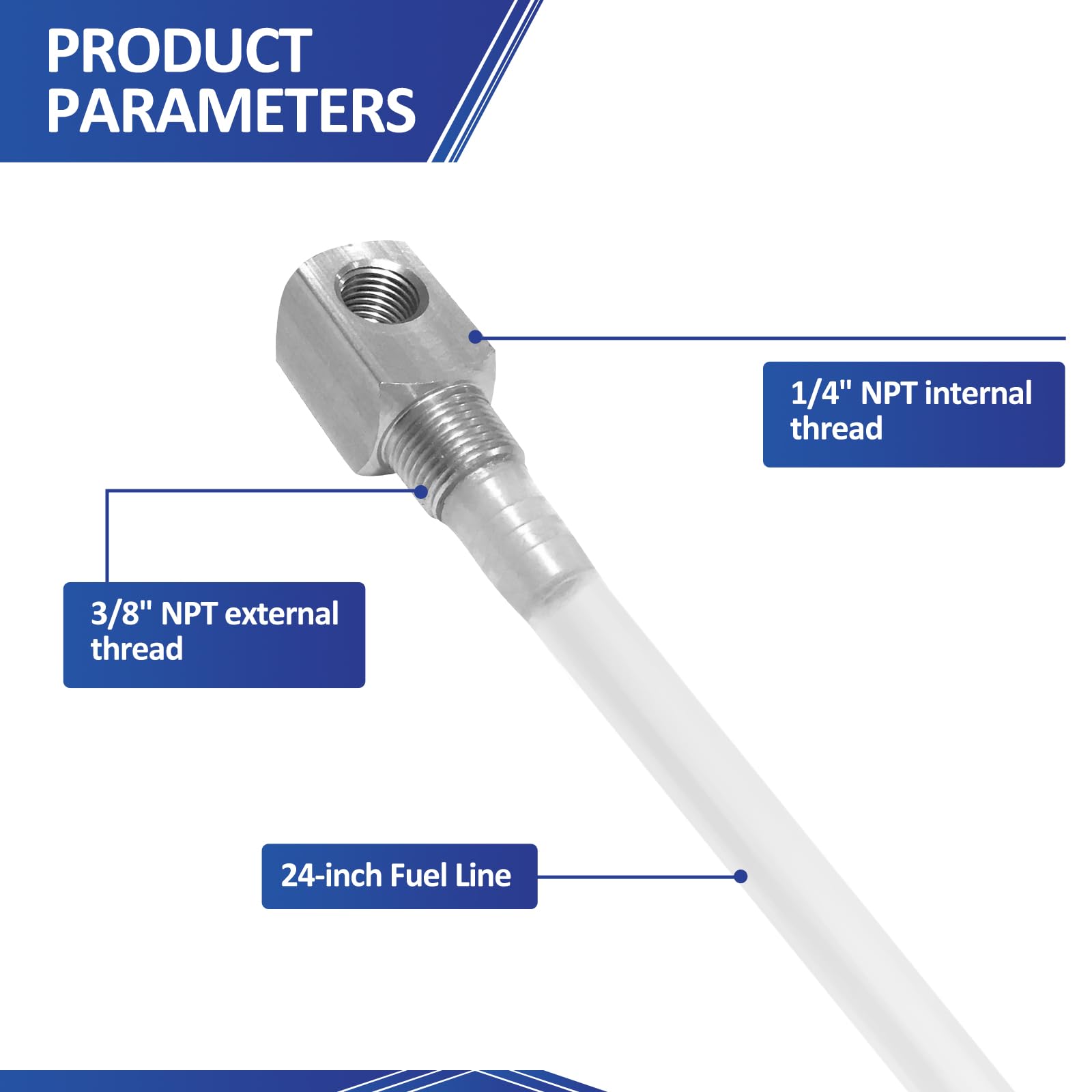

The pickup tube has a 3/8" NPT external thread and a 1/4" NPT internal thread, giving you two common options for attaching to fuel lines and fittings. A brass barb adapter with a 1/8" NPT thread and a 1/4" ID outlet is included to convert between hose sizes and provide a secure barb connection.

• 3/8" NPT external thread for standard tank fittings
• 1/4" NPT internal thread to accept smaller threaded fittings
• Brass barb adapter: 1/8" NPT thread to 1/4" ID hose outlet
• Compatible replacement for OEM part 7-0948

How durable is the tube and will it handle modern fuels like E85?

Manufactured from high-density polyethylene, this pickup tube resists corrosion and chemical breakdown from ethanol-blended fuels. The material choice combined with brass hardware where needed gives both flexibility and long-term durability in marine environments.

• High-density polyethylene resists corrosion and cracking
• Compatible with E10 and E85 fuel blends
• Brass barb minimizes galvanic issues at hose connection
• 24" length provides reach for most tank depths

Is the tube easy to install and what tools or parts will I need?

Installation is straightforward for anyone familiar with basic fuel system connections. The dual-thread design and included brass barb reduce the number of additional adapters you’ll require; use plumber’s tape or a fuel-rated sealant on threads and clamp the hose securely to the barb.

• Hand-tighten then secure with appropriate thread sealant
• Hose clamps recommended for the 1/4" ID hose on barb
• No special tools beyond standard wrenches and clamps
• Fits many existing tank ports that accept 3/8" or 1/4" NPT

What sizes and measurements should I check before ordering?

Confirm the tank port thread and hose inner diameter before purchase to ensure compatibility. Measure the distance from the tank port to the bottom of the tank to verify the 24" length will reach the pickup area without excess slack.

• Tube length: 24 inches (recommended for many small boat tanks)
• External thread: 3/8" NPT; internal thread: 1/4" NPT
• Brass barb outlet: 1/4" ID hose fit, 1/8" NPT thread
• Replacement for OEM part number 7-0948

Who is this for: The REPLACEMENTKITS.COM Universal 24" Marine Fuel Tank Pickup Tube is aimed at boat owners, marine mechanics, and DIYers who need a reliable, ethanol-resistant replacement pickup. It’s ideal when you want a hassle-free installation, versatile thread options, and a durable material that stands up to marine conditions and modern fuel blends.
