Lichamp R410A Liquid Vaporizer Low-Side Charger — 1/4in Fittings, Fast Controlled Vapor Charging

The Lichamp HVAC R410A Liquid Vaporizer Low Side Charger converts liquid R410A into gas for faster, controlled charging through 1/4in fittings.

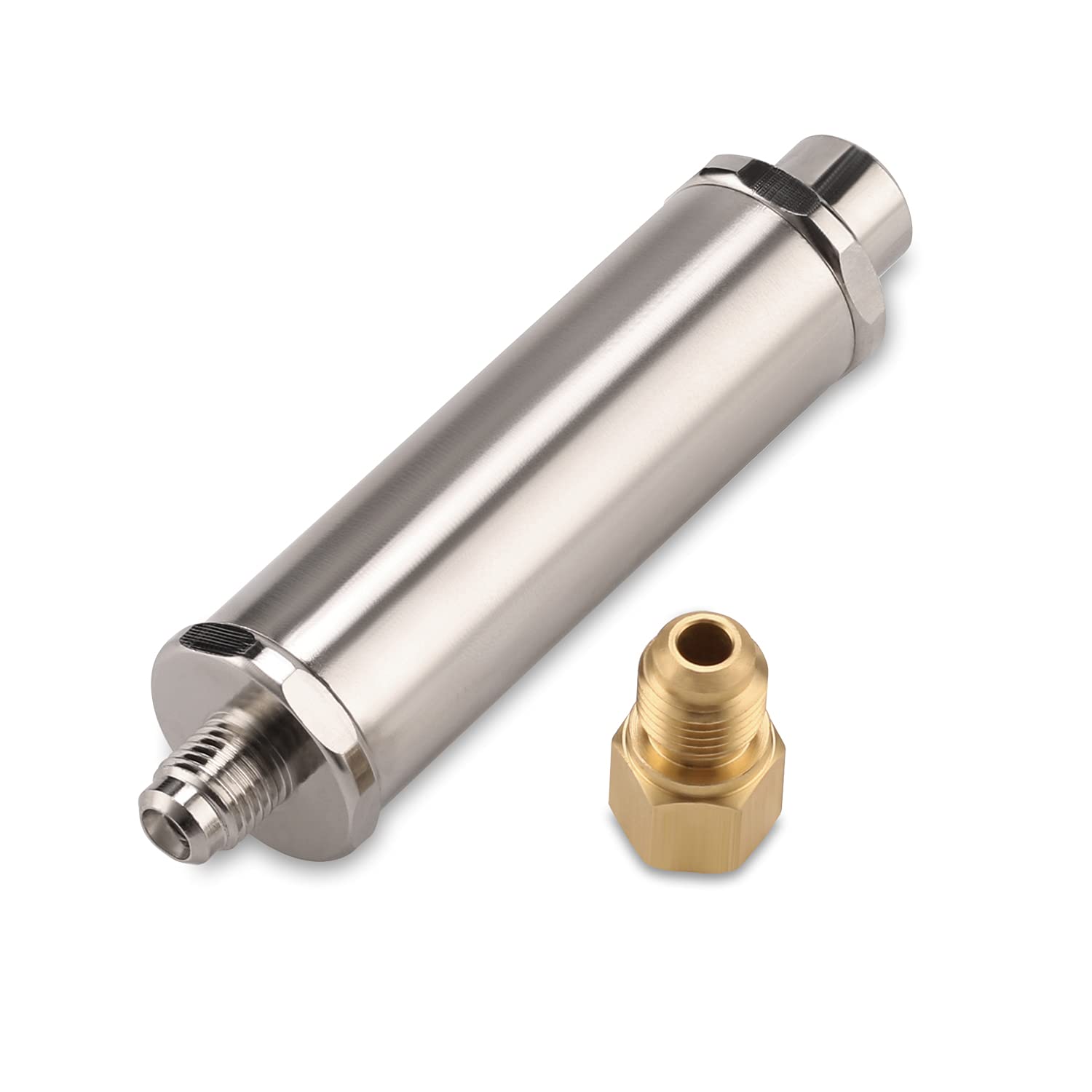

This compact low-side vaporizer is built to speed up refrigerant charging on R410A systems by evaporating liquid refrigerant as it enters the low (blue) side service port. Designed for technicians who need reliable, repeatable charging without pre-heating cylinders, the unit attaches to 1/4in fittings, uses an internal pressure orifice to vaporize liquid, and includes an automatic check valve for safe operation and vacuum performance.

What does the Lichamp vaporizer do and how does it improve charging?

It turns liquid R410A into vapor at the low-side connection so refrigerant is introduced in gaseous form, avoiding liquid slugging and improving metering accuracy. This results in quicker evaporation compared with simple slow liquid charging and reduces the time spent waiting for cylinders to warm.

• Converts liquid R410A to gas through a pressure orifice for controlled release.

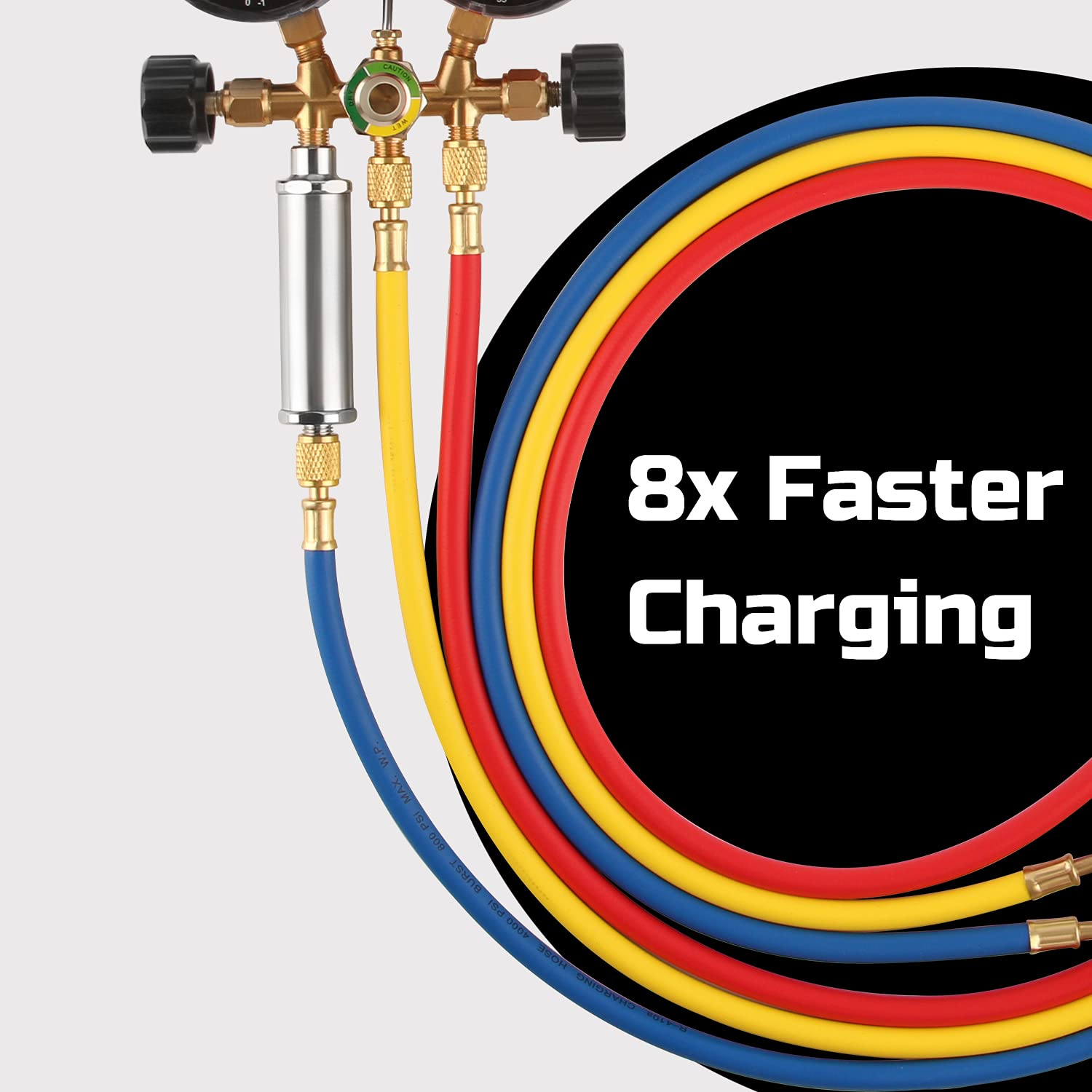

• Speeds up charge times compared to direct liquid injection methods.
• Minimizes pressure swings in the cylinder by allowing direct charging without pre-heating.

How do I install and operate the vaporizer on my HVAC system?

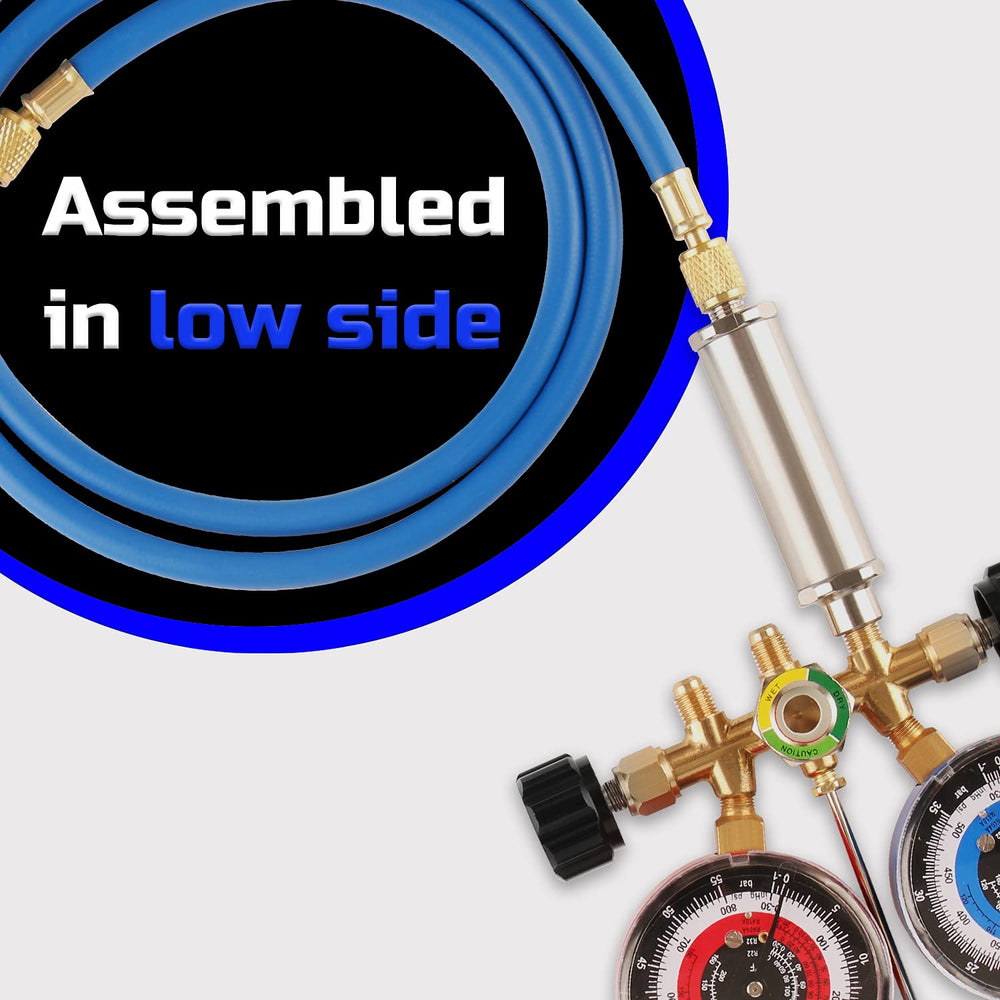

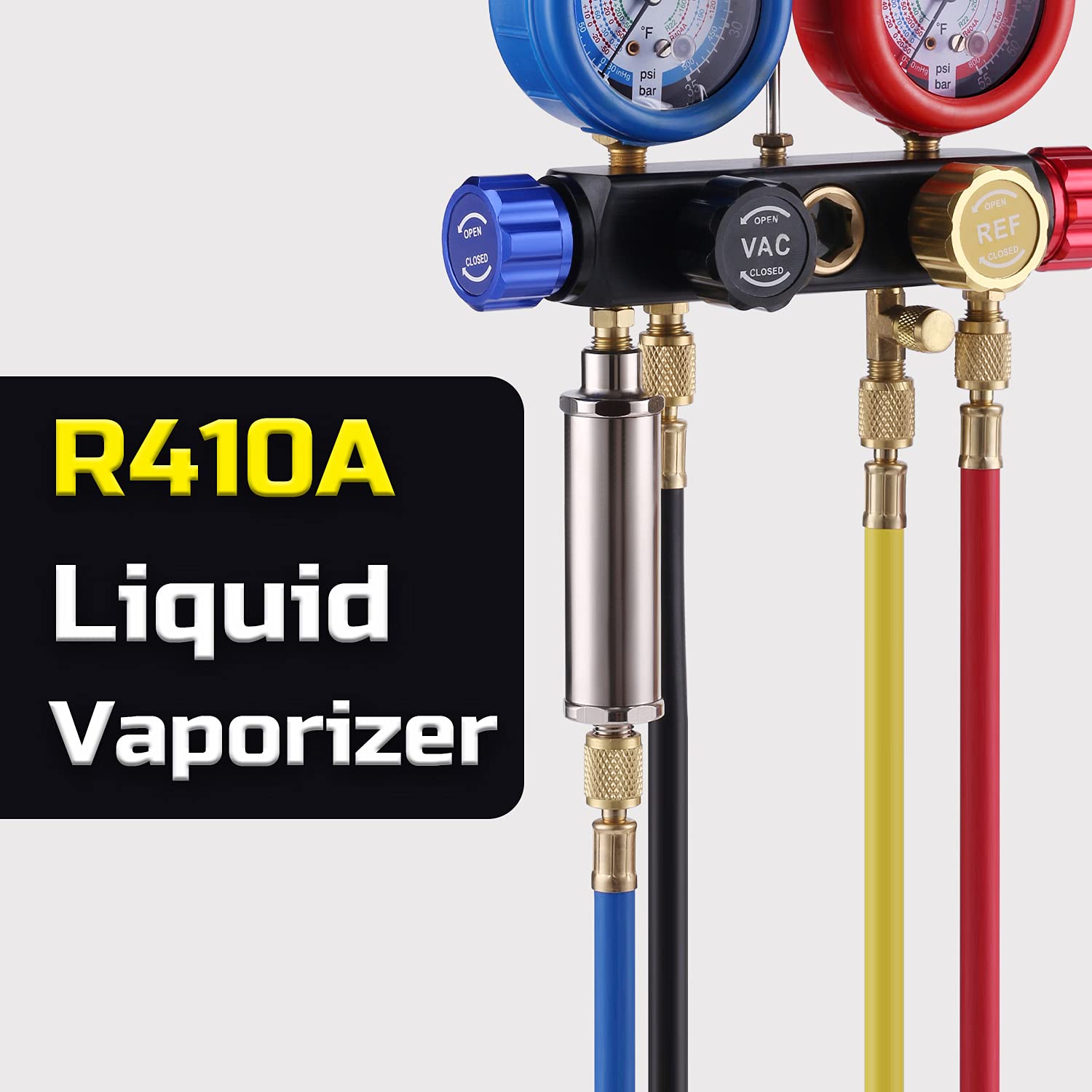

Installation is straightforward: connect the vaporizer to the low-side (blue) service port using the 1/4in fittings, purge lines and an inverted refrigerant bottle above the gauge, then sequence valves to begin charging. The device contains a check valve that assists in holding a vacuum and prevents backflow during operation.

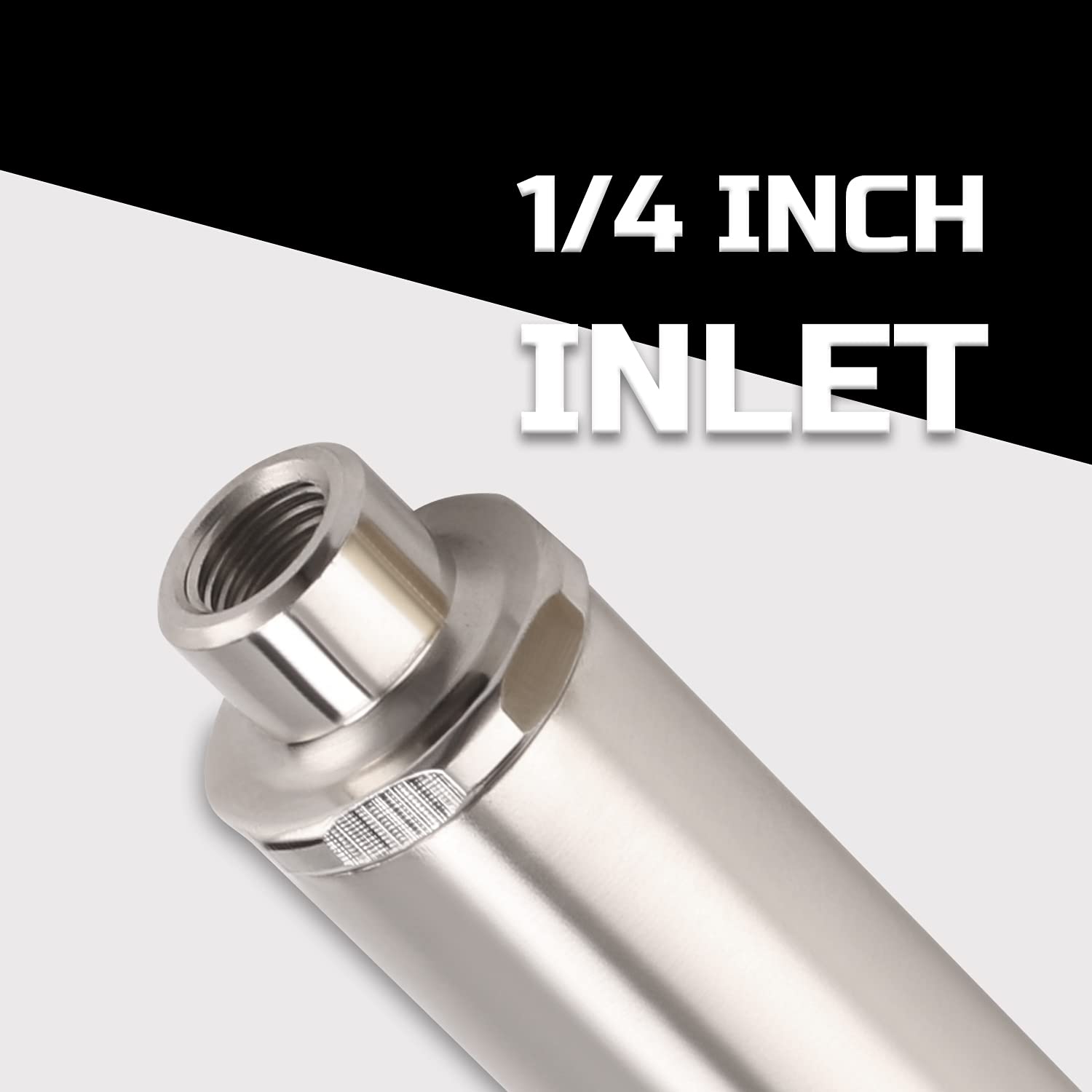

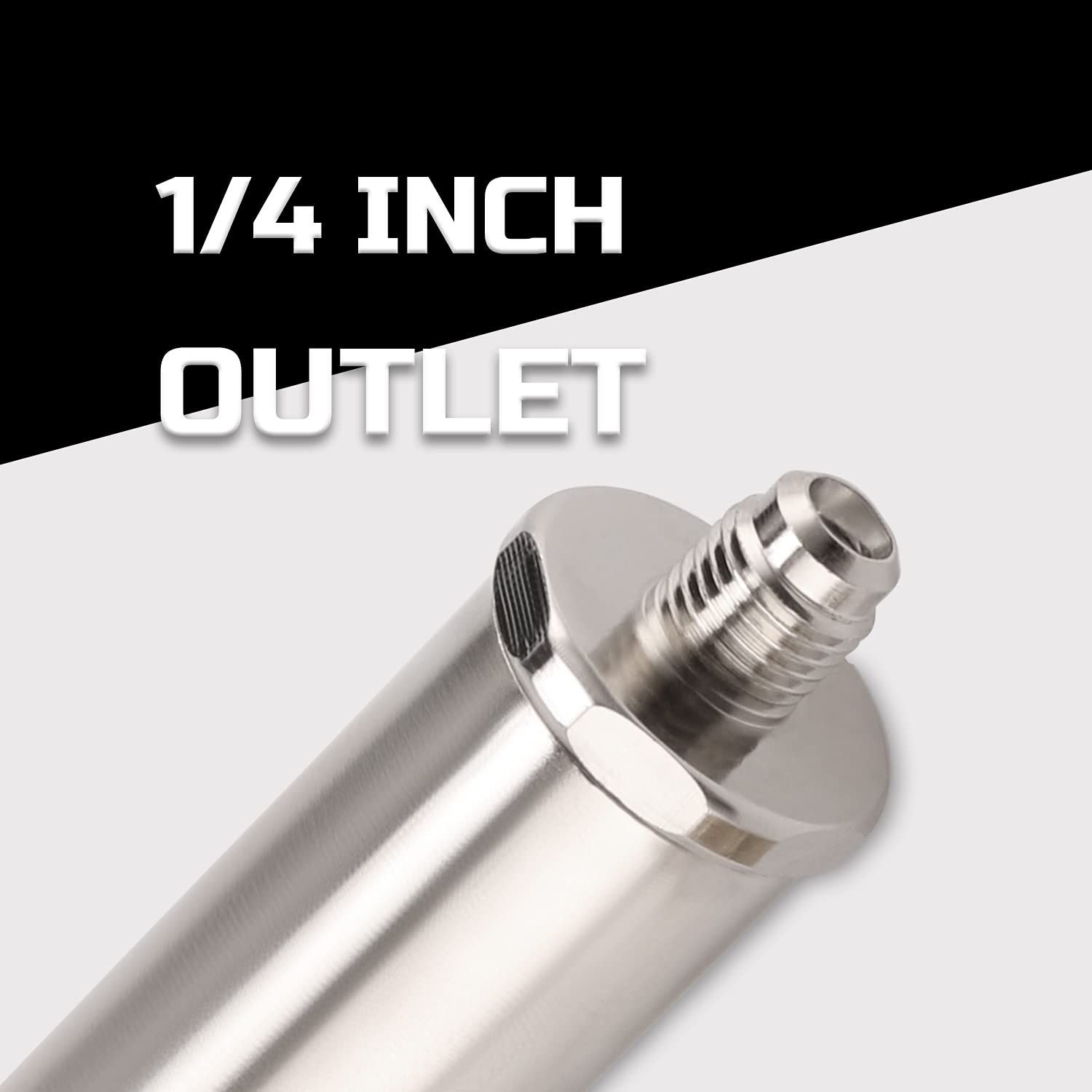

• Attach unit to low (blue) gauge hose and 1/4in fittings for a secure seal.
• Invert refrigerant bottle above gauge, purge lines, close red valve, open blue valve and tank valve.
• Listen for brief internal rattle from the check valve during operation — normal behavior.

Which systems and cylinder types is this vaporizer compatible with?

The Lichamp vaporizer is intended for R410A refrigerant and is suitable for systems rated at around 1/2 ton and larger. Because it allows direct charging without pre-heating the cylinder, it works with standard R410A cylinders where pressure balance is maintained during vaporization.

• Optimized for R410A refrigerant only; do not use with incompatible refrigerants.
• Meets charging needs for systems 1/2 ton and up, including residential and light commercial units.
• Designed to connect to typical 1/4in service hose fittings used by HVAC techs.

What maintenance, limitations, and safety notes should I expect?

The vaporizer is low-maintenance but requires routine inspection of fittings, hoses and the check valve for wear or leaks. Avoid misuse such as using the unit with wrong refrigerants, and follow standard refrigerant-handling safeguards including PPE, leak testing, and local regulations for refrigerant transfer.

• Check O-rings, 1/4in fittings and hoses periodically and replace if worn.
• Expect the check valve to produce a rattle sound during runtime — this is normal.
• Never use with refrigerants other than R410A; follow safety and environmental rules.

Who is this for: HVAC technicians, service contractors, and experienced DIYers who handle R410A systems and need a faster, controlled method to introduce refrigerant while avoiding cylinder pre-heating and unnecessary downtime. Ideal for field service calls, routine maintenance, and situations where precise, vapor-phase charging on the low side improves system performance and reduces charge time.
