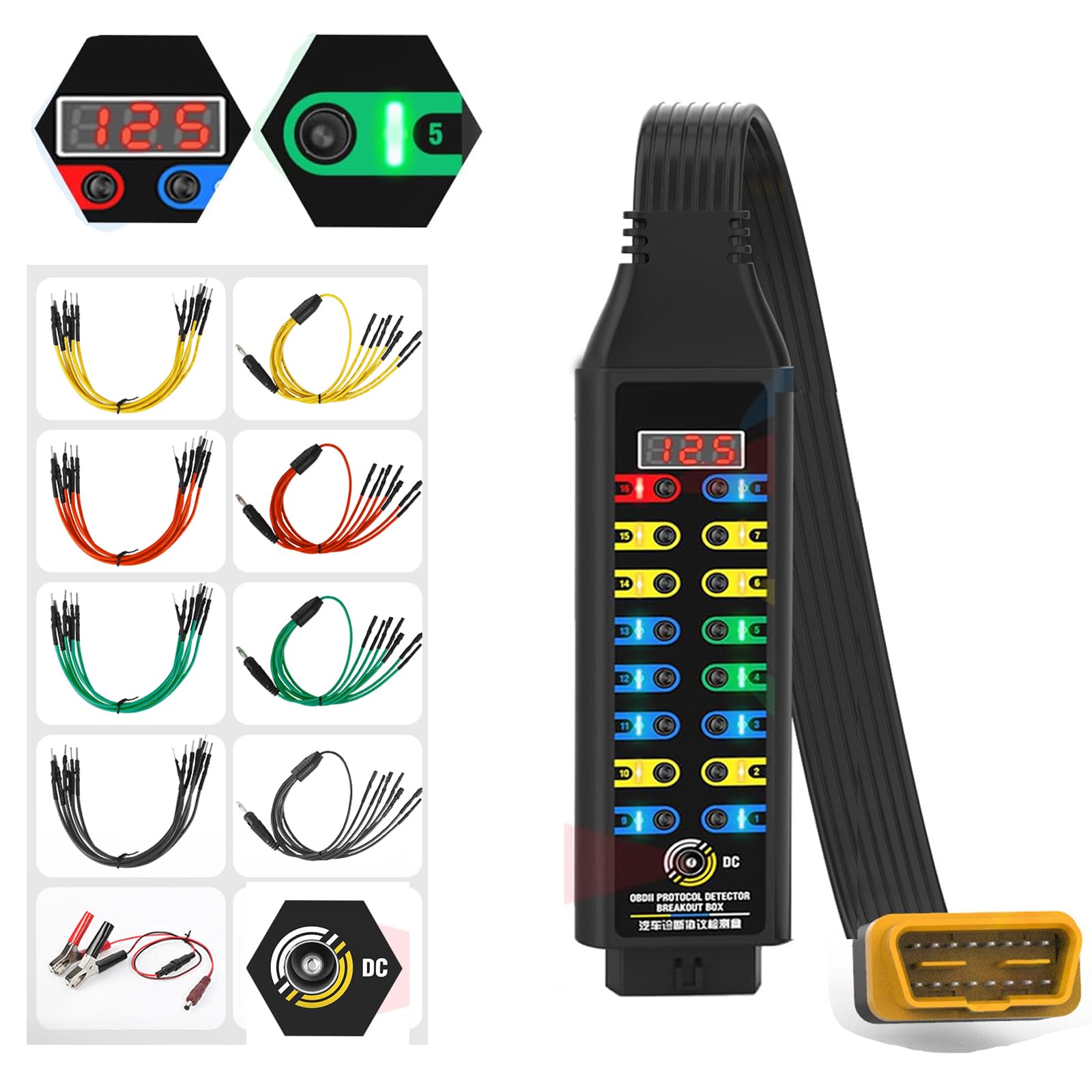

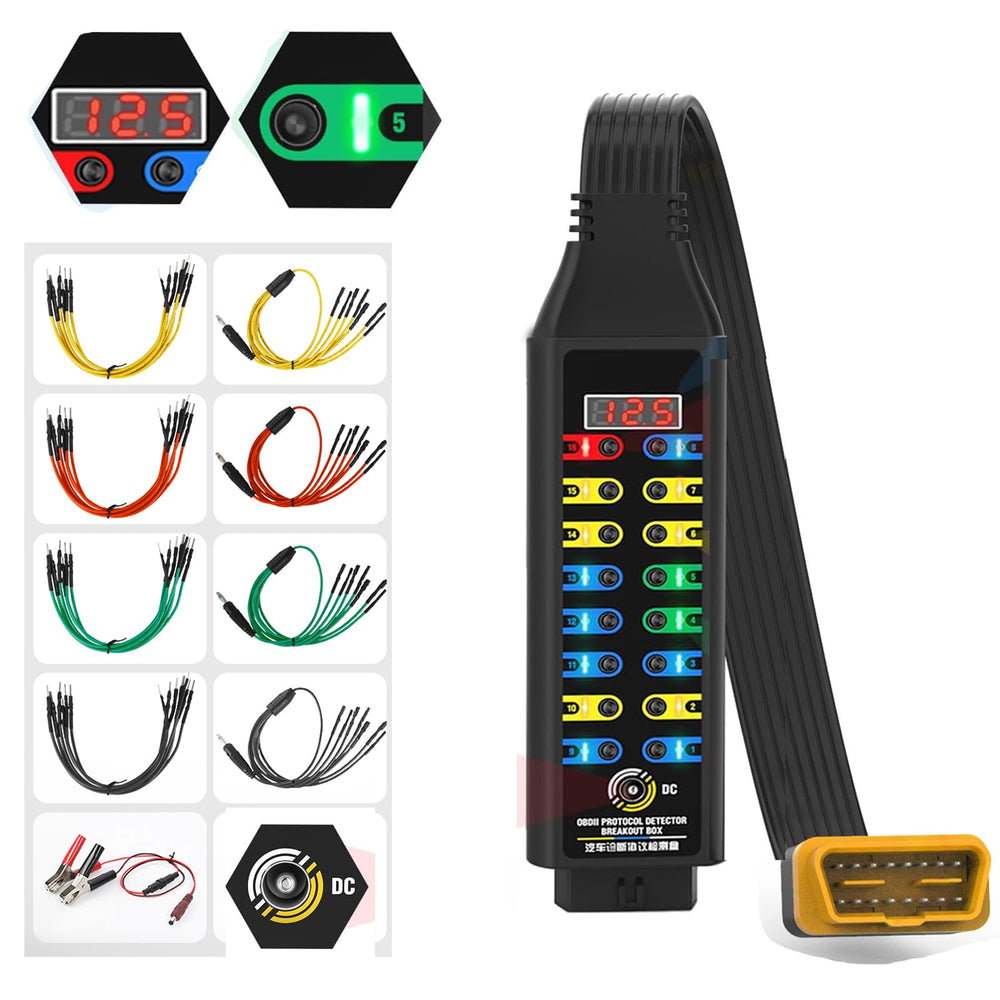

LUTIFIX OBD2 Breakout Box 16-pin with Voltage Display & LED Indicators — Pin Access for CAN/K-line Diagnostics

The LUTIFIX OBD2 Breakout Box is a 16-pin diagnostic adapter that reveals power, ground and communication signals while showing live voltage and connection status with LED indicators.

Designed for mechanics, technicians and advanced DIYers, this OBDII breakout adapter makes it easy to inspect the vehicle’s port wiring and live signals without guessing. It sits between a car’s OBDII connector and diagnostic tool to expose individual pins, monitor voltage, and identify communication lines such as CAN and K-line. The built-in three-color LEDs and numerical voltage readout speed up troubleshooting and reduce the risk of interrupted diagnostics caused by loose connections.

How does this breakout box help find wiring or power faults?

By giving direct access to each of the 16 OBDII pins, the LUTIFIX breakout box lets you measure supply voltage, ground integrity and signal presence at the port. This makes it simple to spot blown fuses, poor grounds or intermittent power that would otherwise disrupt scanners or modules.

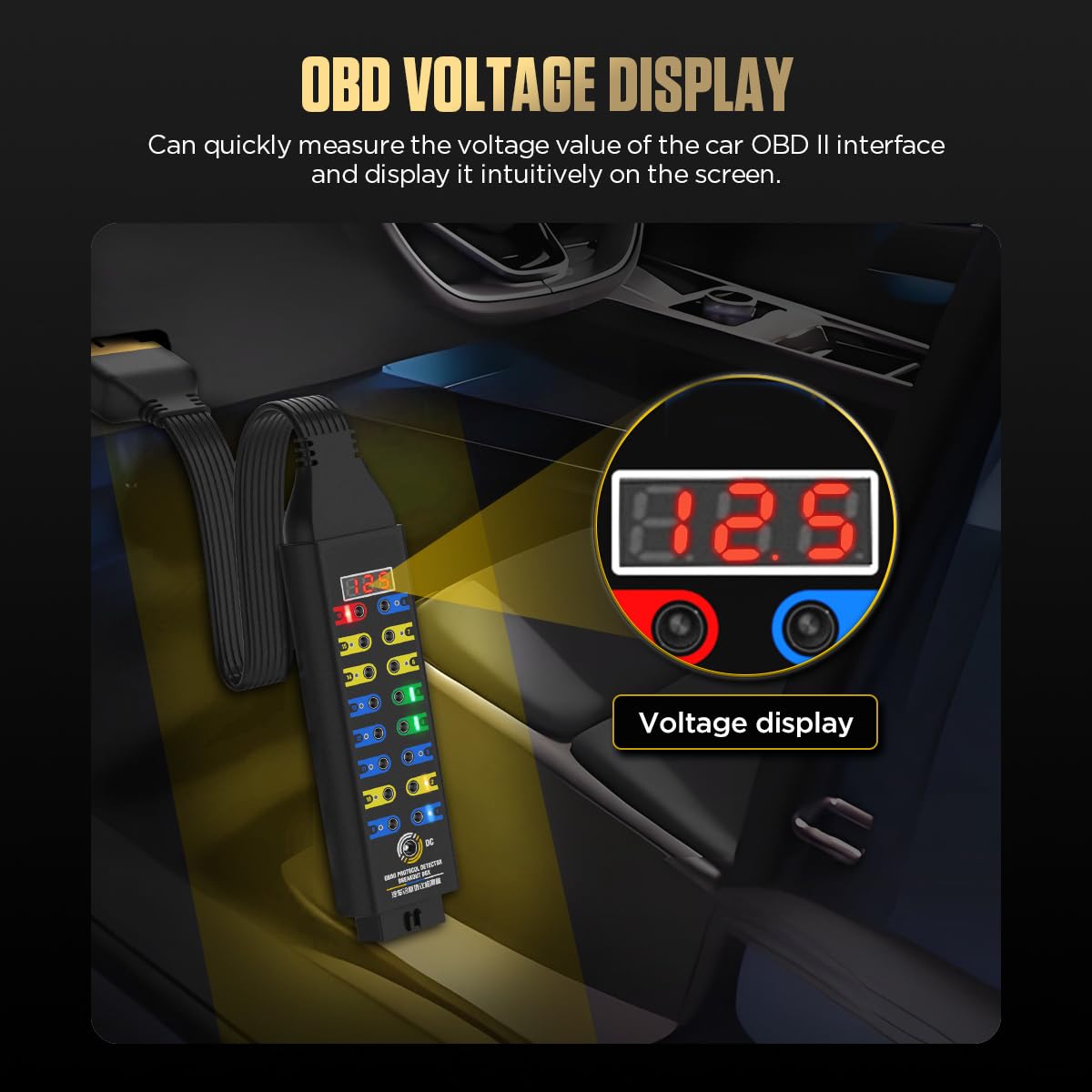

• Numeric voltage display shows real-time battery and bus voltage for fast checks.

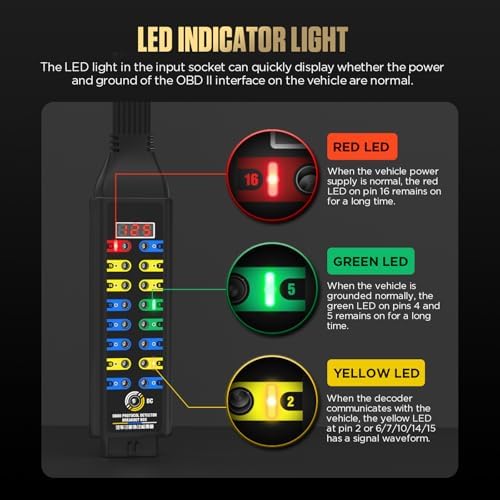

• Three-color LEDs indicate power, ground and communication status at a glance.
• Individual pin access allows multimeter or oscilloscope probes without back-probing the harness.

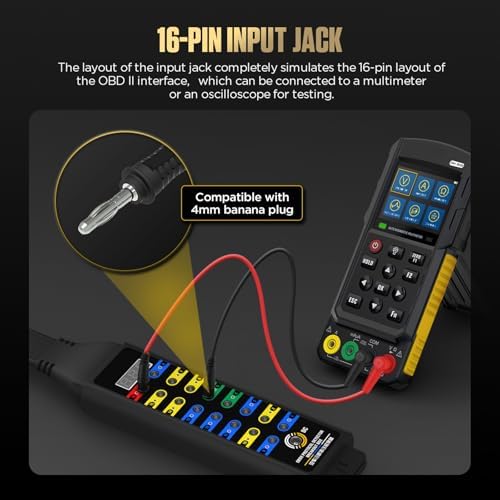

Can I use it with my scanner, oscilloscope or multimeter?

Yes — the LUTIFIX breakout box is built to interface with most common diagnostic tools. Its standardized 16-pin connector preserves two-way communication while providing safe test points for external instruments, so you can capture live waveforms or read codes without modifying the vehicle wiring.

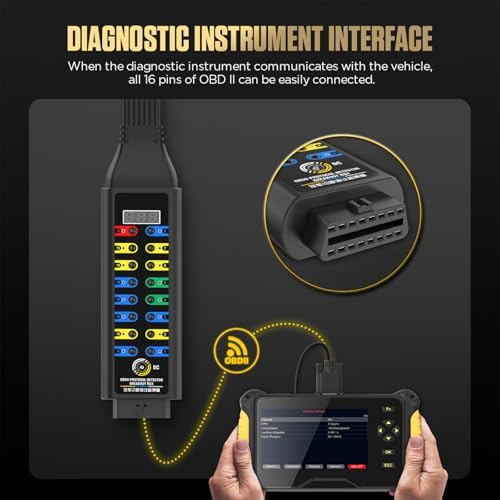

• Compatible with OBDII scanners and code readers for fault retrieval.
• Oscilloscope-friendly pin layout for waveform analysis of CAN or K-line signals.
• Probe-ready terminals for standard multimeter continuity, voltage and resistance tests.

What protocols and vehicles will it work with?

The breakout box supports common OBDII communication methods such as CAN and K-line, making it suitable for most modern gasoline and diesel passenger vehicles that use the standard 16-pin interface. While protocol support covers the mainstream bus types, always verify your vehicle’s OBDII protocol before advanced testing.

• Standard 16-pin OBDII connector fits most cars and light trucks.
• Designed for CAN bus and ISO/K-line communication inspection.
• Works across many manufacturers that adhere to the OBDII pinout standard.

How does the hardware ensure stable diagnostics without data loss?

LUTIFIX engineered the adapter with a reinforced cable and secure transmission path to minimize interruptions while testing. This helps prevent issues like scanner disconnections or spurious error states that can occur when devices are connected poorly during live communication.

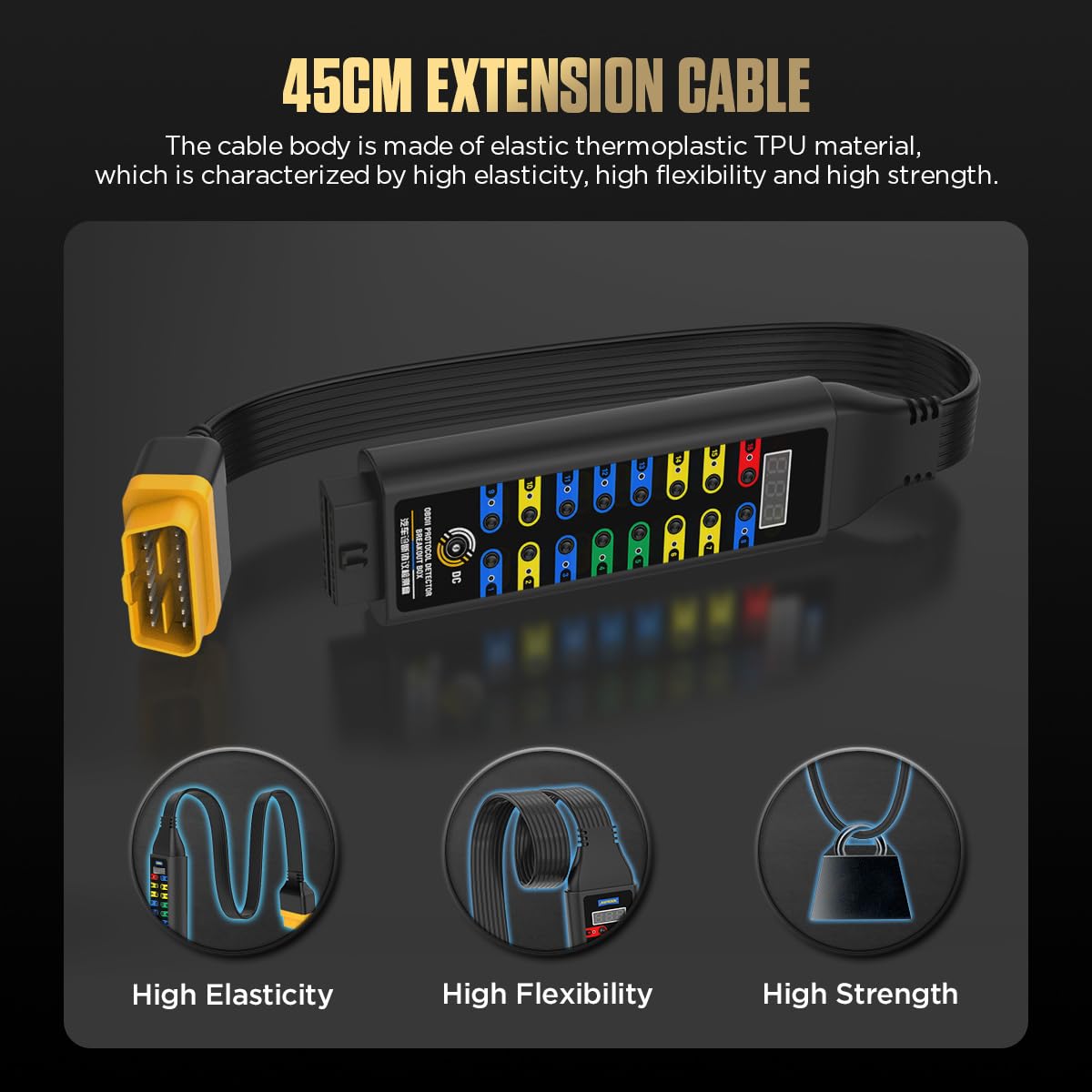

• 17.7-inch reinforced extension cable adds flexibility and strain relief.
• Secure connector design reduces contact loss during waveform capture or scans.
• Four-color jumper leads organize routing for repeatable, safe measurements.

Who is this for: This breakout box is aimed at professional technicians, automotive electrical specialists and knowledgeable hobbyists who need reliable access to OBDII pins for troubleshooting, waveform analysis or workshop diagnostics. If you routinely use scanners, oscilloscopes or multimeters for vehicle electrical testing and want clearer visibility into port power and communication, the LUTIFIX OBD2 Breakout Box gives practical, tool-friendly access to the signals you need.
