nibbi PZ19 19mm Carburetor Kit for 50-125cc ATVs & Pit Bikes — Includes Extra Jets, Easy Tuning

The NIBBI PZ19 is a 19mm replacement carburetor kit designed to fit 50cc–125cc ATVs, pit bikes and mini bikes for reliable fuel delivery and easier tuning.

If your small-displacement motorcycle or ATV needs a straightforward, serviceable carburetor, this PZ19 kit offers a compact 19mm intake, multiple jets, and a simple design that makes cleaning and adjustment easy. It’s built to match common mini-bike and Chinese-brand engines, and comes with extra jets so you can tune air-fuel mixture for different conditions or setups.

Will this carburetor fit my engine?

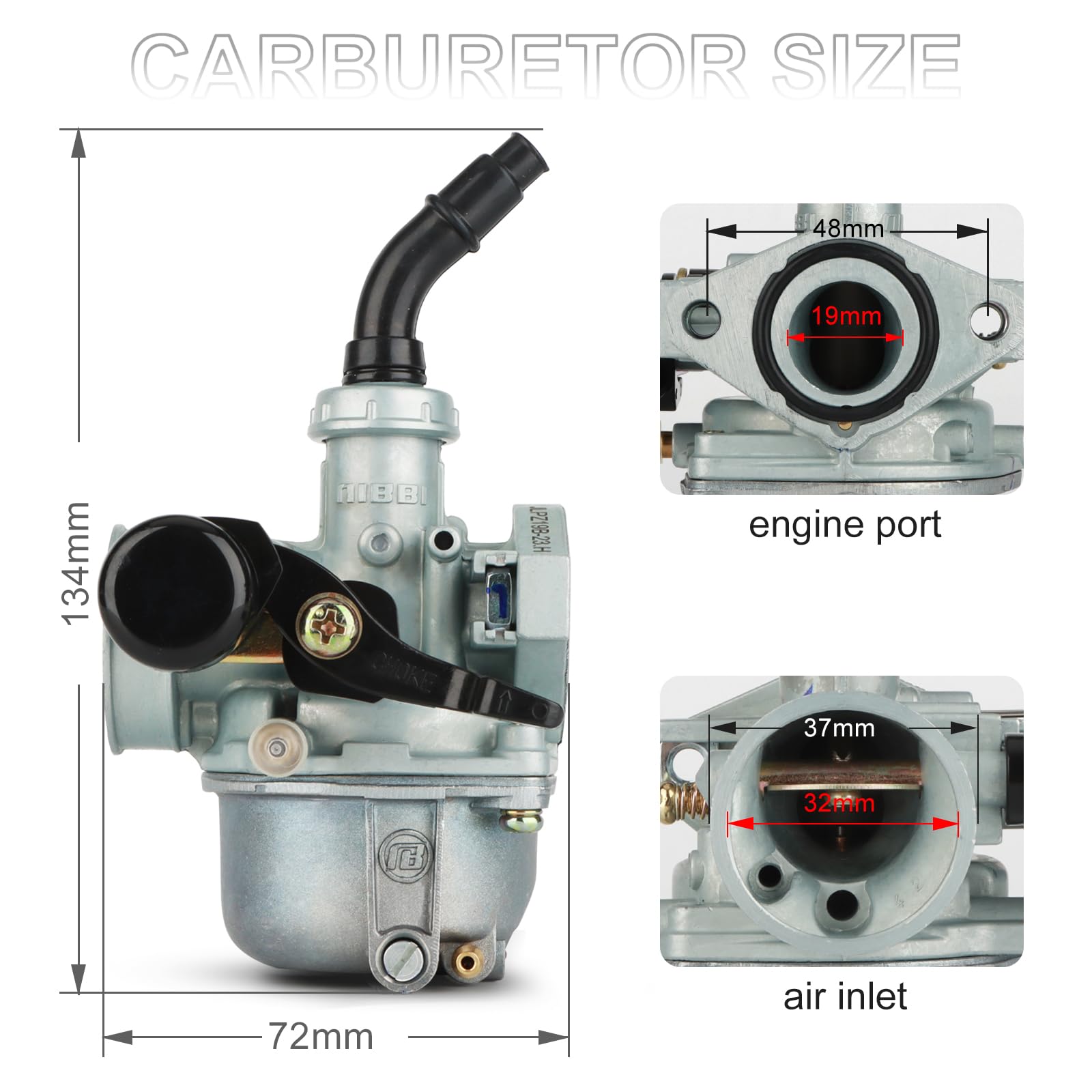

The PZ19 is intended for a wide range of 50cc–125cc engines used in pit bikes, dirt bikes, and ATVs. Key dimensions to check are the 19mm intake bore and the 48mm bolt-hole center spacing. Measure your intake flange and bolt pattern to confirm compatibility before installing.

• Intake bore: 19mm (0.75")
• Bolt spacing: 48mm (center to center)
• Overall height: 134mm (5.28")
• Designed for: 50cc, 70cc, 90cc, 110cc, 125cc small engines

How do I tune and maintain the NIBBI PZ19?

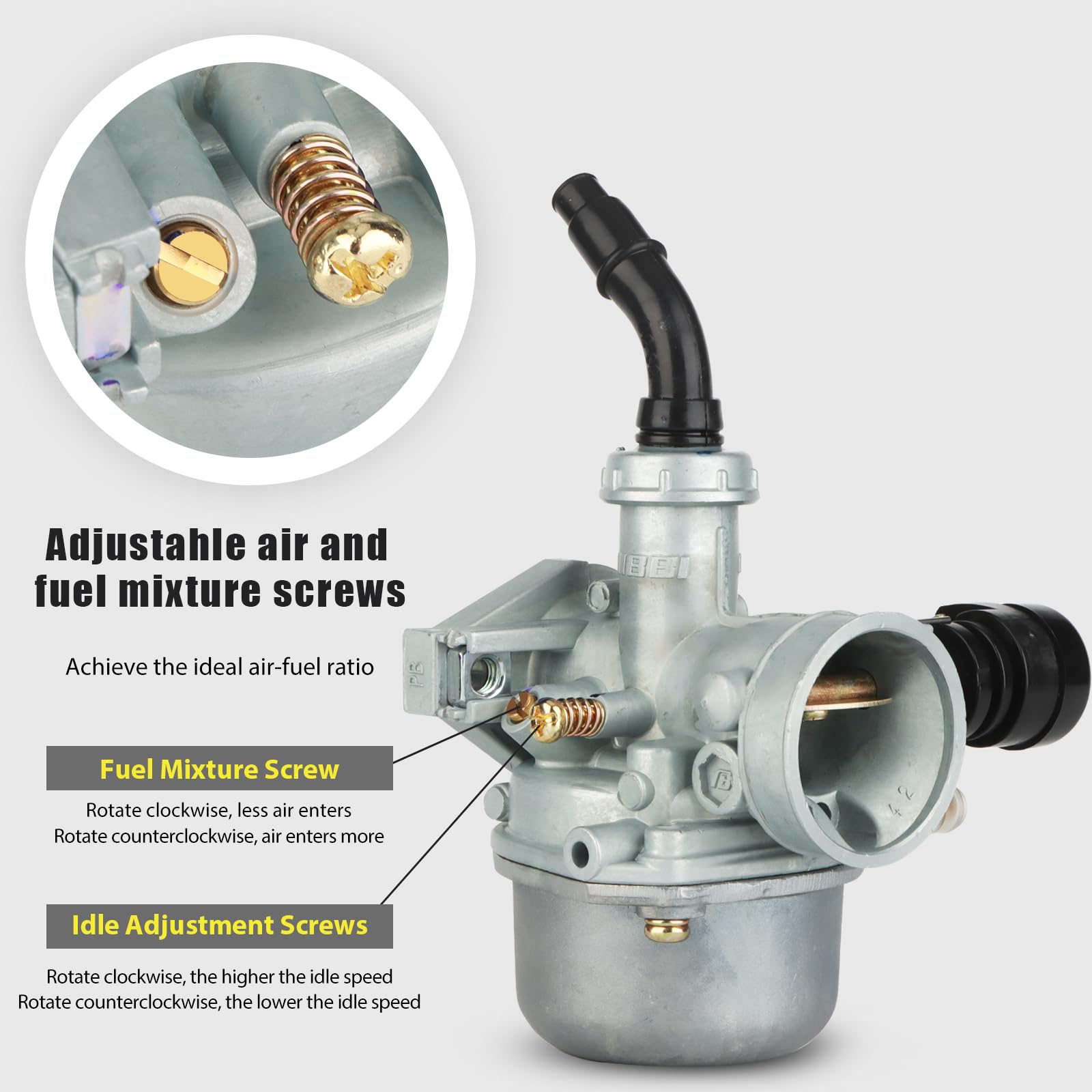

Because the PZ19 uses a basic, tried-and-true design, routine maintenance and jet swaps are straightforward. Start with the included stock jets, then fine-tune main and pilot jets based on altitude, temperature and aftermarket exhaust or intake changes. Regular cleaning of the float bowl and needle valve prevents common blockages.

• Included jets: main #75 and pilot #35 (plus extra #70, #72, #78, #32)
• Recommended: inspect and clean float needle and passages
• Tuning tip: try leaner or richer main jets after intake/exhaust mods
• Periodic check: ensure no varnish or debris in fuel passages

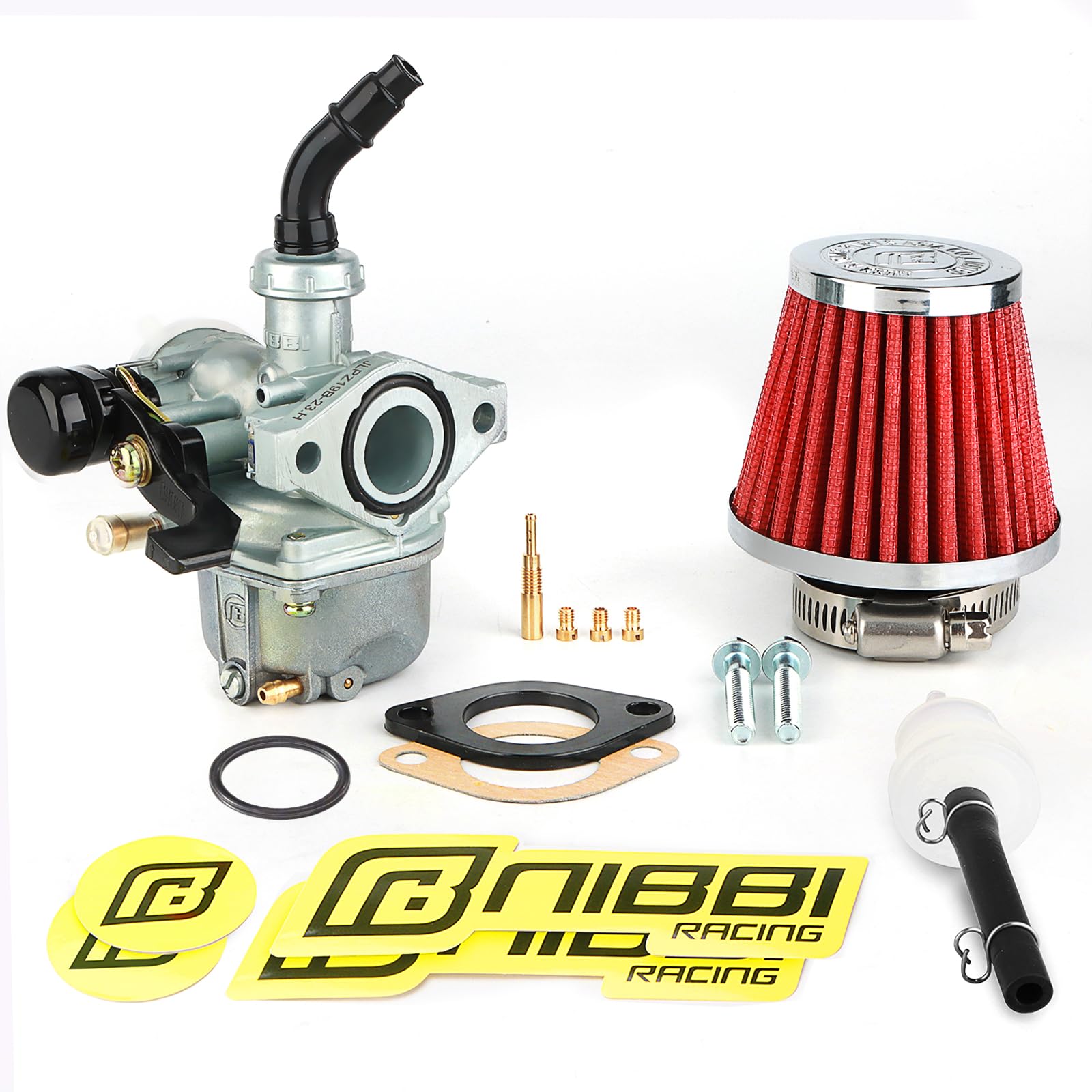

What is included in the kit and why it matters?

This NIBBI package supplies the carburetor assembled with a standard set of jets plus additional sizes to help you dial in performance. The extras let you adapt the carb to different fuels, climates and performance parts without having to order parts separately. The straightforward construction also simplifies teardown for service.

• Carburetor with 19mm intake and float bowl preinstalled
• Main jet: #75 (installed) and spare #70, #72, #78
• Pilot jet: #35 (installed) plus spare #32
• User note: clean if performance is uneven—fuel or dirt can block the float or needle

How do I troubleshoot common issues after installation?

Many problems are resolved by simple cleaning and jet adjustments. If the engine runs poorly, first check for clogs in the float chamber and needle valve, then try a different main or pilot jet. If dimensions are mismatched, the carburetor may not seal correctly—verify bolt spacing and intake diameter.

• Symptom: hard starting or flooding — inspect float needle and clean bowl
• Symptom: running lean or bogging — test a richer main jet (higher number)
• Symptom: poor fit — confirm 48mm bolt spacing and 19mm intake bore
• Support: contact seller for troubleshooting within 24 hours of issues

Who this is for: Riders, mechanics and hobbyists who own small-displacement ATVs, pit bikes or mini dirt bikes from brands like TaoTao, Coolster, SSR and similar models seeking a low-cost, easy-to-service 19mm carburetor. It’s particularly useful if you want spare jets on hand for altitude or performance tuning, or if you prefer a simple carb that's easy to clean and adjust.
