Nilight 10-Ton Pintle Hitch for 2" Receiver — 20,000 lb Capacity, Forged-Steel with Spring Lock

Nilight’s 10-ton pintle hitch for a 2-inch receiver is a forged-steel heavy-duty tow hook designed to secure lunette-ring trailers up to 20,000 lb with a spring-loaded latch and tethered safety pin.

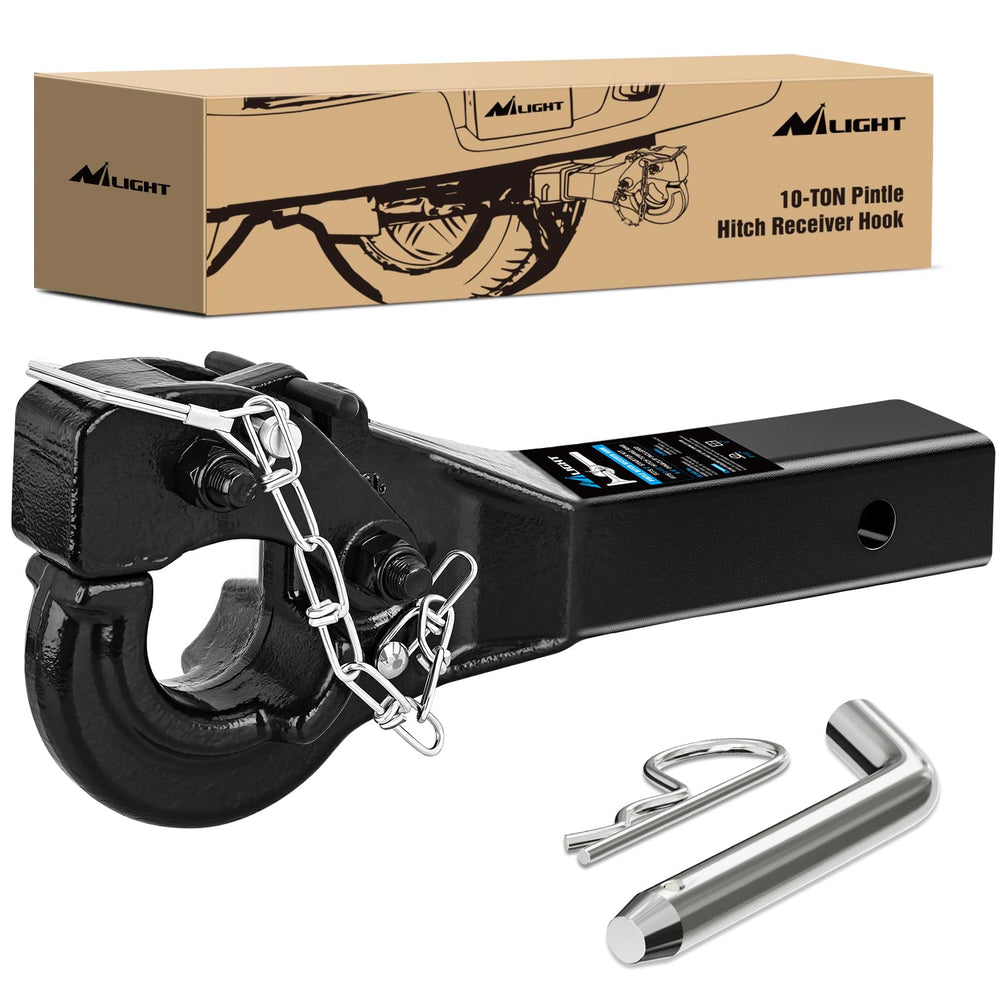

This Nilight pintle hook is built for demanding towing tasks where strength and reliability matter. Constructed from solid forged steel and rated for 10 tons (20,000 lb), it attaches to a standard 2-inch receiver and mates with lunette rings that commonly have a 2-1/2 inch internal diameter. The unit includes a spring-loaded locking arm and a tethered safety pin, delivering a secure connection that’s easy to operate on the job site or on the road.

How does the Nilight pintle hitch ensure a safe, locked connection?

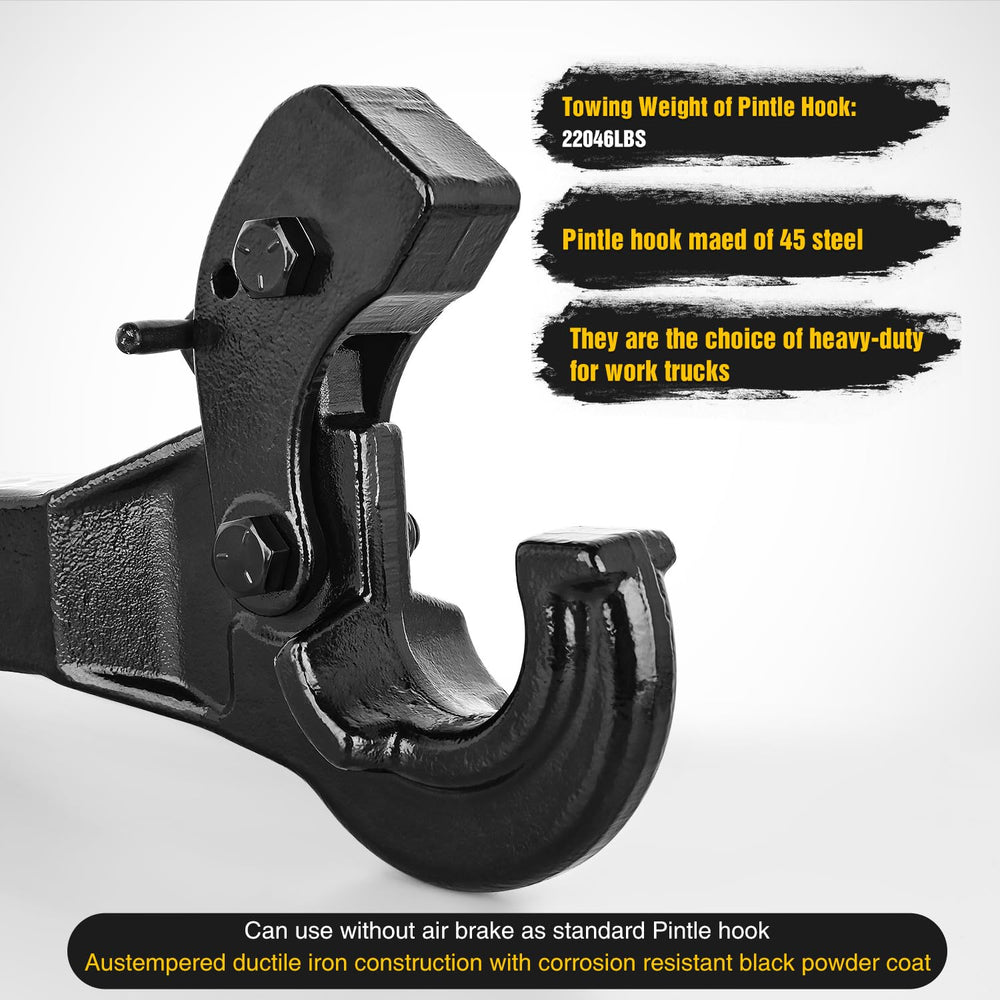

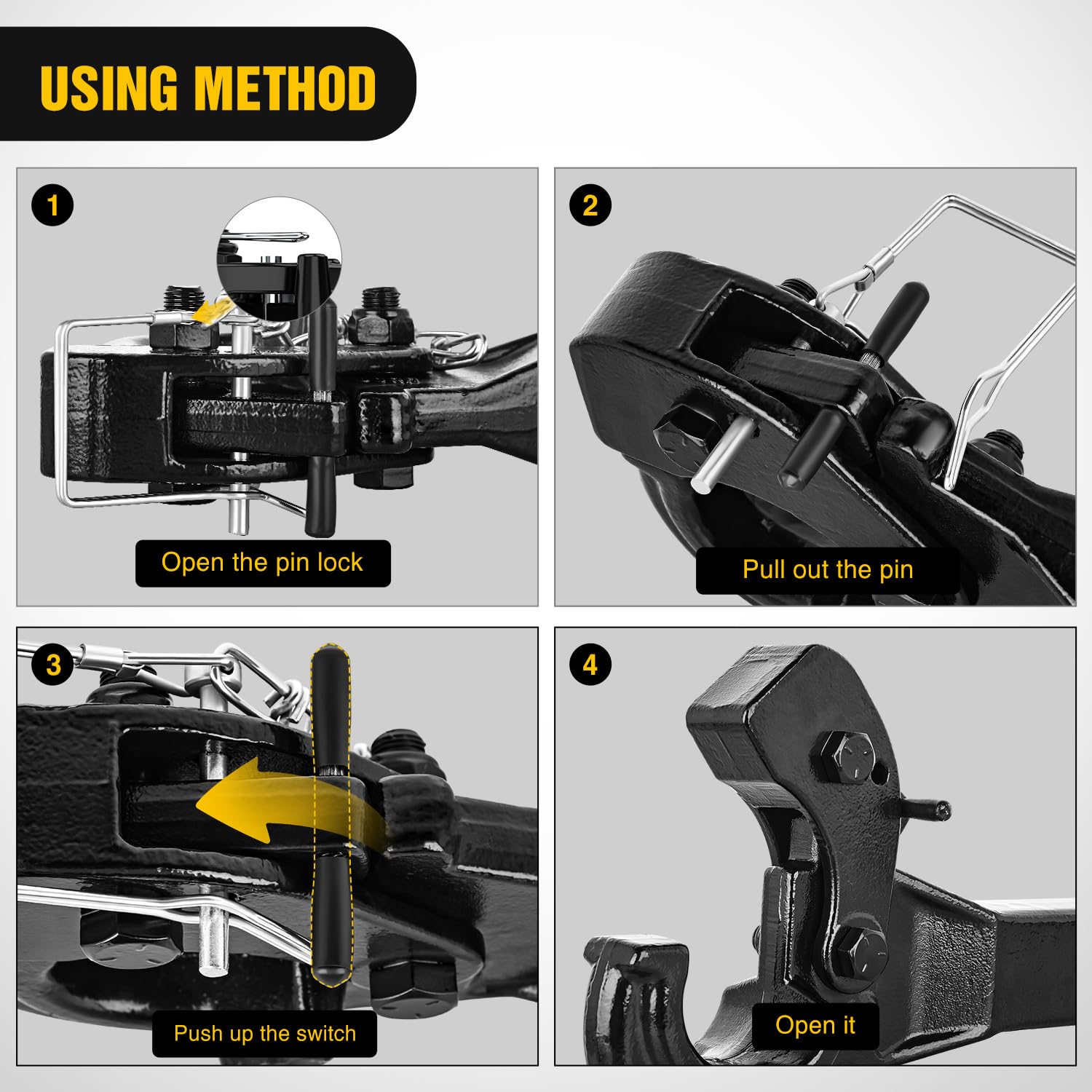

The pintle’s spring-loaded arm locks the lunette ring into the hook and stays closed under load, while the included safety pin provides a second layer of retention. The pin is tethered to the assembly so it won’t be lost during frequent use.

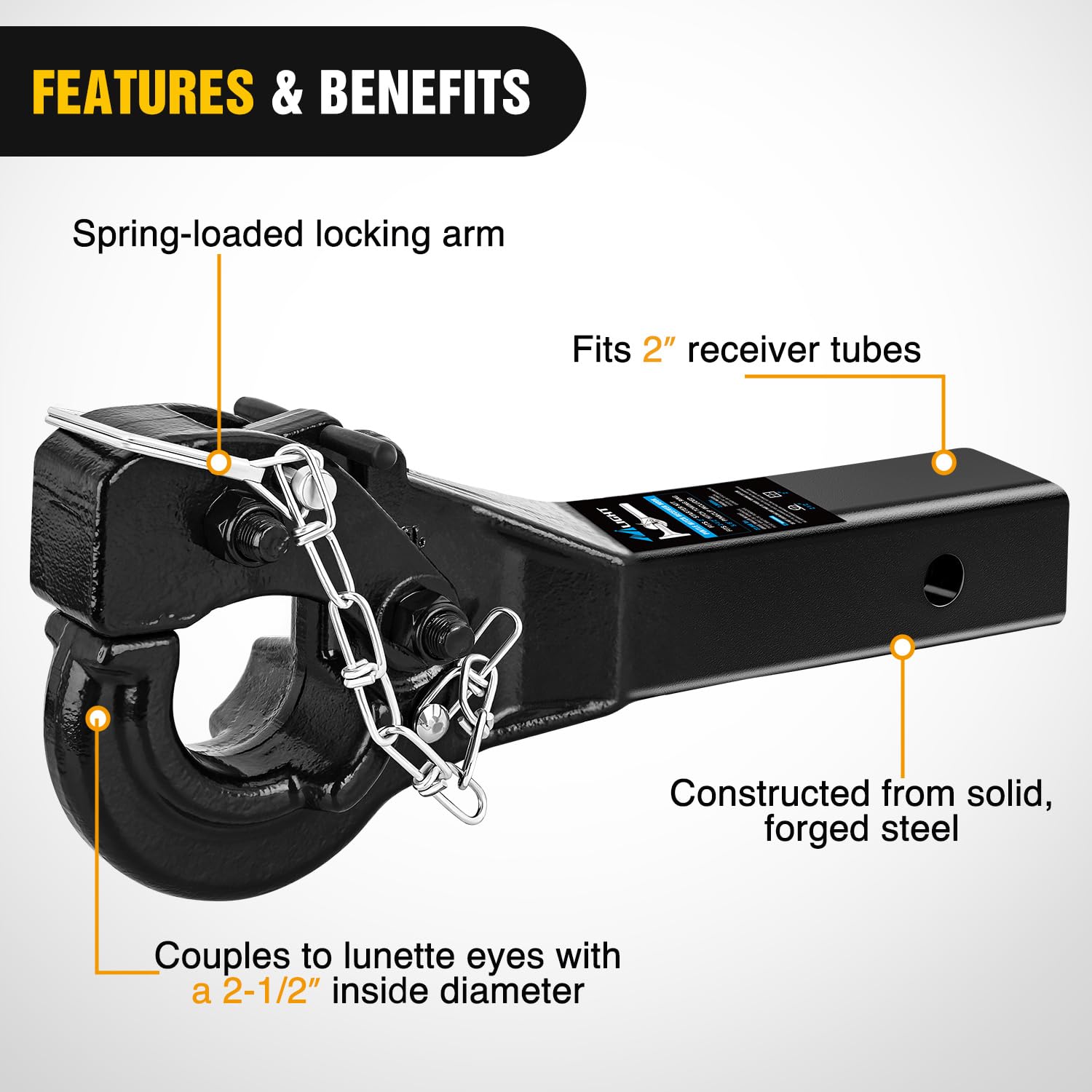

• Spring-loaded locking arm that snaps shut over the hook
• Tethered pin and clip to prevent misplacement

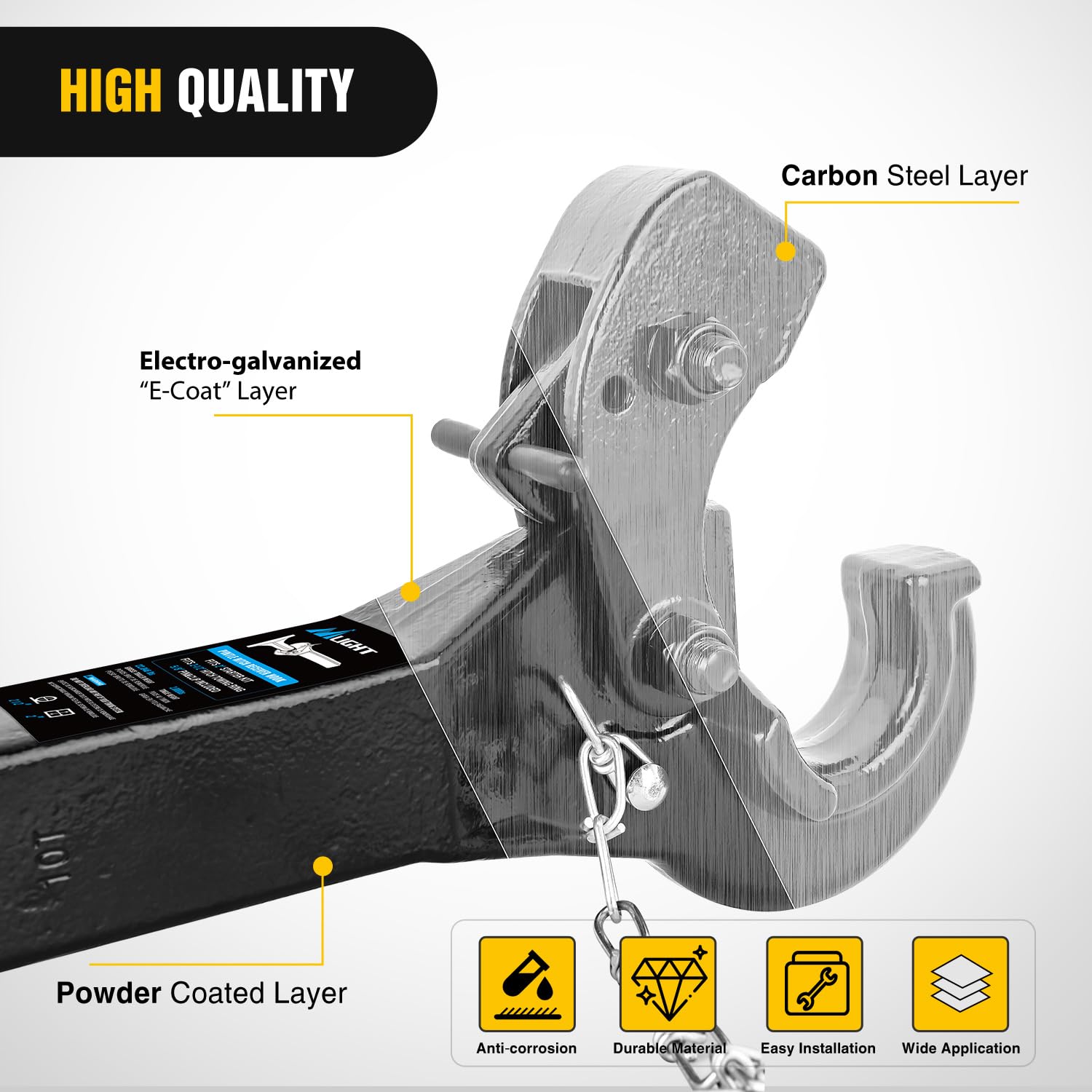

• Forged-steel construction resists deformation under tension

What towing capacity and ring size does this hitch support?

This pintle hitch is rated to tow up to 10 tons (20,000 lb) and is designed to accept lunette rings with an interior diameter of about 2-1/2 inches. It’s intended for heavy trailers used in construction, agriculture, military, and other demanding industries.

• 10-ton (20,000 lb) maximum towing rating

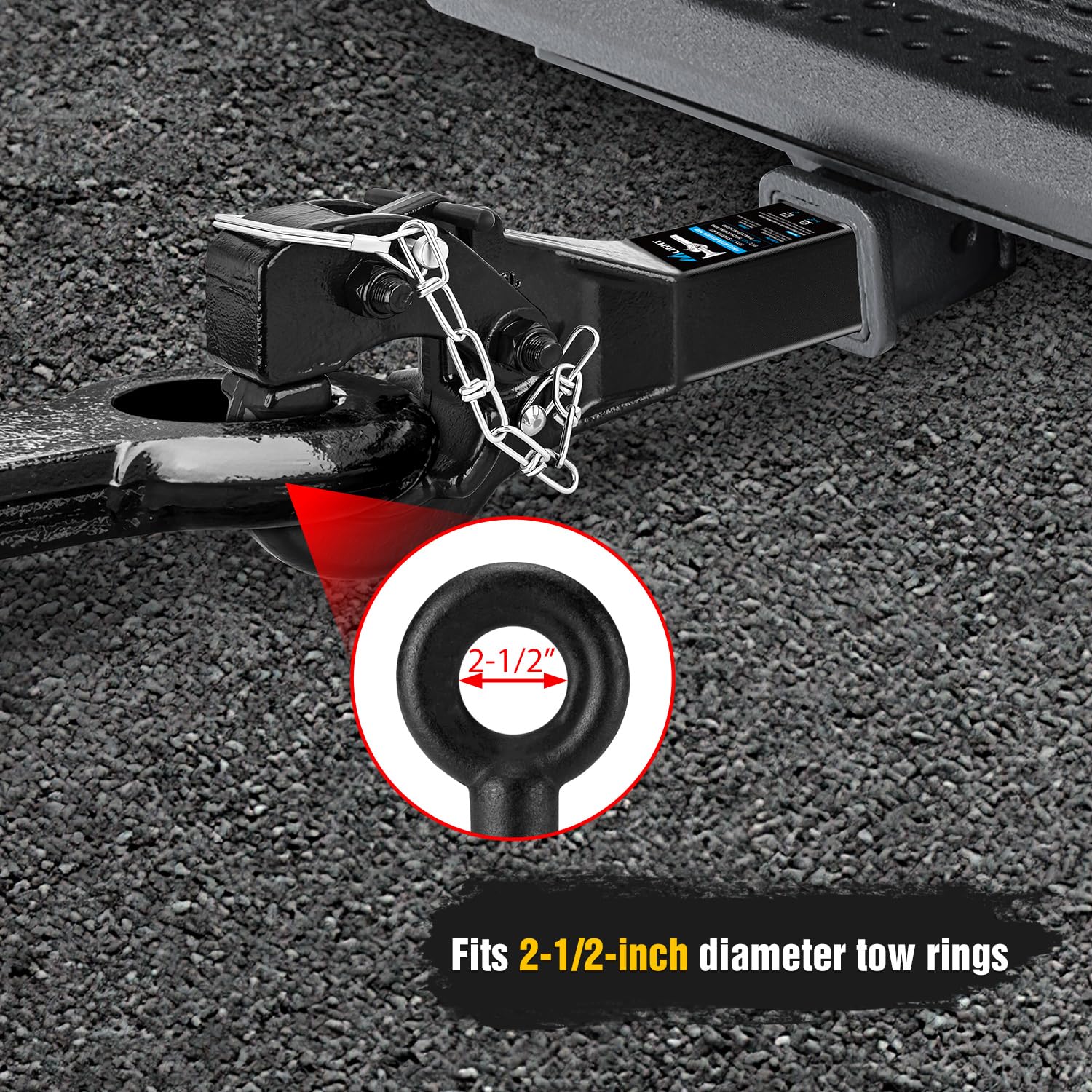

• Compatible with lunette rings ~2-1/2" internal diameter

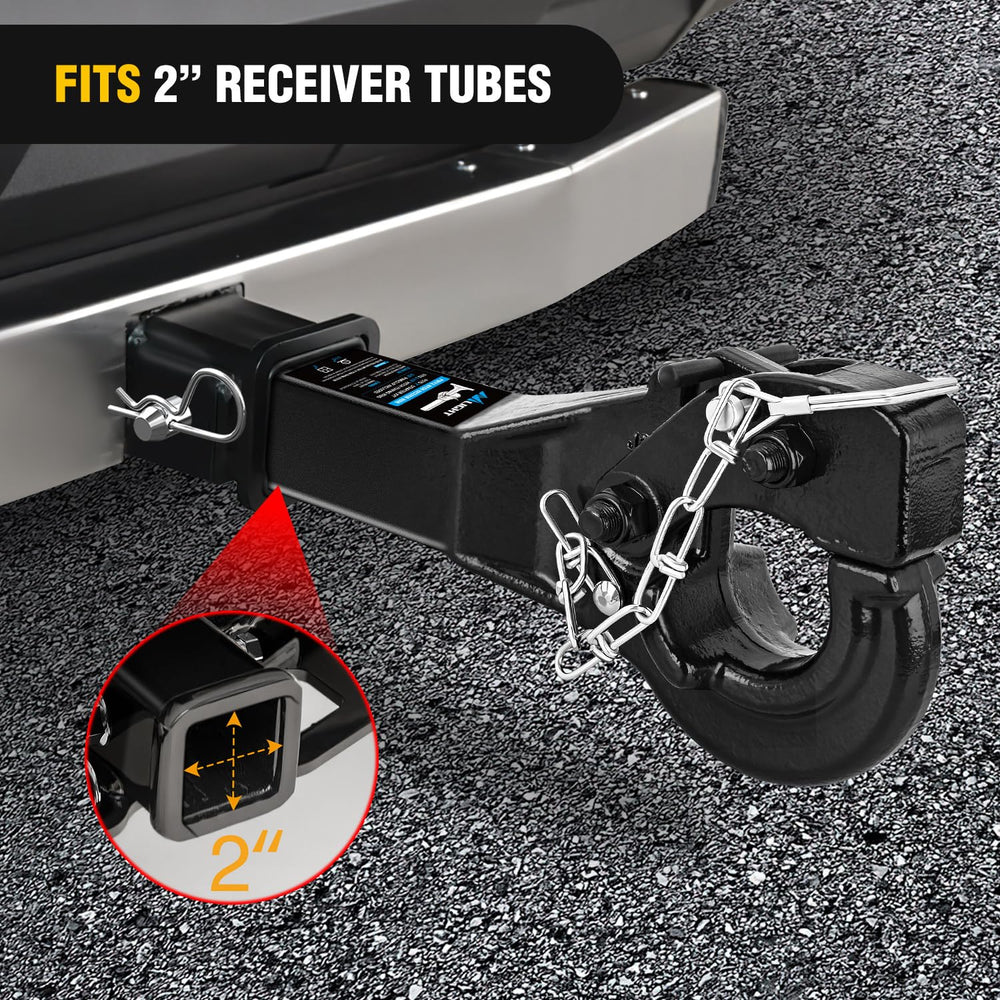

• Fits into a 2-inch receiver mounting setup

What are the physical dimensions and fitment details I should know?

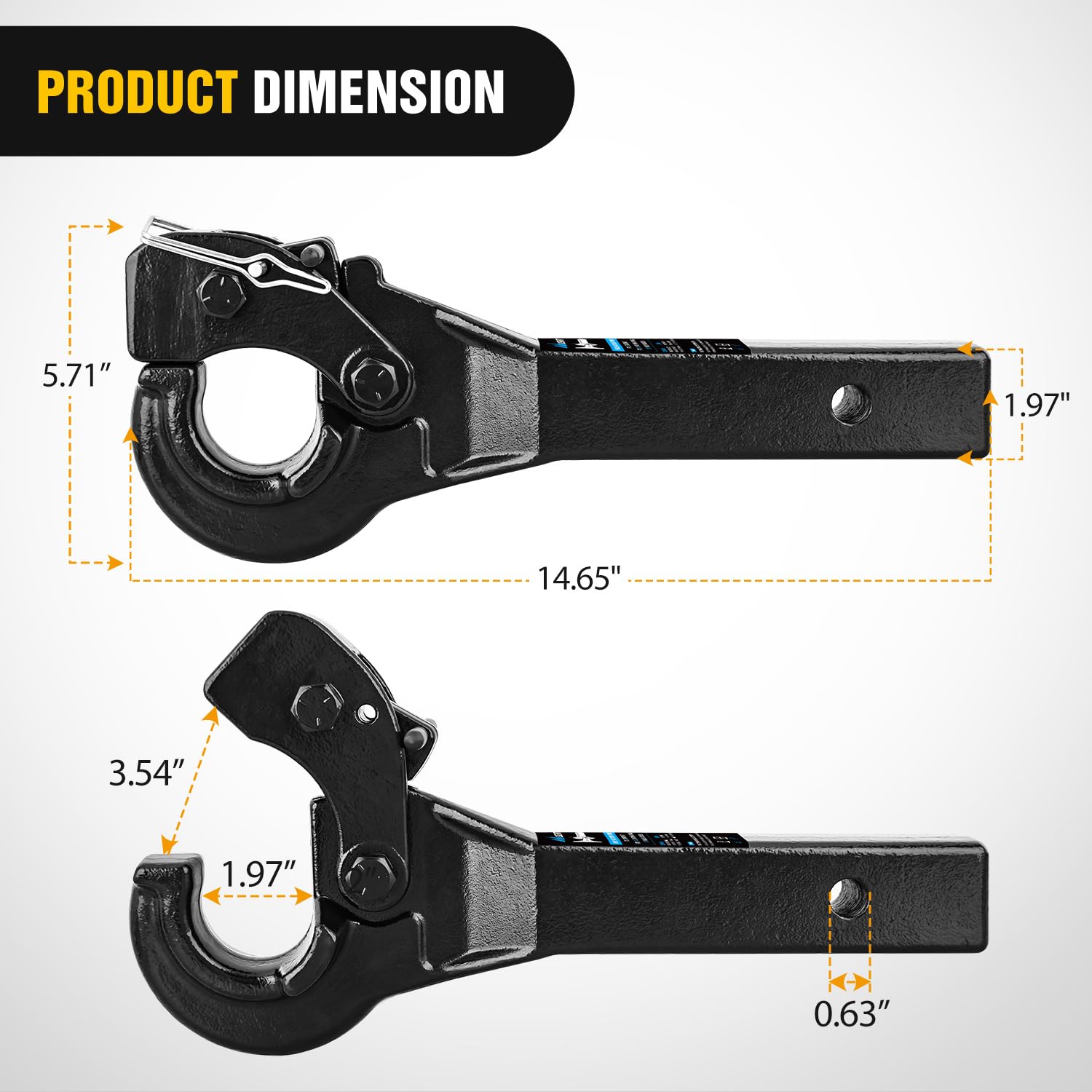

The overall assembly measures 14-1/2 inches long, with a 10-inch distance from the center of the hitch pin hole to the center of the pintle hook. These dimensions matter when checking clearance, receiver placement, and trailer geometry for safe towing.

• Total length: 14-1/2 inches for overall fit planning
• 10-inch centerline from hitch pin hole to pintle hook center
• Designed for use with standard 2" receiver mounts and compatible rings

How versatile is this pintle hitch across different towing jobs?

The Nilight pintle hitch is intended for heavy-duty applications — from hauling equipment on farms to towing military-style trailers and construction gear. Its durable forged-steel build and simple mechanical latch make it suitable for frequent coupling and uncoupling in rugged environments.

• Works for construction, agriculture, military, and commercial towing
• Durable finish and solid forging reduce maintenance needs
• Simple operation with a tethered pin minimizes downtime

Who is this for? If you regularly tow heavy equipment or trailers that use lunette rings and you need a robust, straightforward coupling system, the Nilight 10-ton pintle hitch is a practical choice. It’s targeted at contractors, farmers, fleet operators, and anyone who requires a high-capacity, low-maintenance tow solution that fits a 2-inch receiver and accepts common 2-1/2 inch lunette rings. As with all towing hardware, verify compatibility with your trailer, inspect connection points before each trip, and follow safe towing practices.
