Nilight 12V Off-Road LED Light Bar Wiring Harness Kit — 5-Pin Rocker Switch, 450W Capacity, Nylon-Jacketed

Nilight's 12V Off-Road LED Light Bar Wiring Harness Kit is a ready-to-install harness and 5-pin LED rocker switch solution designed to power and control up to 450W of lighting on vehicles with a durable nylon-jacketed cable and on-board relay protection.

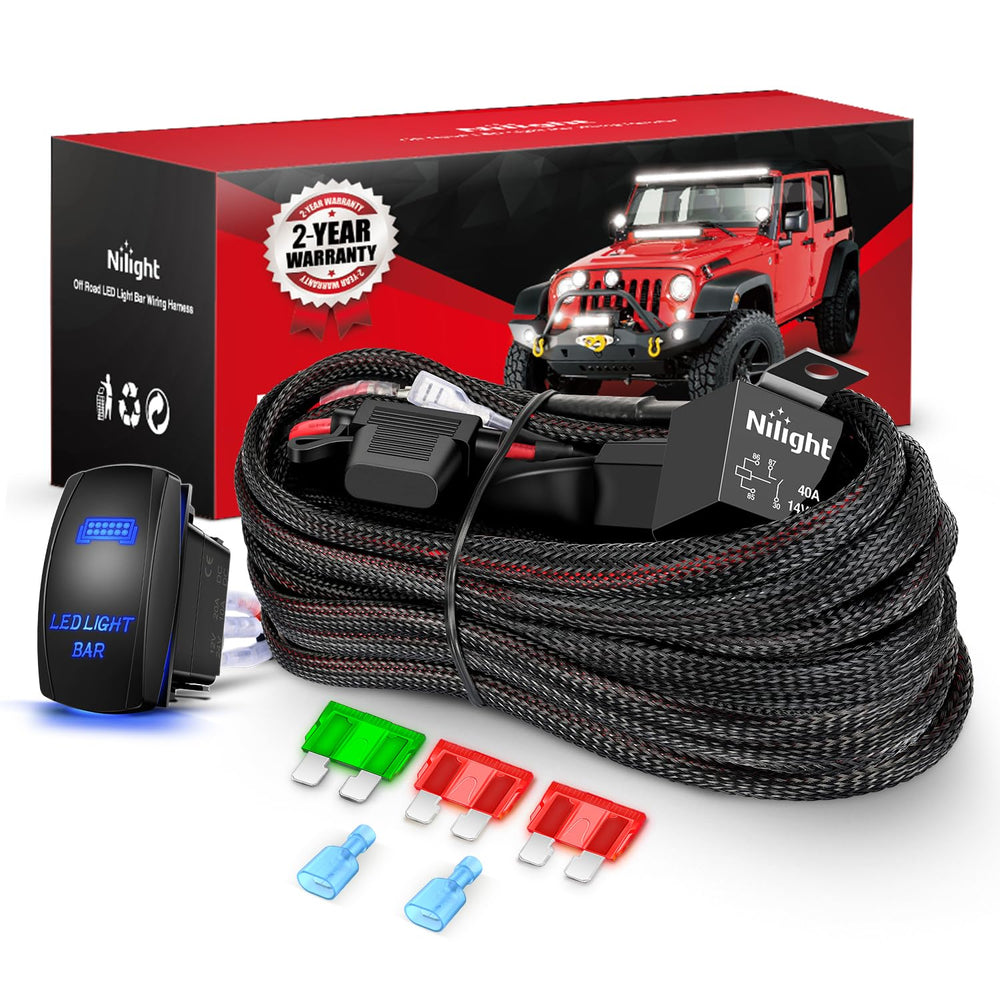

Whether you’re adding a light bar to a truck, ATV, UTV, camper or boat, this wiring harness organizes power, protection and a visible switch into a single kit. The set bundles heavy-gauge wiring, an inline fuse and a power relay to reduce wiring complexity and improve safety compared with ad-hoc splicing. The included 5-pin SPST rocker switch lights up for easy access at night and the nylon outer jacket resists abrasion and heat for long-term service.

How does this harness protect my lights and vehicle electrical system?

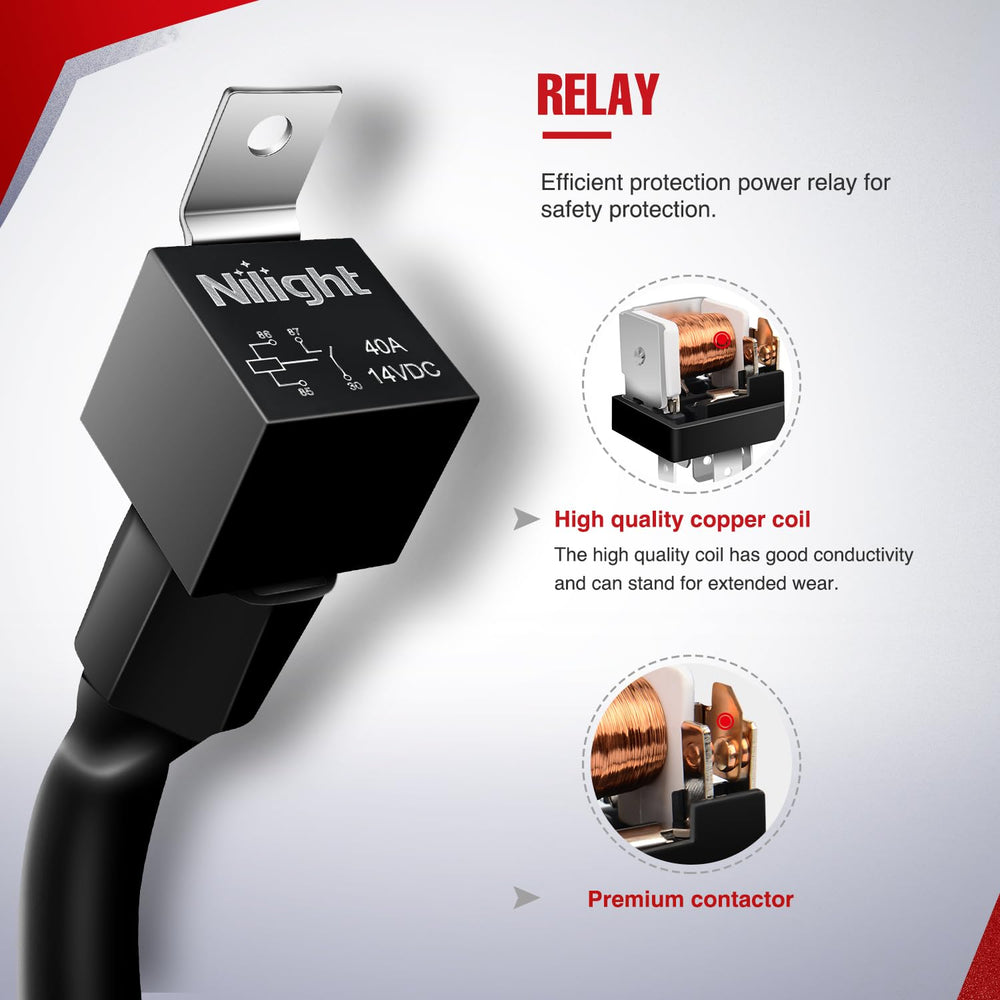

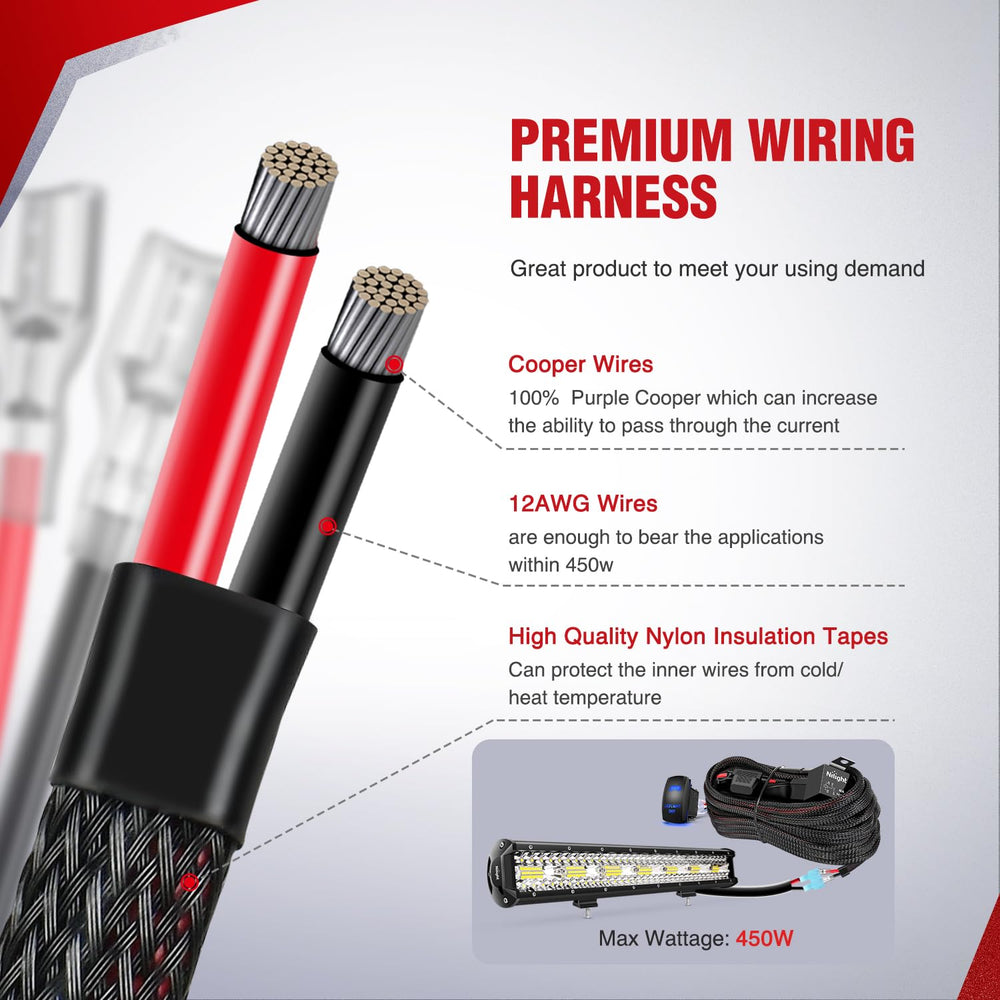

The harness routes battery power through a dedicated relay and inline blade fuse so high current doesn’t flow through the switch or fragile factory wiring. This arrangement isolates the light circuit, minimizes voltage drop and gives a clear point of overcurrent protection. The wiring is 12 AWG stranded copper for reliable current carrying and flex resistance.

• 12 AWG stranded wire rated for up to 450W total load
• Inline blade fuse provides the first line of protection
• Relay handles high current so the switch carries only low control current
• Nylon jacket improves abrasion resistance and temperature tolerance

What does the 5-pin rocker switch do and how is it installed?

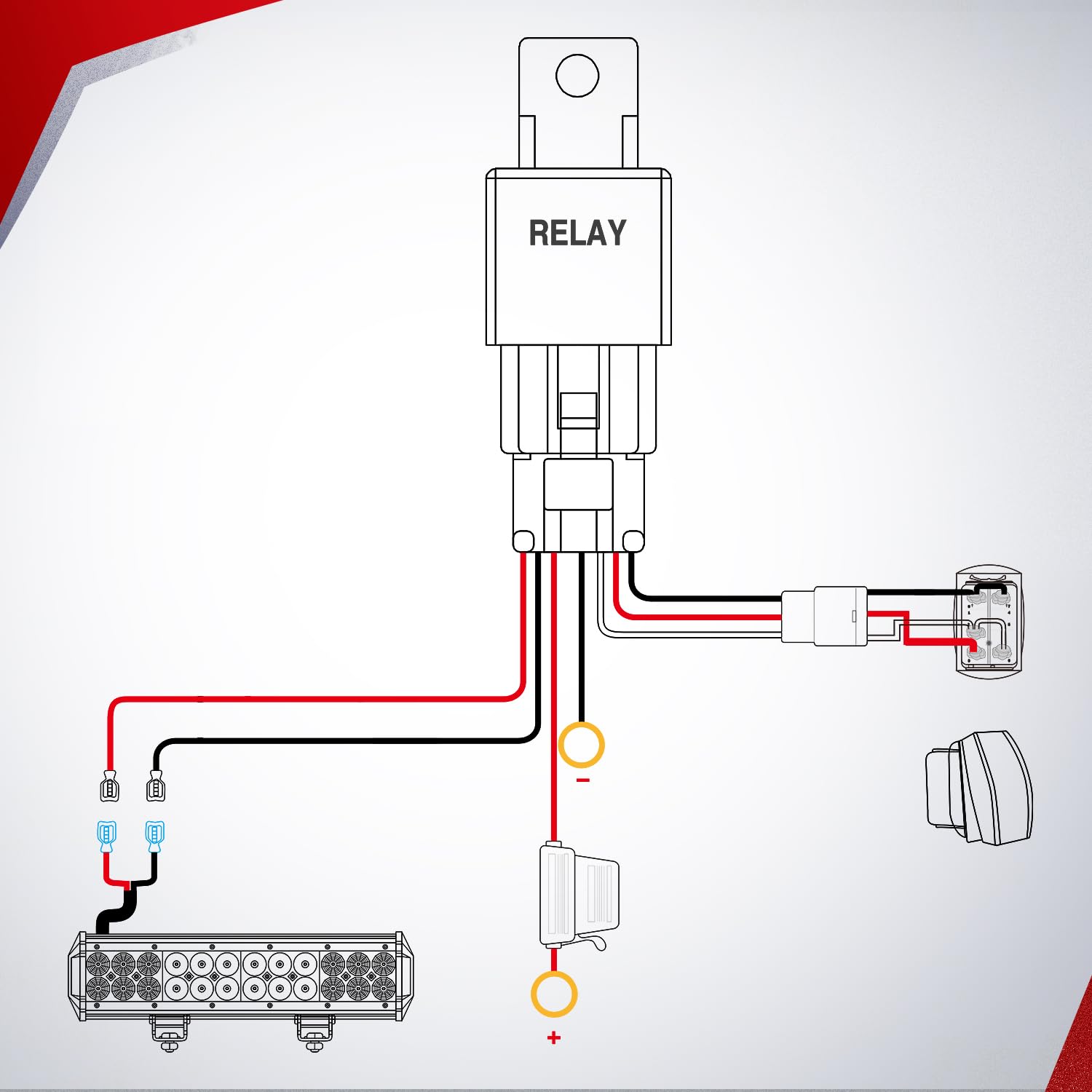

The included Nilight 5-pin SPST rocker switch turns the light bar on and off and includes two built-in LEDs that softly illuminate the switch face for nighttime visibility. Installation is straightforward: mount the switch, connect the pre-crimped terminals to the relay and fuse block, and tie the power lead to the battery. Clear wiring instructions and spade connectors are supplied to simplify the process.

• SPST functionality: simple on/off control
• Two small LEDs light the switch for easy locating in the dark
• Pre-crimped spade connectors and blade fuses included
• Plug-and-play layout reduces cutting and soldering

Will this harness work with my vehicle and LED light bar?

The harness is built for standard 12V systems and fits a wide range of vehicles including cars, trucks, RVs, ATVs, UTVs, motorcycles and small marine craft. Confirm your light bar’s wattage does not exceed the harness capacity (up to 450W) and that you have space to mount the relay and fuse near the battery. Adapters or additional grounds may be needed for non-standard connectors.

• Compatible with most 12V battery systems
• Recommended for light bars and auxiliary lighting up to 450W
• Works on on-road and off-road machines plus marine applications
• May require minor terminal adapters depending on factory plugs

Who is this for? The Nilight wiring harness kit is aimed at do-it-yourself installers and mechanics who want a safer, neater way to add powerful aftermarket lighting. It’s ideal for vehicle owners upgrading to an LED light bar who prefer a pre-assembled harness with relay protection, a visible illuminated switch, and durable nylon sleeving for off-road or marine use. If you need a simple, reliable kit to route battery power, protect the circuit and give easy switch access without complex fabrication, this kit covers the essentials and includes fuses and connectors to get you started.
