Nilight RV LED Tail Light Pair 54-LED Red/White Waterproof Taillights — 12V, Surface-Mount, License Plate Light

Nilight RV Tail Light 2PCS is a waterproof, multi-function LED taillight set (54 LEDs total) designed to replace or upgrade trailer, RV, camper, and van rear lighting for improved visibility and durability.

These Nilight taillights combine bright red LEDs for running, braking and turn signaling with integrated white LEDs for license plate illumination and reverse indication. Built with a PC lens and ABS housing, the pair is intended for 12V DC systems and is supplied with surface-mount screws and three-wire hookups for straightforward installation.

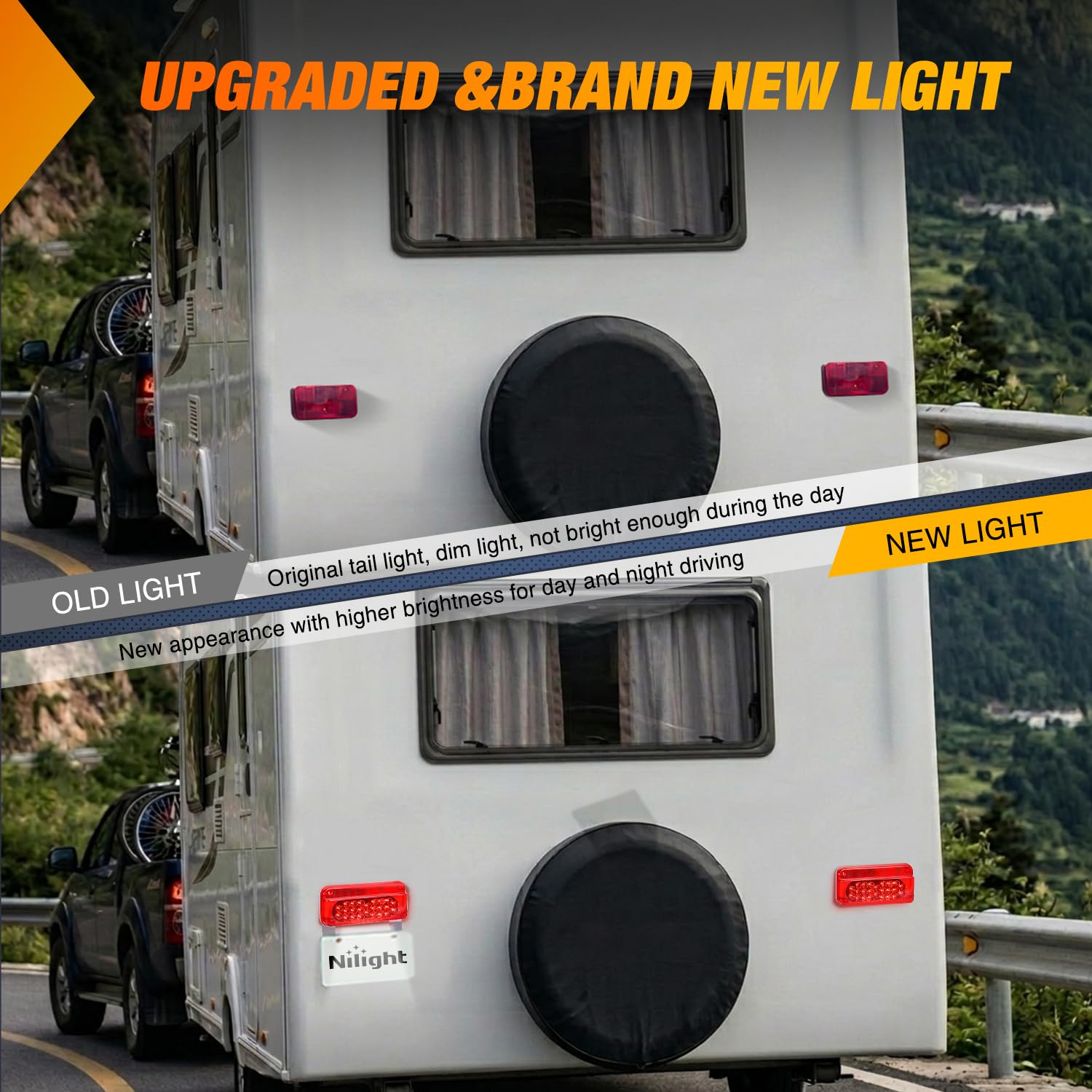

How bright and visible are these lights on the road?

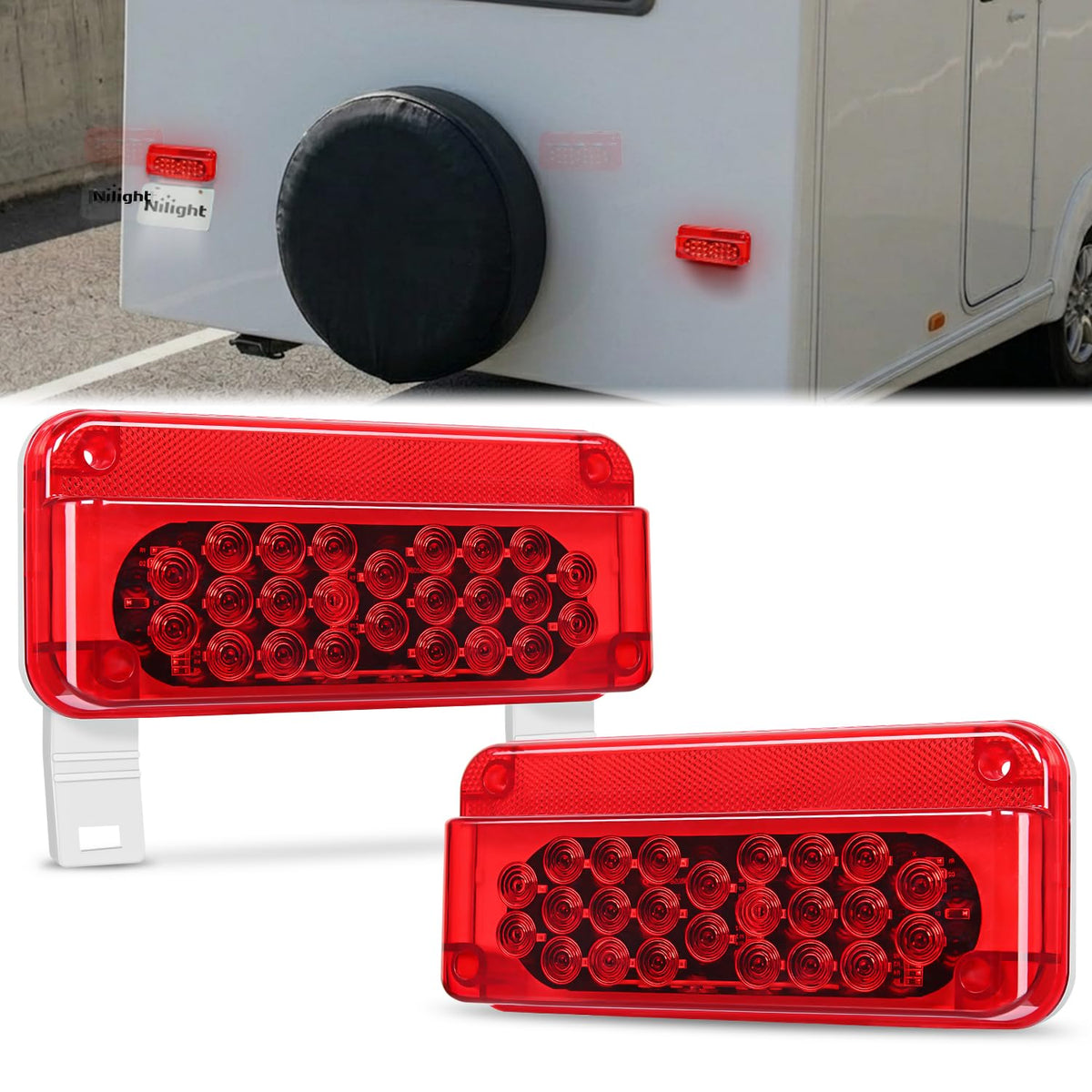

The pair includes a 30-LED driver side lamp (24 red + 6 white) and a 24-LED passenger side lamp (all red), offering distinct, high-contrast signals for following drivers. Their LED array provides clear color separation between running, braking, and license plate illumination.

• 54 LEDs total for strong light output and clear signaling
• White LEDs positioned for consistent license plate illumination
• Distinct red arrays for improved brake and turn recognition

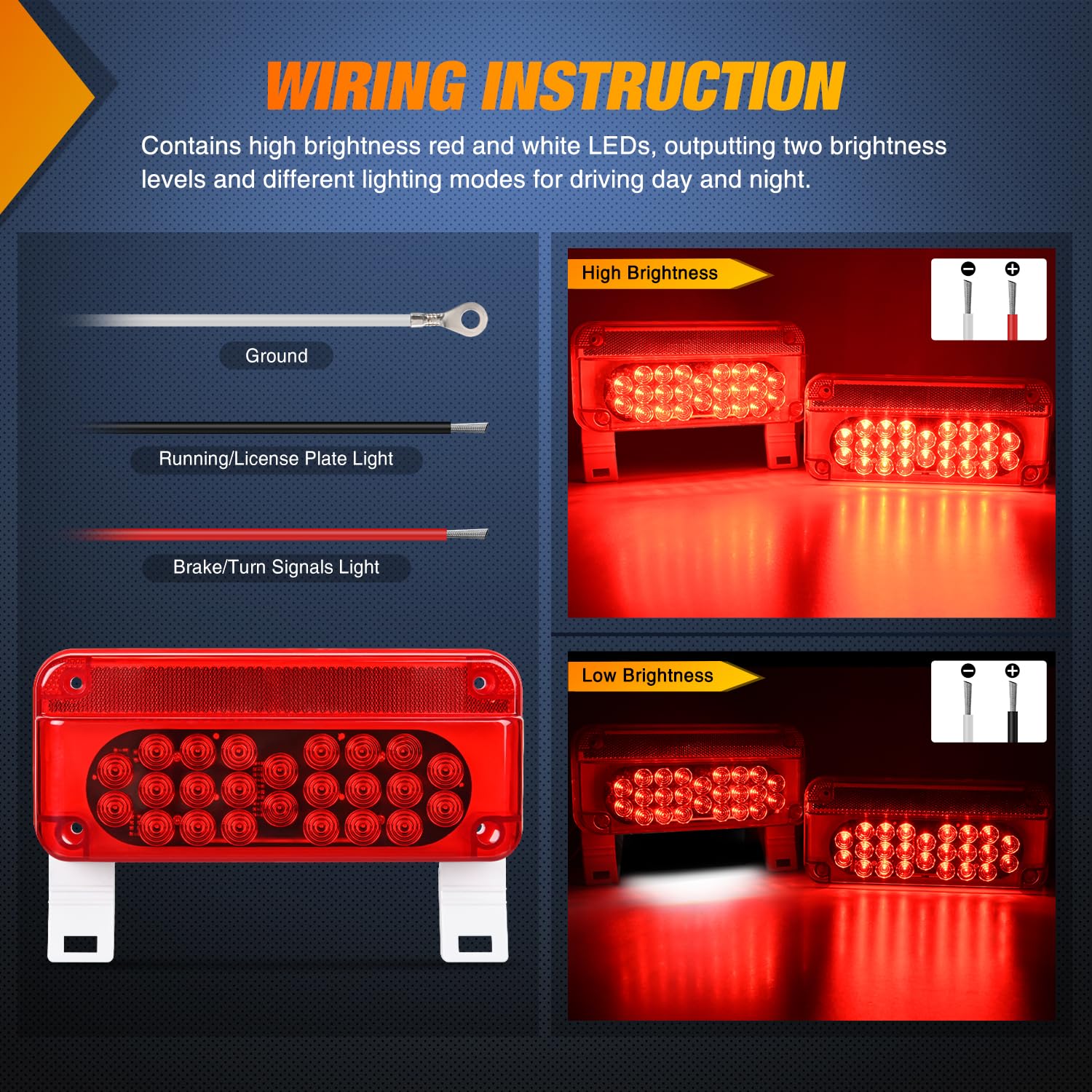

What wiring and lighting functions does the set support?

Each light comes with three color-coded wires: white as ground, black for low-brightness running and license plate light, and red for high-brightness brake/turn signals. That simple wiring scheme supports running, stop/brake, turn signal, and license plate illumination functions on a 12V DC system.

• White wire — ground connection for system safety
• Black wire — low-brightness running light and plate illumination
• Red wire — high-brightness brake, stop and turn signal

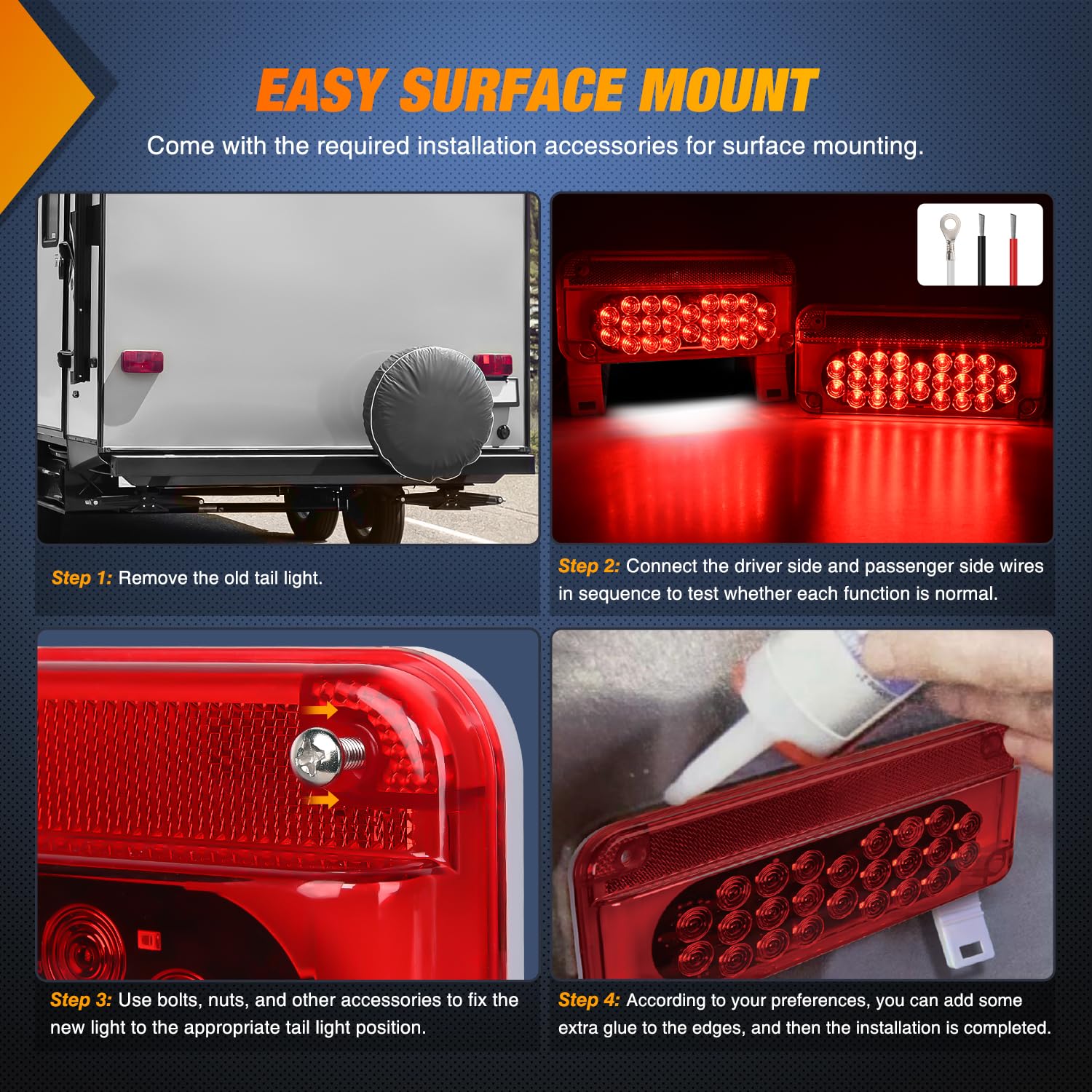

How are these taillights installed and mounted?

The Nilight lights use a surface-mount installation method and include 20mm screws to anchor the ABS base to the vehicle. Installers should pre-drill a wire access hole at the chosen location, secure the housing to the vehicle with the supplied hardware, then make the wire connections.

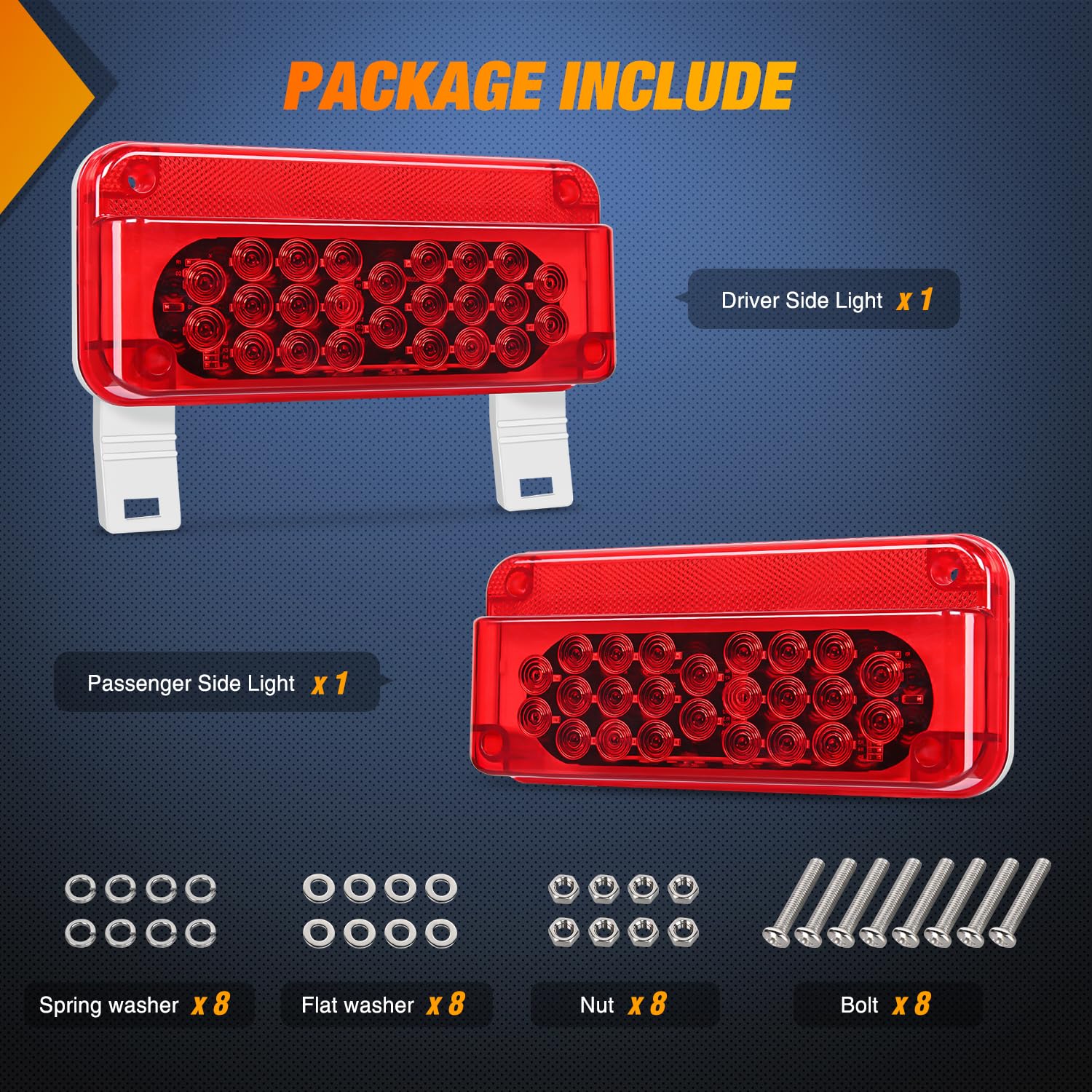

• Surface-mount hardware included for quick installation
• 20mm screws provided to secure the ABS base firmly
• Pre-drill wire access hole then connect the three wires to vehicle wiring

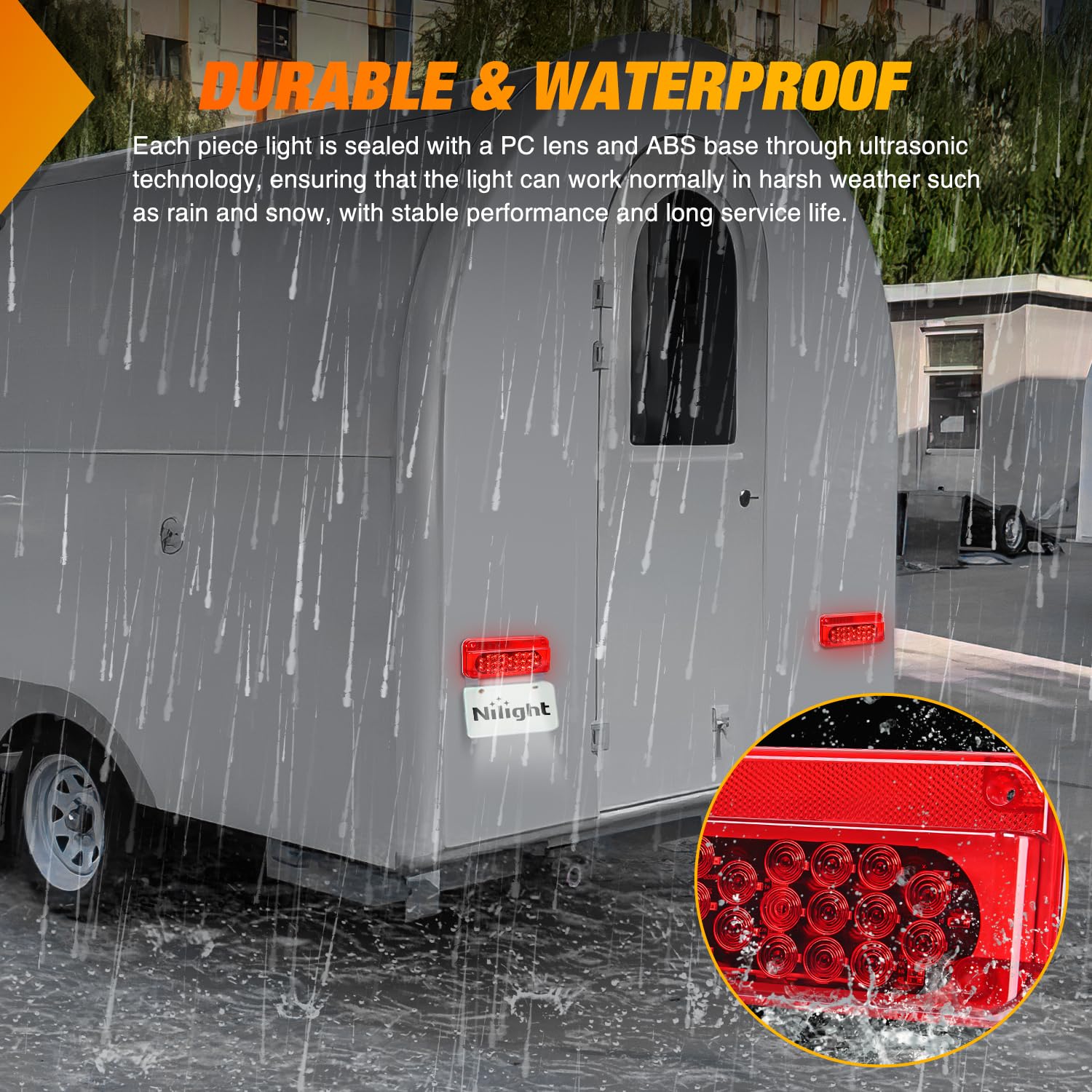

Will these lights hold up in bad weather and daily use?

The lights use a durable PC lens and ABS bottom shell to protect internal LEDs and circuitry against moisture and impact. The materials and sealing are selected to maintain performance during rainstorms and typical road conditions, helping ensure long-term reliability.

• PC lens resists scratches and UV fading for consistent optics
• ABS base protects internal components from road shocks
• Waterproof construction supports use in wet weather

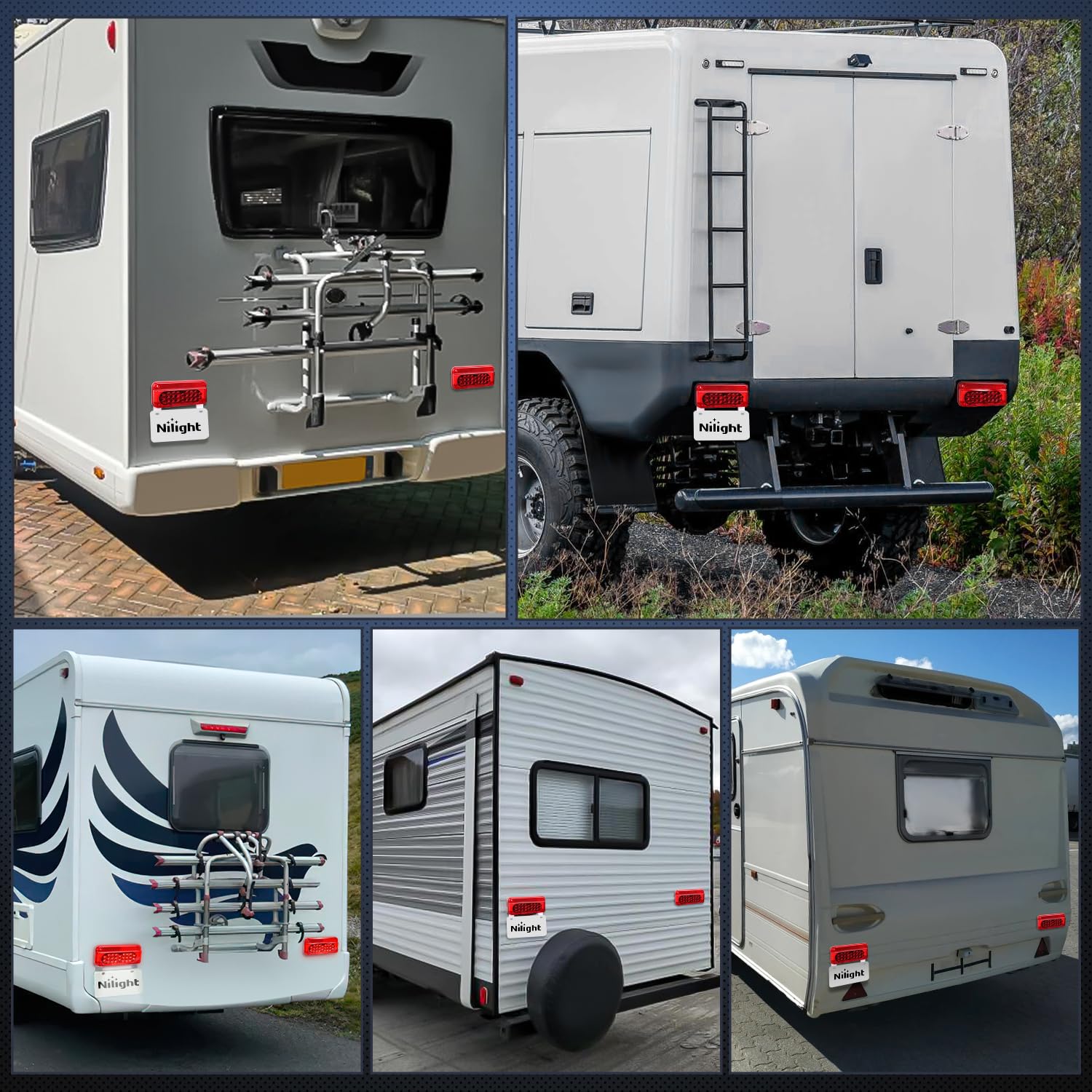

Who this is for: These Nilight taillights suit owners of trailers, RVs, campers and vans seeking a straightforward LED replacement that improves rear visibility and adds integrated license plate lighting. DIY installers and professional fitters will appreciate the included hardware, simple three-wire hookup, and robust construction for regular road use.
