Nilight RV Trailer Tail & License Plate Lights 72-LED Red/White Set — 12V, Surface-Mount, 3-Wire

Nilight RV Tail Light 2PCS are compact 12V trailer/RV tail and license plate lights with 72 bright LEDs that deliver running, brake/turn, and license illumination in a weatherproof surface-mount design.

These two-piece lights pair high-output LEDs with a durable PC lens and ABS housing to replace or upgrade rear lighting on trailers, RVs, campers and vans. One lamp carries 39 LEDs including six white LEDs dedicated to the license plate, while the matching lamp has 33 red LEDs. The fixtures mount with included screws and provide separate wiring for running and brake/turn functions so you can retrofit most 12V vehicle rear setups.

How bright are these tail and license plate lights?

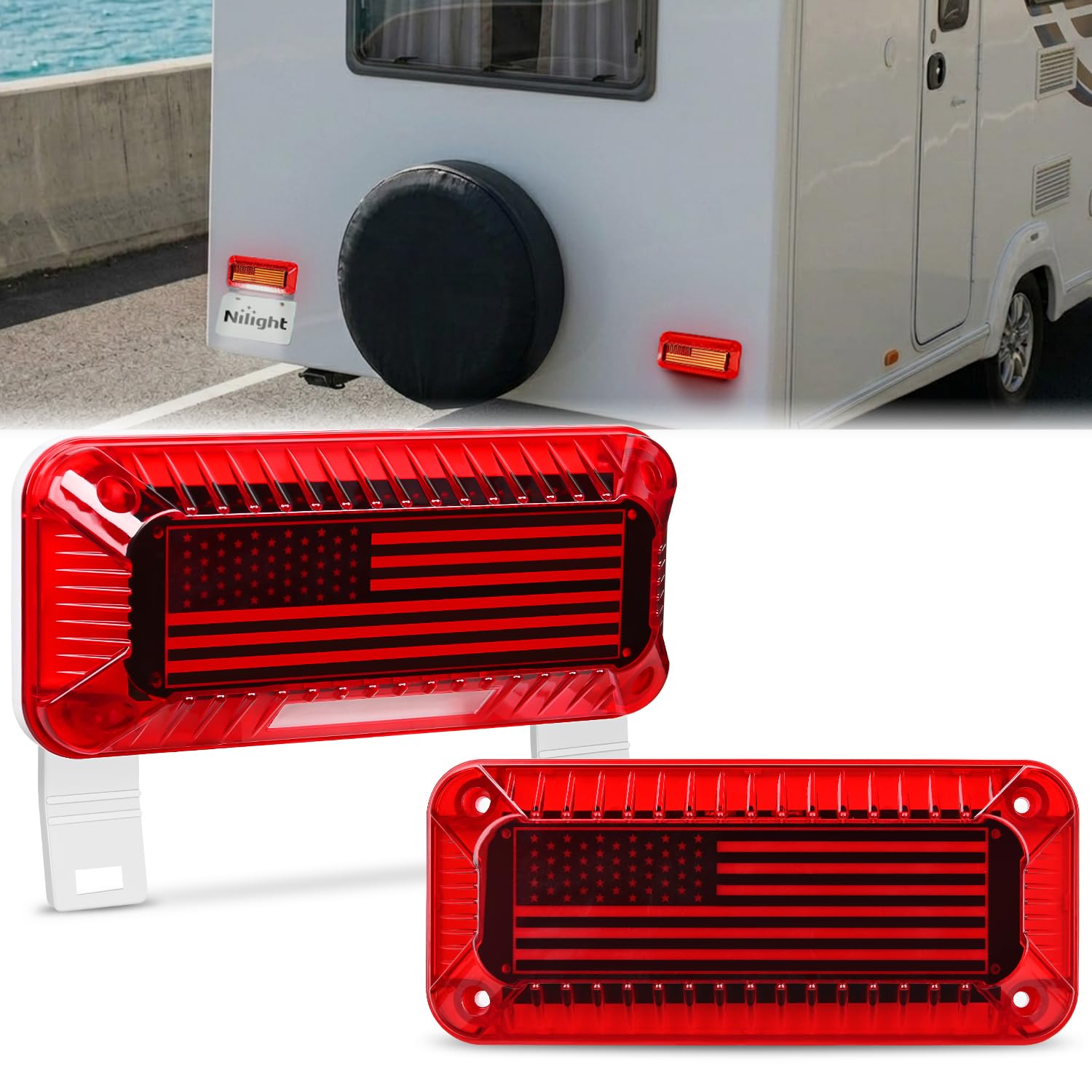

The Nilight set uses a total of 72 LEDs to give clear, visible signals to following traffic. The driver-side assembly contains 39 LEDs (33 red plus 6 white for the plate) and the passenger side contains 33 red LEDs, ensuring distinct running and stop/turn illumination.

• Driver-side: 33 red LEDs + 6 white LEDs for license plate lighting
• Passenger-side: 33 red LEDs focused on stop/turn/tail functions
• High-contrast red for brake/turn visibility, white LEDs illuminate plate area
• Designed for clear signals in daylight and low-light conditions

What wiring and functions do the lights support?

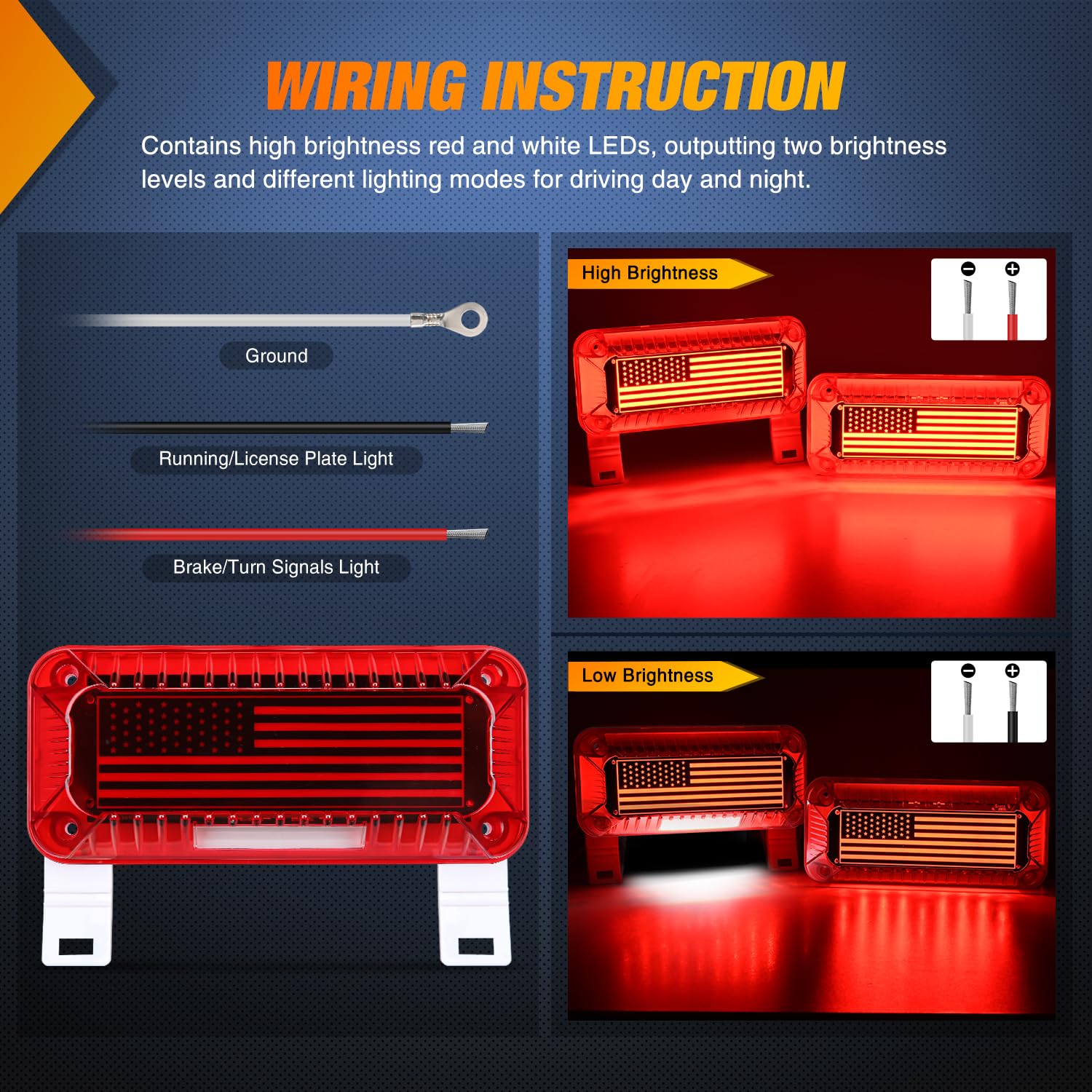

Each lamp includes three color-coded conductors to simplify hookup: white is ground, black powers the low-brightness running light and plate illumination, and red switches to high-brightness for brake/turn signals. That split lets you integrate both steady tail lighting and bright stop/turn output on typical 12V systems.

• Three-wire configuration: white = ground, black = running/plate, red = brake/turn
• Supports running, stop/brake, turn signal and license plate lighting
• Works with standard 12V DC vehicle electrical systems
• Simple splice or connector installation when retrofitting existing wiring

How are these lights installed and how durable are they?

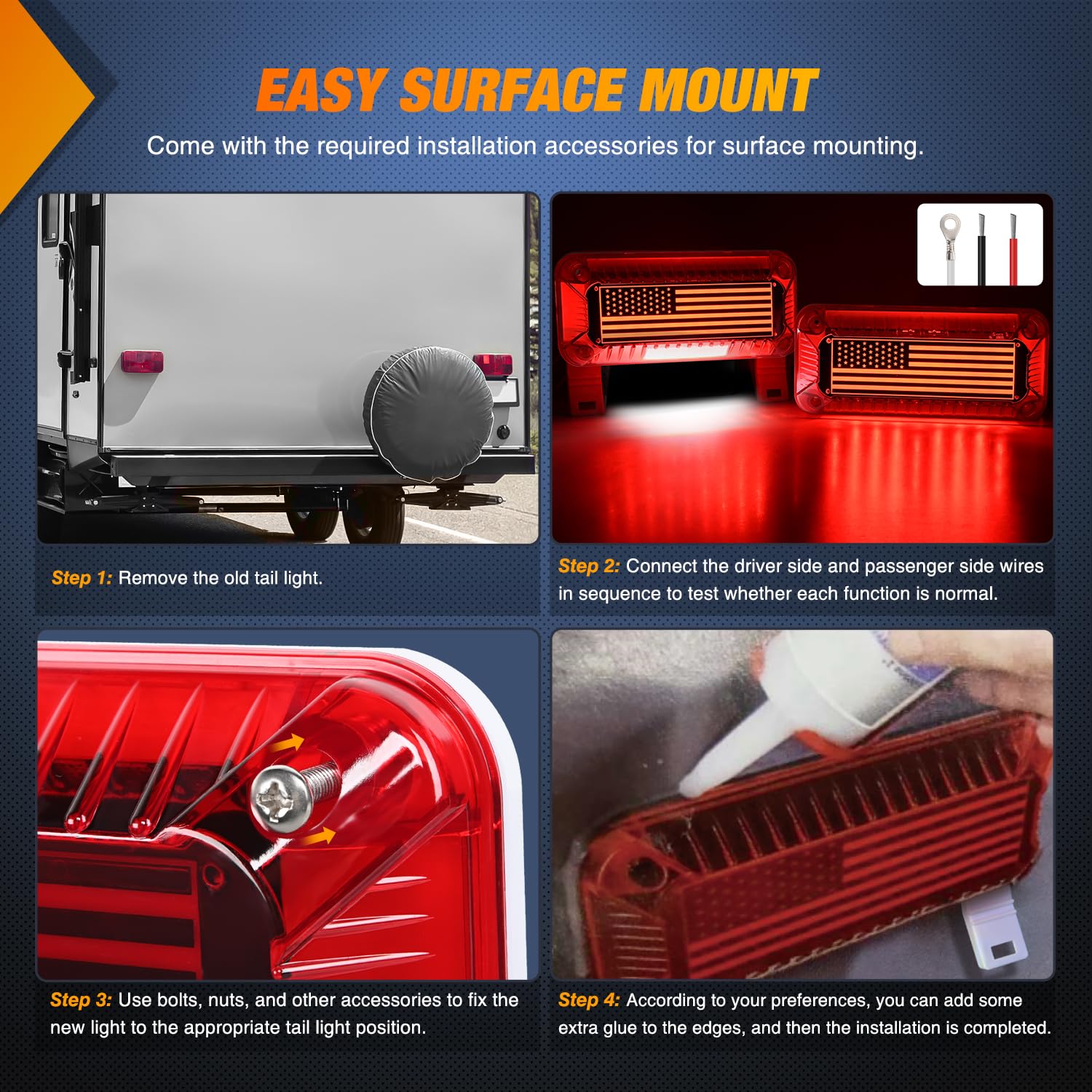

Nilight supplies the screws needed for surface-mounted installation; use a 20mm screw hole and pre-drill a wire access point before fastening. The combination of an impact-resistant polycarbonate lens and ABS base protects internal components and improves moisture resistance for reliable operation in wet conditions.

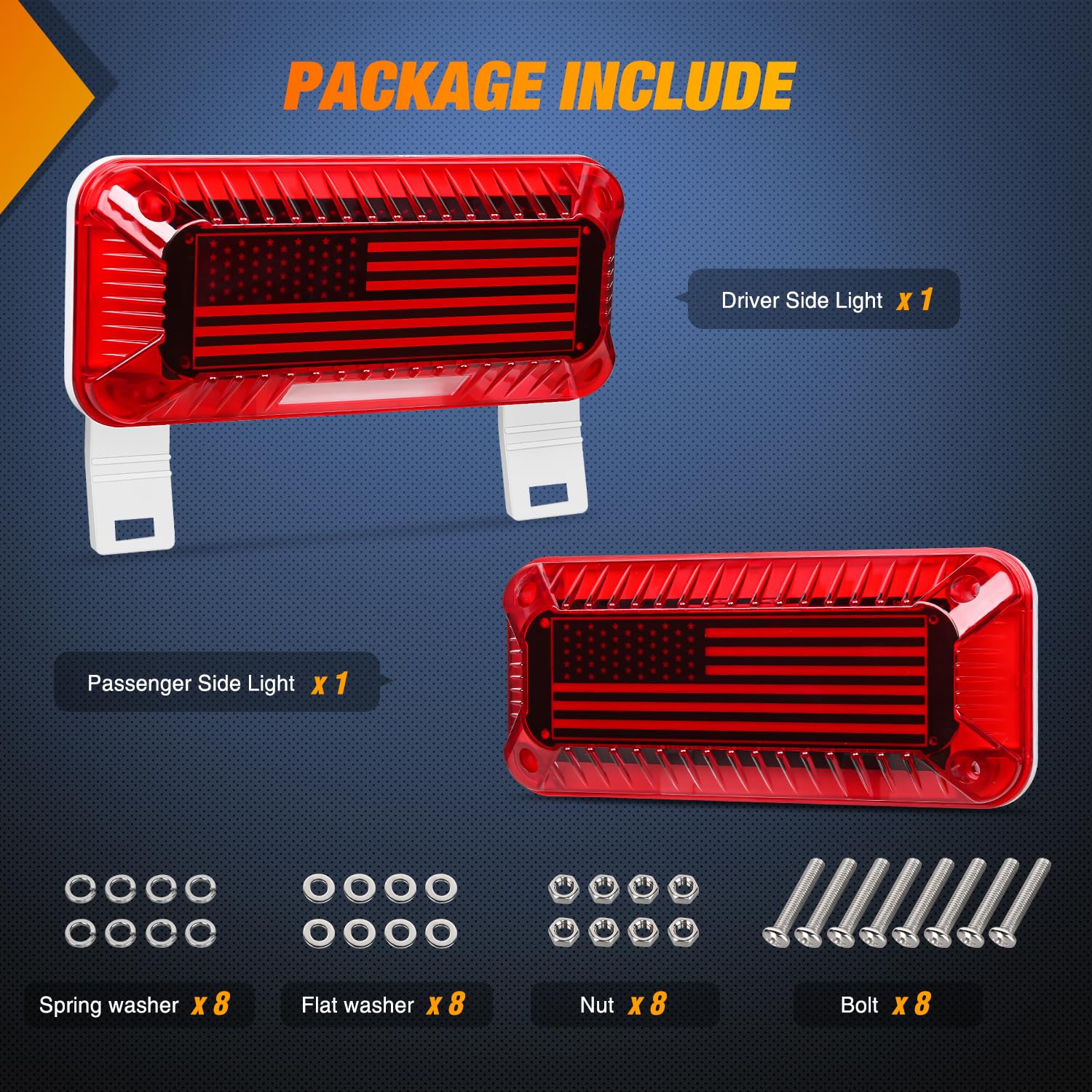

• Surface-mount design with included screws (20mm length recommended)
• Pre-drill wire entry, then secure lights to flat rear surface

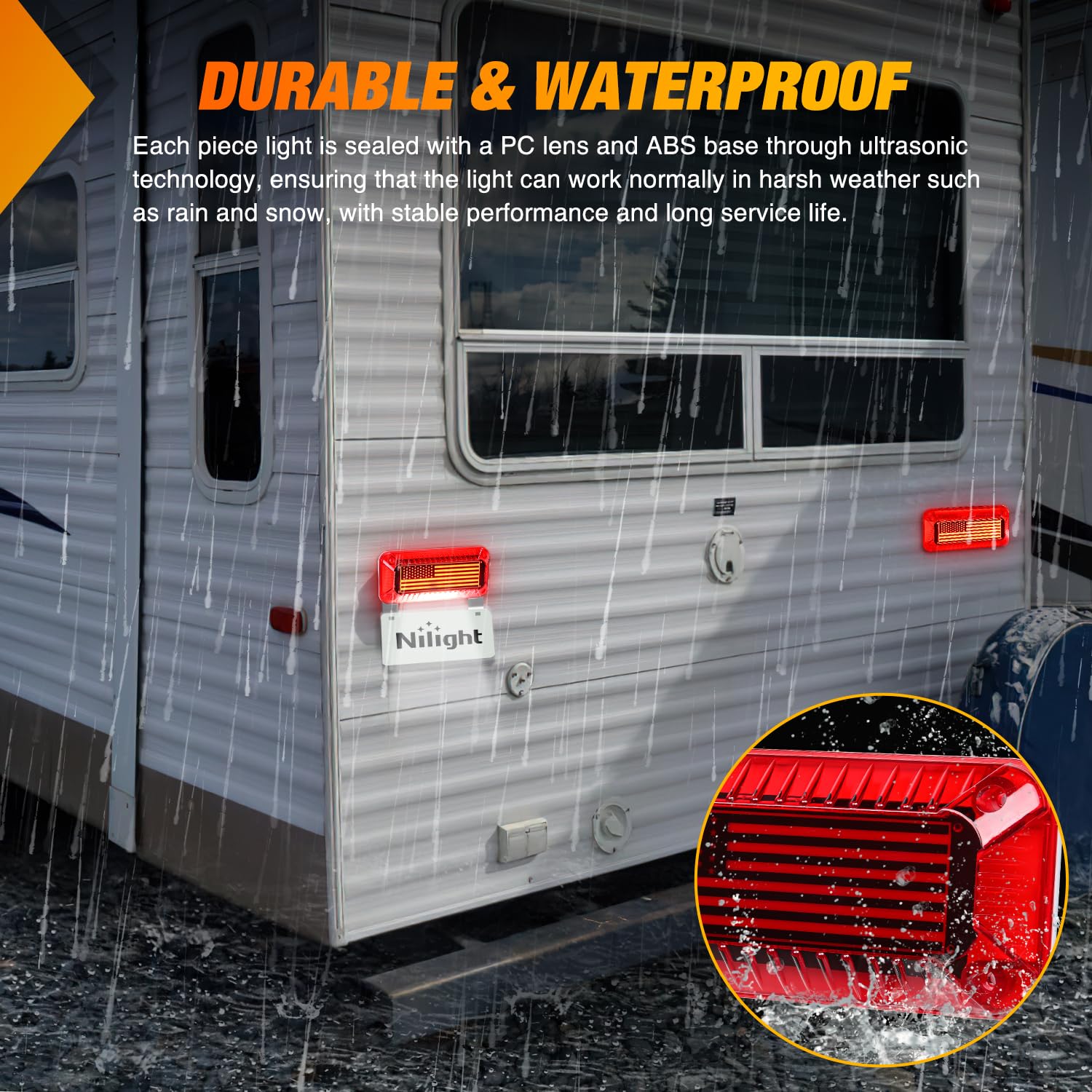

• PC lens + ABS housing for impact and water protection
• Engineered to withstand rain and road spray without compromising LED circuitry

Will these lights fit my trailer, RV or camper?

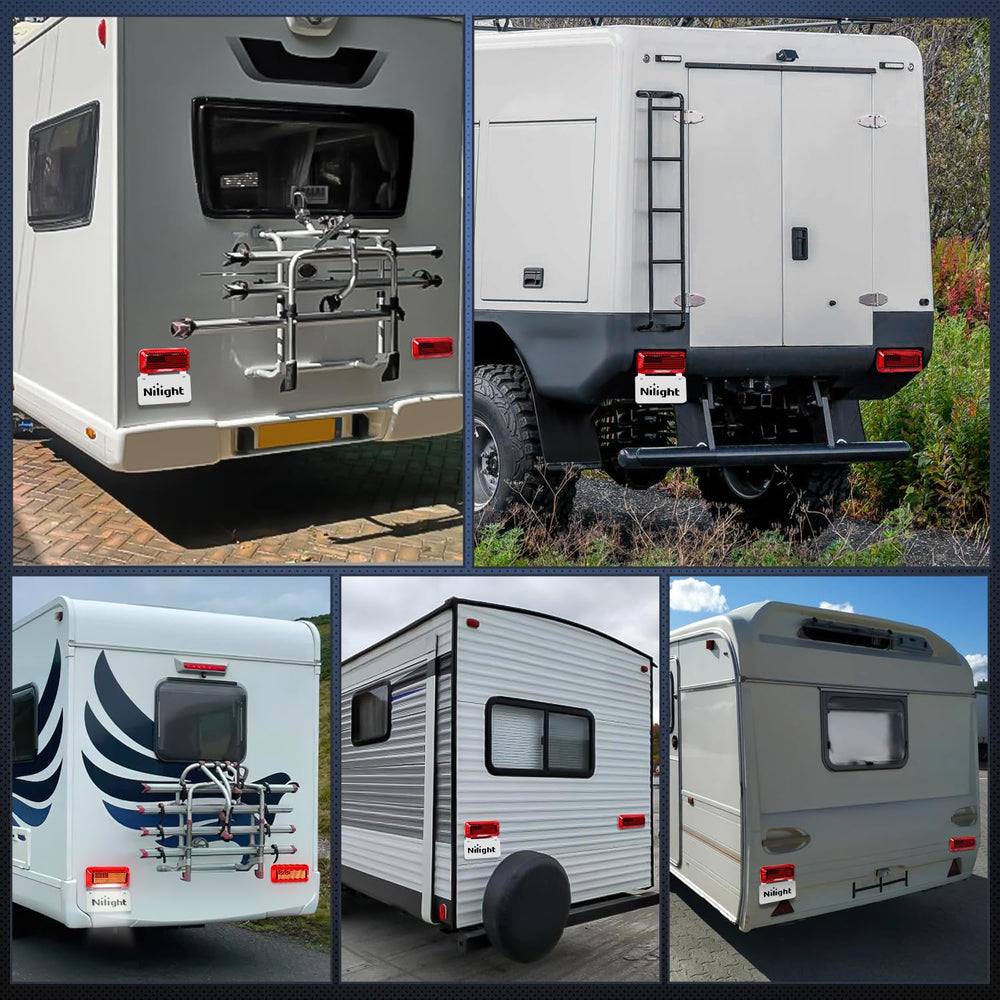

The lights are built for 12V DC systems commonly found on trailers, recreational vehicles, campers and many vans. They are compact enough for retrofit projects where original fixtures are worn or when adding dedicated license plate illumination is required.

• Compatible with 12V DC trailers, RVs, campers and vans

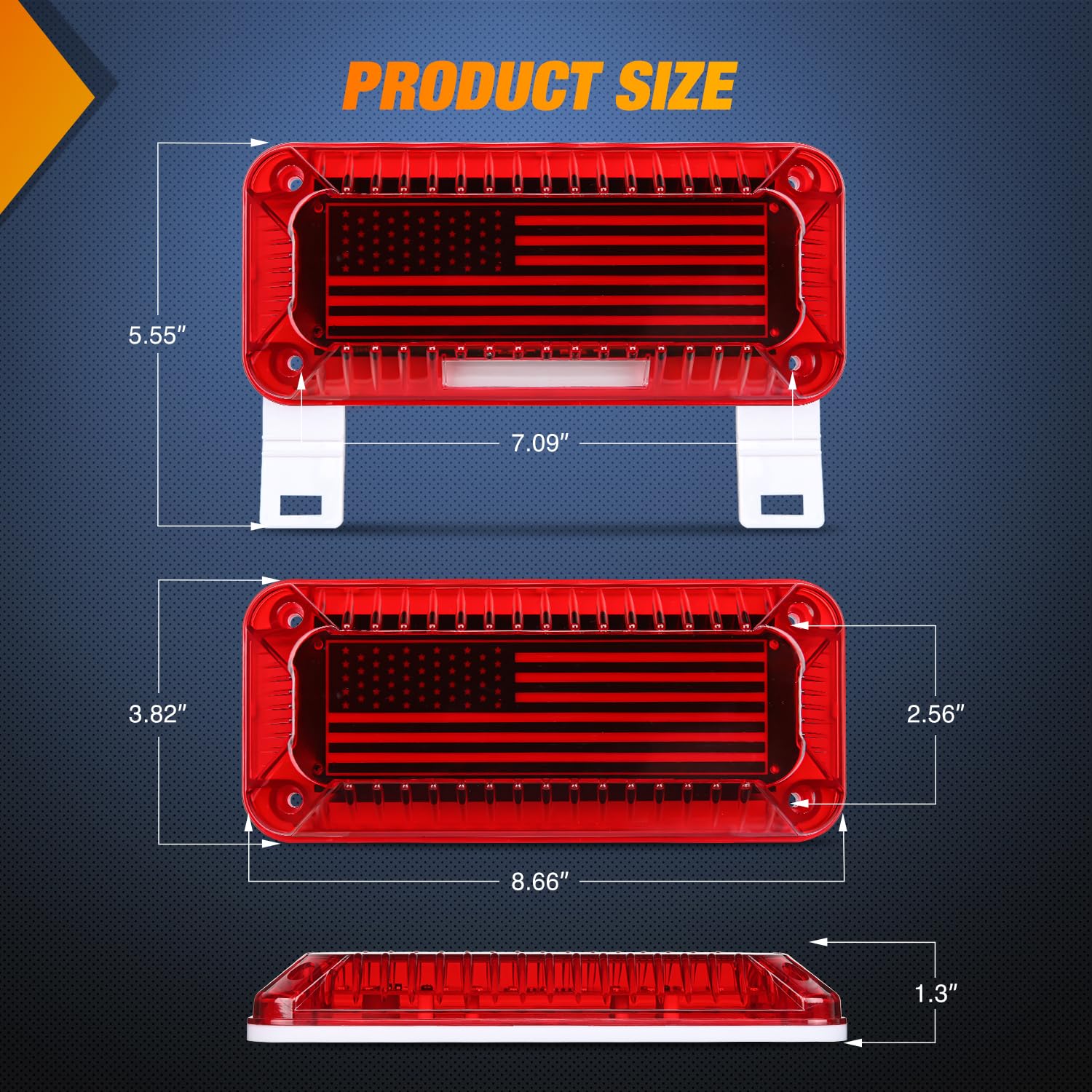

• Common retrofit size for replacing old tail/plate lights
• Ideal when separate plate light and tail/stop signals are desired
• Check mounting area and wiring access before purchase for best fit

Who is this for: These Nilight tail lights suit vehicle owners who need a reliable, brighter replacement for worn rear lamps or want to add clear license plate illumination. Installers, DIY hobbyists and fleet operators who require weather-resistant, easy-mounted 12V lighting with distinct running and brake/turn outputs will find this two-piece set practical for trailers, RVs, campers and utility vans.
