OLIFANT ATV Starter for Arctic Cat & Suzuki King Quad 300 — 12V PMDD CCW, Includes Relay

OLIFANT 12V PMDD starter kit replaces worn starters on Arctic Cat 250/300 and Suzuki King Quad 300 models, delivering reliable cranking with an included relay for plug-and-play replacement.

If your ATV struggles to turn over or the starter has become intermittent, this OLIFANT replacement starter kit provides a durable, OEM-compatible solution for a range of late-1990s and early-2000s Arctic Cat and Suzuki models. Built with quality internal motor components and reduction gears, the unit is designed to deliver steady cranking speed while minimizing battery draw. The kit ships with a matched relay and fits commonly used part numbers, making it straightforward to identify compatibility with your machine.

Which vehicles does this starter work with?

This starter fits several Arctic Cat and Suzuki four-wheelers from the late 1980s through the mid-2000s, including both 2x4 and 4x4 configurations. Check the listed part numbers and model years against your machine’s existing starter before purchasing.

• Arctic Cat 300: 1998–2005
• Arctic Cat 250: 1999–2005
• Suzuki Quadrunner 250: 1988–2002
• Suzuki King Quad 300 / LT-F300 series: 1991–2002
• Cross-references: Part No. 3545-003, 3545-017, 31100-19B00, 31100-19B11, 31100-19B12, 31100-19B20

What are the technical specifics and included parts?

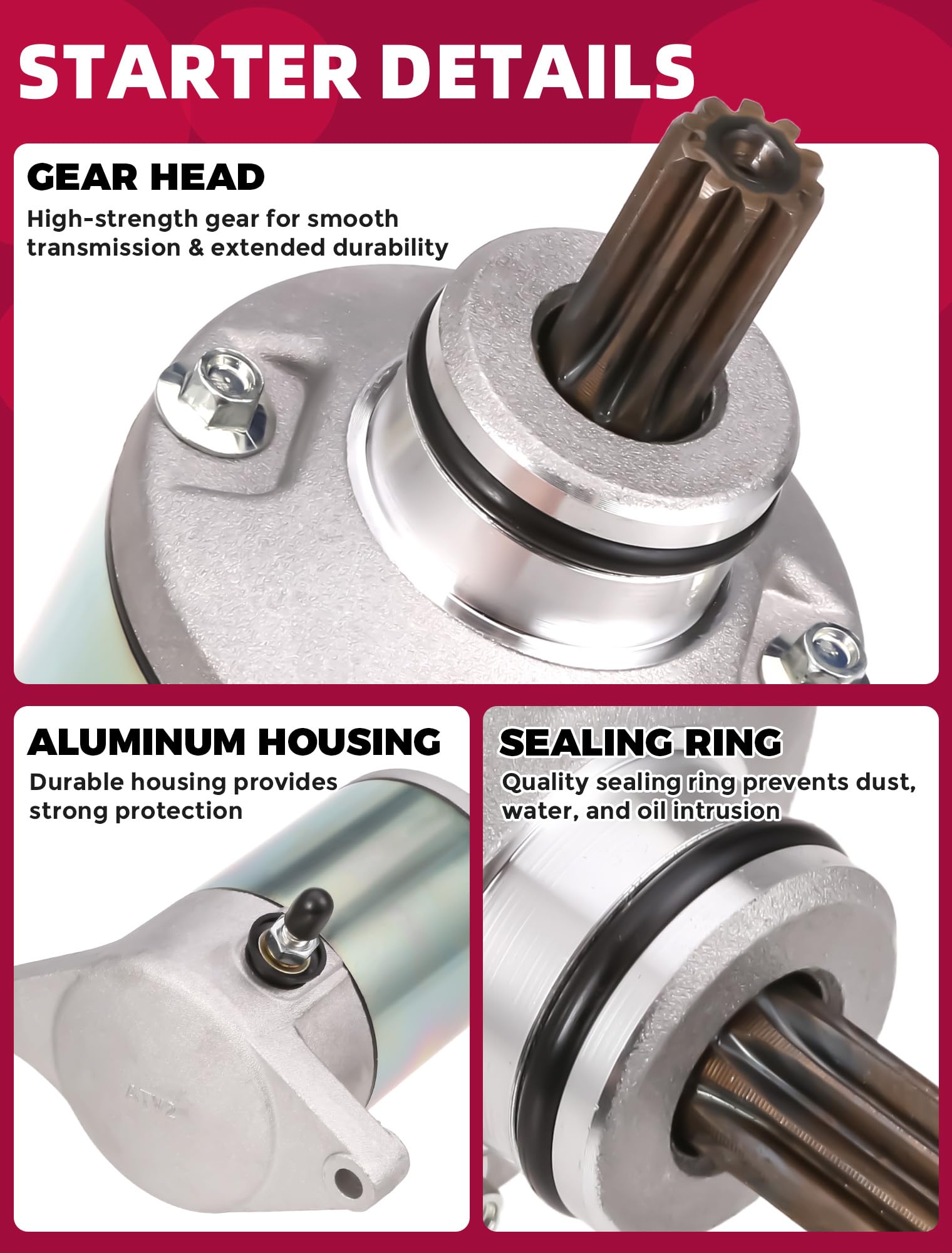

The OLIFANT starter is a PMDD-style 12V unit with a counterclockwise (CCW) rotation and a 10-tooth sprocket designed to match original equipment specifications. The package includes the starter motor and a separate starter relay so you receive a ready-to-install replacement set.

• Voltage: 12V PMDD (Permanent Magnet Direct Drive)
• Rotation: CCW (counterclockwise)
• Gear: 10 teeth / compatible sprocket

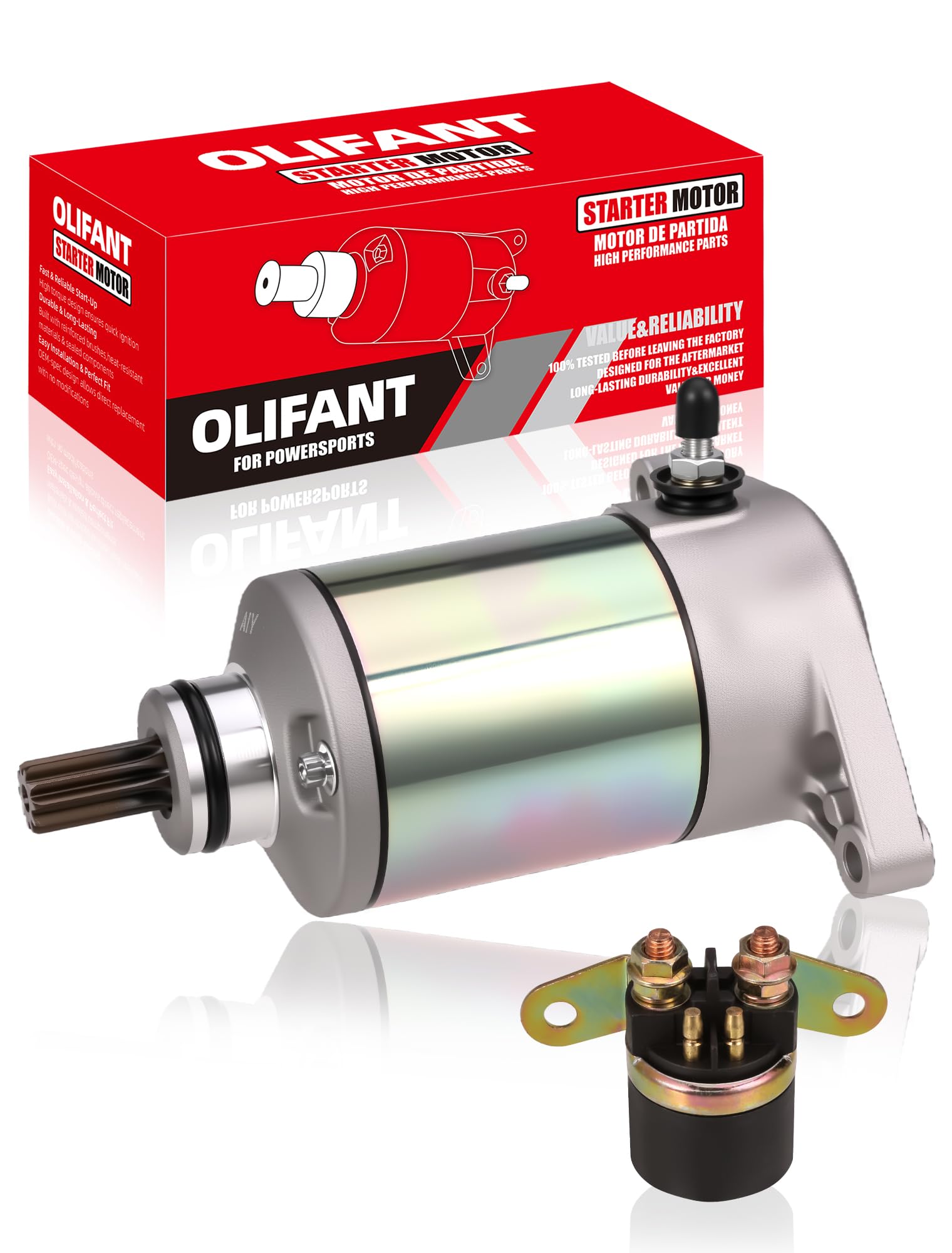

• Package: 1 x starter + 1 x relay

How does this starter improve starting performance?

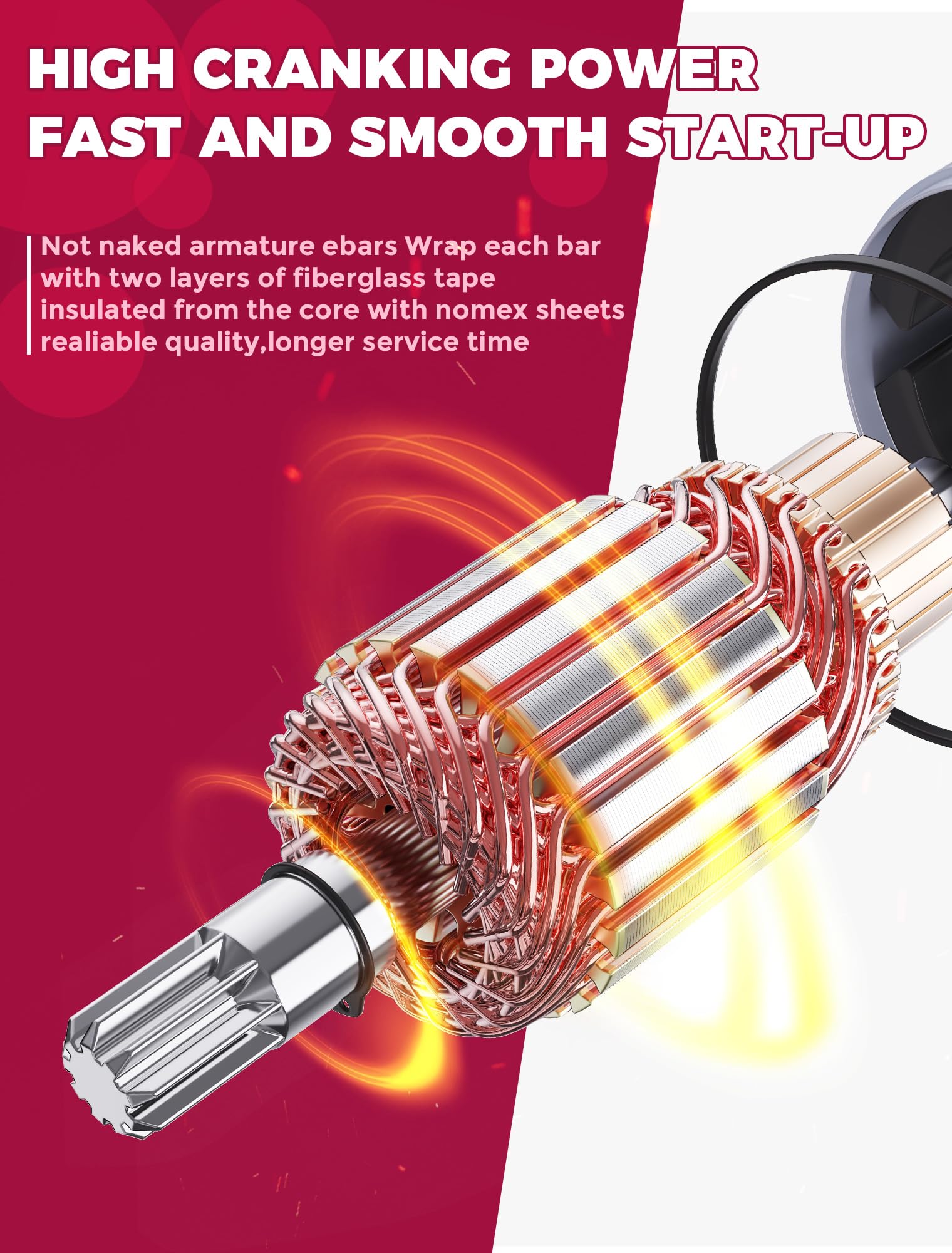

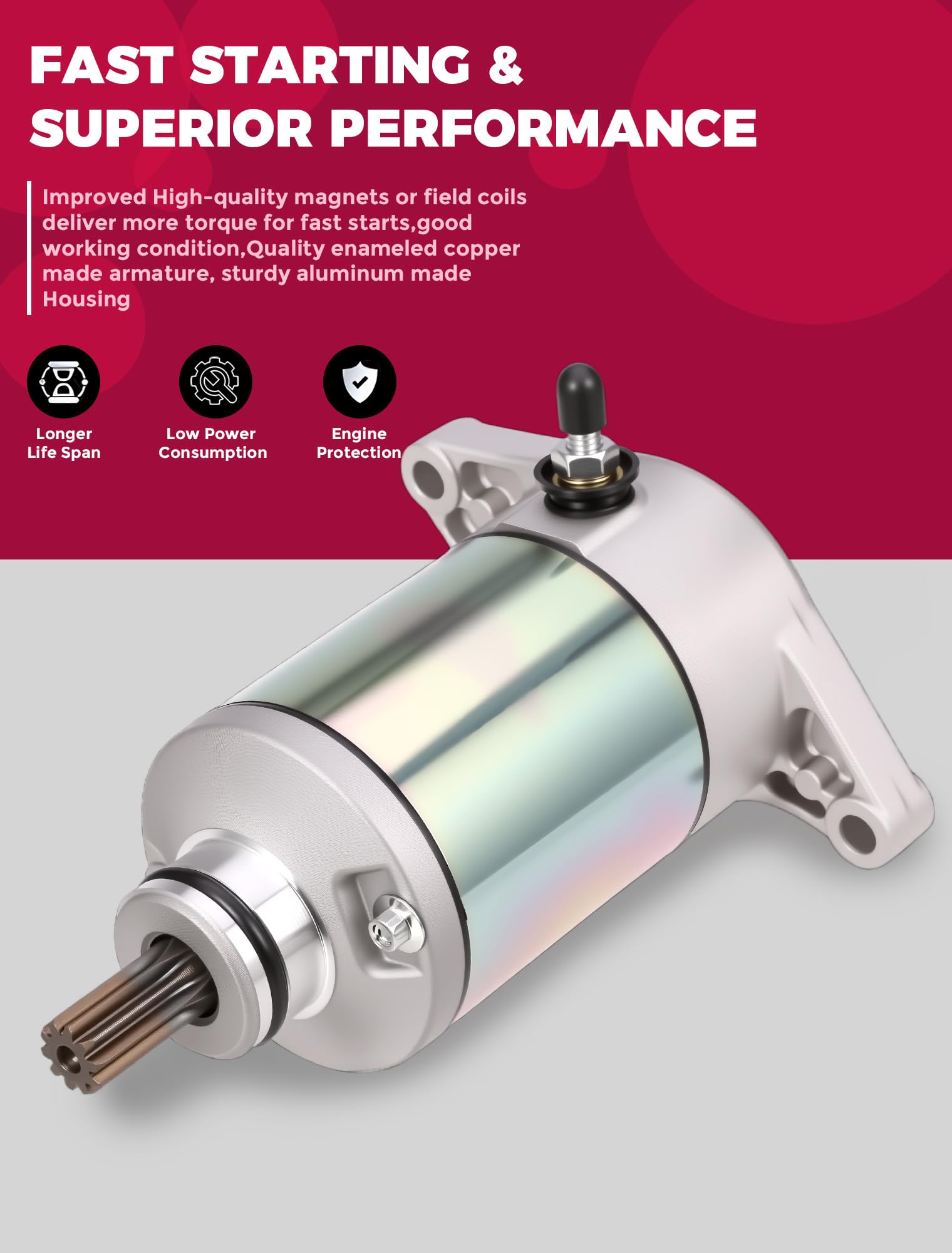

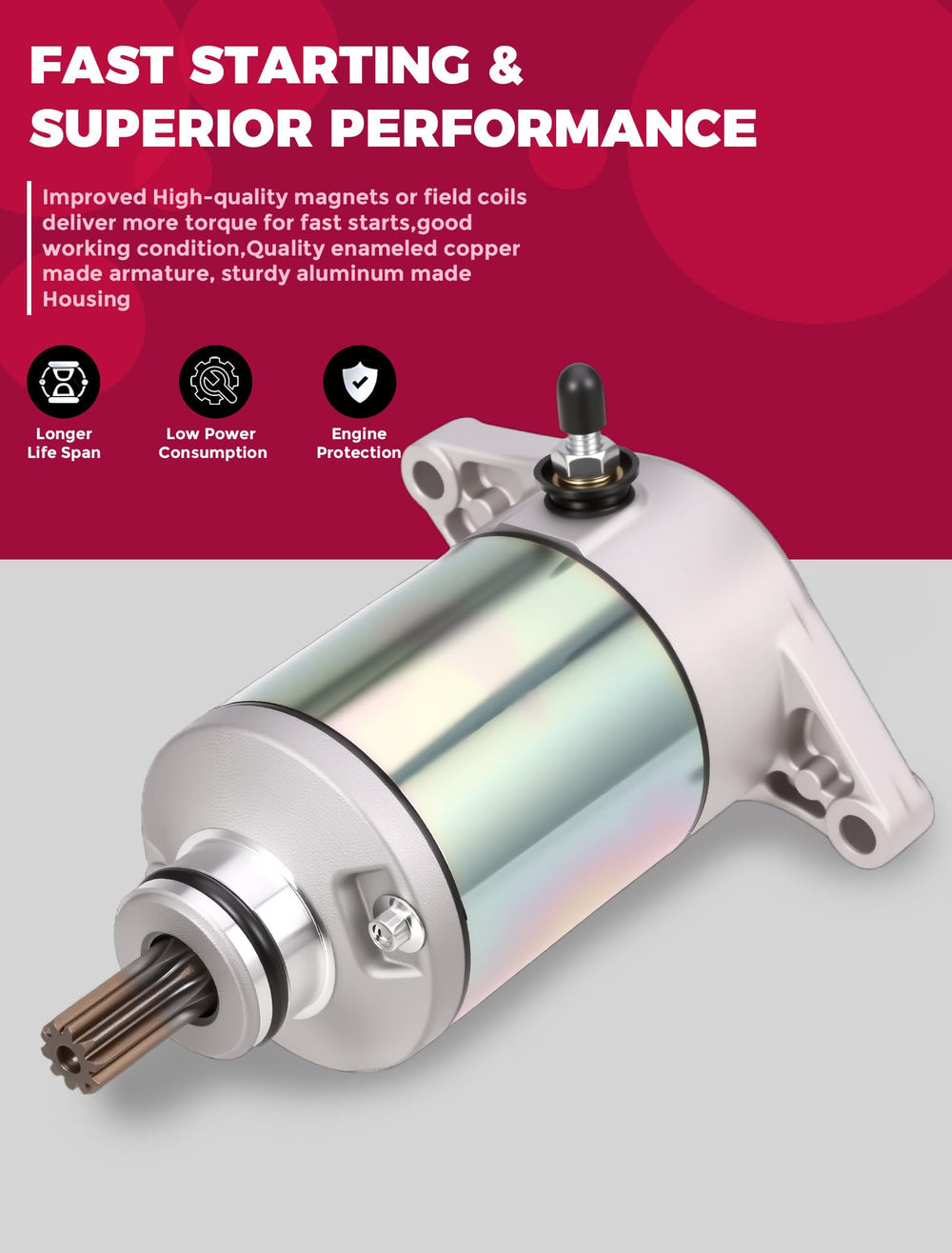

OLIFANT designed the internal motor and reduction gears to provide consistent cranking speeds and torque, which helps the engine spin over reliably even under load. Because the unit draws less current from the battery compared with lower-quality replacements, you reduce strain on the electrical system and lower the chance of weak starts.

• Smooth, steady cranking under normal operating conditions
• Reduced electrical draw protects battery life
• Durable reduction gearset for longer operational life
• Matched relay included for correct engagement and simplified installation

How straightforward is installation and replacement?

Installation is typically a bolt-on swap when the starter and relay match your original part numbers and orientation. Basic hand tools and a vehicle service manual or online guide will help you follow the correct removal sequence and torque specs for safe reassembly.

• Confirm part numbers and CCW rotation before removal
• Disconnect battery negative terminal first to prevent shorts
• Remove mounting bolts, transfer any heat shields or brackets as needed
• Connect new relay and starter, test before final reassembly

Who is this for? Riders, mechanics, and restoration hobbyists who own Arctic Cat 250/300 or Suzuki LT/King Quad 250–300 machines and need a reliable replacement starter will benefit from this OLIFANT kit. It’s aimed at owners seeking an affordable, direct-replacement unit that restores dependable starting performance without complicated modifications. If you need compatibility with the part numbers listed and a matched relay for plug-and-play installation, this kit provides those essentials.
