OLIFANT Voltage Regulator Rectifier for Polaris 500 (1998-2003) — Direct-Fit 4-Wire Replacement, OEM-fit

OLIFANT Voltage Regulator Rectifier for Polaris Sportsman/Scrambler/Ranger/Magnum 500 is a direct-fit electrical replacement that stabilizes charging output and replaces the factory unit for model years listed.

If your Polaris 500 is showing dimming lights, a dead battery after riding, or inconsistent charging, a failing regulator rectifier is often the culprit. This OLIFANT unit is built to match the factory specifications for a range of Polaris ATV models from the late 1990s to early 2000s and uses the four-wire plug configuration for straightforward installation. It’s supplied as a direct replacement referenced by OEM numbers 2203636 and 4060173, and fits numerous Sportsman, Scrambler, Ranger, Magnum, Big Boss and Worker 500 variations.

What Polaris models and years does this OLIFANT regulator rectifier fit?

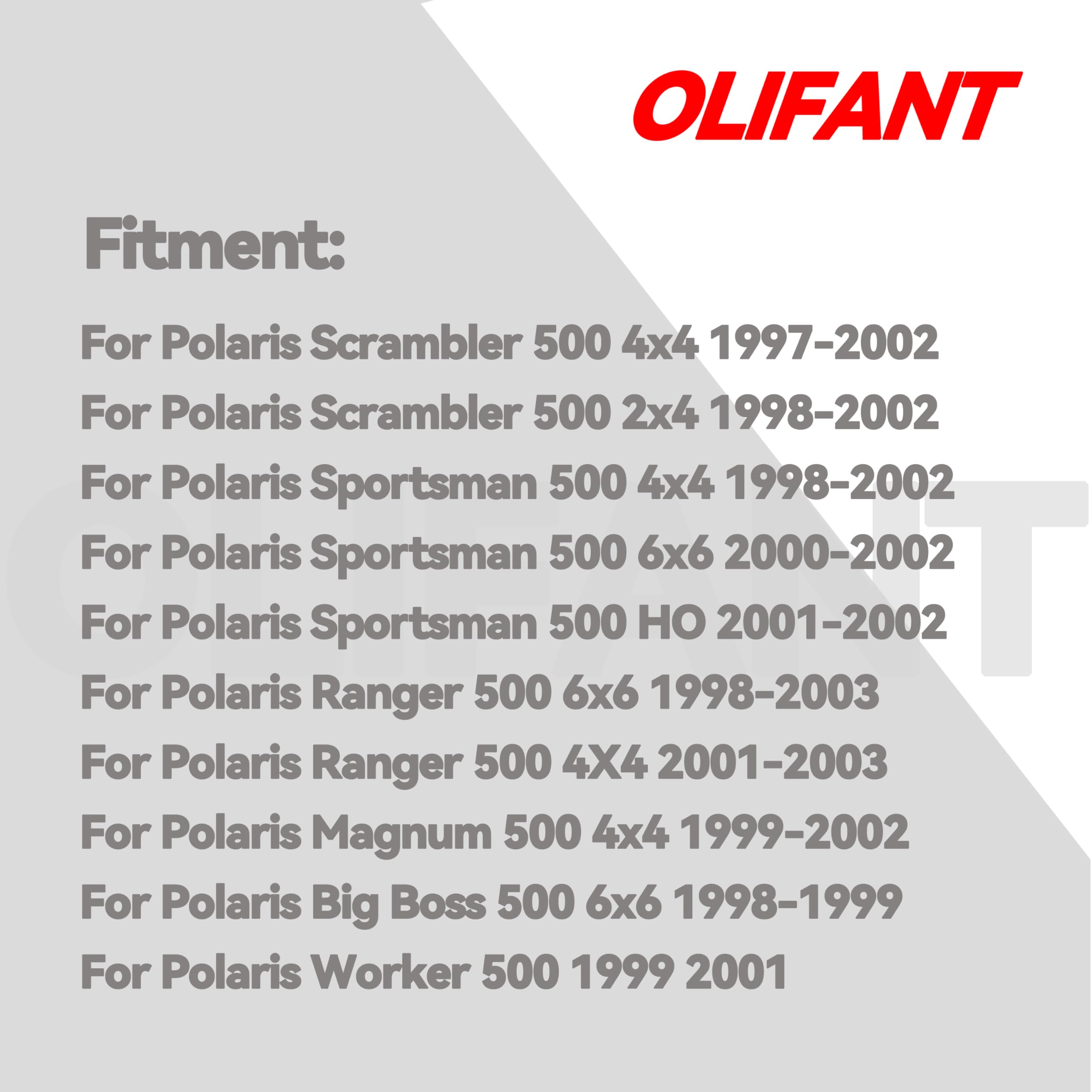

This part covers a wide span of Polaris 500 ATVs and utility machines across several model lines. It supports both 4x4 and 6x6 configurations and models equipped with the four-wire plug layout.

• Sportsman 500 4x4: 1998–2002; Sportsman 500 6x6: 2000–2002; Sportsman 500 HO: 2001–2002
• Scrambler 500 4x4: 1997–2002; Scrambler 500 2x4: 1998–2002
• Ranger 500 6x6: 1998–2003; Ranger 500 4x4: 2001–2003
• Magnum 500 4x4: 1999–2002; Big Boss 500 6x6: 1998–1999; Worker 500: 1999, 2001

How does this regulator rectifier improve charging and electrical stability?

The regulator rectifier converts generator AC to regulated DC and prevents overcharging or undercharging of your ATV battery. Replacing a worn unit restores consistent voltage to lights, ignition and accessories, reducing electrical faults and extending battery life.

• Converts stator AC to stable DC for reliable battery charging
• Maintains correct system voltage under variable RPMs
• Prevents voltage spikes that can damage electrical components

Is installation complicated and what connector does it use?

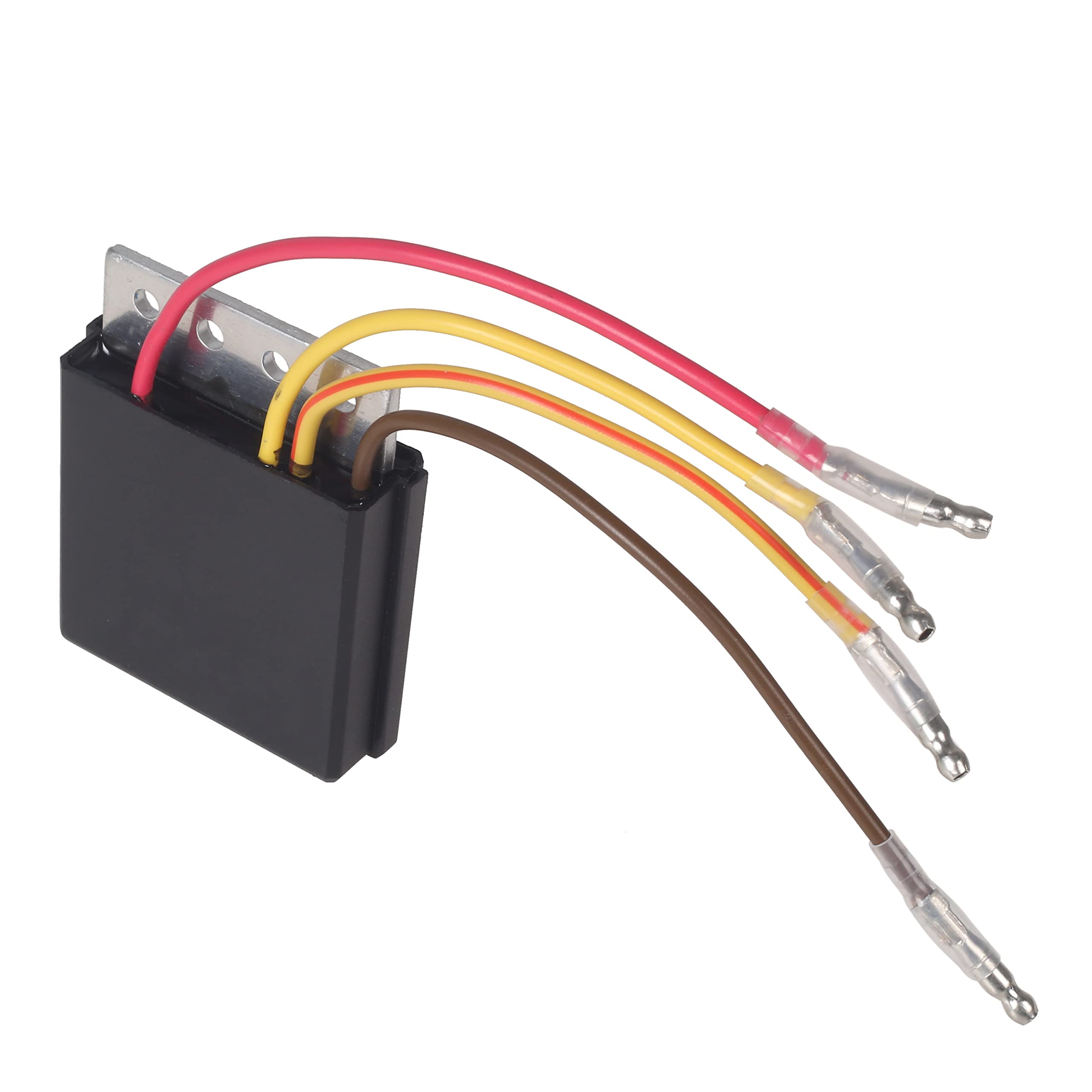

Installation is straightforward for anyone comfortable with basic ATV wiring and bolt-on parts. The OLIFANT regulator rectifier arrives with the compatible 4-wire plug (4 wires/plugs) to mate with the factory harness—no cutting required on correctly equipped models.

• Direct-fit replacement matching original plug pattern

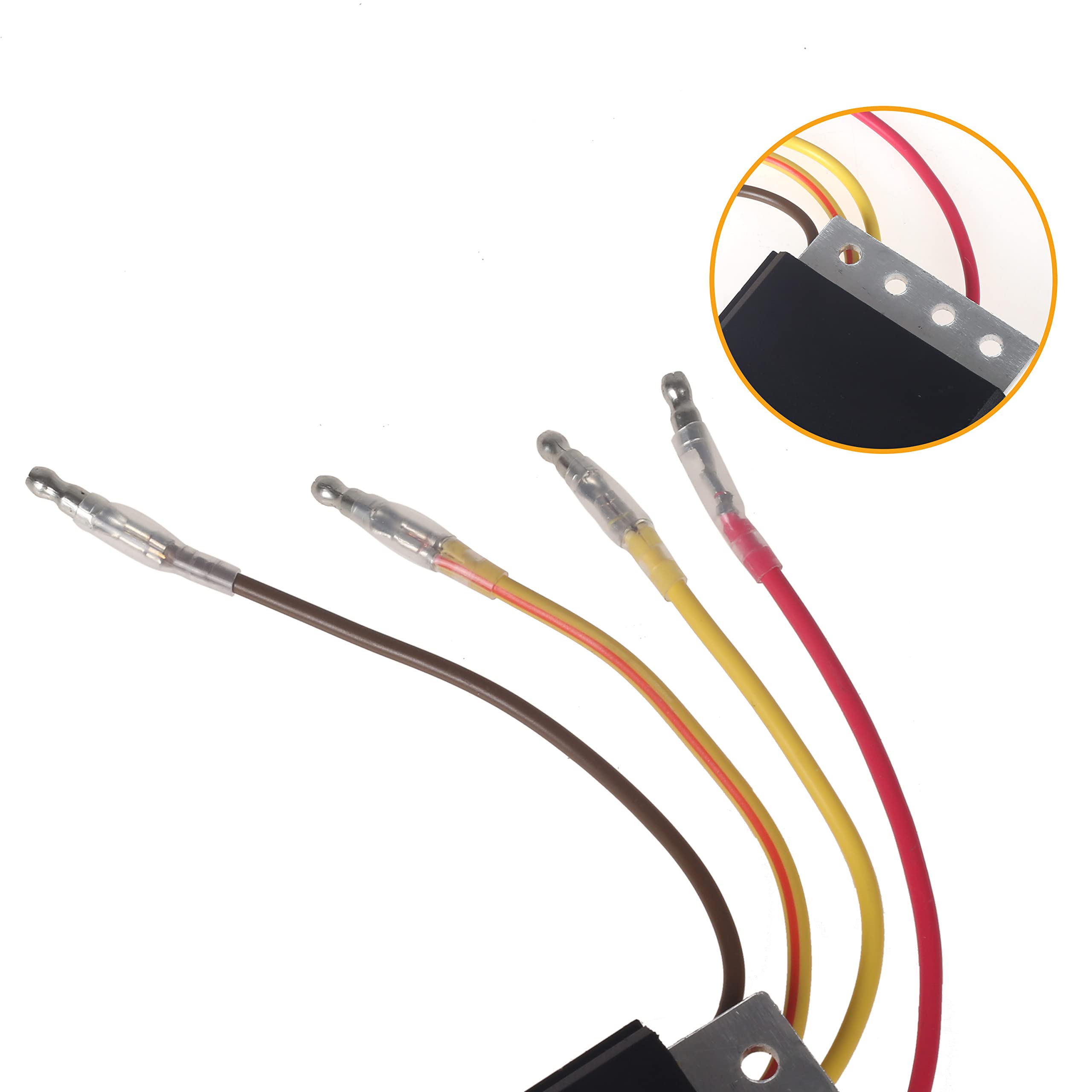

• Mounts using existing bracket points on compatible Polaris models
• Recommended: confirm connector type and OEM ref numbers 2203636 or 4060173 before purchase

What should I check before buying or fitting this part?

Verify your ATV’s year, model and whether the original regulator used a four-wire plug. Compare the OEM reference numbers to ensure compatibility and inspect your stator and wiring for damage—replacing a regulator while the stator is faulty will not fully resolve charging issues.

• Confirm vehicle year and model against the fitment list above
• Match OEM reference numbers: 2203636 and 4060173
• Inspect stator and harness for corrosion or broken wires before final installation

Who is this for: This OLIFANT Voltage Regulator Rectifier is intended for owners, mechanics and restoration specialists working on late‑1990s to early‑2000s Polaris 500-series ATVs and utility machines who need a reliable, direct-fit replacement. It’s ideal when you observe charging irregularities, battery drain after rides, flickering lights, or inconsistent electrical performance and you want a part that matches factory wiring and OEM reference numbers for a quick swap.
