Optronics One LED Low Profile Combination RV Tail Lights - Black Base, Pair, DOT-Approved 12V

Optronics One™ L.E.D. Low Profile Combination RV Tail Lights are a DOT-approved, surface-mount pair that provide stop, turn and tail functions with a single brightness-varying LED in a low-profile black housing.

These RV tail lights are designed for trailers wider than 80 inches and deliver a compact, reliable lighting solution for travel trailers, fifth-wheels and utility trailers. The set includes both left and right lamps, each built with an acrylic lens and durable plastic housing that resists road vibration and weather exposure. They hard-wire into a 12V DC system and include a separate ground wire for secure electrical connection.

How do these lights perform on long trips and in harsh conditions?

The polycarbonate-acrylic lens and plastic housing are engineered to withstand road debris, UV exposure and moisture. The single LED diode varies brightness for stop/turn/tail functions, providing clear signaling without multiple bulbs to fail.

• DOT-approved for trailers over 80" wide, suitable for highway use
• Durable acrylic lens resists cracking and yellowing
• Low-profile design reduces snagging and aerodynamic drag
• Single LED diode reduces points of failure and simplifies maintenance

What are the exact dimensions and mounting requirements?

Each lamp measures 3-3/16" high by 8-11/16" wide and 2-1/4" deep, with a mounting pattern of 1-7/8" x 7-3/8". These lights are surface-mounted and hard-wired; note that mounting screws are not included, so you’ll need to supply appropriate fasteners for your trailer material.

• Overall size: 3-3/16" H x 8-11/16" W x 2-1/4" D
• Mounting pattern: 1-7/8" x 7-3/8" for secure attachment
• Hard-wire installation: 12V DC, 0.34 amps per lamp

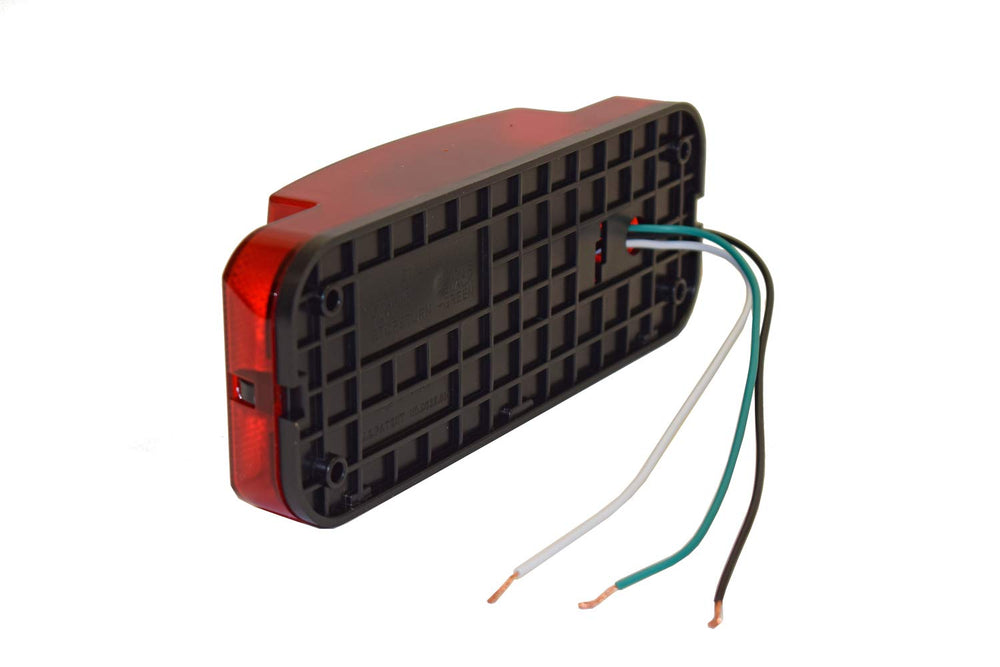

• Separate ground wire included for proper grounding

How easy is installation and electrical hookup?

Installation is straightforward for anyone comfortable with trailer wiring: surface-mount the housings and hard-wire to the vehicle wiring harness. The lamps include a ground wire but do not include mounting screws, so have fasteners and basic wiring tools on hand.

• Hard wired connection—no plug required
• Includes separate ground wire for reliable earth connection
• Requires 12V DC power and standard trailer wiring knowledge
• Mounting hardware (screws) must be purchased separately

What maintenance or replacement considerations should I know?

Because the lights use a single LED diode with variable brightness, routine maintenance is minimal compared with multi-bulb assemblies. Check seals and wiring periodically and replace the unit if the lens becomes damaged or the LED output diminishes significantly.

• LED technology lowers maintenance compared to incandescent bulbs
• Inspect wiring and seals annually for corrosion or moisture
• Replace entire assembly if lens or housing cracks
• Keep mounting screws tight to prevent vibration damage

Who is this for? The Optronics One™ RVSTLB6061-KIT pair is a practical choice for RV owners, trailer builders and fleet operators seeking DOT-compliant, low-profile rear combination lights. It suits anyone who wants a durable, easy-to-install stop/turn/tail solution for trailers wider than 80 inches and prefers LED reliability with a black base that blends into most trailer exteriors.
