Orion Motor Tech 1100 lb Motorcycle Scissor Lift Jack — Wide 9.1x14.6" Deck, Manual T-Handle, 5 Lock Positions

The Orion Motor Tech OMT 1100lb Motorcycle Scissor Lift Jack is a heavy-duty wide-deck hoist that raises bikes up to 1100 lb for safe, level maintenance and storage.

The OMT 1100lb scissor lift jack is built to make workshop and garage motorcycle maintenance easier and more secure. With a broad 9.1" x 14.6" platform, a manual T-handle and socket operation, and five locking positions, this lift gives a dependable, non-powered way to access your bike’s underside, wheels, and chassis. Rugged steel construction, plug-welded joints and a rubberized tabletop combine strength with protection for painted surfaces.

How high will this lift raise my motorcycle?

The lift offers a usable range from 3.7 inches at its lowest to 14.6 inches at its highest, suitable for most routine repairs and wheel work. Lift height is adjusted by turning the included T-handle or using a 3/8" socket with a ratchet.

• Low profile start height: 3.7" for easy loading.
• Maximum height: 14.6" for comfortable under-bike access.
• Manual screw drive for precise, controlled lifting.
• Operate with T-handle or 3/8" socket and ratchet.

Will the platform keep my motorcycle stable while I work?

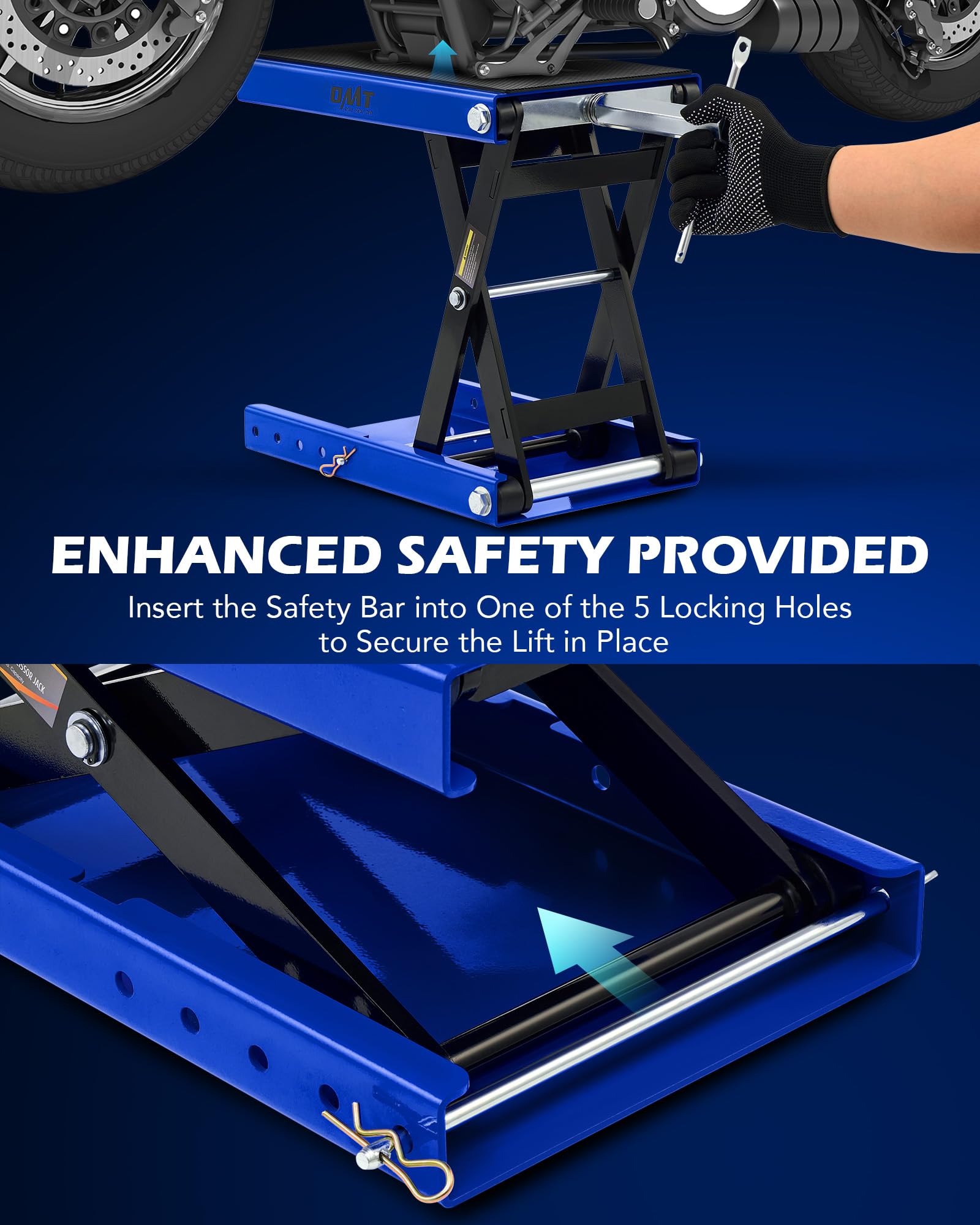

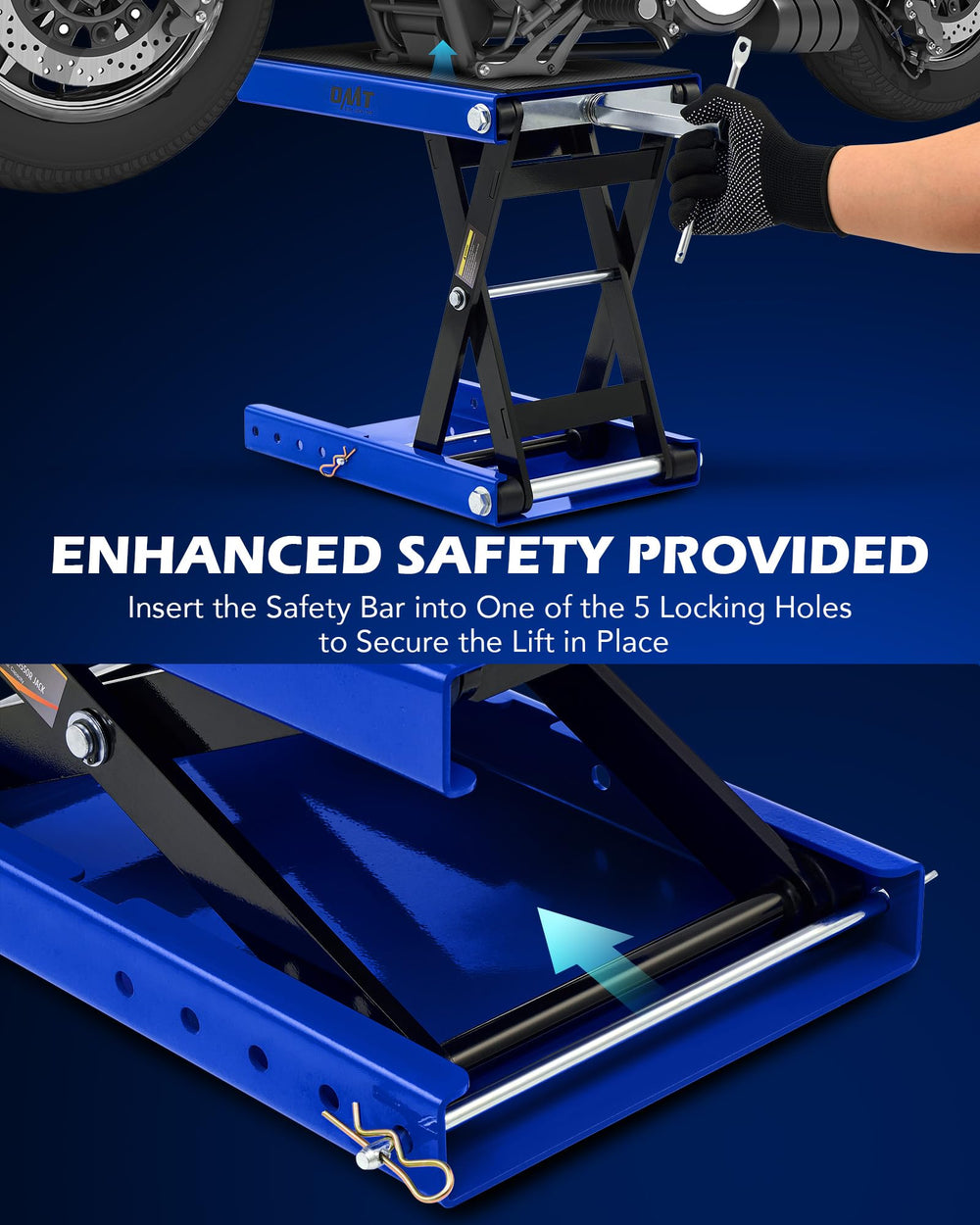

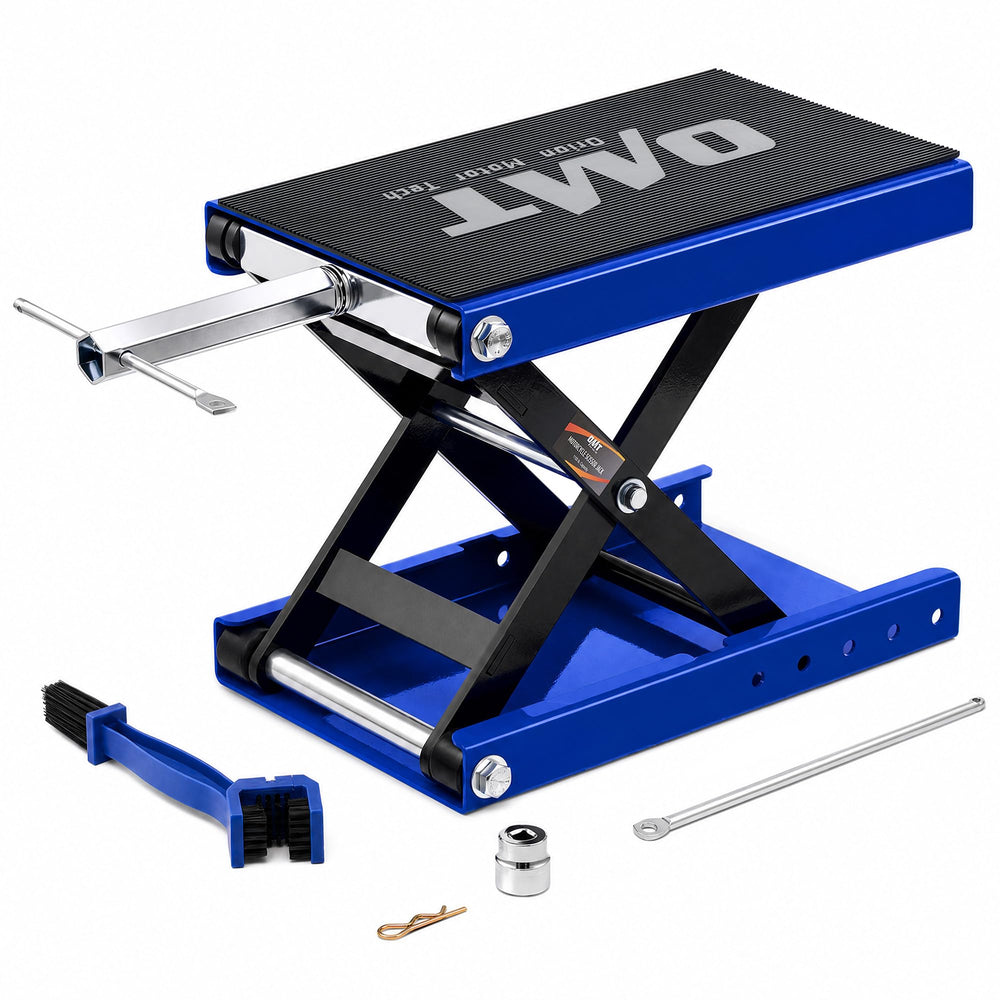

Yes—stability is a core feature. The extra-wide 9.1" x 14.6" deck gives a broader footprint than narrow stands, while the rubber tabletop reduces slipping and protects finishes. After raising the bike, insert the steel safety bar into one of five locking holes to mechanically secure the lift and guard against accidental descent.

• 9.1" x 14.6" wide deck for improved balance.
• Rubberized top to prevent scratches and skidding.
• Five lock positions with a steel safety bar for secure holding.
• Solid base design minimizes tipping during routine tasks.

How durable is the construction for regular garage use?

The lift is fabricated from heavy-duty steel with a plug-weld and double crossbar layout to strengthen joints and reduce flex. The robust build and corrosion-resistant finish are intended to stand up to repeated use in home or professional settings.

• Heavy-gauge steel frame for high load capacity and longevity.
• Plug-welded seams and double crossbar reinforcements for rigidity.
• Corrosion-resistant coating helps resist workshop moisture.
• Rated capacity: 1100 lb (500 kg) for a wide range of motorcycles.

What is the recommended way to operate and maintain this hoist?

Manual operation is recommended to prolong the screw mechanism’s life and reduce wear. Use the T-handle for routine lifts and a 3/8" socket and ratchet when additional leverage is needed; always engage the safety bar before working under the motorcycle and perform routine inspections for fastener tightness and lubrication.

• Prefer manual T-handle operation to extend screw life.
• Use a 3/8" socket and ratchet for heavier or faster lifts.
• Insert safety bar in a locking hole before repairs.
• Inspect welds, bolts and screw threads periodically; lubricate as needed.

Who this lift is for: The Orion Motor Tech OMT 1100lb scissor lift is aimed at motorcycle owners, DIY mechanics, and small shops that need a reliable, non-powered hoist with a broad platform. It suits cruisers, sportbikes, dual-sport machines and many dirt bikes within the 1100 lb limit, and is particularly useful where a stable, protective tabletop and mechanical locking are priorities.
