Orion Motor Tech camshaft timing lock tool kit for Ford Mazda Volvo — 10-piece 1045 steel VCT alignment set (303-1097)

The Orion Motor Tech OMT Camshaft Timing Lock Tool Kit (303-1097) is a 10-piece professional engine timing and VCT alignment set designed to accurately lock and position dual-overhead-cam engines from Ford, Mazda and Volvo during timing belt or chain service.

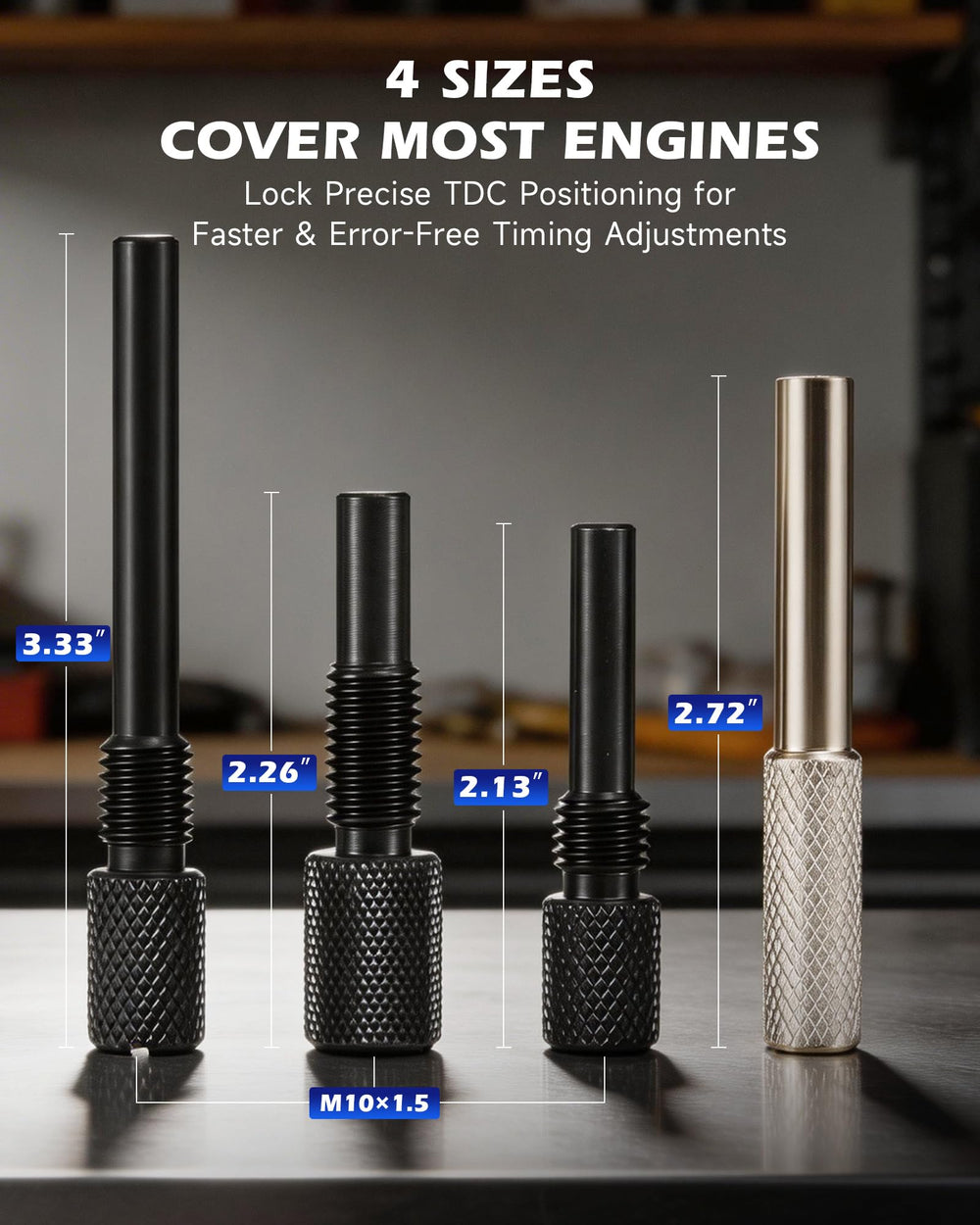

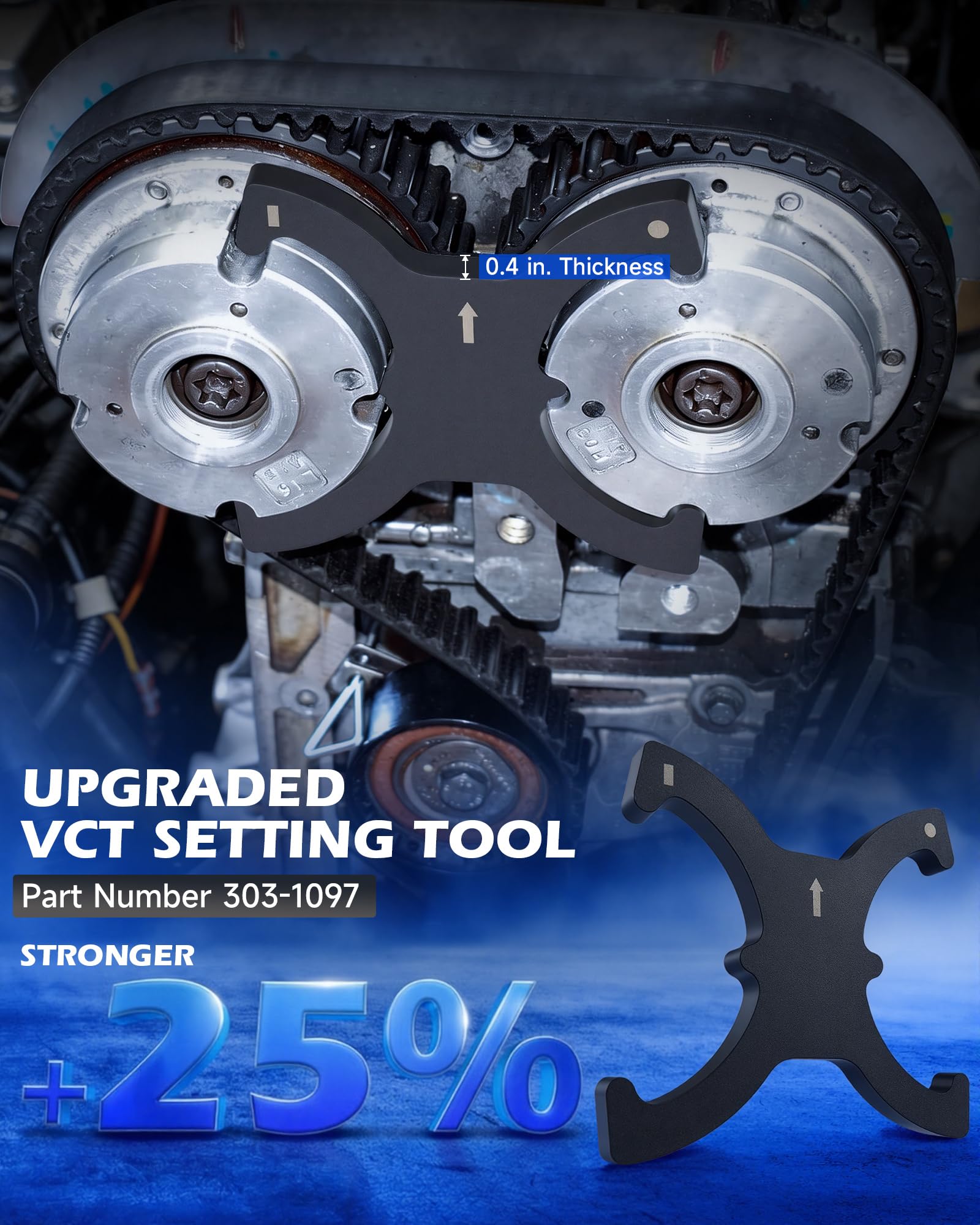

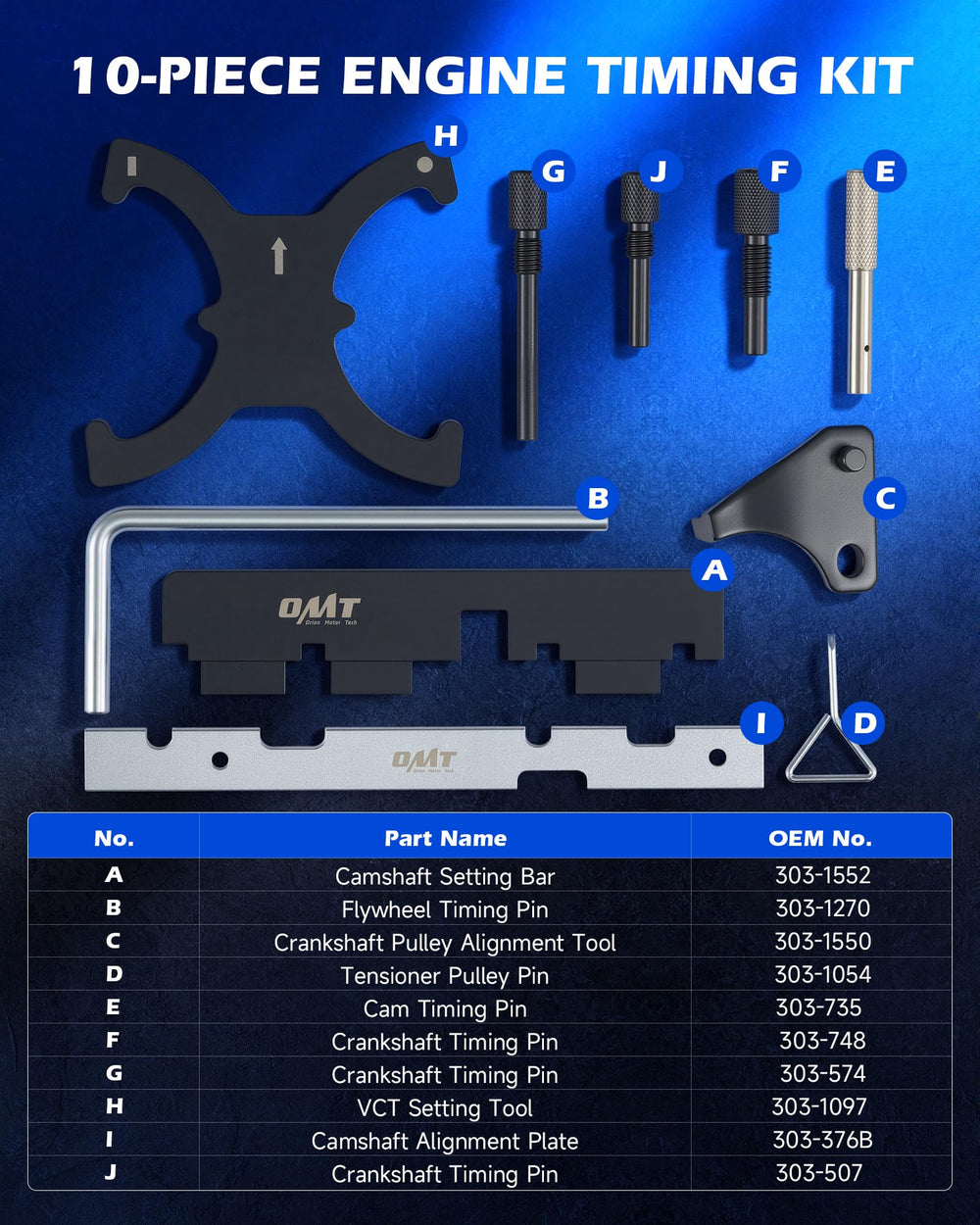

This precision kit gathers the specialized VCT setting tool, camshaft alignment plates and a full complement of timing pins engineers and technicians rely on to maintain correct valve timing when servicing 1.25–2.5L 16-valve DOHC engines (including Ti‑VCT and EcoBoost 1.5/1.6 applications). Each tool is heat-treated 1045 carbon steel with a zinc-plated finish for increased hardness and corrosion resistance, and the set ships in a blow-molded case so parts stay organized and protected between jobs.

Which vehicles and engines will this timing tool kit fit?

The kit is made for a range of Ford, Mazda and Volvo dual-cam 16V engines: 1.25, 1.4, 1.5, 1.6, 1.7, 1.8, 2.0, 2.3 and 2.5 liters. It specifically covers Ti‑VCT and 1.5/1.6L EcoBoost variants but excludes 2.3T/turbocharged 2.3 engines. Always verify compatibility with your engine code and year before ordering.

• Covers Ford, Mazda and Volvo DOHC 16V engines in the listed displacements
• Includes tools for Ti‑VCT and EcoBoost 1.5/1.6 engines
• Not suitable for 2.3T/turbocharged 2.3 engines
• Confirm fit by cross-referencing OEM tool numbers and engine model

How do these tools improve timing belt or chain service?

Using dedicated alignment plates and timing pins prevents camshafts and variable cam timing components from rotating while belts or chains are removed. That control helps technicians maintain exact valve timing alignment, reducing the risk of incorrect timing reassembly that can cause poor performance or engine damage.

• Locks camshafts and VCT components during disassembly and reassembly
• Minimizes risk of timing drift when switching belts or chains
• Facilitates precise re-tensioning and verification steps
• Saves diagnostic time by preventing timing-related faults after service

What are the build quality and corrosion protection features?

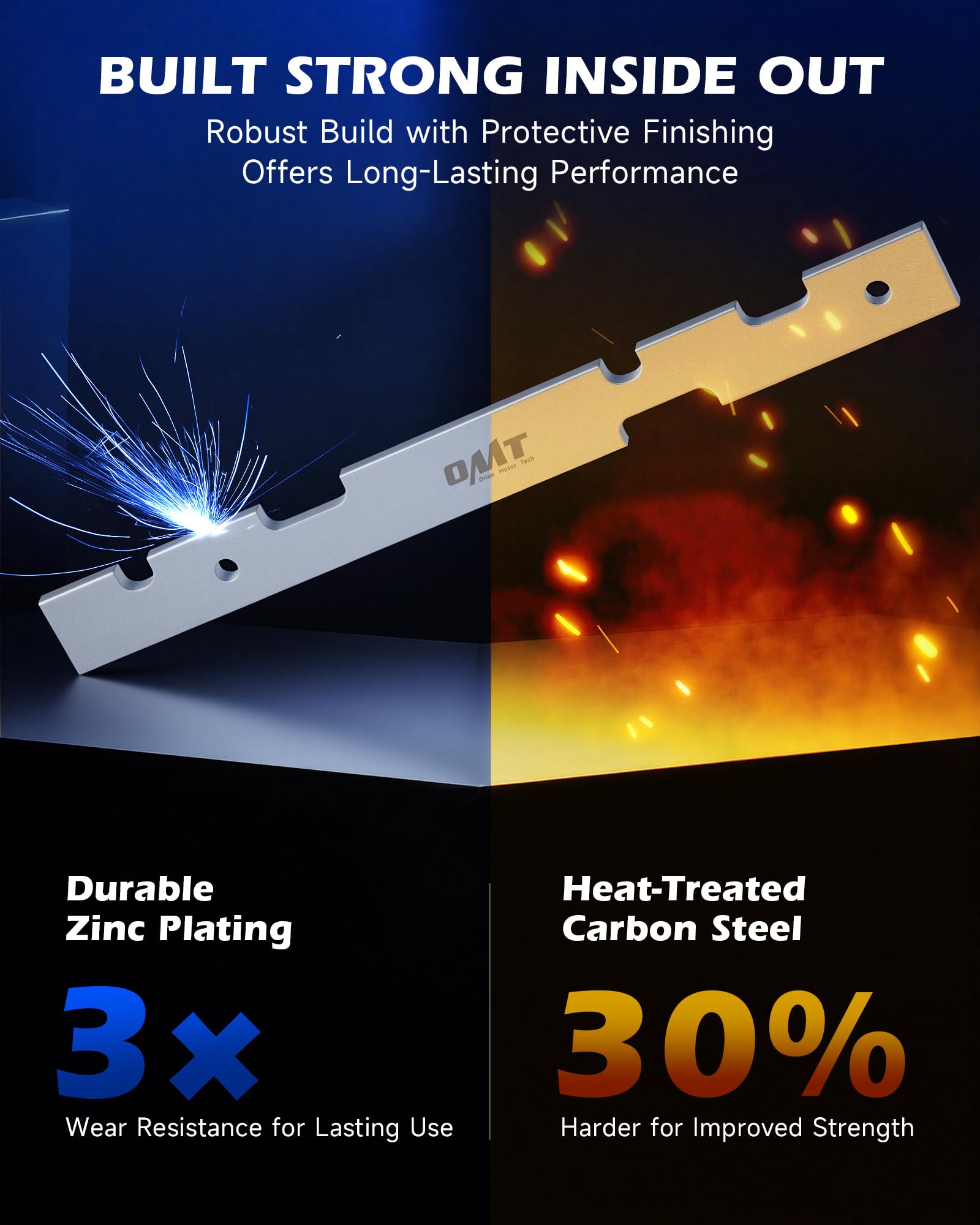

Each piece is manufactured from heat-treated 1045 carbon steel for roughly 30% greater hardness compared with untreated steels, giving the kit durability under repeated shop use. A zinc-plated finish increases wear and corrosion resistance so tools remain serviceable for years.

• Heat-treated 1045 carbon steel construction for improved strength
• Zinc plating enhances wear and corrosion resistance
• Robust design suitable for professional and DIY environments

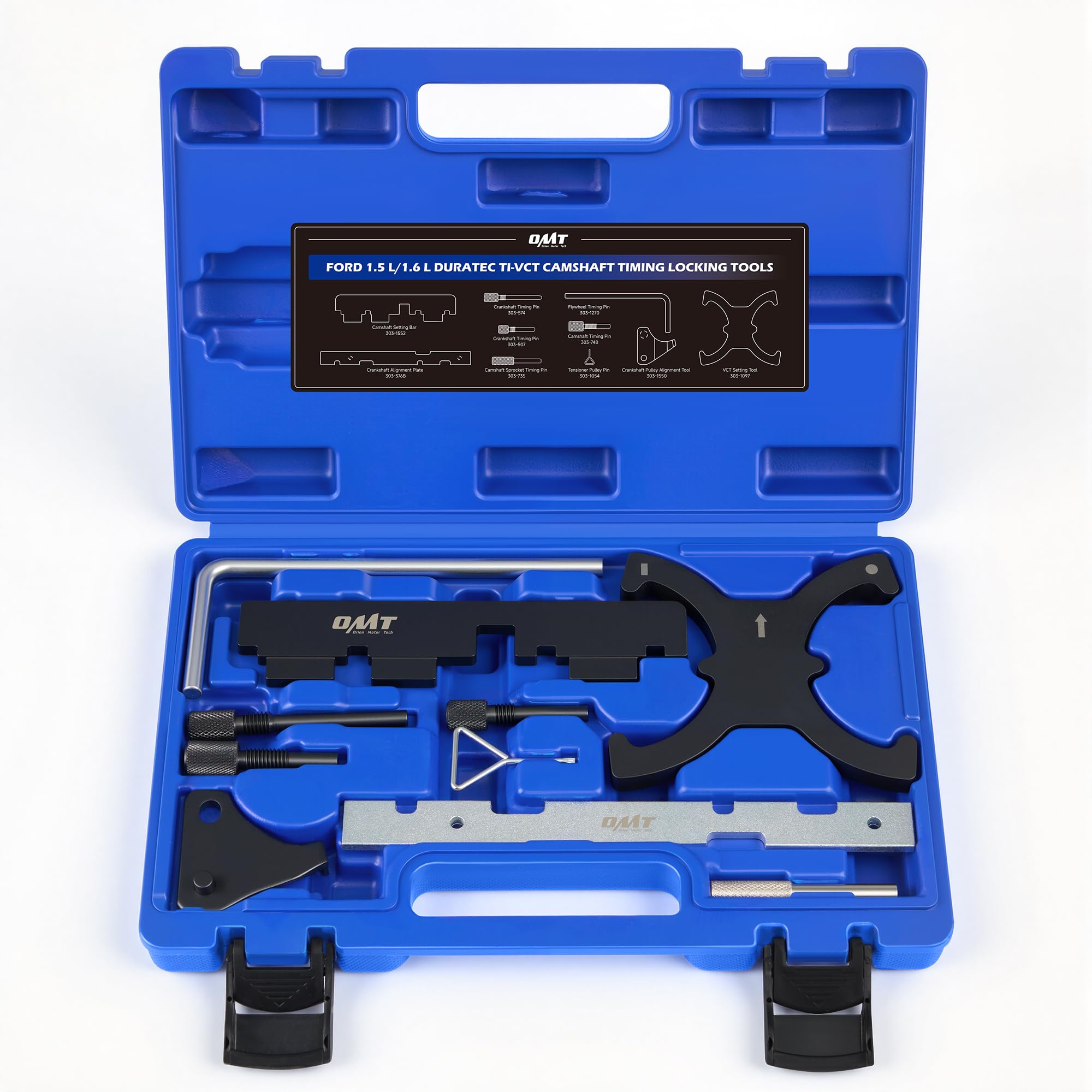

• Supplied blow-molded case protects tools and keeps them organized

Who is this for: The Orion Motor Tech 303-1097 timing lock tool kit is aimed at automotive technicians, independent mechanics and confident DIYers who service Ford, Mazda or Volvo DOHC 16-valve engines. It suits anyone who needs reliable camshaft and VCT alignment tools during timing belt or chain replacement, head work, or variable timing component service and prefers a complete, rugged kit stored in a protective case.
