WAYCOJOY Camshaft Timing Locking Tool for 2.0L/2.3L EcoBoost — Hardened Steel Kit with Case

WAYCOJOY Camshaft Timing Locking Tool is a precision-engineered kit that locks, aligns, and sets camshafts and crank timing for 2.0L and 2.3L EcoBoost engines compatible with OEM tools like 303-1594 and 303-1504.

When you’re servicing timing components on modern Ford EcoBoost engines, accurate positioning of camshafts and the crank is critical. This kit reproduces OEM fit and function so you can hold cams, set the crank to top dead center (TDC), and verify crank sensor/balancer alignment without guesswork. Each piece is machined from hardened steel with a corrosion-resistant coating and stores neatly in a heavy-duty carry case for shop or roadside use.

Which Ford engines and models will this kit work on?

The set is designed for a broad range of 2.0L and 2.3L EcoBoost petrol engines and related Duratec variants. It covers multiple engine codes and model years for accurate timing work on both passenger and performance models.

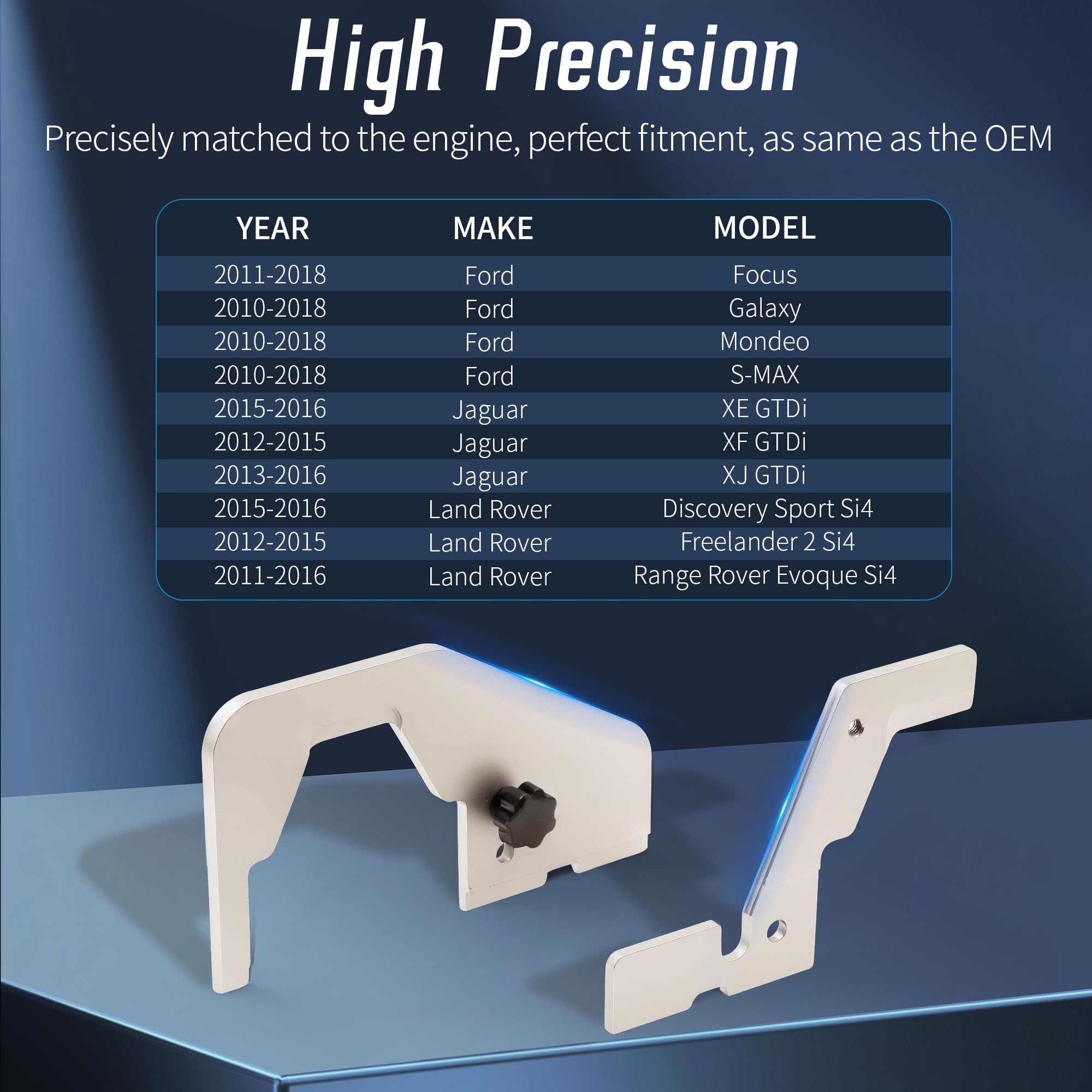

• Compatible models include Focus, Galaxy, Mondeo, S-MAX and select Ford Fusion, Escape, Edge, Explorer, Mustang, and Focus RS years.
• Engine codes supported: TNWA, TNWB, TNBA, TPWA, MGDA, XQDA and similar 2.0/2.3 EcoBoost variants.
• Replaces OEM tool references such as 303-1565, 303-1504, 303-1594 and related numbers.

How does the kit help during a timing belt or chain service?

Use the tools to lock camshafts in their exact service positions and to fix the crankshaft at TDC so components can be removed or installed without losing engine synchronization. That eliminates trial-and-error and reduces the risk of valve-to-piston contact on interference engines.

• Locks both intake and exhaust camshafts securely for disassembly or reassembly.
• Provides a crank hold/positioning tool to set and verify true TDC.
• Enables correct placement of crank sensor and balancer for accurate timing referencing.

What makes the WAYCOJOY tooling reliable compared to aftermarket alternatives?

Materials and tolerances matter when holding timing positions under torque or during component swaps. This kit’s hardened steel parts and protective finish resist wear and maintain dimensional accuracy over repeated use, matching OEM geometry for dependable fitment.

• High-hardness steel construction with a black anti-oxidation coating for longevity.
• Precision-machined contact points engineered to match OEM locating surfaces.

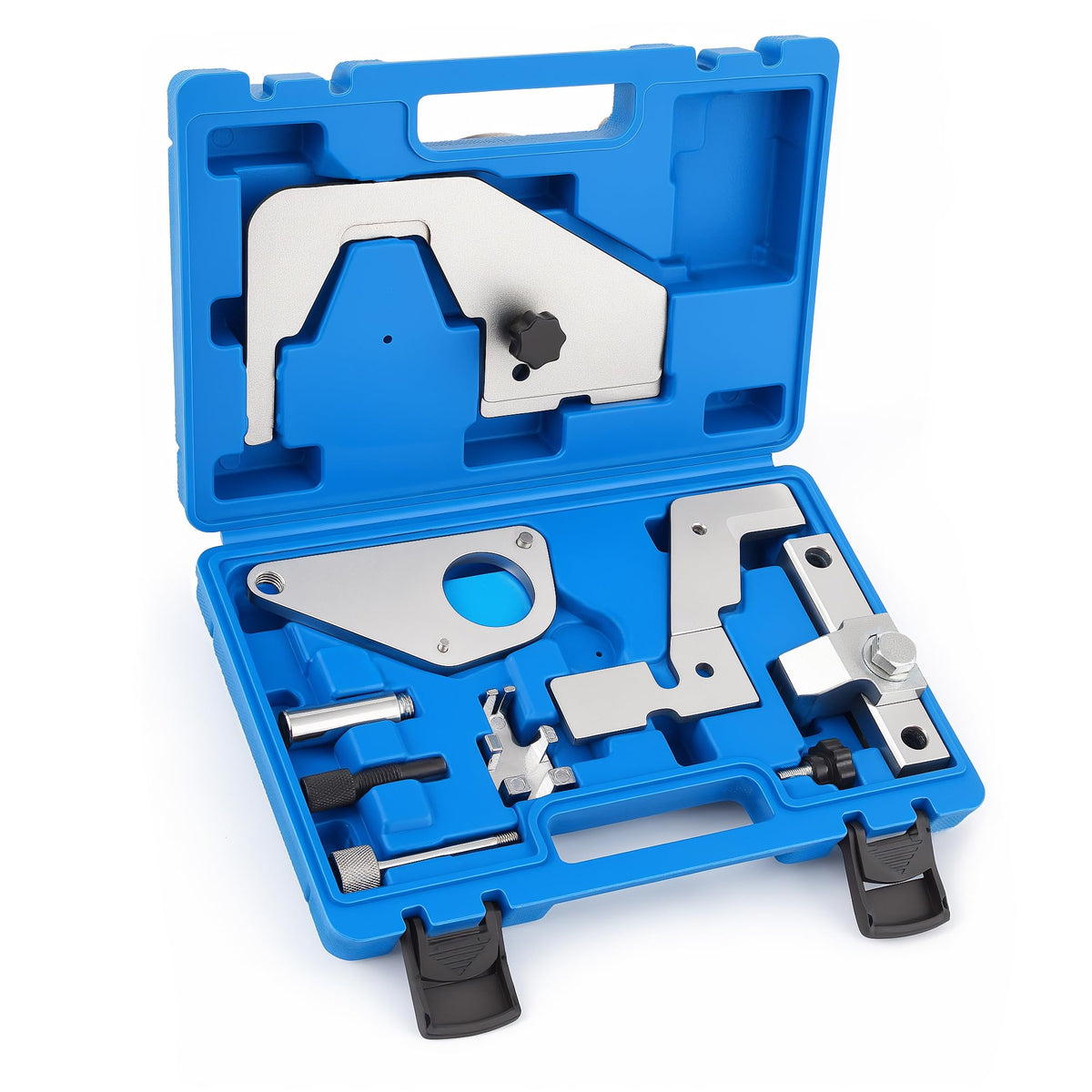

• Delivered in a molded heavy-duty case for protection and organized storage.

What’s included and are there usage tips?

The kit contains the common locking plates, pins and a crank positioning tool needed for the covered engines. Always follow the vehicle manufacturer’s service manual for the correct sequence and torque values; use the tools only as alignment and retention aids.

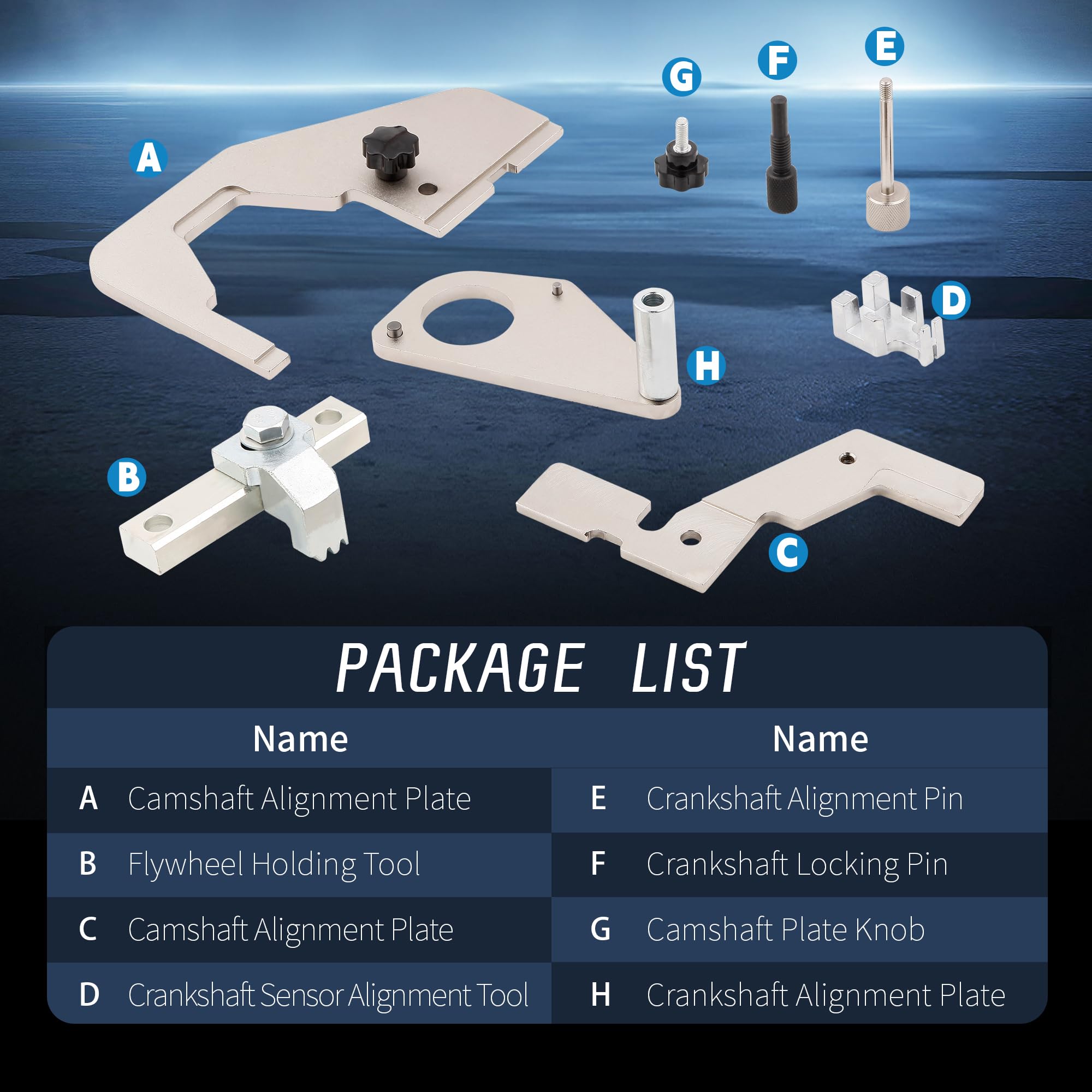

• Multiple cam locking plates and locating pins for different engine configurations.
• Crank positioner and balancer alignment fixture for setting TDC and sensor positions.
• Tip: confirm engine code and year before starting to ensure matching tool selection.

Who this is for: Professional mechanics, independent repair shops, and experienced home mechanics working on Ford EcoBoost 2.0L and 2.3L engines who need an OEM-equivalent timing alignment solution. If you service timing components, replace chains or tensioners, or rebuild these engines, this kit helps you perform accurate, repeatable timing setups with rugged, shop-ready tools. For application questions or fitting help, WAYCOJOY customer support is available prior to and during use.
