OTC Cylinder Leakage Tester Kit 5609 — Complete 0–100 psi Dual-Gauge Set with Case

The OTC 5609 Cylinder Leakage Tester Kit is a ready-to-use diagnostic set that pressurizes cylinders to pinpoint rings, valves, and head gasket leaks quickly and accurately.

This compact kit bundles everything a technician needs to perform a reliable cylinder leakage test: dual calibrated gauges, a pressure-regulated manifold with quick couplers, multiple thread adapters, and a flexible hose, all stored in a tough blow-molded case. The gauges read in both psi and kPa and are protected by chrome bezels and rugged outer boots for durability in busy shop environments. The set is calibrated to 0–100 psi (0–700 kPa) and requires a 100 psi shop air supply to pressurize the cylinders under test.

How does the OTC 5609 help diagnose internal engine problems?

By introducing compressed air into a cylinder and measuring pressure decay and leakage paths, the OTC 5609 reveals whether compression loss is caused by piston rings, valve seating, or a compromised head gasket. The dual gauges and quick-coupled manifold make it straightforward to move between cylinders and compare results.

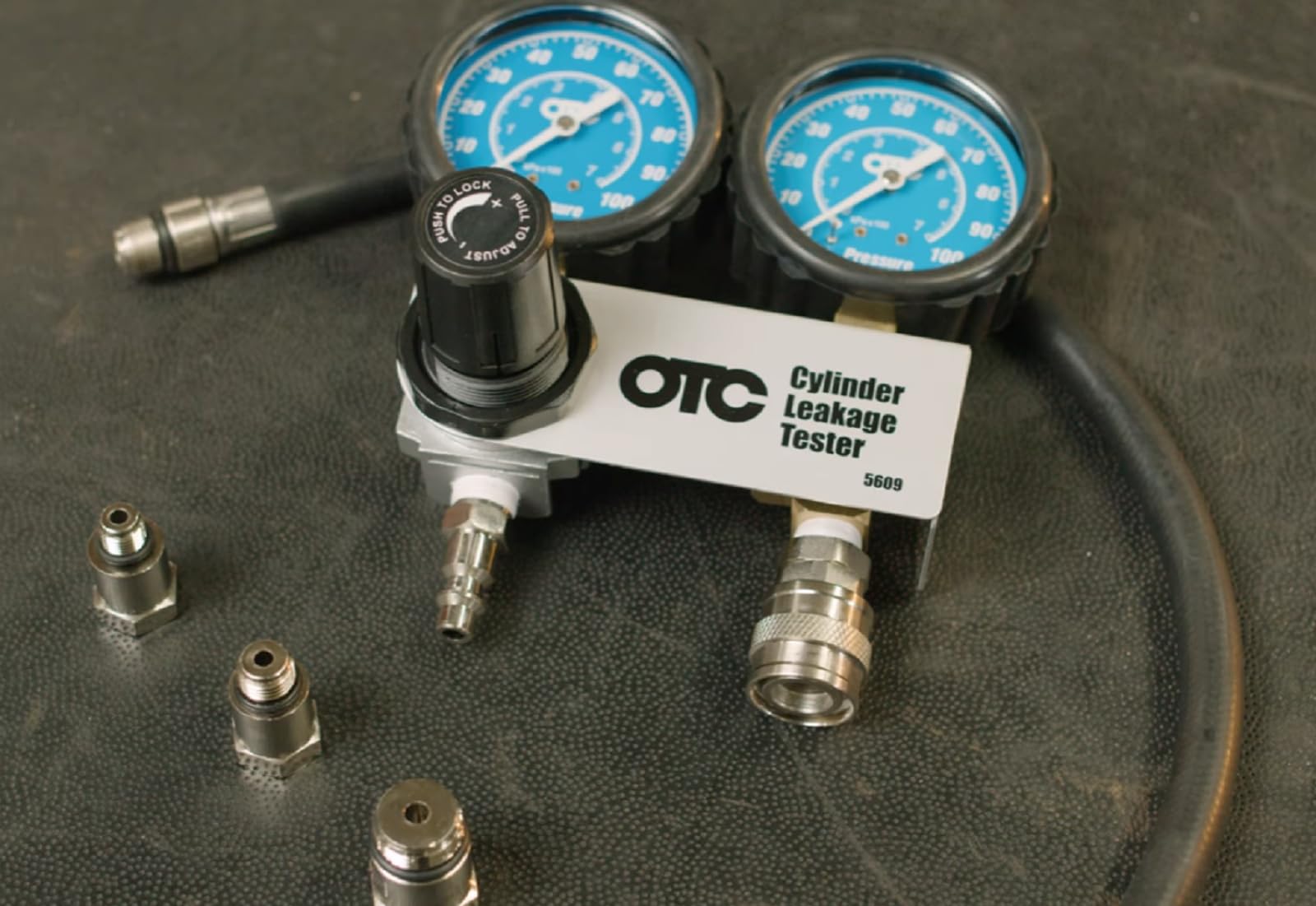

• Dual 2.5-inch gauges show pressure and leakage rates simultaneously.
• Adapters for 10mm, 12mm, and 18mm threads fit most spark plug and injector ports.
• Pressure-regulated manifold with quick couplers speeds testing across cylinders.
• Clear operating instructions stored under the case lid for consistent procedures.

What components are included and how durable are they?

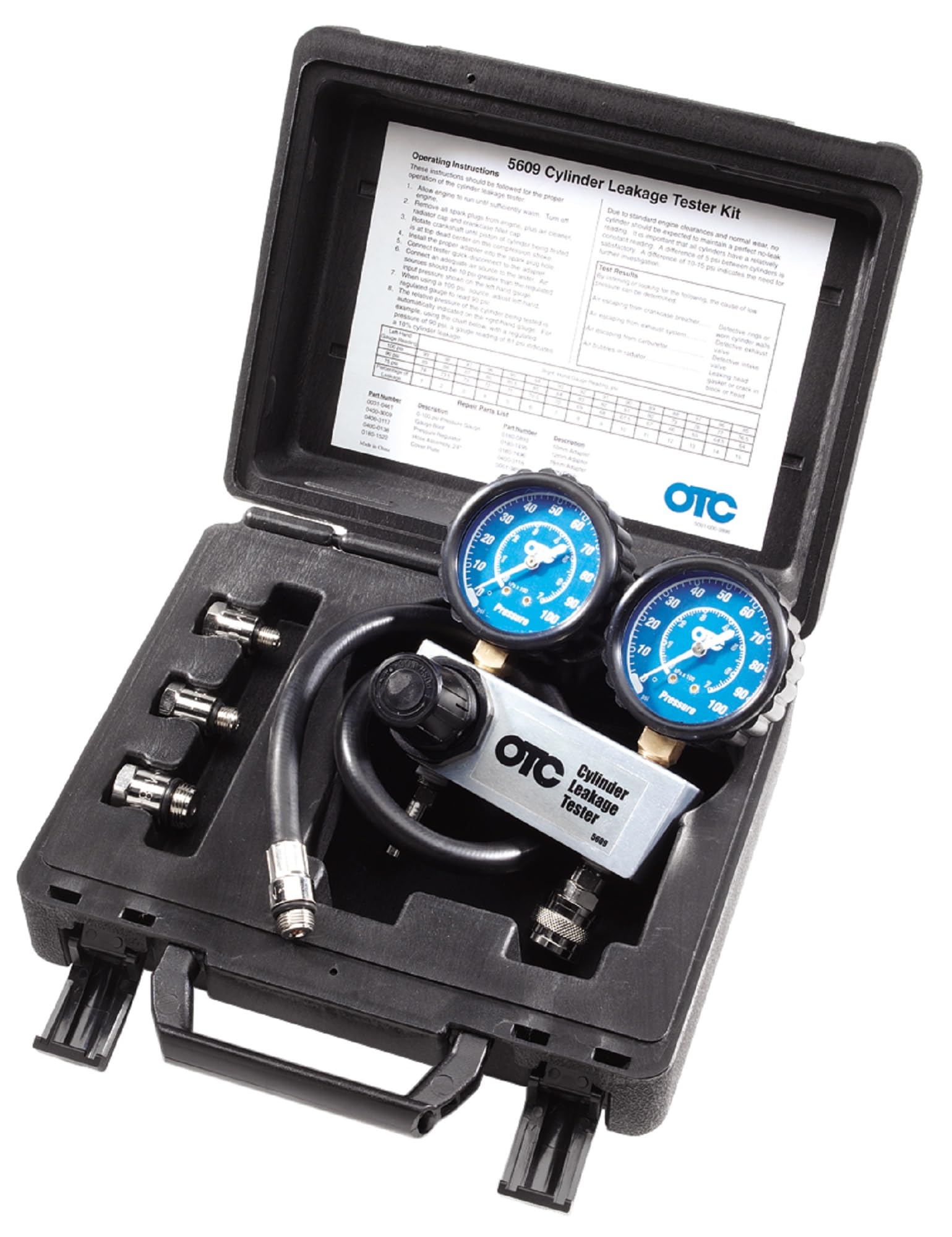

The kit includes a pressure-regulated aluminum manifold, quick couplers, a 24-inch 14 mm flexible hose, three thread adapters, and twin gauges mounted on protective boots. Each piece is designed for repeated shop use, and the blow-molded hard case keeps the tools protected and organized when not in use.

• Chromed gauge bezels and rubber boots resist drops and scuffs.

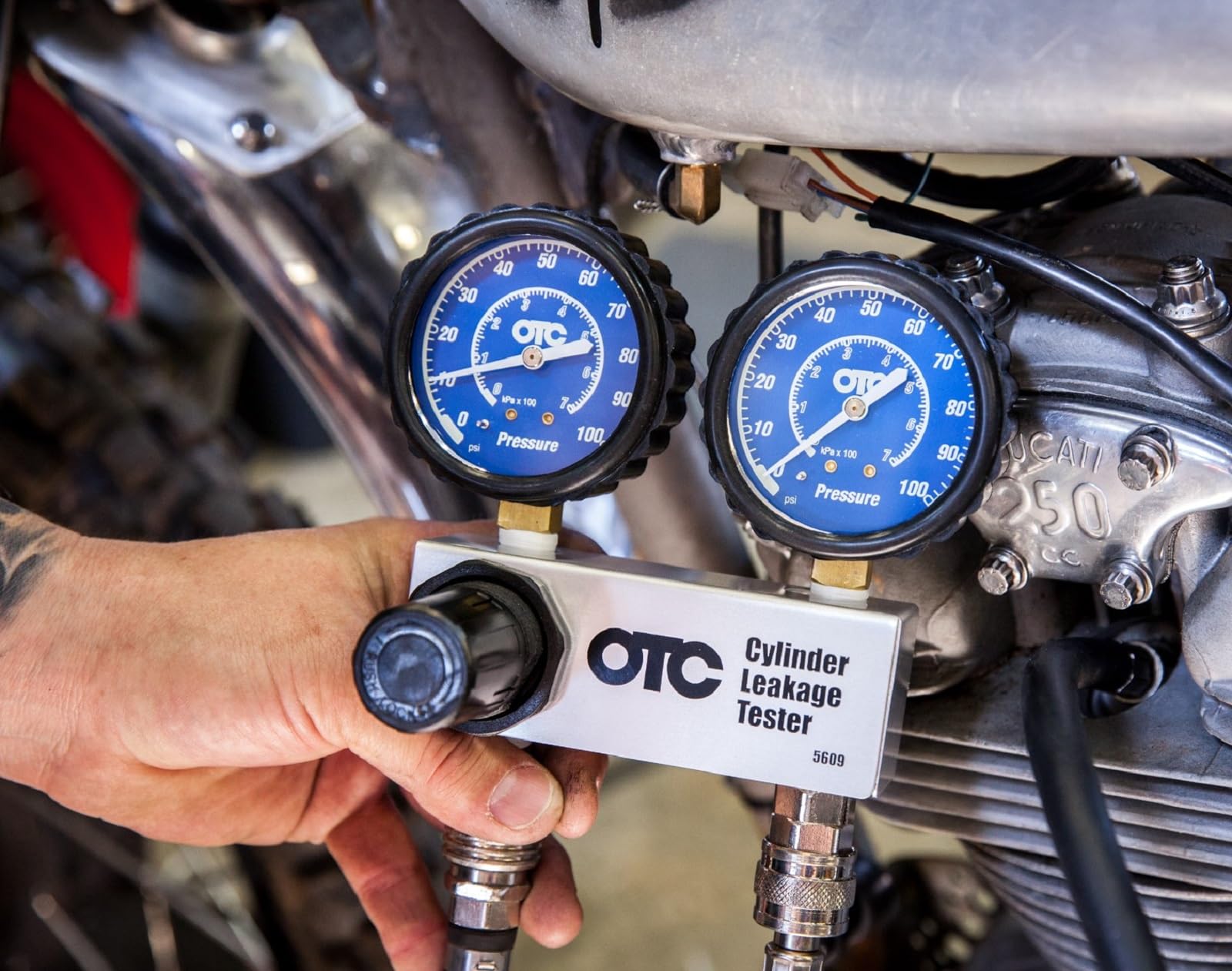

• Aluminum manifold is corrosion-resistant and includes a built-in regulator.
• Flexible hose reduces stress at fittings during testing.
• Hard case with removable lid secures components for transport and storage.

How do I set up and run a cylinder leakage test with this kit?

Connect the manifold to a 100 psi shop air source, attach the appropriate adapter into the spark plug or injector port, and pressurize the cylinder. Observe the gauges for leakage percentage or pressure decay, then inspect where air escapes to identify worn rings, leaking valves, or head gasket issues.

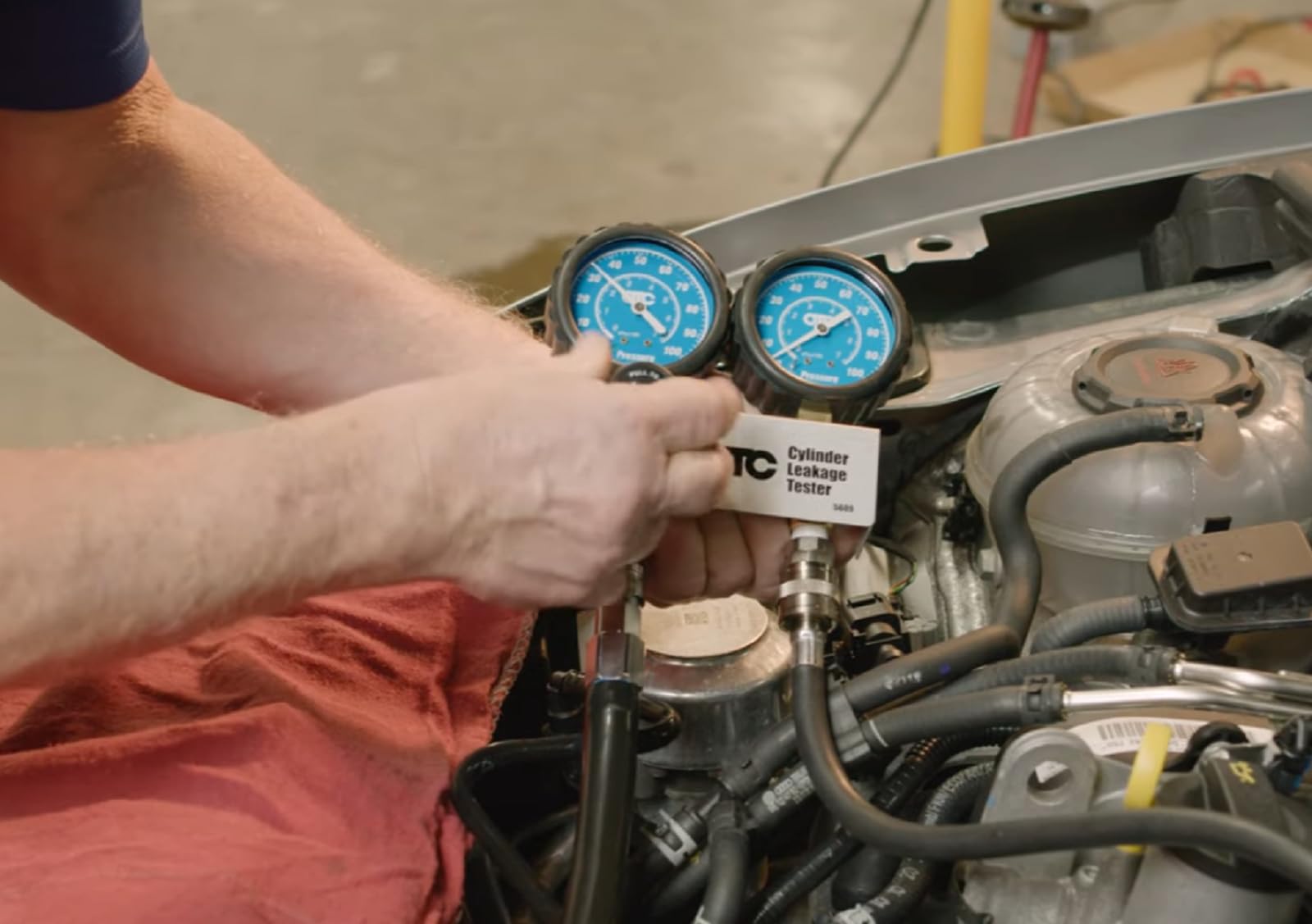

• Use the 14 mm hose to link the adapter to the manifold quickly.
• Start with the regulator set to the recommended shop pressure (100 psi).
• Listen at the intake, exhaust, and crankcase to locate leak paths.
• Record readings from both gauges to compare cylinder-to-cylinder performance.

Are the adapters compatible with most vehicle engines?

The included 10mm, 12mm, and 18mm thread adapters cover a wide range of spark plug and injector ports found on light-duty engines. For unusual or nonstandard ports, additional adapters may be required, but the kit handles the majority of domestic and import applications.

• Three common thread sizes for broad fitment across many engines.
• Quick-coupler design makes swapping adapters fast during multi-cylinder tests.
• Adapters and hose are compactly stored in dedicated case compartments.

Who this kit is for: The OTC 5609 Cylinder Leakage Tester is aimed at professional mechanics, advanced DIYers, and fleet technicians who need a durable, accurate, and transportable solution for engine diagnostics. It’s ideal for shops that perform routine cylinder tests, drivability troubleshooting, or pre-purchase engine inspections and want a single kit that reduces test time while improving diagnostic clarity.
