OTC Fuel Pressure Test Kit 5630 — 0–100 psi Gauge, Brass Fittings & Relief Valve

The OTC 5630 Fuel Pressure Test Kit is a handheld diagnostic tool that measures fuel system pressure up to 100 psi to quickly pinpoint faulty filters, regulators, lines, or pumps without removing components from the vehicle.

Designed for technicians and DIY mechanics who need reliable, fast fuel system checks, the OTC 5630 combines a clear, impact-resistant gauge with durable brass fittings and flexible hose to deliver accurate readings under real-world shop conditions. The kit reads in both psi and kPa, and includes a pressure relief valve for controlled depressurization—useful whether you're troubleshooting drivability issues or confirming repair quality.

How does the OTC 5630 identify failing fuel system parts?

The kit connects to service ports or fuel lines to reveal system pressure under engine load and idle conditions. Deviations from the manufacturer’s specified pressure range point to specific faults such as clogged filters, leaking regulators, or weak pumps.

• Measures fuel pressure dynamically to compare against factory specs
• Detects pressure drops indicating line leaks or pump wear
• Helps confirm regulator or return-line malfunctions by inconsistent readings

What features ensure accurate and safe testing?

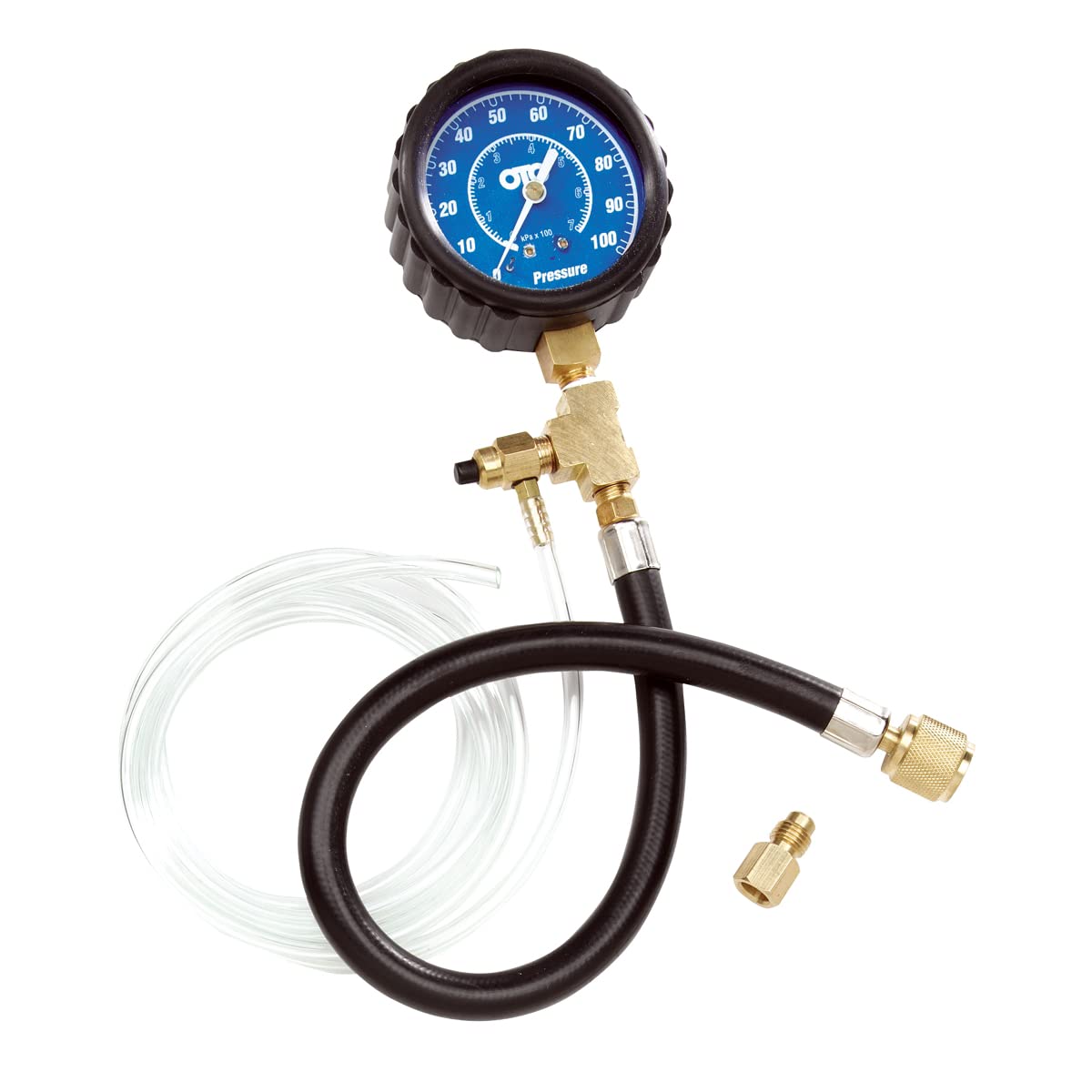

A large, easy-to-read dial with a rubber-encased housing reduces damage risk and improves visibility in busy shops. Solid brass fittings and robust tubing maintain a tight seal for repeatable results, while the integrated pressure relief valve lets you relieve pressure safely before disconnecting.

• Gauge range 0–100 psi (0–700 kPa) for common gasoline systems
• Impact-resistant rubber housing protects the gauge face
• Brass fittings resist corrosion for long-term reliability
• Pressure relief valve provides controlled depressurization

How easy is the kit to use during routine service?

Setup is straightforward: attach the hose and fitting to the vehicle’s test port or fuel line, start the engine to observe operating pressure, then use the relief valve to purge the line when finished. No component removal means quicker diagnostics and less downtime.

• Quick-connect hose for fast attachment to service ports
• Readable gauge lets you evaluate pressure at idle and under load
• Compact kit size fits into most shop toolboxes for mobile use

What maintenance and storage tips keep the tool dependable?

Rinse debris from fittings and inspect the hose for soft spots or cracks after each use. Store the kit dry and avoid prolonged exposure to sunlight or chemicals to preserve hose integrity and gauge accuracy.

• Clean fittings and cap ports after testing to prevent contamination
• Check hose and connections periodically for wear or leaks
• Keep stored in a toolbox or case to protect the gauge housing

Who is this for: The OTC 5630 is suited for professional mechanics, fleet service technicians, and serious DIYers who need a durable, accurate fuel pressure diagnostic tool. It’s especially useful in shops that perform frequent drivability troubleshooting, pre-purchase inspections, or fuel system repairs and value a rugged tester that reduces diagnostic time and avoids unnecessary component removal.
