Pacific Performance Engineering 6L80 Thermal Bypass Valve for 2014–2018 GM Trucks, Black Direct-Fit

This PPE Automatic Transmission Fluid Thermal Bypass Valve is a direct-fit replacement designed for GM 6L80-equipped vehicles (Tahoe, Silverado, Sierra 1500, Escalade, Yukon) with engine displacements including 4.3L, 5.3L, and 6.2L. Built to PPE Power standards and supplied as part number 125068000, the valve helps control the path of ATF during cold starts and normal operation. It is a compact, black-finished component that replaces the factory thermal bypass element to restore intended fluid routing and aid in faster warm-up of the transmission oil.

What role does this PPE bypass valve play in my transmission?

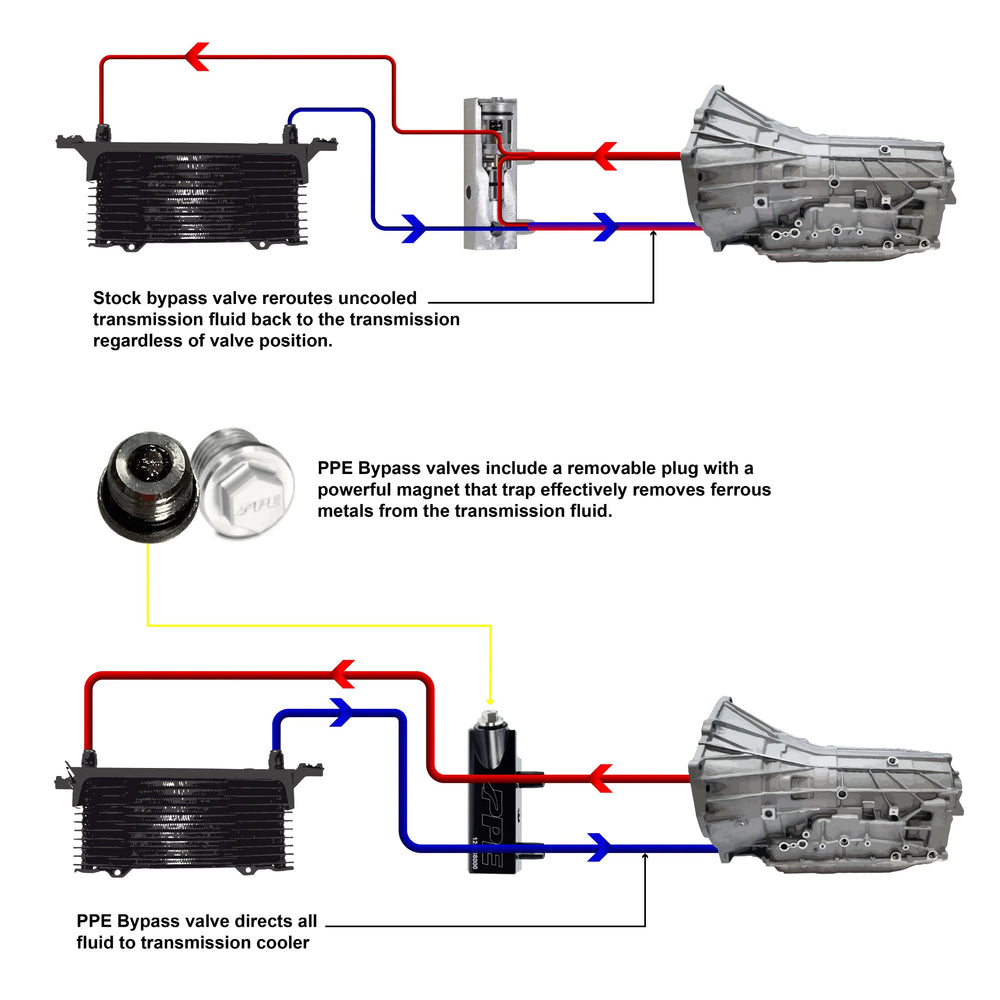

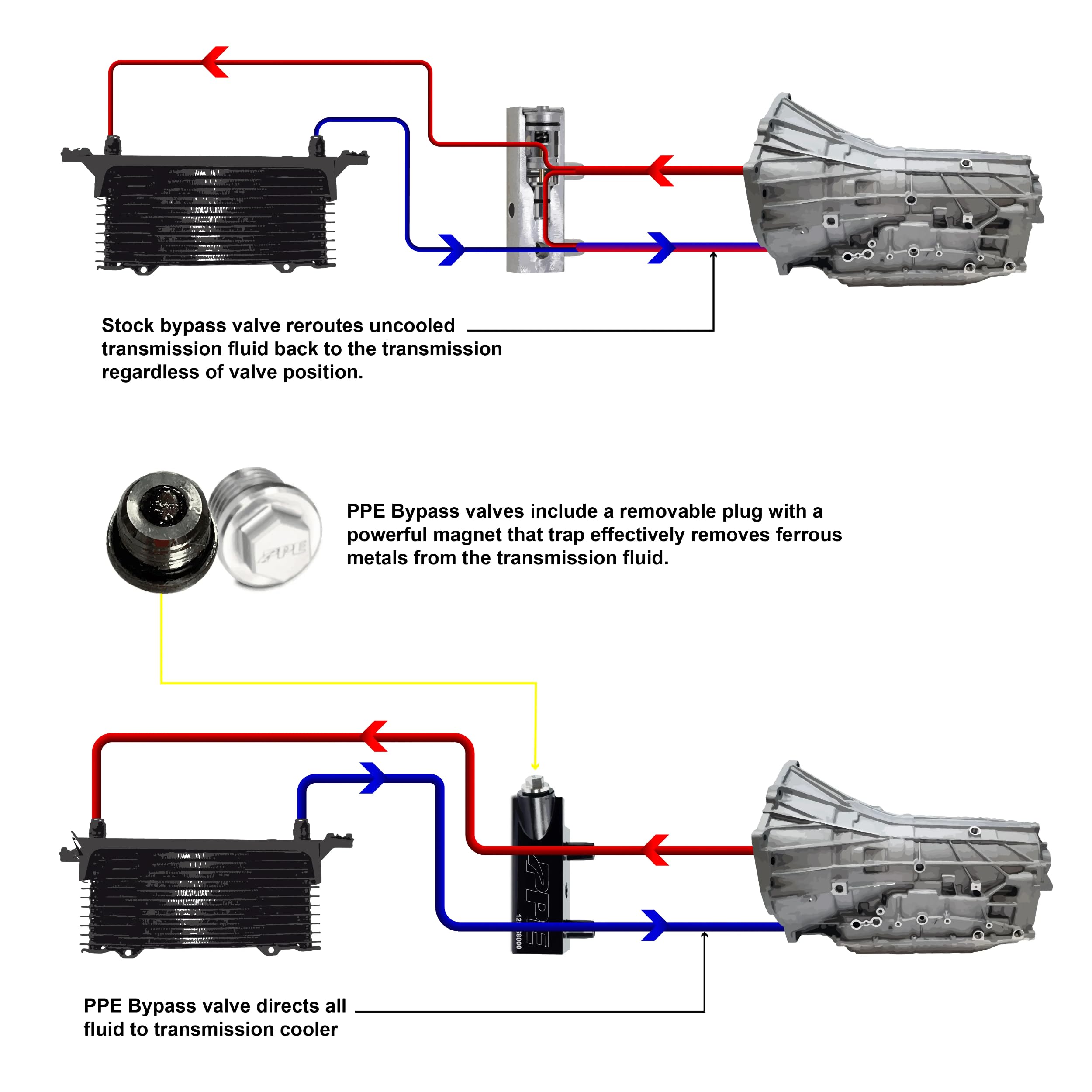

The bypass valve changes where transmission fluid flows until the fluid reaches the designed operating temperature. It allows fluid to circulate internally rather than through the cooler when cold, minimizing overcooling and improving warm-up speed. Once temperature rises, it opens to route fluid through the cooler as required.

• Directs ATF away from the cooler during cold starts to warm oil quicker.
• Opens at operating temperature to send fluid through the external cooler.
• Helps maintain intended pressure and flow patterns in the 6L80 valve body.

How does the PPE valve fit 2014–2018 GM 6L80 transmissions?

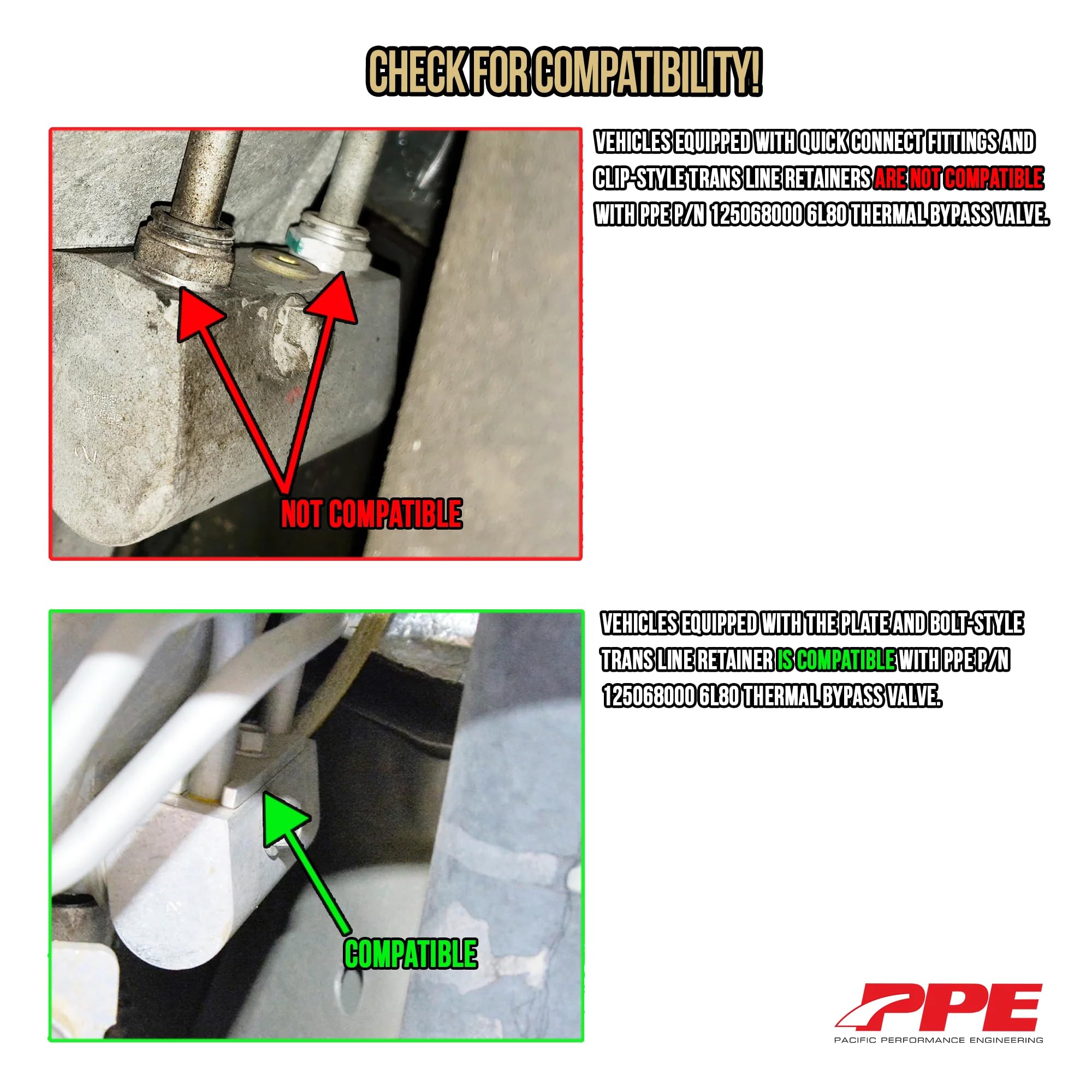

This component is made to be compatible with GM 6L80 transmission models used in selected 2014–2018 Chevrolet and GMC trucks and SUVs. It matches the OEM mounting and flow specifications, allowing direct replacement in applications that originally used a thermal bypass valve element. Verify part number 125068000 against your vehicle’s service manual before purchase.

• Compatible with 6L80 transmissions in Tahoe, Silverado, Sierra 1500, Escalade, Yukon.
• Accepts engine configurations including 4.3L, 5.3L, and 6.2L where 6L80 is used.
• Designed to meet PPE Power dimensional and flow requirements for direct swap.

How difficult is installing this replacement part?

Installation is typically straightforward for a technician familiar with 6L80 service, often involving removal of the transmission fluid pan and access to the valve body. Basic tools and clean workspace are required; follow factory torque specs and fluid handling guidelines. If unsure, professional installation prevents improper seating and fluid leaks.

• Access commonly requires dropping the ATF pan and supporting the valve body area.
• Inspect seal surfaces and replace gasket or filter if disturbed during service.
• Refill with manufacturer-recommended ATF and check for leaks after warm-up.

Will this PPE thermal valve extend component life or performance?

While the valve itself restores correct thermal routing, it is one element among many that affect transmission longevity. Proper warm-up and accurate fluid routing help maintain operating conditions the transmission was designed for, but overall durability depends on maintenance, fluid quality, and driving conditions.

• Restores intended thermal fluid routing to help reach optimal oil temperature sooner.
• Supports correct pressure and flow characteristics in the 6L80 system.
• Works best when combined with routine ATF and filter service per OEM intervals.

This PPE Automatic Transmission Fluid Thermal Bypass Valve is for owners and technicians who need a reliable, OE-compatible replacement for the thermal element in GM 6L80-equipped 2014–2018 trucks and SUVs. Choose this part if you want an engineered, direct-fit option from Pacific Performance Engineering (PPE Power) identified by part number 125068000, especially when restoring proper ATF thermal control during cold starts and normal operation.
