Partsam 52-LED Square Double-Face Pedestal Light Red/Amber — IP67 Waterproof, Chrome Bezel for Truck Fender

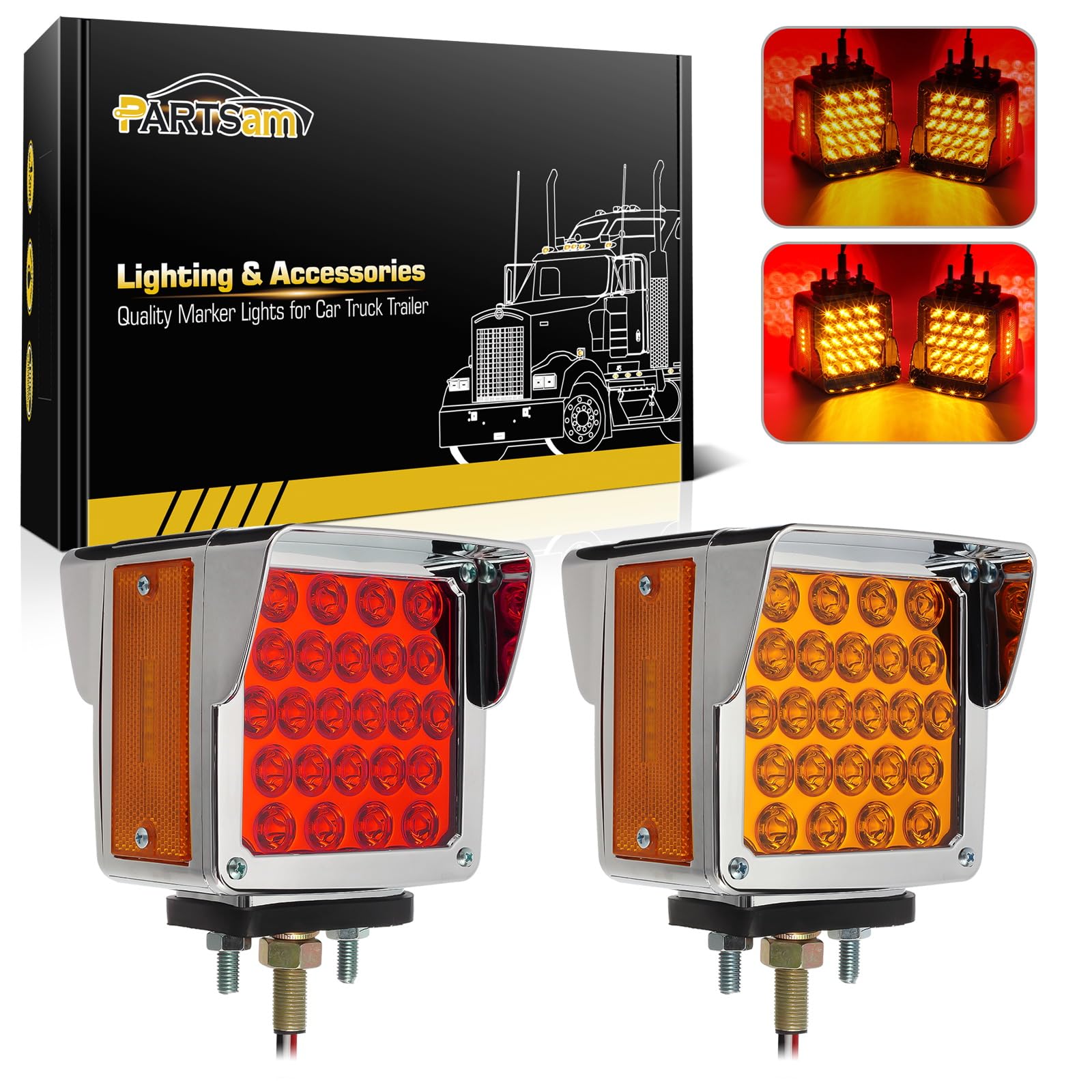

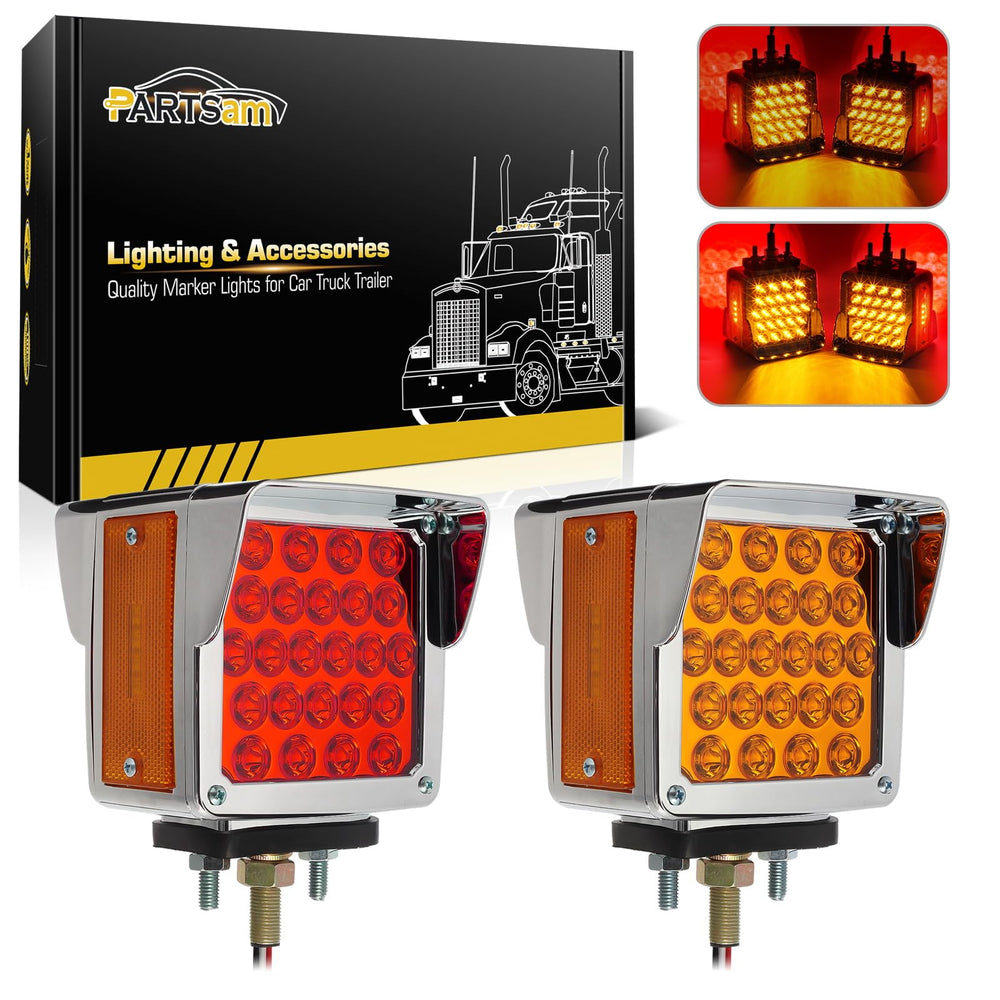

Engineered for commercial trucks and heavy-duty tractors, this pedestal lamp combines bright pearl LEDs with a robust, chrome-accented housing to replace older incandescent fender lights. One side emits amber for parking and turn indications while the opposite side gives red stop, turn and tail functions; an integrated amber side marker adds extra presence. The unit is sonically sealed with an IP67 waterproof rating and fits a wide range of Peterbilt, Kenworth, Freightliner and other truck models.

How does this light improve visibility on the road?

The 52 super-bright LEDs (24 amber, 24 red and 4 side marker amber) deliver clearer signal definition at greater distances than typical incandescent bulbs. Brighter, more consistent illumination helps other drivers recognize your intentions sooner in traffic or bad weather.

• 24 amber LEDs for parking and turn signals
• 24 red LEDs for stop/turn/tail functions
• 4 amber side marker LEDs plus reflex reflector for lateral visibility
• Pearl LED arrangement for uniform light output

Will these lights hold up to heavy use and weather?

The housing is built with heavy-duty chrome components, a visor for glare control, and a sonically sealed polycarbonate lens to keep moisture and dust out. Rated IP67, the light resists immersion and heavy rain, making it suitable for open-fender exposure on highway and off-road work.

• IP67 waterproof rating for rain and splashes
• Sonic seal on the polycarbonate lens to prevent leaks

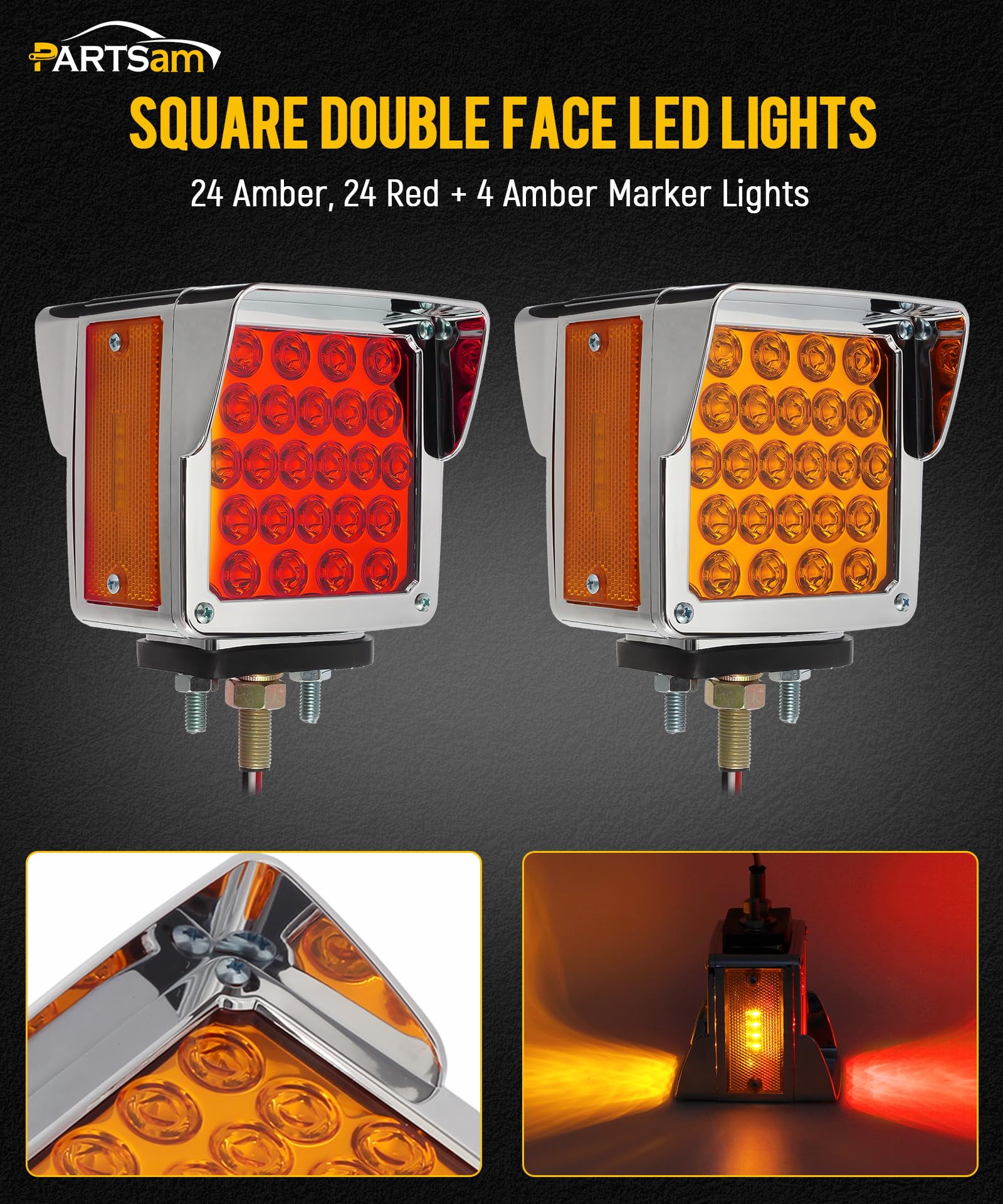

• Chrome bezel and visor for added durability and corrosion resistance
• Robust pedestal mount designed for vibration-prone environments

How do I wire and mount this replacement light?

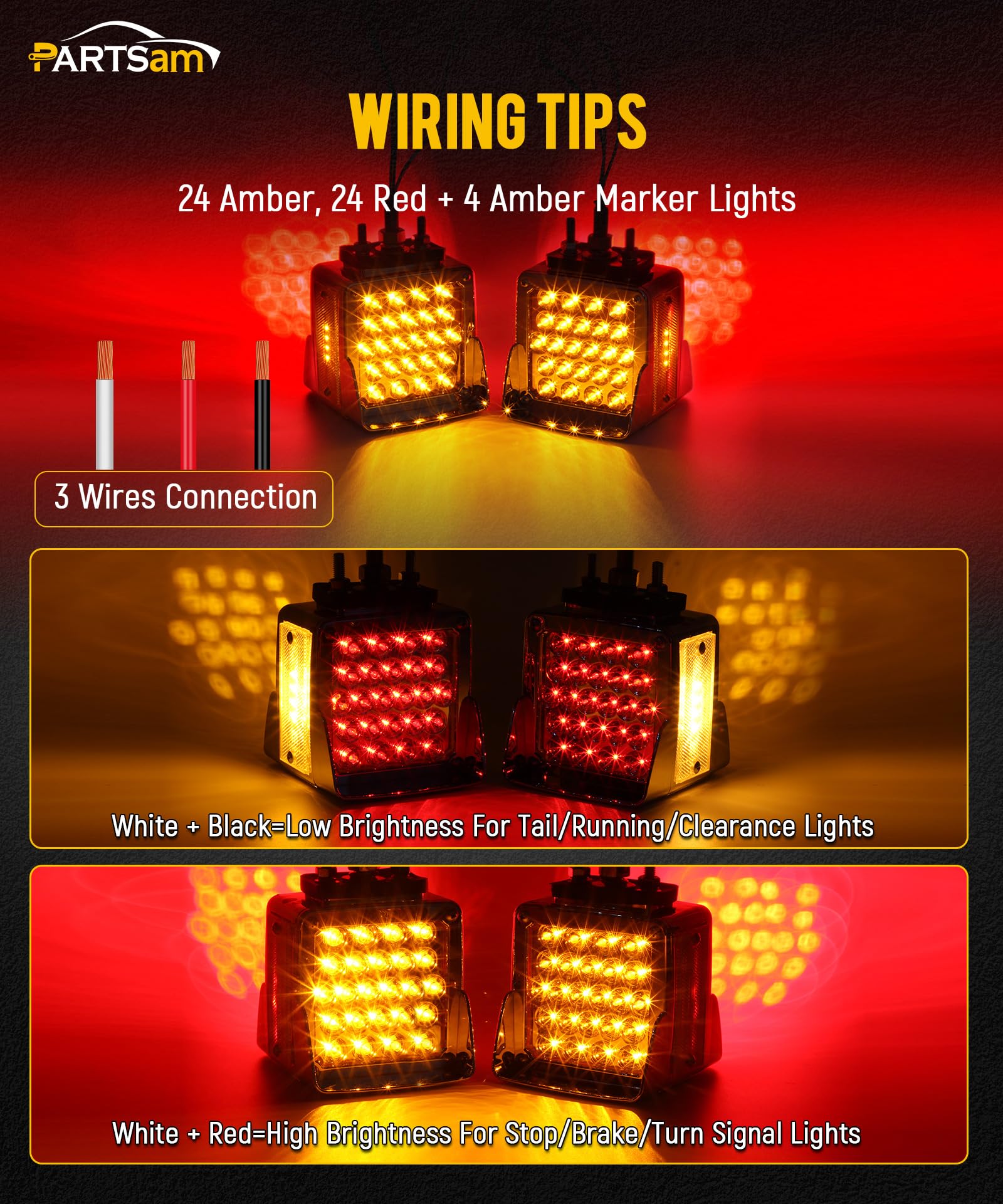

It installs on a single-stud pedestal and operates on 9–14.8 VDC, compatible with standard truck electrical systems. Wiring is straightforward: white is ground and two additional wire combinations change which LEDs are active and at what brightness.

• Single three-stud mounting for secure pedestal attachment
• White = ground; White+Black = three-side operation (front/back low brightness)
• White+Red = front two sides at high brightness
• 9–14.8 VDC compatible for most heavy truck electrical systems

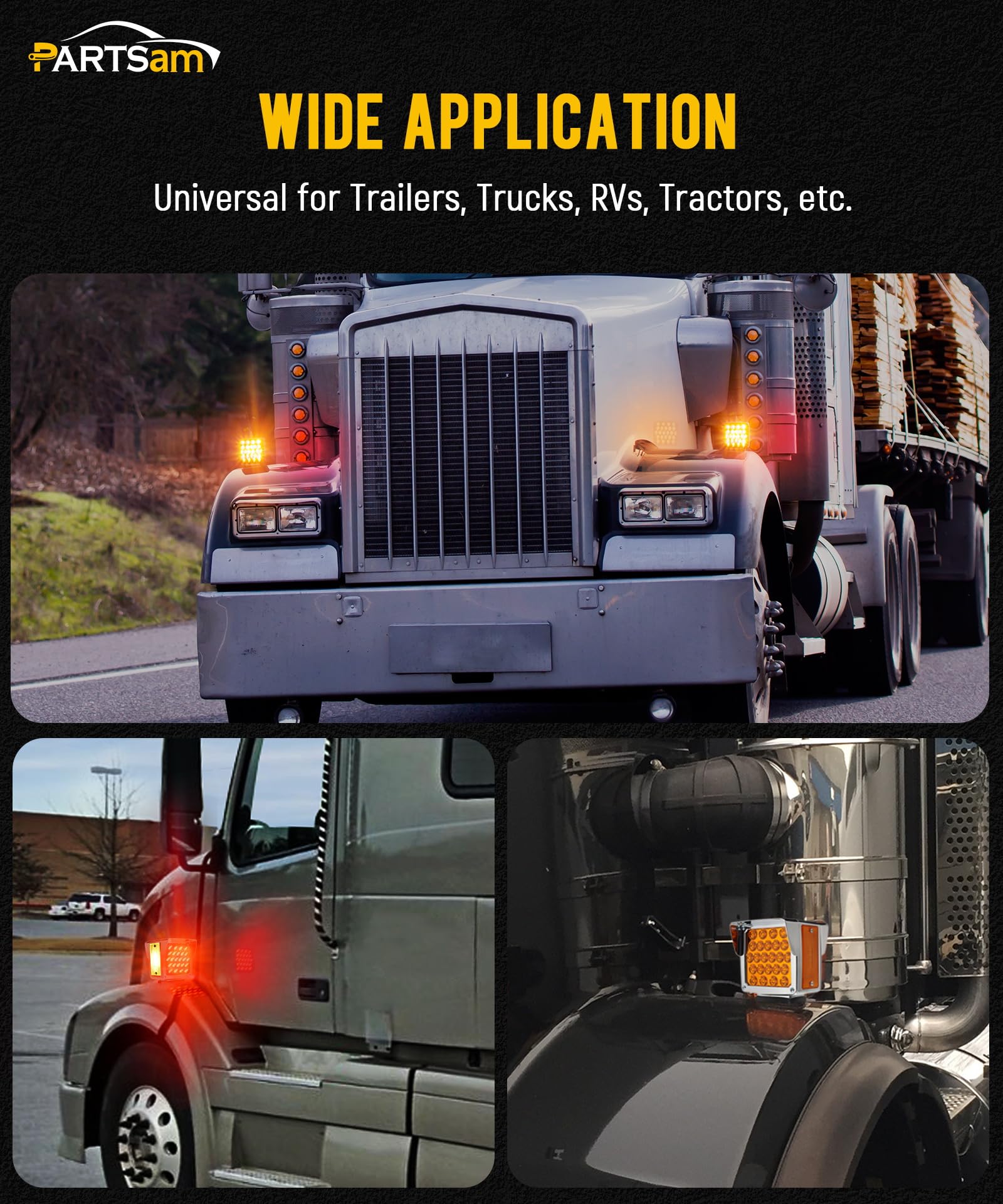

Which trucks and models are these lights compatible with?

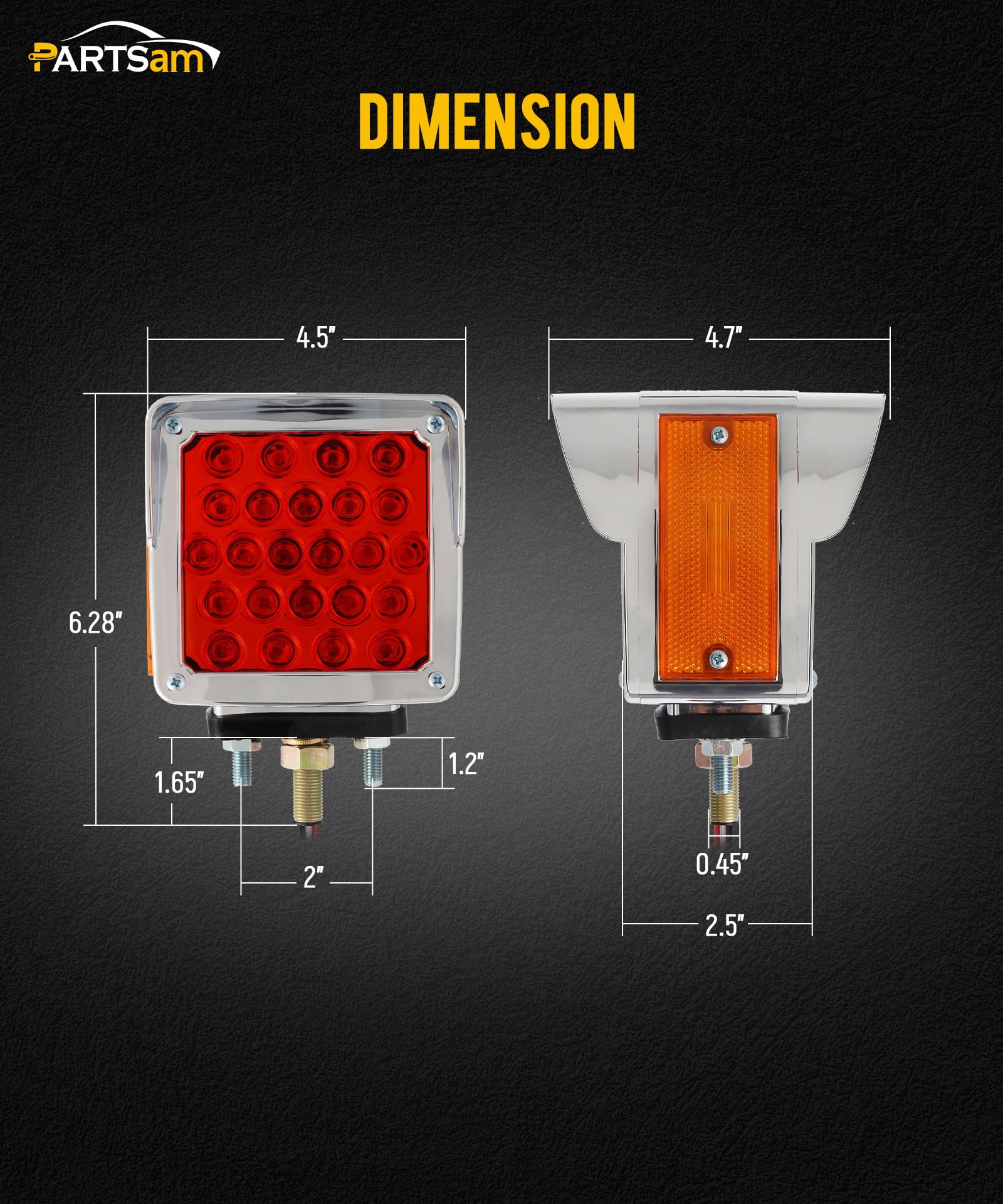

These pedestal lights fit many common commercial truck fenders and axles and are suitable replacements for a variety of legacy incandescent pedestal lamps. Check measurements and stud spacing against your existing mounts to confirm fitment.

• Common Freightliner models supported: FL70, FLD112, FLD120, M2
• Kenworth examples: K100, T2000, T300, T600, T680, T700, T800, W900
• Peterbilt and other series: 330, 335, 367, 377, 379, 386, 387, 389, 579, 587
• Designed as direct pedestal replacements for many factory incandescent lights

Who this is for: technicians, fleet managers and owner-operators who need a rugged, high-visibility pedestal light that modernizes fender illumination without complex rewiring. Ideal for trucks that require dual-face signaling (amber and red), a chrome aesthetic with a visor, and dependable waterproof performance for day-to-day hauling or long-haul fleets.
