Partsam LED Trailer & RV Rectangular Tail Lights 2-Pack Red/White — Slim Surface-Mount Stop/Turn/Backup

Partsam 2-piece rectangular LED trailer lights combine stop, turn, tail and reverse functions in a slim, surface-mount housing for trailers, RVs and motorhomes.

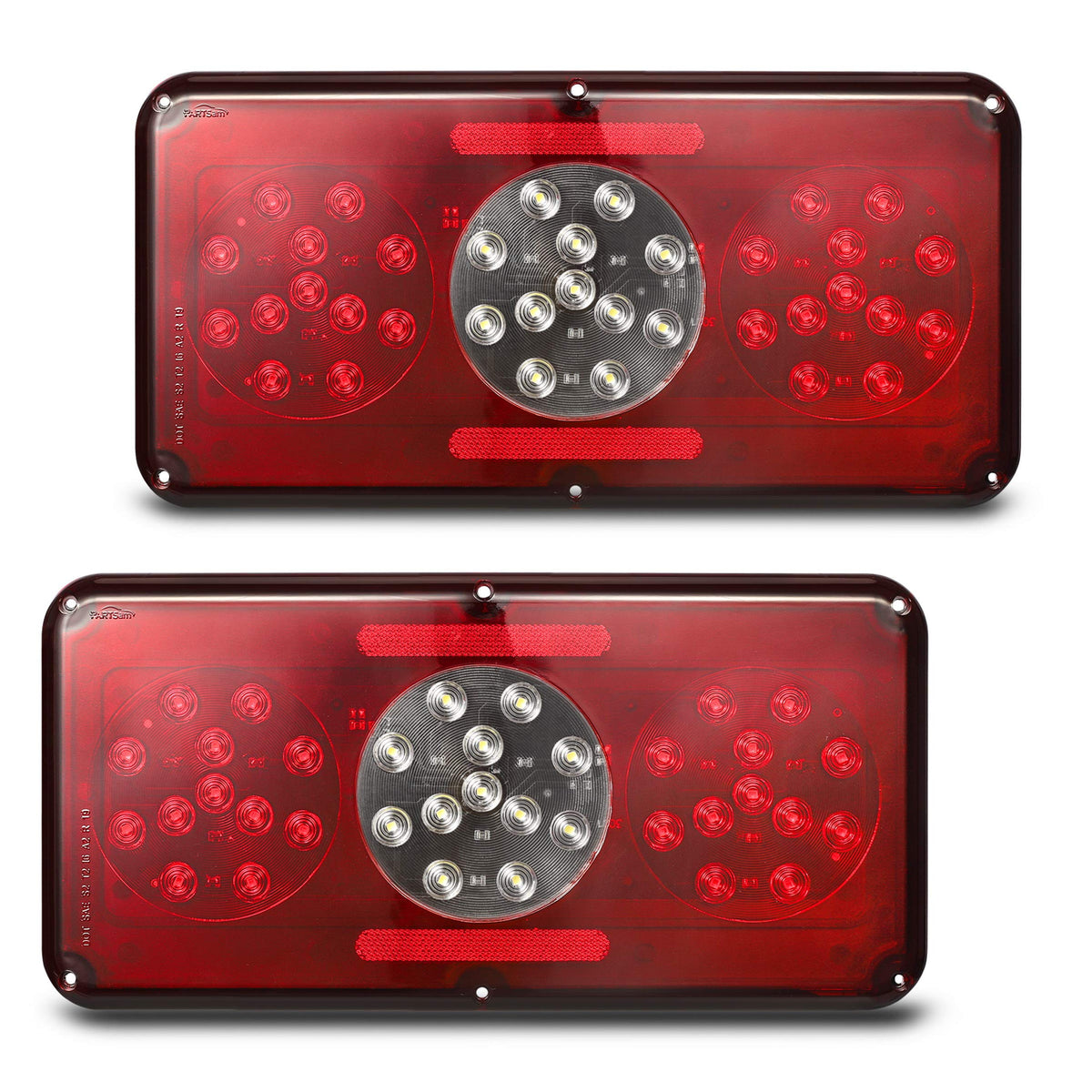

These Partsam tail lights are a two-piece set of versatile rectangular LED lamps designed to replace or upgrade standard trailer and RV rear lighting. Each unit integrates red outer LEDs for brake, turn and running lights with a central white LED cluster for backup illumination. The low-profile housing allows horizontal or vertical mounting and includes wiring, screws and foam gaskets for a secure installation.

How do these lights handle multiple functions on a single unit?

Each lamp combines stop, turn, tail and reverse lighting so you don’t need separate fixtures. Red LEDs on the perimeter handle brake, turn and running signals while the center white LEDs illuminate when the reverse circuit is engaged.

• Integrated red LEDs: brake, turn and tail operations
• Central white LED array: bright backup lighting
• Four-wire hardwired hookup for separate circuit control
• Built-in reflectors for passive visibility when unlit

What installation options and hardware are included?

These lights use a surface-mount design and can be installed horizontally or vertically, depending on vehicle layout. The package includes mounting screws and foam gaskets to cushion the housing and help seal the mounting surface against vibration and moisture.

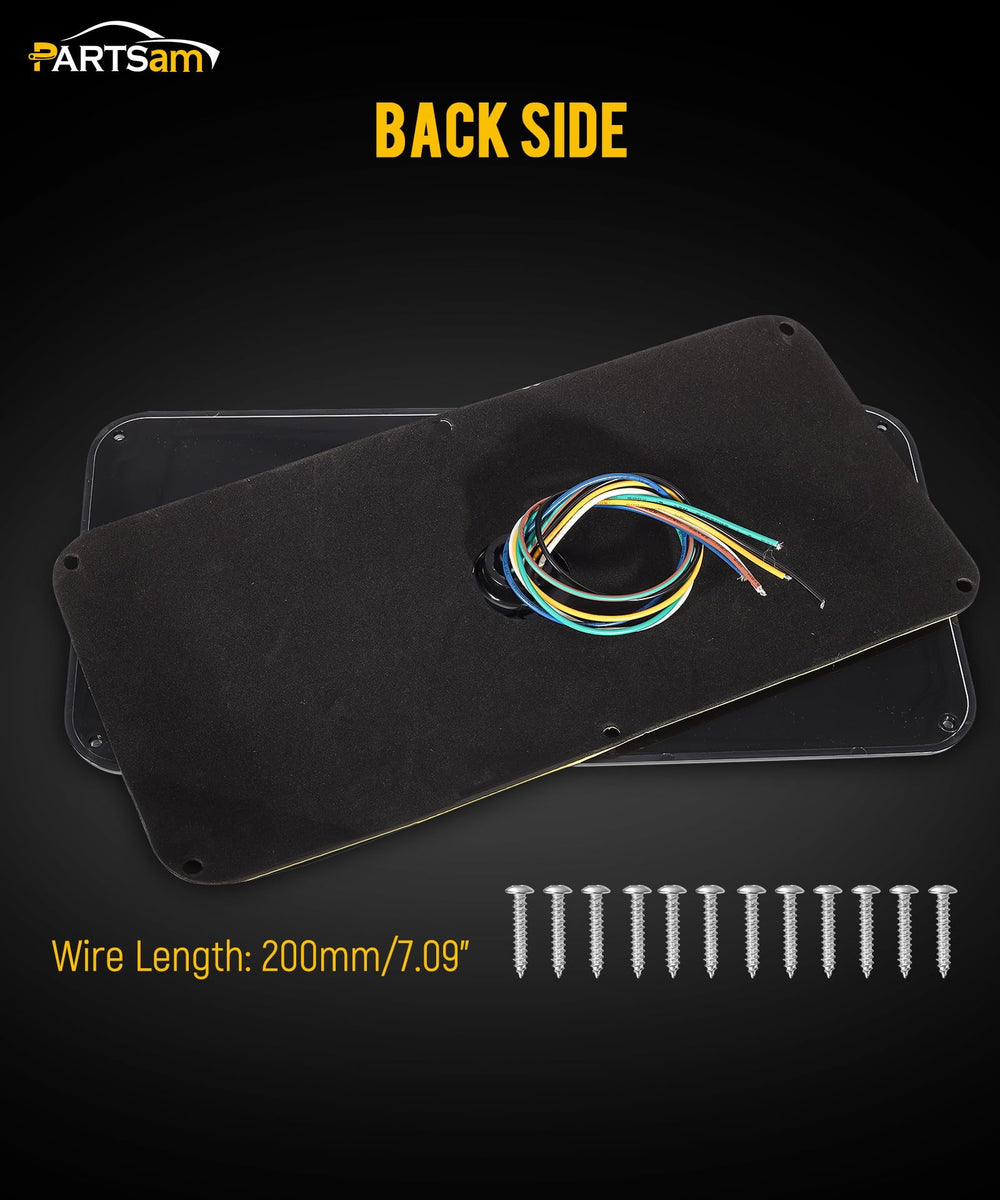

• Surface-mount with screw hardware included
• Mounting gasket to reduce vibration and improve sealing

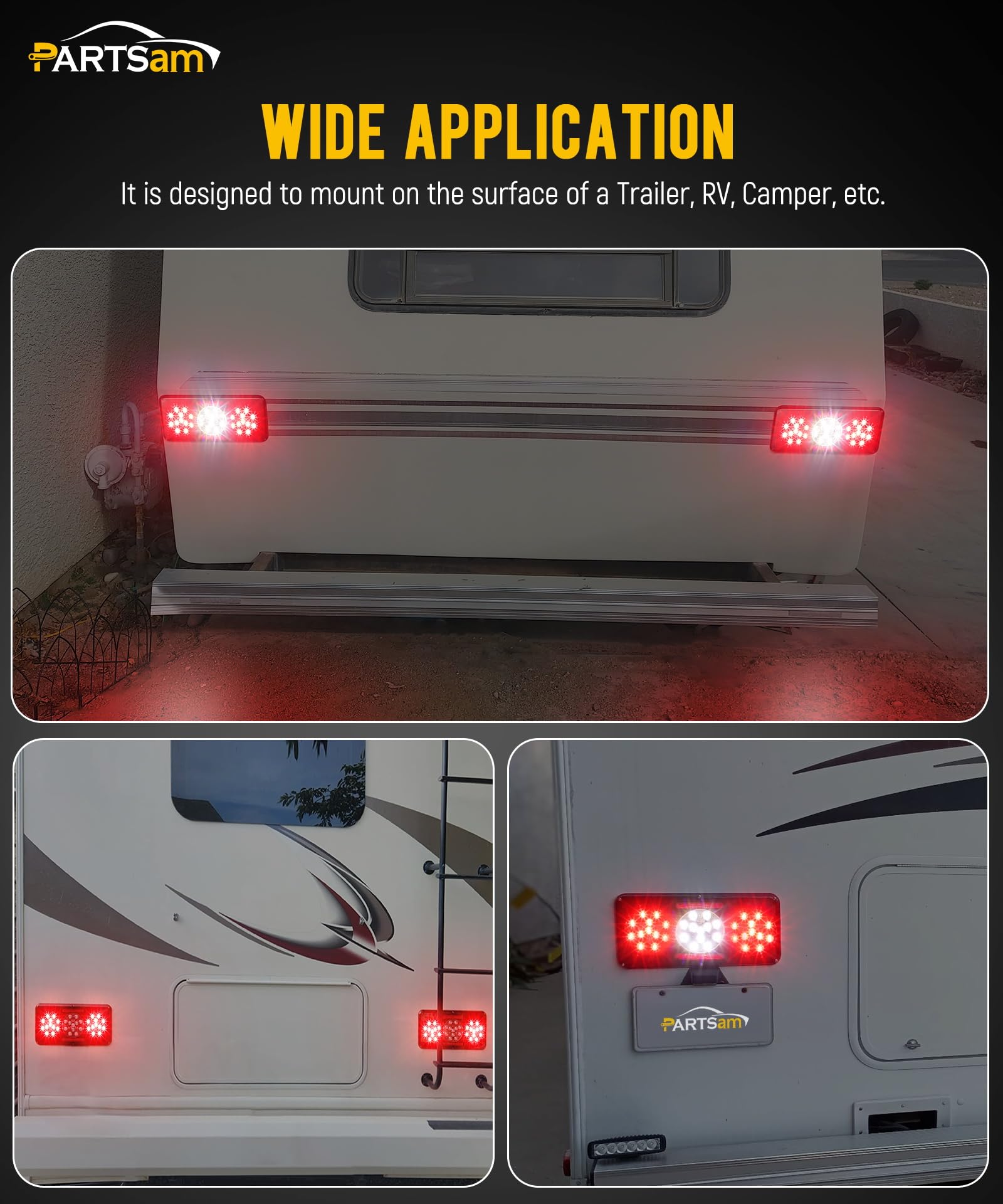

• Versatile horizontal or vertical orientation
• Slim profile to fit most trailer and RV mounting surfaces

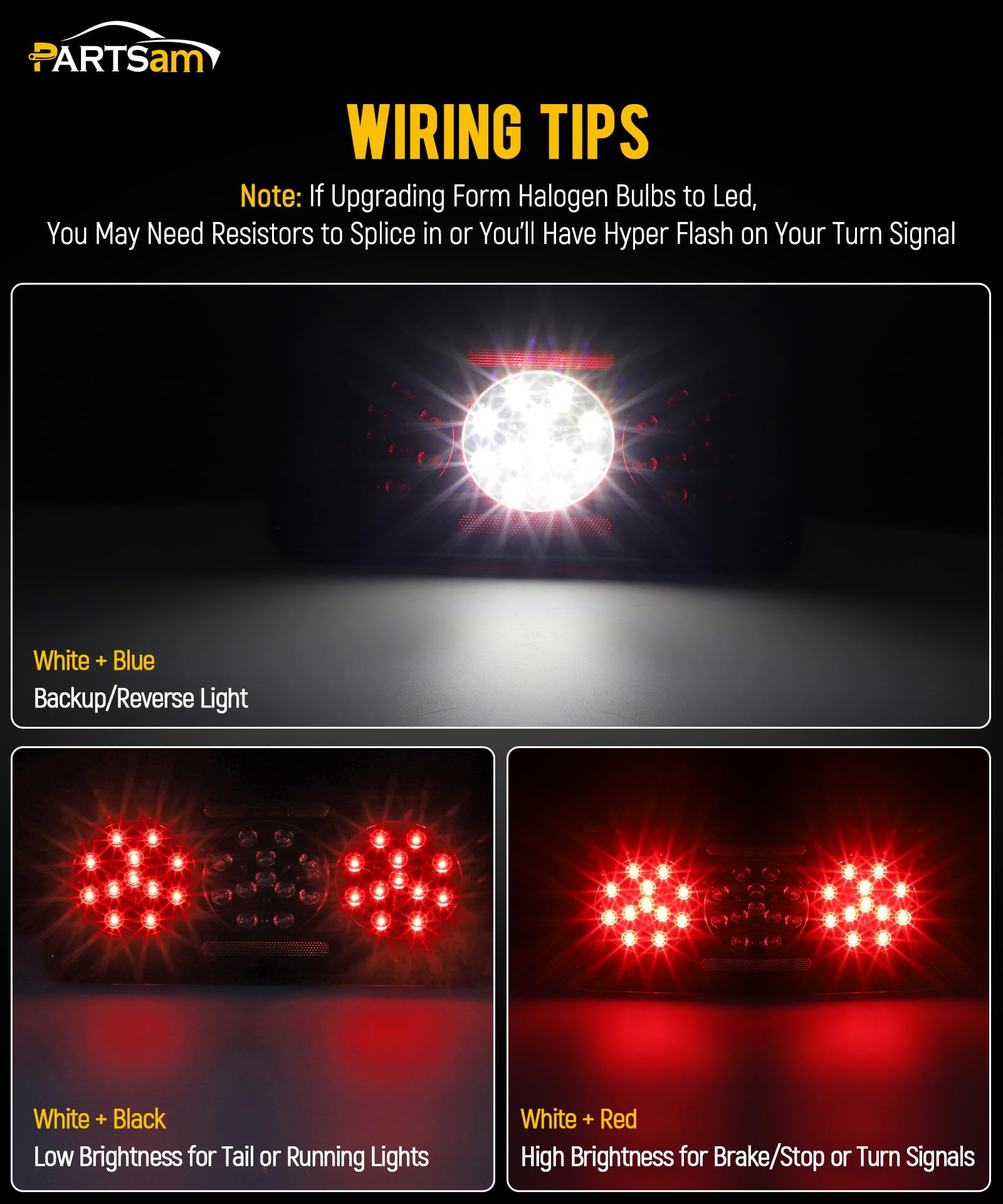

What wiring and electrical details should I know before installing?

The lights come hardwired with four color-coded conductors for clear, reliable connection to your vehicle’s circuits. Confirm your vehicle’s wiring matches the listed functions to ensure correct operation of brake, turn, tail and reverse signals.

• White wire: ground
• Blue wire: backup/reverse light
• Red wire: stop or turn signal input
• Black wire: tail or running light

What are the size and fit considerations for mounting these lights?

Each rectangular lamp has a low-profile face and a small wire knob requiring a cutout if recessed—measure carefully before cutting. The slim design fits many applications, but the harness area is thicker and may need clearance behind the mounting surface.

• Overall face dimensions approximately 14" length × 6 7/8" width × 1/2" thickness
• Wire knob area: about 1" thick and 1 3/16" diameter—allow cutout for flush fit
• Surface-mount friendly for metal and composite panels
• Includes two lamps per package for left/right installation

Who is this for? These Partsam rectangular LED tail lights are intended for trailer owners, RV and motorhome drivers, and anyone looking to replace worn rear lights with a compact, multi-function LED solution. They suit DIY installers and fleet operators who need clear stop/turn/tail visibility plus practical reverse illumination, and who can accommodate the wiring and cutout requirements of the slim housing.
