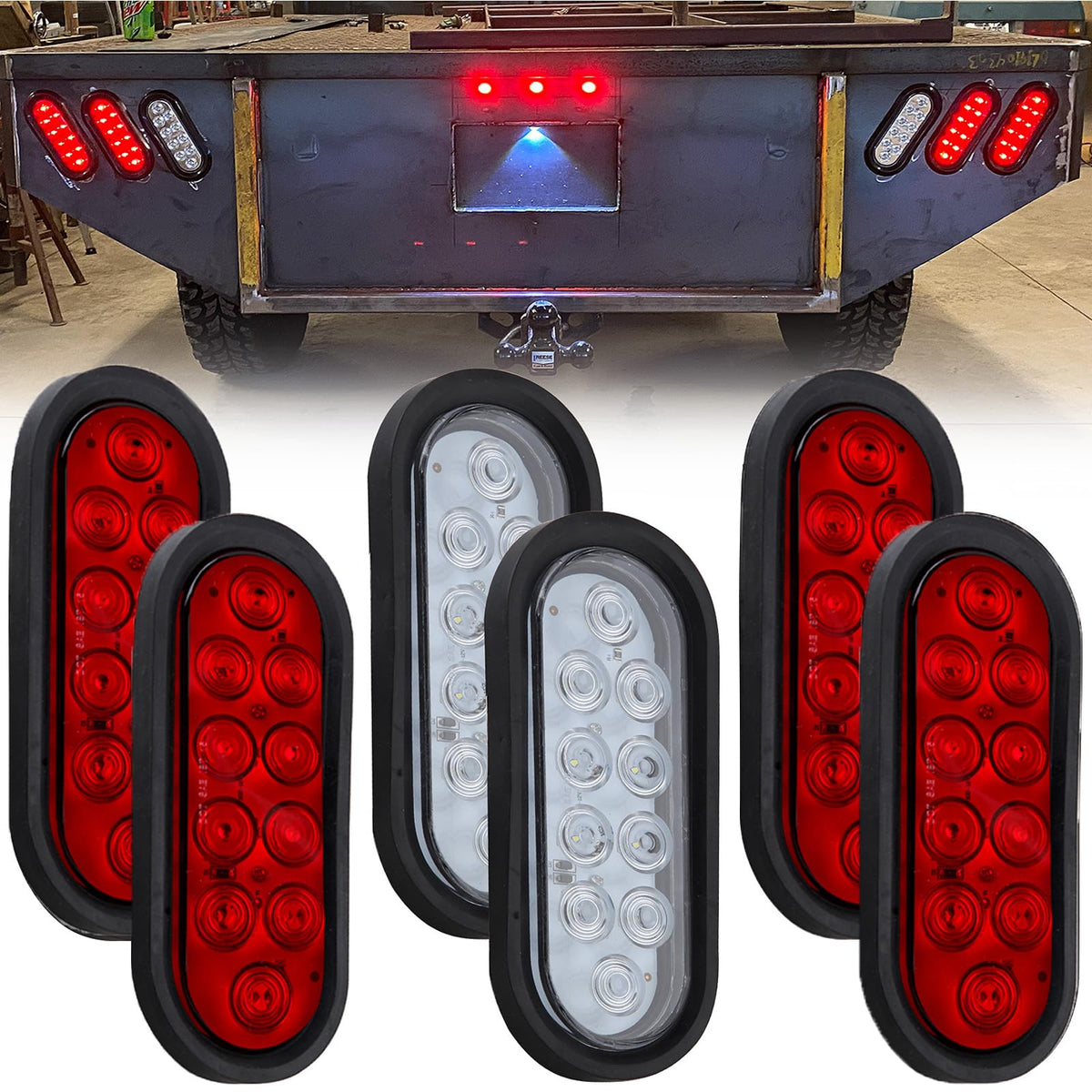

Partswcgg 6" Oval Trailer LED Light Kit — 4 Red Multi‑Function + 2 White Backup, 10‑LED, IP65

Partswcgg 6" Oval LED Trailer Lights kit includes four red multi-function tail/stop/turn lamps and two white reverse lamps, each with 10 bright LEDs and plug-and-play 3-prong connectors for straightforward flush-mount installation.

This set of six oval LED lights is built for trailers and work vehicles that need reliable, energy-efficient rear illumination. Each lamp runs on 12V DC, uses 10 LEDs for high visibility while drawing minimal current, and comes with rubber grommets and 3-prong wire pigtails so you can replace or upgrade existing fixtures without complex rewiring. The housings are IP65 rated for weather resistance (not submersible) and the kit supports common vehicle voltages across trailers, trucks, vans, and utility equipment.

How do these lights perform as brake, turn and tail signals?

The four red oval lamps are multifunctional: they act as tail lights, brake lights and turn signals. LEDs light faster than incandescent bulbs, improving reaction visibility, and the lamp design concentrates brightness for a clear signal to following traffic.

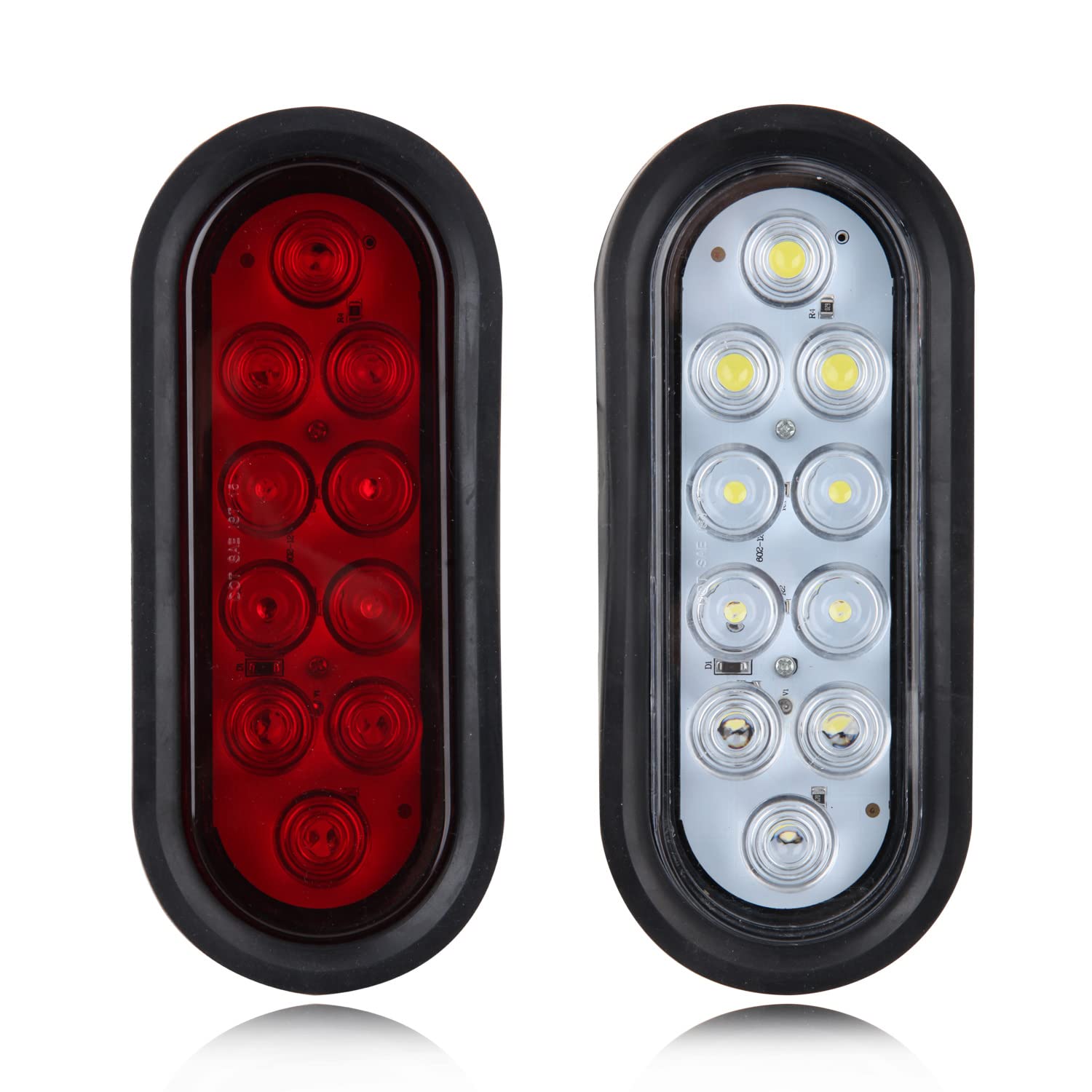

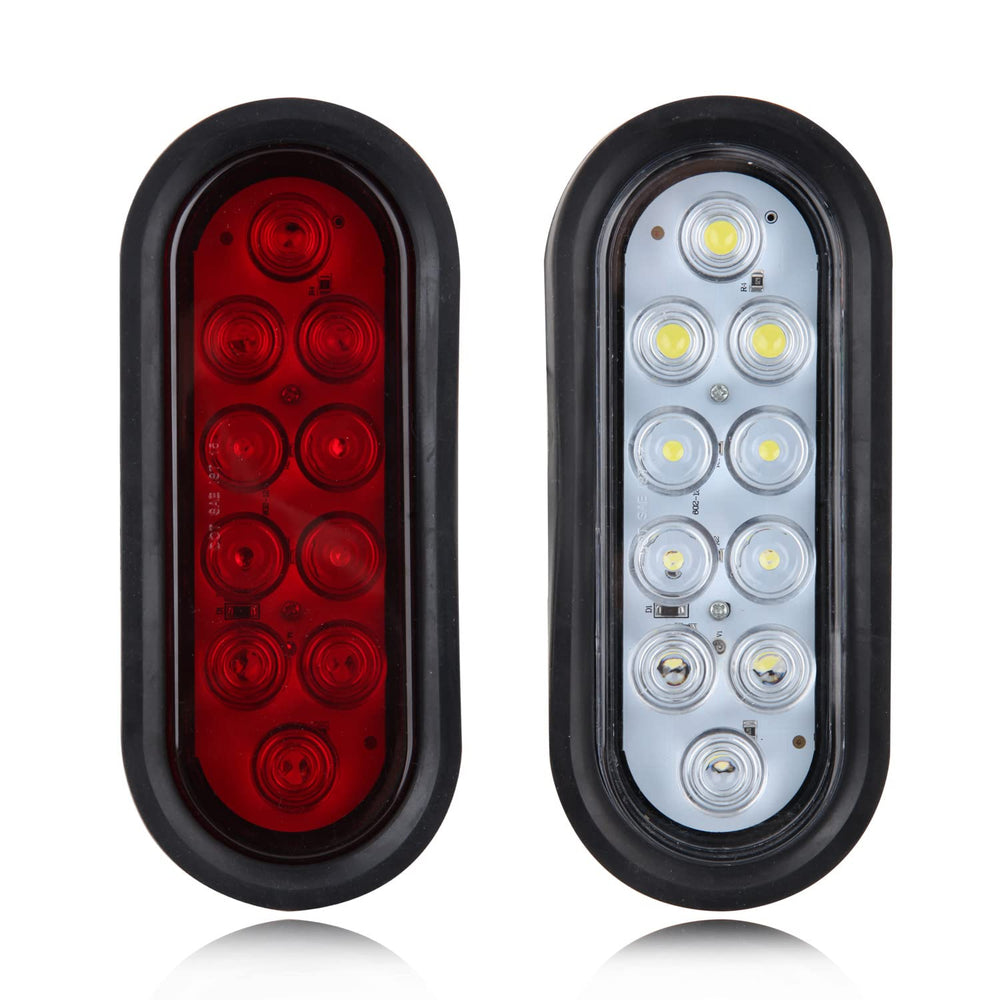

• 10 LEDs per red lamp for intense, even illumination

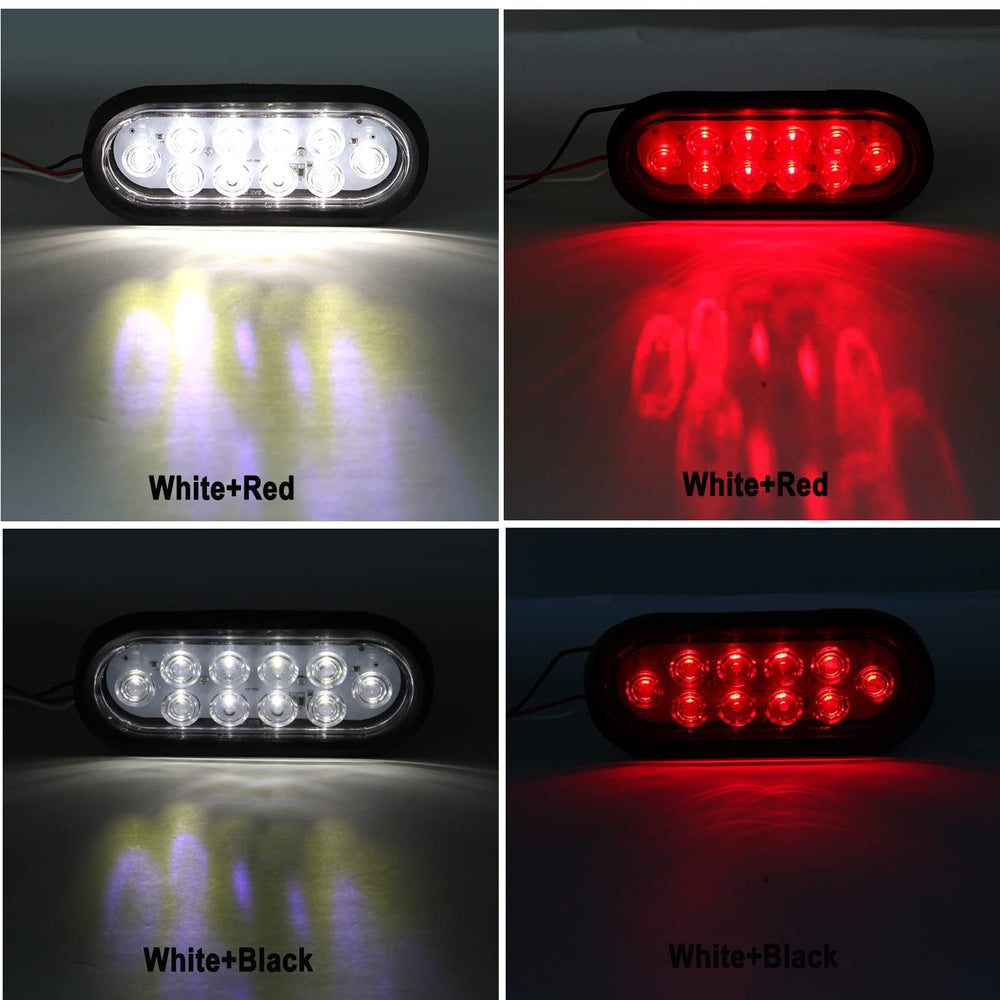

• Designed for stop, brake and turn applications with distinct high/low brightness wiring
• Low power draw reduces load on vehicle circuits
• Plug-and-play 3-prong pigtails simplify swapping existing lights

What should I know about the white reverse (backup) lights?

The two white oval fixtures are dedicated reverse lamps to improve visibility when backing or loading at night. Their LED array provides a bright, wide beam that helps illuminate obstacles and loading areas without excessive current draw.

• White LEDs optimized for reverse illumination
• Flush-mount design with rubber grommet for a snug, vibration-resistant fit
• Accepts standard 3-prong connectors for quick installation

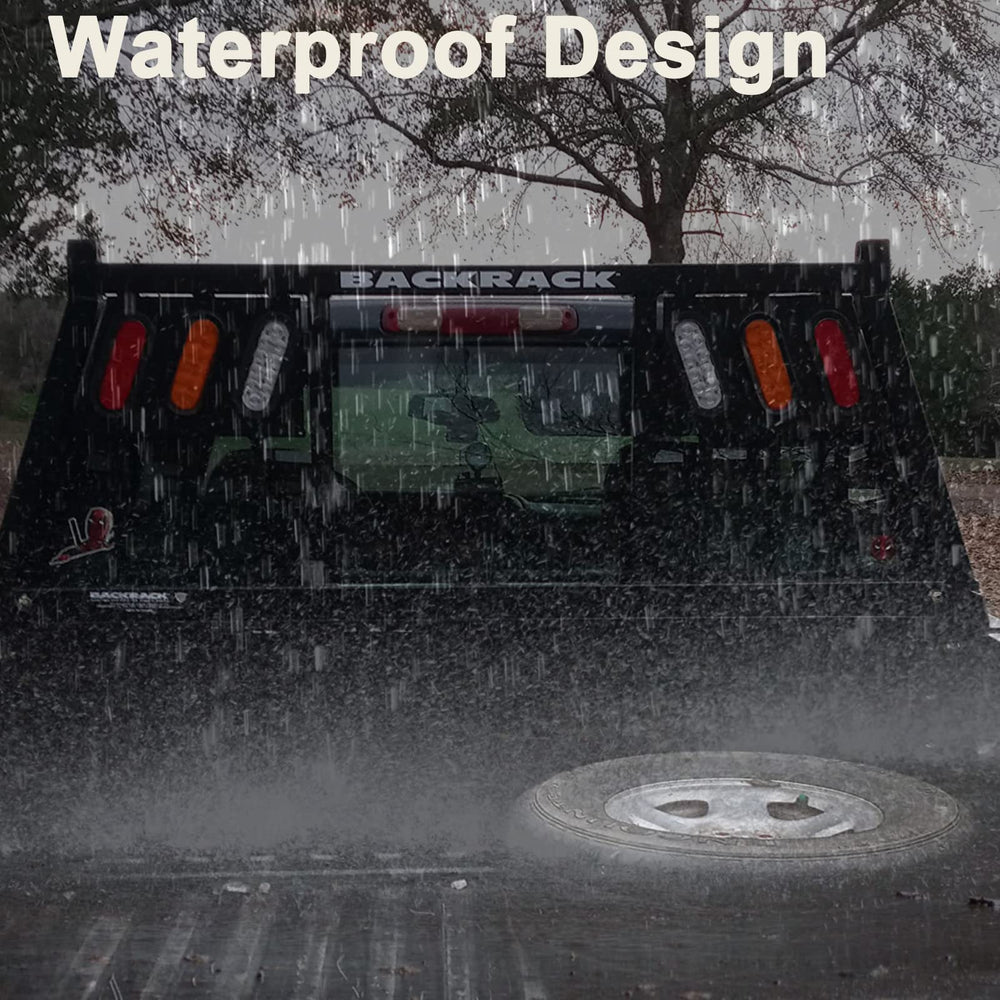

• IP65-rated housing protects against dust and water spray (not for underwater use)

How are these lights installed and wired?

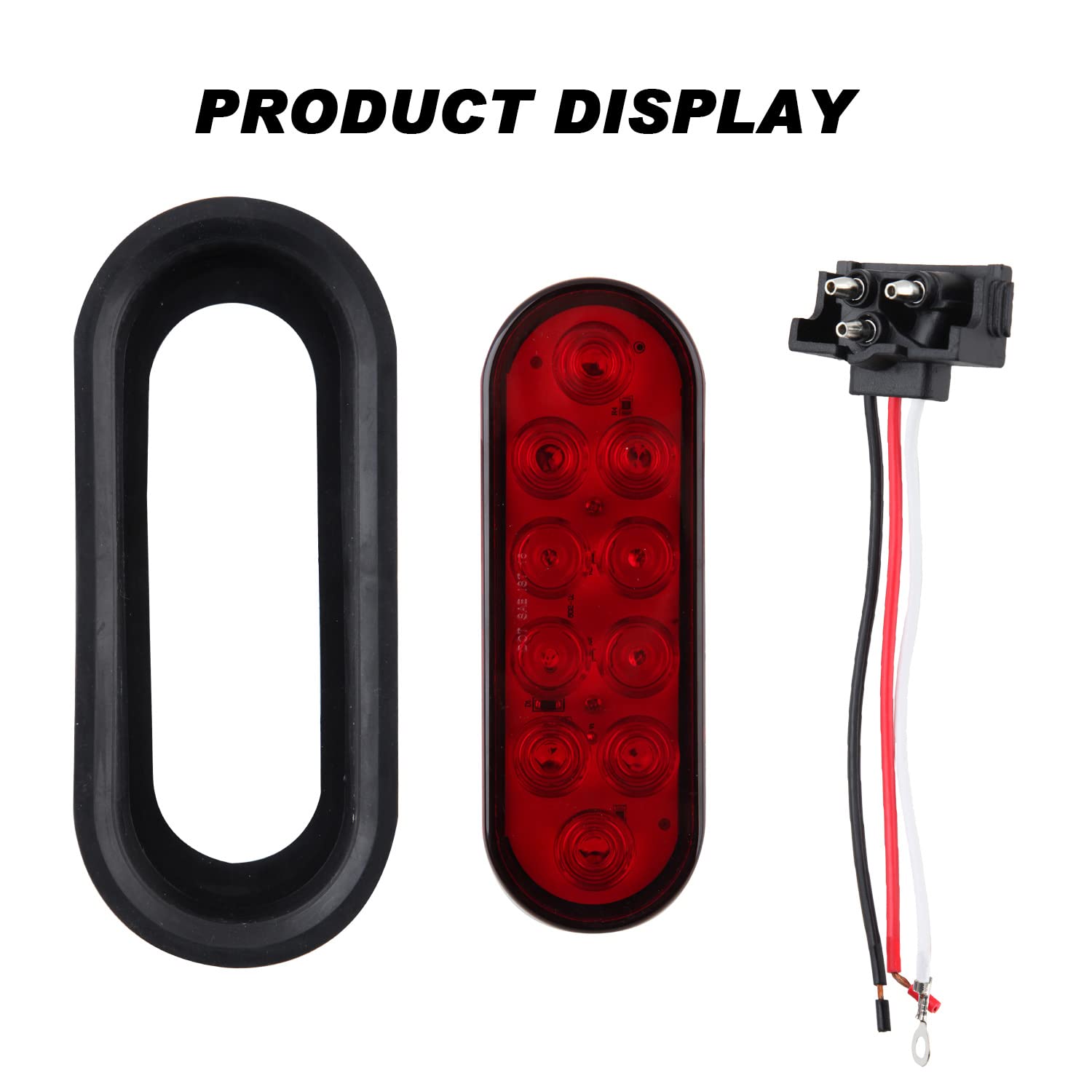

Installations are straightforward: the kit includes rubber grommets sized for a flush mount and 3-prong wire pigtails. The wiring convention is clear—white for ground, red for high/bright circuit, black for low/bright—so you can match the lamp leads to your trailer’s harness or use the supplied pigtails to connect.

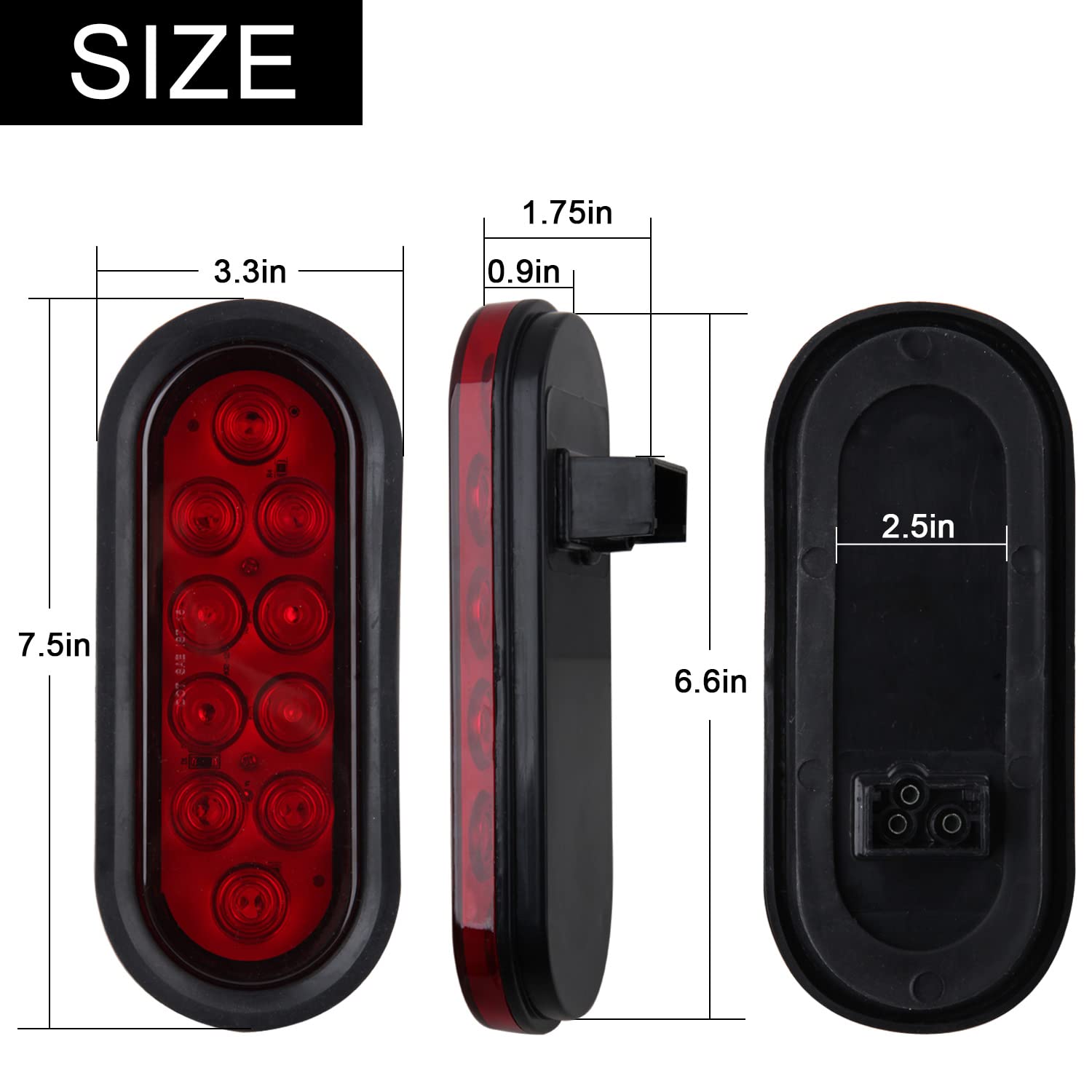

• Approximate grommet outer diameter: 7.5 inches; inner cutout ~6.3 inches
• Recommended hole drilling ≈ 6.6 inches for proper fit
• 12V DC operation compatible with most trailers and trucks (8–16V systems)
• Flush-mount with rubber grommet reduces water ingress and vibration

Will these lights fit my vehicle or trailer model?

The lights are designed for wide compatibility and work with most 8–16V DC vehicles. They are commonly used on semi trailers, utility trailers, service trucks, buses, vans, horse trailers, pickup trucks, UTVs and floats. Confirm hole diameter and wiring match before purchase to ensure a proper fit.

• Suitable for trailers, trucks, vans, buses, UTVs and more
• Works with standard 3-prong trailer wiring systems
• IP65-rated for outdoor exposure and road use
• Not intended for continuous underwater use (not submersible)

Who is this for: This Partswcgg 6" oval LED kit is ideal for fleet managers, trailer owners, and DIY mechanics who want a bright, energy-efficient rear-lighting solution that’s easy to install. Choose this set if you need reliable multifunction red tail lights plus dedicated white backup lights that fit common trailer cutouts and reduce electrical load compared to incandescent fixtures. If you need help matching dimensions or wiring, contact the seller before purchase for guidance.
