PQY Inline Fuel Filter AN6/AN8/AN10 Black — 10‑Micron Stainless Steel Removable Element, Billet Aluminum

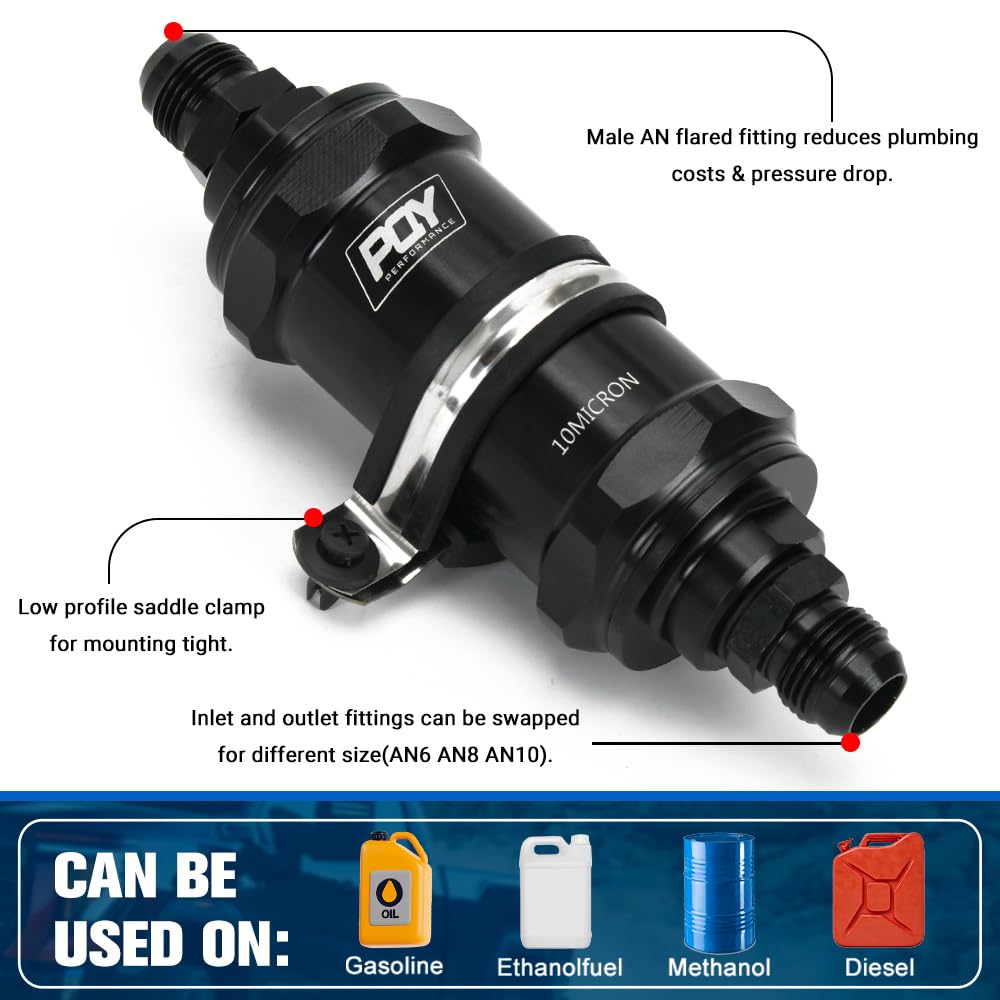

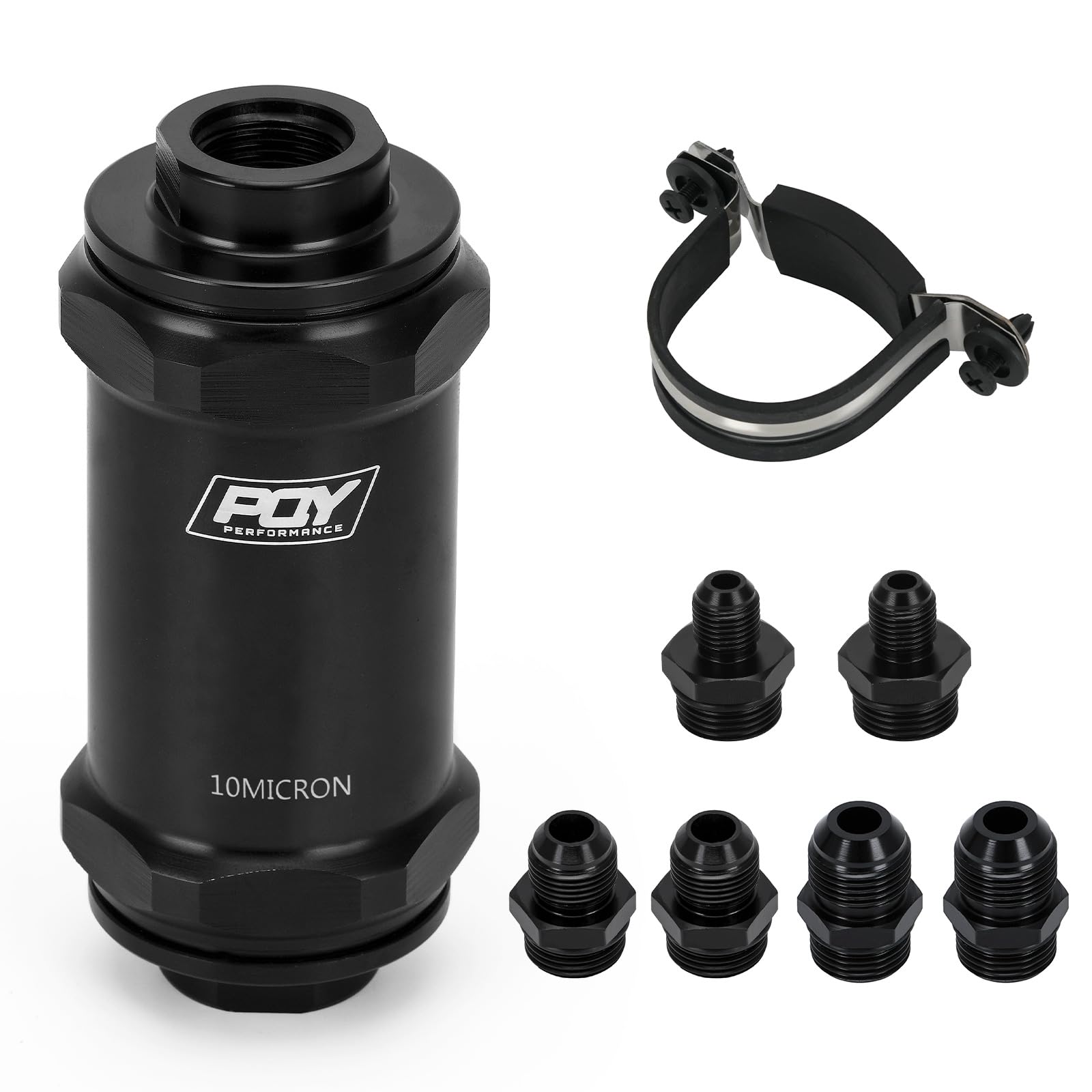

This compact inline unit fits AN6, AN8 and AN10 connections and includes a black anodized housing, stainless-steel filtration media, and a mounting bracket for clean installation. It captures particles down to 10 microns, is corrosion-resistant, and is built to withstand alcohol-blended fuels. The built-in element can be removed for cleaning or replacement, and the end caps are designed to be unscrewed by hand for fast service.

How does this PQY filter protect my engine's fuel system?

The PQY inline filter traps contaminants that can damage injectors, pumps, and valves, helping maintain consistent fuel flow and reducing wear. It uses a stainless-steel mesh rated at 10 microns to intercept debris while allowing proper fuel delivery across compatible fuels including E85.

• 10-micron stainless steel element captures fine particles
• Resists corrosion from ethanol and methanol blends
• Billet aluminum can withstand heat and vibration
• Spring-guided orientation ensures correct flow direction

Which vehicles and fuel types are compatible with this filter?

Designed as a universal inline solution, this PQY filter works with gasoline, diesel, ethanol (E85), and methanol lines when paired with the correct AN fitting. The kit includes adaptors for AN6, AN8, and AN10 so you can match common aftermarket and OEM hose sizes.

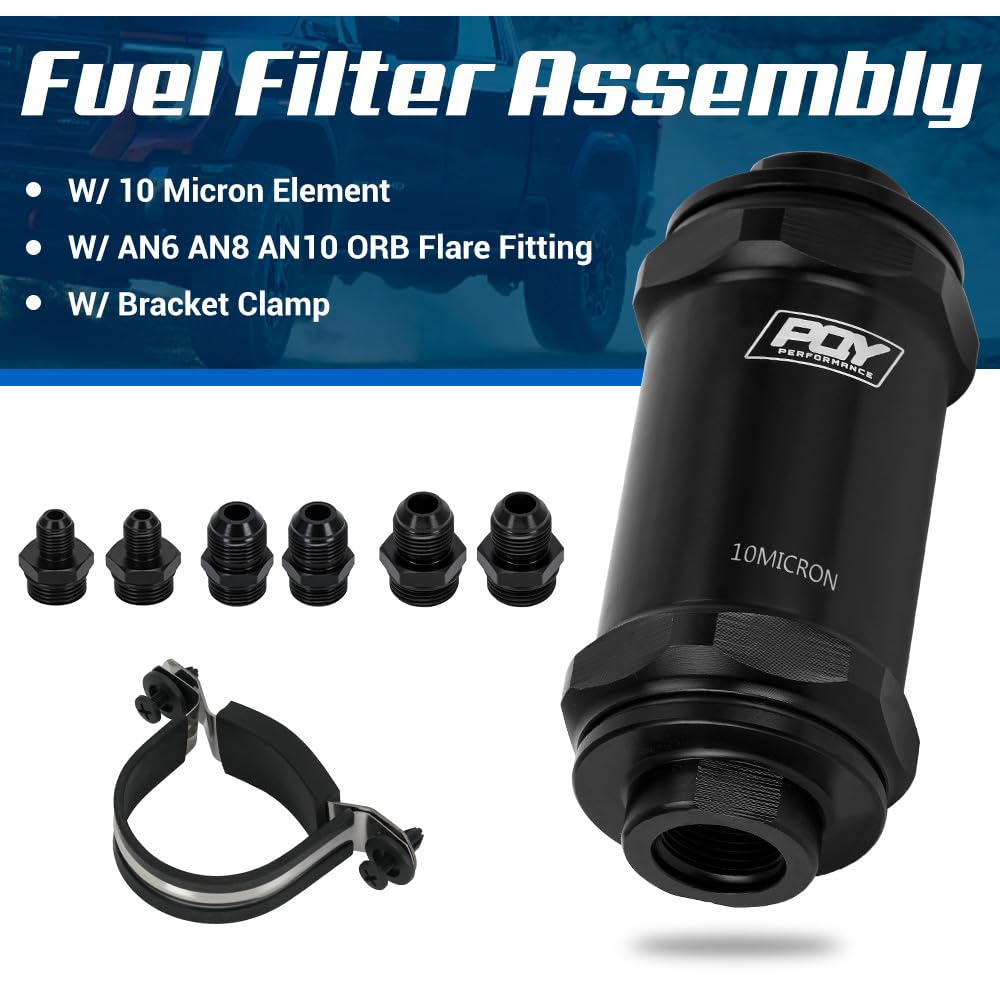

• Includes AN6, AN8, AN10 adapters for flexible fitment
• Suitable for performance cars, swaps, and conversions using E85
• Also compatible with diesel and methanol applications
• Mounting bracket included for secure installation

What maintenance does the removable element require and how easy is servicing?

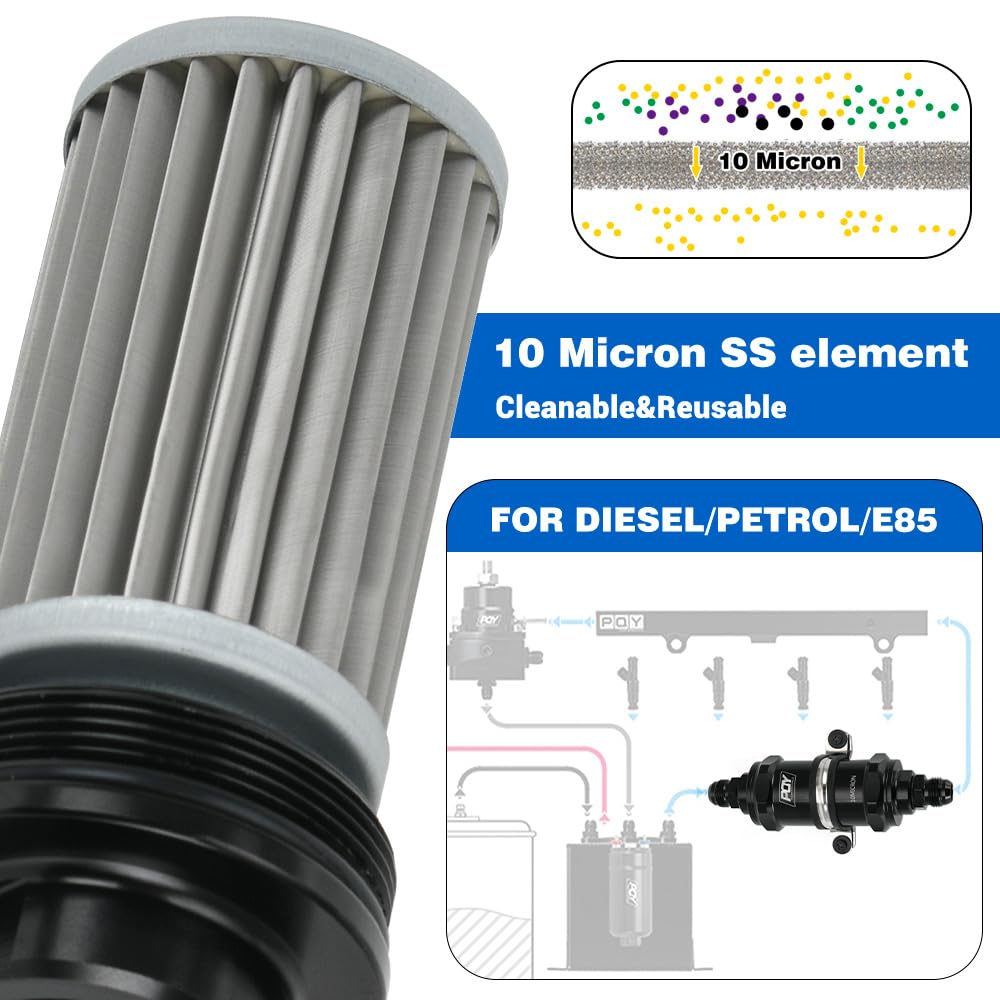

The stainless-steel element is designed to be disassembled for cleaning or replacement, allowing long service life with routine maintenance. The end caps are hand-removable and the internal design uses a spring so the element seats correctly, simplifying reassembly without tools.

• Hand-removable end caps—no tools needed for most service
• Wash or replace the 10-micron stainless element as needed
• Spring helps align element for proper inlet/outlet orientation
• Periodic checks prevent flow restriction and performance loss

How should I install the PQY inline filter for best performance?

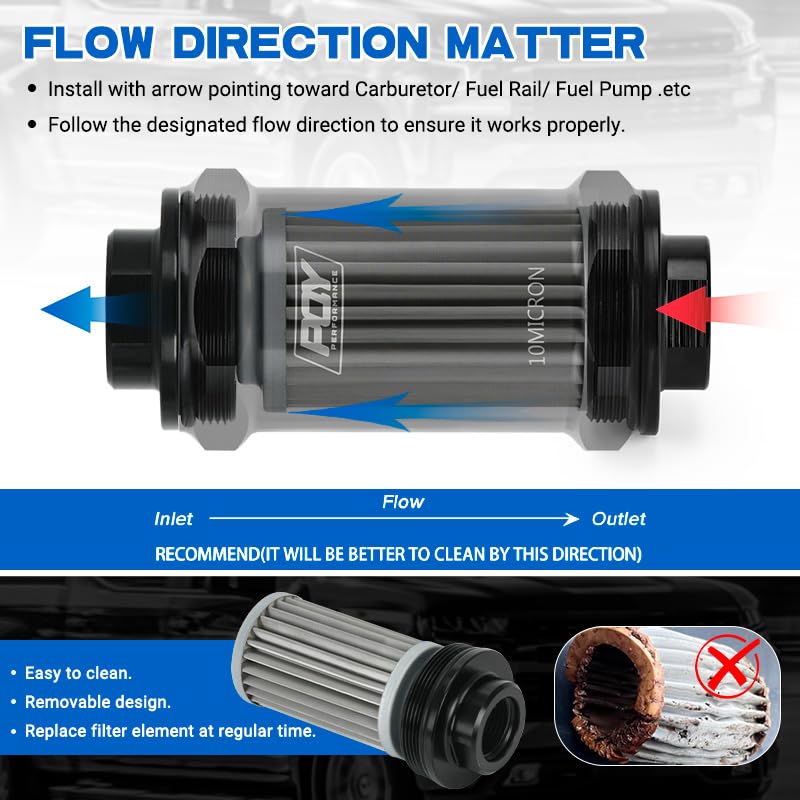

Install the filter in-line following the arrow or spring-end orientation: spring end should be the inlet. Secure the bracket to a vibration-free point, use the correct AN fittings or hoses, and confirm all connections are tight and leak-free before running the engine.

• Ensure spring end faces fuel inlet for correct flow
• Tighten AN adapters to recommended torque—use thread sealant where appropriate
• Mount bracket to a stable location away from extreme heat sources
• Inspect seals and hoses after initial startup for leaks

Who is this for? Mechanics, tuners, and DIY enthusiasts who run performance or modified fuel systems—especially those using ethanol blends or switching fuel types—will benefit from PQY's robust, serviceable inline filter. It's intended for anyone needing a reusable, corrosion-resistant filtration solution that fits AN6/AN8/AN10 setups and provides a balance of fine filtration with maintainability.
