QWORK Wireless Winch Remote Kit 2-Pack — 12V–24V, IP65 Receiver with Dual Transmitters, 9,000 lb

QWORK 12V Car Wireless Winch Electric Remote Control kit provides a two-transmitter wireless control solution that converts most 5-wire, solenoid-driven winches into a remote-operated system for trucks, ATVs and SUVs.

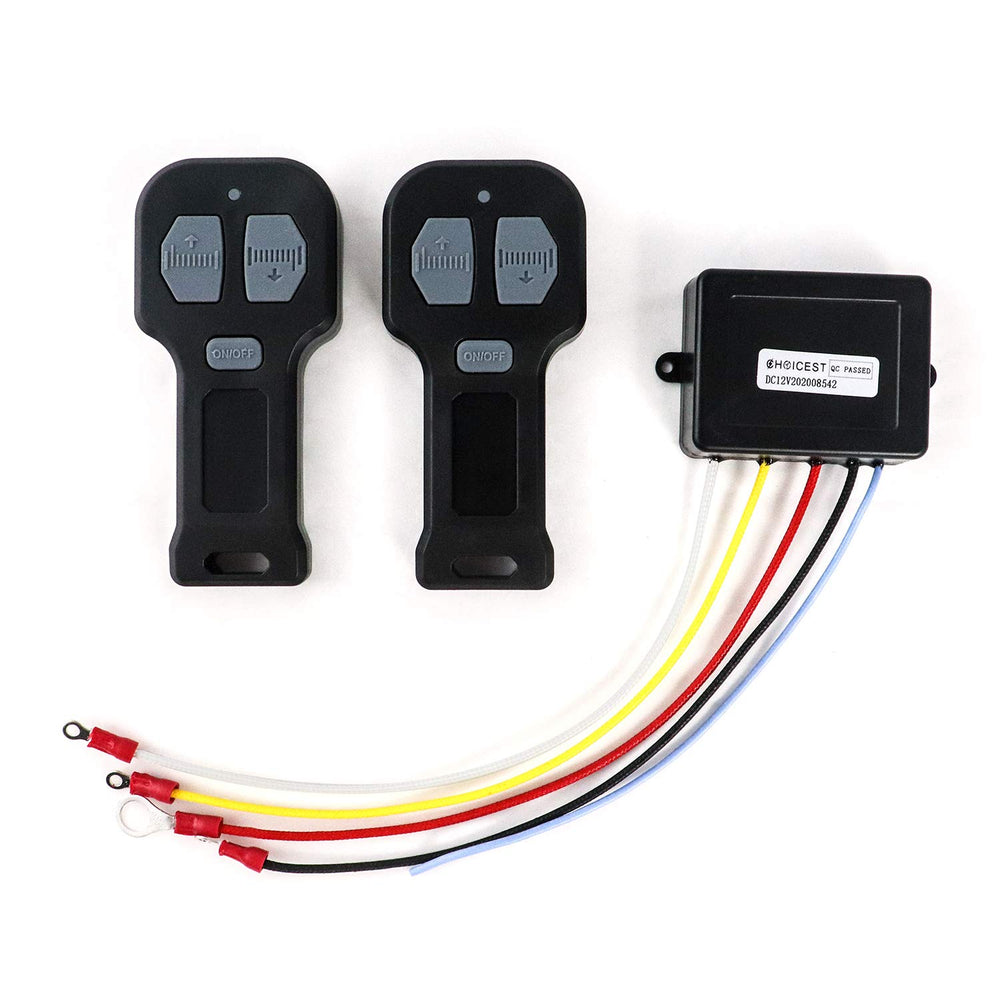

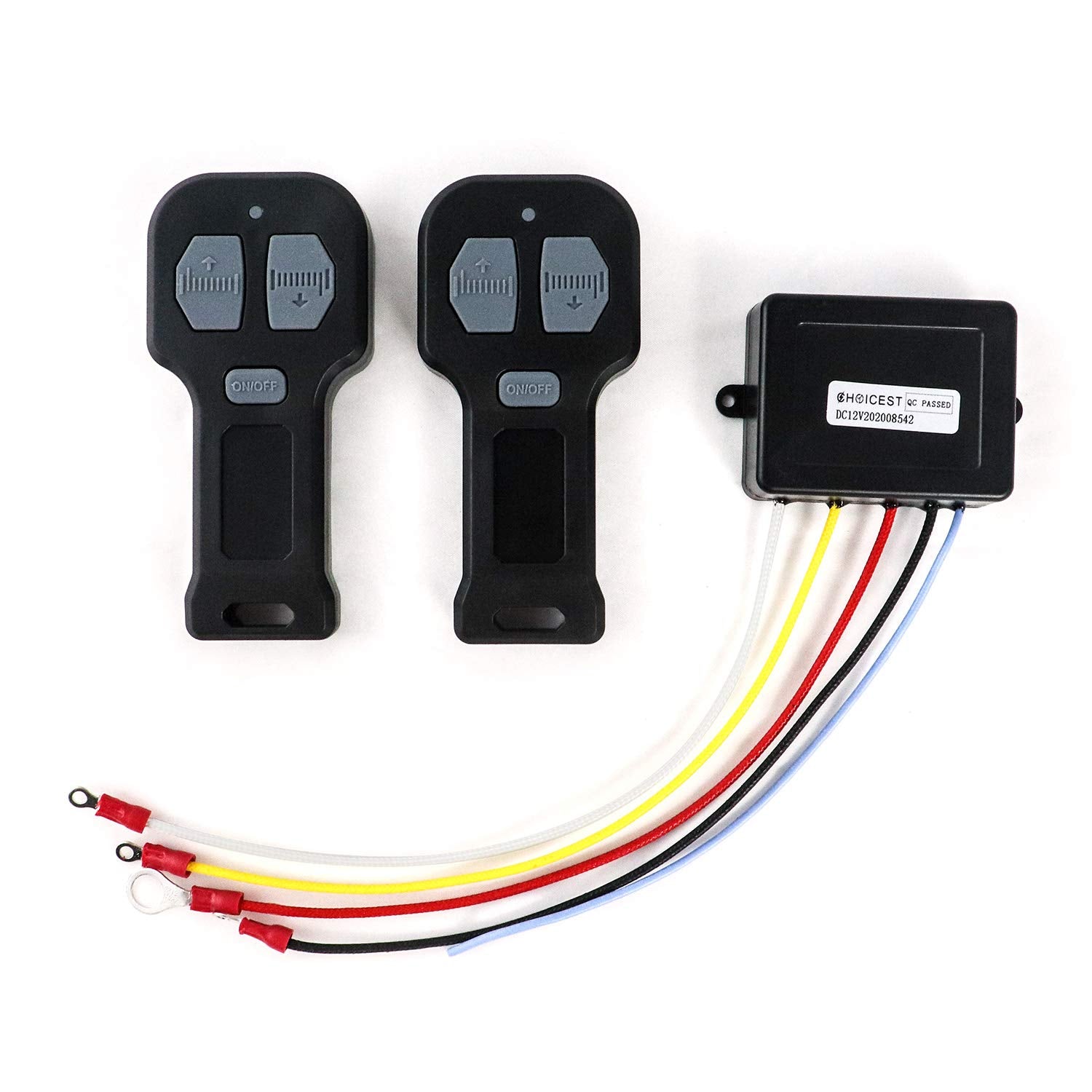

This compact QWORK kit includes two matching wireless transmitters and the receiver module engineered for DC12–24V electrical systems. It’s built to work with solenoid-style winches up to a 9,000 lb rating, features a visual indicator for transmit status, and an IP65-rated receiver housing for dust and water resistance. The design operates the winch relay coil (not the motor directly), so wiring follows standard red/black power and yellow/blue direction-control lines.

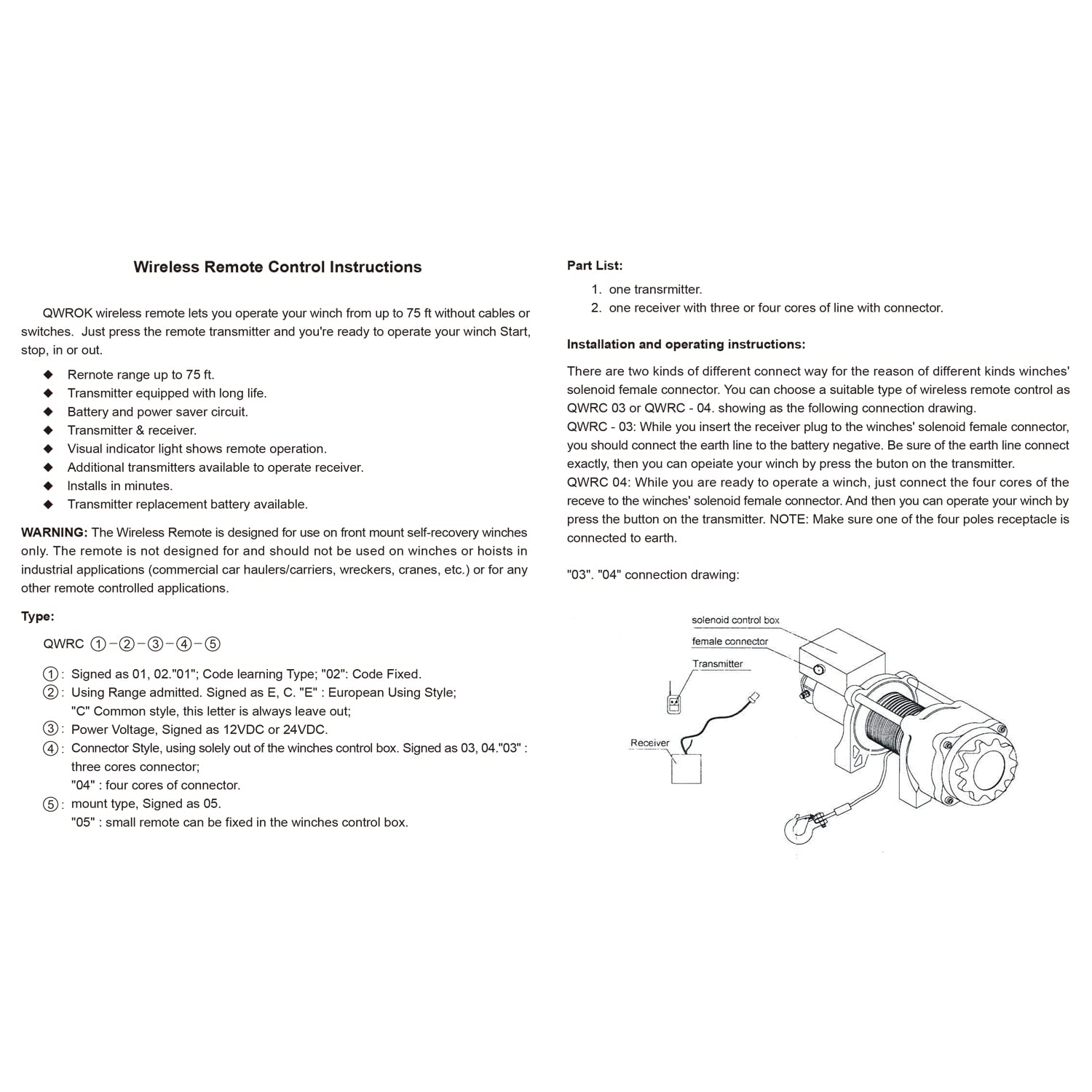

How does this kit install on my existing winch?

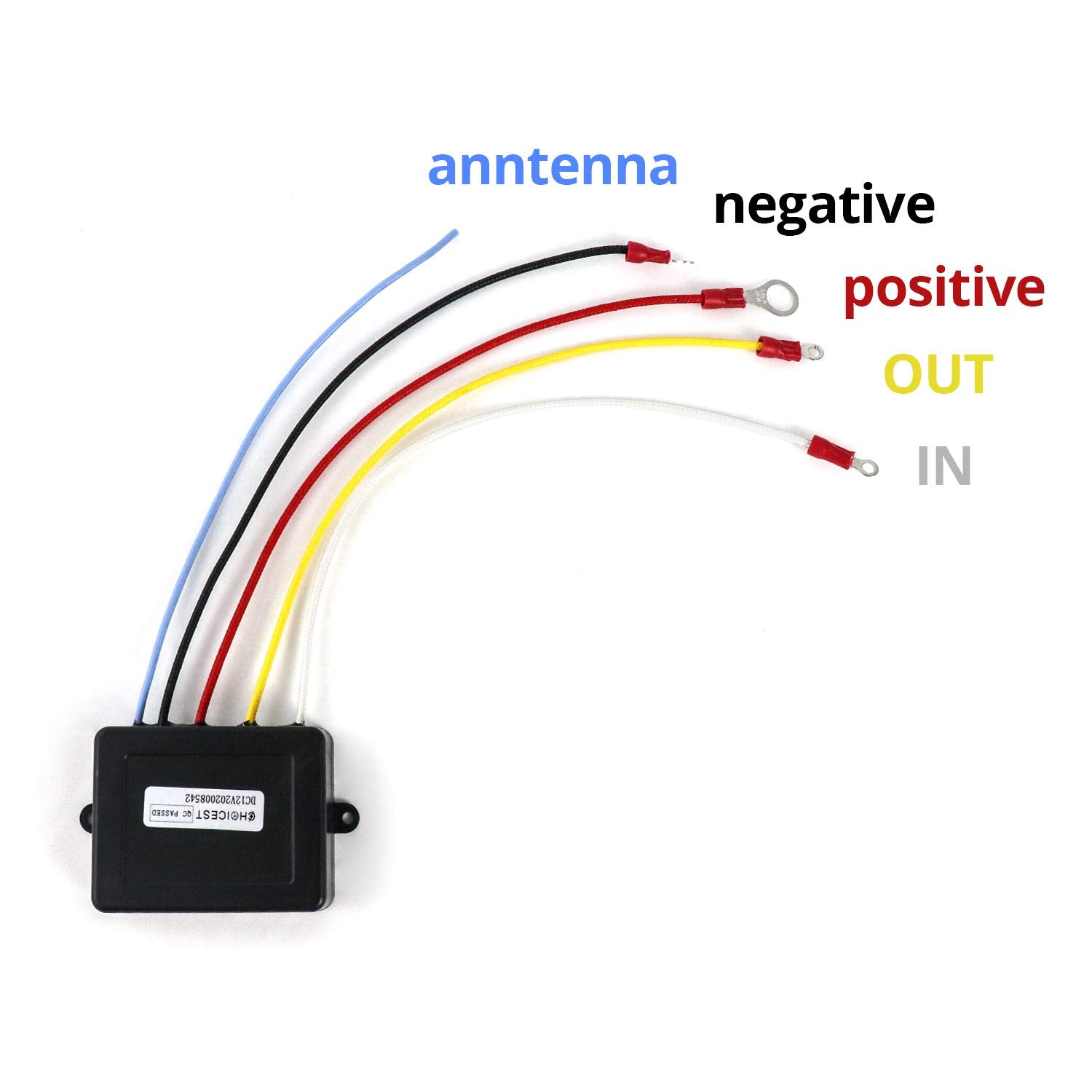

Installation is straightforward for anyone comfortable with basic vehicle wiring and winch connectors. The receiver mounts near the winch battery or control box and connects to the winch solenoid using the 5-wire scheme; follow color-coded leads for proper operation.

• Connect red to positive and black to ground.
• Attach yellow and blue to the winch direction control wires.
• Mount receiver in a protected location using included hardware; observe IP65 orientation.
• Pair each transmitter per the enclosed instructions for dual-user control.

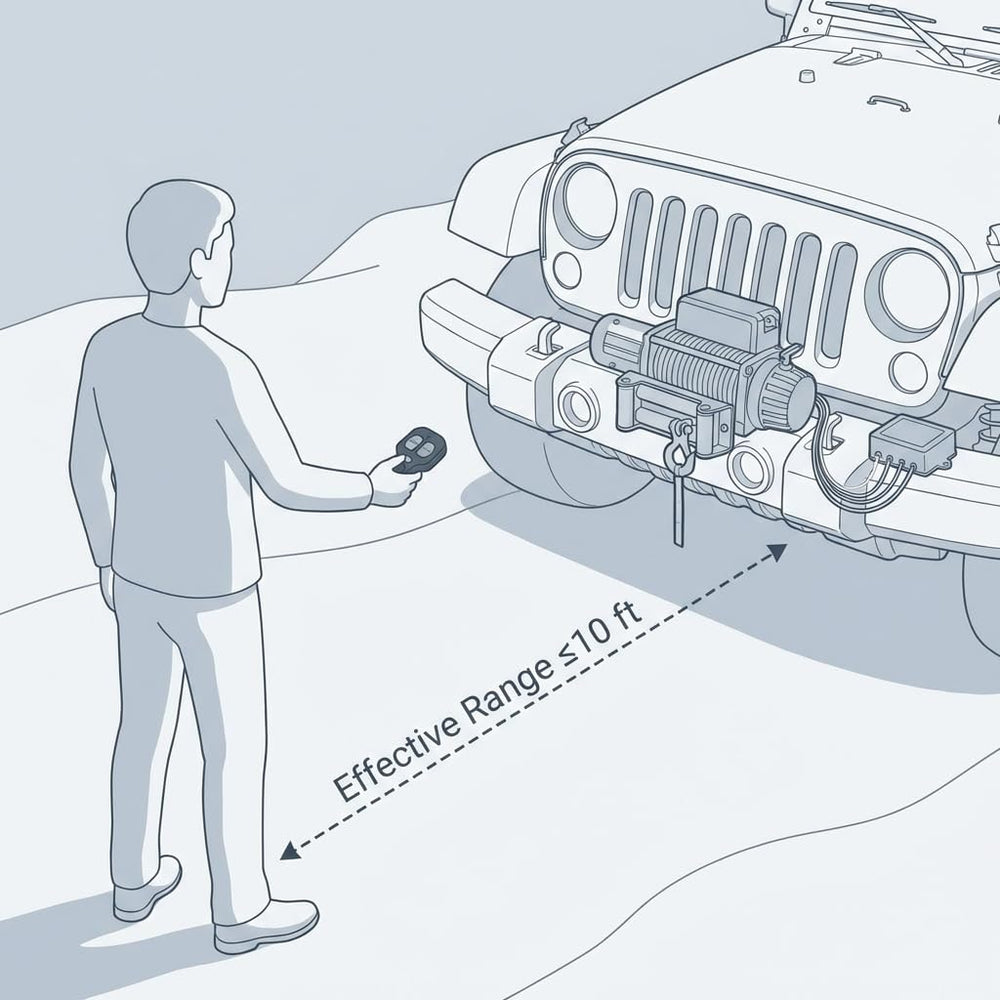

What range and feedback can I expect while operating the winch?

The QWORK wireless remote gives reliable control up to approximately 10 feet, suitable for most vehicle-side winching tasks where proximity is required. A transmitter indicator light confirms button presses; the receiver also signals operation, helping troubleshoot line-of-sight or interference issues quickly.

• Effective wireless range: up to 10 feet for secure control.
• Transmitter LED shows send attempts and pairing status.
• Receiver visual indicator displays input and activation state.
• Intermittent clicking often points to low battery voltage or relay contact wear.

Will this work with my vehicle’s electrical system and heavy-duty winch?

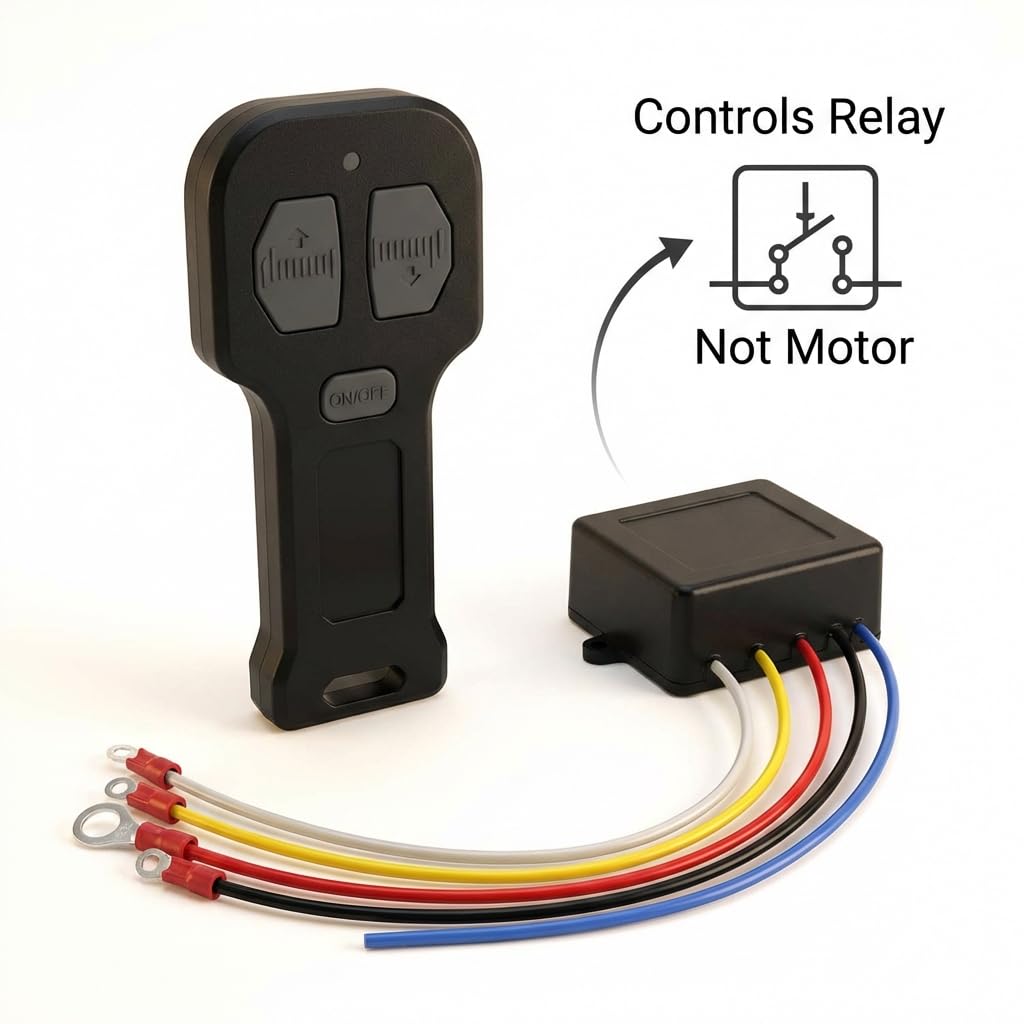

Yes—QWORK’s receiver supports DC12–24V systems and is compatible with most solenoid-driven winches up to 9,000 lb pull. Because the module is designed to actuate the winch relay coil rather than drive the motor, it integrates safely into existing winch control circuits without needing heavy-current wiring through the receiver.

• Compatible with 12V and 24V vehicle systems.
• Rated for solenoid winches up to 9,000 lbs.
• Operates relay coil only; heavy motor current remains on factory wiring.
• IP65 protection helps resist dust and light water exposure outdoors.

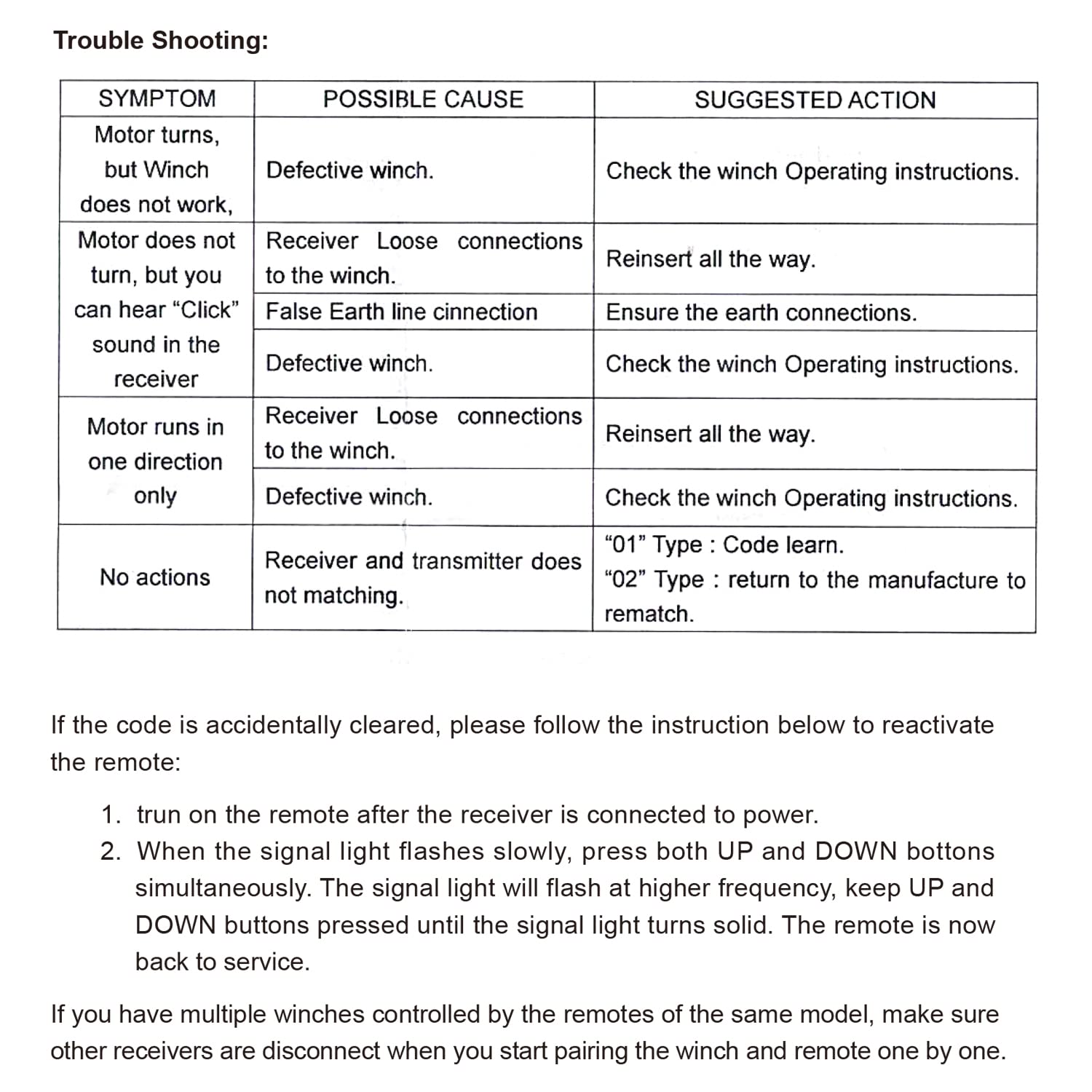

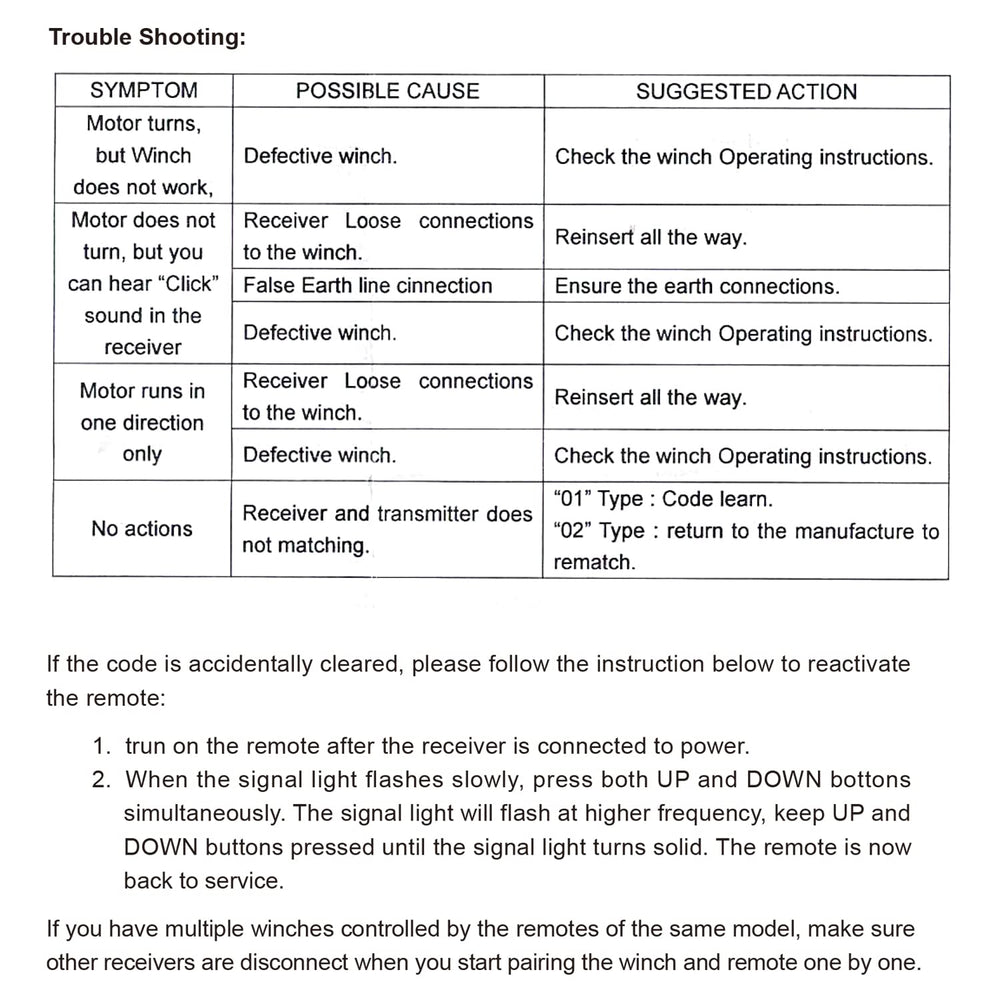

What common issues should I watch for and how do I troubleshoot?

Most problems trace to battery voltage, poor ground, or dirty relay contacts. If the transmitter LED blinks without winch movement, confirm the battery is fully charged, check ground connections, and inspect relay contacts for corrosion or wear.

• Intermittent clicking typically indicates low battery voltage—recharge battery.
• Silent single-click after transmit may mean relay contact fault—inspect relay.
• Ensure correct wiring: red = positive, black = ground, yellow/blue = directions.
• Contact QWORK support for pairing or operational guidance if needed.

Who is this for? Off-roaders, homeowners, utility vehicle owners and service pros who want a convenient, dual-transmitter wireless upgrade for existing solenoid-driven winches will find this QWORK kit useful. It’s ideal when you need reliable short-range remote control, dual-user capability, and a compact receiver that leaves winch motor circuits intact. If you prefer plug-and-play without altering motor wiring and you operate within a short control distance, this kit offers a practical, weather-resistant solution.
