RVshark 8000 lb A‑Frame Trailer Jack — Galvanized 4.7–33.4" Height, Drill‑Assist & Manual

RVshark’s 8000 lbs A-Frame Trailer Jack is a heavy-duty tongue jack that lifts, levels, and secures A-frame trailers with both drill-powered speed and ergonomic manual control.

This robust trailer jack combines reinforced alloy steel construction, a galvanized outer tube, and a wide foot plate to provide dependable support for RVs, horse trailers, and utility trailers. Designed to mount quickly to standard A-frame tongues under 5 inches high, it replaces unstable or corroded jacks and gives a higher working range to match a broad variety of tow setups. The unit’s dual-operation design—drill-assisted and manual—speeds hookup while retaining precise control for final adjustments.

How does the dual lifting mode speed setup and reduce effort?

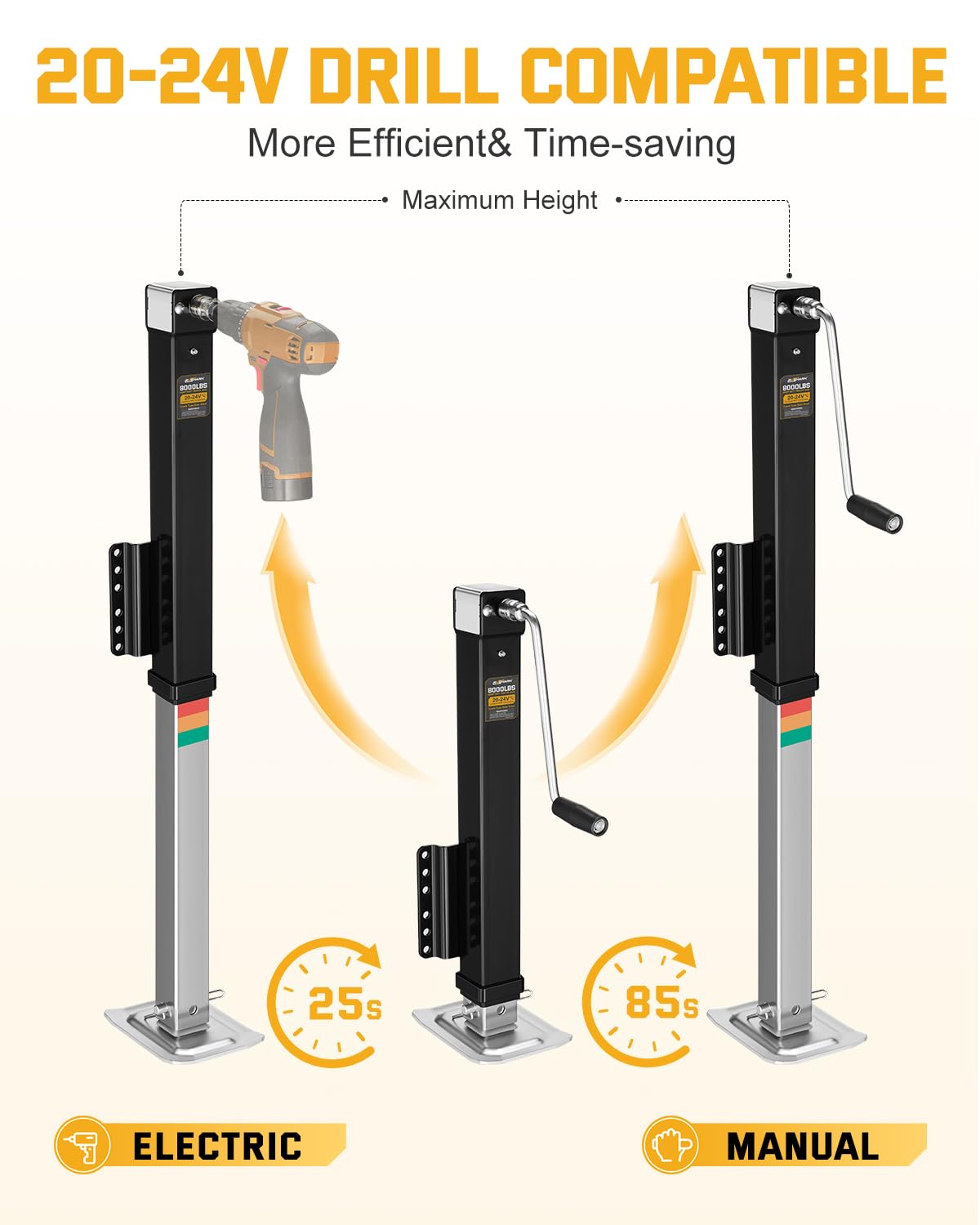

The jack accepts a 20–24V cordless drill for fast raising and lowering, making hitching quick when you're on tight schedules. For fine positioning, the detachable side handle offers smooth manual cranking with an optimized gear train that reduces crank force by about 20% versus standard jacks.

• Accepts common 20–24V cordless drills for rapid lift/lower
• Detachable ergonomic side handle for controlled manual adjustments
• Reinforced internal gears minimize stalling and stiff cranking
• Mechanism designed to balance speed and precision

What load capacity and height range does it actually provide?

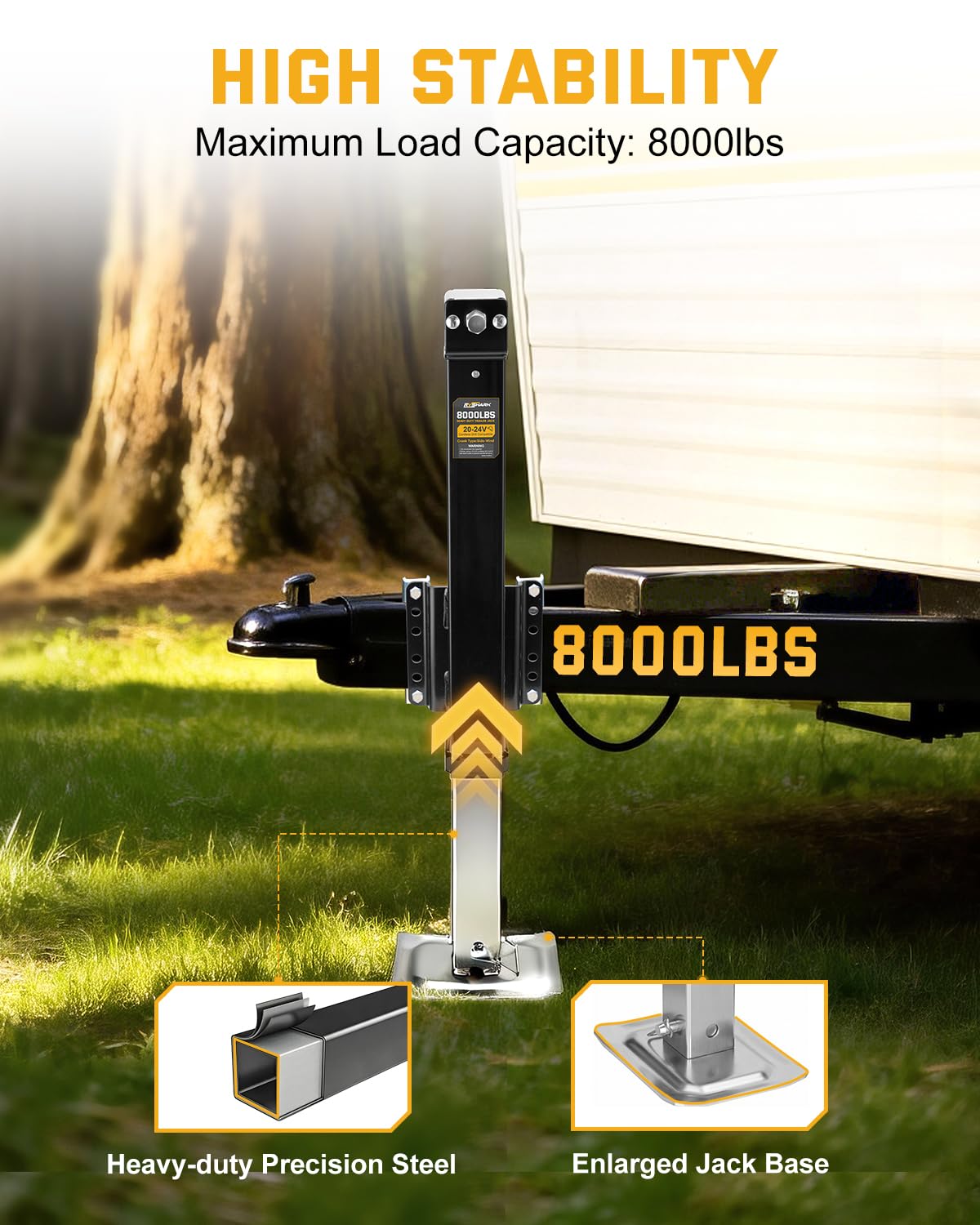

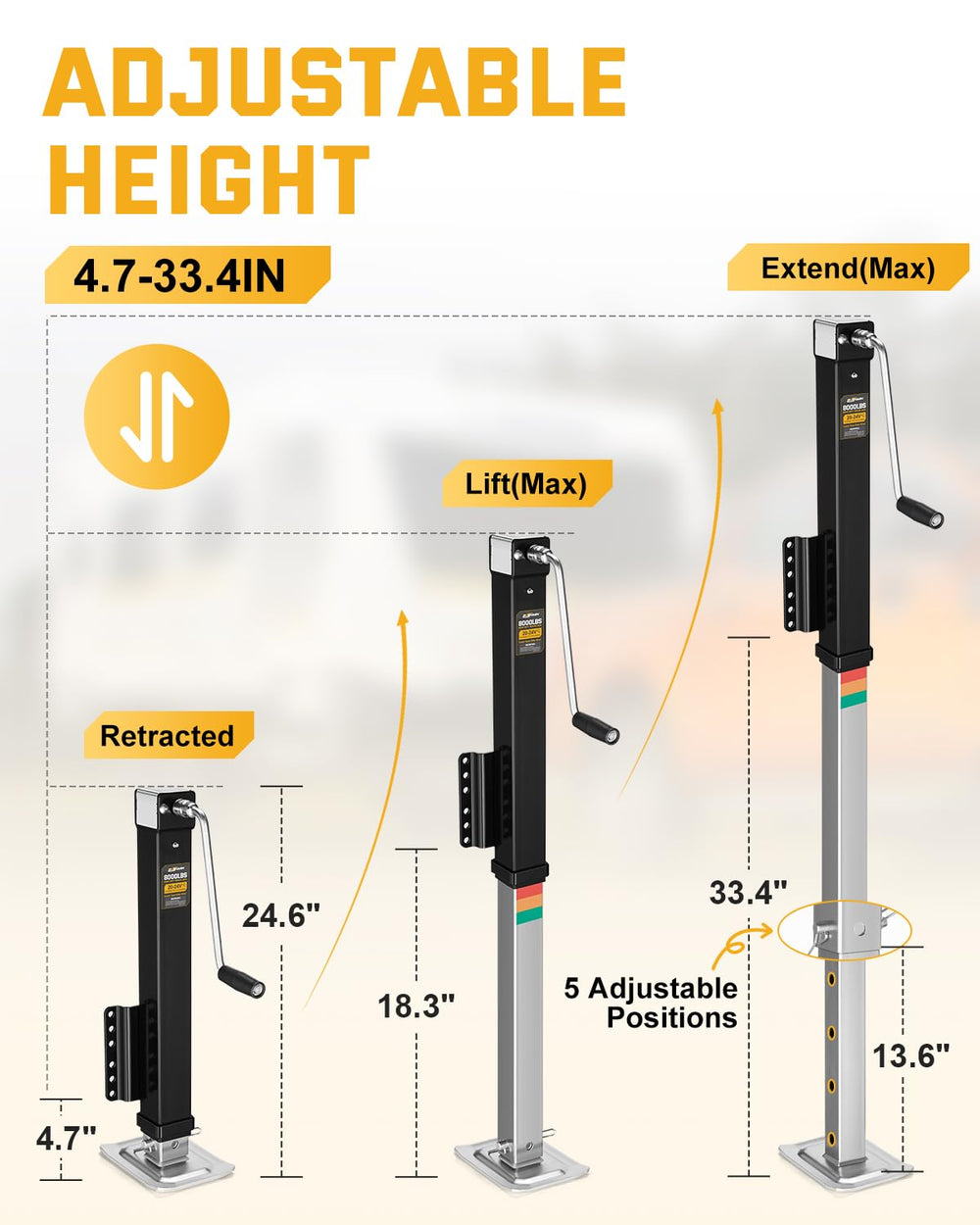

Rated for up to 8,000 lbs, the RVshark A-frame jack is built with high-strength alloy steel and thick galvanized tubing to resist bending under load. The quick-adjust drop leg lets you set the height from 4.7" to 33.4", so it fits low-profile trailers as well as taller units without needing blocks.

• 8000 lbs support margin for heavy trailers
• Height adjustment 4.7"–33.4" via 5-level drop leg positions
• Sturdy wide foot plate for better ground contact and stability
• Galvanized outer tube for improved corrosion resistance

How does the jack help prevent misuse or over-extension?

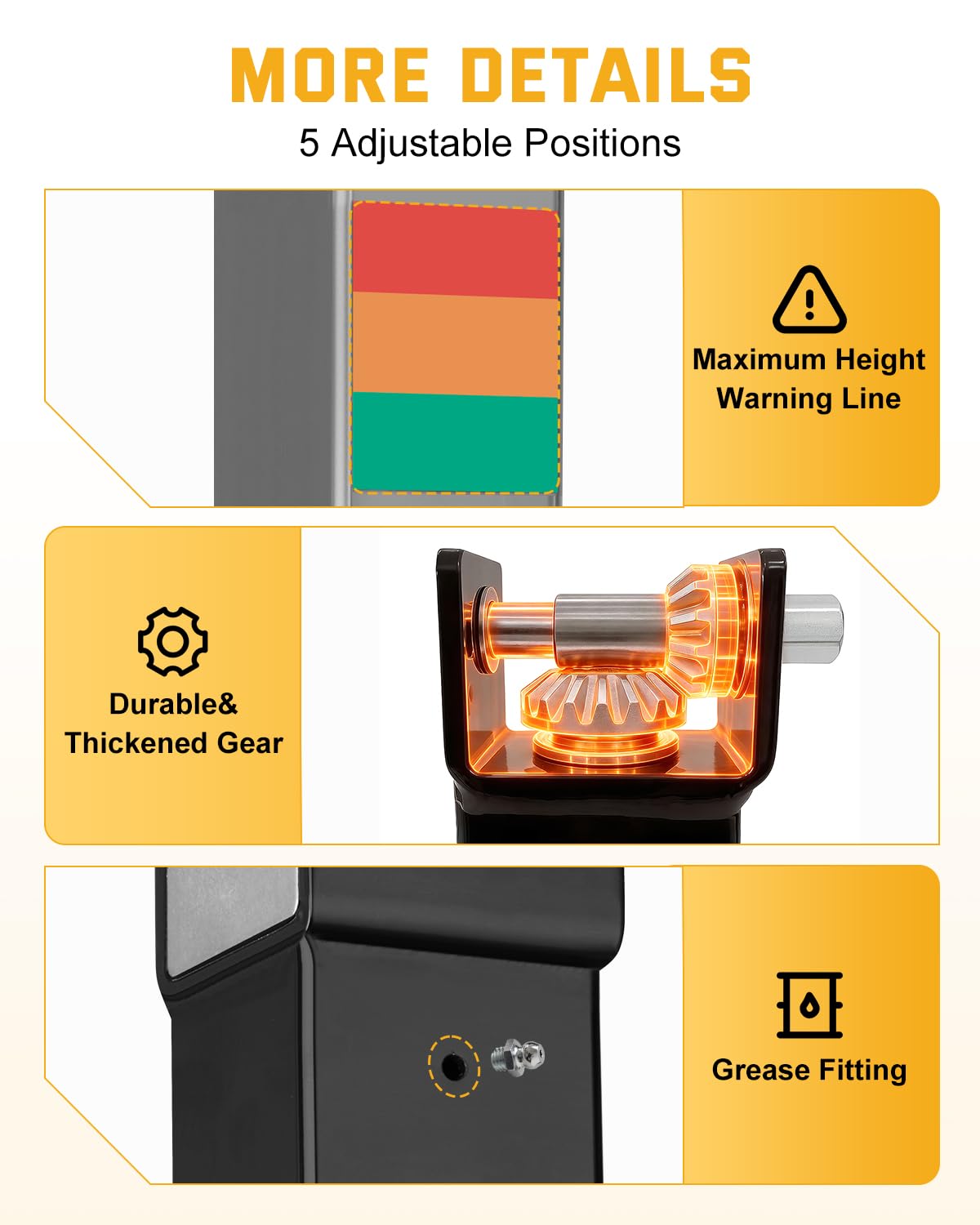

To reduce the risk of over-extension—the common cause of jack failure—RVshark added a clear Green-Yellow-Red visual indicator on the tube, making safe operating limits easy to spot at a glance. The indicator guides users to stop before reaching an unsafe extension and keeps lifting within manufacturer limits.

• Bright Green-Yellow-Red color band for quick visual limits
• Prevents accidental over-extension and potential damage
• Helps new users operate the jack safely and confidently
• Complemented by reinforced internal gear stops

How easy is installation and which trailers is it compatible with?

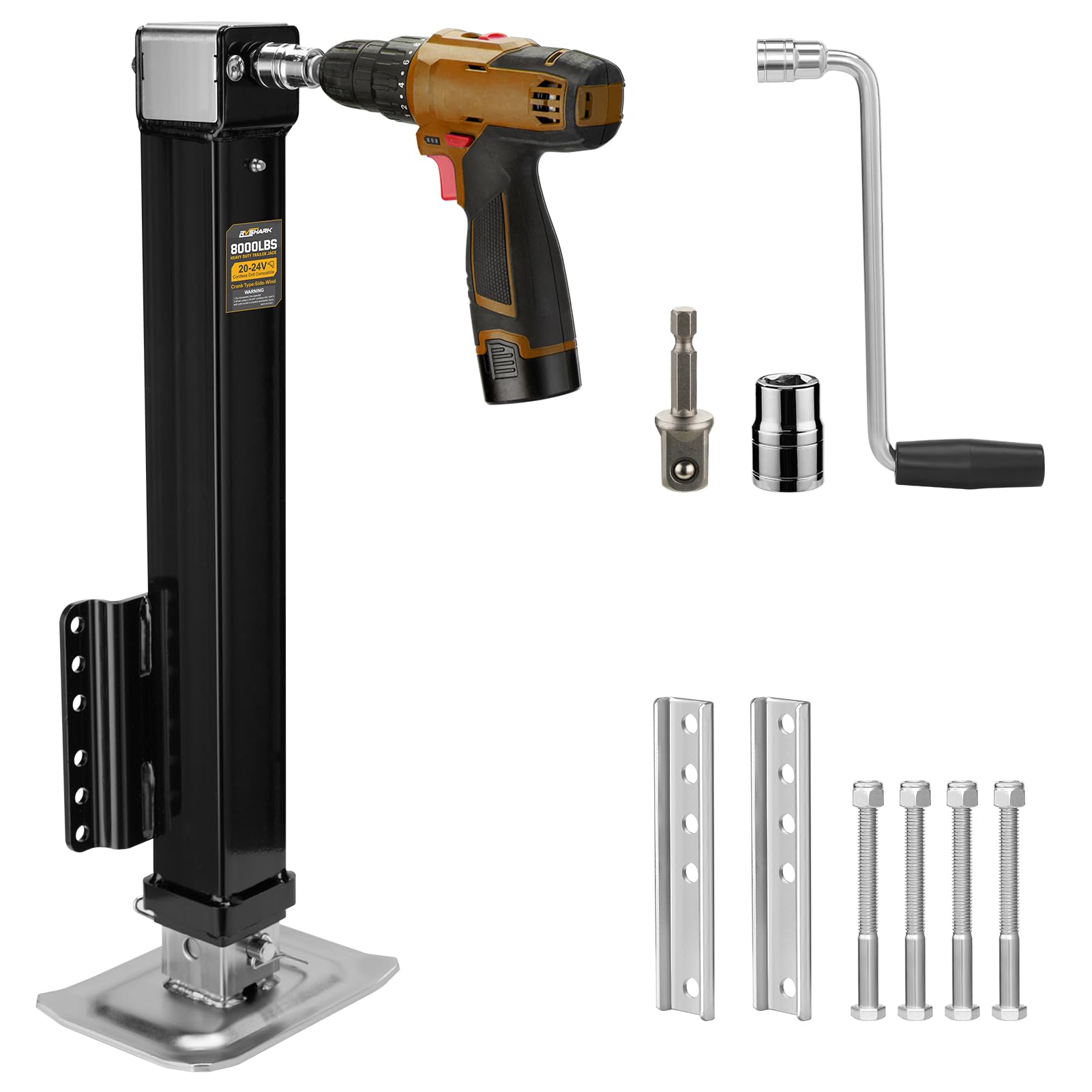

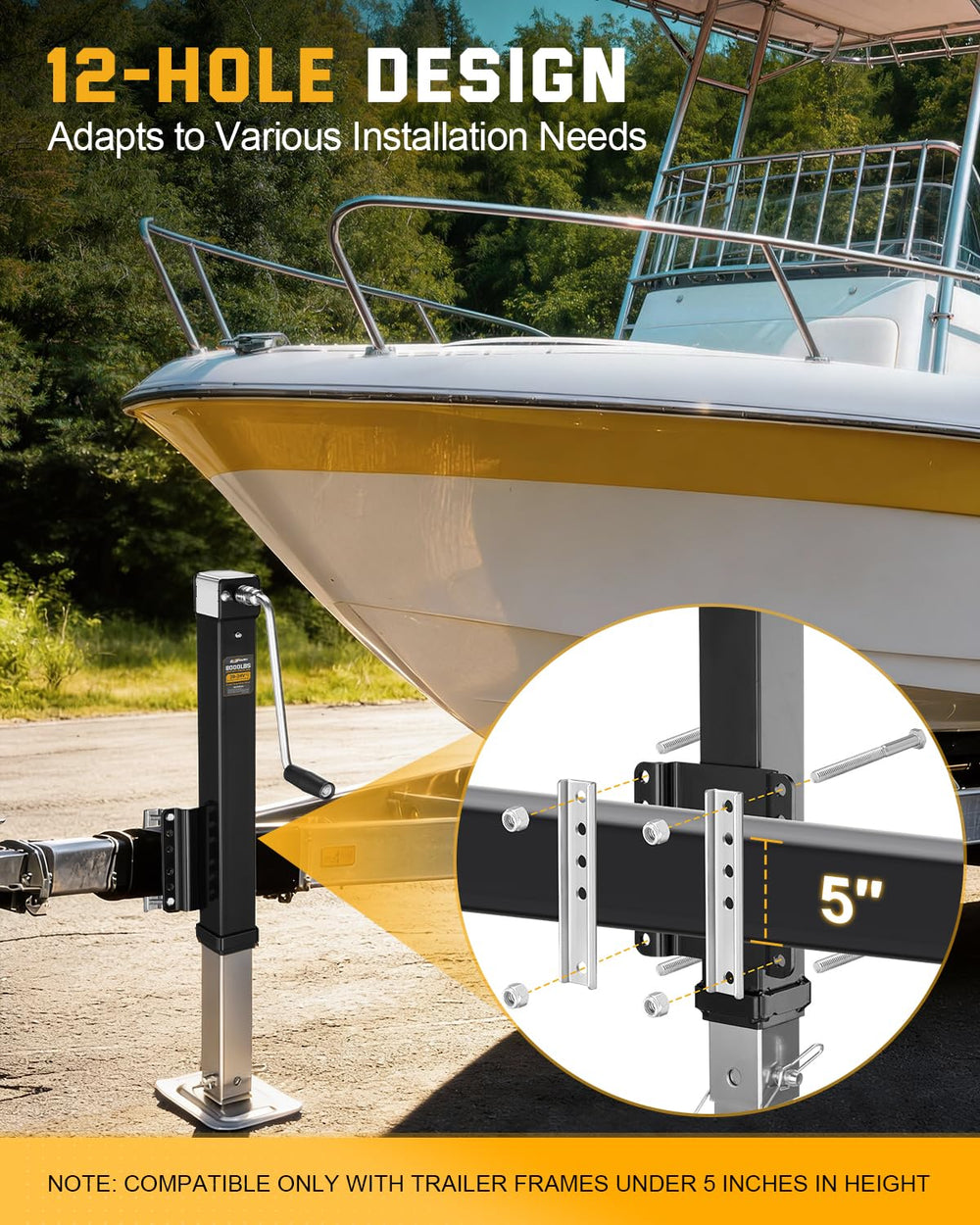

The jack ships with four long screws and two mounting brackets for bolt-on installation to standard A-frame tongues under 5" tall. Its universal bolt-on design fits most RVs, horse trailers, and utility trailers, though frame height must be checked before purchase.

• Includes 4 long mounting screws and 2 bracket parts for secure bolting
• Designed for standard A-frame trailer tongues under 5" height
• Quick bolt-on replacement for older or damaged jacks

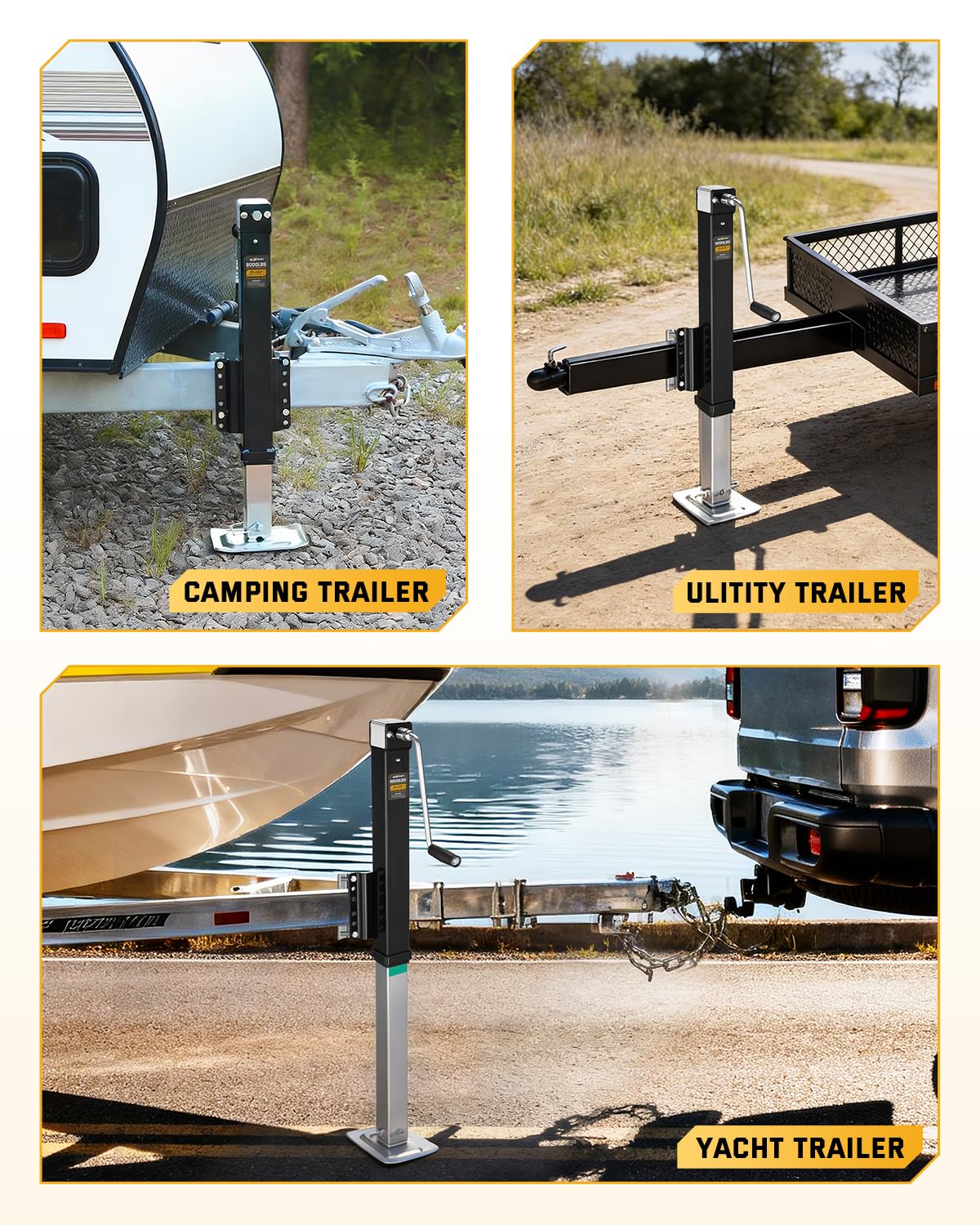

• Broad compatibility across RVs, horse trailers, and utility trailers

Who this is for: The RVshark 8000 lbs A-Frame Trailer Jack is aimed at trailer owners who need a durable, higher-capacity tongue jack that speeds hitching with drill-assisted lifting while still allowing manual precision. Ideal buyers include RV and camper owners upgrading from small-capacity jacks, horse trailer users wanting better stability on uneven ground, and anyone who prefers a bolt-on replacement with a wide height range and clear safety indicators. If your trailer frame is under 5" in height and you want a heavy-duty, corrosion-resistant jack that balances power and control, this model is a practical choice.
