SEHNSUCHT centrifugal clutch kit 3/4" bore 10T sprocket with #420 chain for Predator 212 & Honda-clone (2–6.5HP)

SEHNSUCHT's centrifugal clutch kit gives minibikes and small go-karts a bolt-on 3/4" bore drive solution with a 10-tooth sprocket and #40/#41/#420 chain compatibility for engines from 2 to 6.5 HP.

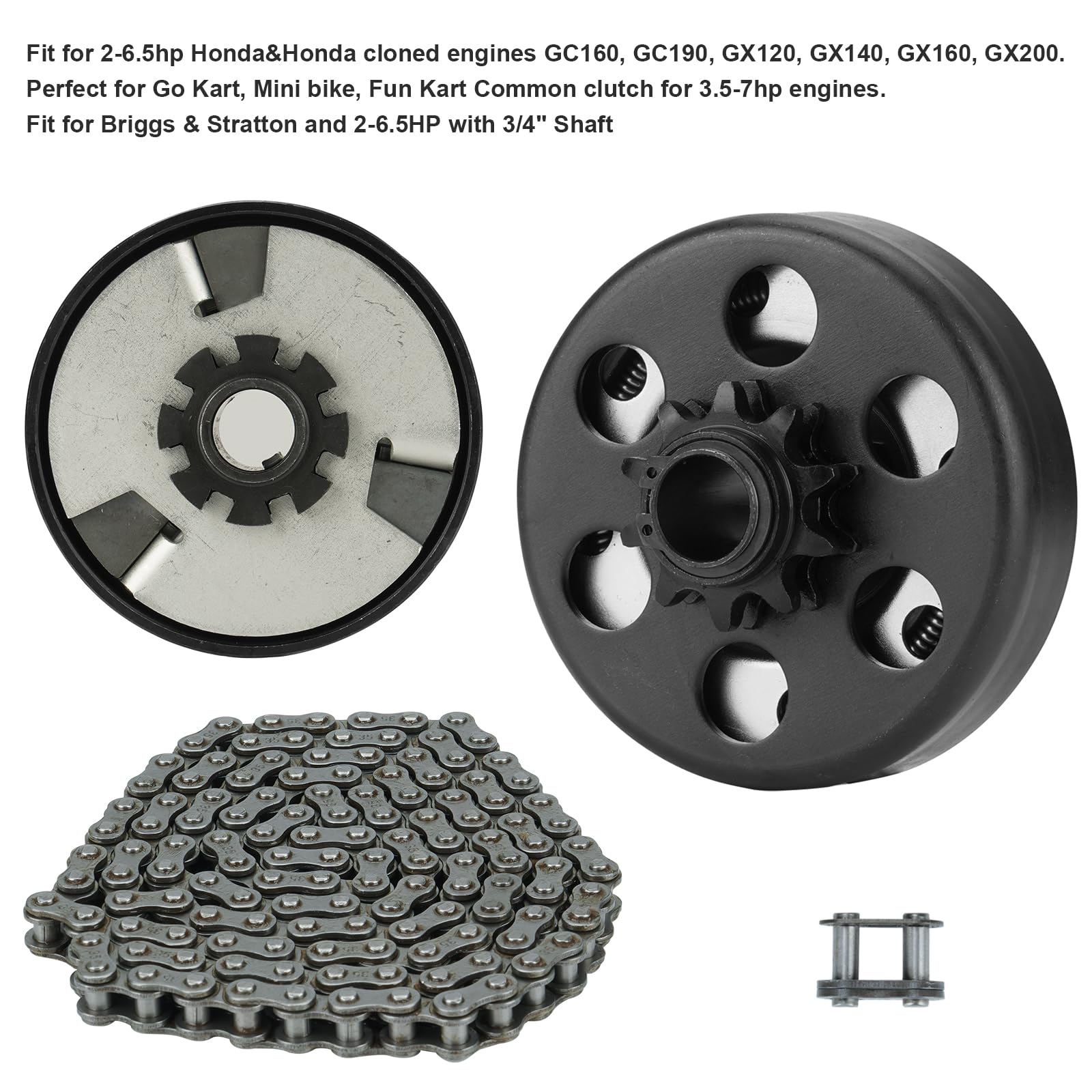

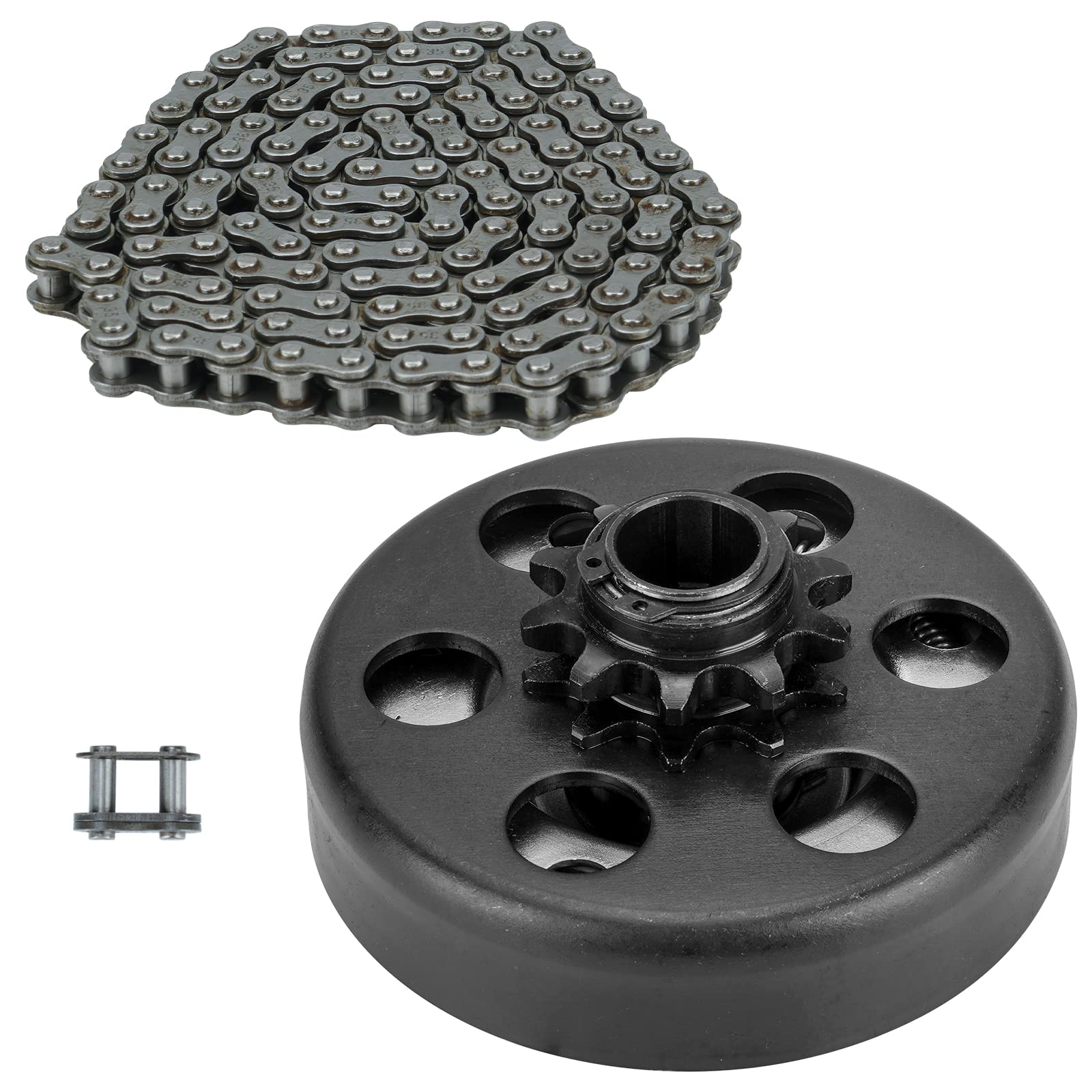

This kit was made for hobbyists and small-vehicle builders who need a reliable clutch that fits 3/4" (19.05 mm) crankshafts — notably Predator 212-type engines and many Honda-clone powerplants. It arrives as a ready set with a 10T sprocket-style clutch, a 96-link #420 chain, and a connecting link, plus installation guidance and break-in tips to help prevent slipping or early wear.

Will this clutch fit my engine and shaft?

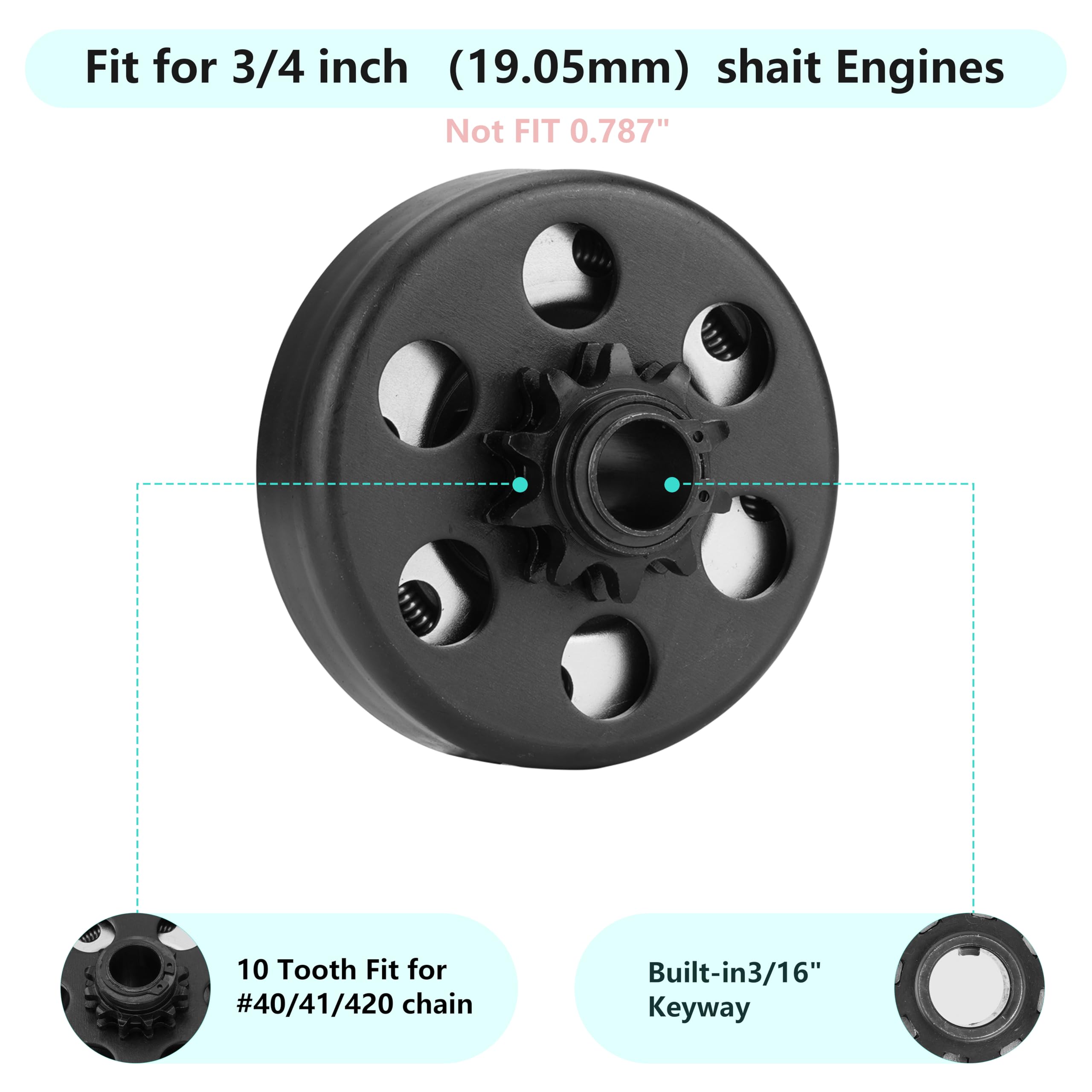

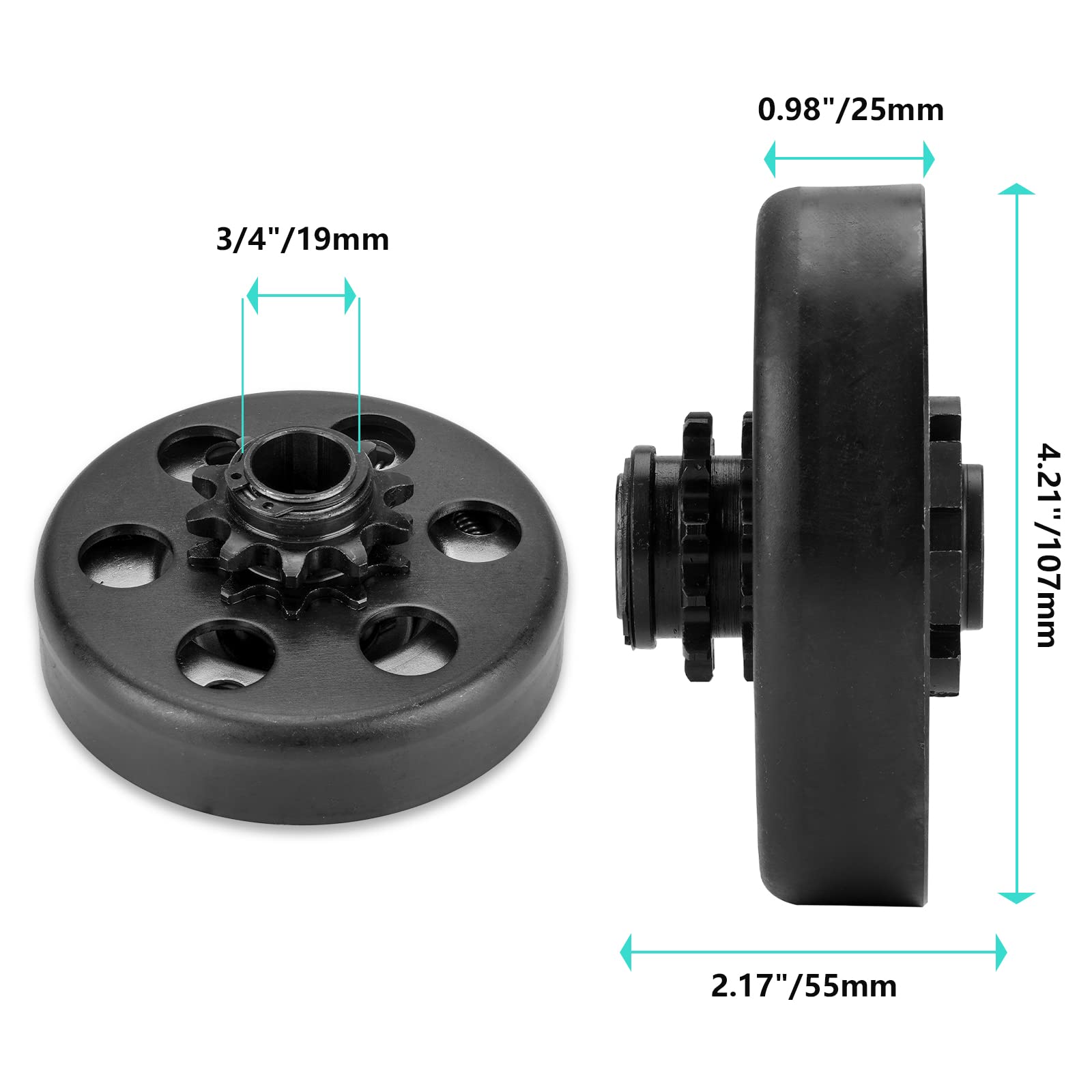

The SEHNSUCHT clutch is designed for a 3/4" (19.05 mm) bore and a 3/16" keyway on compatible engines. It works with Predator 212 and common Honda-clone engines (GC160, GC190, GX120, GX140, GX160, GX200) and fits some Tecumseh and Briggs & Stratton 6.5 HP units that share the same shaft dimensions.

• Bore size: 3/4" (19.05 mm) — not compatible with 0.787" (20 mm) generator shafts.
• Keyway: fits shafts with a 3/16" key.
• Engine range: suitable for 2–6.5 HP engines including Predator 212 style and many Honda clones.
• Recommended wheel size: for single-wheel drive setups with rear tires up to 15" tall.

How do I install and prepare the clutch for use?

Installation mounts the clutch on the crankshaft using the engine's end bolt and washer; a light lubrication on the snap ring area before fitting helps the assembly rotate freely. After mechanical installation, the clutch requires a short running-in procedure to seat the shoes and friction surfaces properly.

• Mount with existing crank bolt and washer; ensure the snap ring sits in its groove.

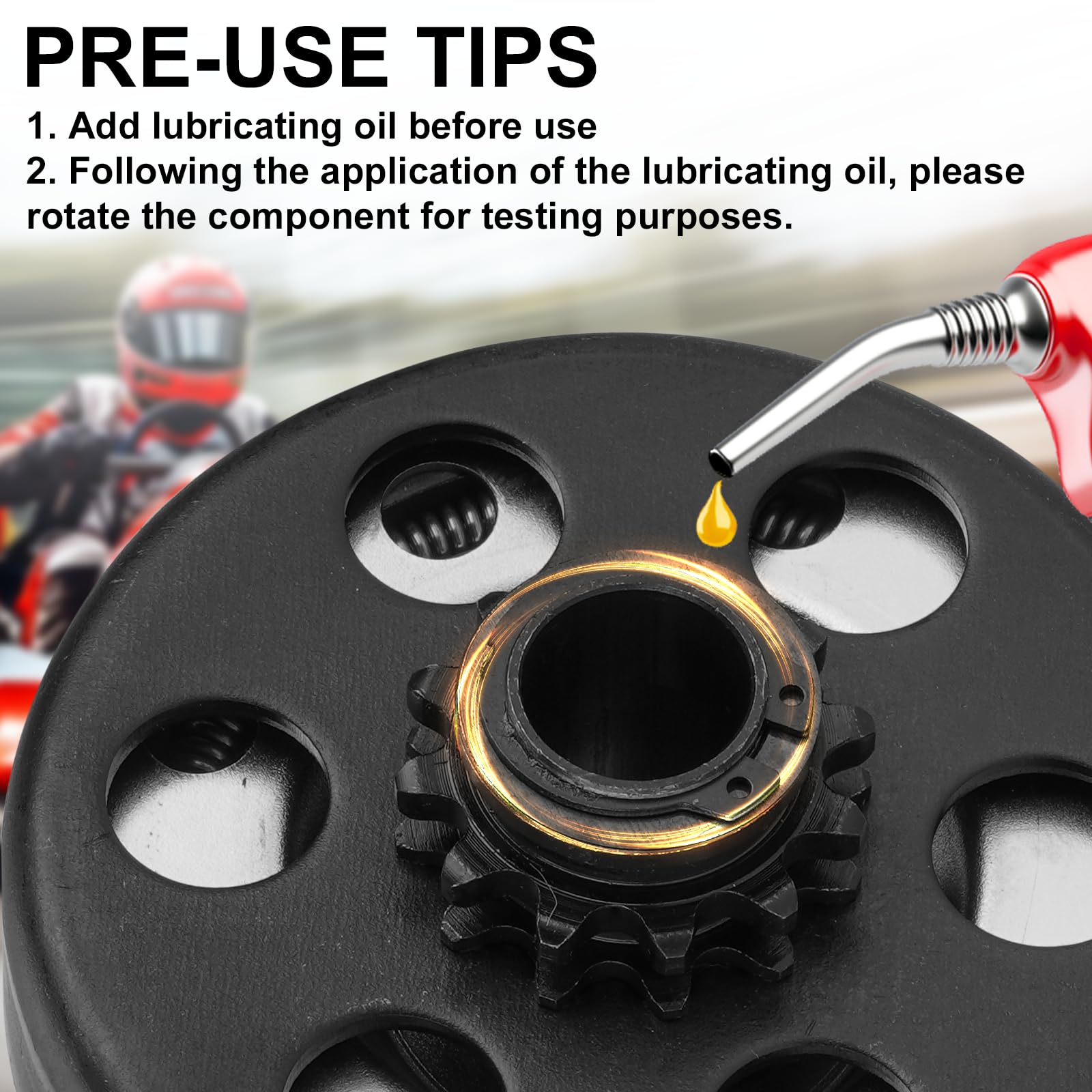

• Apply lubricant to the snap ring location, then rotate to distribute it before tightening.
• Break-in: 3–5 no-load engagements, then 3 gradual loaded runs, allowing cooling between attempts.
• Follow the included pictures and steps to avoid slipping, smoke, or incomplete engagement.

What drivetrain and performance details should I expect?

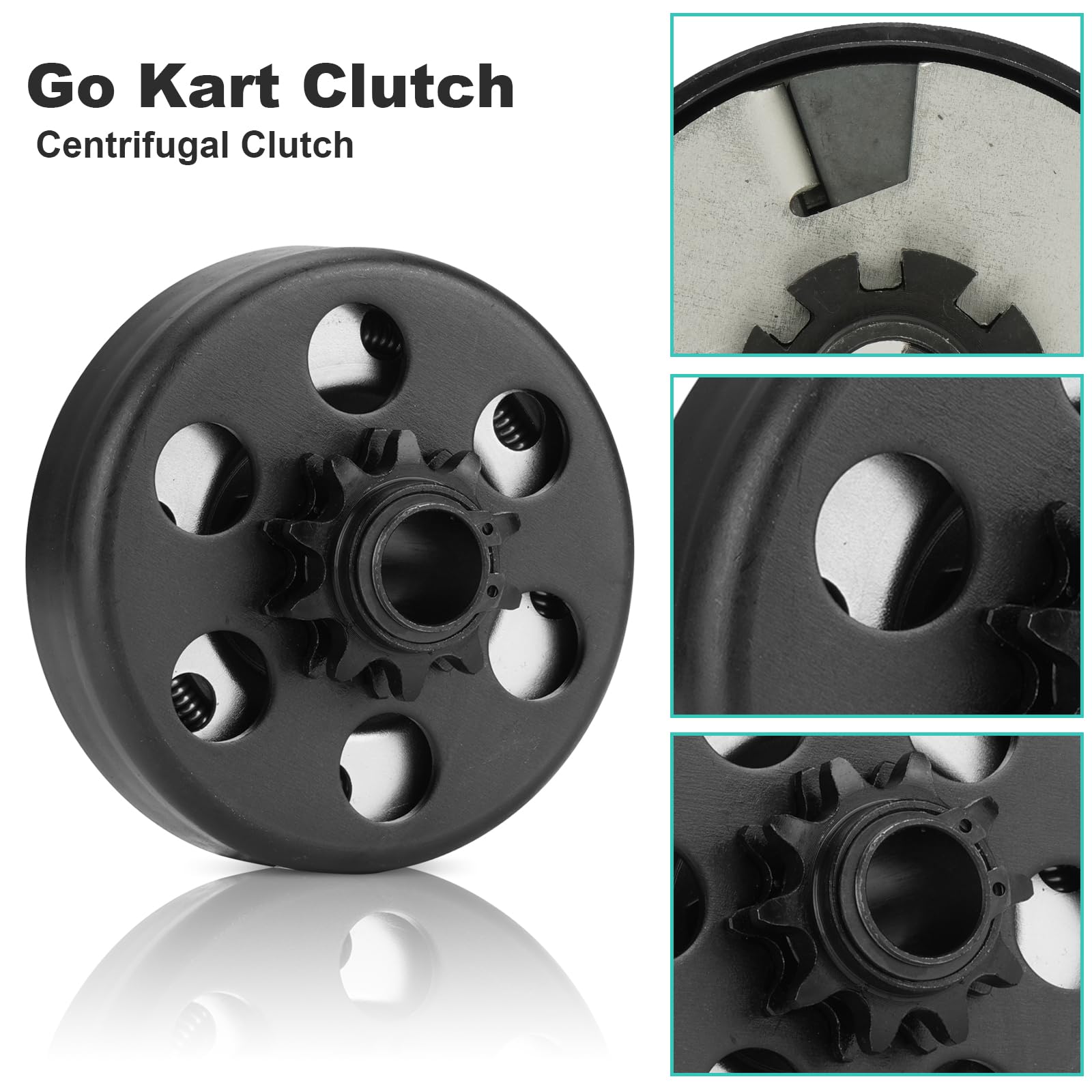

The clutch uses a 10-tooth sprocket profile compatible with #40/#41/#420 chains (pitch 12.7 mm / 0.5 in). It engages centrifugally as engine RPM rises, transmitting power to a single driven wheel in lightweight kart and minibike applications.

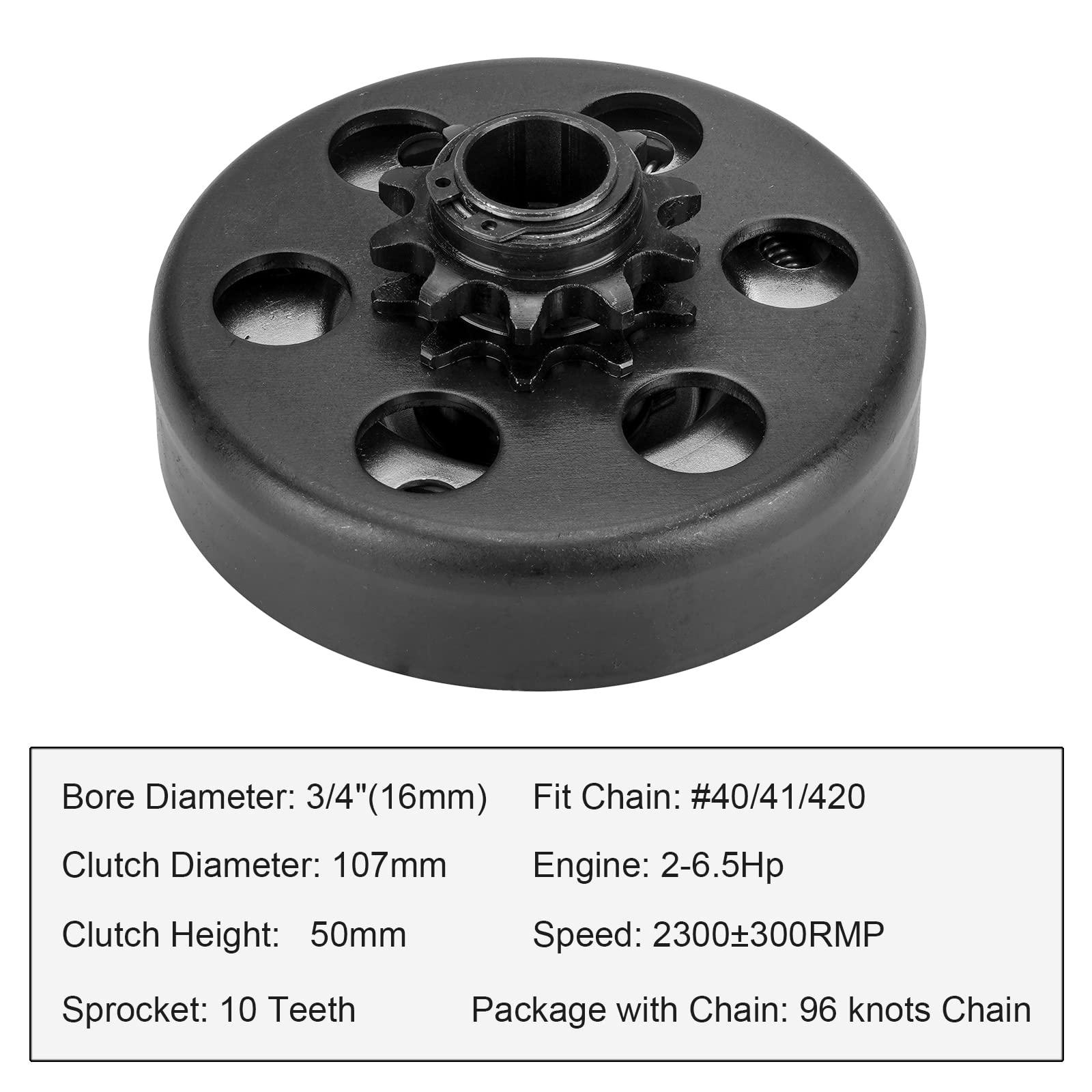

• Sprocket size: 10T matched to 3/4" bore clutch body.

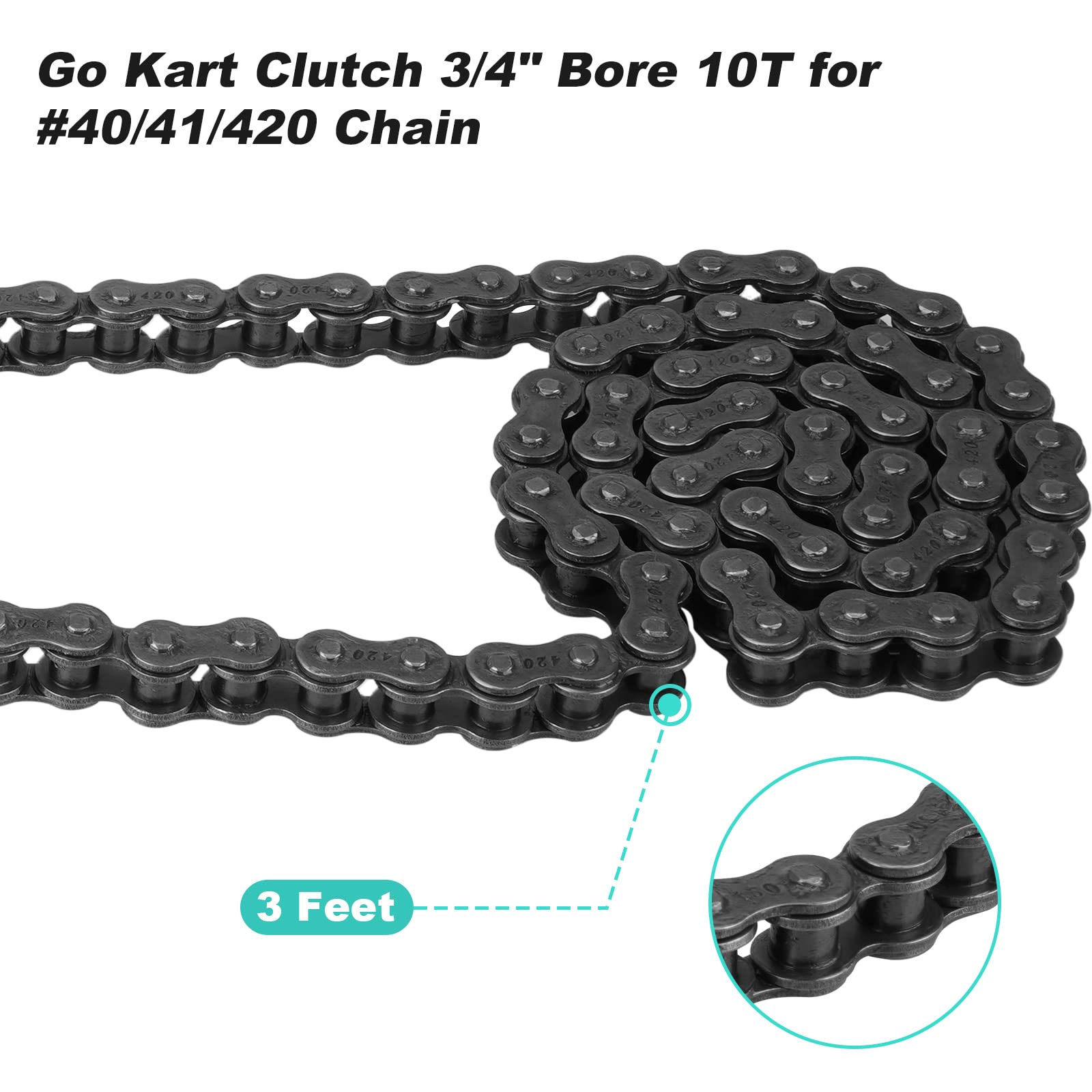

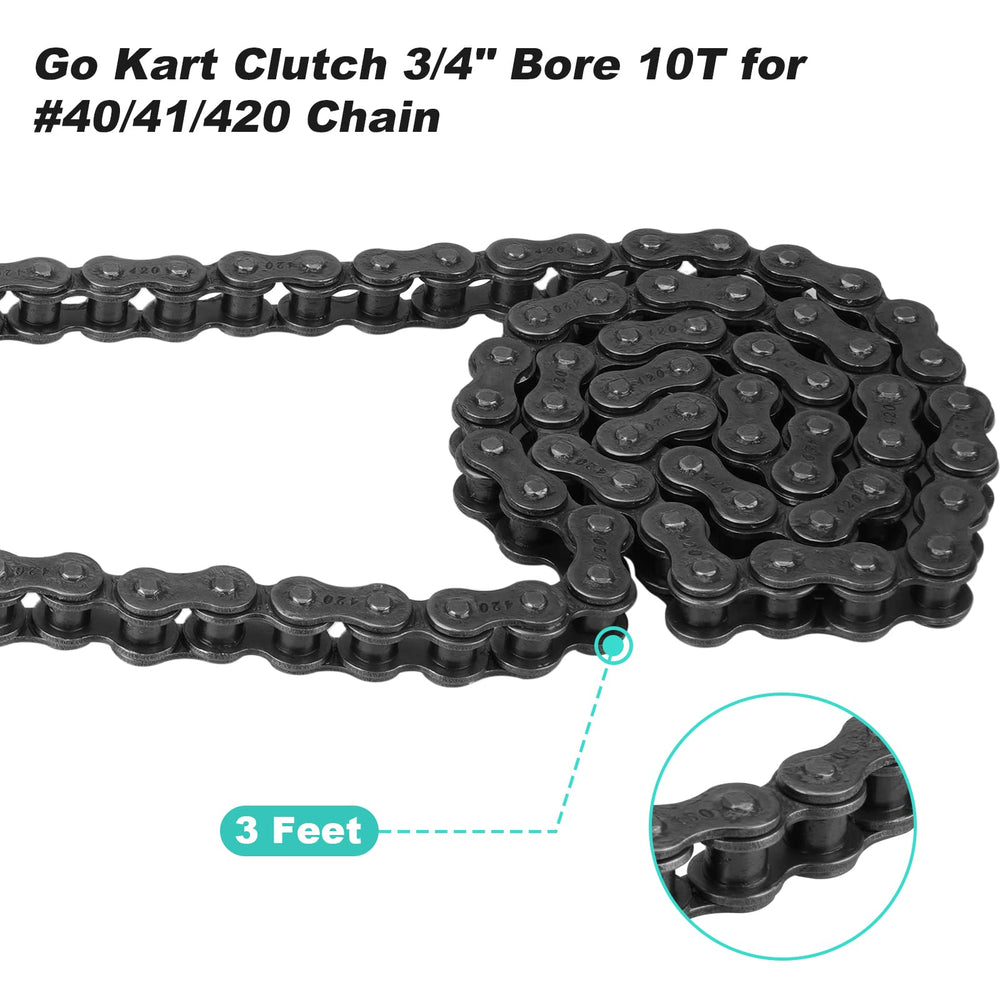

• Chain: supplied #420 chain (96 links) plus connecting link; supports #40/#41 as compatible sizes.
• Power range: recommended for engines from 2 HP up to 6.5 HP.
• Best used on single-wheel drive karts with rear tires ≤ 15".

How do I avoid common problems like slipping or friction smoke?

Proper pre-install lubrication and the prescribed break-in routine are the primary defenses against slipping and smoke. Ensuring the clutch is correctly centered on the crankshaft and allowing cooling intervals during initial runs helps the friction surfaces bed in evenly.

• Drop lubricant above the snap ring and rotate before tightening to prevent binding.
• Perform no-load and gradual loaded runs with cooling pauses: reduces glazing and uneven wear.
• Check keyway and bolt torque to avoid shaft wobble and misalignment.
• Replace chain or link if worn before first use to preserve sprocket teeth and clutch life.

Who is this for: Builders and DIY riders fitting small karts, minibikes, Mini Baja or similar single-wheel-drive rigs who need a straightforward centrifugal clutch that mounts to a 3/4" crankshaft. It’s aimed at hobbyists using Predator 212-style engines, Honda-clone motors, or compatible Tecumseh/Briggs Stratton powerplants in the 2–6.5 HP class who want a ready kit with chain and link included.
