Sound Troubleshooting 12V Automotive Relay Tester — 4 & 5‑Pin Handheld Tester with LED Pass/Fail and Timing Check

The Sound Troubleshooting 12V Handheld Relay Tester is a compact diagnostic tool that quickly checks 4- and 5-pin automotive relays by automatically detecting pin configuration, cycling the relay, and showing pass/fail status with LEDs.

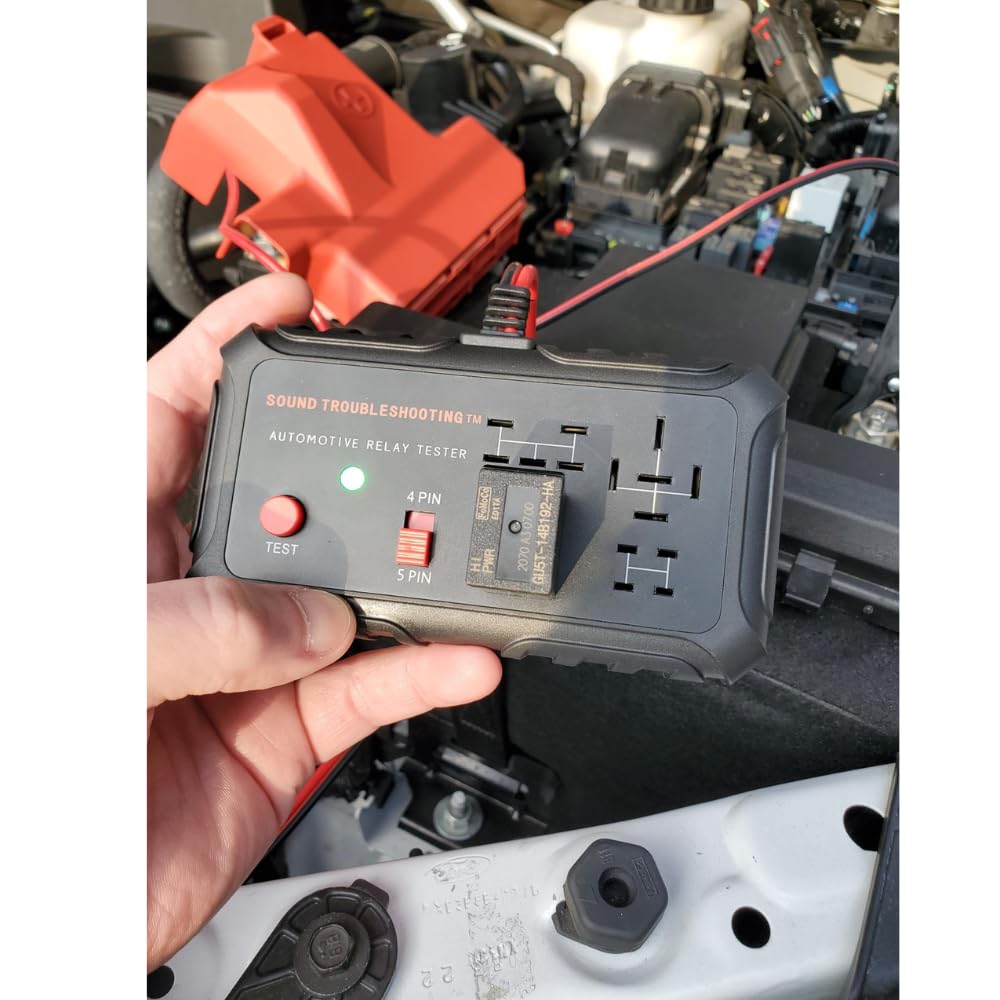

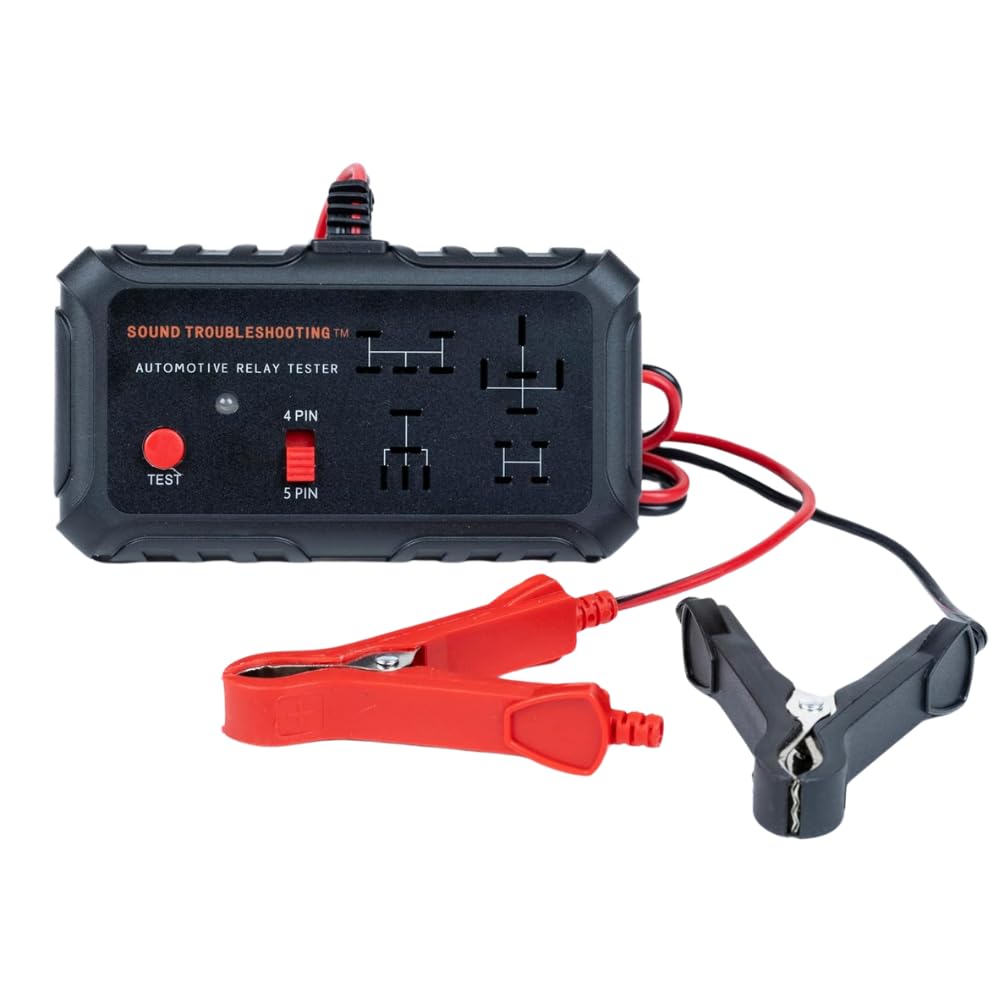

This pocket-sized relay tester is built for technicians and DIYers who need fast, repeatable checks of most general-purpose 12V vehicle relays. It clips to a vehicle battery, automatically recognizes 4- or 5-pin layouts, cycles the relay several times while measuring timing and consistency, and uses green/red LEDs to indicate results. The unit is USA-patented and includes alligator battery clips so you can test relays anywhere you can access a 12V battery (11–15V required).

How does the tester identify and evaluate a relay?

The tester automatically detects whether a relay is 4-pin or 5-pin and selects the correct internal test routine. It then actuates the relay multiple times, measures the release/action timing and checks consistency across cycles to determine reliability.

• Automatic 4/5-pin detection without manual wiring
• Multiple-actuation cycles to verify consistent operation
• Timing measurement to detect slow or sticking contacts
• Clear LED result: green for good, red for faulty

What steps are required to run a test safely?

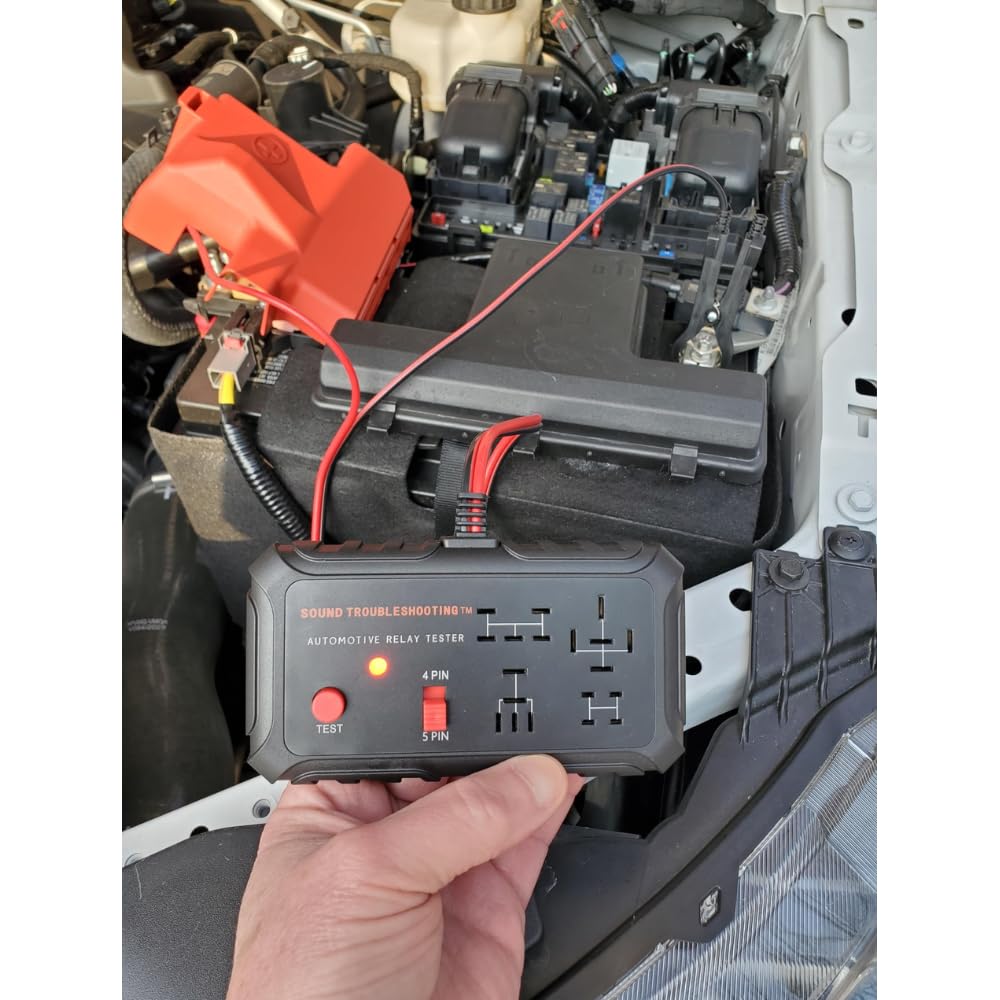

Testing is straightforward: clip the black and red alligator clips to the battery negative and positive, set the 4/5-pin selector, plug the relay into the matching socket, then press Test. The unit requires a 12V car battery with voltage between 11V and 15V and performs the test automatically once started.

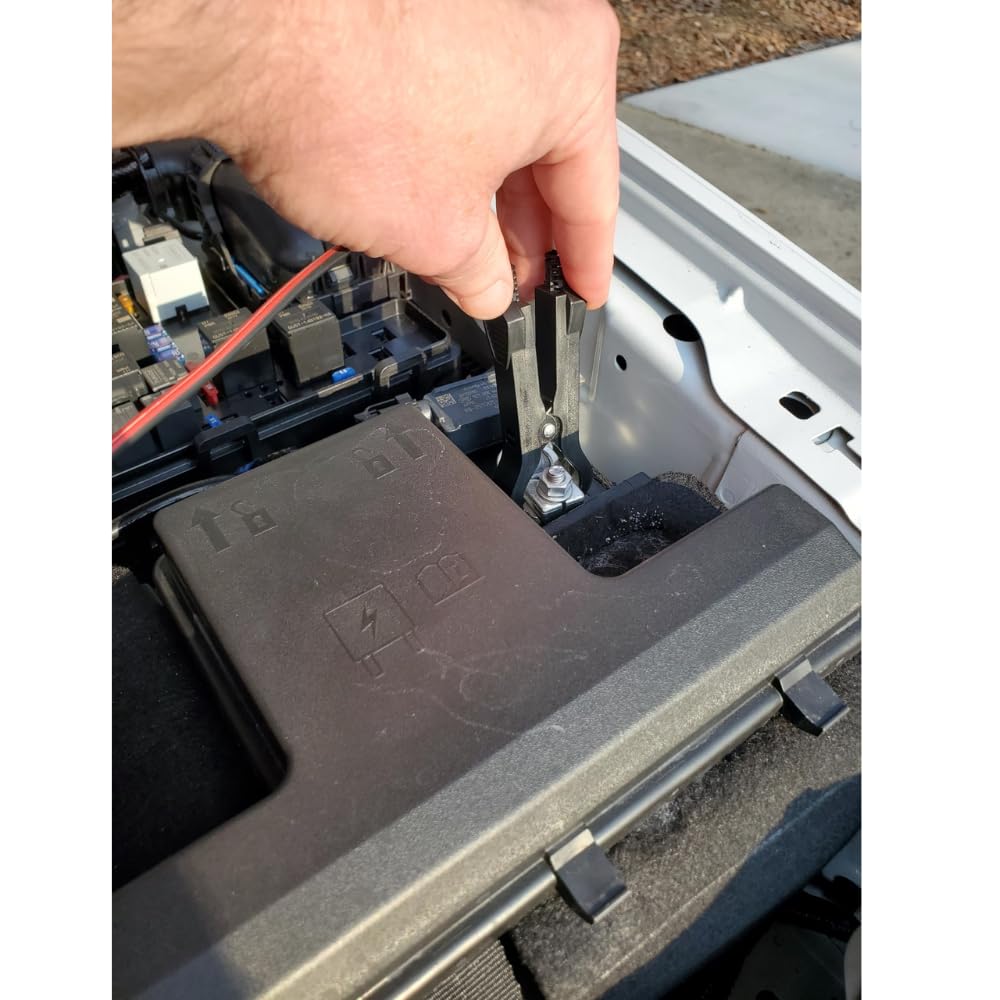

• Attach black clip to battery negative, red clip to positive
• Confirm battery voltage is between 11V and 15V

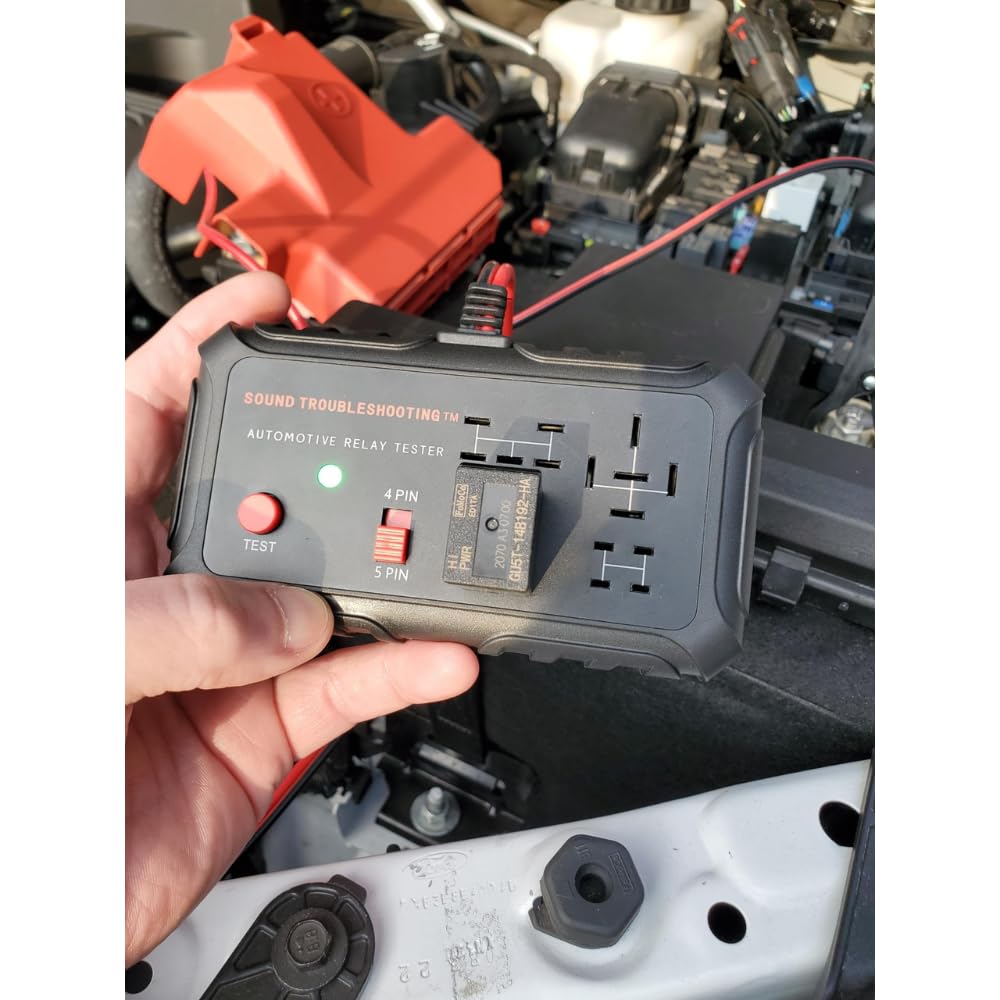

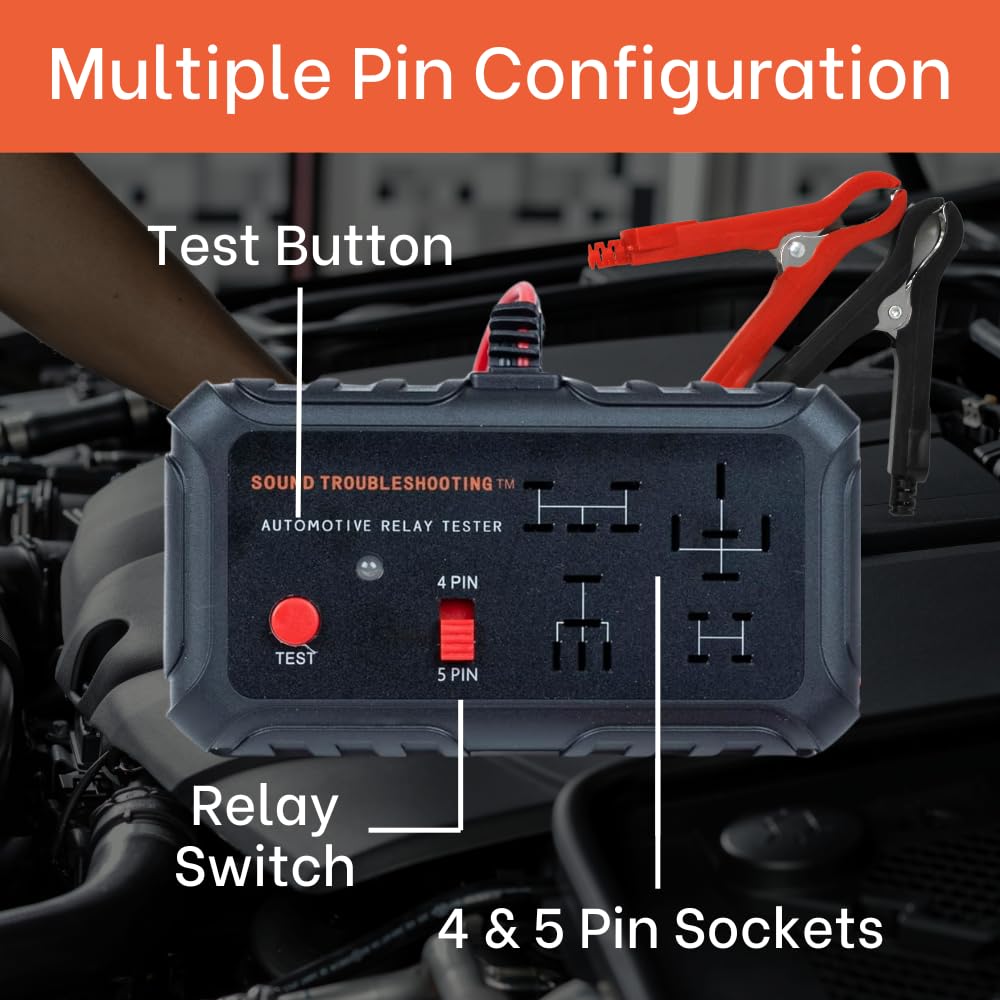

• Set the 4/5-pin switch and insert relay into correct socket
• Press Test; watch LED indicators for pass/fail diagnosis

Which relays and vehicles is this tester compatible with?

The tester supports most common 12V automotive relays with coil resistance preferably above 20 ohms and standard 4- and 5-pin configurations. It is not intended for use with all BMW relays, so verify fitment on uncommon OEM relay types before testing.

• Works with most general-purpose 12V automotive relays
• Optimized for coil resistance above ~20 ohms
• Not suitable for every BMW OEM relay—check compatibility first
• Requires direct battery connection for reliable power during tests

What information does the tester provide about relay condition?

The tester offers a binary pass/fail LED result along with internal timing and consistency checks during the test. A green LED indicates the relay performed within expected parameters across cycles; a red LED flags inconsistent action, slow release, stuck contacts, or an open/shorted coil.

• Green LED = relay passed timing and consistency checks
• Red LED = relay failed one or more operational checks
• Automated cycling reveals intermittent faults often missed by single-actuation tests
• Simple result display speeds troubleshooting and parts replacement decisions

Who is this for? The Sound Troubleshooting 12V Handheld Relay Tester is ideal for automotive technicians, mobile mechanics, and vehicle DIYers who need a portable, reliable way to verify relay function quickly. It’s especially useful for shops that diagnose electrical problems on the go, fleet maintenance teams, and anyone who prefers a single plug-and-play tool for most 4- and 5-pin 12V relays. If you regularly troubleshoot electrical systems and want consistent, repeatable relay checks without complex bench setups, this tester saves time and clarifies whether a relay or another circuit component needs attention.
