Sound Troubleshooting 12V Automotive Relay Tester with Puller — Handheld, LED Pass/Fail for 4- & 5‑Pin Relays

The Sound Troubleshooting Handheld 12V Relay Tester is a compact, one-button tool that quickly checks automotive relays and shows pass/fail results with LED indicators.

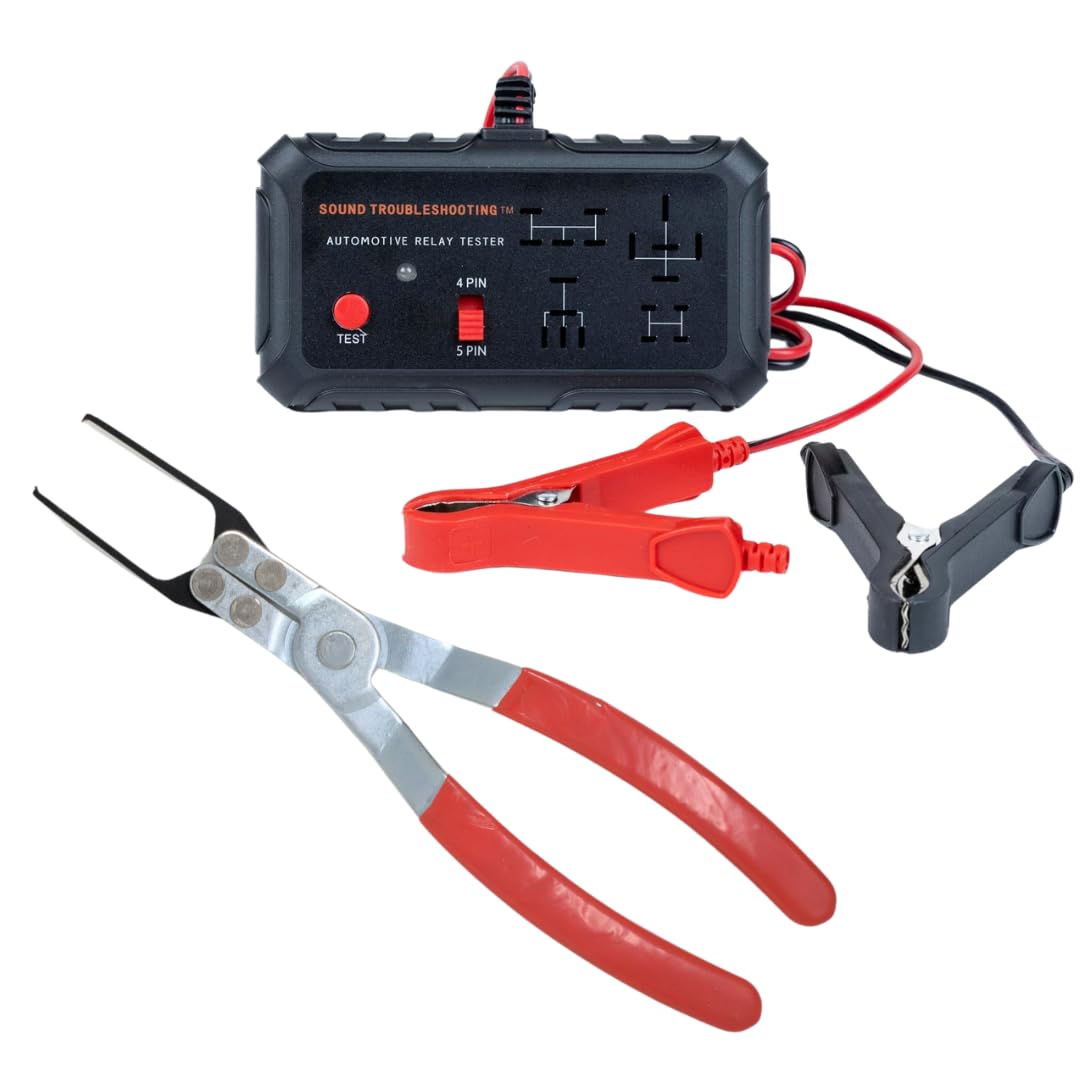

Designed for mechanics, DIYers and fleet technicians, this portable relay tester inspects most 12V automotive relays by exercising their coils and contacts while automatically detecting pin configuration. It runs from a vehicle battery (11–15V), cycles the relay several times, and uses green/red LEDs to indicate whether the relay functions consistently. A spring-style puller and secure alligator battery clips are included so you can test relays on the bench or at the vehicle without extra tools.

How does the tester determine if a relay is good or bad?

The unit exercises the relay multiple times while monitoring coil activation, release timing and switching consistency. Internal logic evaluates those operations and illuminates a green LED for a consistent, normal relay or a red LED when any operation fails.

• Automatic pin detection adjusts for different relay layouts.
• Tests coil energize and release timing across several cycles.

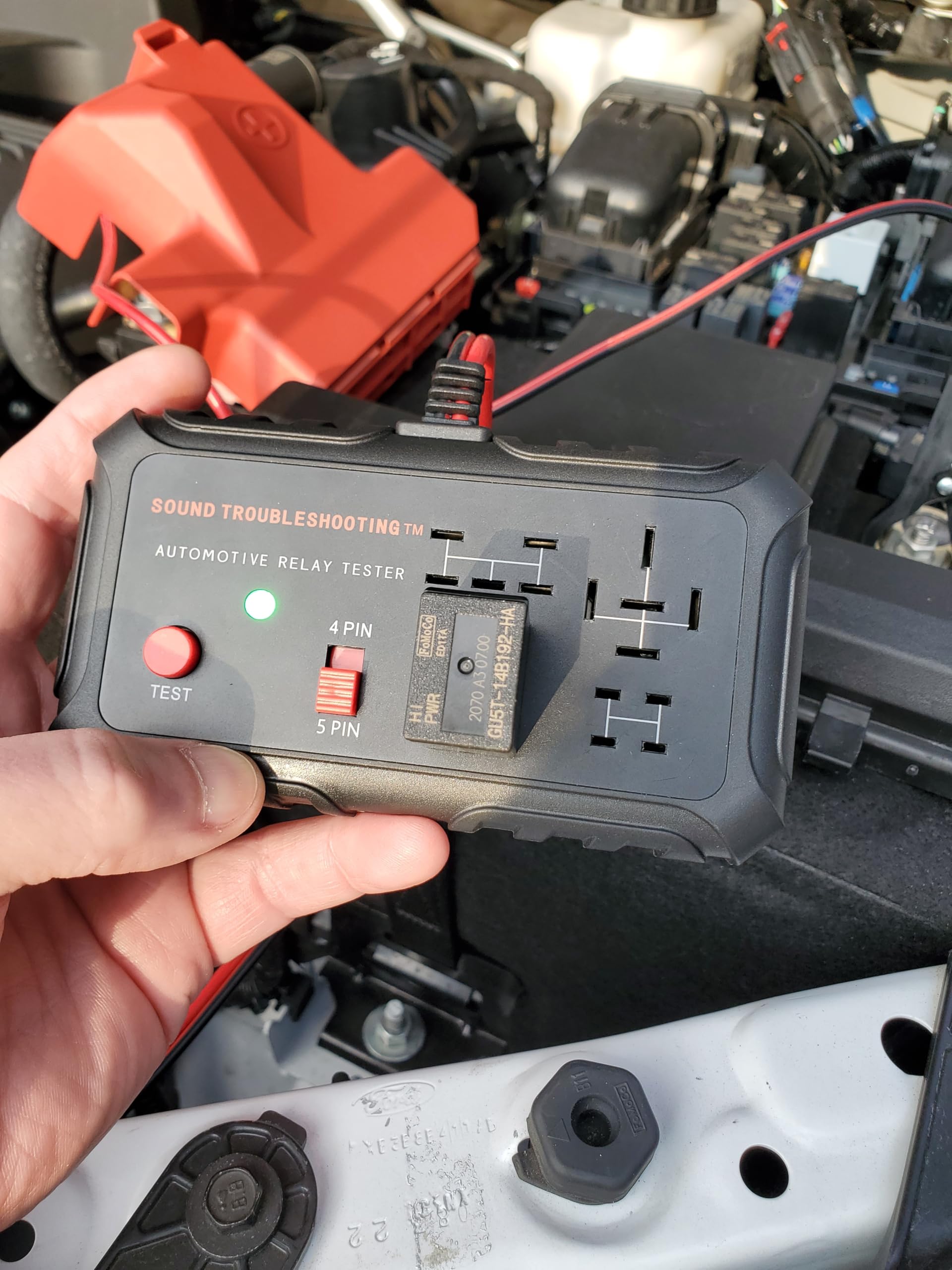

• Simple green/red LED output for immediate interpretation.
• Not compatible with every BMW relay—see specs before testing.

What steps are required to run a test safely and correctly?

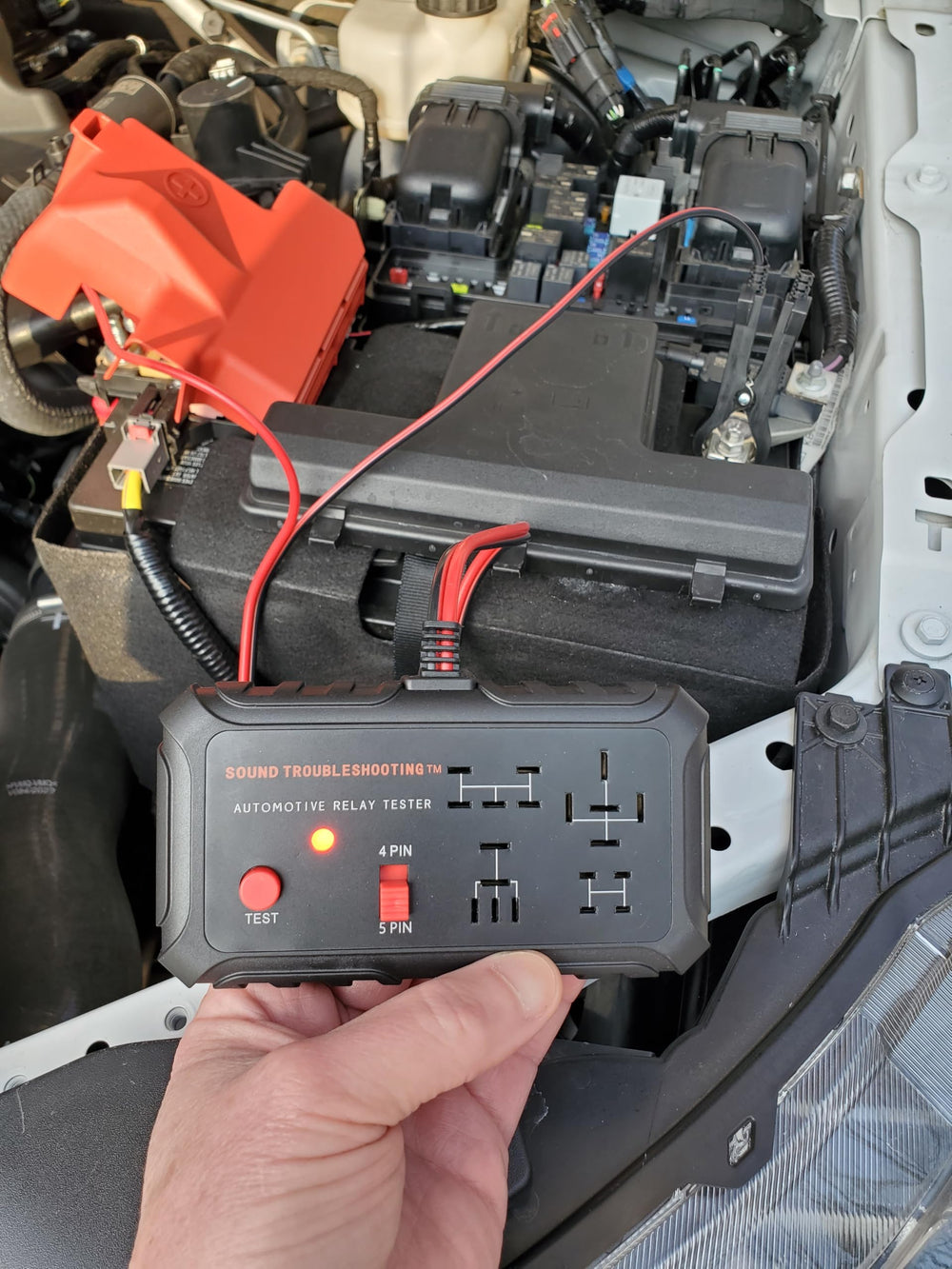

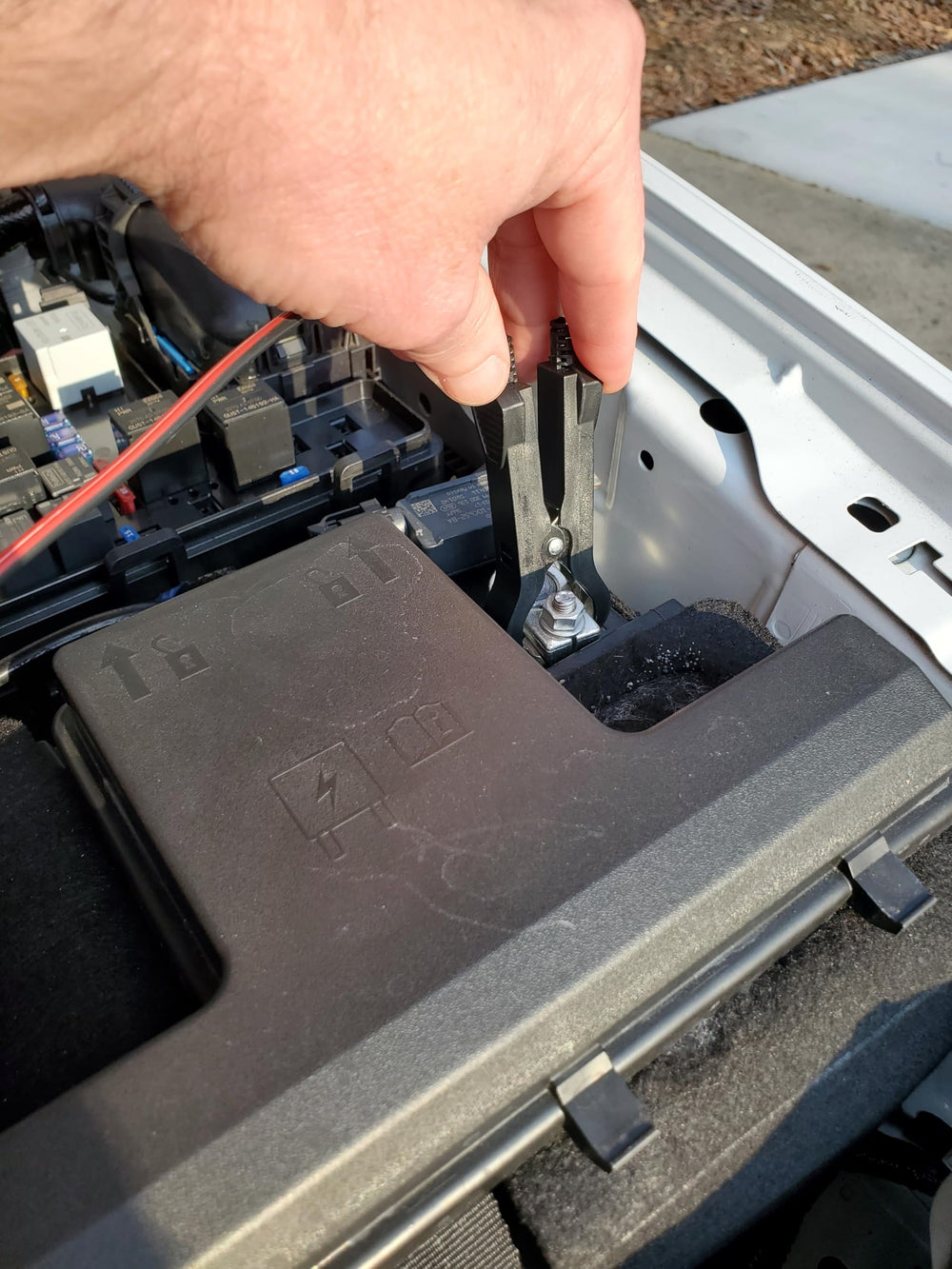

Clip the included black and red alligator leads to the vehicle battery (negative and positive), select the 4- or 5-pin mode, choose the matching socket, insert the relay, then press Test. The tester performs the sequence automatically and reports results via LEDs.

• Battery voltage must be between 11V and 15V for reliable results.
• Prefer relays with coil resistance above about 20 ohms.

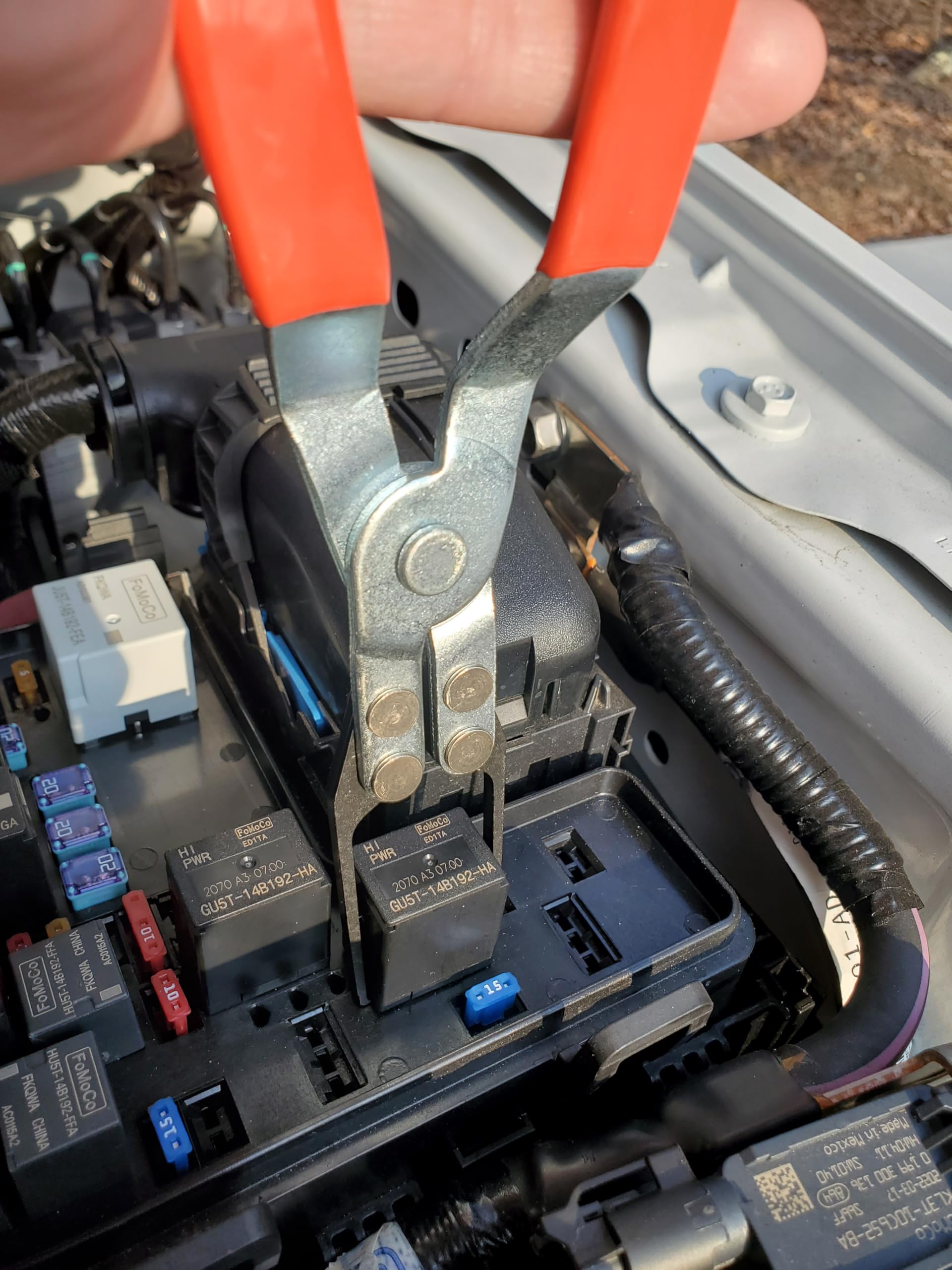

• Use the relay puller to avoid damaging sockets or pins when removing relays.
• Always attach clips to battery terminals before inserting relays.

Which relays and vehicles will this device work with?

This tester supports most general-purpose automotive relays commonly used across cars, trucks and light commercial vehicles. It handles standard 4-pin and 5-pin configurations, but some manufacturer-specific relays may be incompatible.

• Works with the majority of 12V general-purpose relays on the market.
• Switch between 4-pin and 5-pin sockets for correct fitment.
• Not intended for all BMW relay types—verify before use.
• Ideal for common replacement and aftermarket relay designs.

How portable and durable is the tester for field work?

The handheld housing is small and lightweight so you can drop it in a toolbox or pocket. Robust clips and a patented detection system make it a practical option for roadside checks, workshop benches, and mobile service vans.

• Compact footprint for storage in tool bags or glove boxes.
• Alligator clips and relay puller included for on-vehicle use.
• Patented automatic detection reduces setup time.
• Designed for frequent use in professional and DIY settings.

Who is this for? If you troubleshoot vehicle electrical issues, service fleets, or swap relays frequently, this tester saves time by validating relay operation before replacement. It suits technicians who need a quick pass/fail check on 12V relays, mobile mechanics who work roadside, and DIY enthusiasts who prefer to diagnose electrical faults without guesswork. Note: confirm compatibility with specific manufacturer relays, especially certain BMW units, before relying on it as your only diagnostic tool.
