SUNMORN Battery Terminal Connectors 0–10 AWG Zinc Alloy — Nickel-Plated, 150A Multi-Port

SUNMORN Battery Terminal Connectors are multi-port zinc-alloy battery clamps that let you attach multiple 0–10 AWG 12V accessory wires cleanly and securely to standard top-post automotive batteries.

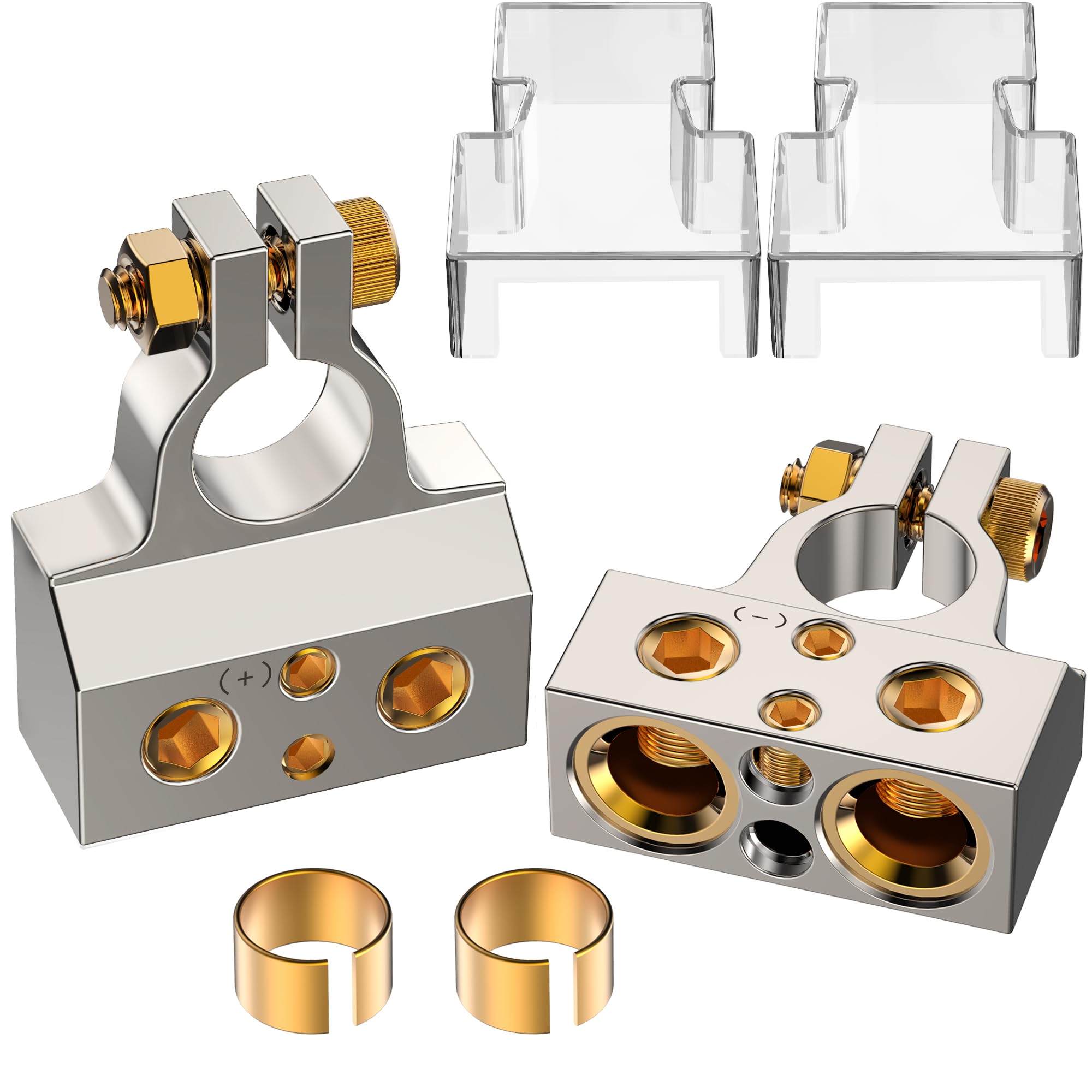

These terminal replacements provide a corrosion-resistant, nickel-plated zinc housing with multiple wiring ports so you can add audio amps, LED light bars, winches, or other 12V accessories without cutting into existing cables or hunting for grounding points. Rated for up to 150A continuous current and supplied with clear insulating covers, brass shims, and an Allen wrench, the kit is designed for quick, tool-light installation on SAE/JIS Type A posts.

How do these terminals make adding accessories easier?

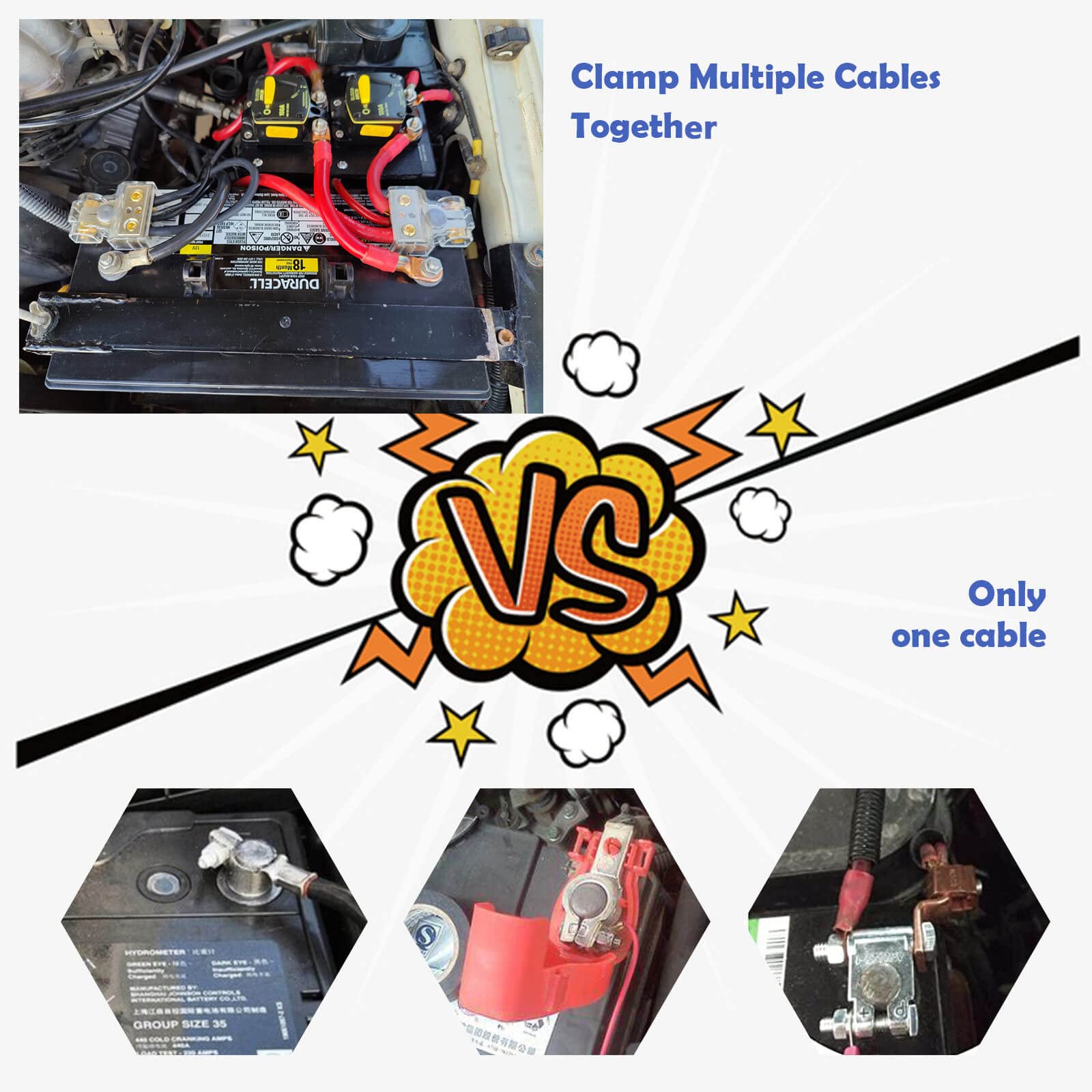

Instead of splicing into factory battery cables or running separate grounds, the SUNMORN terminals accept several separate wires directly into dedicated ports. That saves time and preserves the original wiring integrity while giving tidy, serviceable connections.

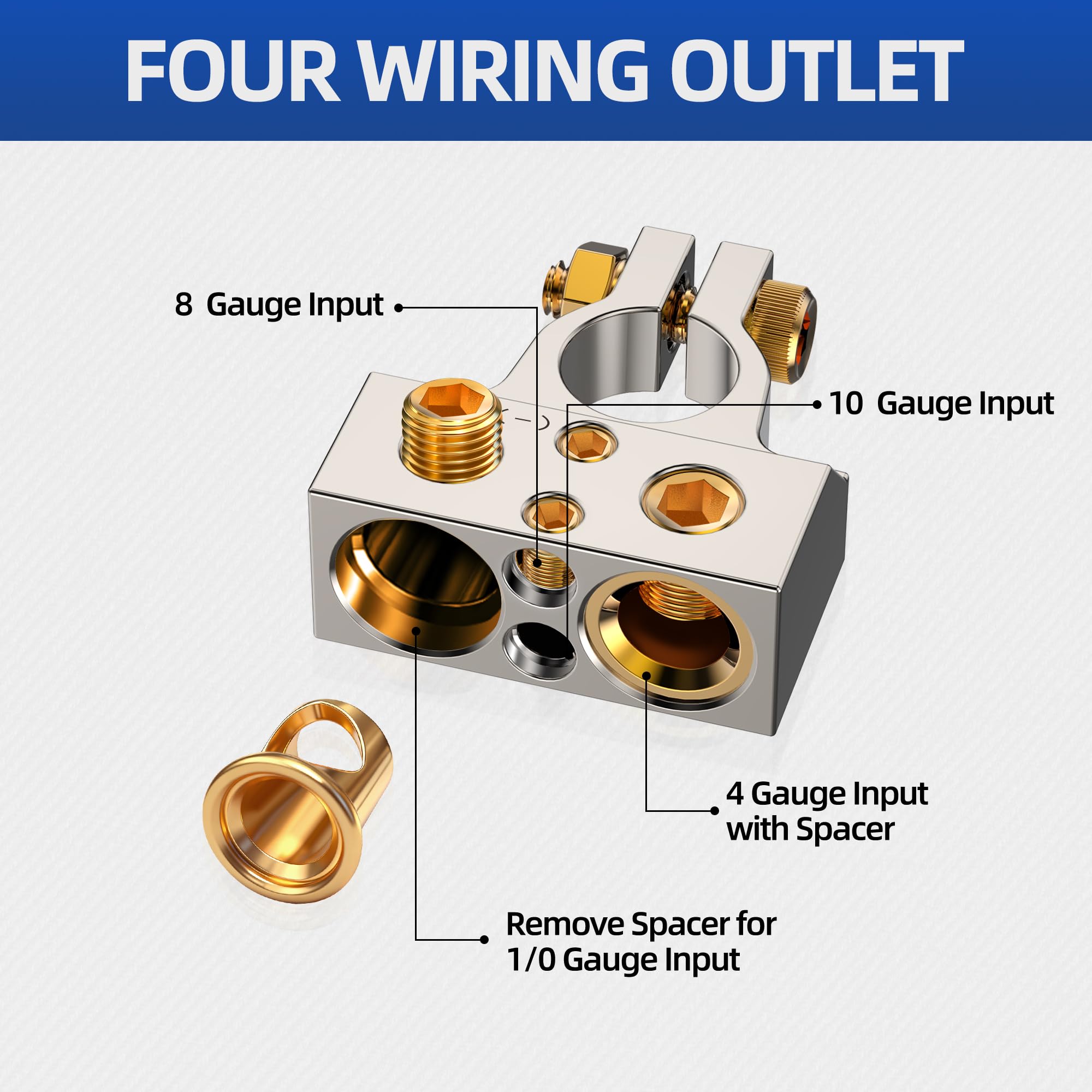

• Multiple insertion ports accept individual 0–10 AWG wires.
• Allen-screw clamping secures each conductor without crushing it.

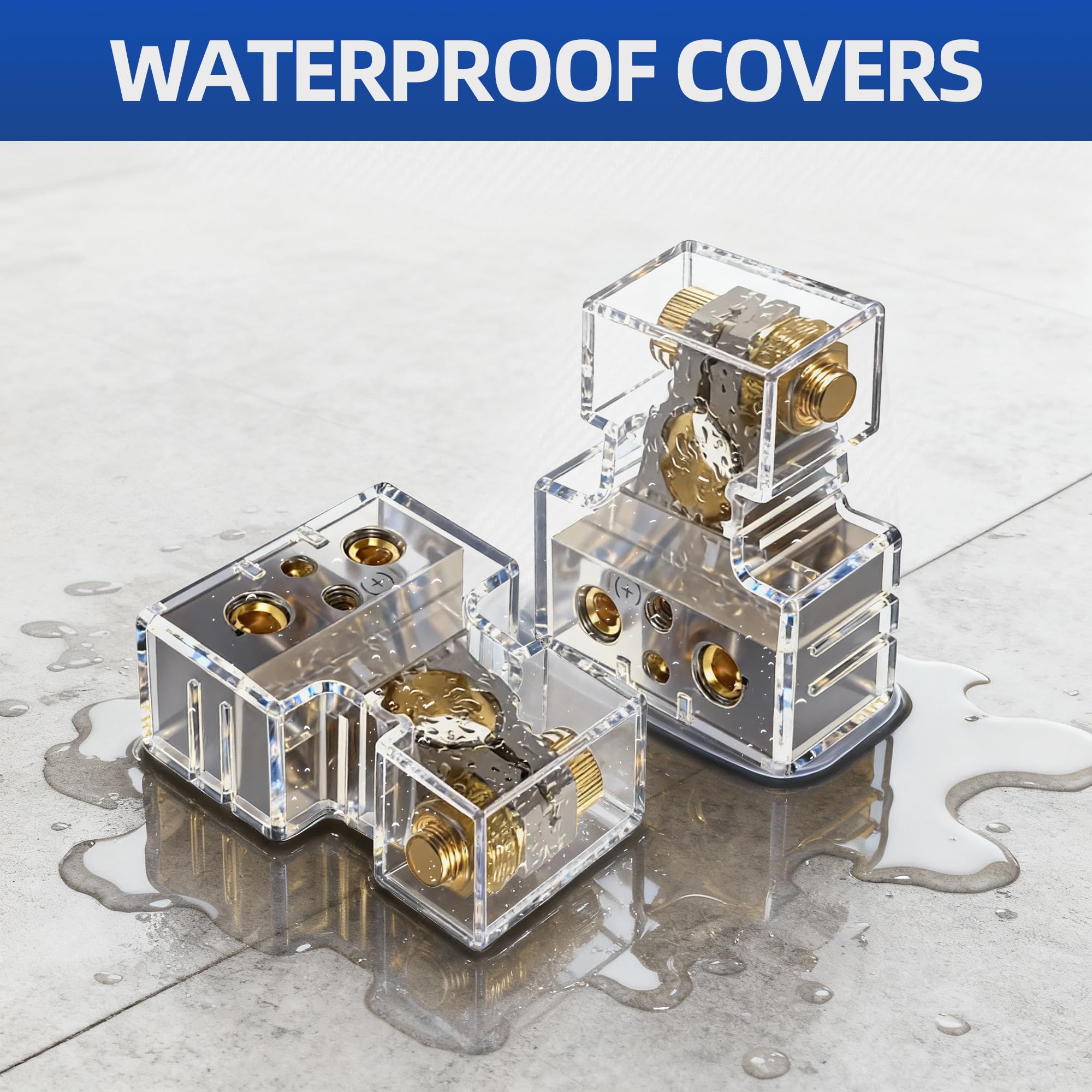

• Clear insulating covers protect connections from moisture and debris.
• 150A continuous rating supports typical accessory loads.

Are these connectors durable enough for outdoor and marine use?

The clamps are pressure-cast zinc alloy with nickel plating, which resists rust and wear better than plain lead or steel terminals. With the included covers and optional dielectric grease, these connectors are built to handle damp, salty, and vibration-prone environments commonly found in boats and off-road vehicles.

• Nickel-plated zinc body reduces corrosion and thread galling.
• Clear plastic insulators shield terminals from moisture and dirt.

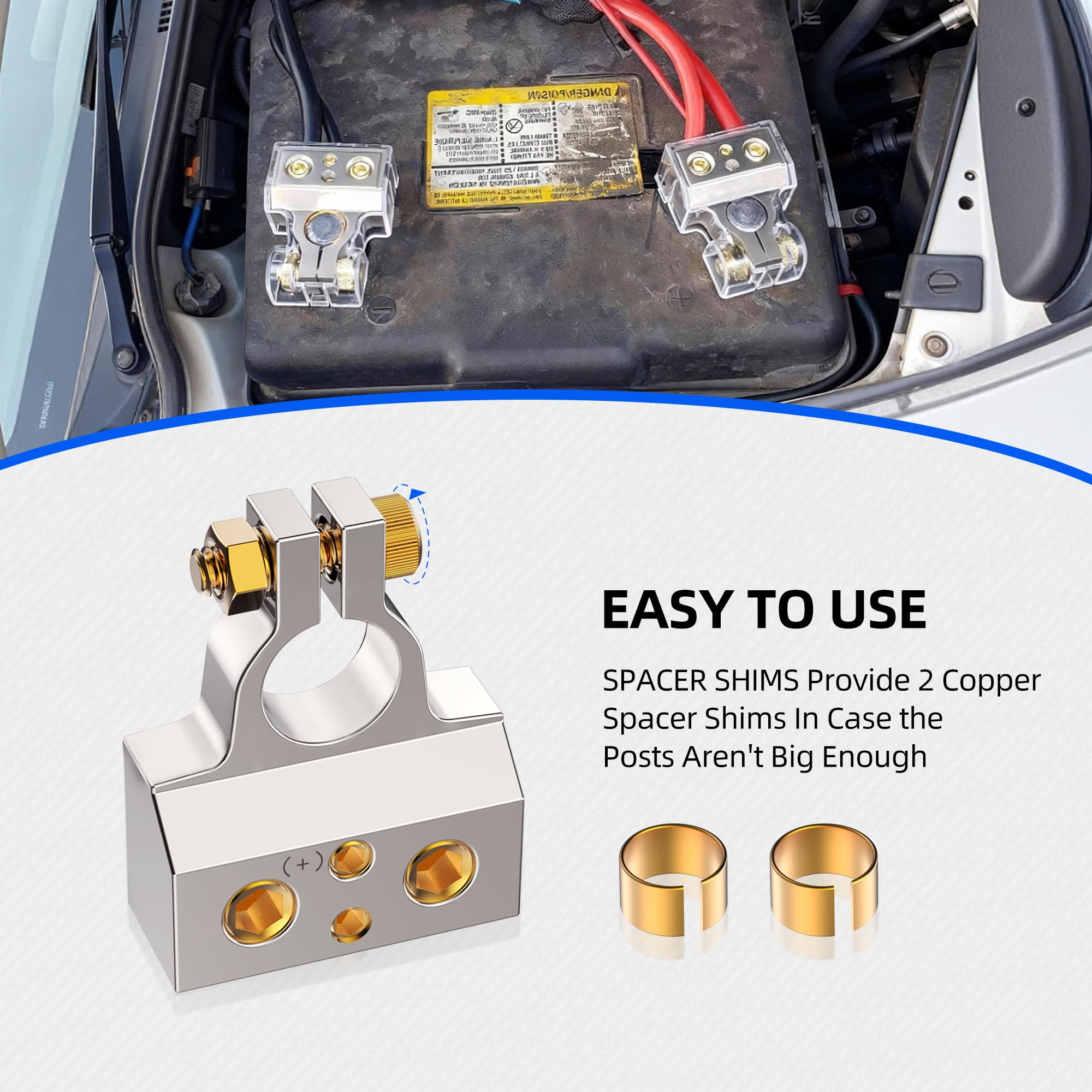

• Brass shims prevent looseness on worn or undersized posts.
• Recommended to apply dielectric grease for extended life.

Will these fit my battery posts and the cables I want to use?

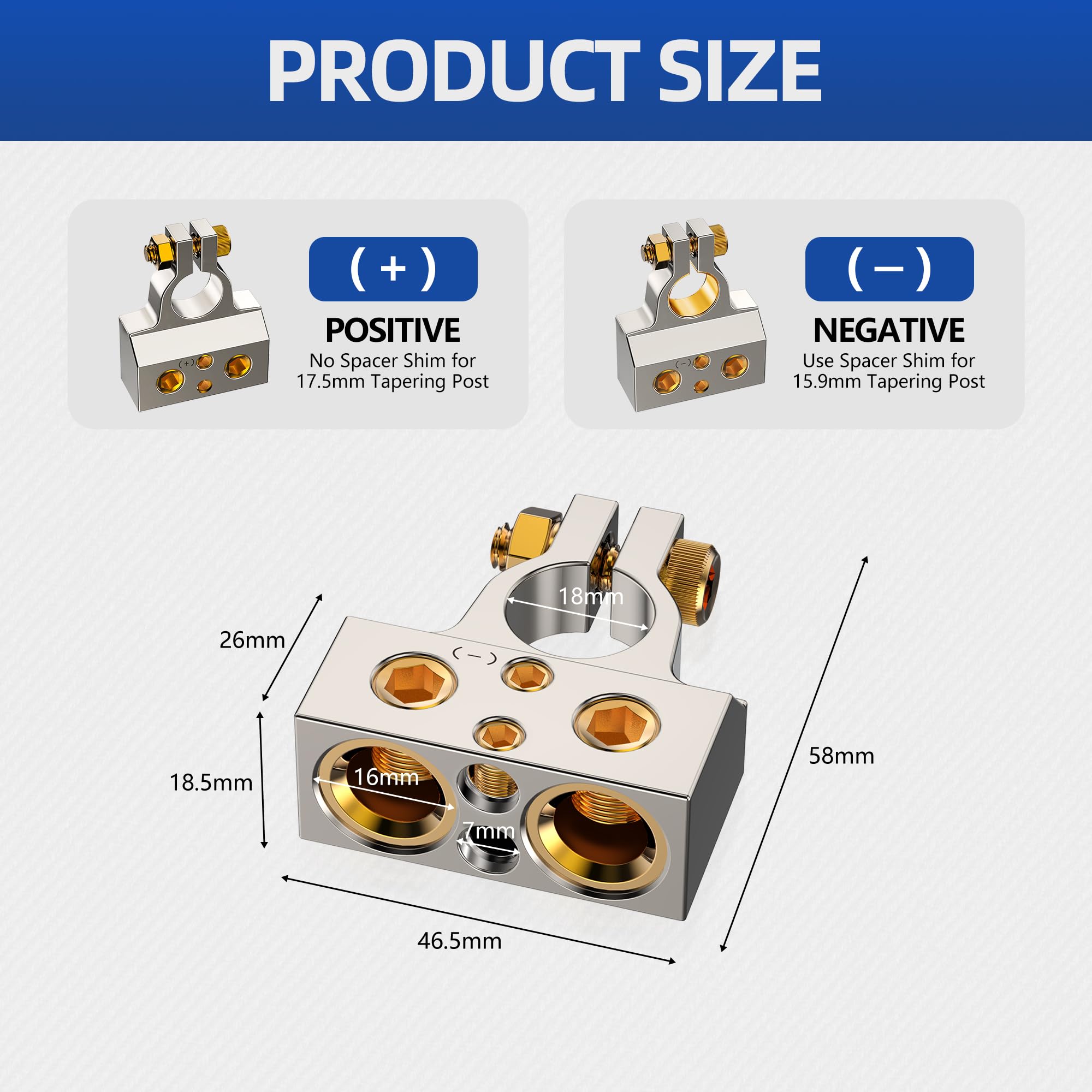

Designed for SAE/JIS Type A top-post batteries, the positive bore is 0.525" and the negative bore is 0.355" to match standard post sizes. The ports accept wire sizes from 10 AWG up to 0 AWG; very large 2/0 AWG may be too thick and should be test-fitted before final purchase.

• Fits standard top-post batteries (SAE/JIS Type A sizing).
• Accepts multiple conductor gauges from 10 AWG to 0 AWG.
• Includes brass shims for undersized or worn posts to ensure a snug fit.
• Not SAE/ISO certified—check fitment if in doubt and contact seller with questions.

How simple is installation and what should I watch for?

Installation takes just a few minutes: slide the terminal over the battery post, insert accessory wires into chosen ports, tighten the Allen screws to roughly 50 in-lbs, and replace the insulating covers. Because these terminals don’t include built-in fuses, add an appropriate inline fuse for high-draw accessories to protect wiring and devices.

• Supplied Allen wrench for secure clamping; torque to about 50 in-lbs.
• Use included brass shims only if the post is undersized or worn.
• Install inline fuses for high-current accessories—terminal has no fuse holder.
• Apply dielectric grease on metal surfaces to reduce corrosion after installation.

Who is this for: The SUNMORN terminal kit is ideal for DIY installers, car audio hobbyists, off-road enthusiasts, boat owners, and anyone who needs multiple neat, serviceable 12V connections at the battery. If you want to add lighting, electronics, or winches without splicing factory wiring, or if your original terminals are corroded or loose, this kit provides a corrosion-resistant, multi-port alternative. For very large gauge cables (2/0 AWG or larger) or for applications requiring certified fused bus distribution, verify fit and protective requirements before purchase.
