Switch-Pros SP-9100 8-Switch Programmable Panel — 125A Waterproof Power Module, RGB Backlit

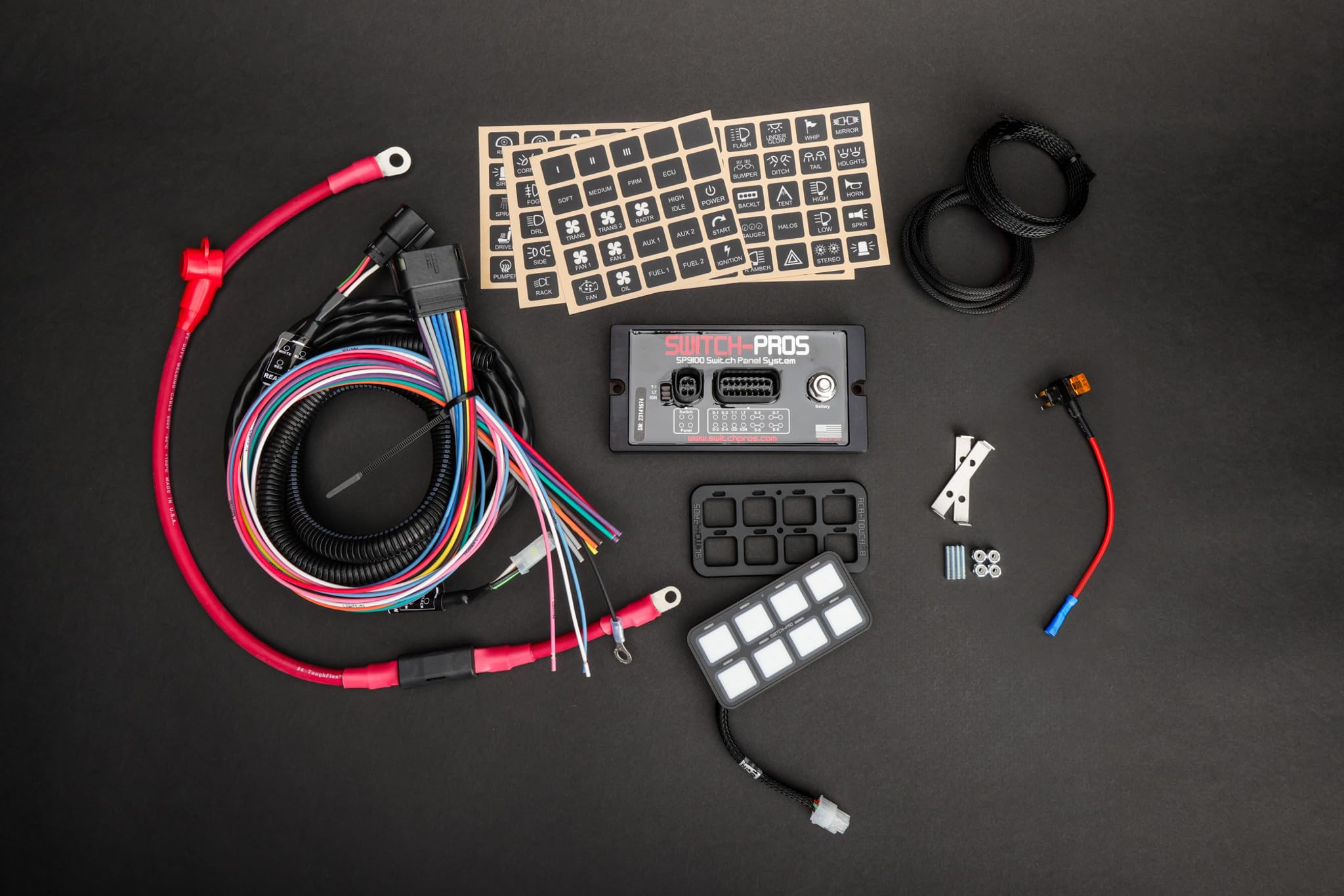

Switch-Pros SP-9100 is an 8-switch programmable bezel-style control panel paired with a 125A waterproof power module for reliable, compact vehicle accessory management. The SP-9100 combines an attractive bezel panel with a solid-state power module to centralize control of lighting and accessories. It offers eight user-programmable switches, mixed high-current outputs (four 35A and four 18A circuits), RGB backlighting for dash-matching colors, and a Bluetooth app for on-vehicle or remote configuration. Concealed mounting hardware keeps the installation neat while the waterproof, solid-state power module reduces maintenance by eliminating fuses and bulky relays.

How does the SP-9100 help me control multiple accessories?

The system consolidates up to eight separate accessory circuits into one compact interface, with a single power module handling distribution and protection. Switches are programmable for steady On/Off, momentary output, or flash/strobe patterns, and external triggers let other vehicle systems activate outputs automatically.

• Eight programmable switches for On/Off, momentary, flash, or strobe modes
• Two external trigger inputs, each can activate up to four outputs
• Master mode to turn multiple outputs on and off with one touch

What are the electrical and durability specs I should know?

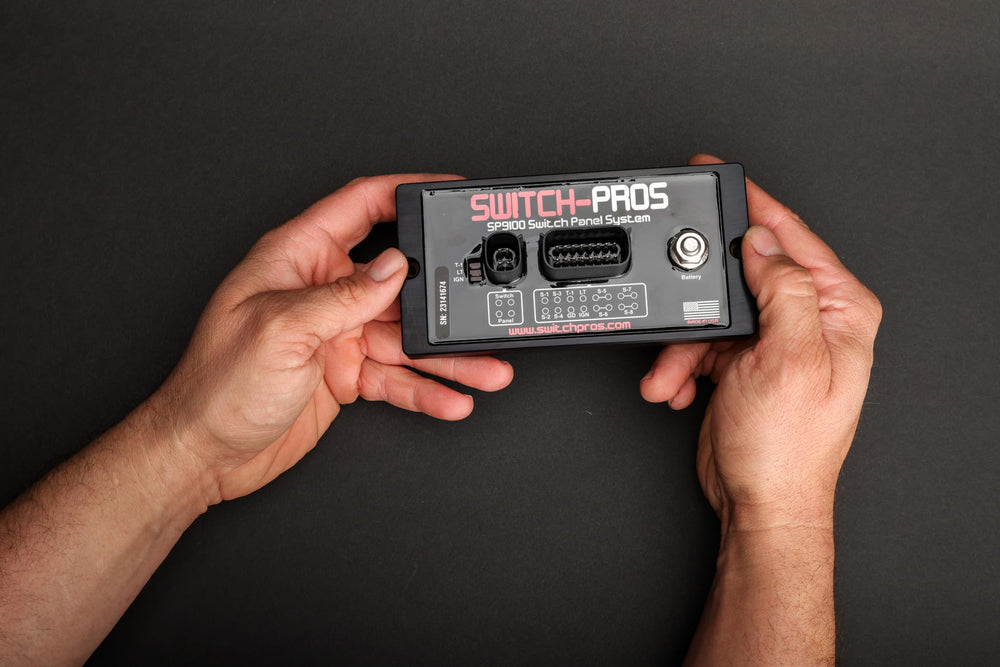

The power module is solid-state and waterproof, rated to a combined 125A with four outputs at 35A and four at 18A, making it suitable for high-current accessories without bulky relays. Color-coded wiring and LED input status indicators simplify diagnostics during installation and service.

• 125A maximum system rating; four 35A and four 18A outputs
• Waterproof power module with solid-state design (no fuses/relay box)
• Color-coded wiring and LED status indicators for easier troubleshooting

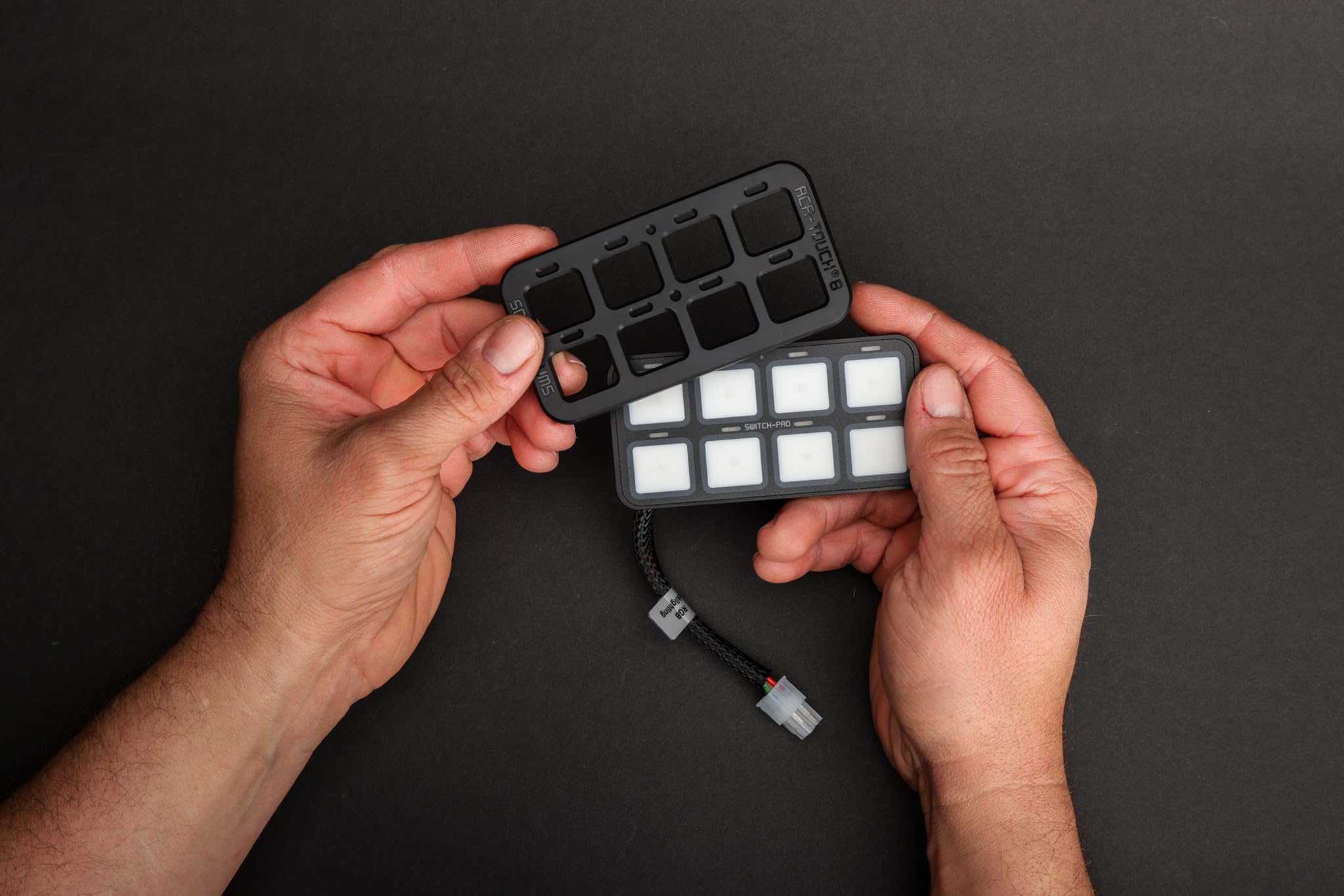

How can I customize lighting, labeling, and behavior?

RGB backlighting lets you match the panel to factory dash lighting using the companion smartphone app’s color picker, and 100 user-selectable legends allow clear labeling of each switch. Outputs for lighting can dim between 100% and 10% and can even dim during flash or strobe sequences for more nuanced control.

• RGB backlighting with unlimited color options via the free app
• 100 user-selectable switch legends for clear identification
• Dimming available 100%–10%, including during flash/strobe patterns

What connectivity and convenience features are included?

The SP-9100 includes a built-in Bluetooth module and a free Apple/Android app for programming and monitoring, including a battery voltage readout on the app screen. Panels can be daisy-chained—up to three switch panels can share one power module—helping keep dash layouts tidy and scalable.

• Built-in Bluetooth and free app for configuration and monitoring
• Battery voltage display on the app for quick system checks
• Daisy-chain capability: up to three panels per power module

Who is this for? The Switch-Pros SP-9100 is aimed at vehicle owners, fleet technicians, and aftermarket installers who need a tidy, programmable solution for multiple accessories—off-road lighting, auxiliary pumps, compressors, or other 12V devices—without sacrificing dash aesthetics or functionality. Its waterproof power module and solid-state design suit outdoor and work vehicles, while RGB backlighting and app control appeal to users who want a modern, customized cockpit experience.

FAQ

Q: Can I connect multiple panels to one power module?

A: Yes. You can daisy-chain up to three SP-9100 switch panels to a single power module for expanded control.

Q: Does the system require fuses or external relays?

A: No. The SP-9100 uses a waterproof solid-state power module and eliminates the need for fuses or bulky relay boxes.
