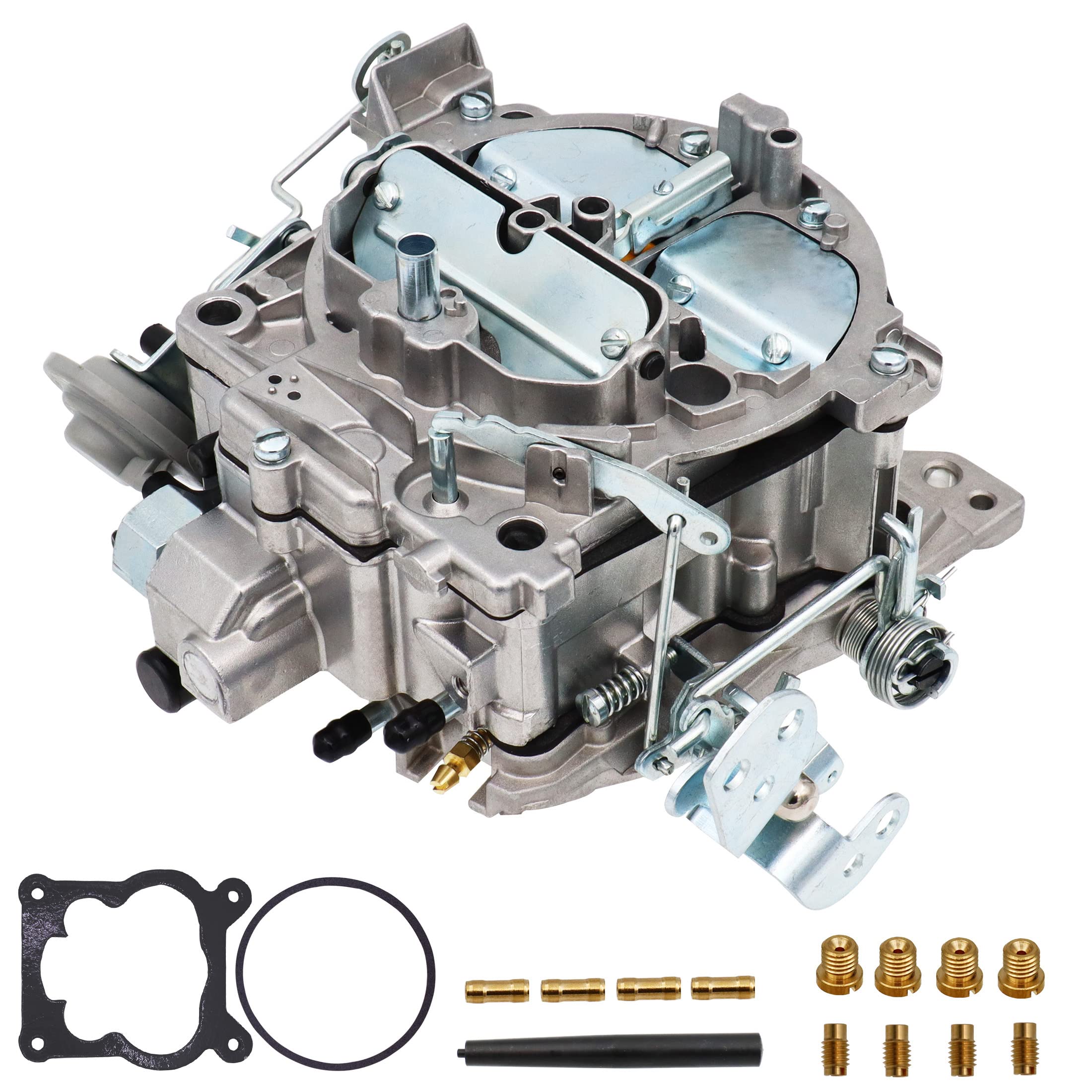

THUNDERMINGO Rochester Quadrajet-style 4-Barrel Carburetor, Divorced Choke, Vacuum-Secondary — Fits Chevy 327–454

THUNDERMINGO’s 4-barrel Rochester Quadrajet-style carburetor is a direct-replacement performance unit designed to restore throttle response and drivability on 1966–1979 Chevy and GMC V8 engines.

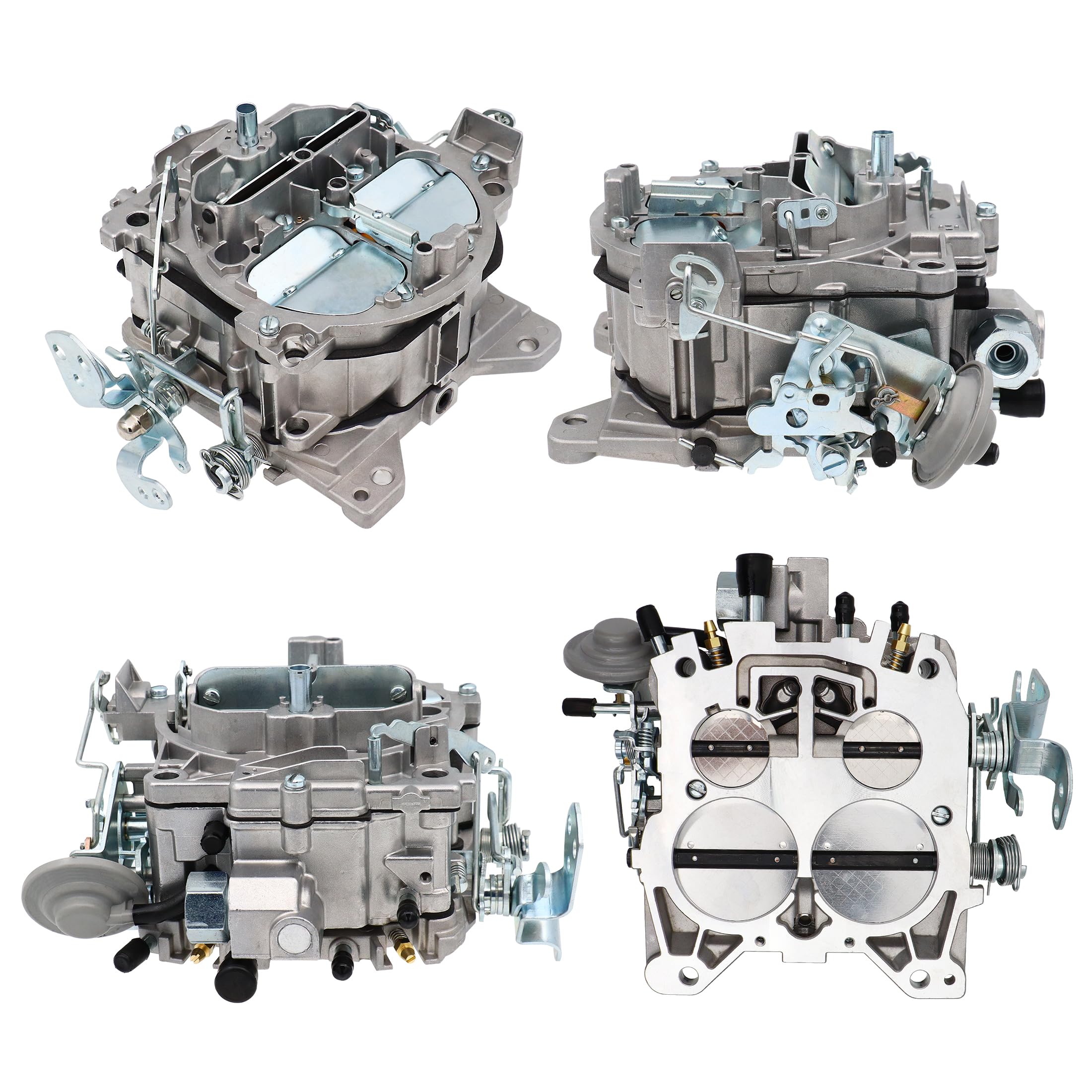

This replacement carburetor is built as a vacuum-secondary, spread-bore Quadrajet-style unit with a divorced choke, intended to fit big- and small-block Chevy engines (327–454 ci) and many 1966–1979 Corvettes and Chevy/GMC trucks. It ships pre-jetted with common sizes but may require fine-tuning or pinning of idle air passages for optimal idle and off-idle behavior. The housing and calibration aim to give a broader usable power band for daily driving while remaining compatible with many stock intake manifolds listed for part number 1901R / 4MV.

How does this carburetor match my Rochester Quadrajet application?

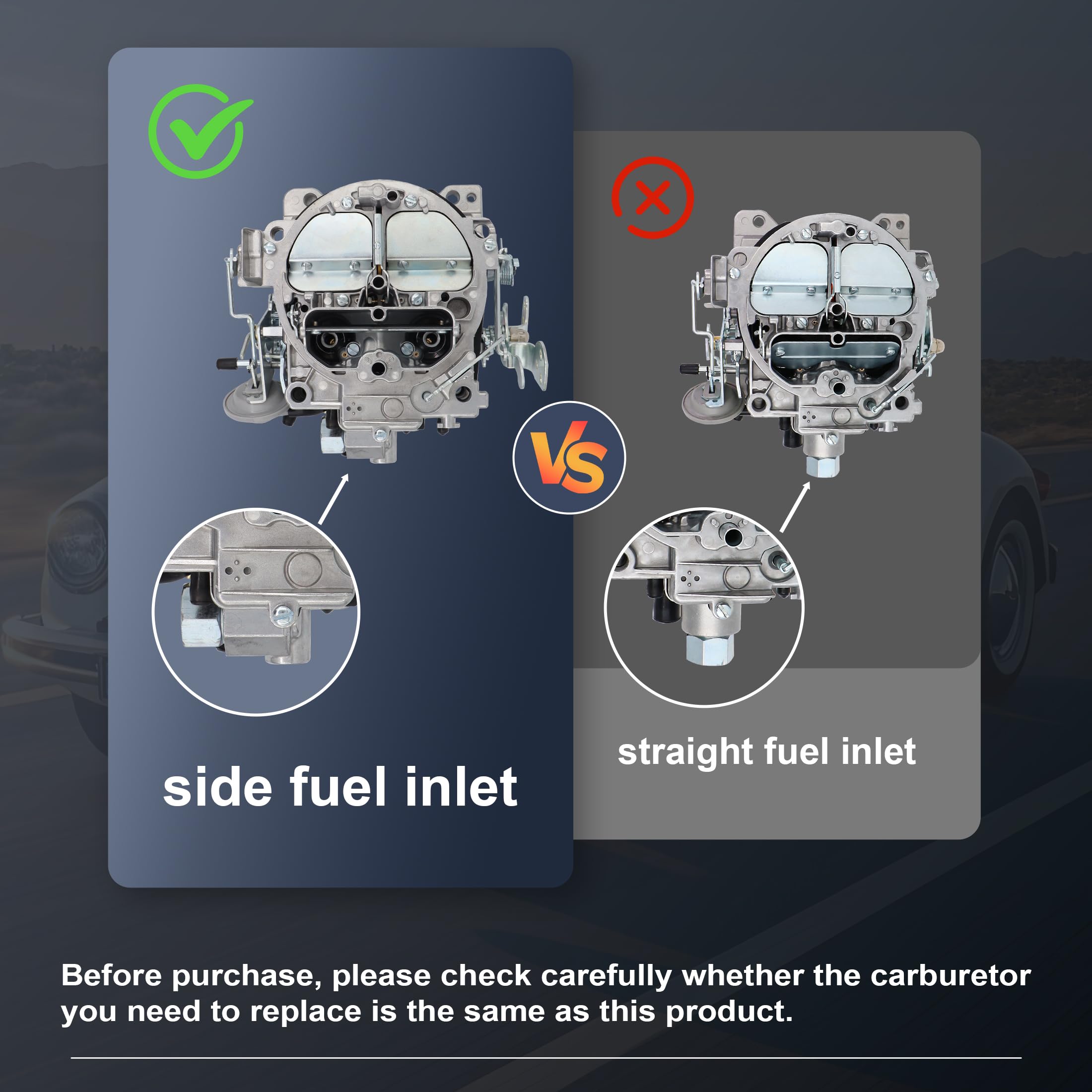

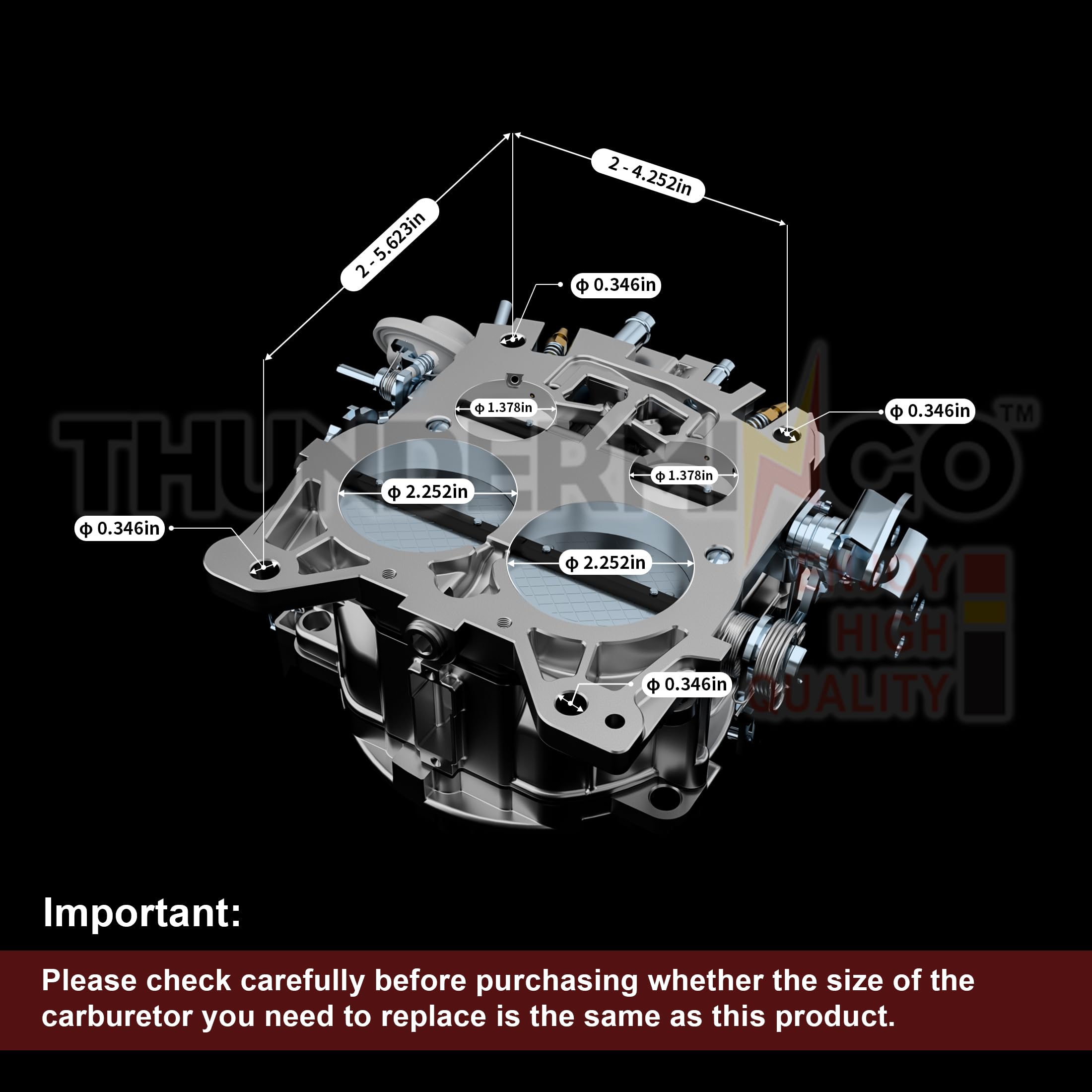

The THUNDERMINGO unit is manufactured to replace the Rochester 1901R/4MV Quadrajet-style carburetor and fits spread-bore intake flanges and divorced choke linkages. It’s intended for vacuum-secondary operation and common late‑’60s to late‑’70s Chevy/GMC V8 platforms. Verify manifold bolt pattern and choke style before ordering.

• Direct-replacement fit for many 1901R/4MV applications
• Vacuum-secondary, divorced mechanical choke configuration
• Fits 327, 350, 427, 454 big- and small-block Chevy engines
• Compatible with 1966–1973 trucks and 1975–1979 Corvettes

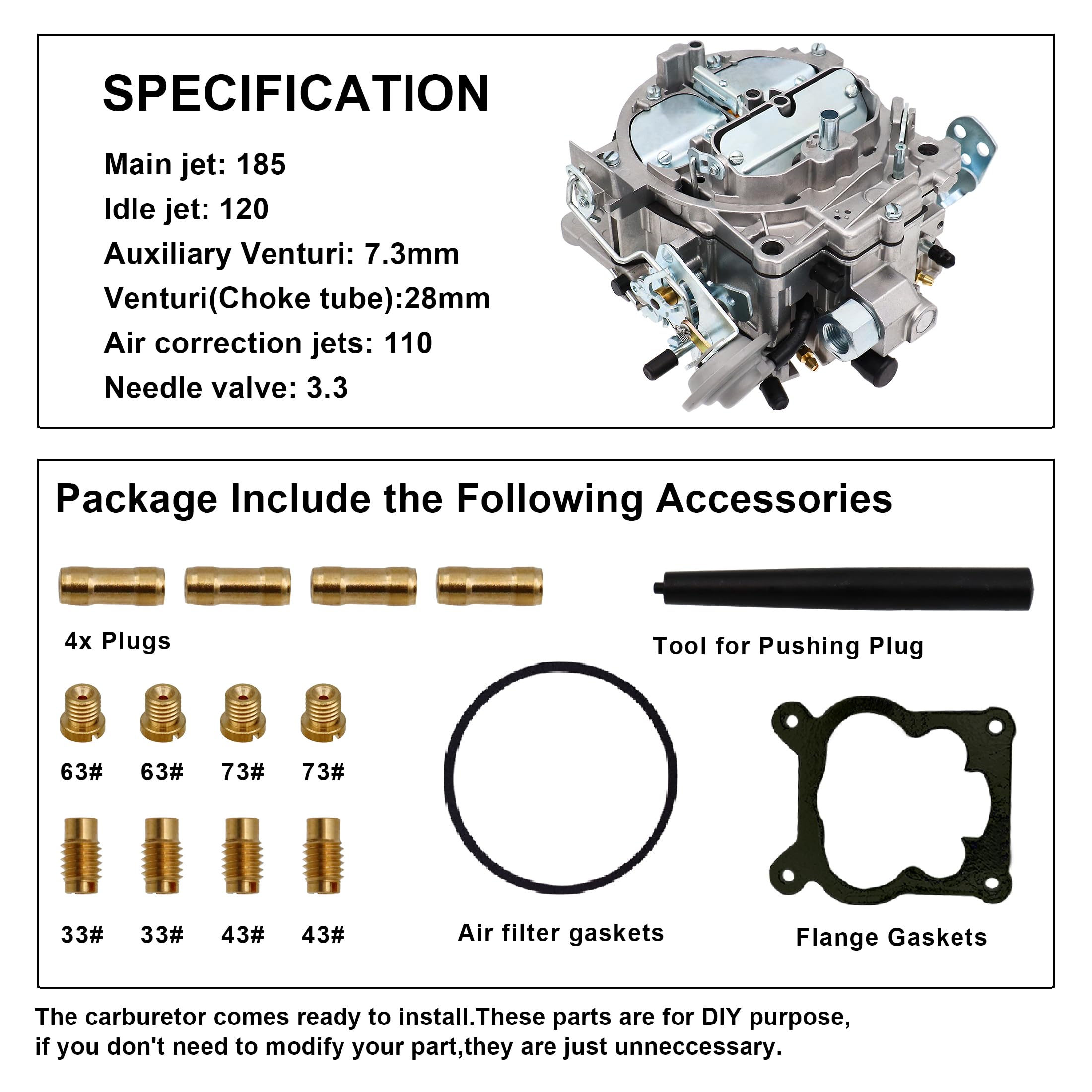

What are the key specs and factory jetting values?

The carburetor is supplied in a 600–750 CFM range, commonly arriving rated at 750 CFM to suit a wide set of engine displacements and cam/tune combinations. It includes a set of factory-installed jets and components chosen for generalized street performance; these may be adjusted to match your engine’s exact requirements.

• Common CFM range: 600–750 (most units 750 CFM)
• Factory jets: Main 185, Idle 120, Air correction 110
• Auxiliary venturi: 7.3 mm; Venturi/choke tube: 28 mm
• Needle valve spec: 3.3 (preinstalled)

Will I need to tune or modify anything after installation?

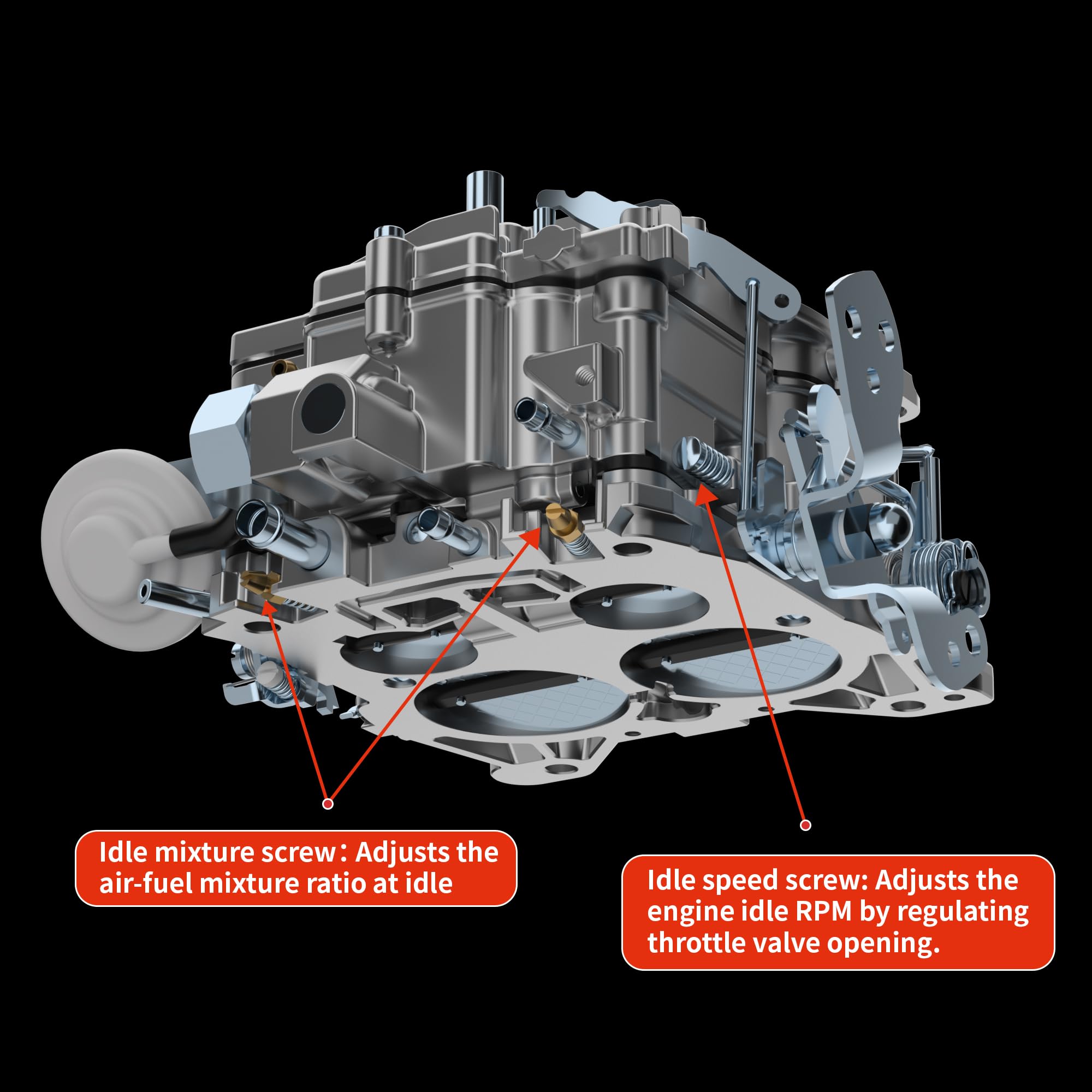

Yes—final tuning is typically required to match your engine displacement, cam profile, exhaust, and elevation. Small-block engines sometimes need minor idle-circuit adjustments or blocking of specific air channels using the included pin and tool. Installation videos and a professional tune are recommended for best results.

• May require idle circuit changes for small-block setups

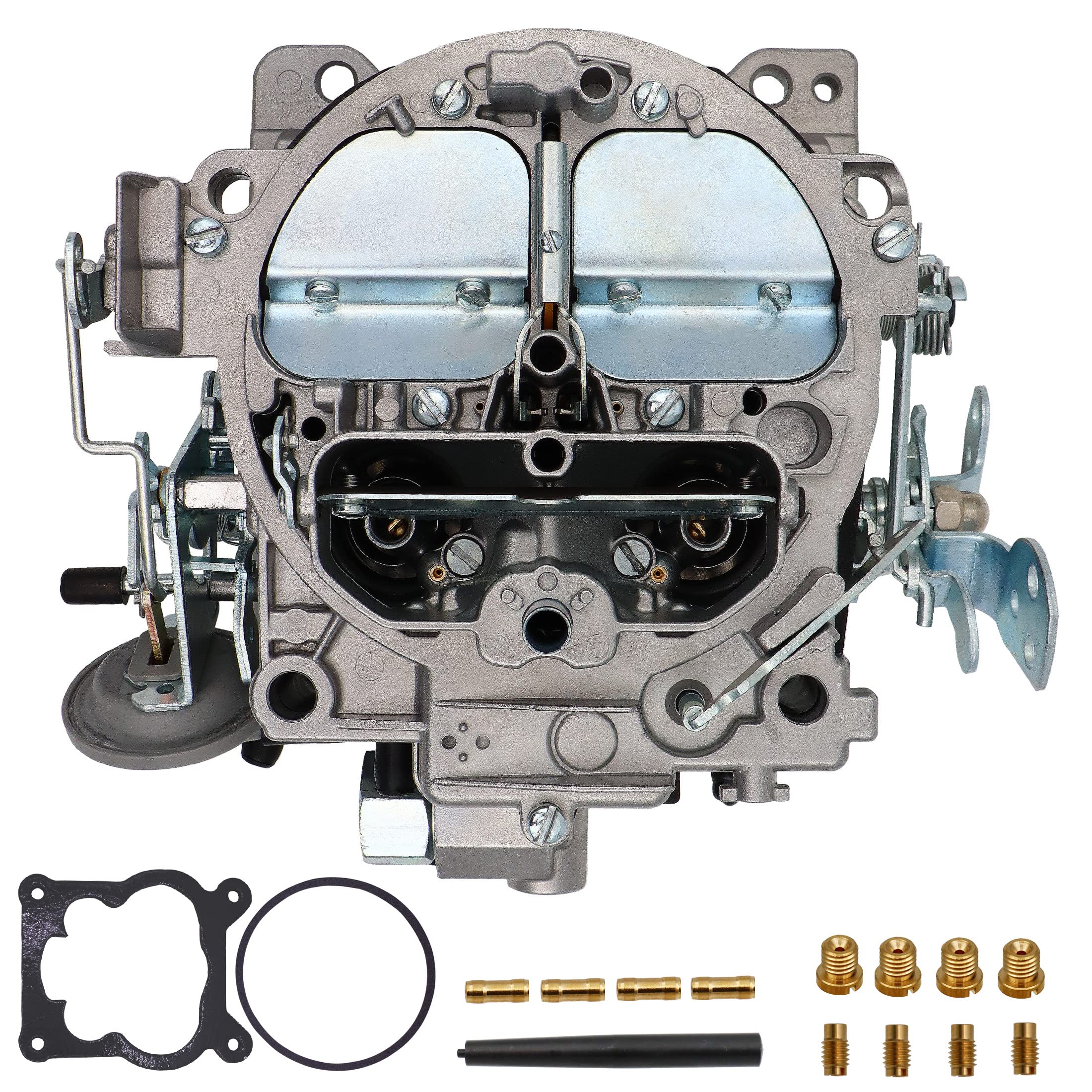

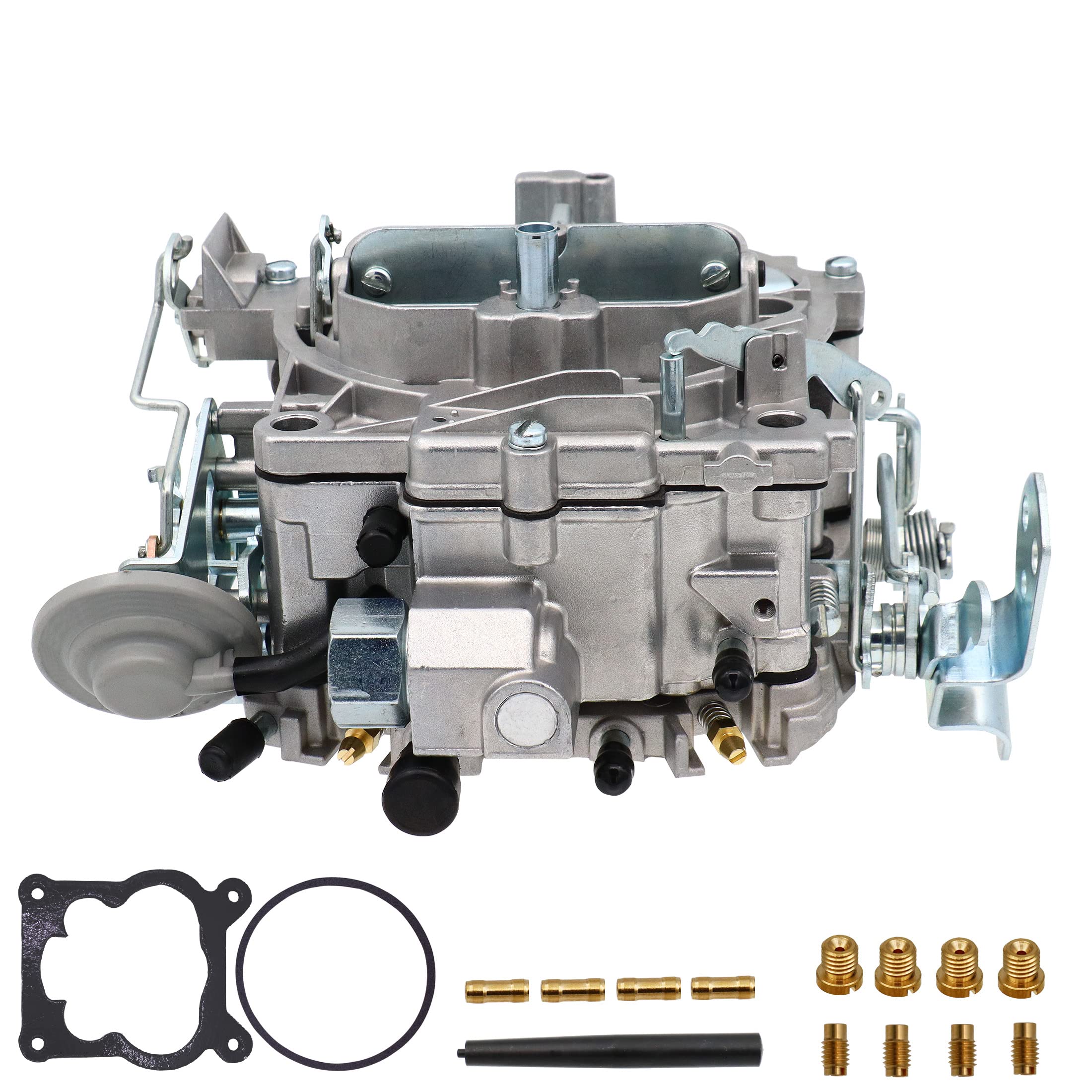

• Includes a copper pin and tool for blocking air channels if needed
• No printed installation manual included—follow online guides or professional service
• Not recommended for marine use

How will this affect everyday driving and performance?

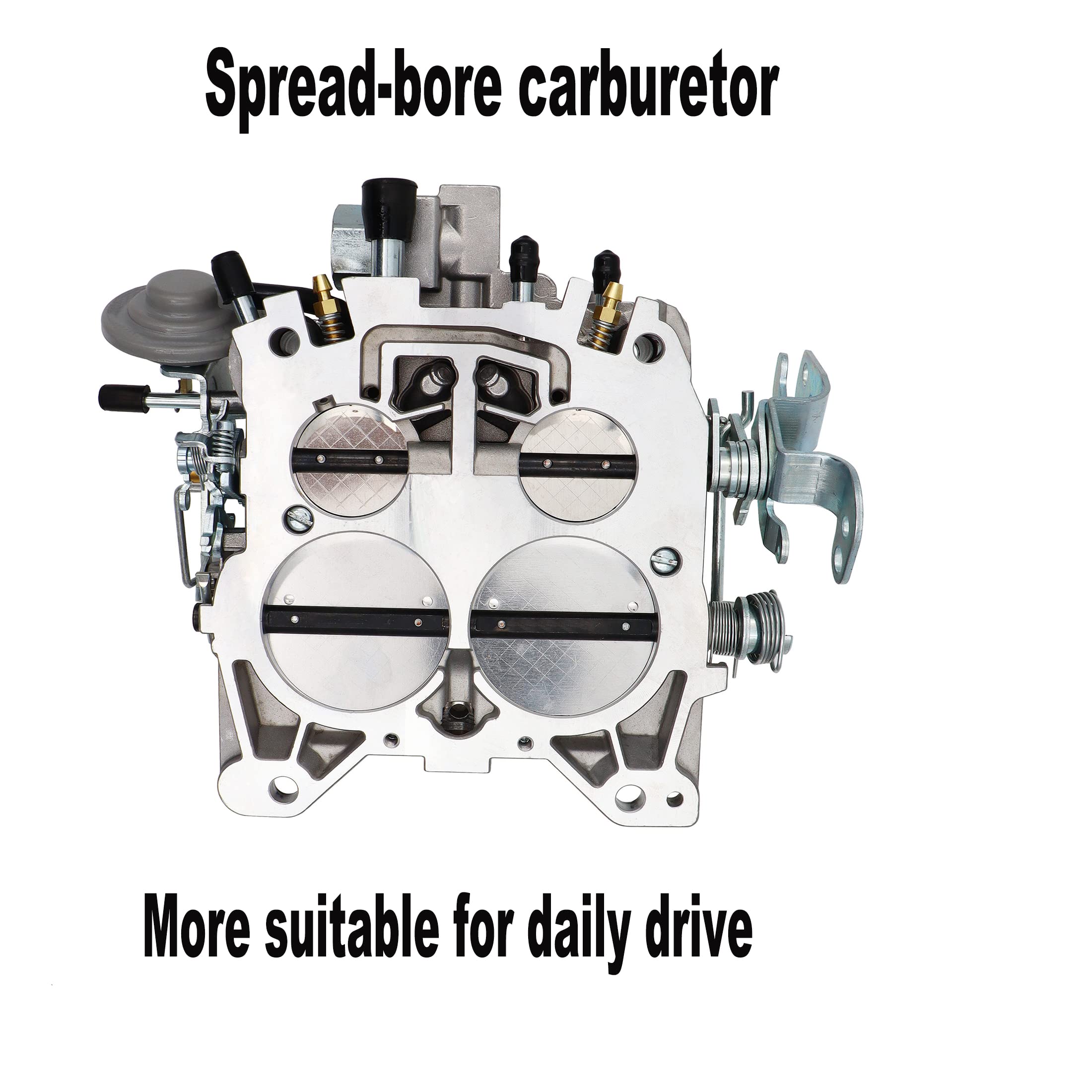

The Quadrajet-style spread-bore design is tuned to provide improved throttle response across the RPM band compared with worn original carburetors. Expect crisper acceleration and a broader usable torque curve after proper jetting and adjustment, with particular gains in midrange drivability for daily driving situations.

• Improved throttle response when properly tuned
• Wider power band for street driving and cruising
• Calibrated fuel curve for general performance applications
• May need professional tuning for peak efficiency

Who is this for: This THUNDERMINGO 4-barrel replacement is aimed at classic Chevy and GMC owners restoring or upgrading 1966–1979 small- and big-block V8s who want a reliable, serviceable Quadrajet-style carburetor. It suits weekend restorers, daily drivers, and performance hobbyists comfortable verifying fitment, making tuning adjustments, or working with a mechanic to dial in jetting and idle settings.
